BOOM DETAILS

New – BIK Tree-Care Series TC-78 (23.5 ton/m): 7-hydraulic extensions to 78’ vertical) w/extra grapple extn

Vertical Capacity: 2,900 lb at 78’ vertical reach HORIZONTAL Capacities: 8,500 lb at 14’, 5,600 lb at 20’, 4,020 lb at 26’, 2,230 lb at 40’, 1,500 lb at 55’, 1,250 lb @ 66’

• 408 Degrees Rotation on Main Hydraulic Slewing , Crane Painted PM Blue, Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom, Mounted behind cab of truck.
• DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
• PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote

BOOM DETAILS CONT…

• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
• Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord
• Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
• 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified system that prevents boom from overload
• Two functions plumbed to end of 6th extn, – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear

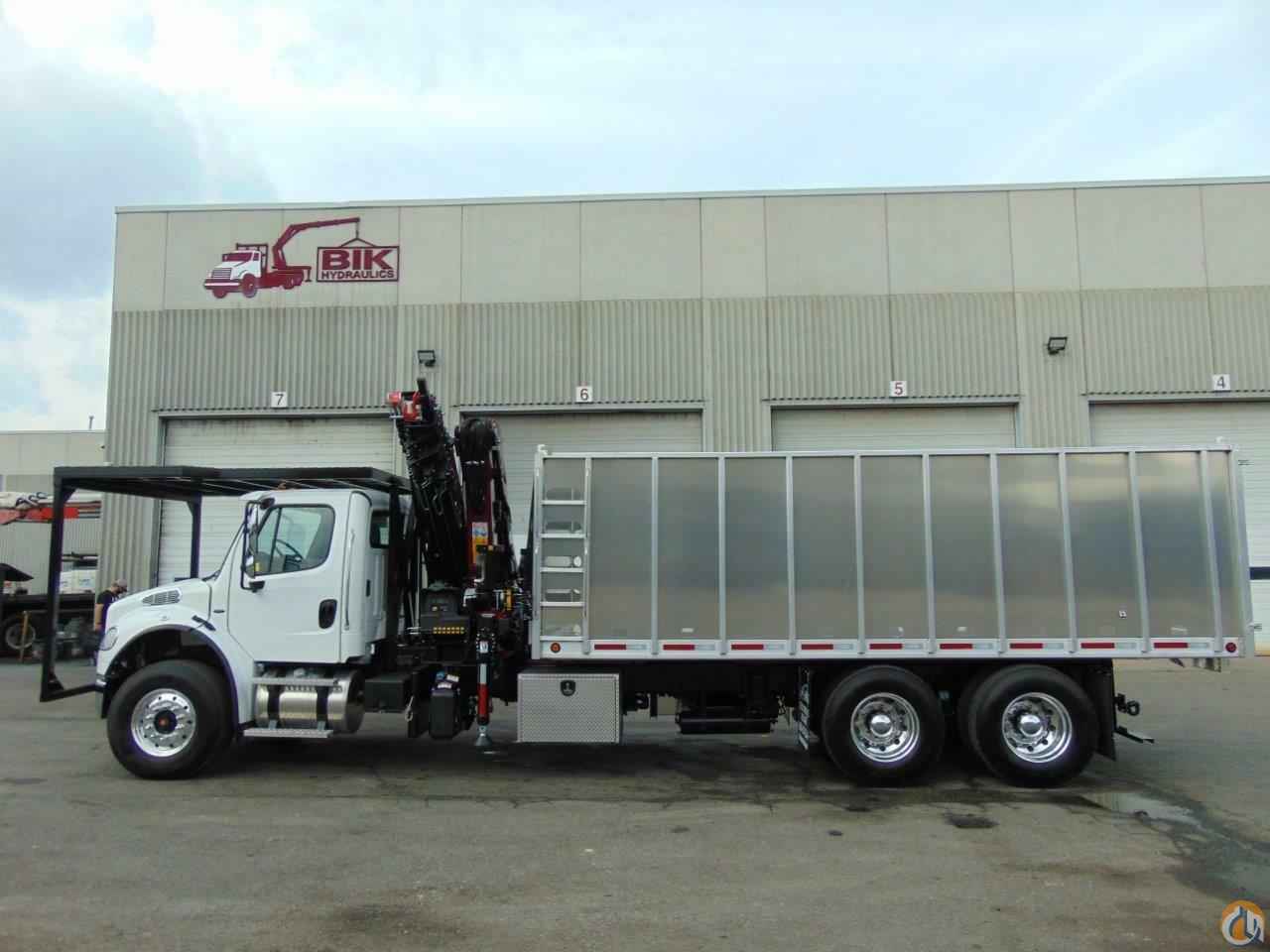

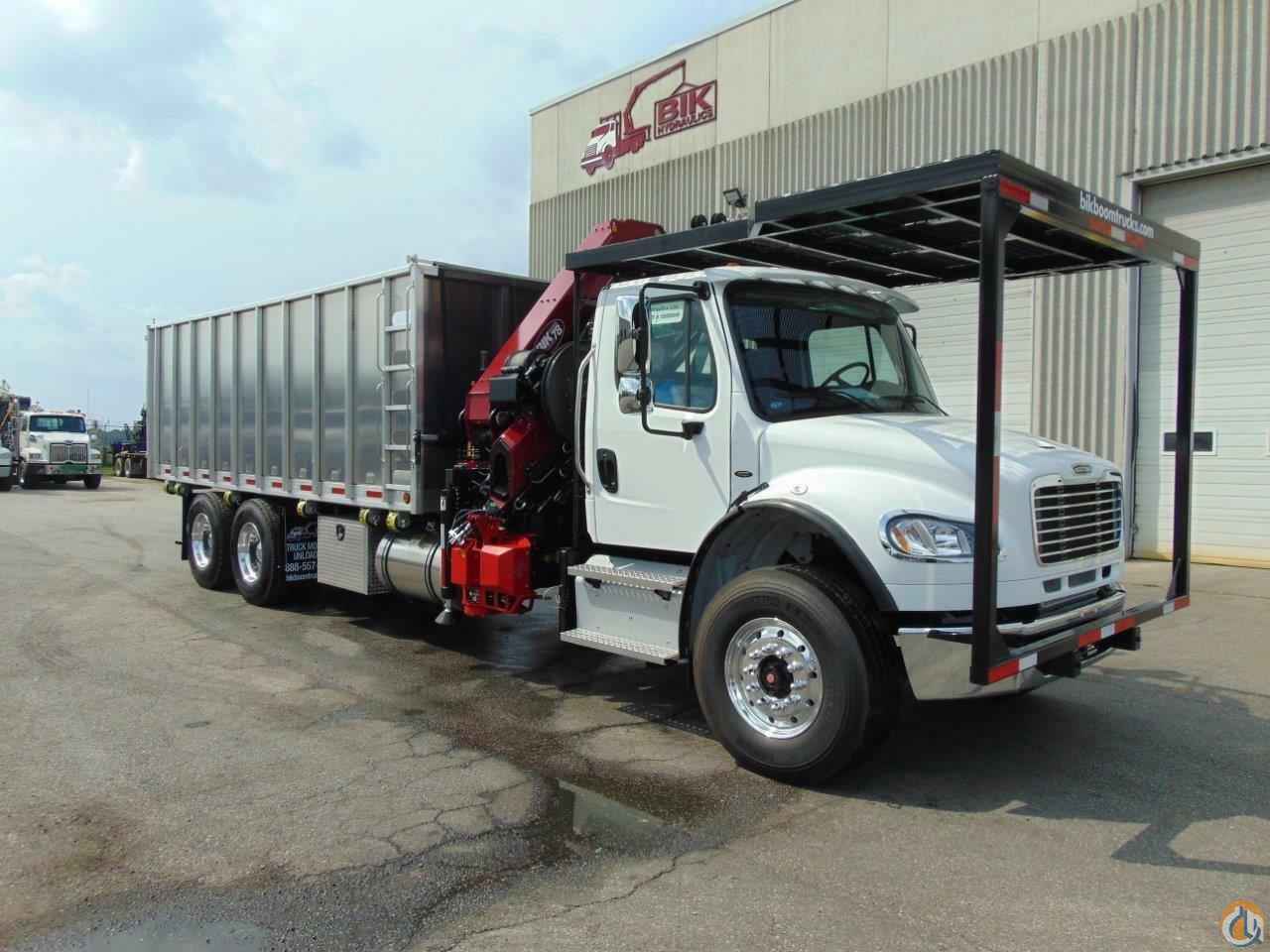

Load Tested & Installed behind cab, with integral sub-frame to meet or exceed all CMVSS Standards

Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components
