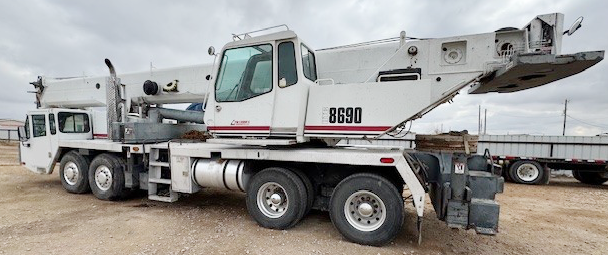

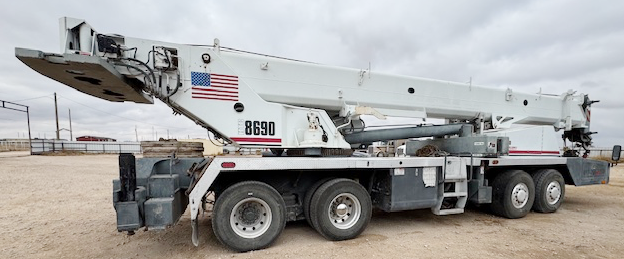

2008 Link-Belt HTC8690, 90 Ton, Hydraulic Truck Crane; CranesList ID: 1034,
- 38'-140' Five Section Full Power Boom with Auxiliary Lifting Sheave,

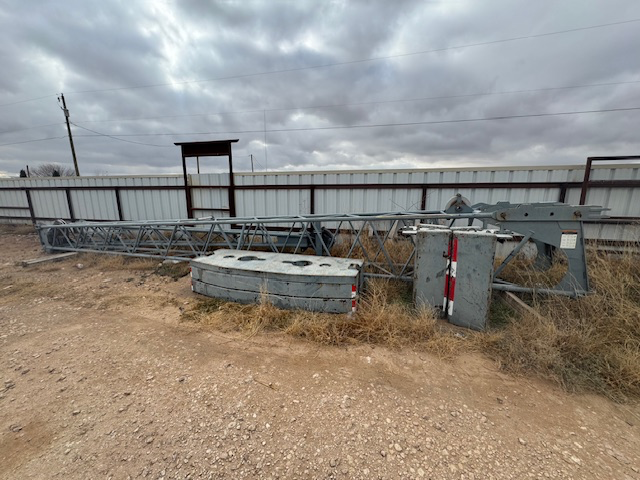

- 35'-58' Offsetable Bi-fold Fly/Jib (2°, 15°, 30°, 45°),
- Main and Auxiliary Winches with 3/4" Wire Rope,
- Boom Angle-Length Indicator, Drum Rotation Indicator, Two Speed, Link-Belt Rated Capacity Limiter (RCL) with Anti-Two Block,

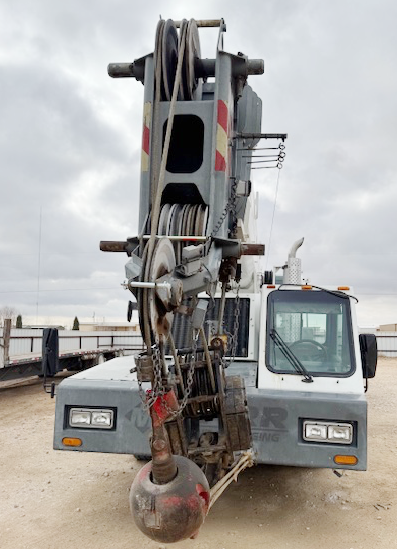

- Hook Ball and Hook Block,
- 39,500# Full Counterweights hydraulically removable controlled from the operator's cab,
- Roof hatch window,
- 8' 6" Wide 8 X 4 Link-Belt Carrier,
- Detroit Diesel Engine, (Pre-Emmissions),
- Automated ZF AS Tronic ZF12-AS-2302 12 Speed Forward and 2 speed reverse Manual Transmission - SUBJECT TO FINAL CONFIRMATION,
- Front Tires: 445/65 R22.5 - SUBJECT TO FINAL CONFIRMATION,
- Rear Tires: 12R22.5 - SUBJECT TO FINAL CONFIRMATION,
- Front And Rear Raydan Air Link walking beam air suspension,
- Alcoa Aluminum Disc Wheels,
- (CALC) Confined Area Lifting Capacities Outriggers with hexagonal steel pontoons,
- 5th Front Hydraulic Outrigger SUBJECT TO FINAL CONFIRMATION,
- Aluminum Outrigger Pads,
- Aluminum Diamond Plate Decking.
http://www.CranesList.com,
LOCATED IN TEXAS!
