Stabilizers: Pivoting
Lifting capacity: 10,000 lbs
Capacity at maximum height: 6,600 lbs
Lifting height: 61' 8''
Reach: 46' 4''
Engine: Deutz TCD 3,6 L4 Stage V
Rated power: 55.40 kW (75.30 hp) 2,200 rpm
Number of gears: 2/2
Hydraulic system: 350 bar (Load Sensing)
Length: 20' 12''
Width: 8' 4''
Ground clearance: 1' 4''
Unladen weight: 28,000 lbs
Travel speed: 16 mph
Climate control as standard: No
Automatic attachment recognition: Yes

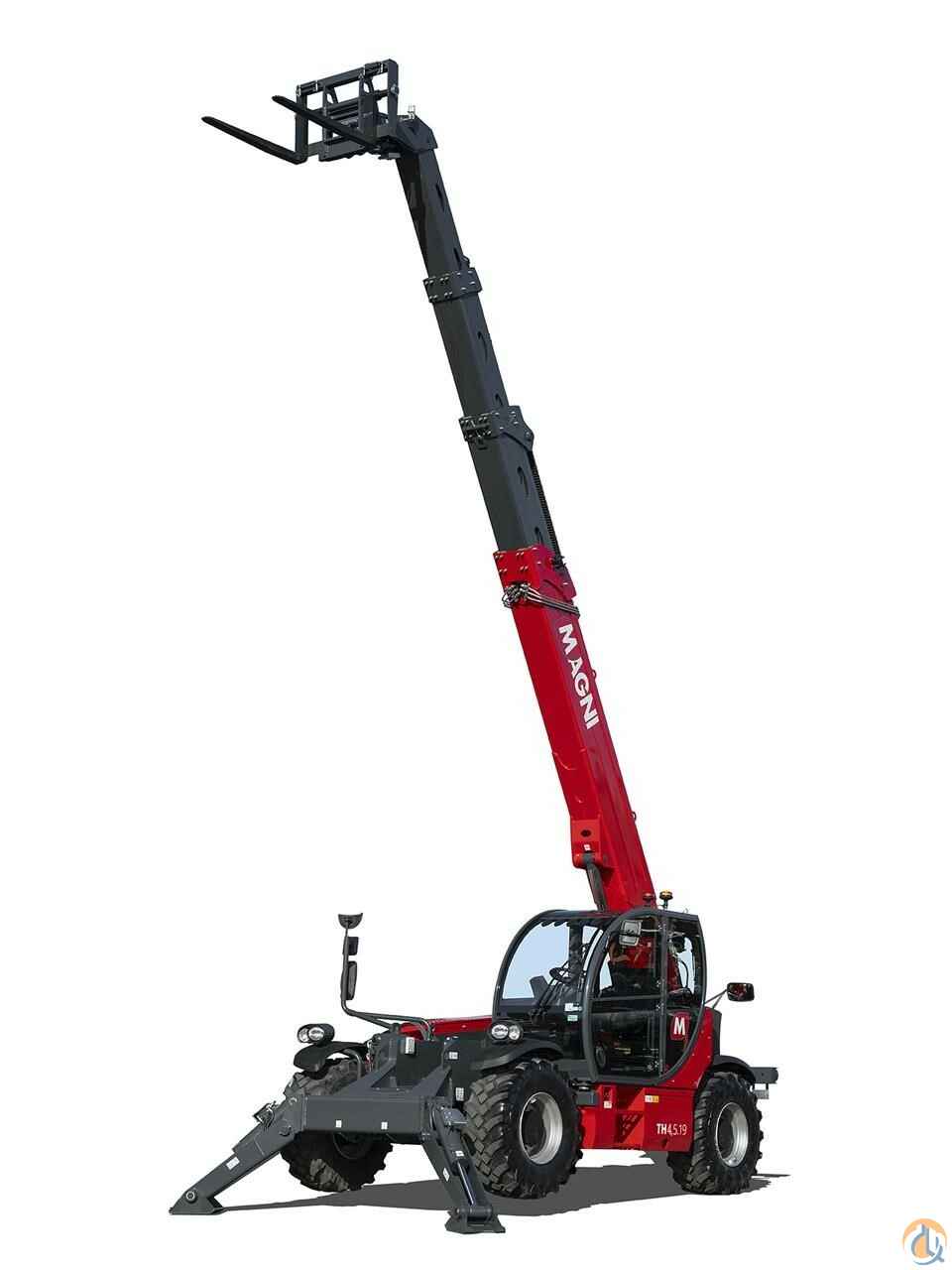

The TH 4,5.19 is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 55 kW engine, it can safely reach a height of 61 ft on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilizers.
The hydrostatic transmission offers precision and maneuverability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.
This model is equipped with the levelling system on tires allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
