Now available in Syracuse!
Stabilisers: Scissors
Lifting capacity: 13,200 lbs
Capacity at maximum height: 5,500 lbs
Lifting height: 97' 9''
Reach: 85' 4''
Engine: Volvo TAD 572 VE - Tier 4f
Rated power: 160 kW (218 hp) 2,300 rpm
Number of gears: 2/2
Hydraulic system: 350 bar (Load Sensing)
Length: 25' 7''
Width: 8' 4''
Ground clearance: 12''
Unladen weight: 48,060 lbs
Travel speed: 25 mph
Rotation: 360° (continue)
Climate control as standard: Yes
Automatic accessory recognition: Yes
Reversable fan drive: Yes

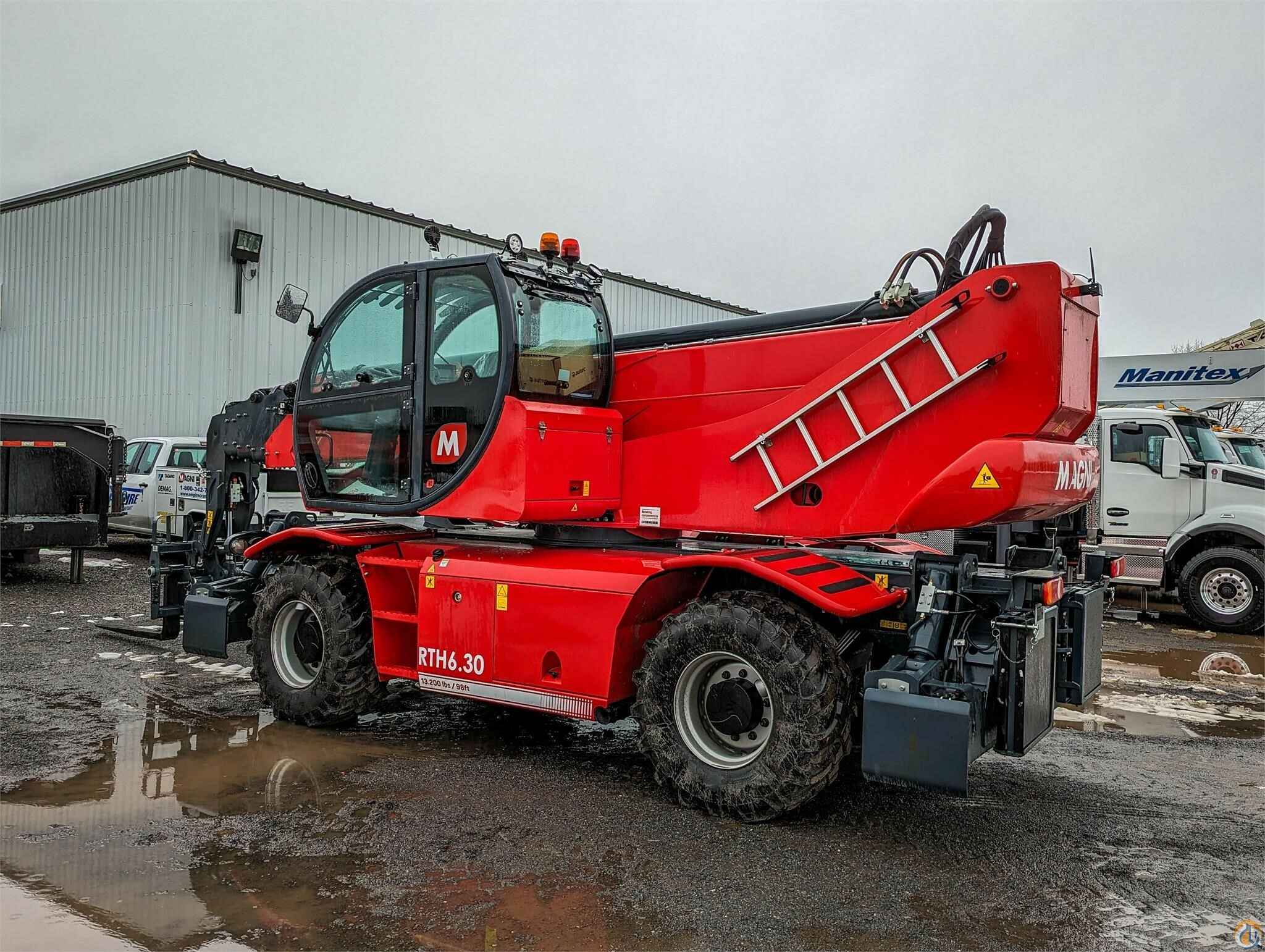

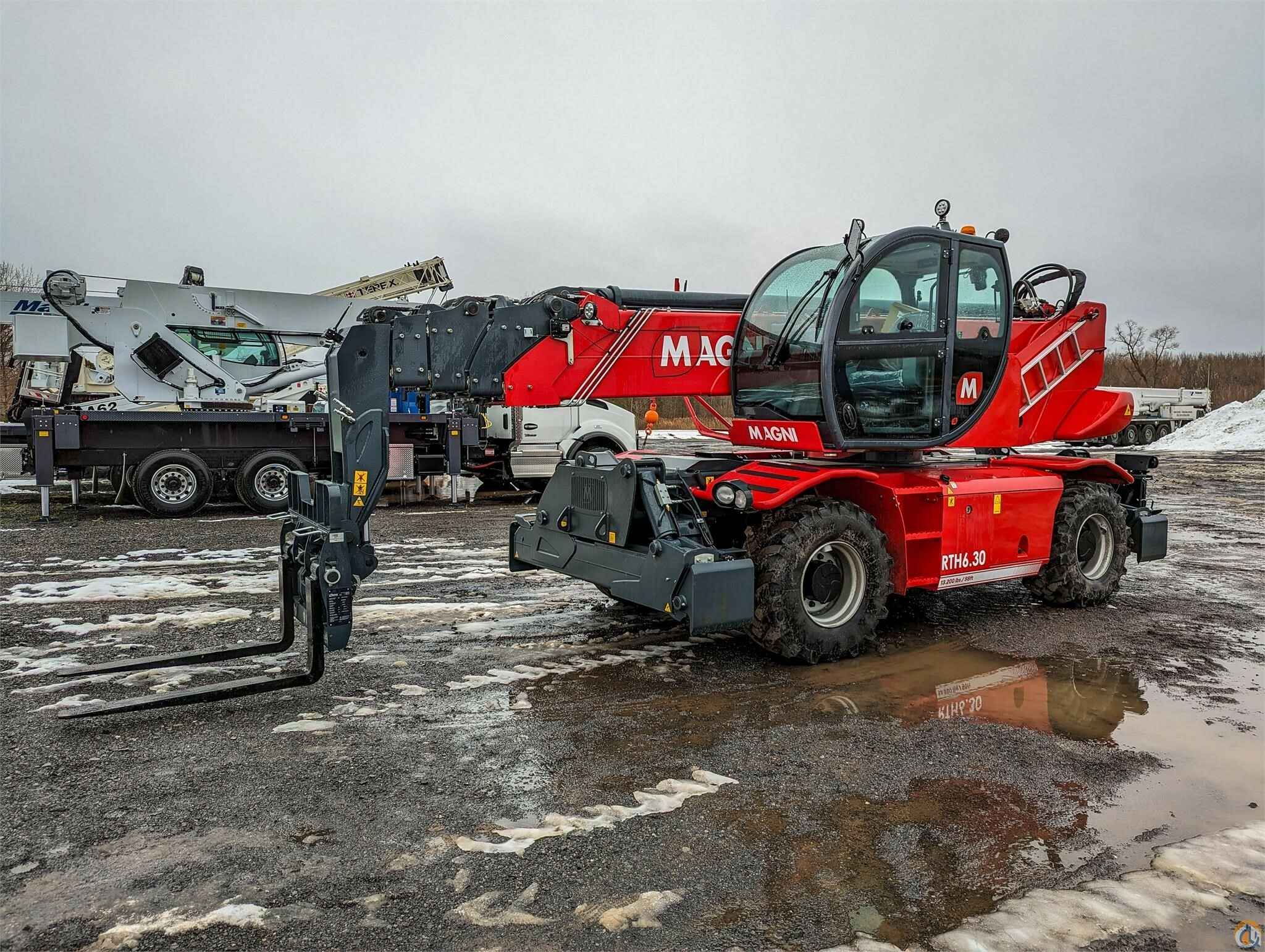

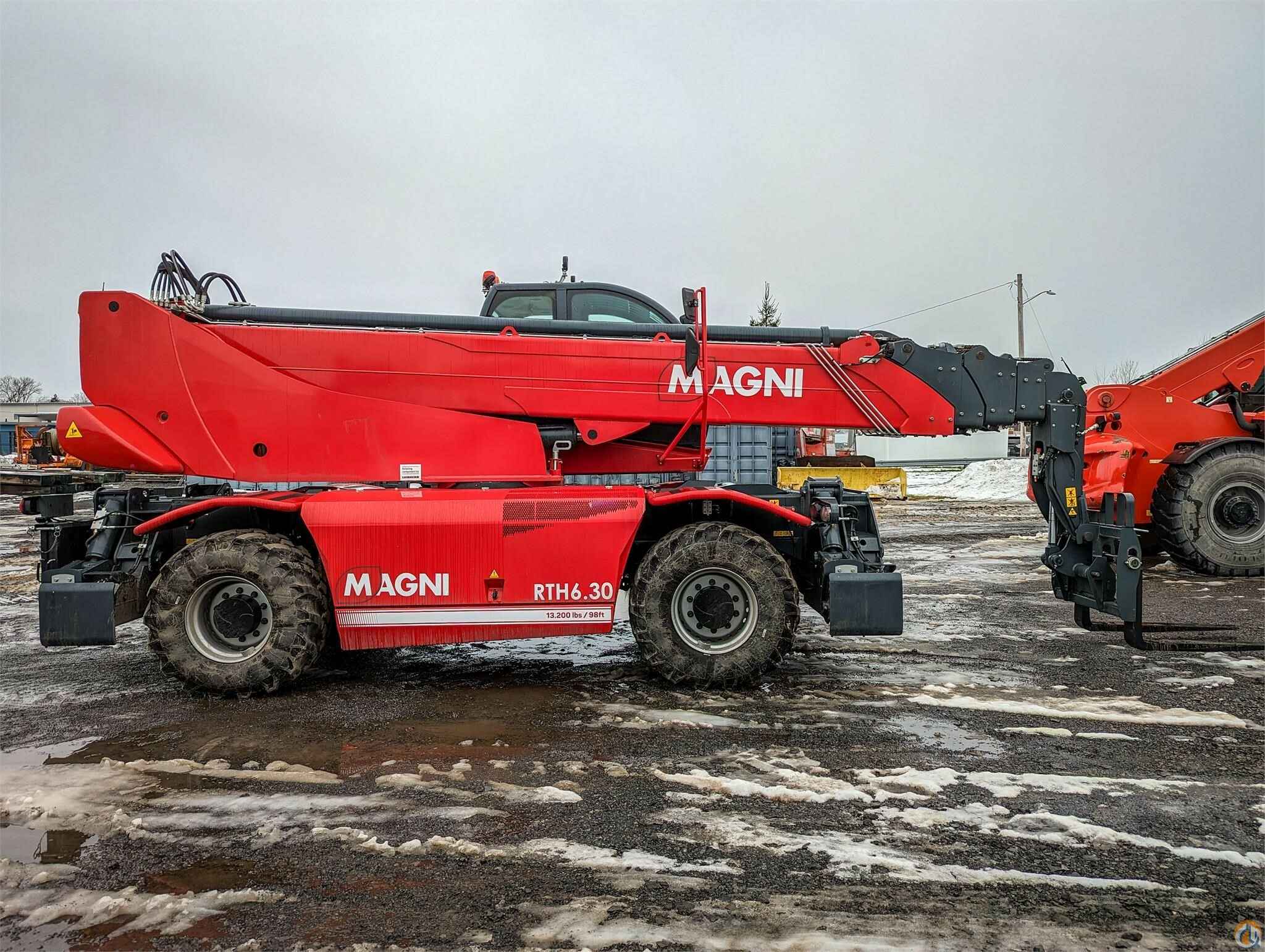

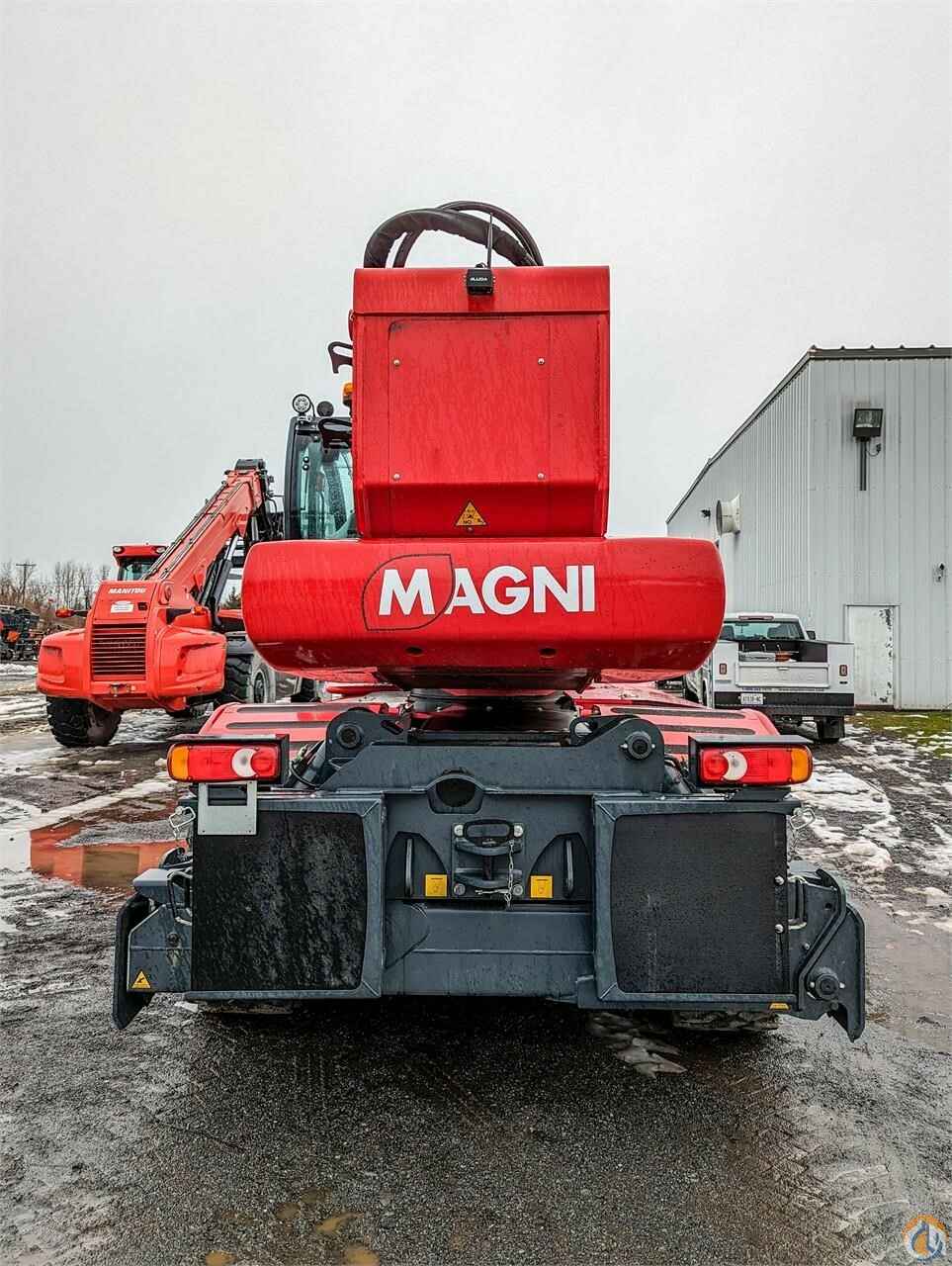

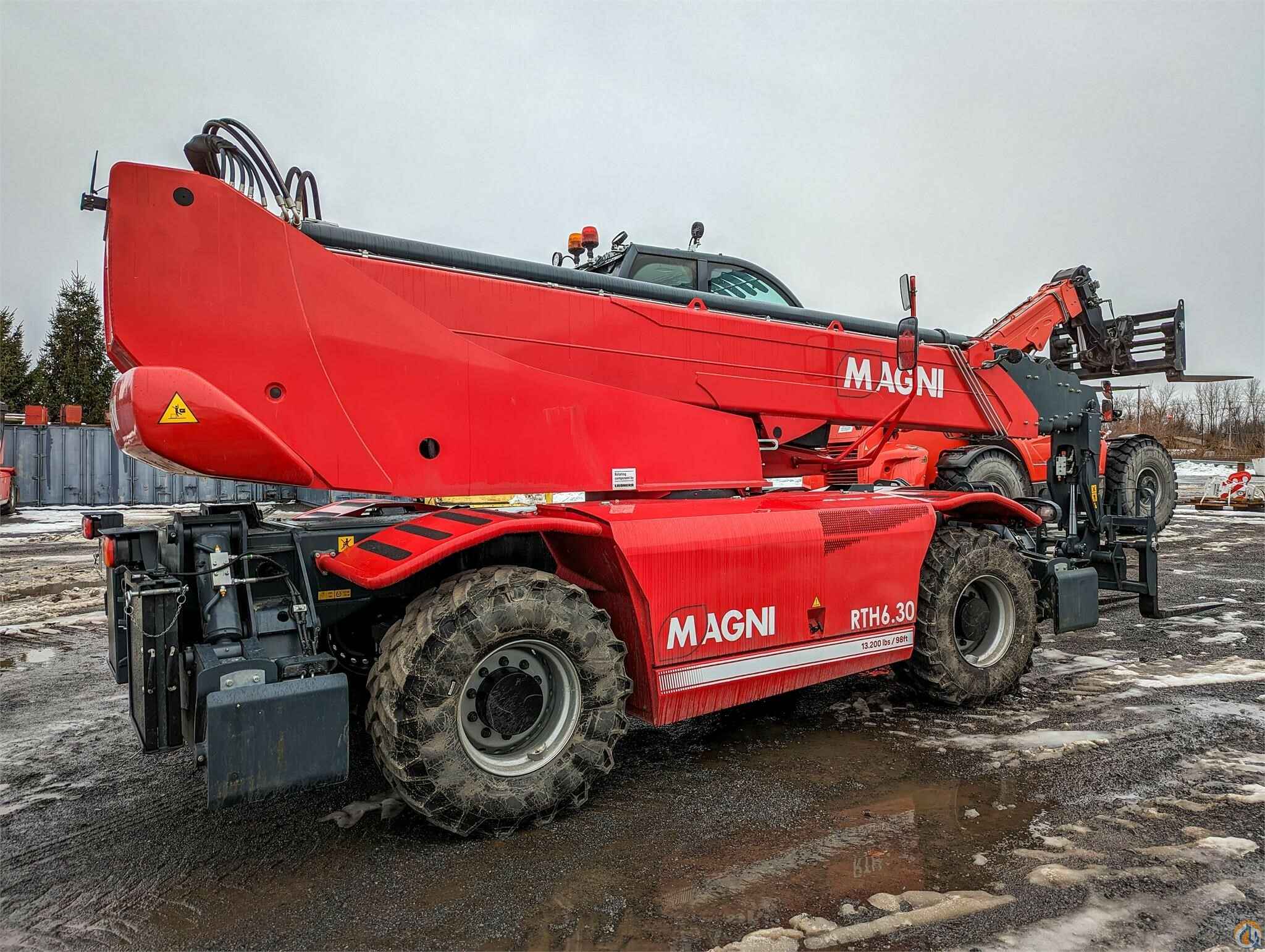

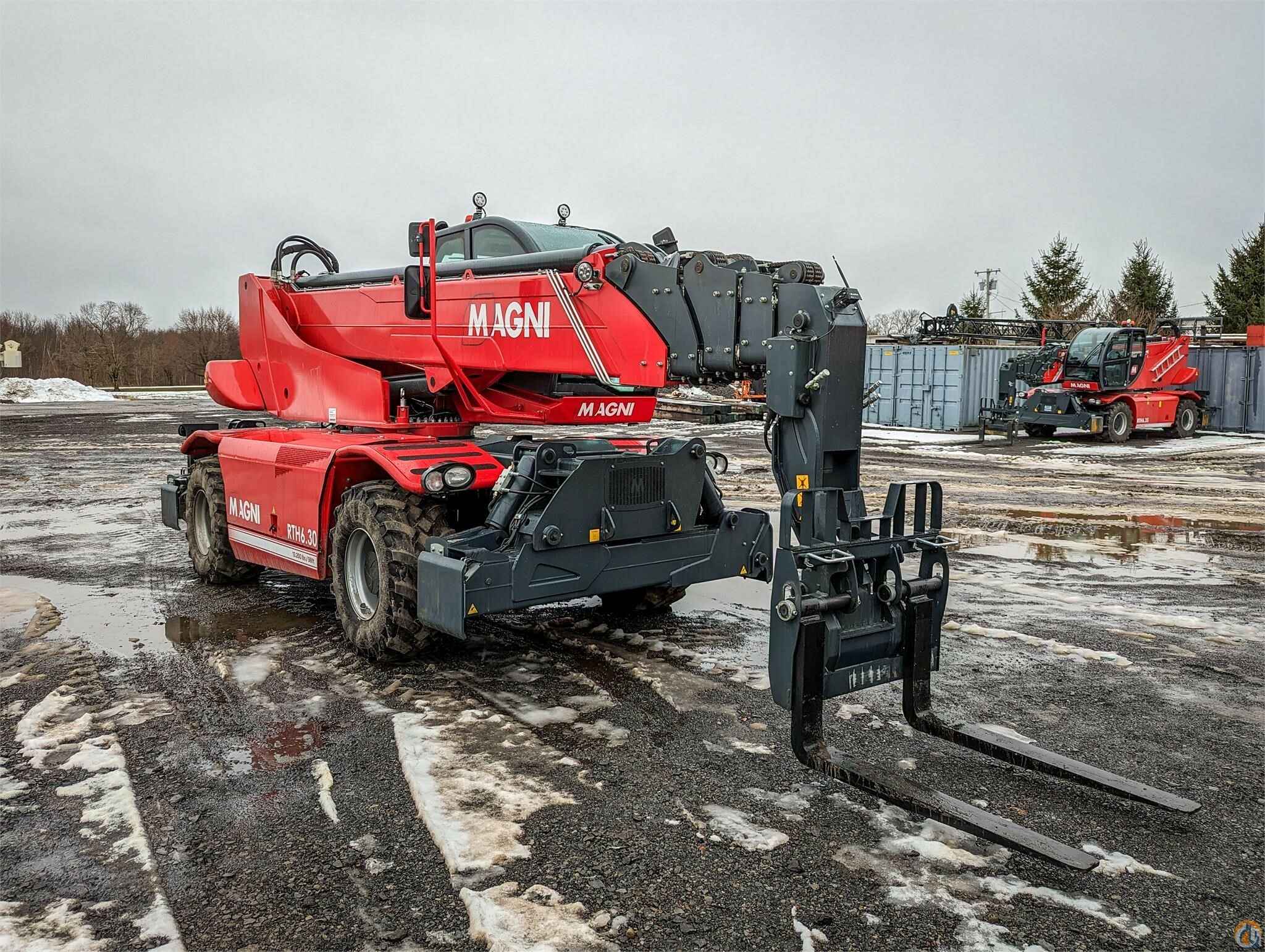

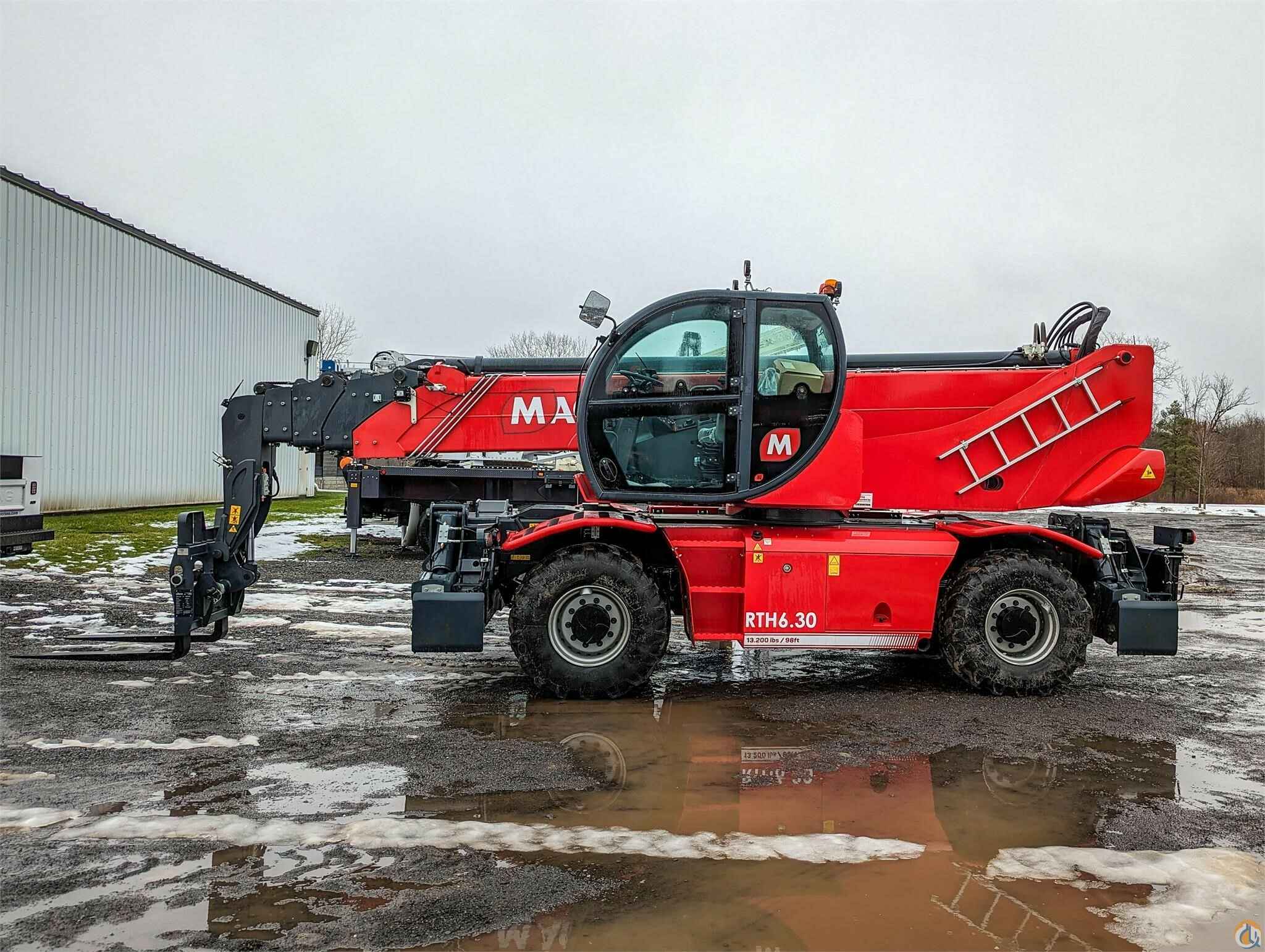

The RTH 6.30 is a tough, high-performance rotating telescopic handler. It can lift loads to a height of 98 ft and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.
