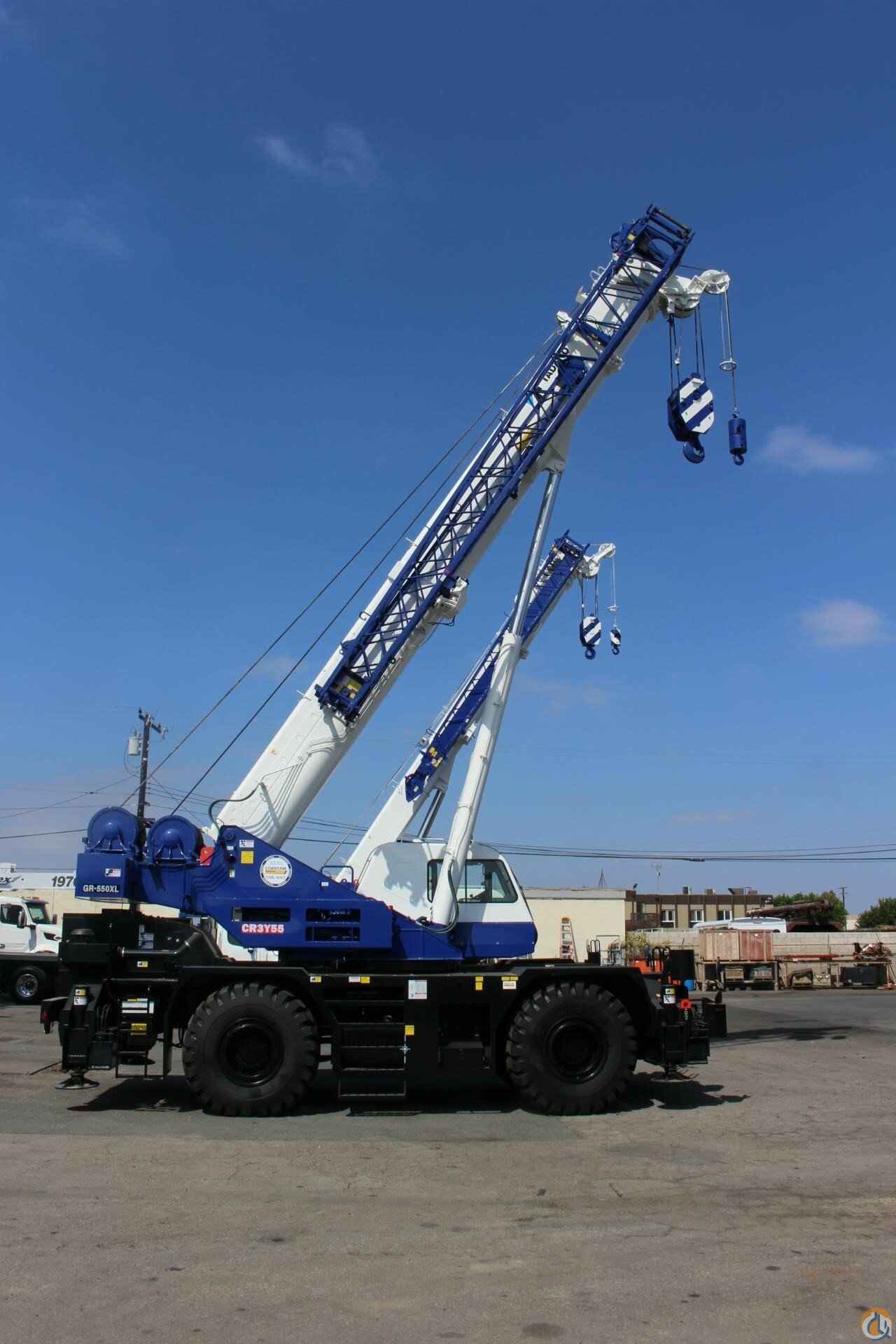

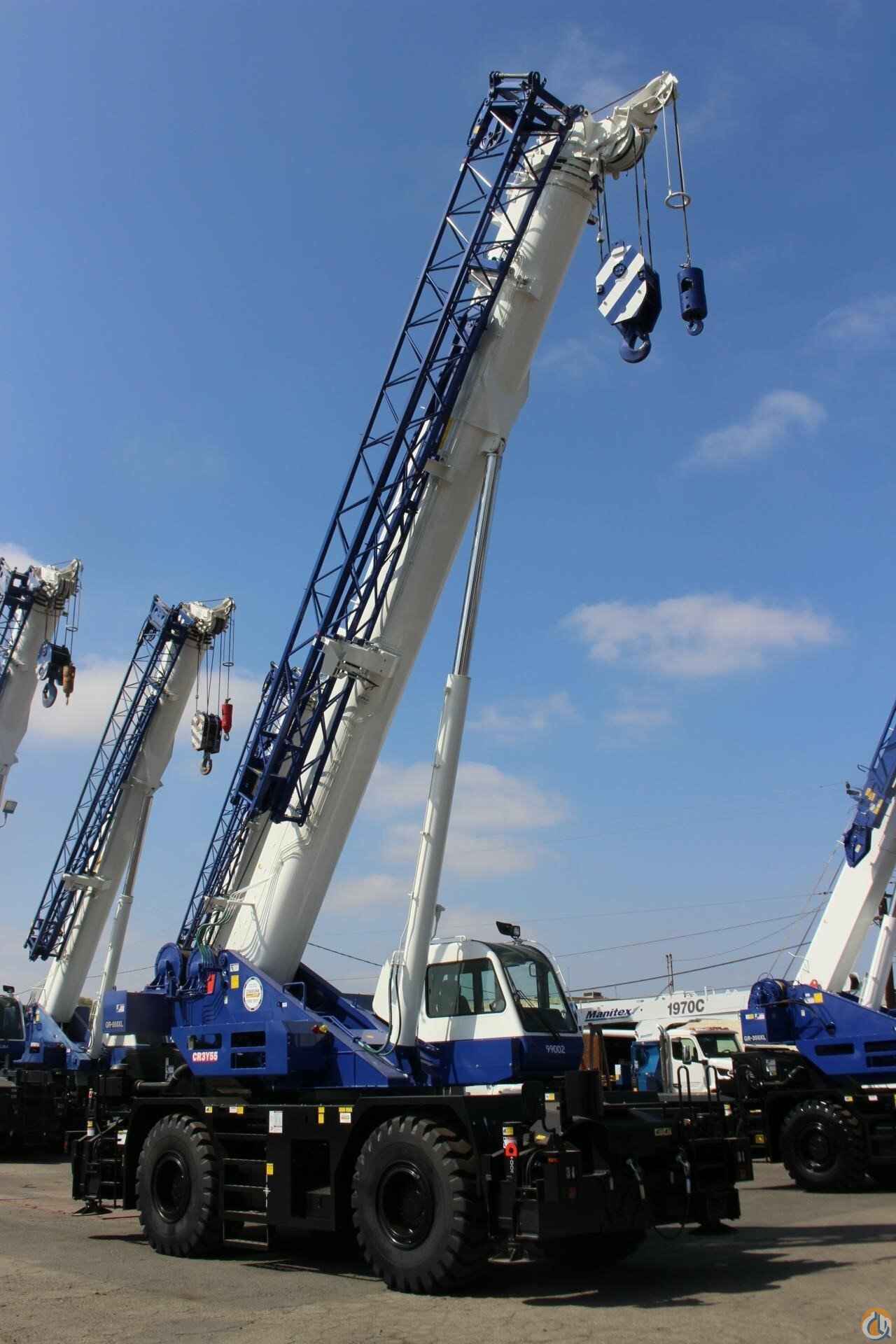

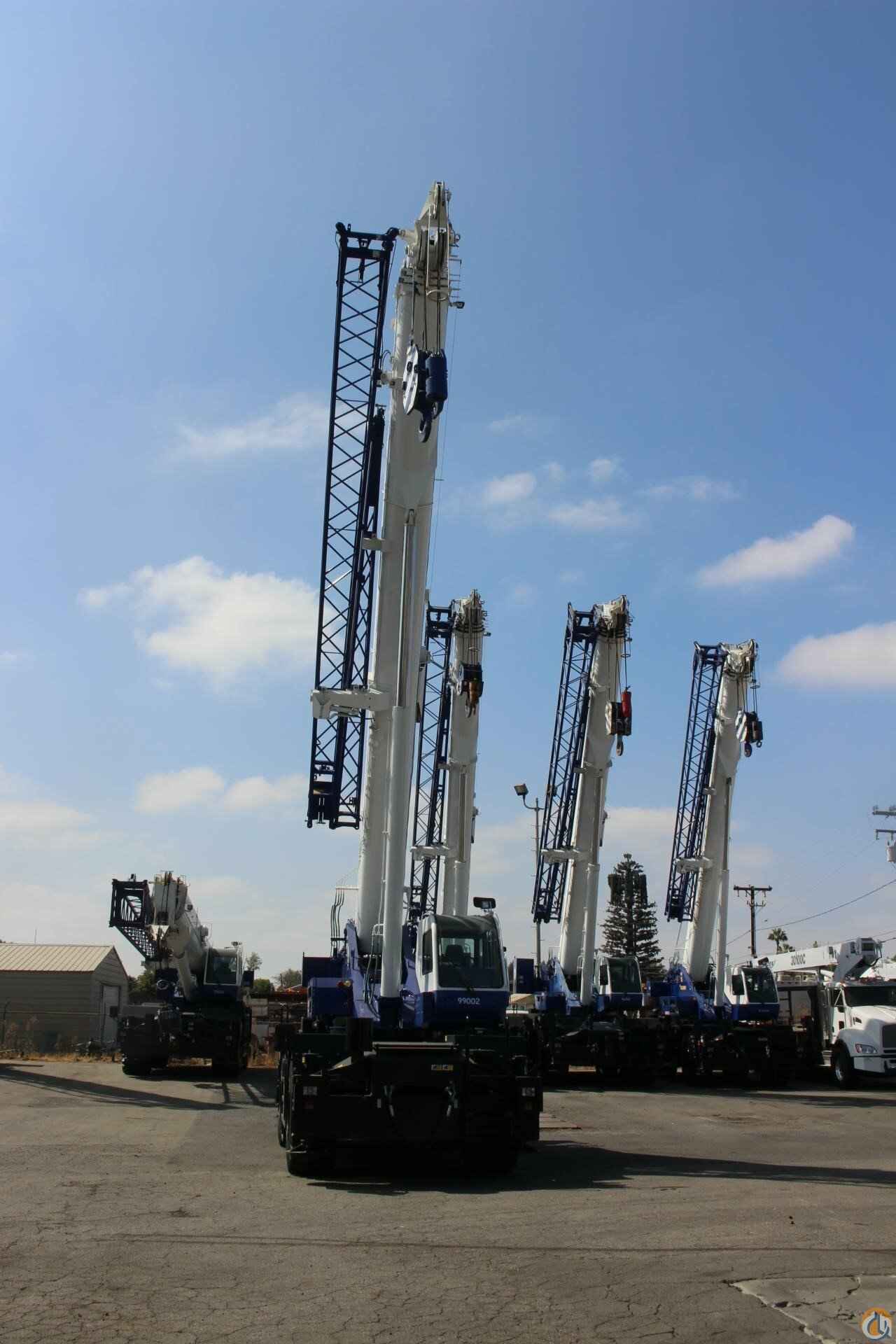

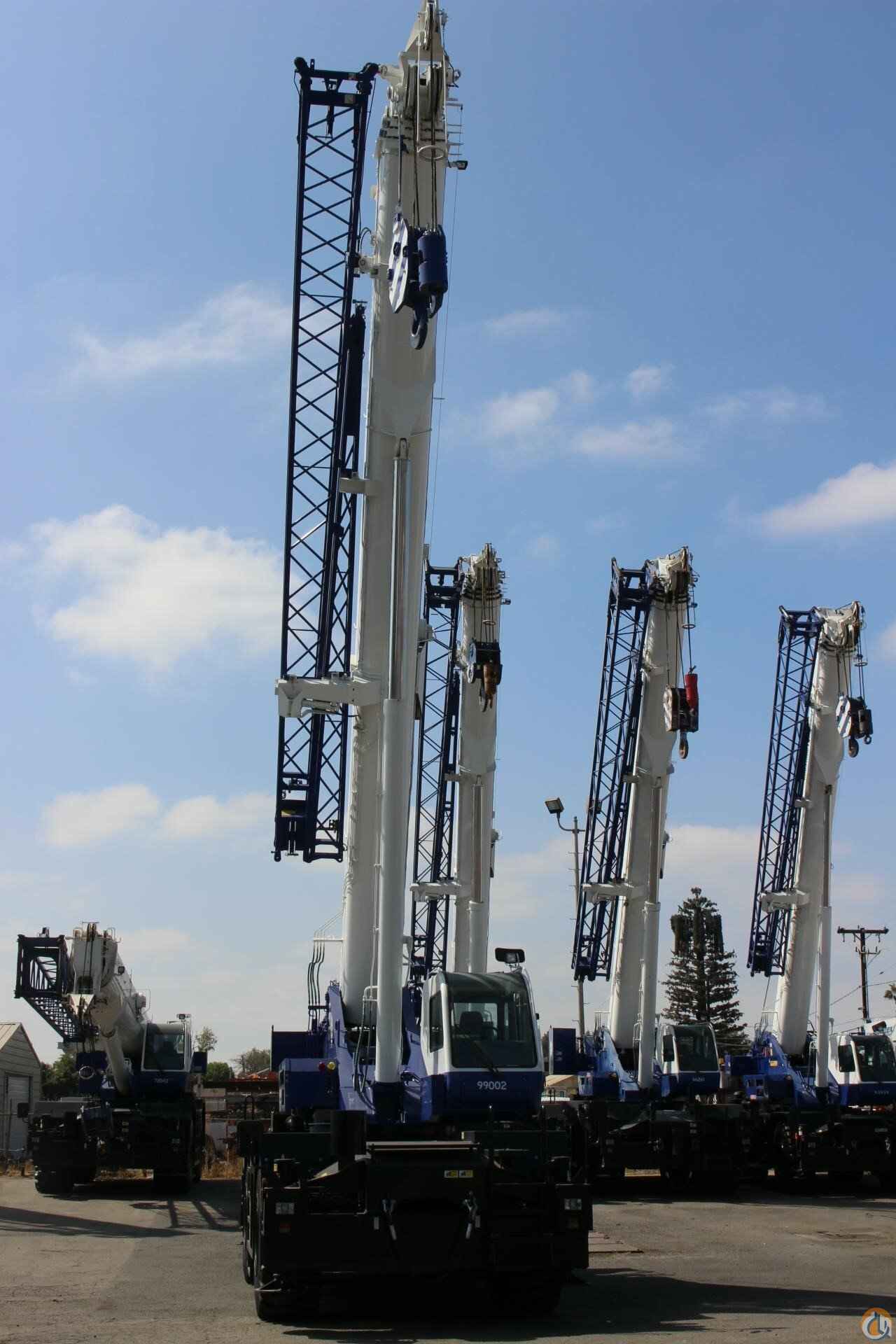

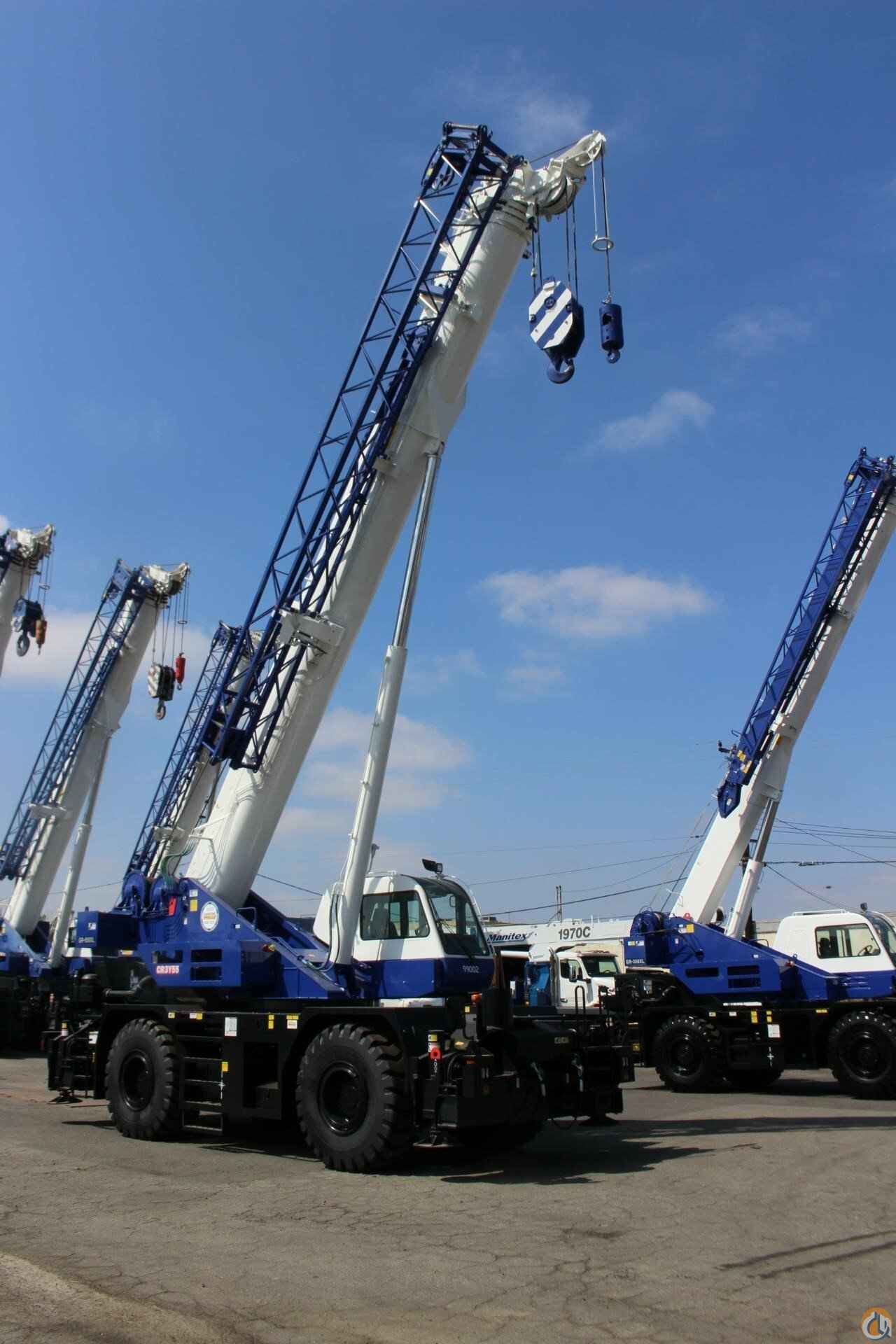

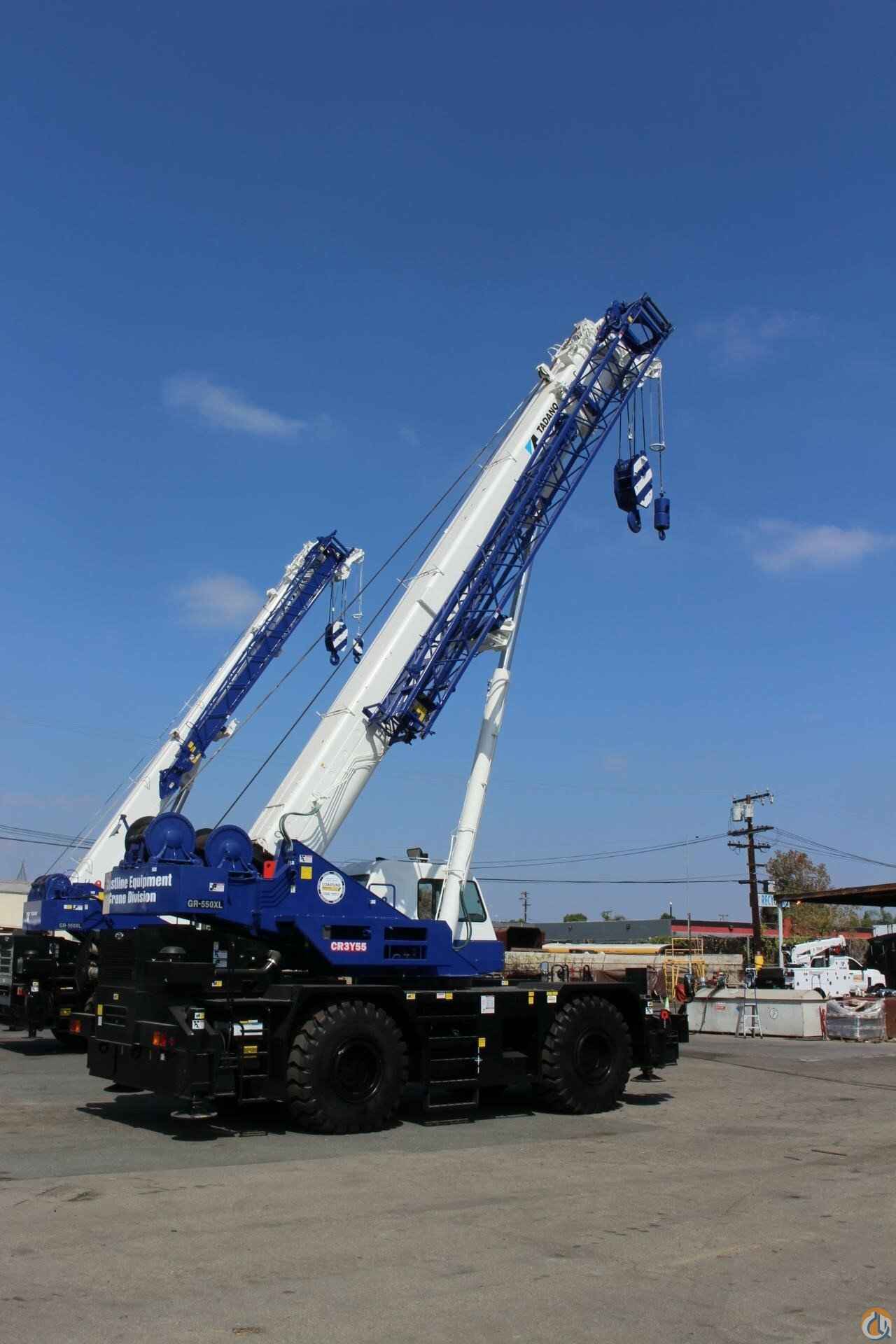

2023 TADANO GR550XL
55 TON CRANE
Standard Features:
• Four section full power synchronized boom 35.1’- 113.9’
• 28.9’ or 50’ bi fold lattice jib (tilt type) with 5°, 25°, or 45° pinned offsets and self-storing pins.
• Auxiliary lifting sheave (single top) storable
• Variable speed main hoist with grooved drum, cable follower and 633’ of ¾” cable.
• Variable speed auxiliary hoist with grooved drum, cable follower and 361’ of 3/4 “cable.
• Drum rotation indicator (audible, visible and thumper type) main and auxiliary hoist
• Anti-two block device (overwind cutout)
• Boom angle indicator
• Tadano electronic load moment indicator system (AML-C)
• Outrigger extension length detector
• Electronic crane monitoring system
• Tadano twin slewing system and 360° positive slewing lock
• Self-centering finger control levers with pilot control
• Control pedals for boom elevating and boom telescoping
• 3-way adjustable cloth seat with armrests, high back and seat belt
• Tilt telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• Rear view mirrors (right and left side)
• Mirror for main and auxiliary hoists
• Cigarette lighter and ashtray
• Cab floor mat
• Pump disconnect in operator’s cab
• Hydraulic oil cooler
• Hot water cab heater and air conditioner
• Positive control
• Quick reeving type bi-fold jib
• Work lights
• Independent controlled outriggers
• Four outrigger extension positions
• Self-storing outrigger pads
• Cummins QSB6.7 turbo charged after cooled engine 270HP with exhaust brake
• Electronic controlled automatic transmission driven by torque converter
• 4 X 4 X 4 drive/steer
• Non-spin rear differential
• Semi-elliptic leaf springs suspension with hydraulic lockout device (front and rear)
• 23.5-25(OR) tires
• Disc brakes
• Fenders
• Air dryer
• Water separator with filter (high filtration)
• Engine over run alarm
• Back up alarm
• Low oil pressure/high water temp warning device (visual)
• Rear steer centering light
• Air cleaner dust indicator
• Full instrumentation package
• Complete highway light package
• Tool storage compartment
• Tire inflation kit
• 24 volt electric system
• 6.2 ton hook ball with swivel
• 55 ton - 5 sheave with swivel hook block and safety latch for ¾” wire rope
• Towing hooks front and rear
• Lifting eyes
• Hook block tie down (front bumper)
• Weighted hook storage compartment
• Halogen head lamp
• Telematics (machine data logging and monitoring system) with HELLO-NET via Internet
• Fuel consumption monitor
• Eco mode system
