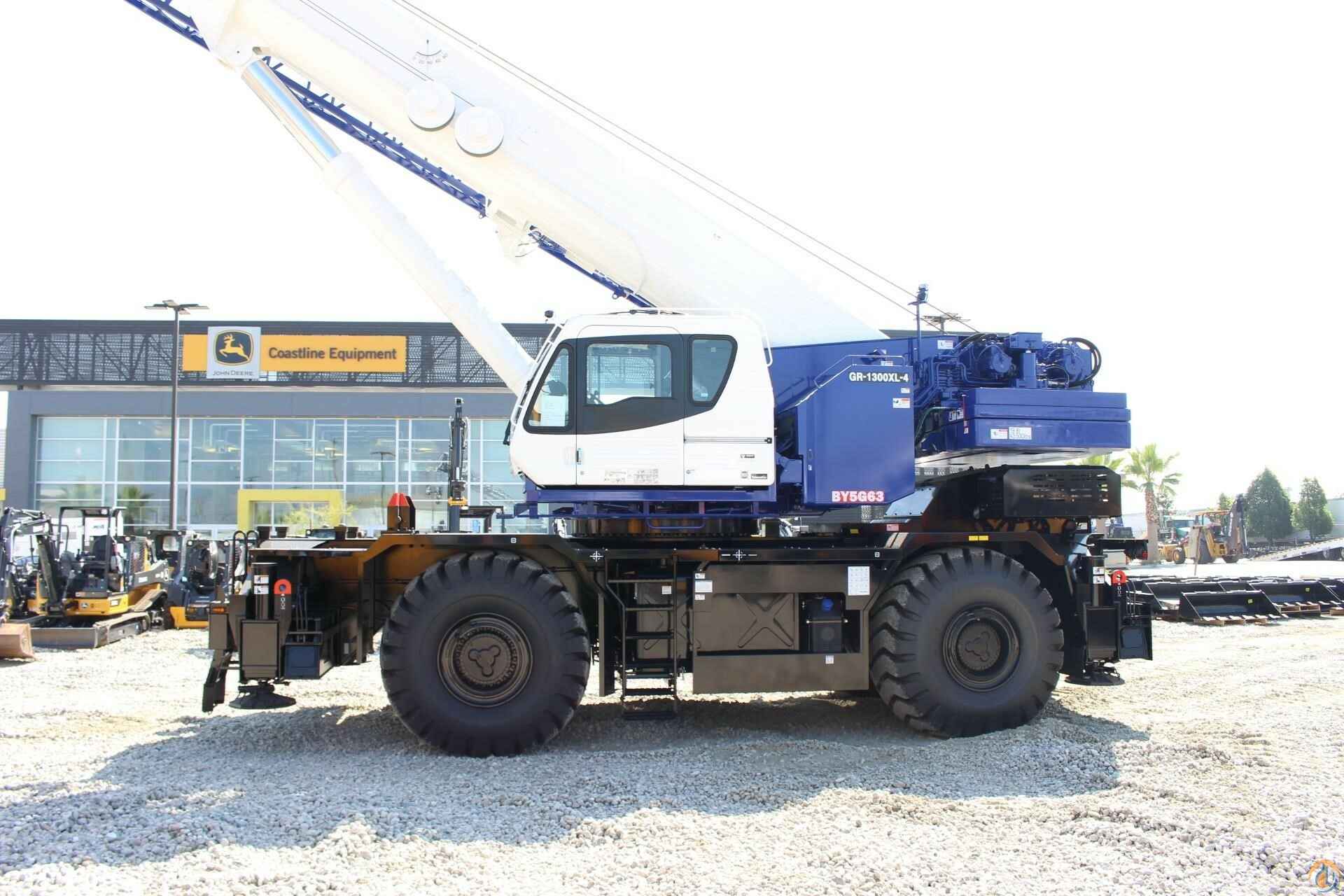

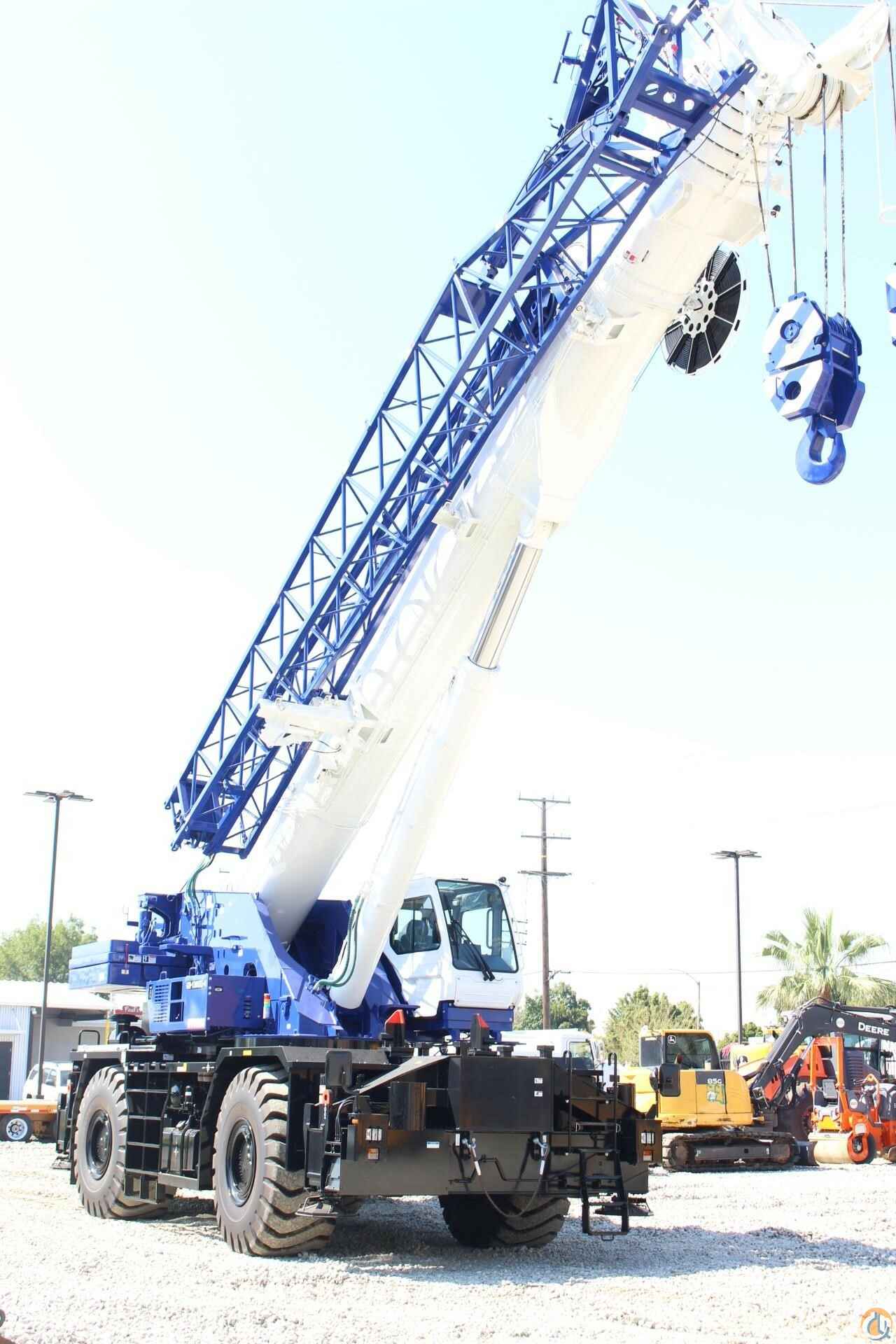

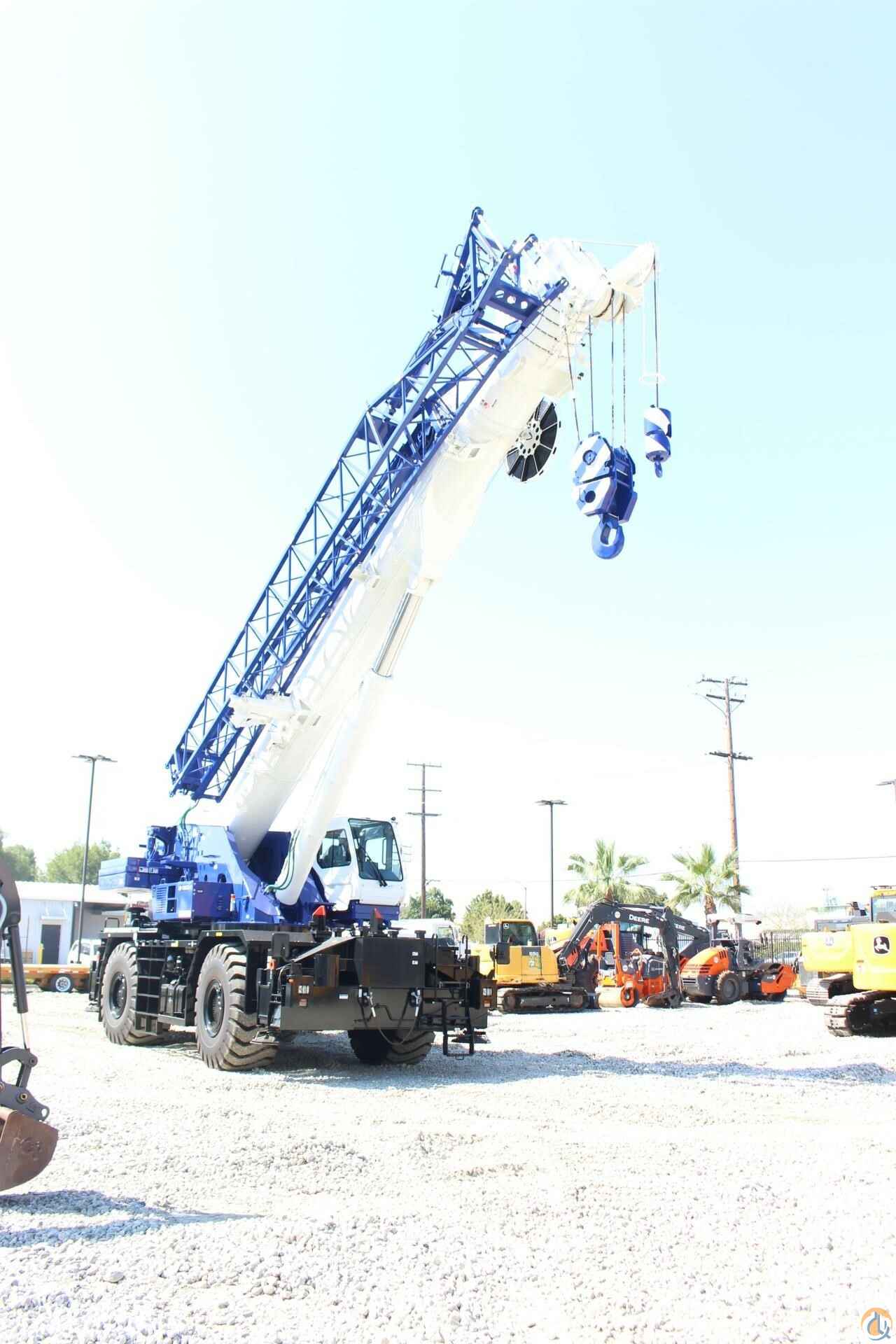

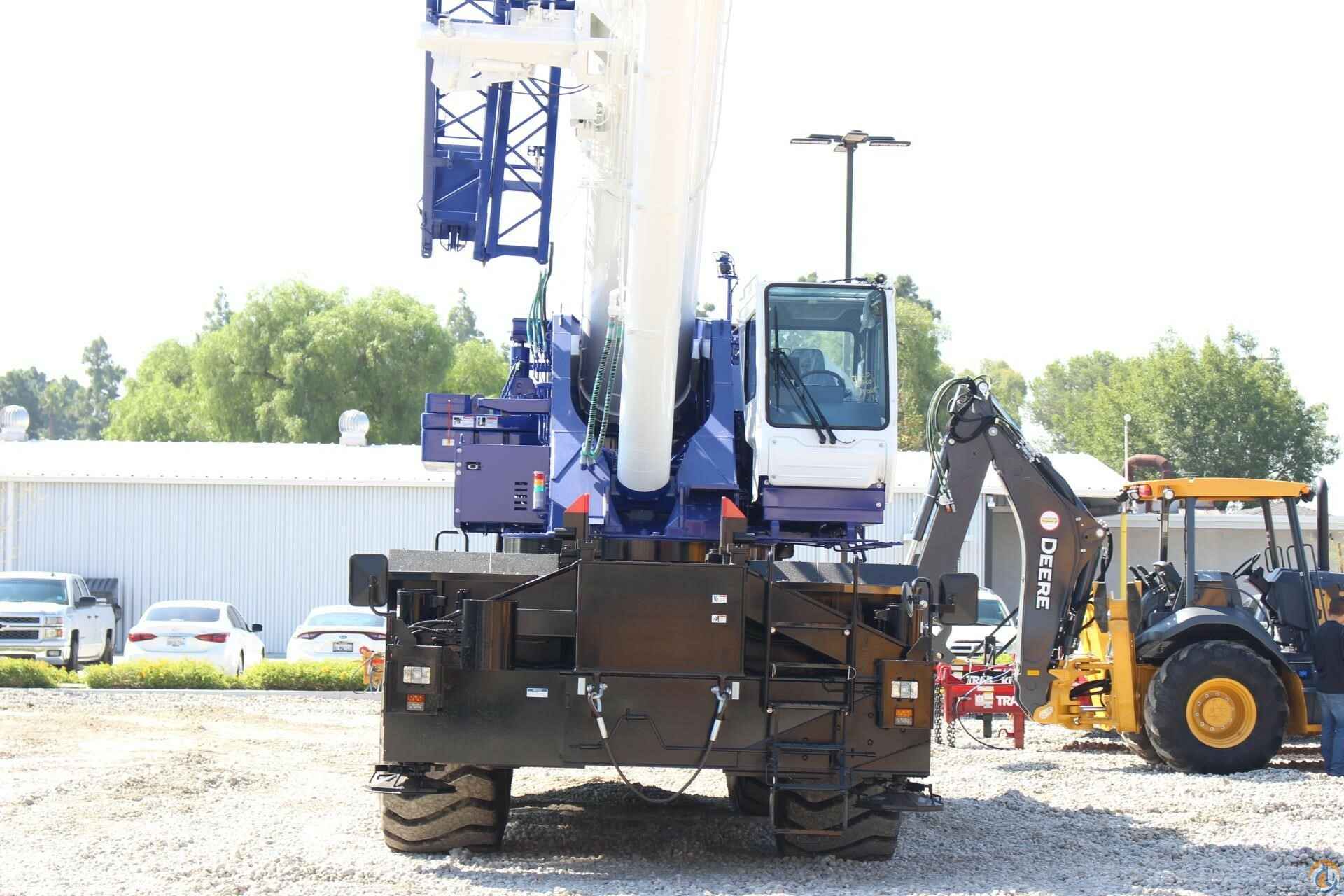

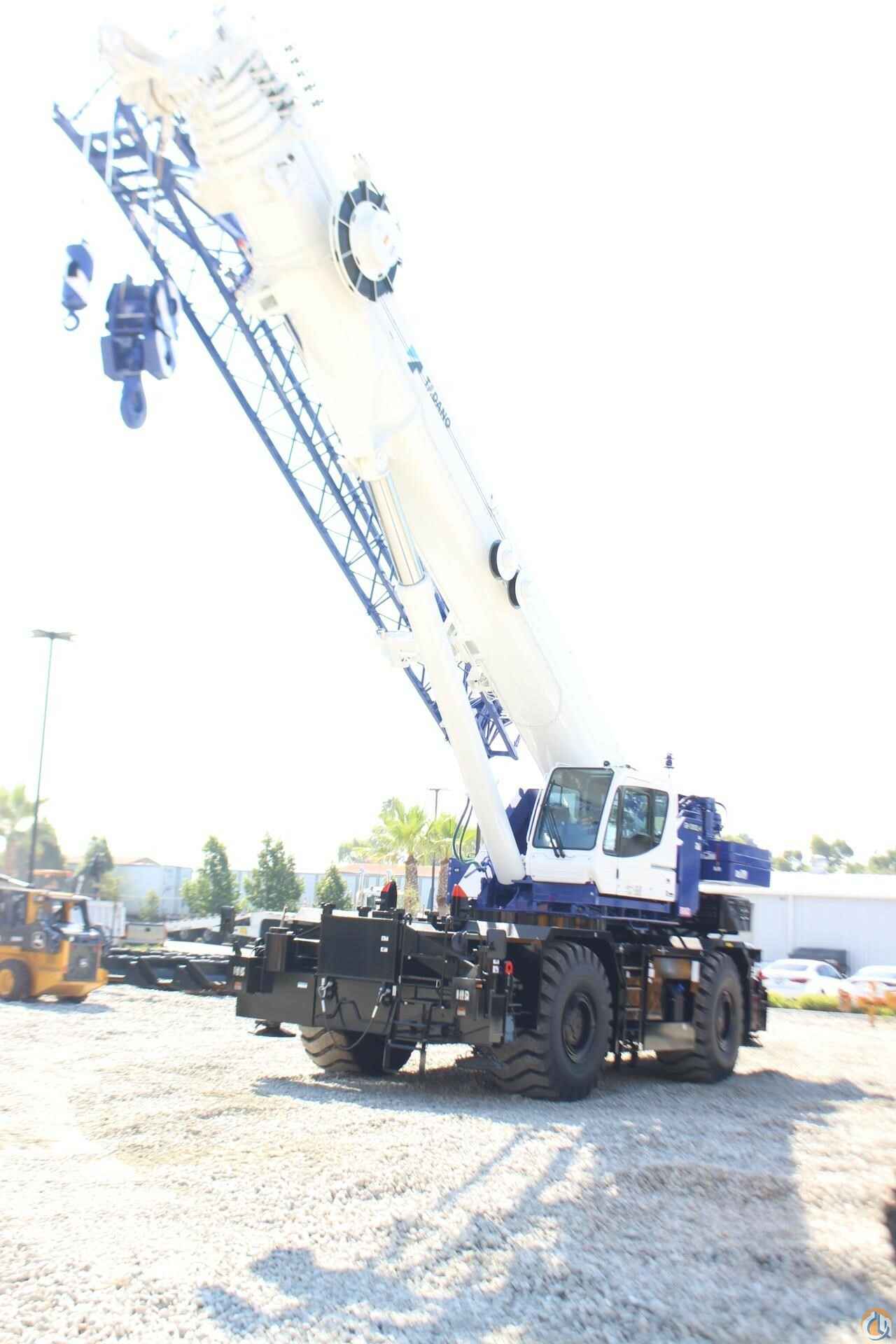

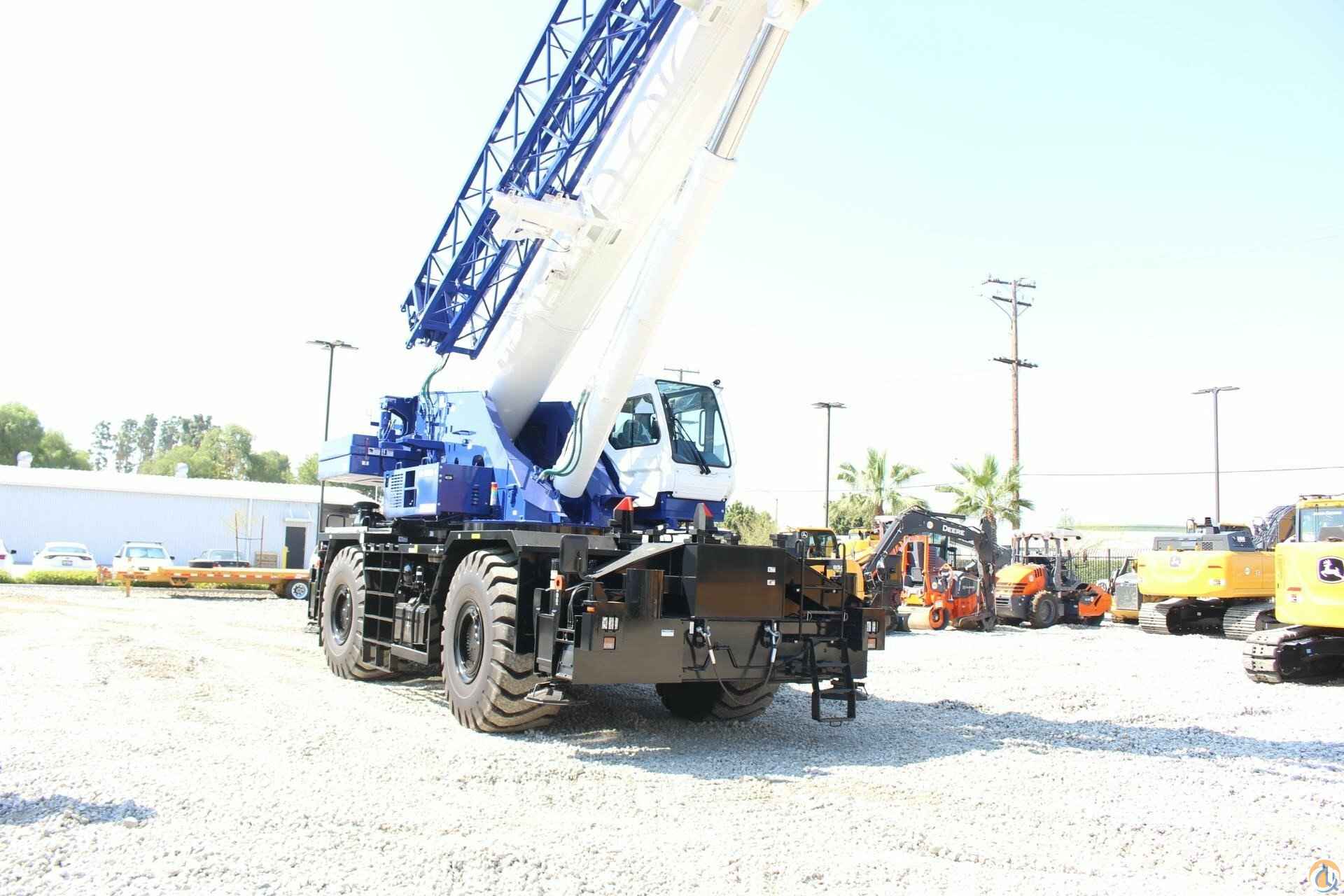

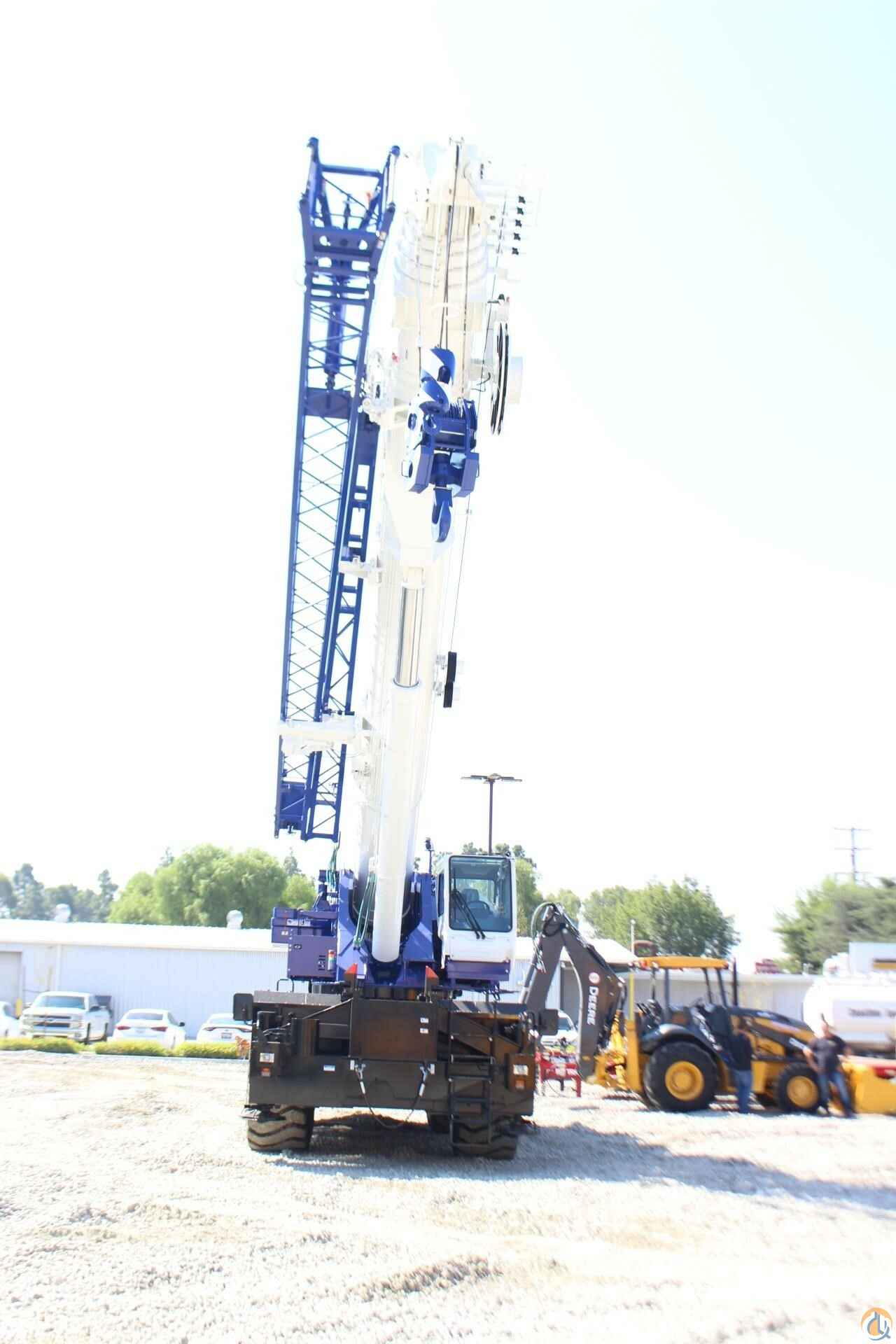

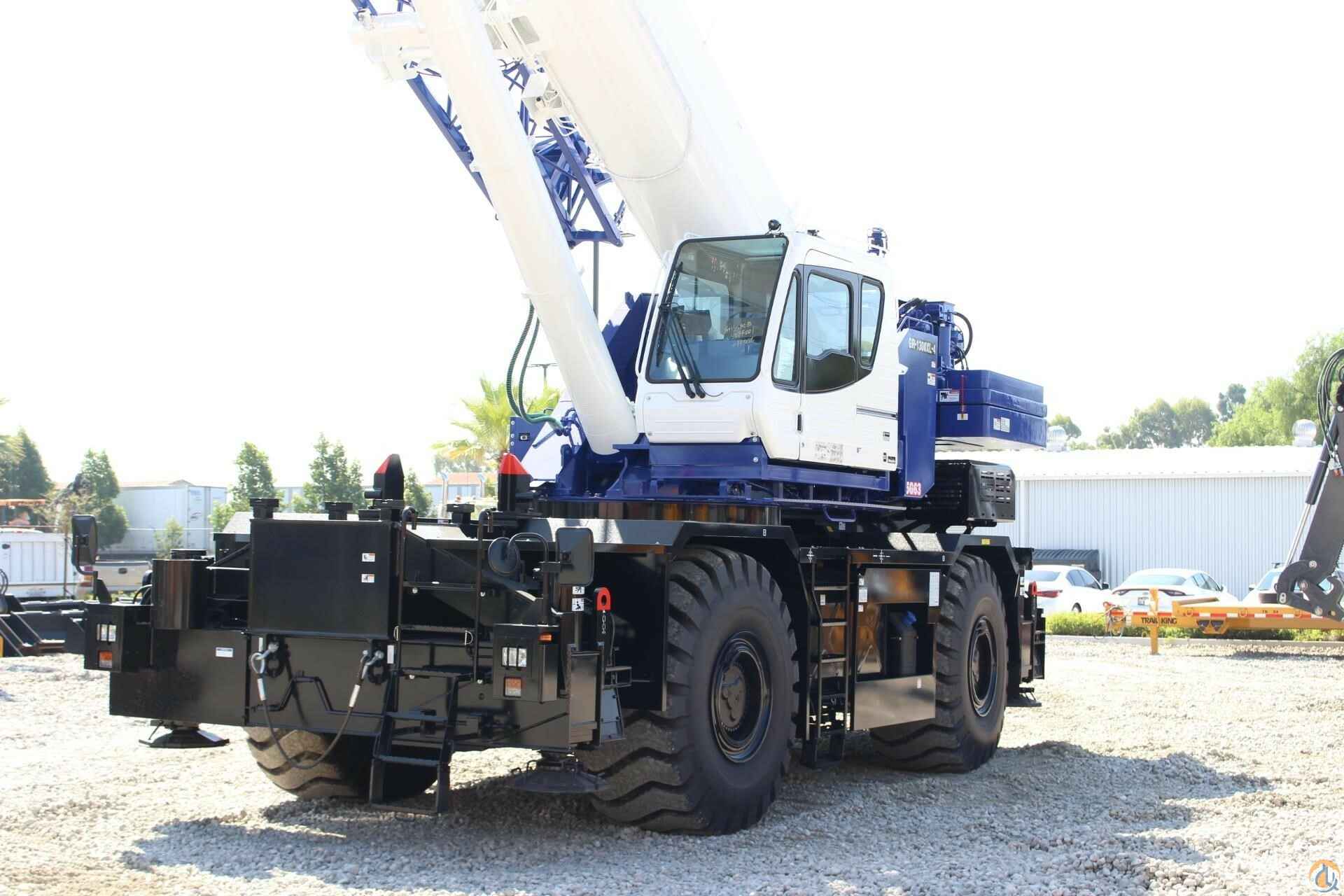

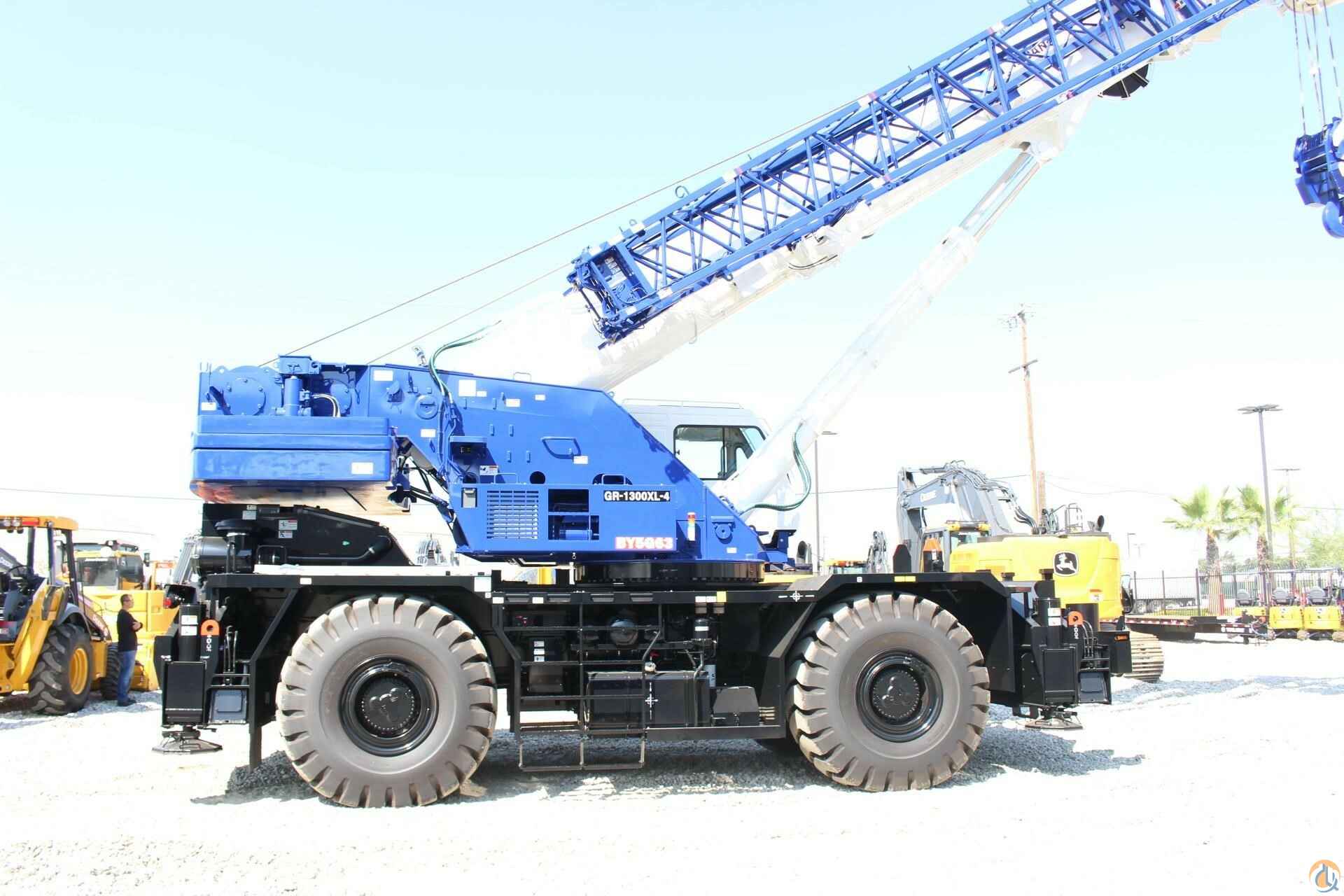

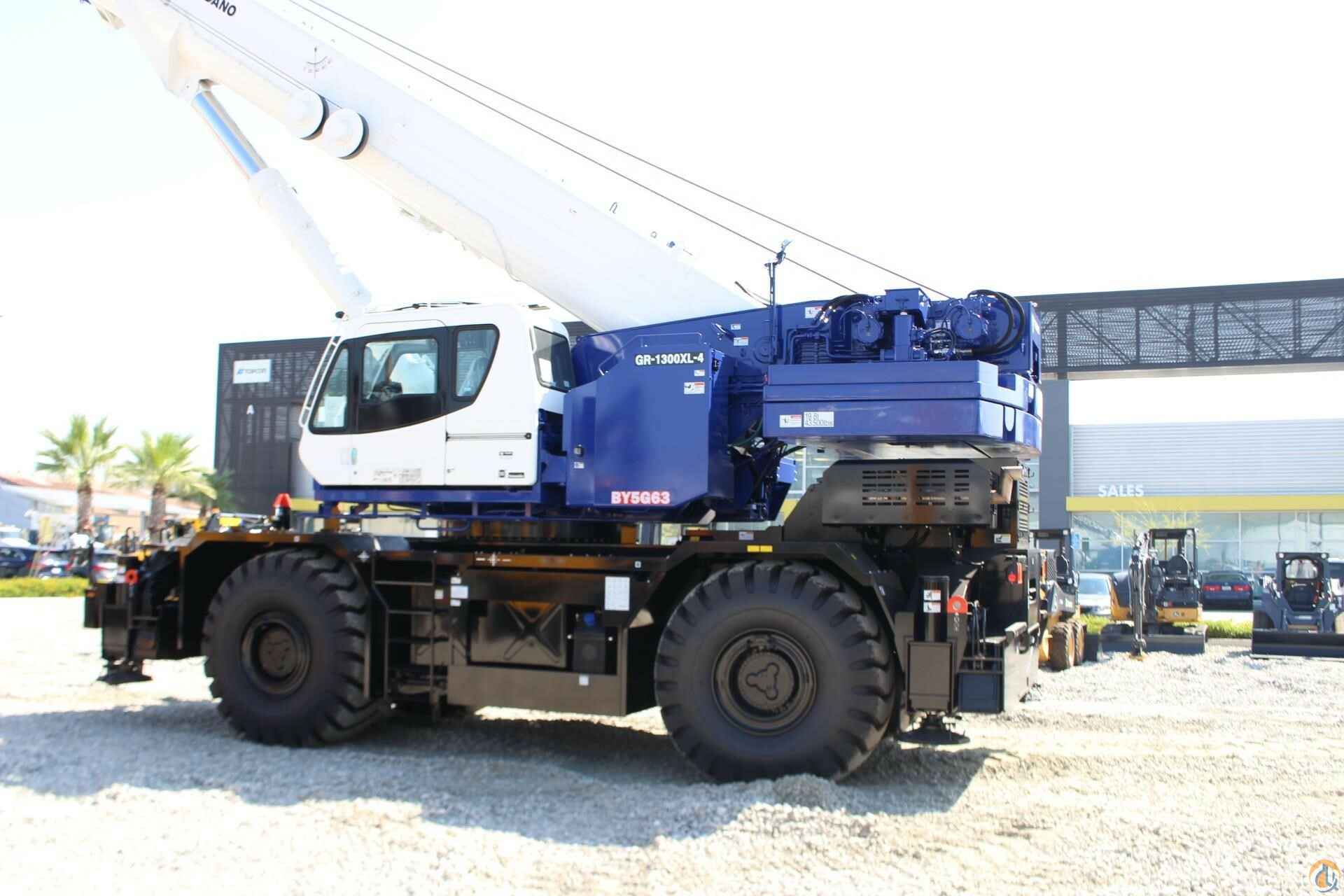

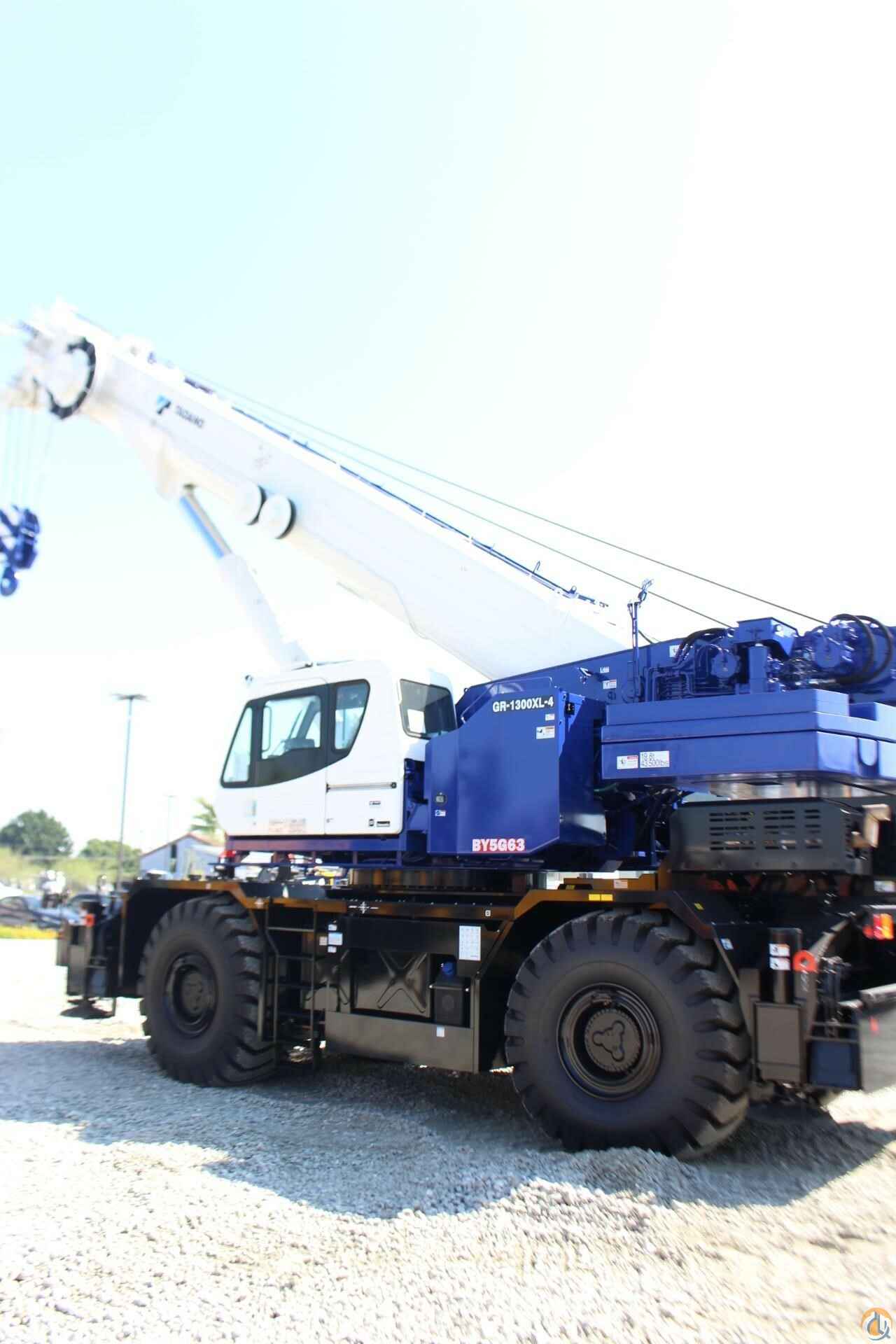

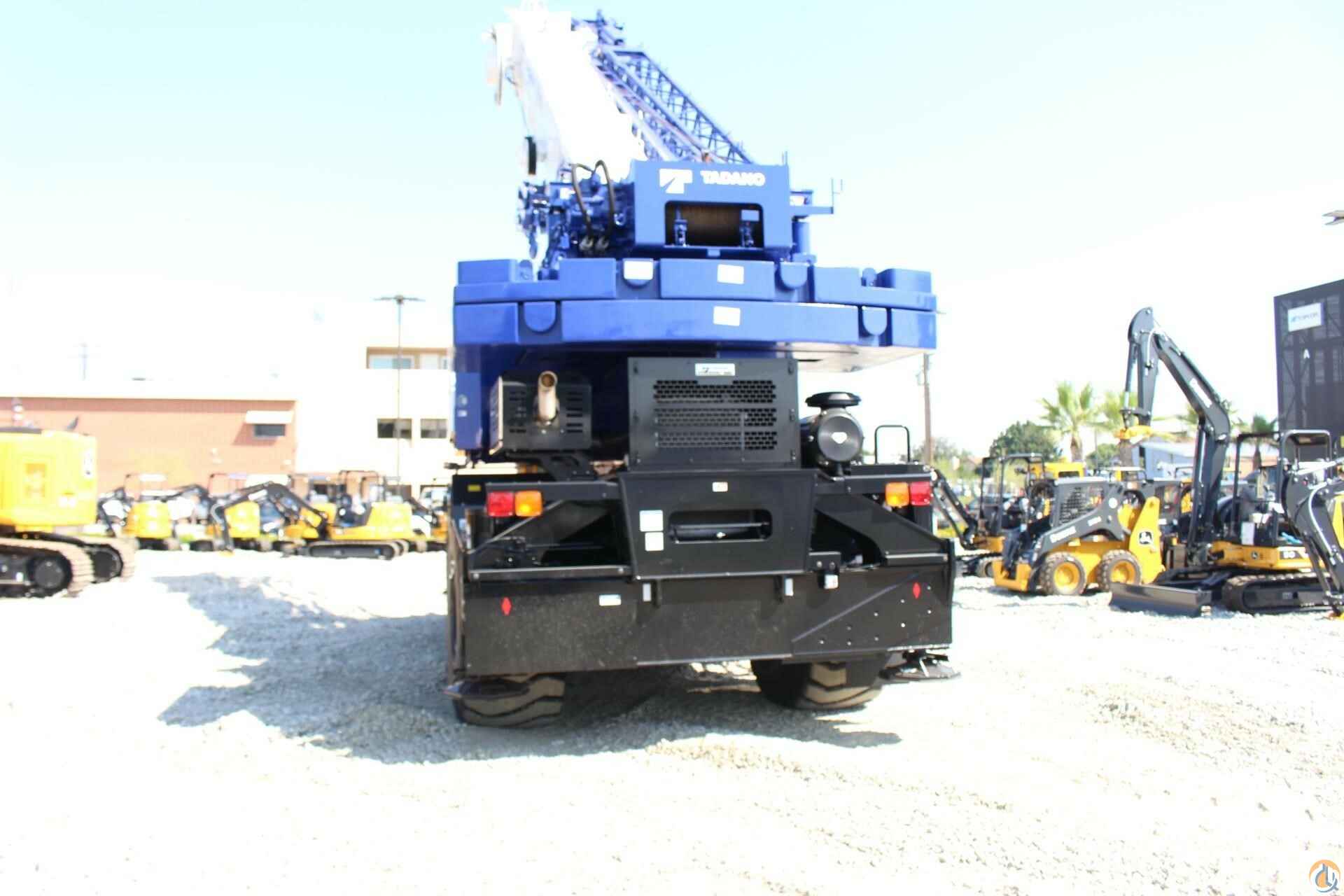

2023 TADANO GR1300XL-4
Standard Features:
• Six section extended boom by single telescoping cylinder 40.0’ – 183.7’
• 33.8’ or 59.1’ bi-fold lattice jib, offset angle (5-40°), by tilt cylinder.
• Quick Reeving type bi-fold jib
• Anti-Two block device (overwind cutout)
• Winch drum camera with light
• LED Work lights
• Variable Speed Main Winch with grooved drum, cable follower, Drum rotation indicator (audible, visible and thumper type) and 1050’ of ¾” cable.
• Variable speed auxiliary winch with grooved drum, cable follower, drum rotation indicator (audible, visible and thumper type) and 738’ of ¾” cable.
• Auxiliary lifting sheave (single top) stowable
• 2-speed winch
• 100 ton hook block – 7 sheaves with swivel hook and safety latch for ¾” wire rope.
• 7.9 ton hook with swivel
• Tadano twin slewing system and 360° positive swing lock
• Positive control
• Hydraulic oil cooler
• 3-way adjustable cloth seat with armrests, high back, and seat belt
• Tilt-telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• 12V power outlet
• Ashtray
• Cab floor mat
• Pump disconnects in operator’s cab
• Air conditioner (hot water heater and cooler)
• Full instrumentation package
• Self-centering finger control levers with pilot control
• Control pedals for boom elevating and boom telescoping
• Low oil pressure/high water temp. warning device (visual)
• Air cleaner dust indicator
• Cup holder
• Battery disconnect
• USB Port
• 20° tilt cab
• Emergency steering system
• Tadano electronic load moment indicator system (AML-E2)
• Boom angle indicator
• Outrigger extension length detector
• Electronic crane monitoring system
• Rear view camera
• Right front view camera
• Fenders
• Air dryer
• Complete highway light package
• Towing hooks-Front and rear
• Hook block tie down (front bumper)
• Weighted hook storage compartment
• Halogen head lamp
• Independently controlled Outriggers
• Four outrigger extension positions
• Self-storing outrigger pads
• Electronic controlled automatic transmission driven by torque converter
• 4 x 4 x 4 drive/steer
• Automatic rear axle oscillation lockout system
• 29.5-R25 tires
• 29.5-25 38PR tires
• Disc brakes
• Water separator with filter (high filtration)
• Back-up alarm
• 24-volt electric system
• Tool storage compartment
• Tire inflation kit
• Cummins B6.7 turbo charged after cooled engine (280 HP) with exhaust brake
• Engine over-run alarm
• Lifting eyes
• Telematics (machine data logging and monitoring system) with HELLO-NET via internet (availability depends on countries)
• Fuel consumption monitor
• Eco mode system
• Self-removable counterweight
• Radiator cover
• Clearance sonar (Rearside)
• Automatic pump disconnect
• Over unwinding prevention
• Boom and jib mounted aircraft warning light
• Wind speed indicator
