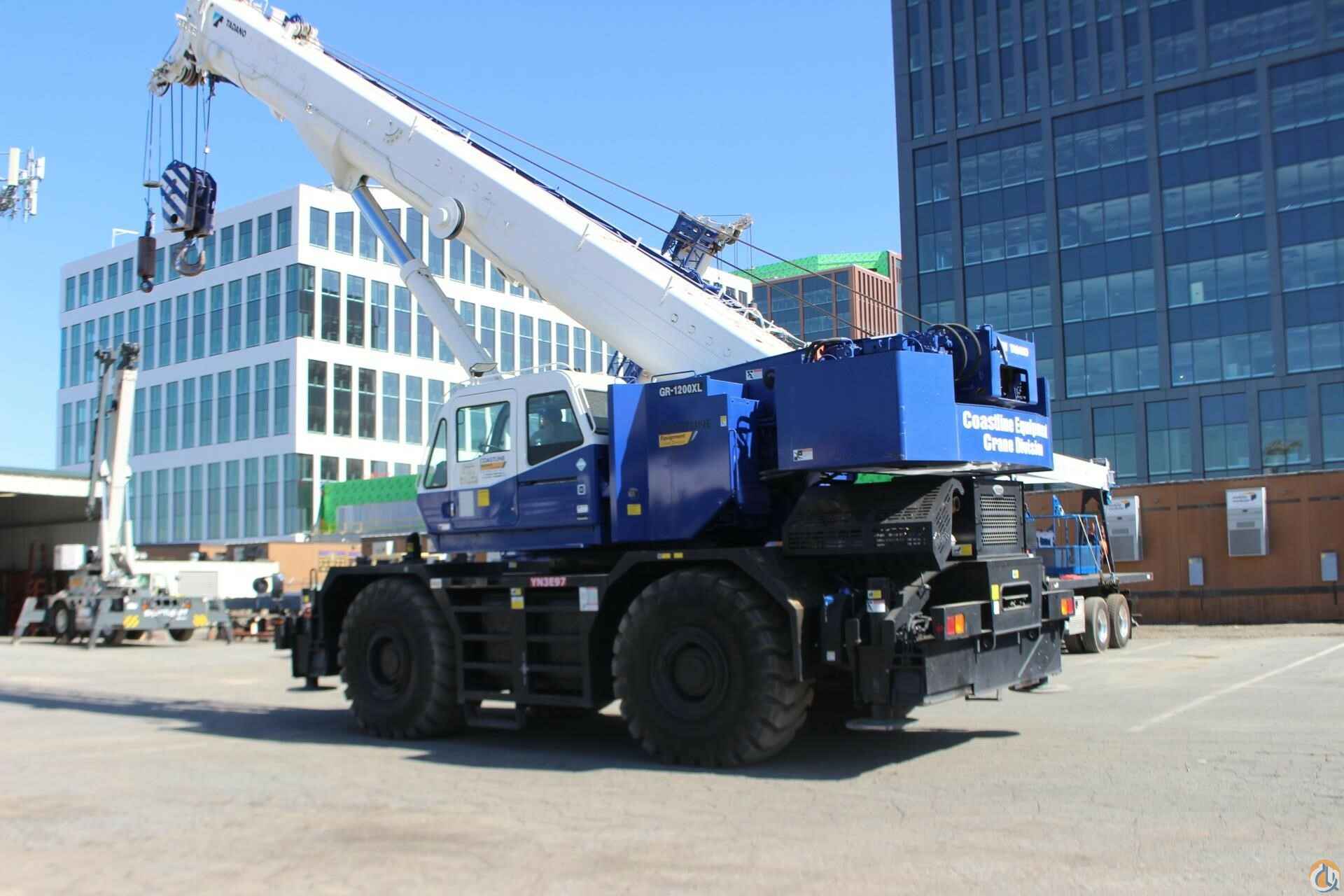

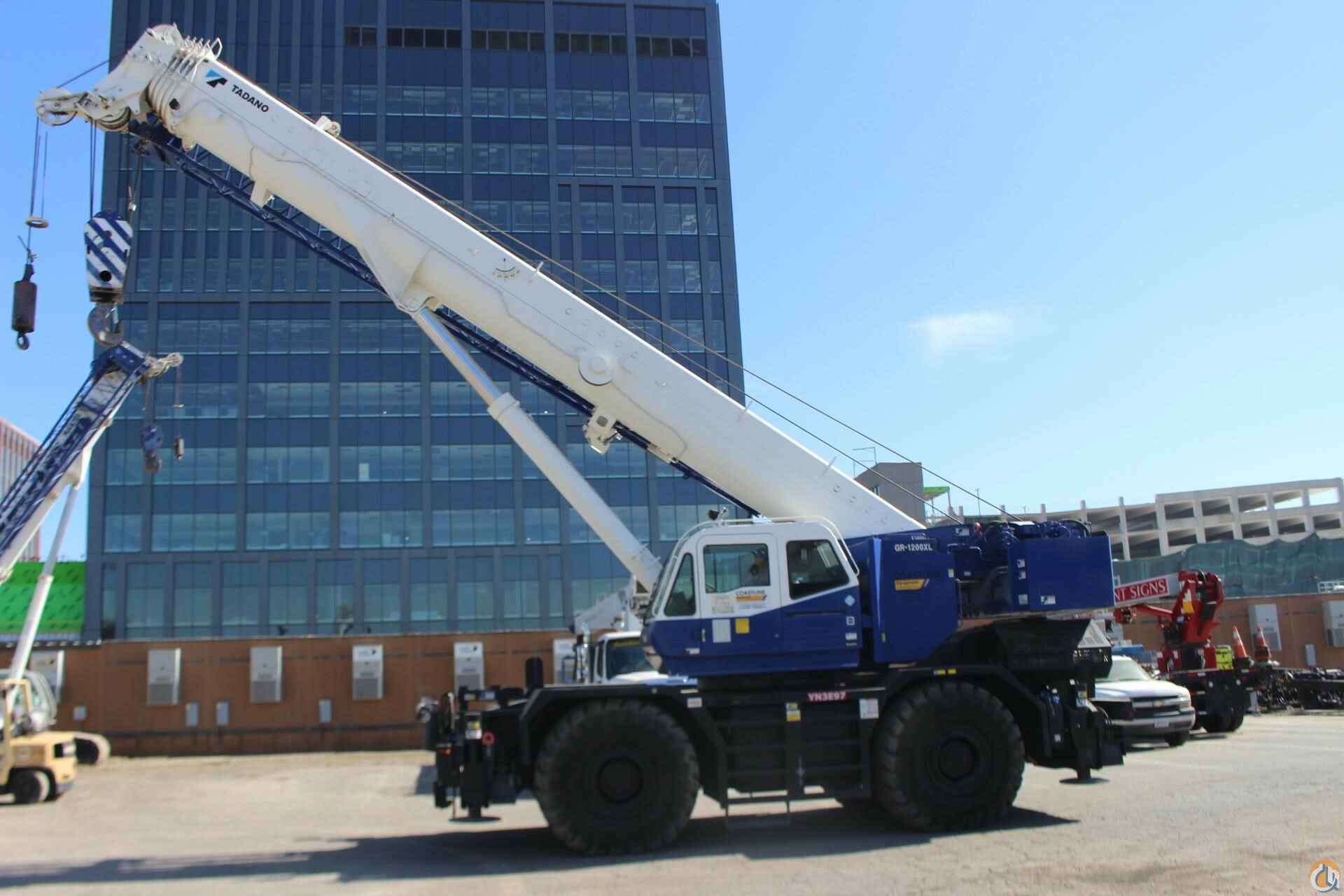

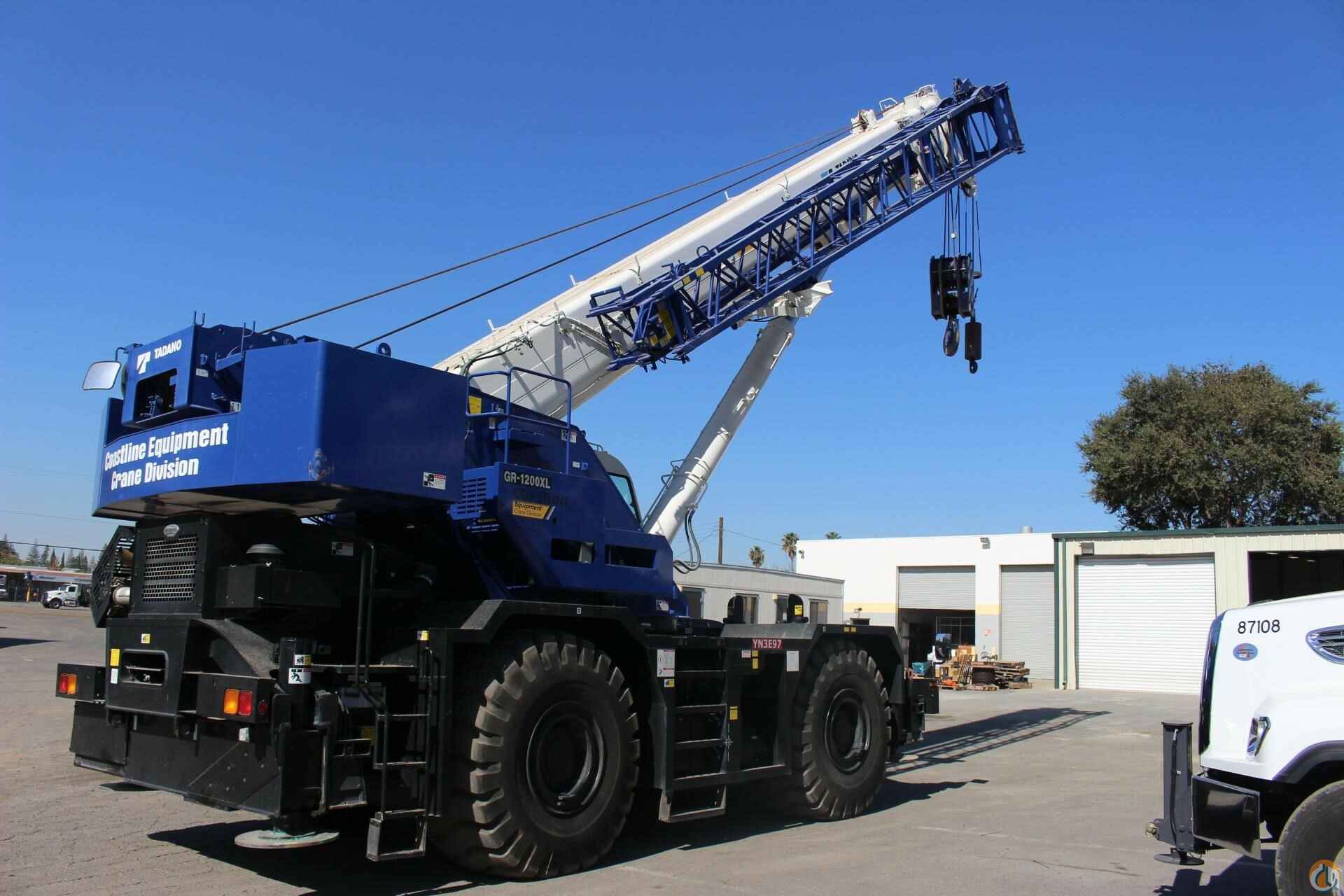

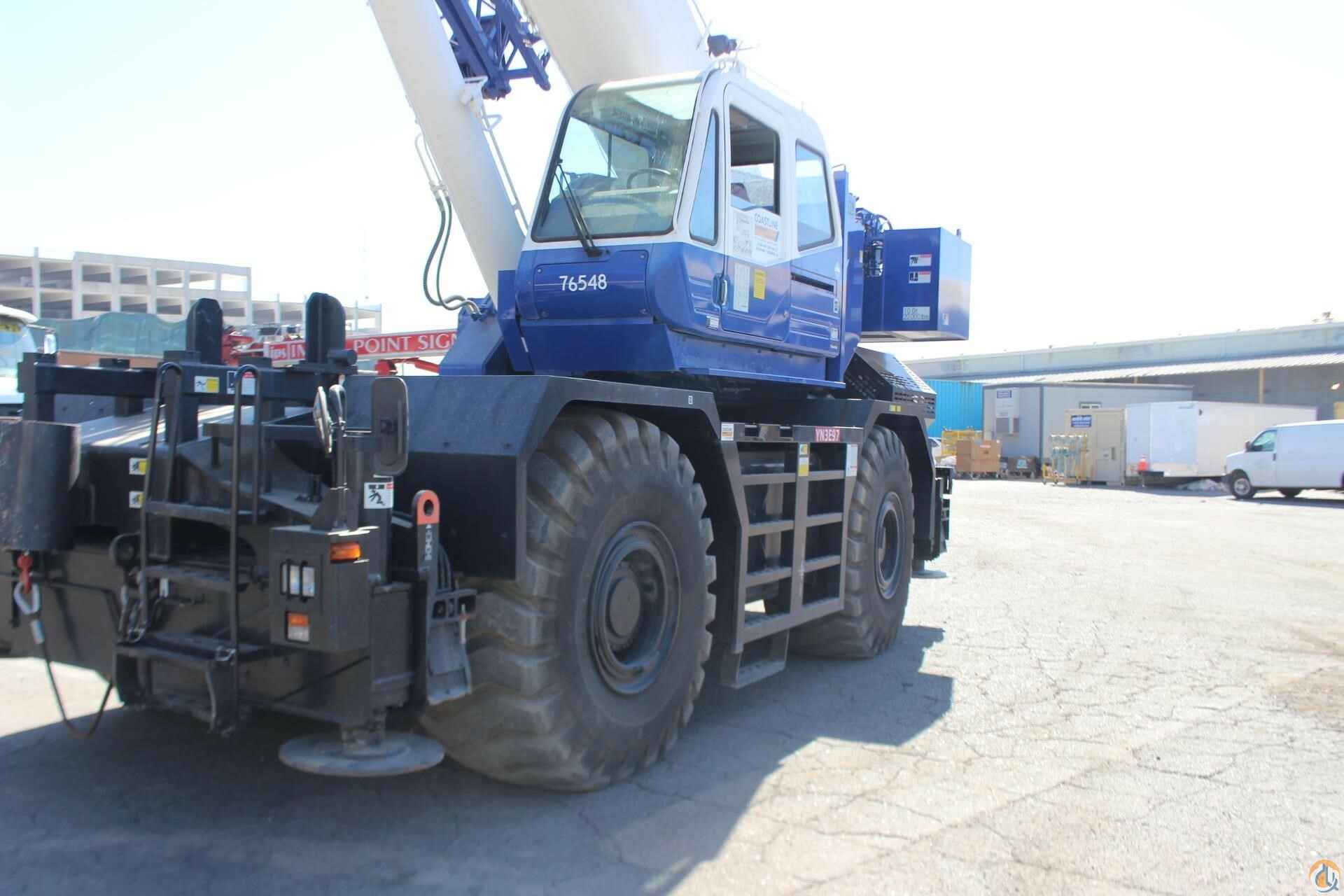

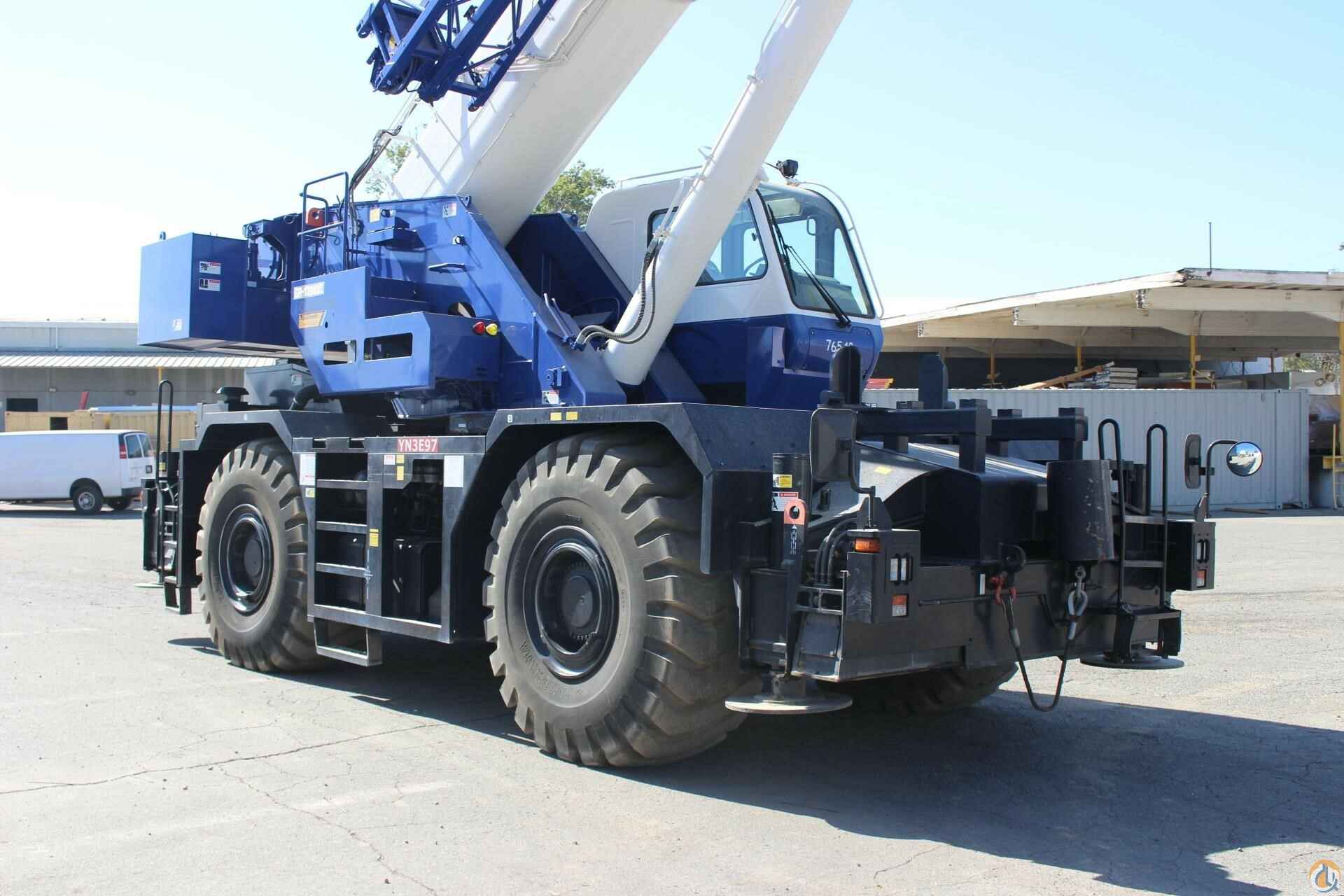

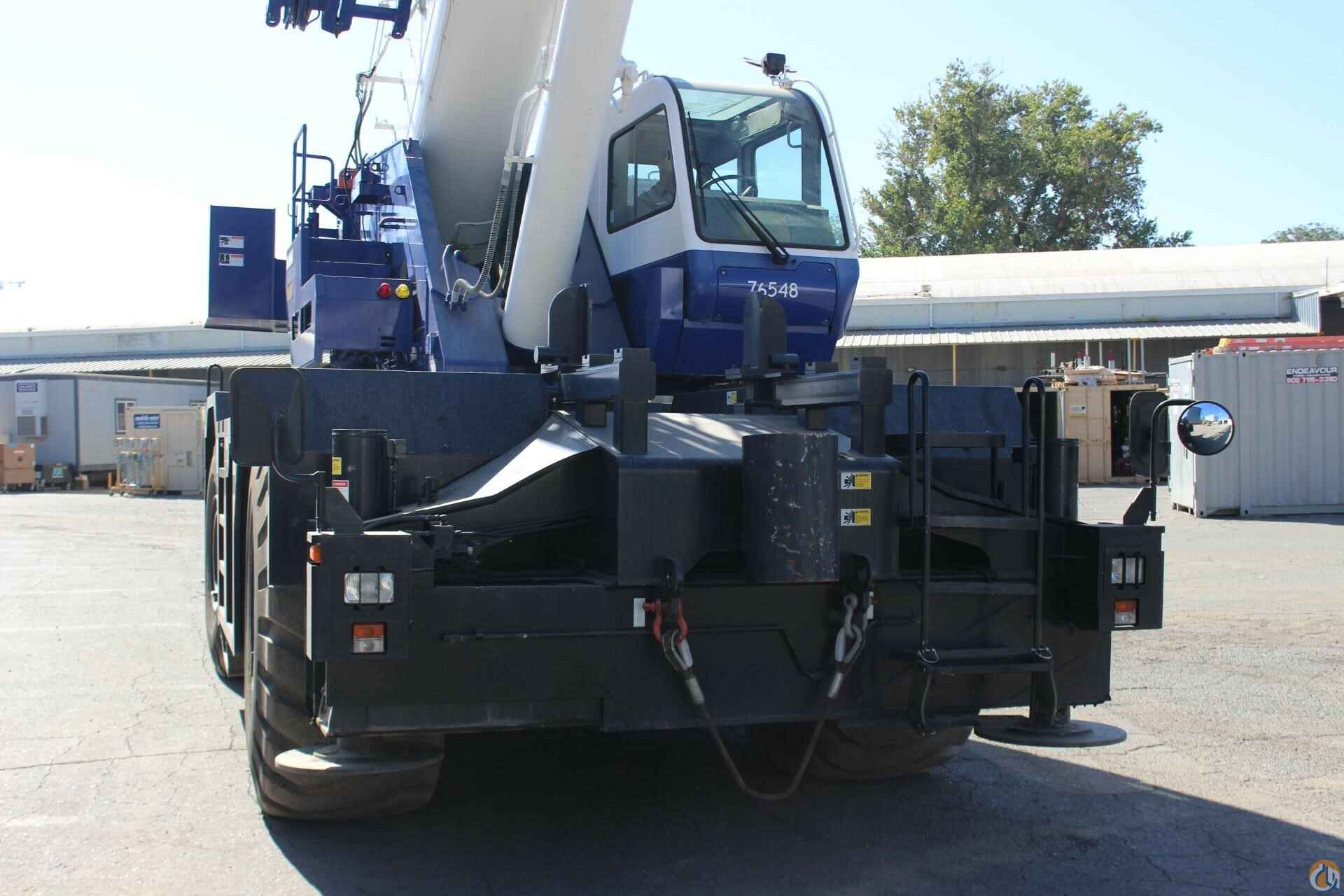

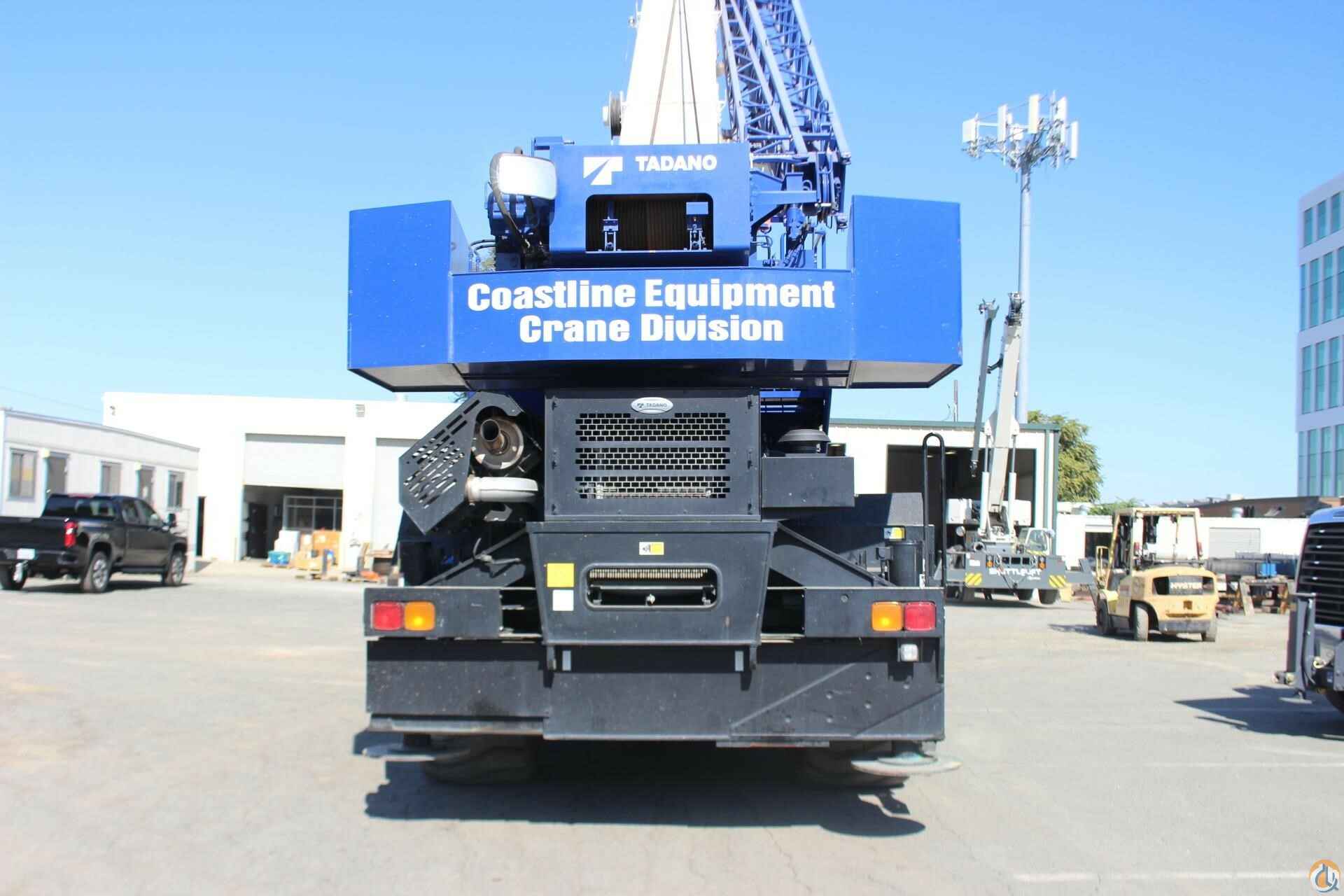

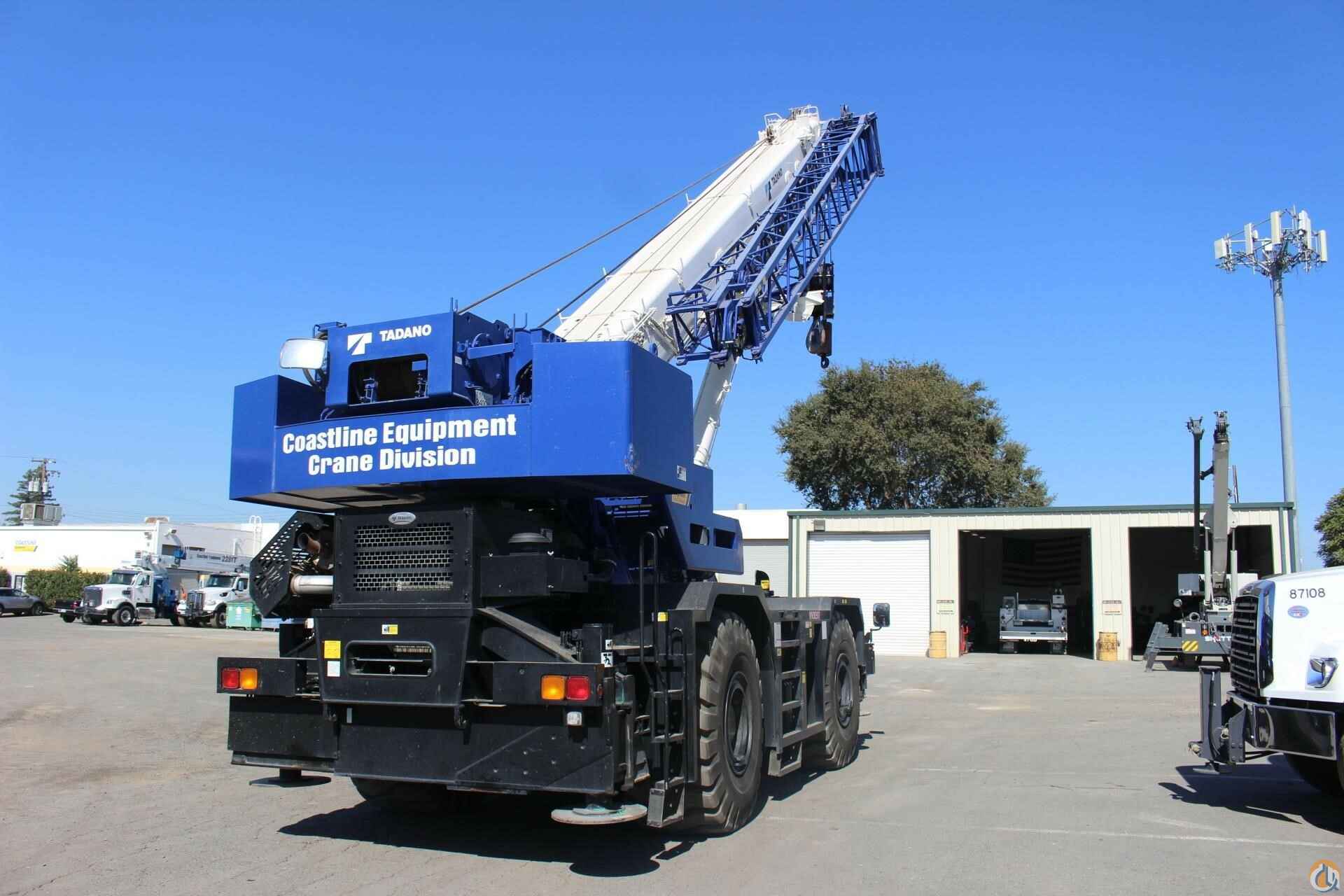

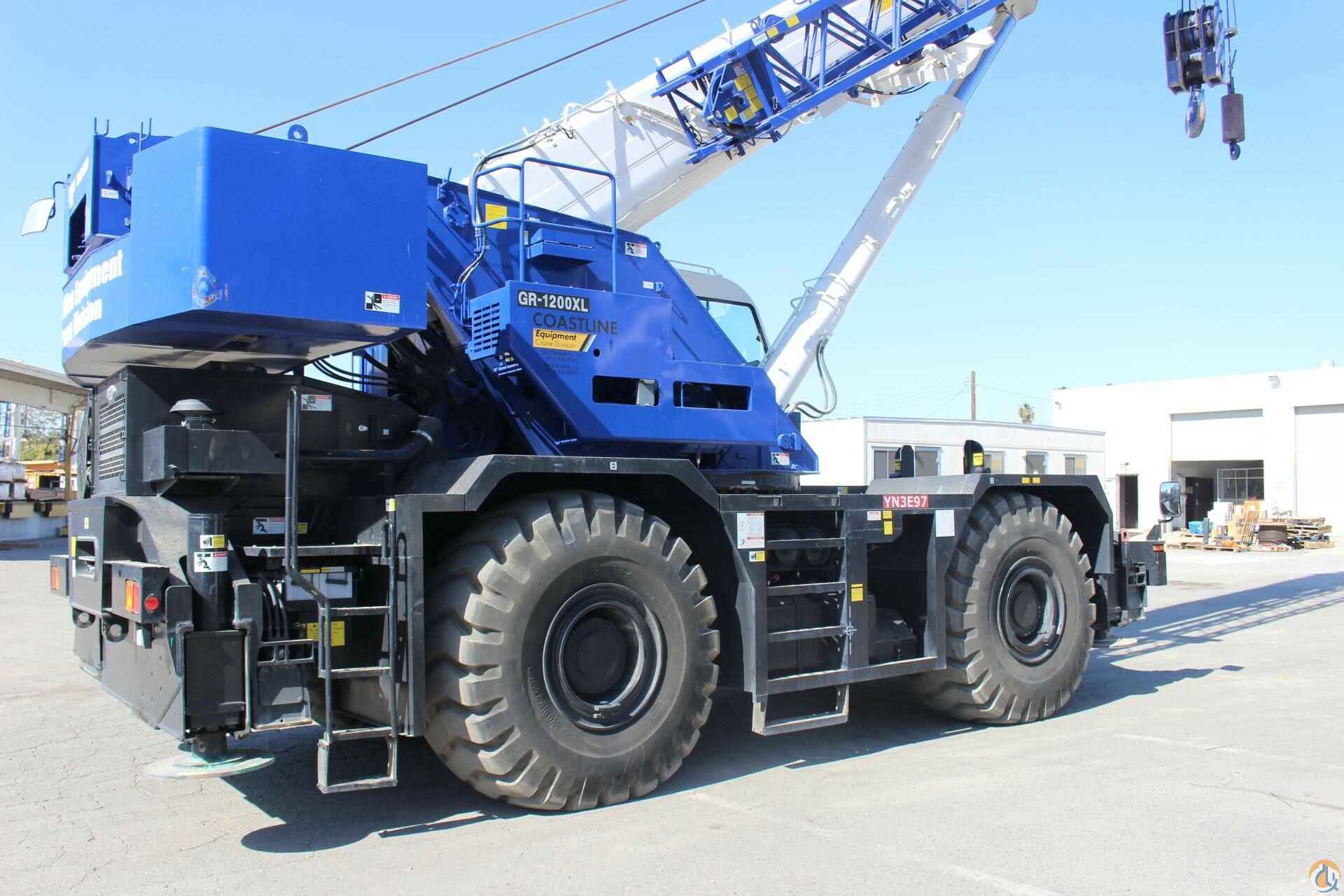

2023 TADANO GR1200XL
120 TON CRANE
Standard Features:
• Six section extended boom by single telescoping cylinder 39.4’ – 183.7’
• 33.2’ or 58.1’ bi-fold lattice jib with 3.5°, 25° or 45° pinned offsets and self-stowing pins
• Quick Reeving type bi-fold jib
• Anti-Two block device (overwind cutout)
• Mirror for main and auxiliary winch
• Work lights
• Variable Speed Main Winch with grooved drum, cable follower and 771’ of ¾” cable
• Variable speed main winch with grooved drum, cable follower and 518’ of ¾” cable
• Drum Rotation indicator (audible, visible and thumper type) main and auxiliary winch
• Auxiliary lifting sheave (single top) stowable
• 2-speed winch
• Tadano twin swing system and 360° positive swing lock
• Positive control
• Hydraulic oil cooler
• 15° tilt cab
• 3-way adjustable cloth seat with armrests, high back and seat belt
• Tilt-telescoping steering wheel
• Tinted safety glass and sun visor
• Front windshield wiper and washer
• Roof window wiper and washer
• Power window (cab door)
• Cigarette lighter and ashtray
• Cab floor mat
• Pump disconnect in operator’s cab
• Air conditioner (hot water heater and cooler)
• Full instrumentation package
• Self-centering finger control levers with pilot control
• Control pedals for boom elevating and boom telescoping
• Low oil pressure/high water temp. warning device (visual)
• Rear Steer centering light
• Air cleaner dust indicator
• Tadano electronic load moment indicator system (AML-C)
• Tare function
• Boom angle indicator
• Outrigger extension length detector
• Electronic crane monitoring system
• Rear view mirrors (right and left side)
• Fenders
• Air dryer
• Complete highway light package
• Towing hooks-Front and rear
• Hook block tie down (front bumper)
• Weighted hook storage compartment
• Halogen head lamp
• Independently controlled Outriggers
• Four outrigger extension positions
• Self-storing outrigger pads
• Electronic controlled automatic transmission driven by torque converter
• 4 x 4 x 4 drive/steer
• Non-spin rear deferential
• Automatic rear axle oscillation lockout system
• 29.5-25 34PR tires
• Disc brakes
• Water separator with filter (high filtration)
• Back-up alarm
• 24-volt electric system
• Tool storage compartment
• Tire inflation kit
• Cummins QS 6.7 turbo charged after cooled engine 270HP with exhaust brake (TIER 4 FINAL)
• Engine over-run alarm
• Lifting eyes
• Telematics (machine data logging and monitoring system) with HELLO-NET via internet (availability depends on countries)
• Fuel consumption monitor
• Eco mode system
• Self-removable counterweight
• Emergency steering system
• 7.9 ton – Weighted hook with swivel and safety latch
• Radiator cover
• 120 Ton – 7 sheaves with hook block and safety latch
