Boom Details

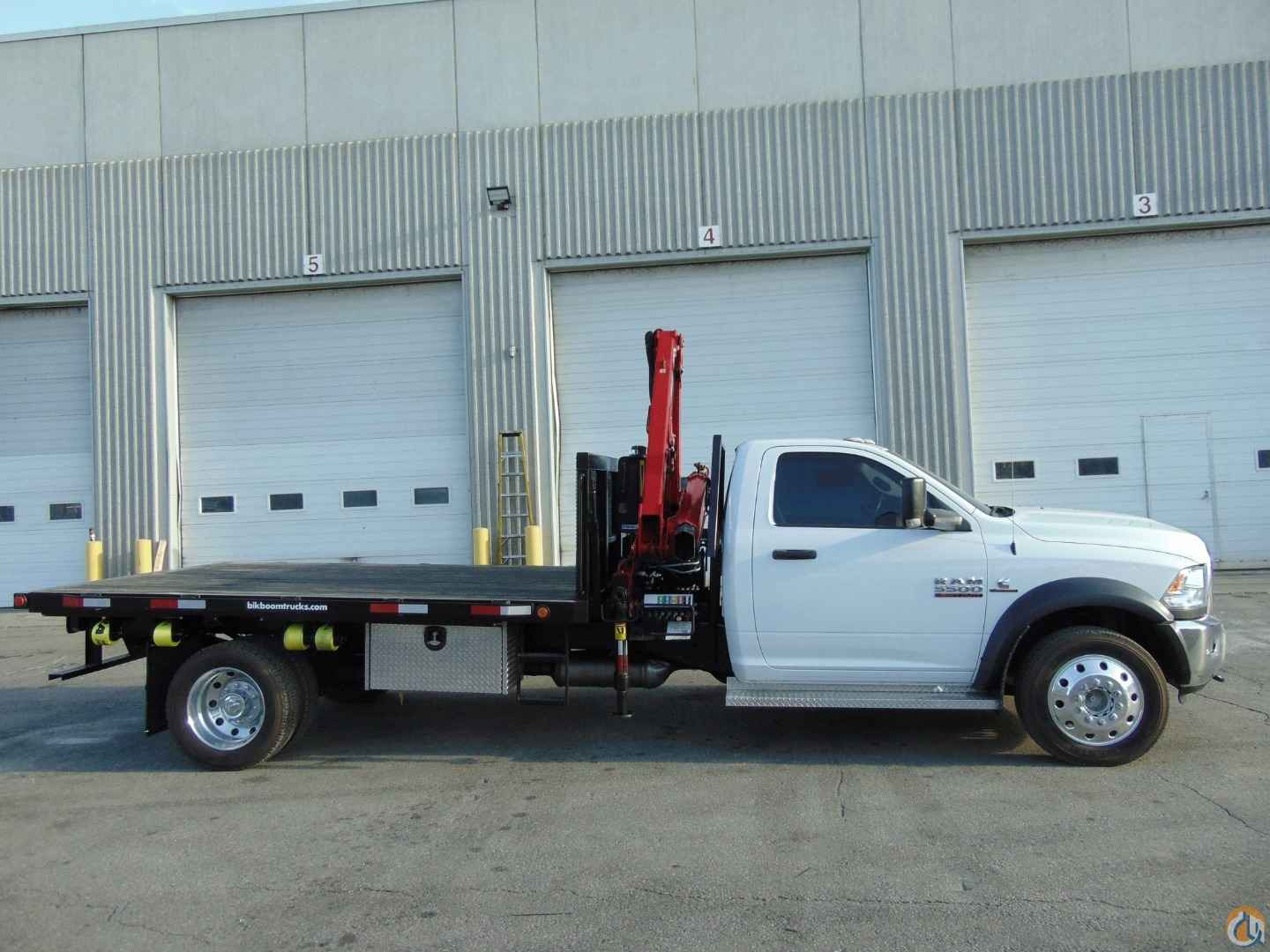

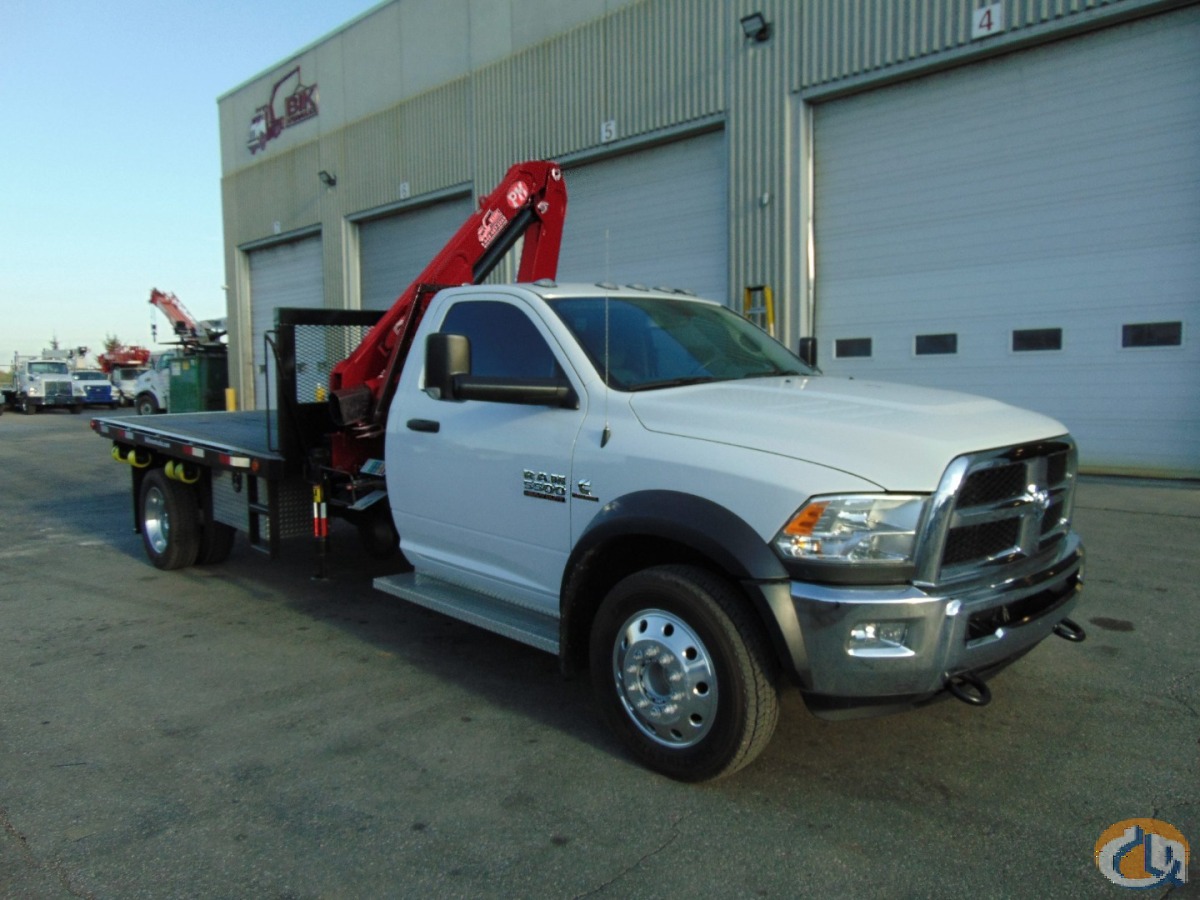

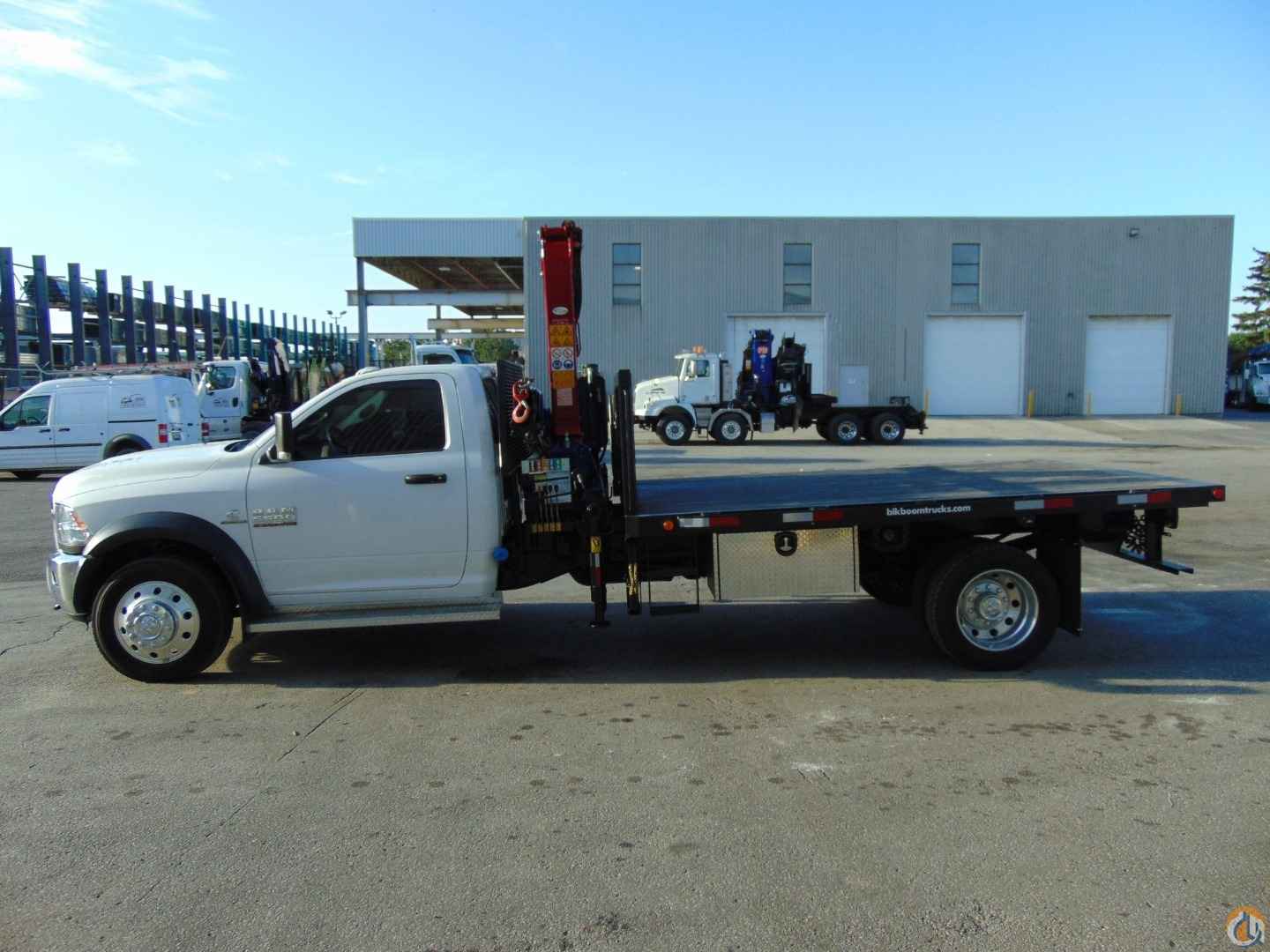

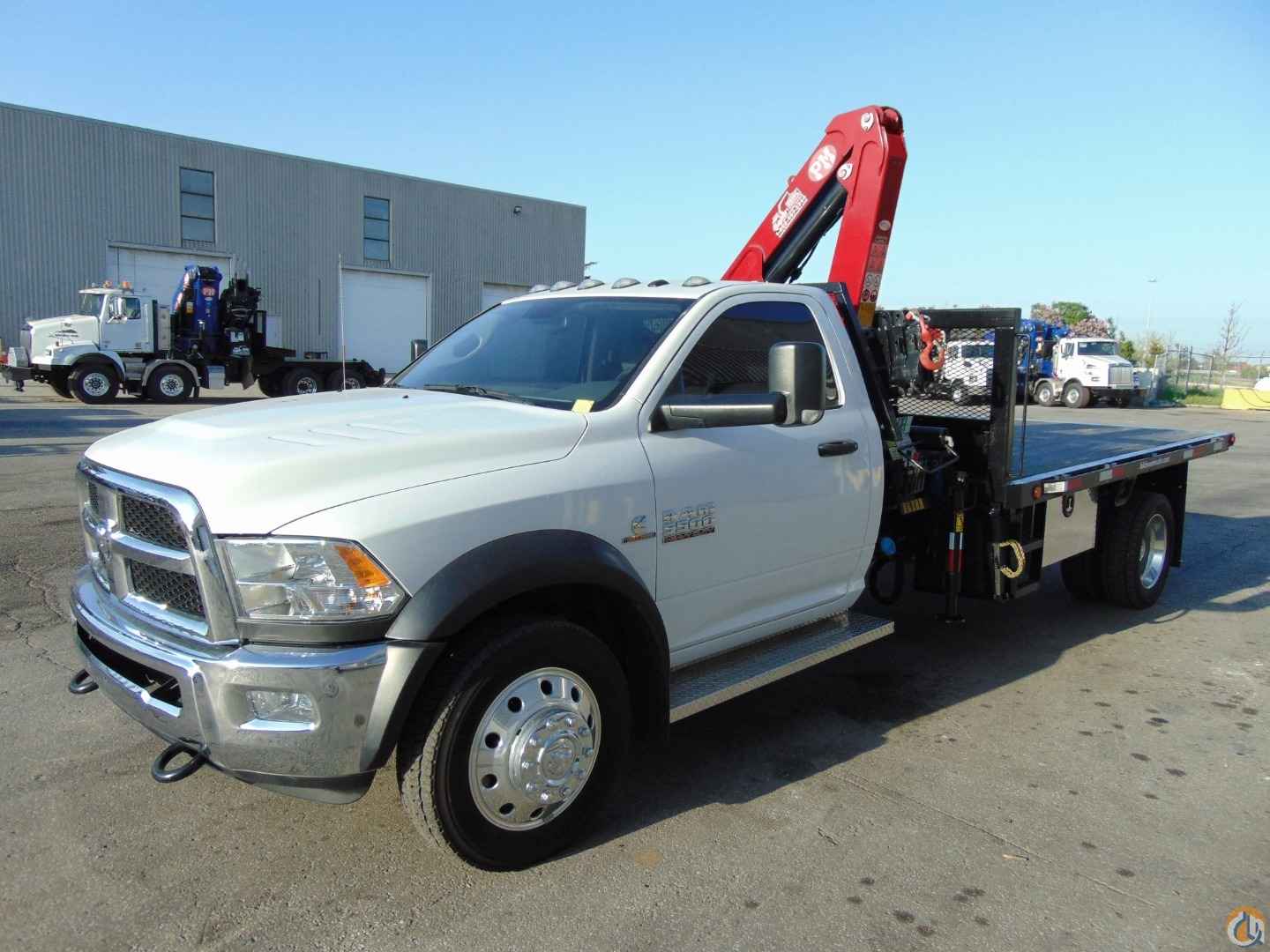

Used – PM 6023 KNUCKLE BOOM

• 2-sided ground controls, 3-hydraulic extensions to 27′ Horizontal reach.
• Horizontal Capacity:
  • • 5,900 lbs@ 6′
    • 3,025 lbs@ 11′
    • 2,020 lbs@ 17′
    • 1,425 lbs@ 21′
    • 1,040 lbs@ 27′
• Installed Back of Cab on custom, shear-plated Sub Frame by BIK, prepped, primed and painted. New PTO, Hyd Pump,
  Supply and Return Lines, Hydraulic tank mounted on pedestal w/ shut-off valve. Load Testing and operator orientation by BIK personnel.

Standard Features Includes :

• Manual OUT & Hydraulic DOWN – Radial, manual tilting 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
• Load Holding Valves on cylinders for Safety and Security of Operator and Load
• Heavy Duty Pedestal Turning Cylinders for greater turning Torque, reduced wear, and improved precision- 400 degrees rotation

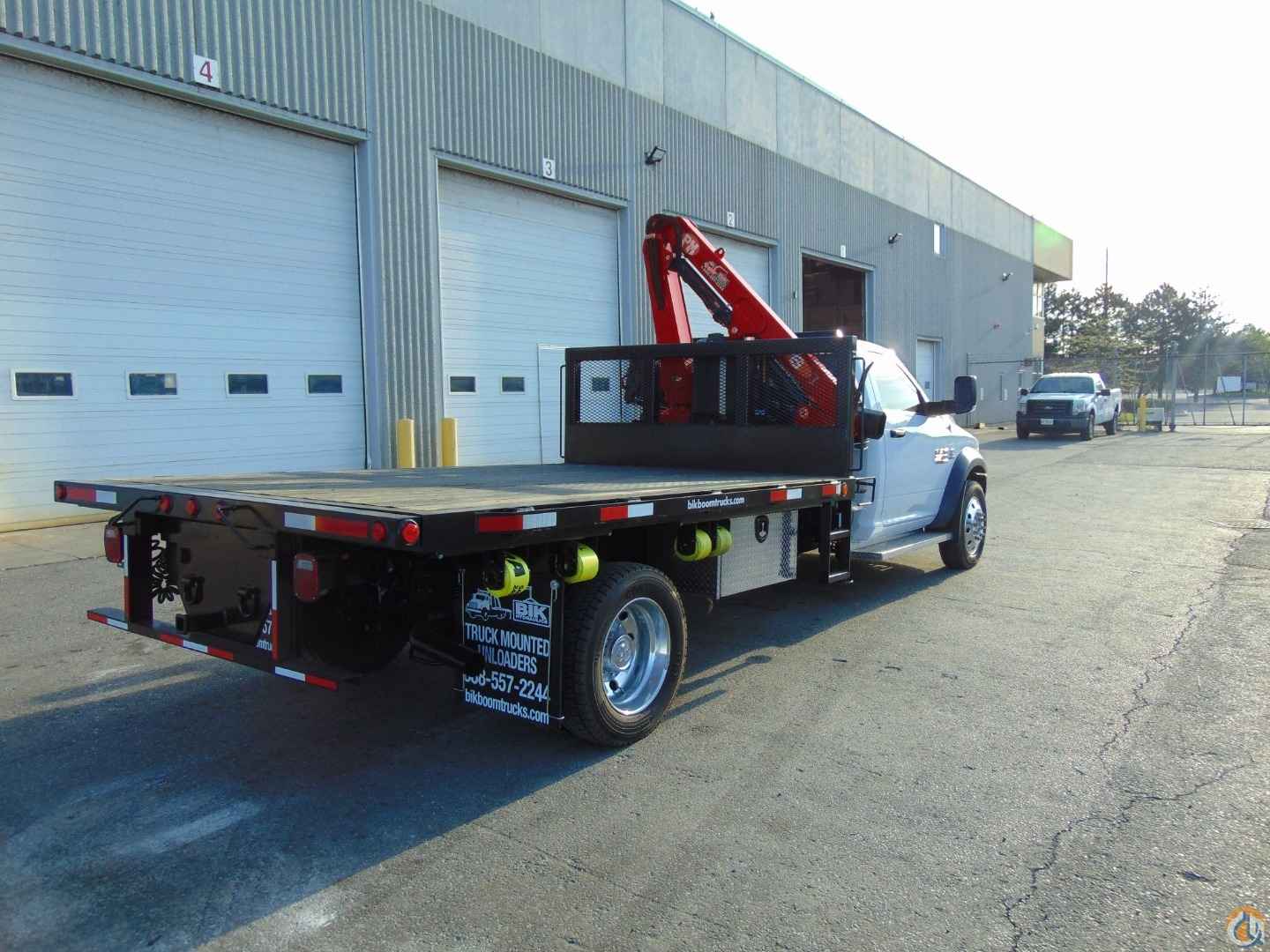

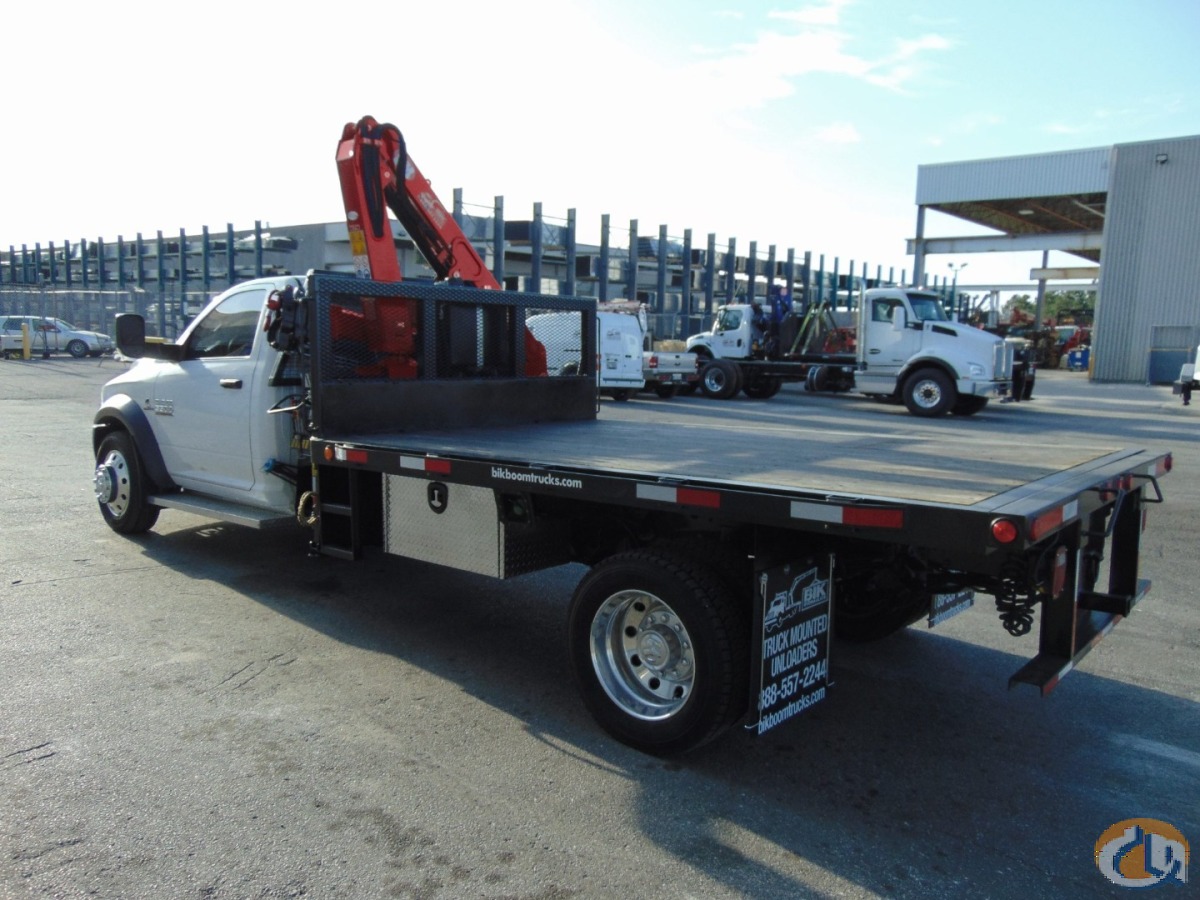

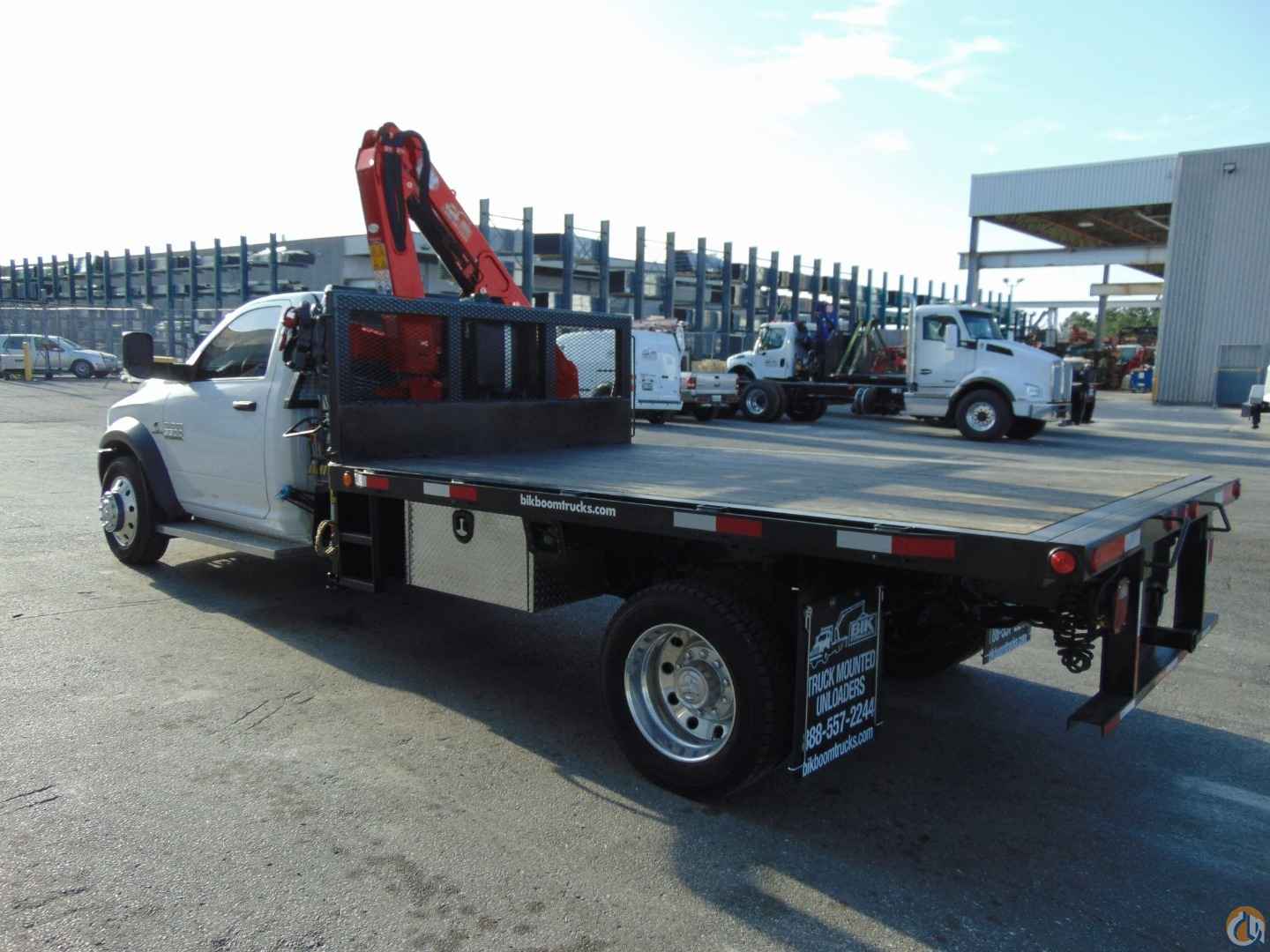

Deck Details

Pre-owned -12′ x 96″ Deck with hardwood or steel surface:

• 14′ overall length, 8′ wide+ rub rail/pockets
• 36″ headboard, sliding winch track on passenger side with 4 sliding winches and straps
• winch bar holder, painted black with conspicuity tape and
  proper marker lights
• 48″ pull out deck extension at rear
• Access ladder step up on both sides.
