2013 PM 53025 SP J1415.20 KNUCKLEBOOM ARTICULATING CRANE

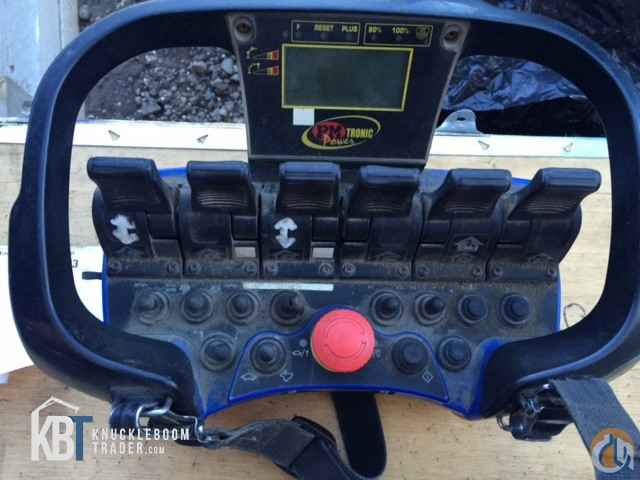

Beautiful year 2013 PM 53025 SP w/ J1415.20 Jib, radio remote control and top seat control. This crane also has 1 function to the end of the jib, with a rotator attached. Very hard to find a good used crane with all of these features. The crane will reach 83 feet horizontal and 100 feet vertical. Everything is in excellent working condition with no damage. Take advantage of the strong US Dollar, this is a steal!

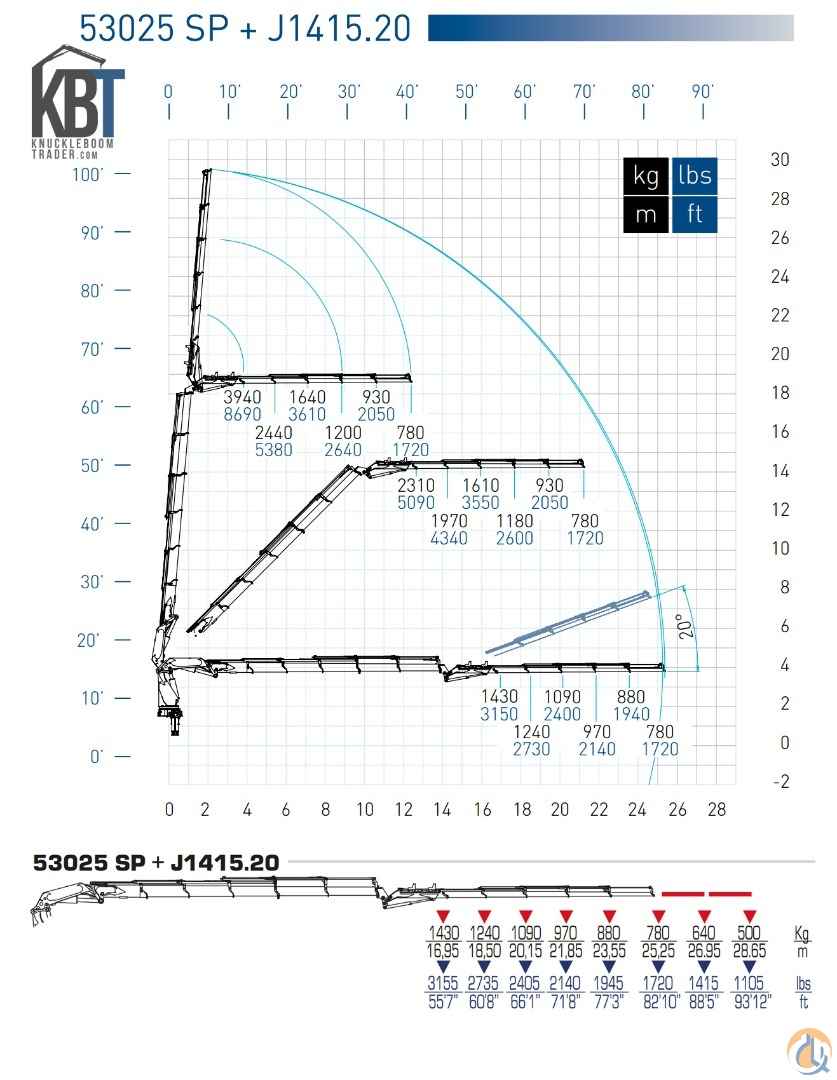

| Horizontal Lift Capacities (without jib)* | |
|---|
| 22,975 lbs @ 14'9" | 10,420 kg @ 4.50 m |
| 16,250 lbs @ 20'4" | 7,370 kg @ 6.20 m |
| 12,260 lbs @ 26'3" | 5,560 kg @ 8.00 m |
| 9,970 lbs @ 32'2" | 4,430 kg @ 9.80 m |
| 7,985 lbs @ 38'9" | 3,620 kg @ 11.80 m |
| 6,770 lbs @ 45'3" | 3,070 kg @ 13.80 m |
| | |
| Horizontal Lift Capacities (J1415.20 Jib)* | |
|---|
| 3,155 lbs @ 55'7" | 1,430 kg @ 16.95 m |
| 2,735 lbs @ 60'8" | 1,240 kg @ 18.50 m |
| 2,405 lbs @ 66'1" | 1,090 kg @ 20.15 m |
| 2,140 lbs @ 71'8" | 970 kg @ 21.85 m |
| 1,945 lbs @ 77'3" | 880 kg @ 23.55 m |
| 1,720 lbs @ 82'10" | 780 kg @ 25.25 m |
*Provided lift capacities are for general reference only. Please consult the manufacturers official load charts/diagrams/user manual before purchasing and operating this crane.
