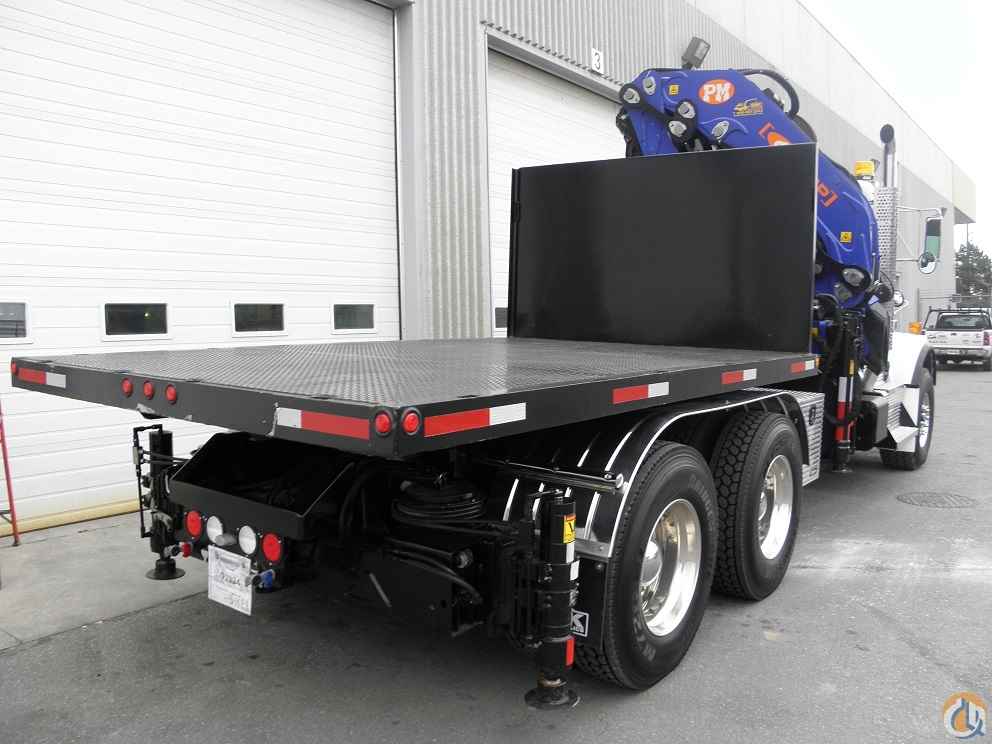

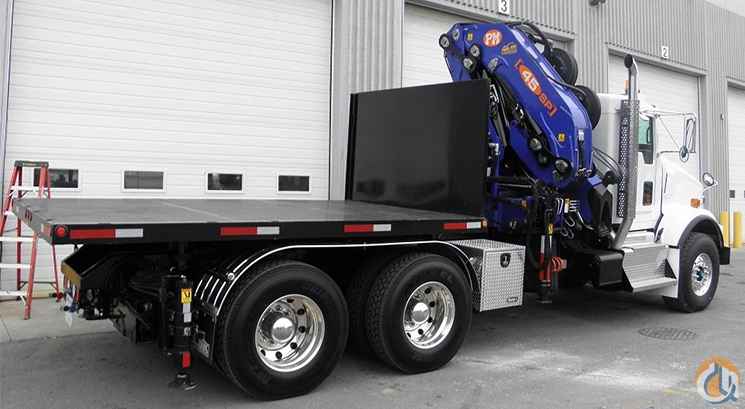

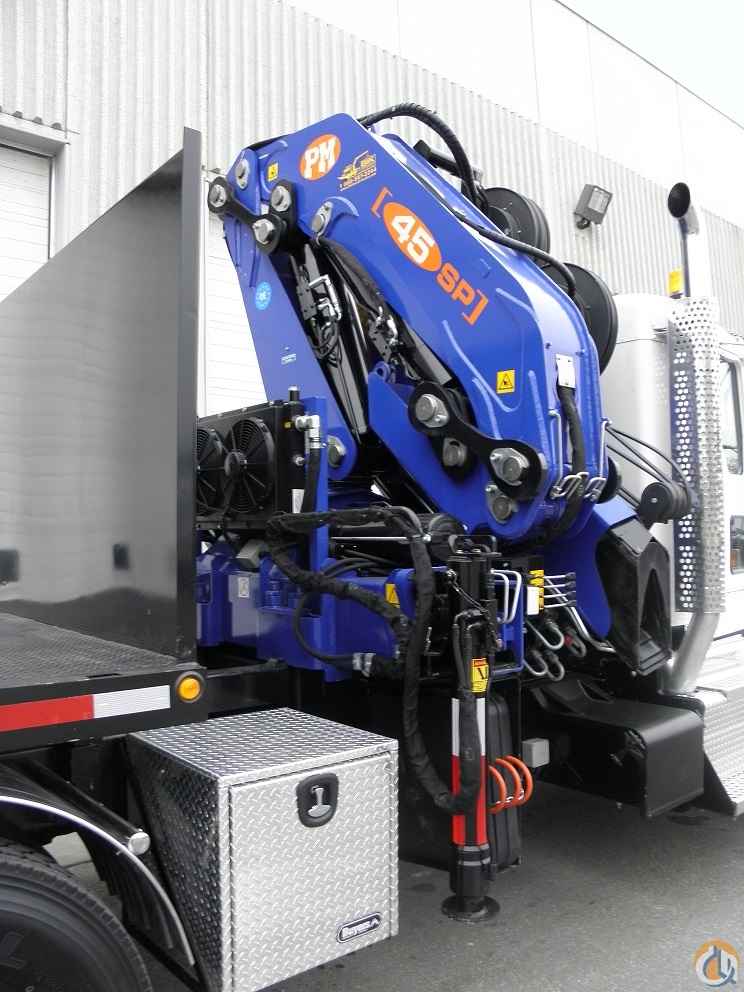

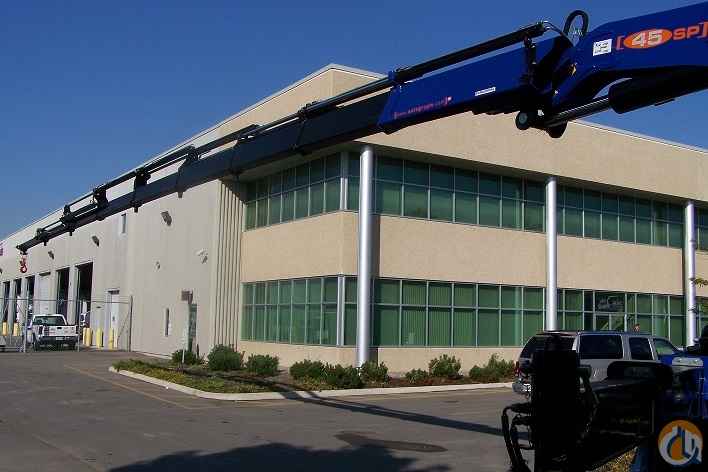

NEW – PM 45028 - 45 TON/M KNUCKLE BOOM – 8 Independent Hyd. Extensions to 70’ Horizontal Reach (82’ Vertical)
Horizontal Capacities Are:
- 17,500 lbs @ 15 ½’
- 6,700 lbs @ 33 ½’
- 4,100 lbs @ 48’
- 2,800 lbs @ 62 ½’
- 2,500 lbs @ 70’
- PM “Power Link” Connecting Rods at First Boom and Knuckle, 400 Degrees Pedestal Rotation
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- Simplified Hydraulics – Hydraulic Overload LLD Proctection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance
- Hydraulic Extra Wide Main Outriggers at Pedestal – 25’ 7” Total Span
- Auxiliary Stabilizers – Extra Wide 21’ Span Type – Mounted Behind Rear Wheels
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank on Boom
- DANFOSS Proportional Control Valve Ground Level – Dual Sided & SCANRECO Proportional Radio Remote Control
- Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord

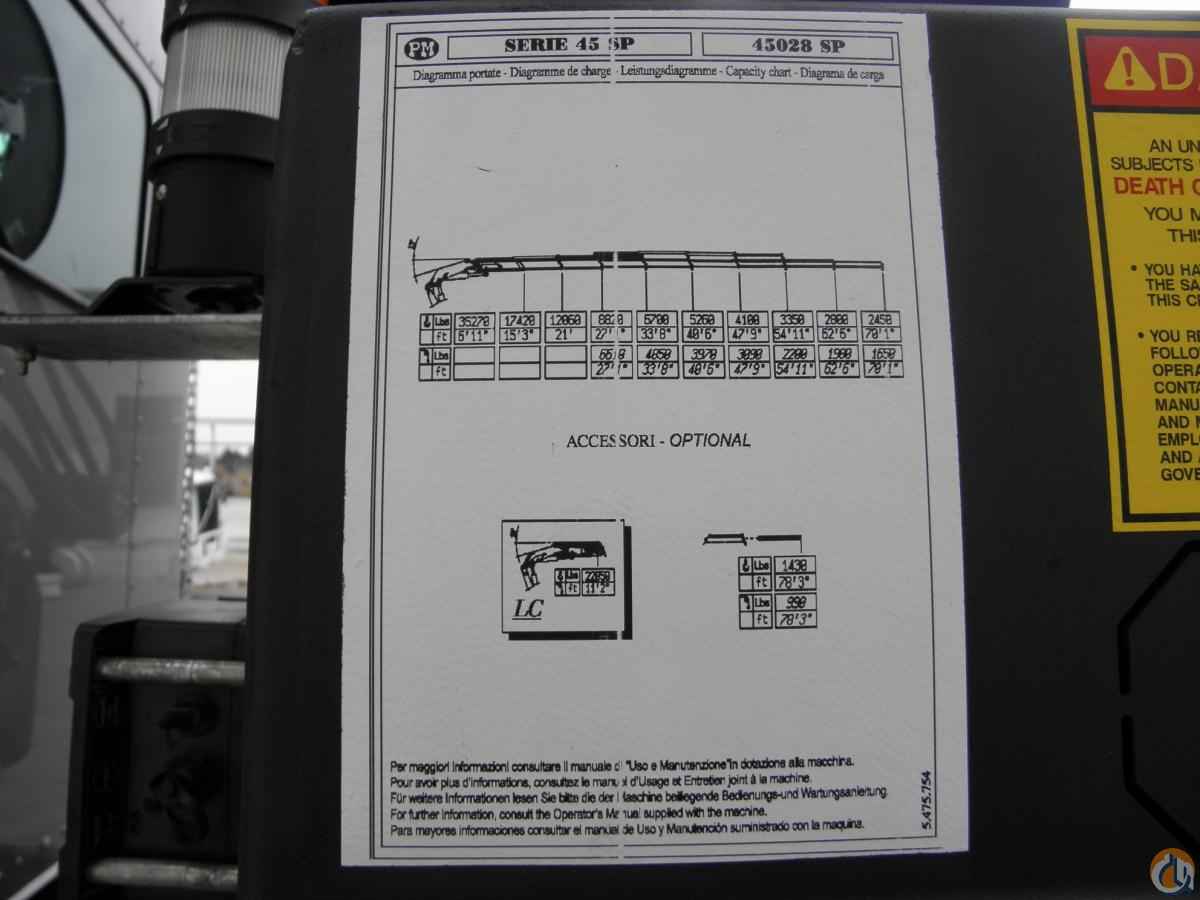

- Crane Painted PM Blue – Certified Painting Quality System – Load Chart on Boom in FT. & LBS.
- Warranty: 1-Year Parts & Labor on Entire Boom, 3-Year on Structural Components
- Installed End-of-Frame with Integral Sub-Frame to Meet or Exceed all CMVSS Standards, Independent Engineer Stability Certified New – 12’ x 102” – Removable Steel Flat Deck
NEW – 2015 WESTERN STAR 4700 TRACTOR
- DDC-13 Diesel – 470 HP with Jake
- 66,000 lb GVWR
- Fuller 18 Speed Standard Transmission (Ultrashift 18 Available)
- 20,000 lb Fronts with 425/65R22.5 Tires
- 46,000 lb Rears on Tuftrac Suspension
- Double Frame
- Polished ALCOA Aluminum Wheels Front and Outer Rear
- Chrome Single Polished Exhaust
- Chrome Grill & Bumper
- 80-Gallon Aluminum Fuel Tank, A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, 2-Man Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Window Both Sides, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, etc…
