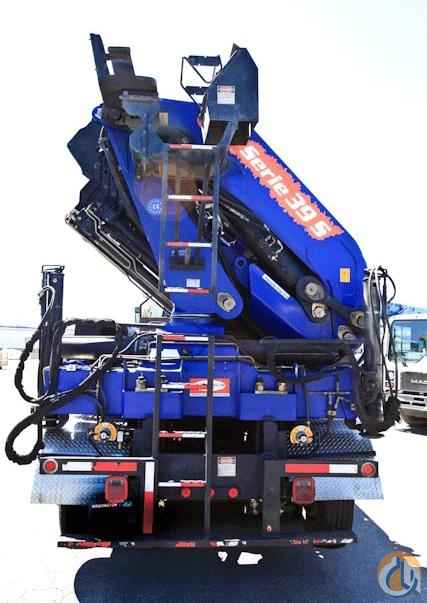

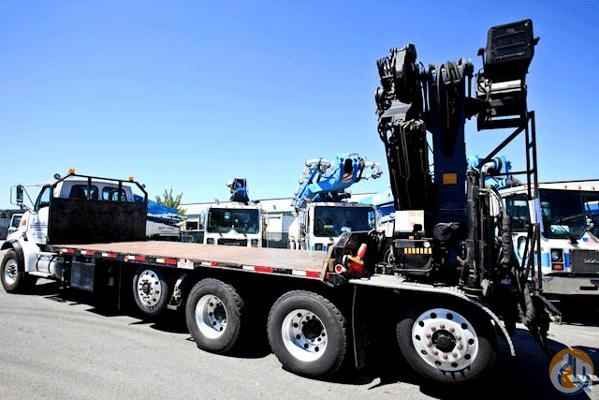

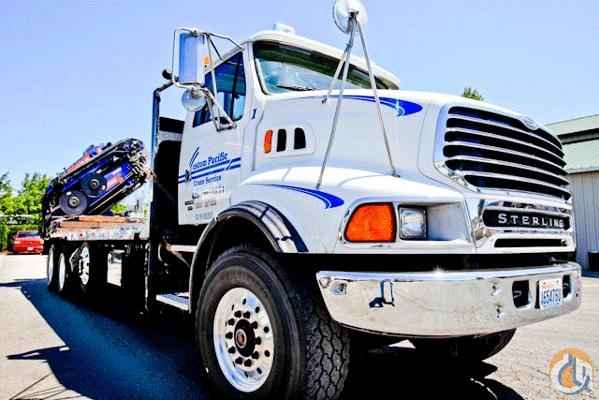

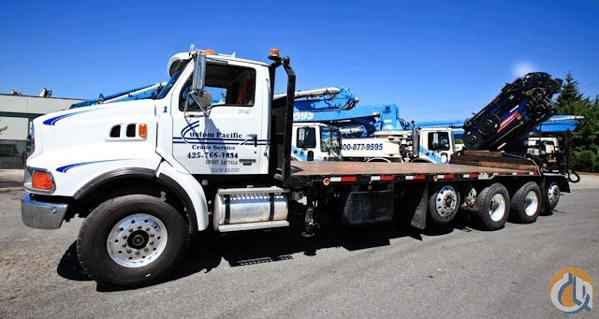

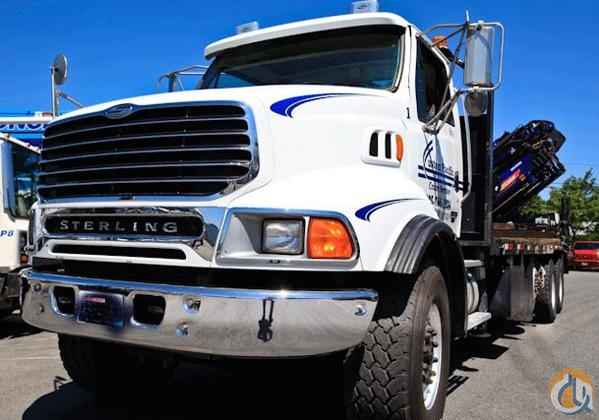

Location...Washington State. S/N...GA400095. PM Model 39025 with J904 hydraulic jib providing full hydraulic horizontal reach of 79'3" and equipped as follows: Single side ground controls with Danfoss control valve and full proportional, multi-function Omnex radio remote control, Dual hydraulically extendable outriggers, span 25' with hydraulic tilting legs, Top seat with no controls, Overload relief valves, 410 degree rack and pinion rotation, Hydraulic load limit device, Revolving load hook, SAE/JIC hose and fittings, Lifting capacities: 56'3" = 2,200 lbs, 62'0" = 1,870 lbs, 67'9" = 1,650 lbs, 73'6" = 1,390 lbs, 79'3" = 1,230 lbs,. Full length subframe and lo-profile flatbed, 22' long x 8' wide. Front five foot heavy duty front bulkhead and rear guard to protect the crane, ICC lights, reflectors and rear bumper, deck is smooth steel, painted black; remote mount hydraulic tank with 25 micron return line filter, necessary hoses/lines and hydraulic fluid, tandem hydraulic pump, and air shift PTO. Crane installed on the afterframe. Supplemental outriggers, full hydraulic in/out, up/down, with independent controls; mounted behind the cab, under the frame. Full air tag axle; 20,000# axle with 14,000# suspension, automatic UP in reverse feature, with single lo-profile tires (215R 17.5) installed under the crane including rear half fenders. Full air steerable pusher axle; 15,000# axle and suspension, automatic UP in reverse feature, with single lo-profile tires (255R70 22.5 has 5,500# capacity each), installed ahead of tandems. Front steer axle with (425R65 22.5) tires and drive tires are (11R 22.5). All tires mounted on aluminum rims. Outrigger pad racks, (1) 4' tool box, (10) stake pockets each side of bed, (6) sliding strap ratchets, (2) deck lights. Crane mounted on 2004 Sterling LT9500. Engine Mercedes Benz 450 horse power MBE 4000-450-12-8L. 250,000 mile/7 year MB transferrable engine warranty, 91,000 miles on truck, 68,000# GVWR, 23,000# load capacity as configured, On/Off Mercedes compression/exhaust brake, Eaton Fuller 10 speed transmission. Call or email for more specs.
SOLD
