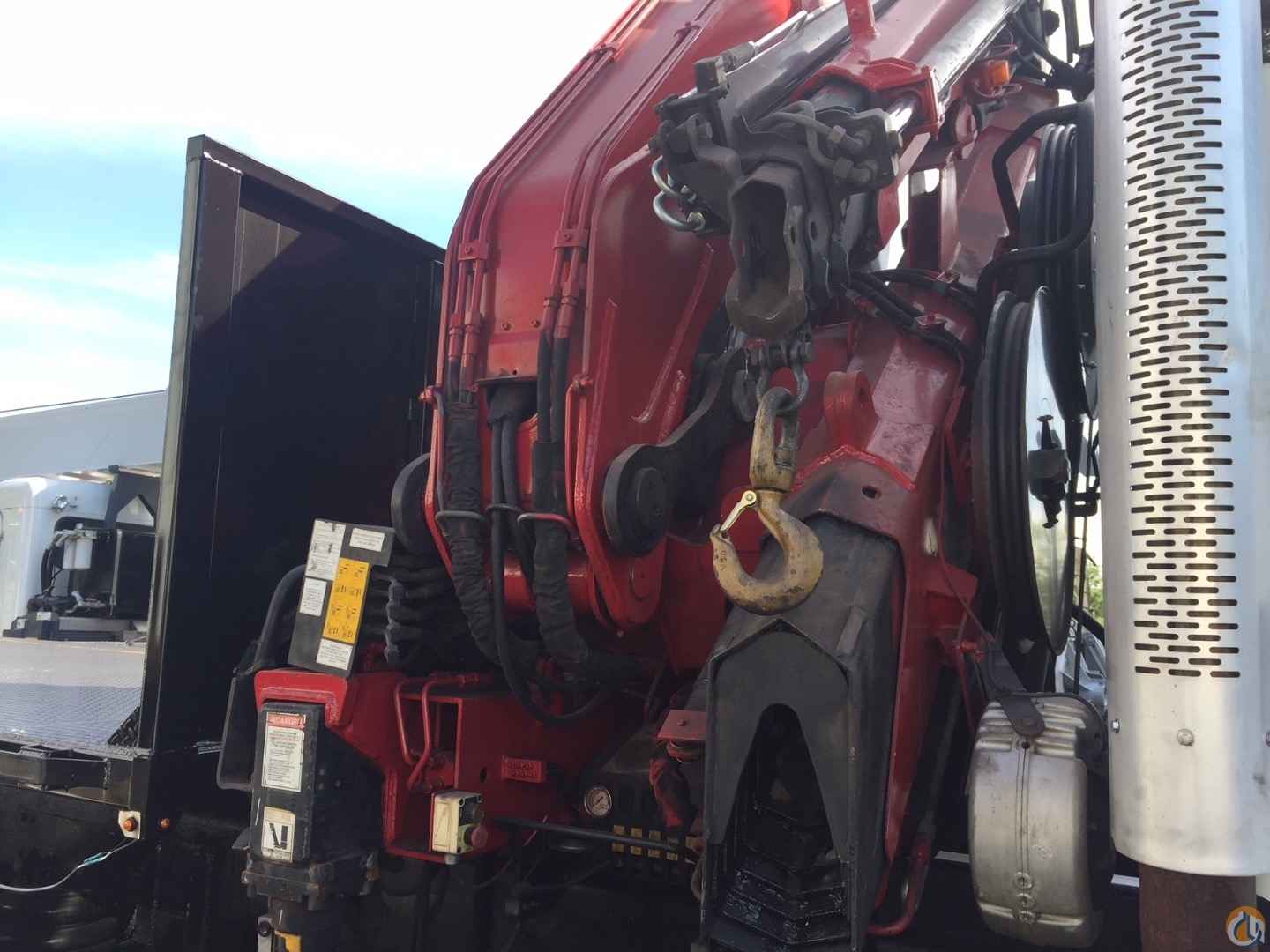

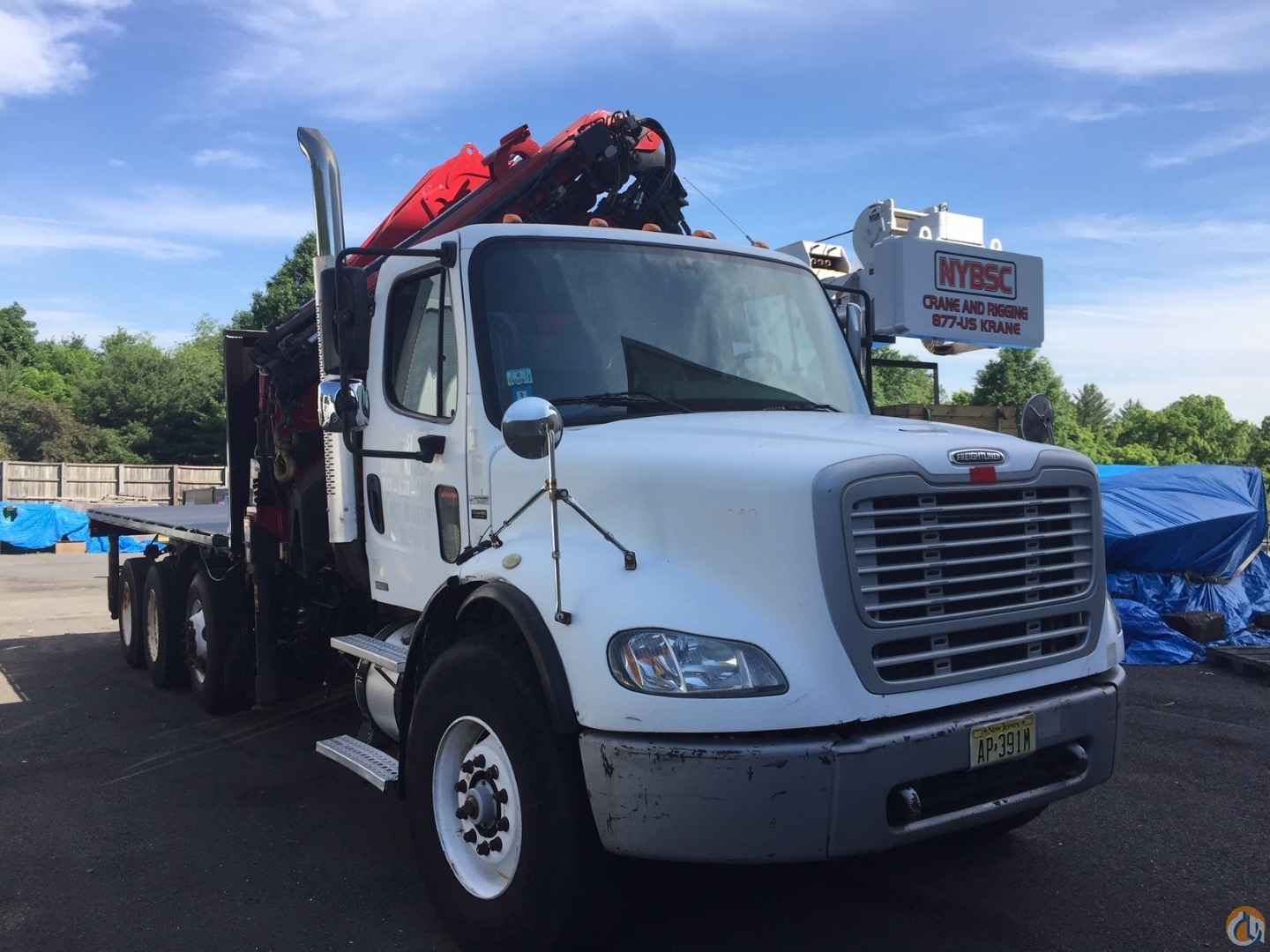

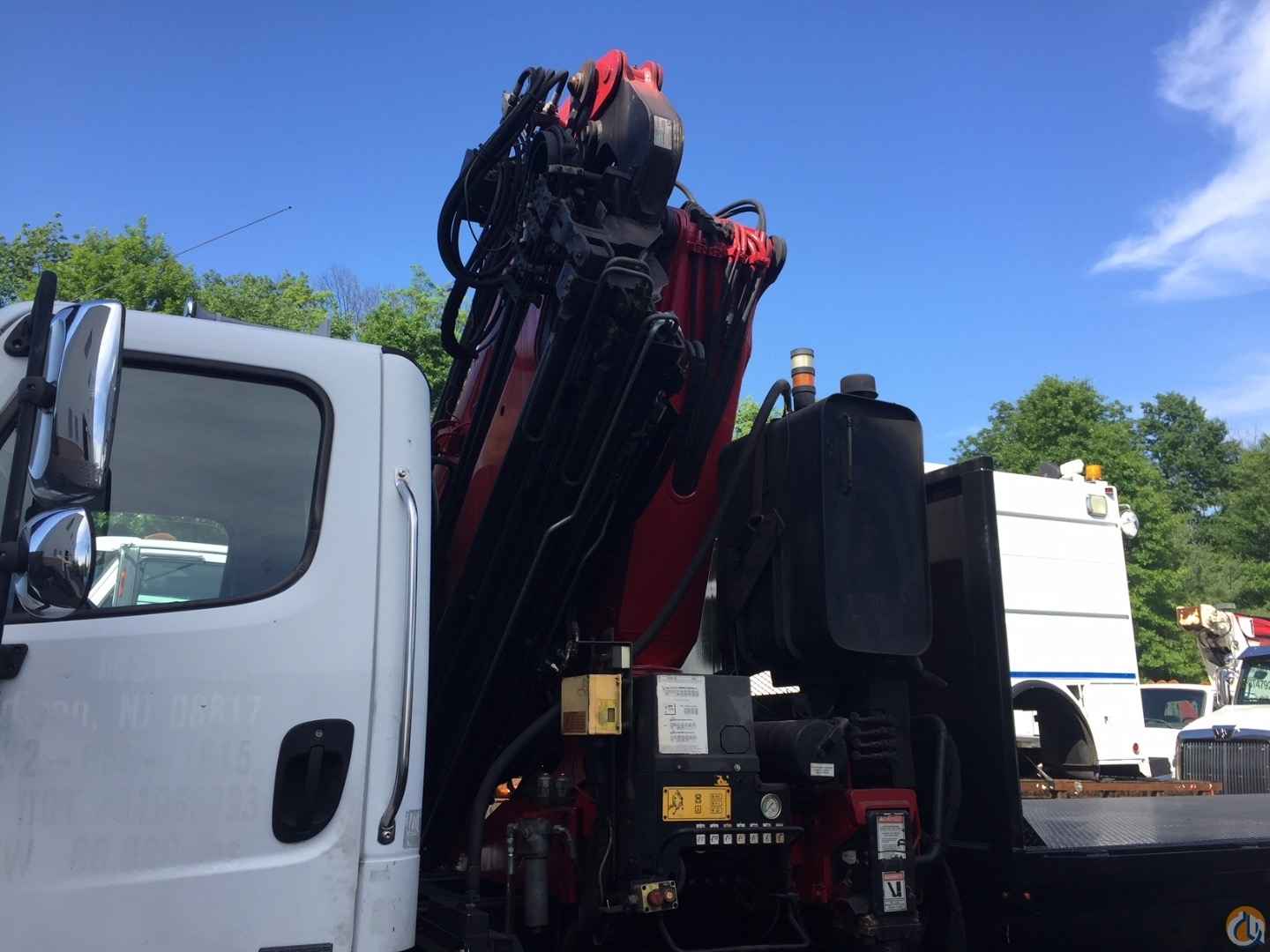

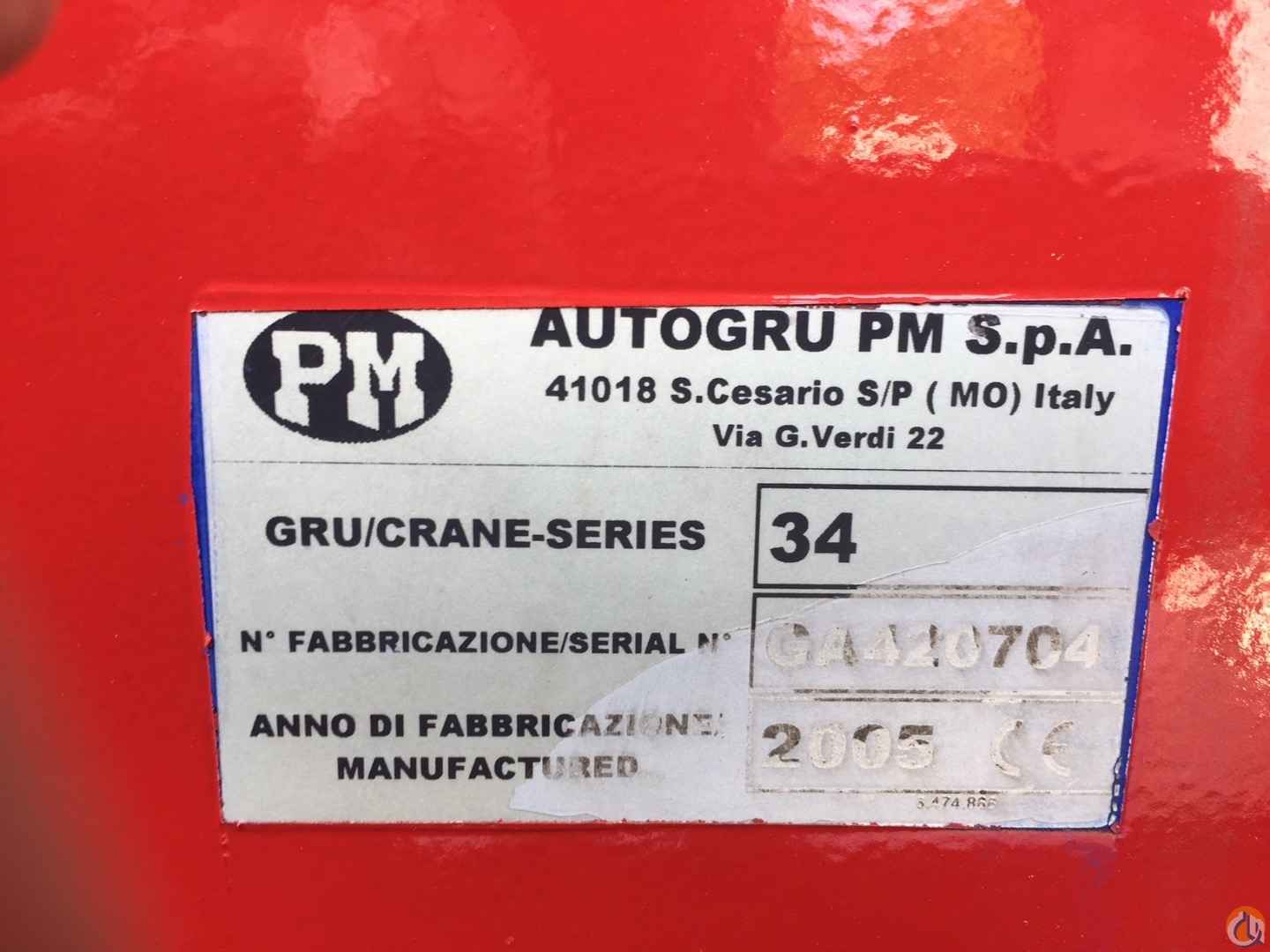

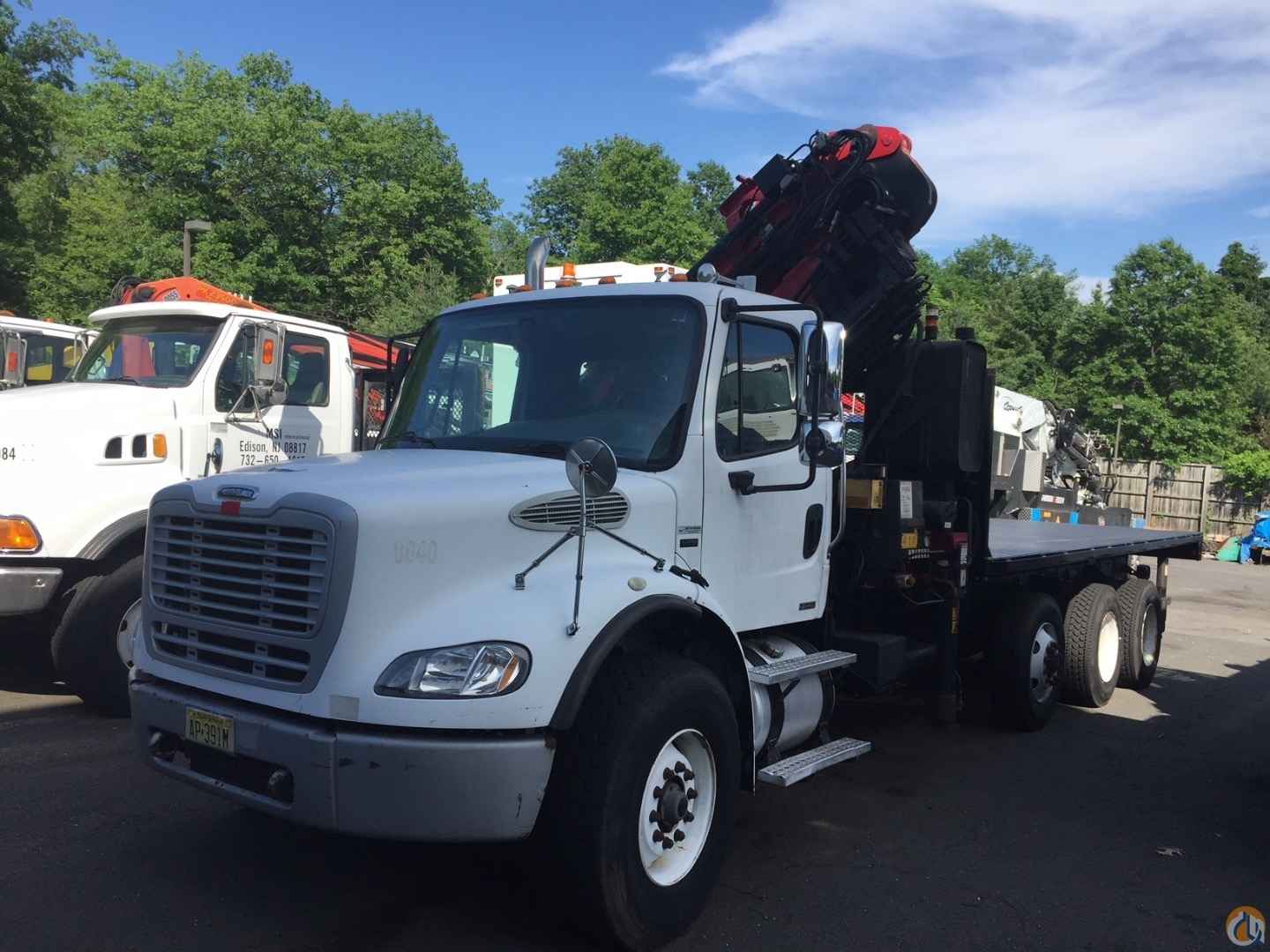

Used PM 34026 w/J703 fly jib mounted to 2005 Freightliner M2 112 chassis.
Standard Features:
Maximum horizontal hydraulic outreach: 22.45 m
Maximum vertical hydraulic outreach: 26.20 m

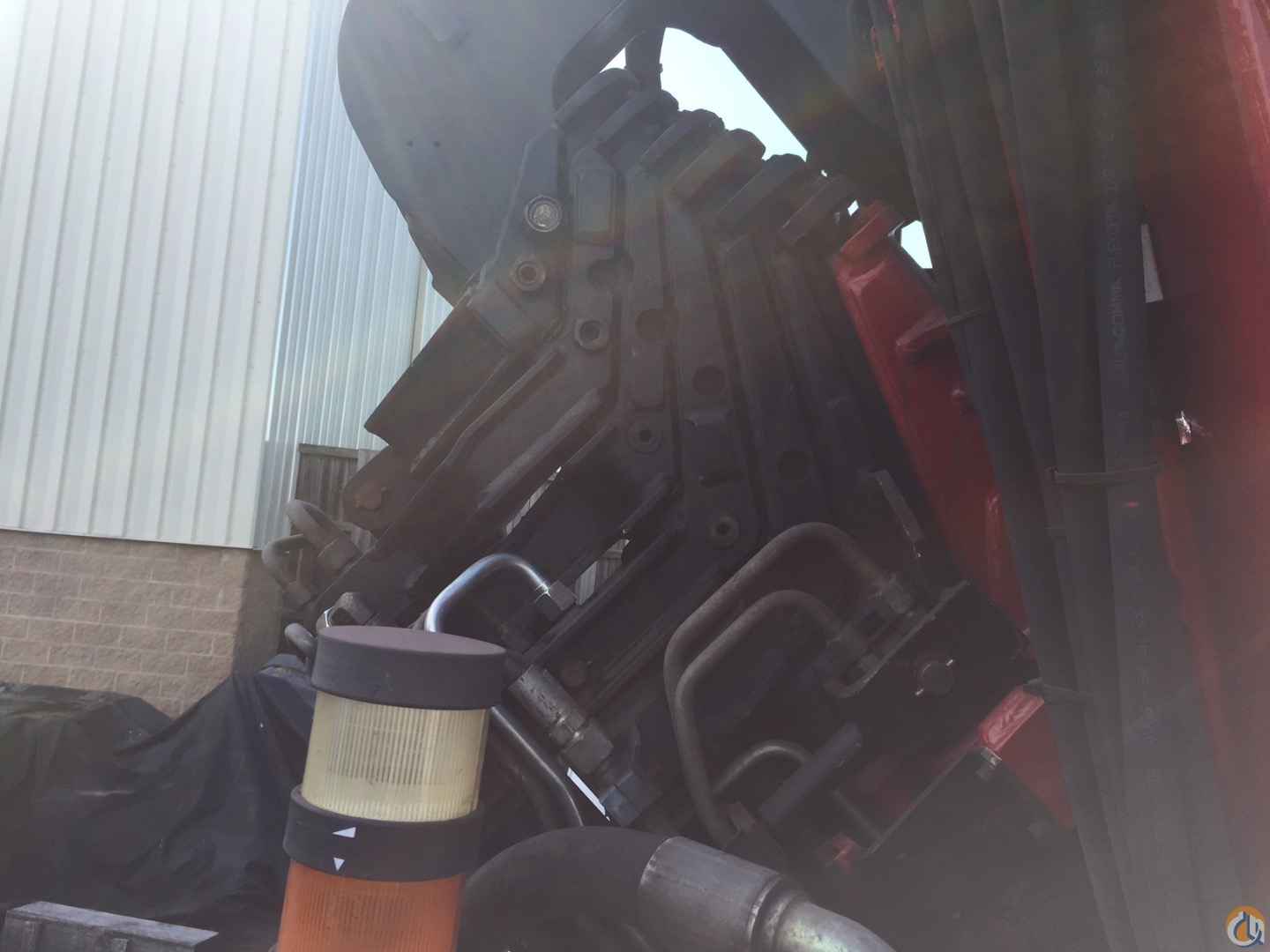

7-functions control valve bank fitted with both sides control levers (Dual side
control not available in combination with Remote Control)
Hydraulic standard outrigger beams (span 5715 mm) c/w 2 fixed stabilizer
jacks, ball-joint pads and safety locks
Overload device c/w emergency cut-off
Steel oil tank 200 l capacity (supplied empty). Optional, included in the
standard configuration.
CE standard 4 meters height sensor
Cabin warning signal (crane in folded position)
82’2” Max Reach at 888lbs.
Approx. 15,115 hours
Included items:
Auxillary Stabilizers
Hose and pipe Kit for Auxillary Stabilizers
Radio Remote Control - Hectronic with pressure compensated control valve
Overload warning lights
Main Stabilizer w/2 fixed pads 25.6’ Foot Spread
Oil Cooler
High Pressure Filter
Hour Meter
Truck Specifications:
450 HP Mercedes Benz engine

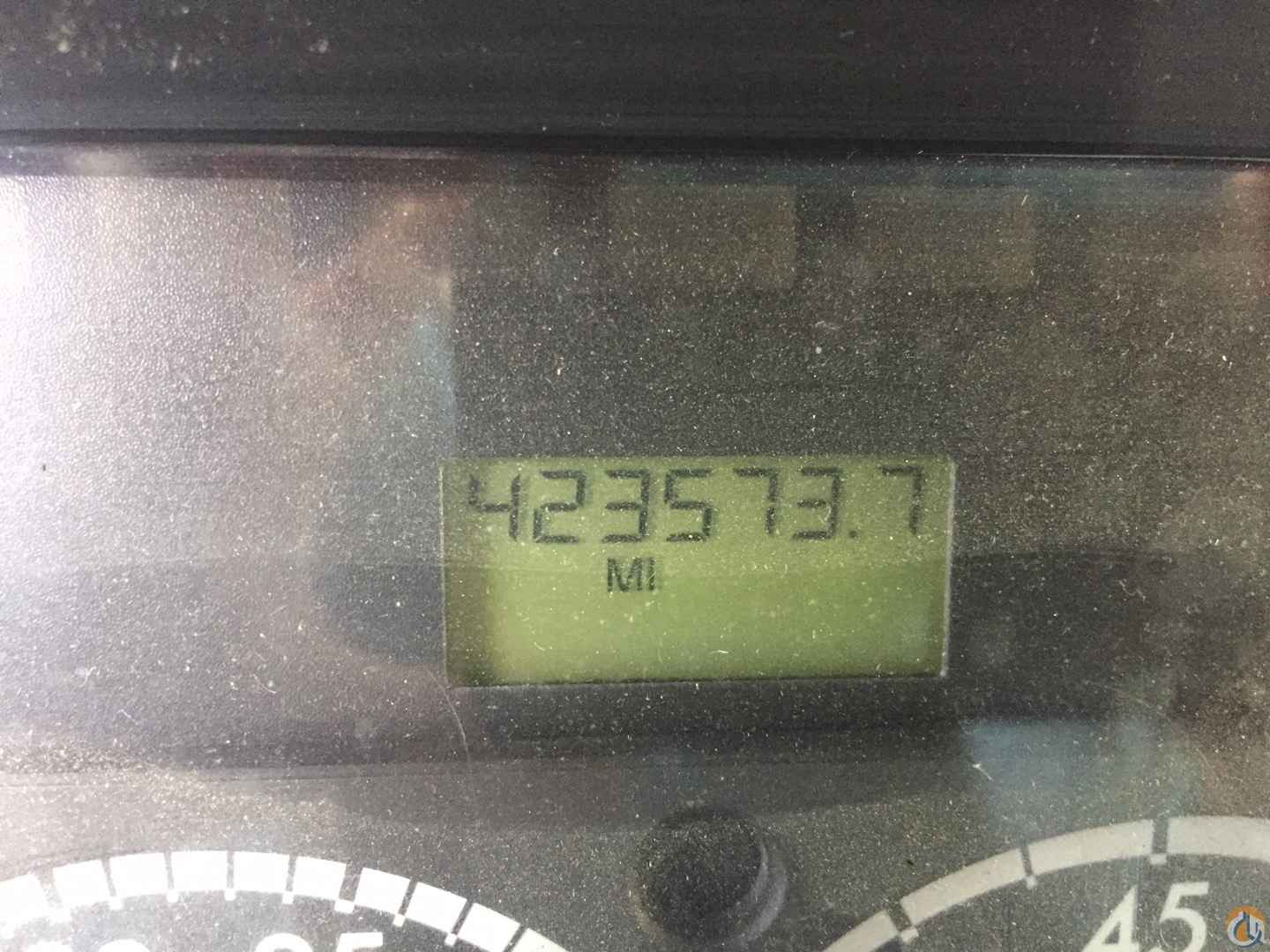

Approx. 423,429 miles
Fuller 8-speed transmission
Spring suspension
Dual aluminum 50 gal. fuel tanks

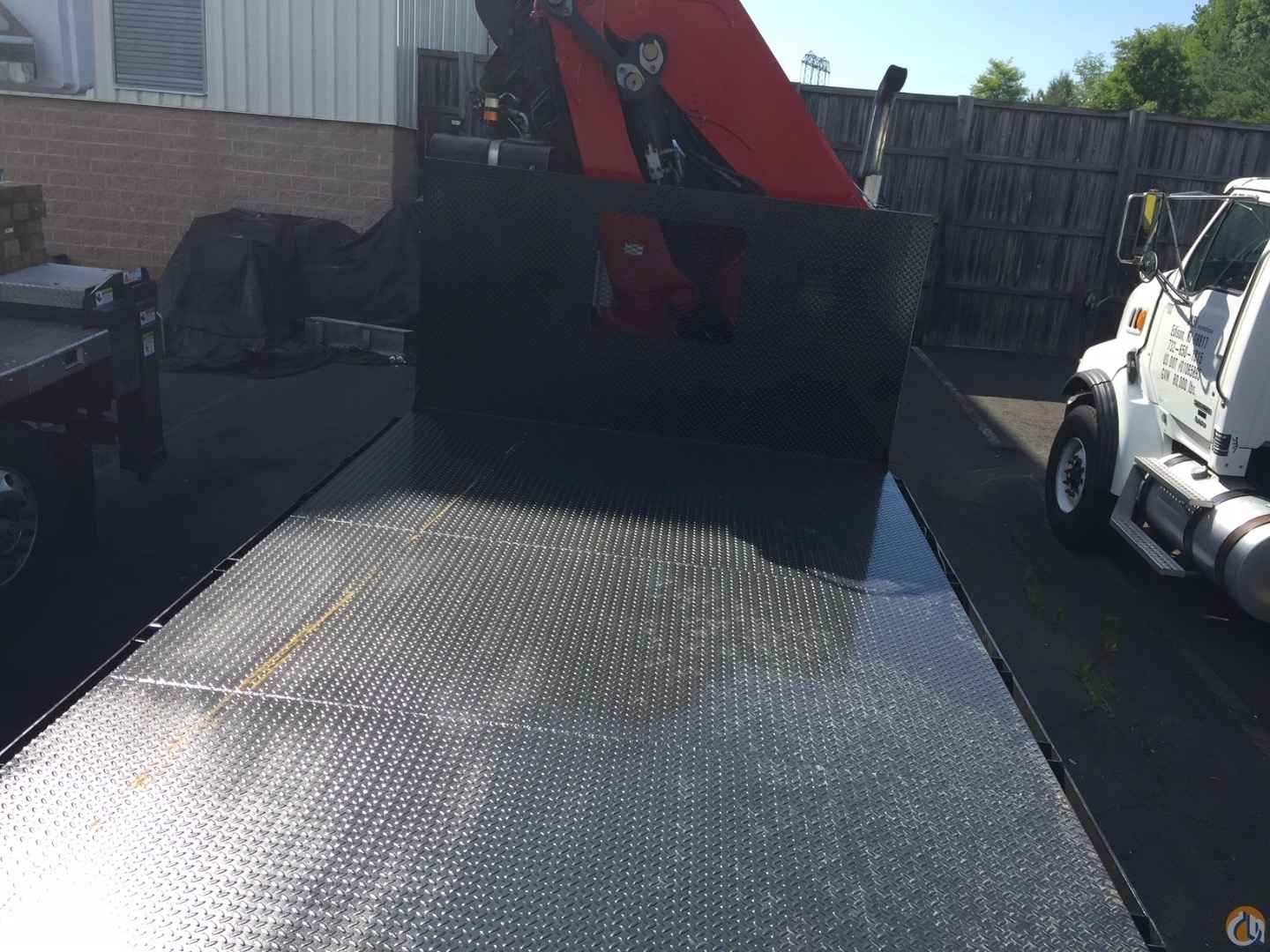

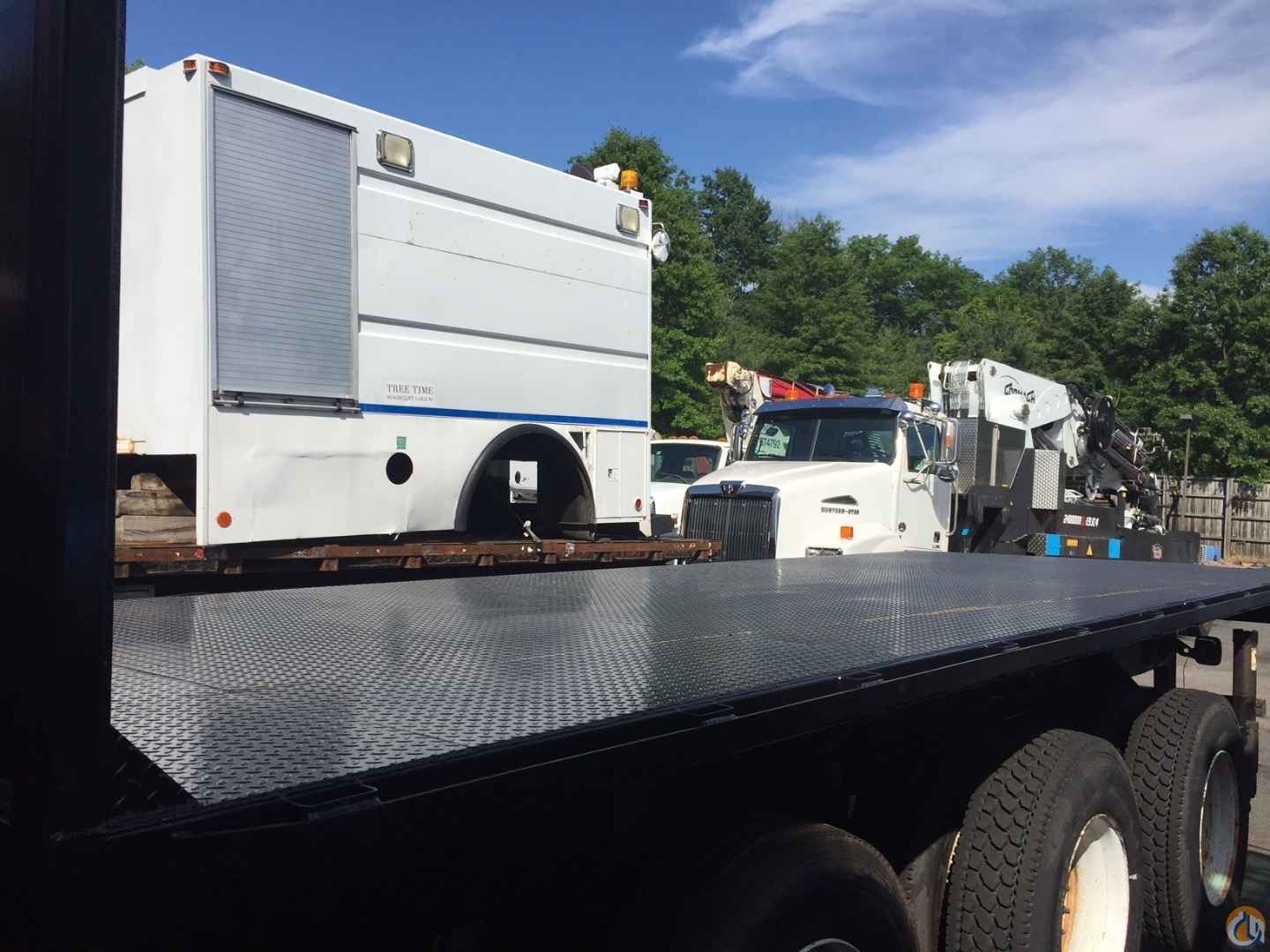

22’ NEW steel bed – diamond floor
Steel wheels

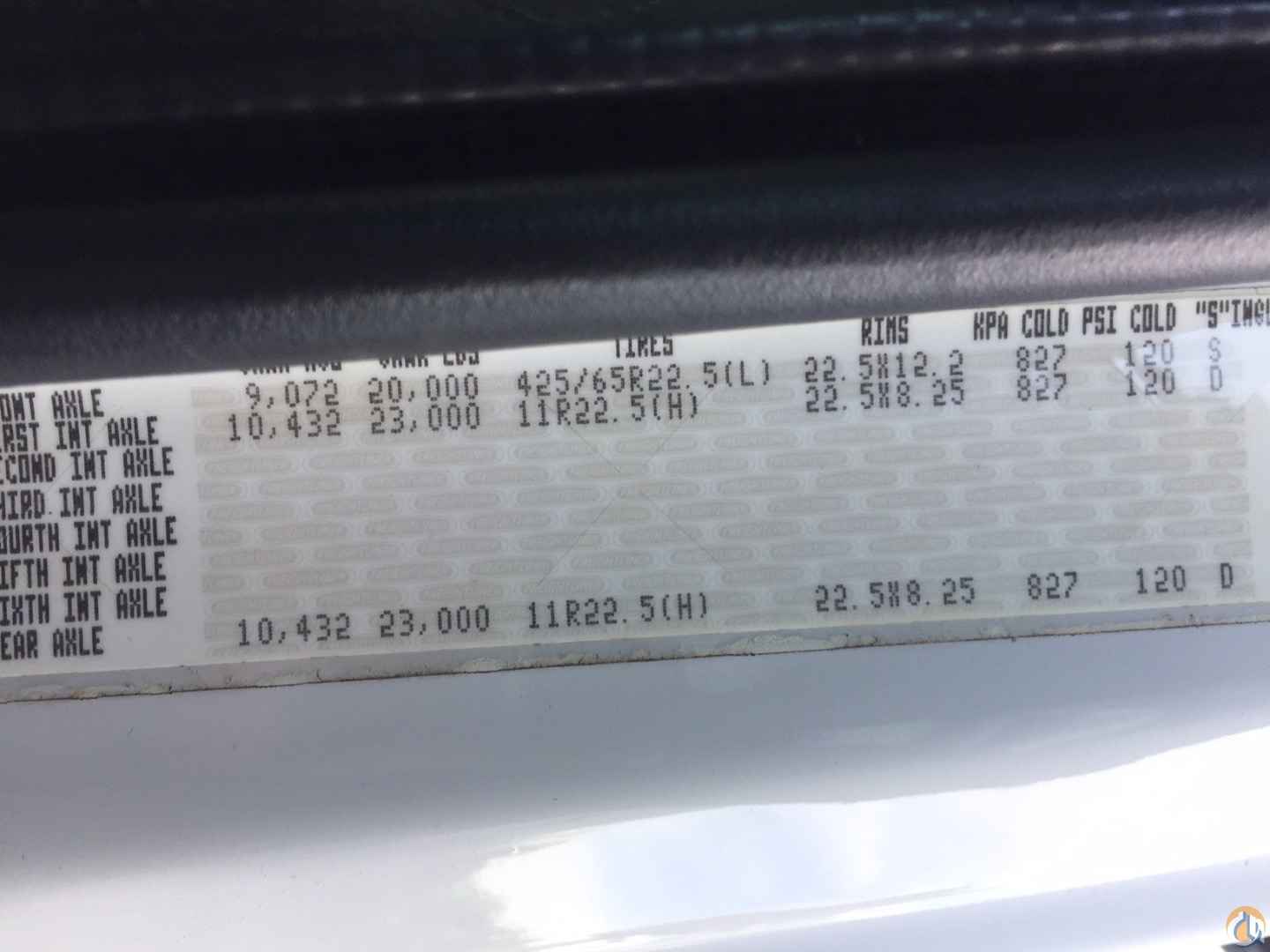

425/65R22.5 front tires
11R22.5 rear tires
20,000 lb. front axle
46,000 lb. rear axle
13,500 lb. pusher axle

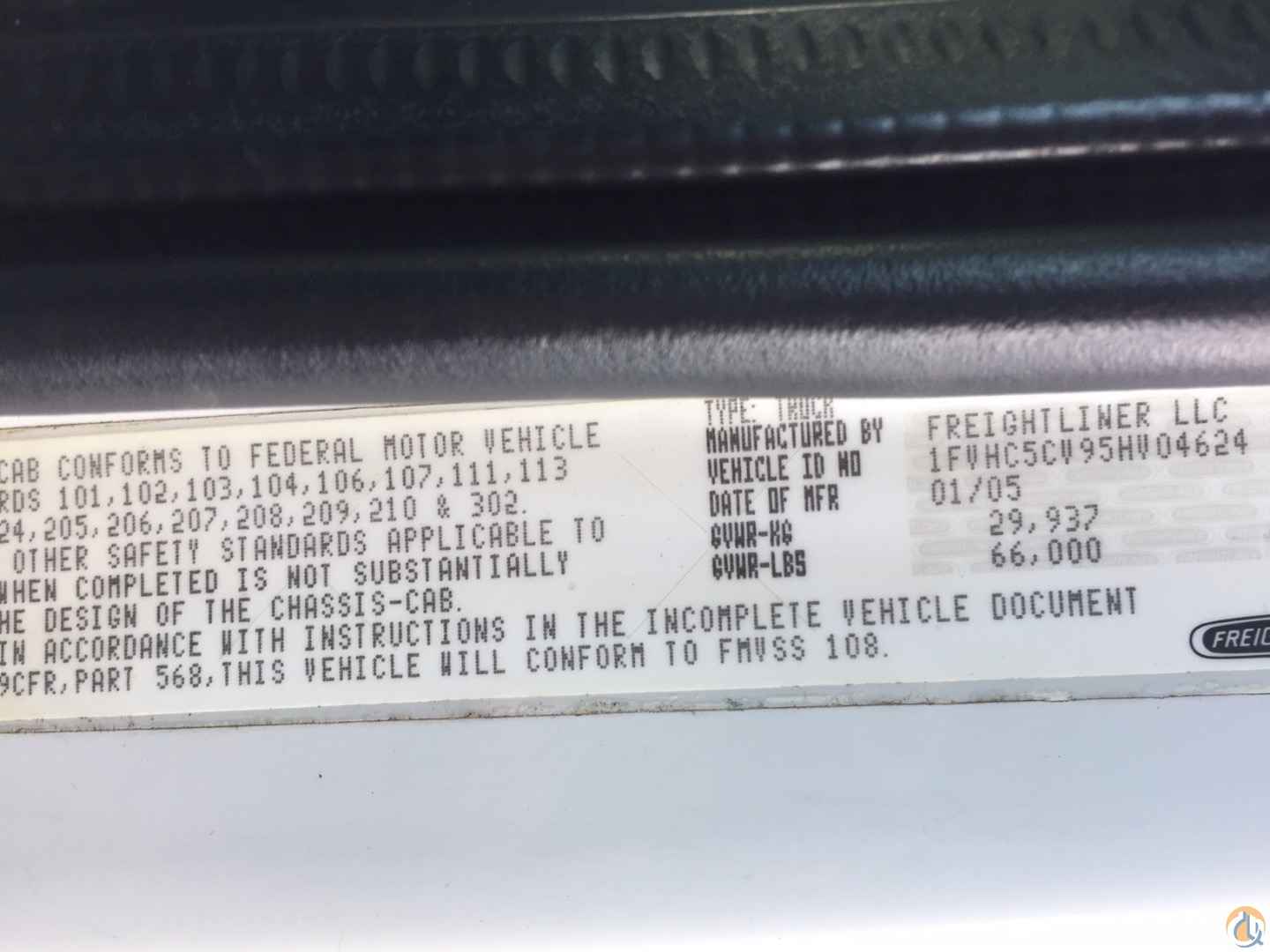

79,500 lb. GVWR

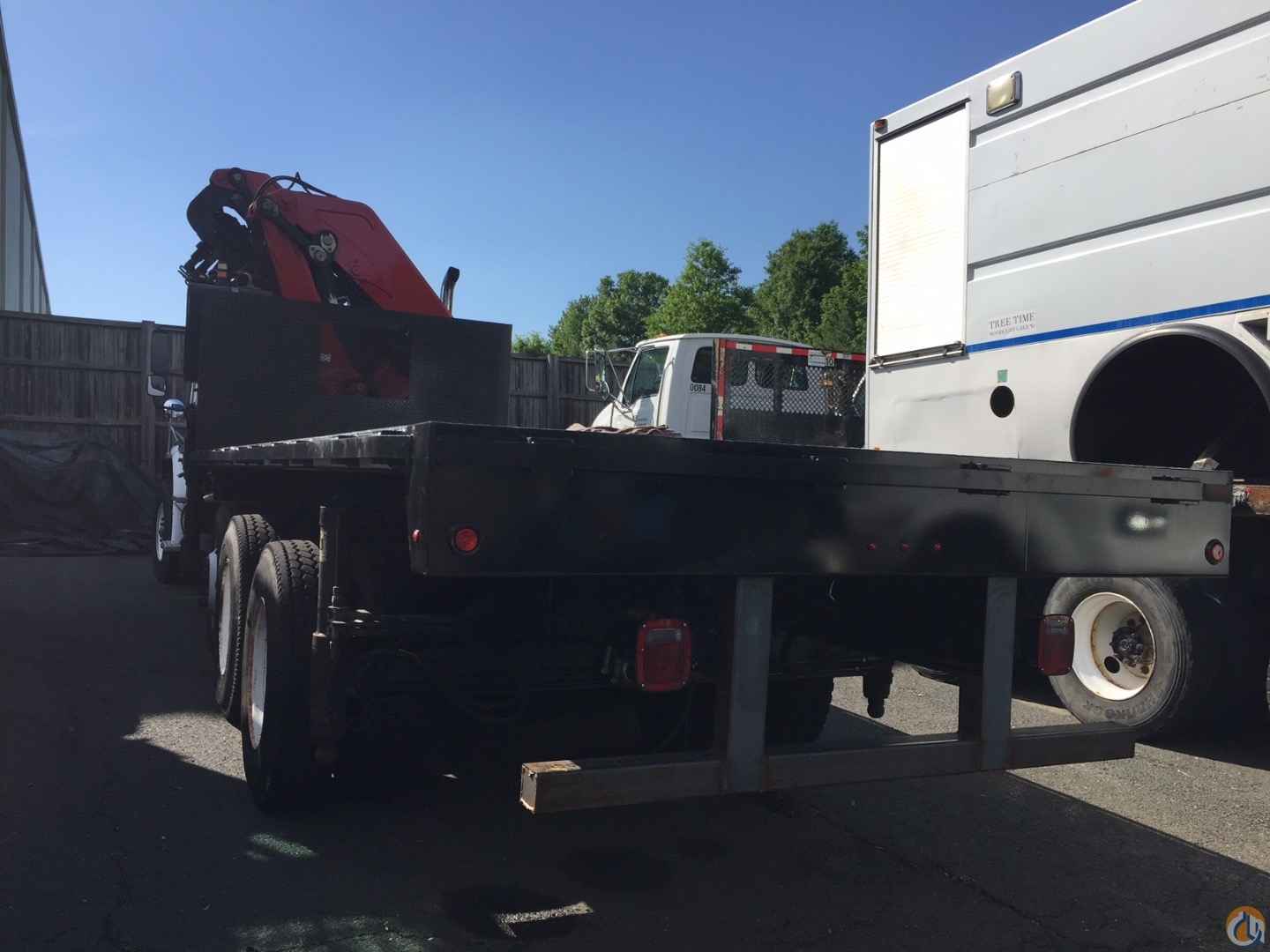

22’ Steel Flatbed Diamond Floor, 48” Bulkhead with mesh window, stake pockets and tie down bars, LED lighting, ladder steps, 2-36” Toolboxes, 5 sliding ratchets and straps.
