BOOM DETAILS

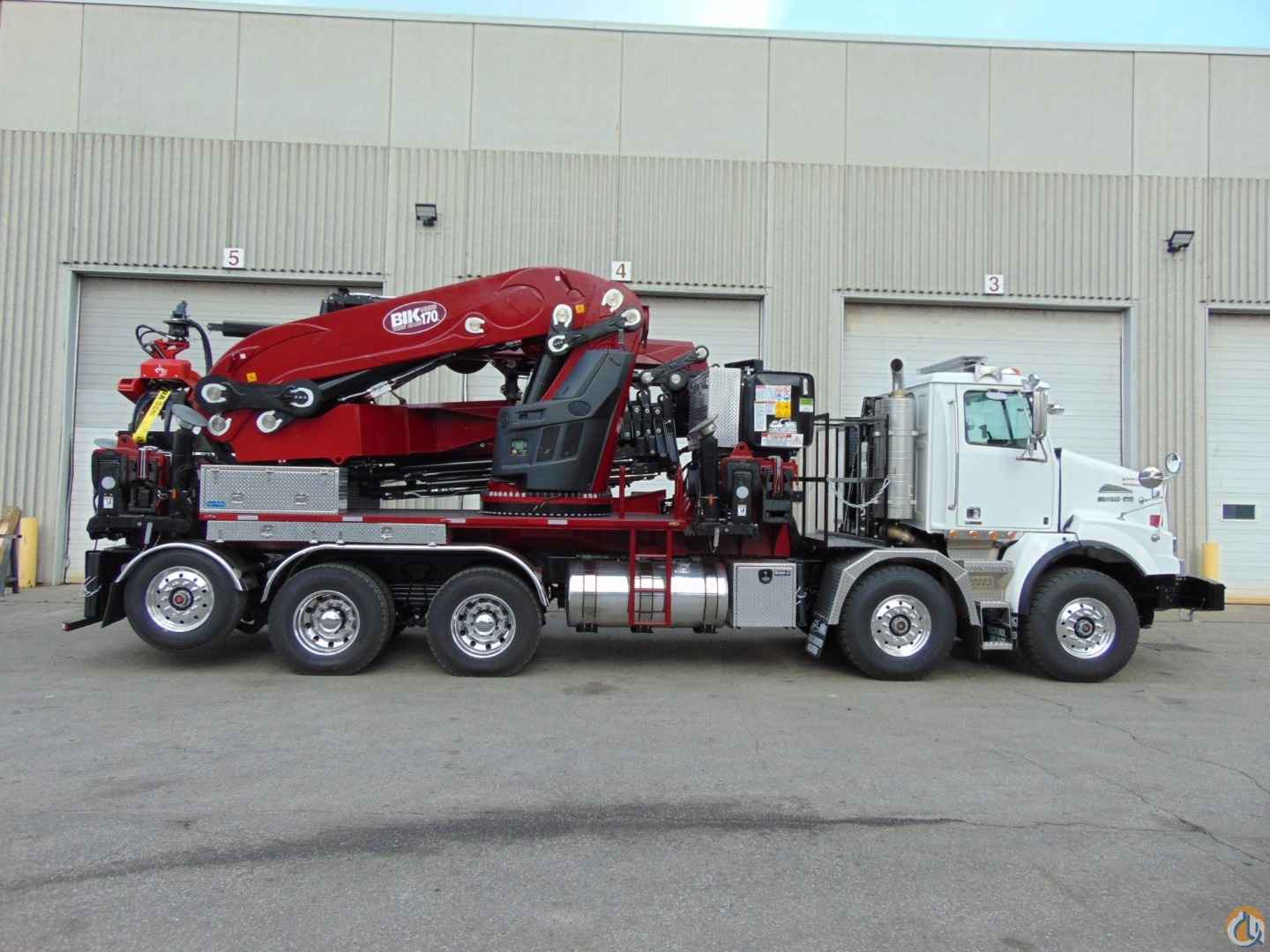

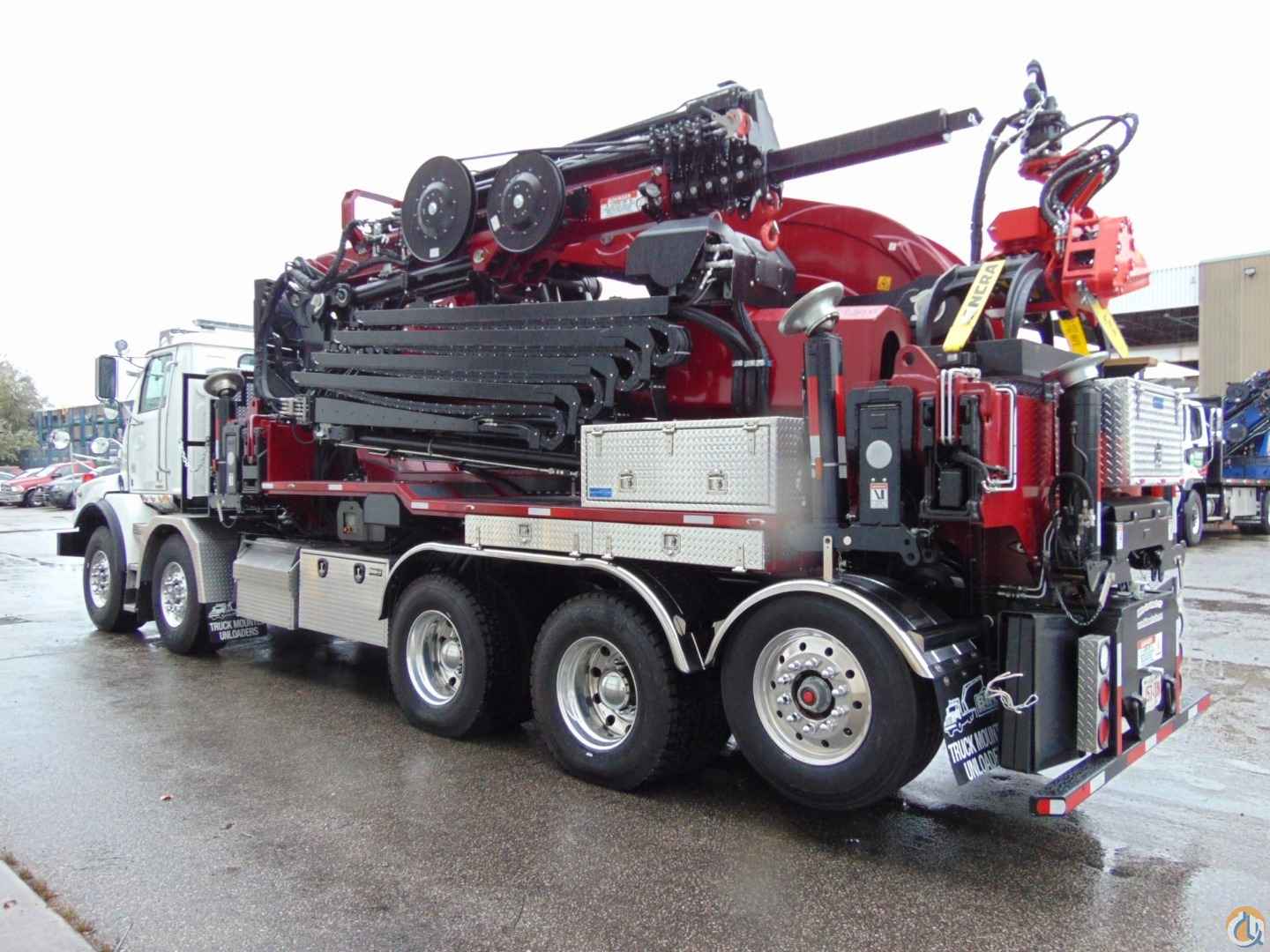

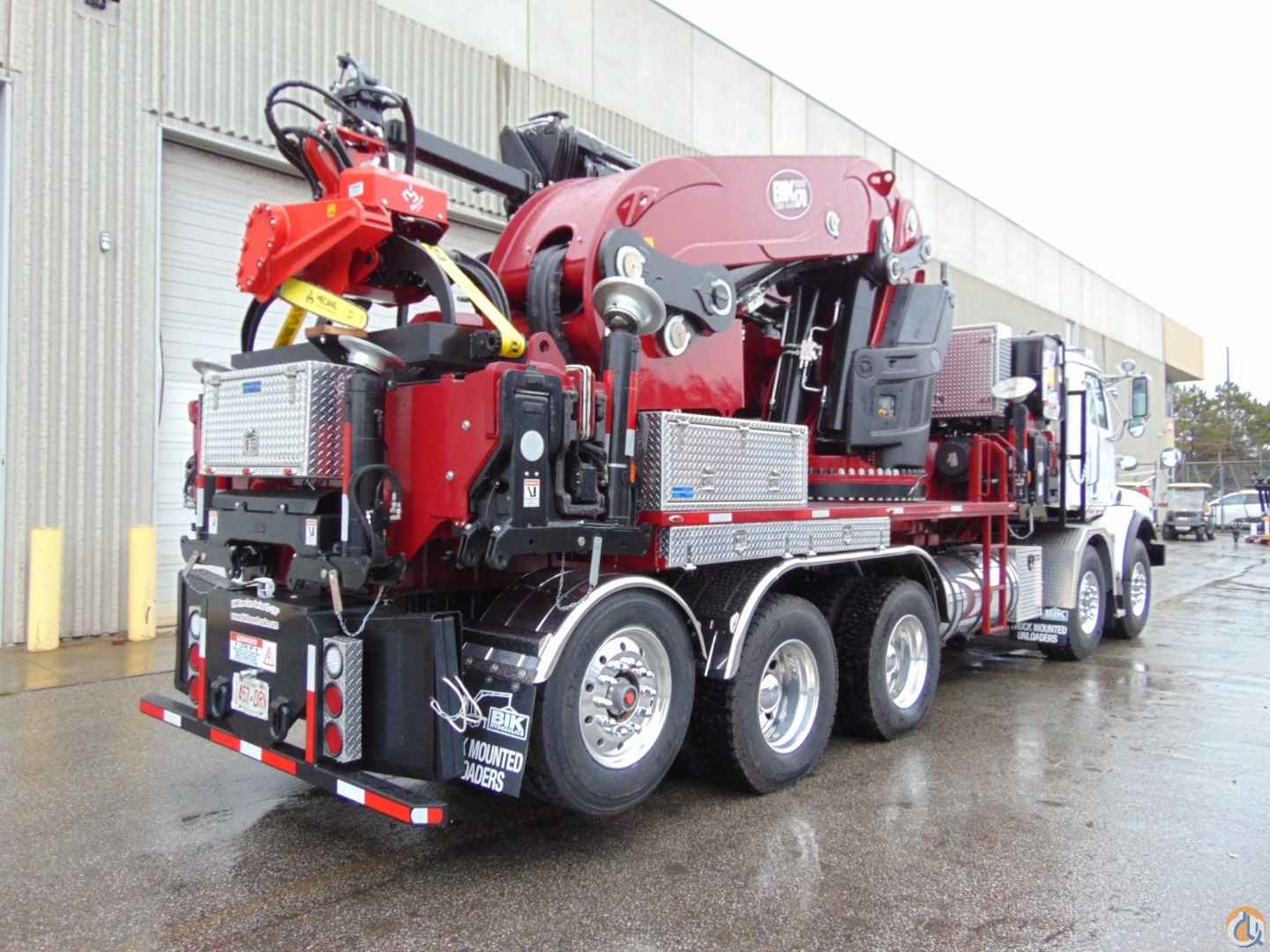

NEW – PM 210028SP+J3106SP KNUCKLE BOOM – HYDRAULIC KNUCKLE BOOM WITH JIB FOLD OVER REAR OF TRUCK
- Up to 178’ Vertical Reach with Two Optional Manual Pull-out Extensions
- 8 Hyd Extensions in Main Boom to 102’ Vertical with Boom Angle at 85 Degrees – Best in its Class
- 6 Hyd Extensions in Jib Booms to 162’ Total Hydraulic Vertical Reach
- Continuous Rotation and Dual Planetary Gear Rotation, Double Pilot Operated on Slewing & Pilot Operated Check Valves on All Cylinders
- Special Extra High Tensile Steel Structure, Lowest Weight to Ton/M Size in its Class
- Dual Main Lift and Dual Knuckle Lift Cylinders – Greater Power and Easy Access
- Hydraulic Extra Wide Main Outriggers at Pedestal – 40’ – Hydraulic Tilting When Retracted
- Auxiliary 34’ Spread Stabilizers Installed at Rear Behind Drives, 2 Hyd Out & Down Rearward & 1 at Front Bumper
- Dual PTO’s and Hydraulic Pumps Installed on Aux Trans for Consistent Operation Speed & Power when Activating Multi-Function Movement
- Dual Hydraulic Oil Coolers, Dual High Pressure & Return Filters and Min. 125-Gallon Oil Tank for Boom
- DANFOSS Split Valve – 2 Pressure Line System Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing Constant Crane Monitoring & Visual Display
- SCANRECO Radio Remote Control Includes: 2 Batteries, In-cab Charger, Back-up Cord, Crane Painted PM Blue, Load Chart in FT. & LBS.
- Access Ladders to Front of Bed Wings on Both Sides, Winch Accessory Storage Areas Including Two 36” Storage Boxes
- Warranty: 1-Yr. Parts & Labor on Entire Boom, 3-Yr. on Structural Components
TRUCK DETAILS

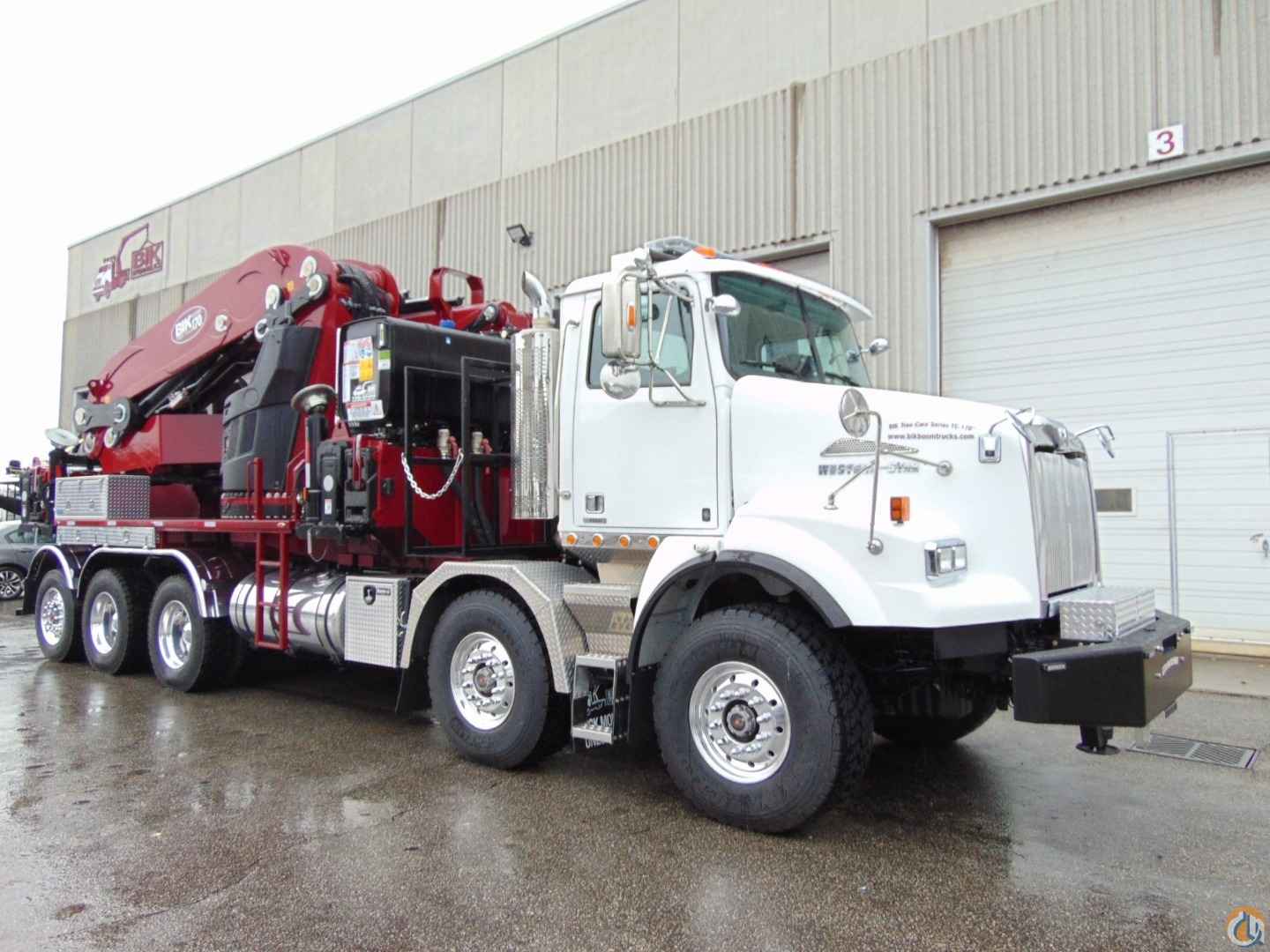

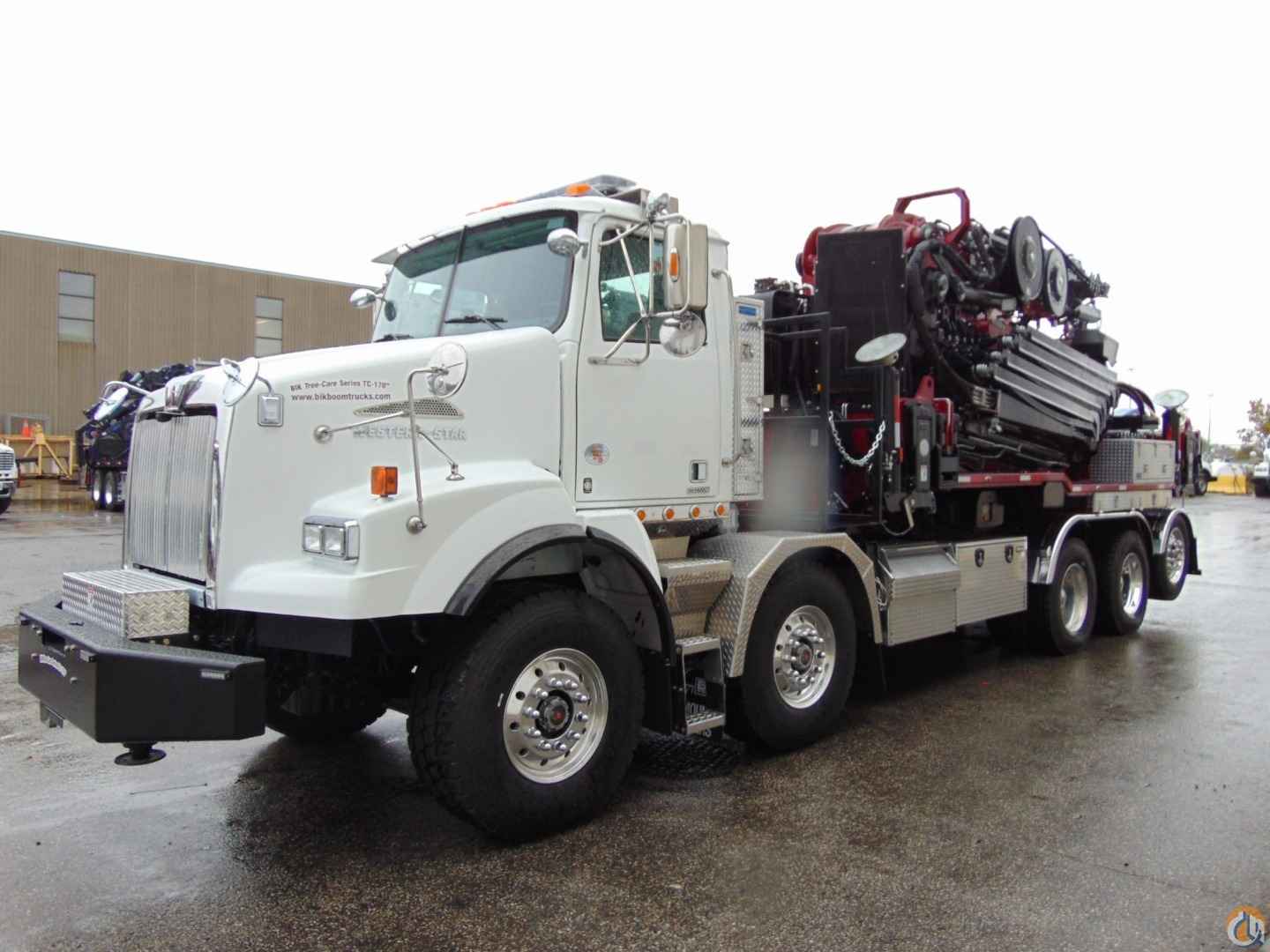

NEW – WESTERN STAR 4800 SLOPED SHORT NOSE T/A STEER – T/A REAR WITH LIFT AXLE
- 5 AXLE DDC-13 Diesel – 470 HP with Jake
- Eaton Ultrashift Automated 18 Speed Trans.
- Auxiliary Transmission for Dual PTO Drives
- (2) x 20,000 lb Fronts with 425 / 65R22.5 Tires
- 46,000 lb Rears on Air Ride Susp.
- 20,000 lb Self Steer Lift Axle Ahead of T/A’s, Double Frame
- Polished ALCOA Alum Wheels Front and Outer Rear
- Chrome Single Polished Exhaust & Chrome Grill & Bumper
- 100-Gallon Aluminum Fuel Tank

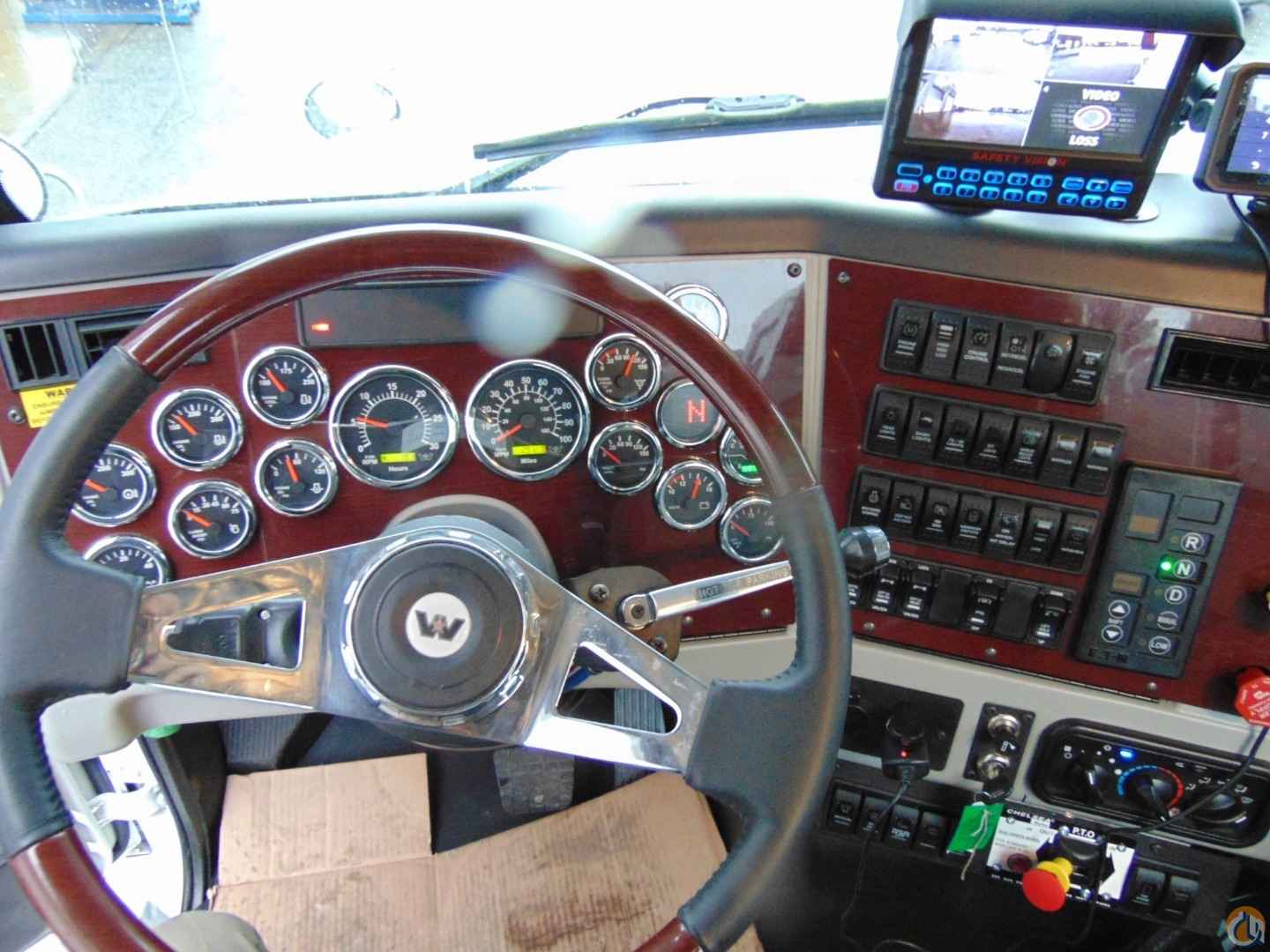

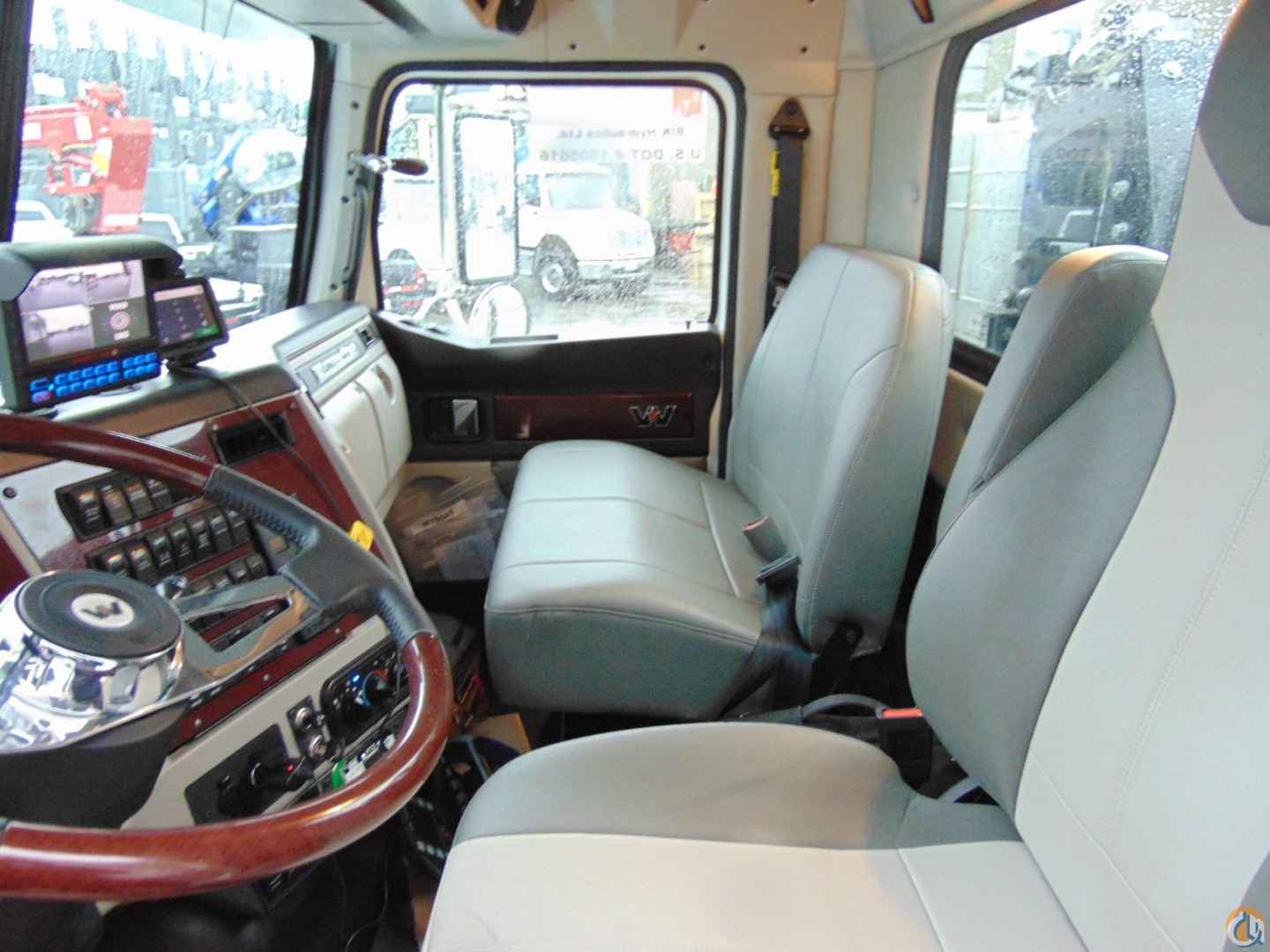

- Loaded with Options Including: A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Window Both Sides, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, Dot Bumper, etc…
Also Included:
- Program Remote Control to include Engine Start/Stop and Variable Engine
- (3) Aluminum Storage Boxes and (1) Vertical Cabinet
- (7) Pcs. 24” x 24” x 2” PVC Stabilizer Pads with Holders on Both Sides of Truck
Additional Options Available:
- Lifting Winch to Boom with Related Plumbing/Accessories
- 1” Drawplate Installed at Rear of Truck Frame (for possible pintle hook)
