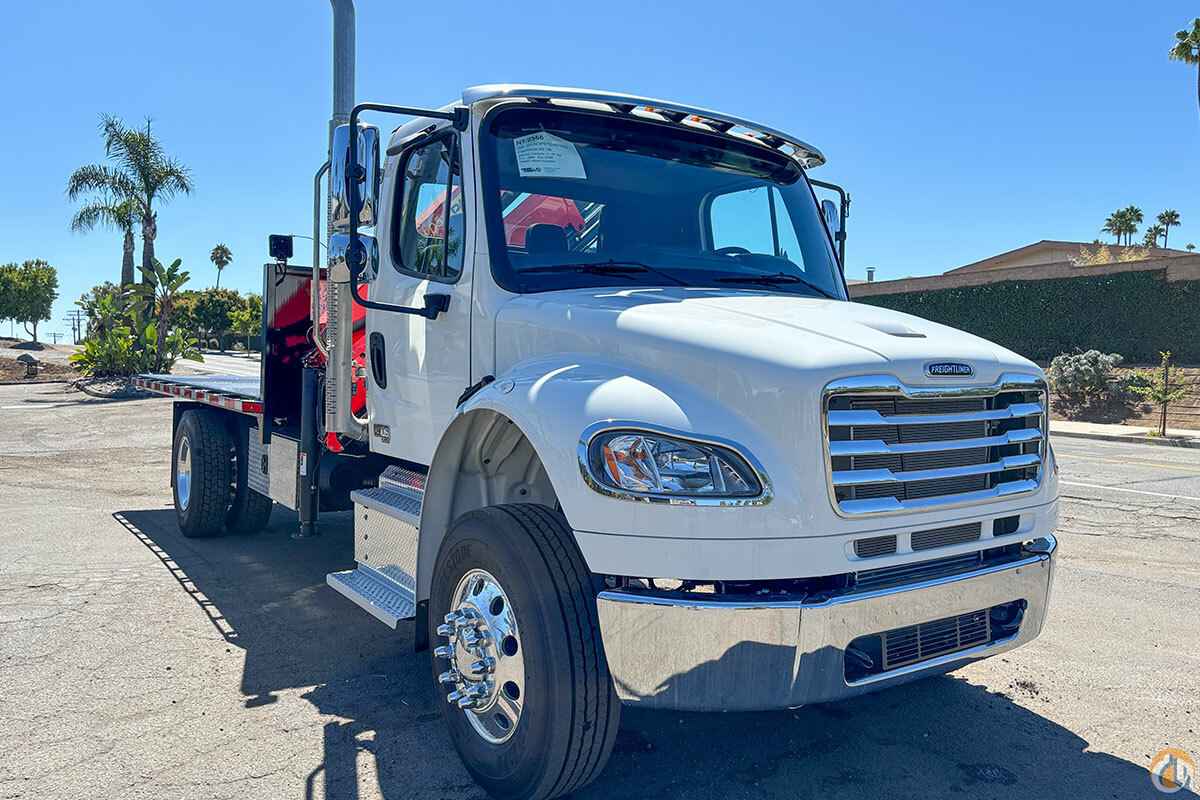

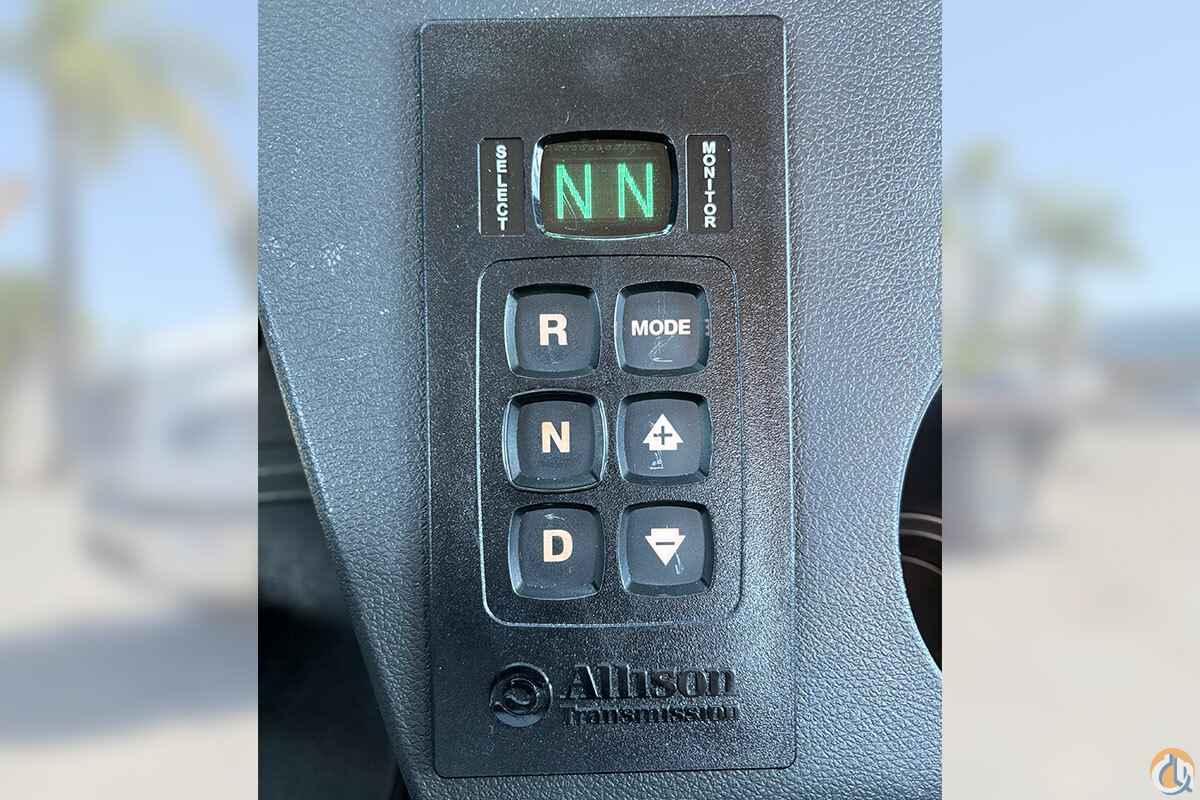

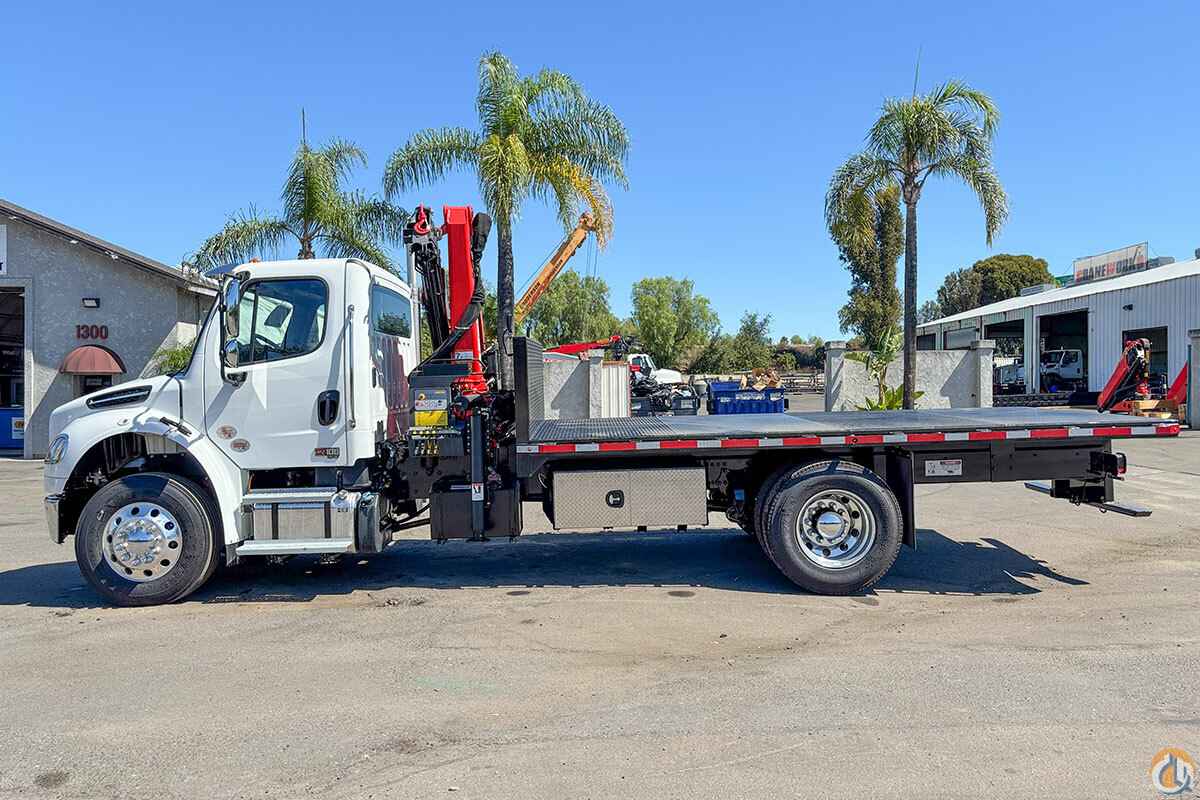

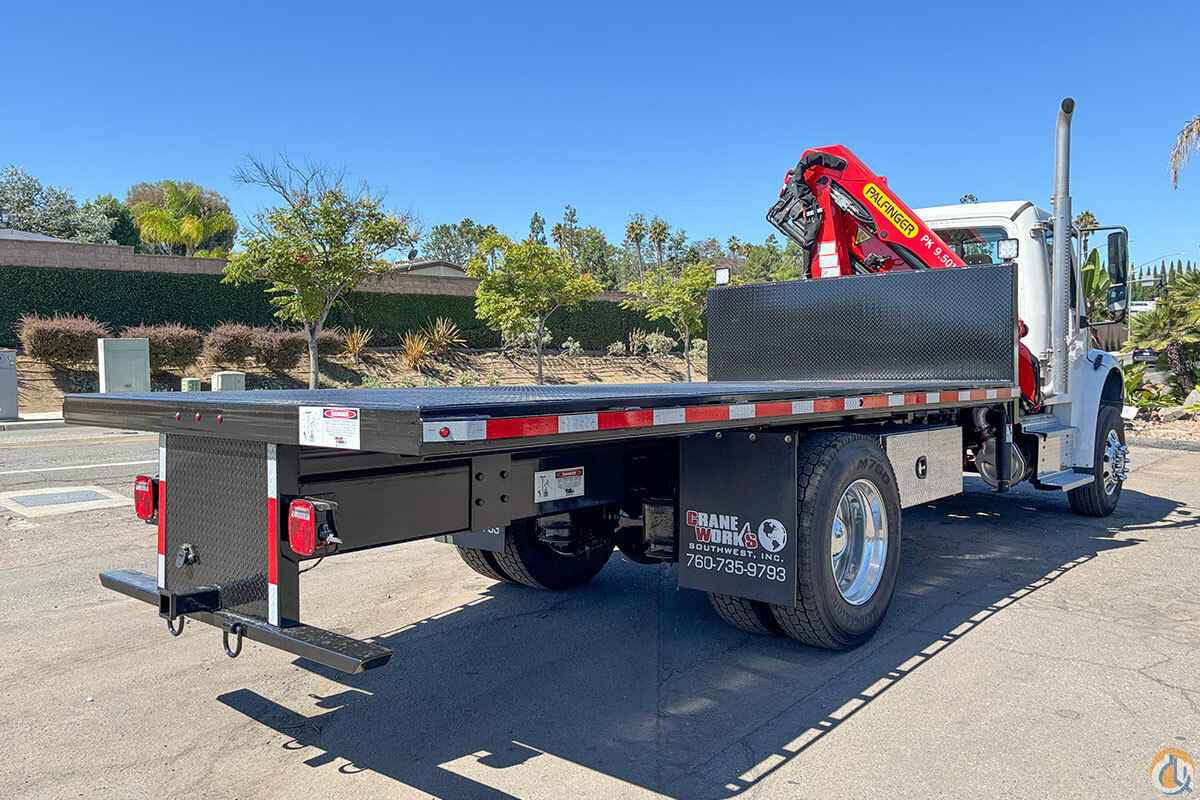

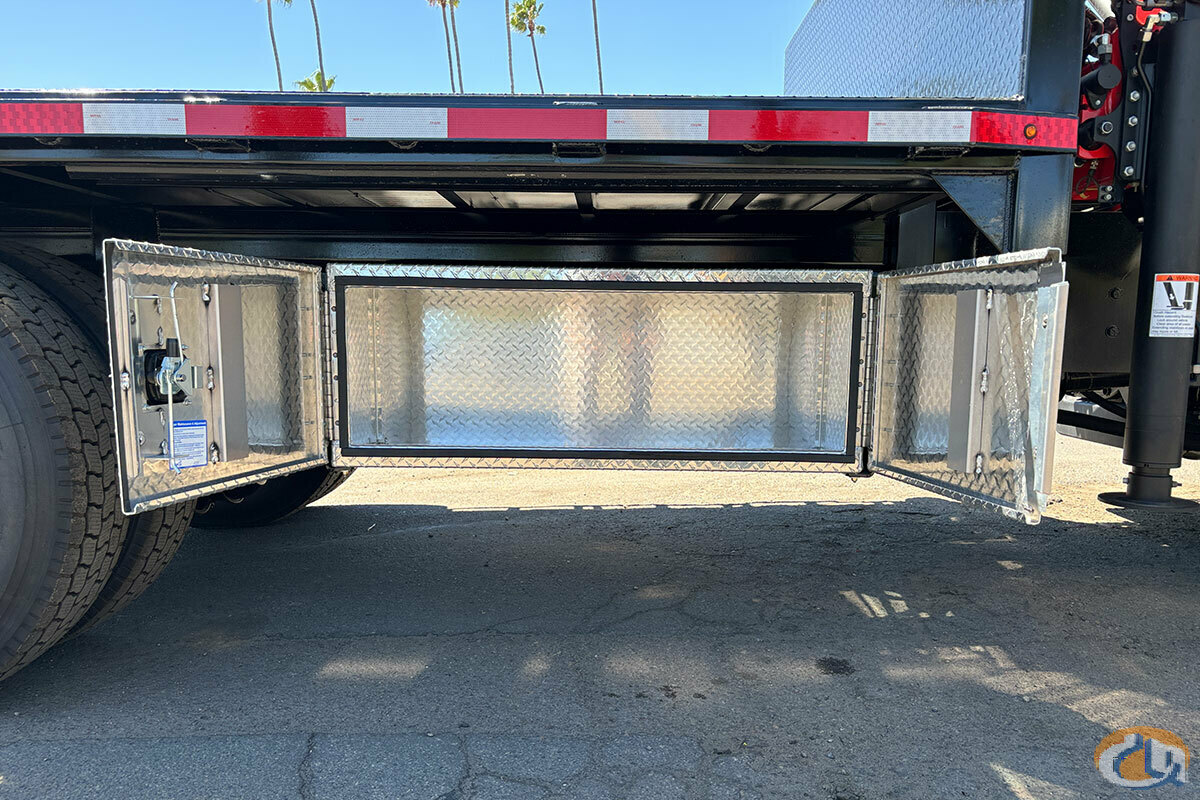

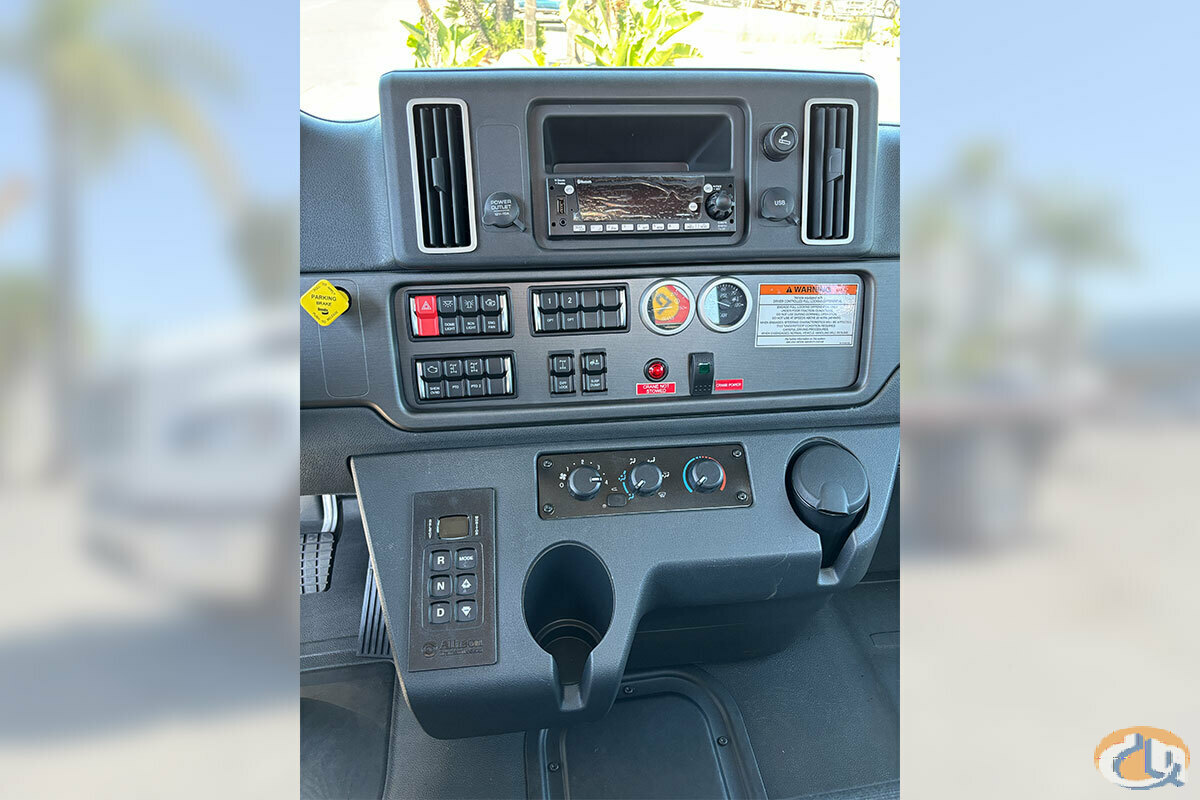

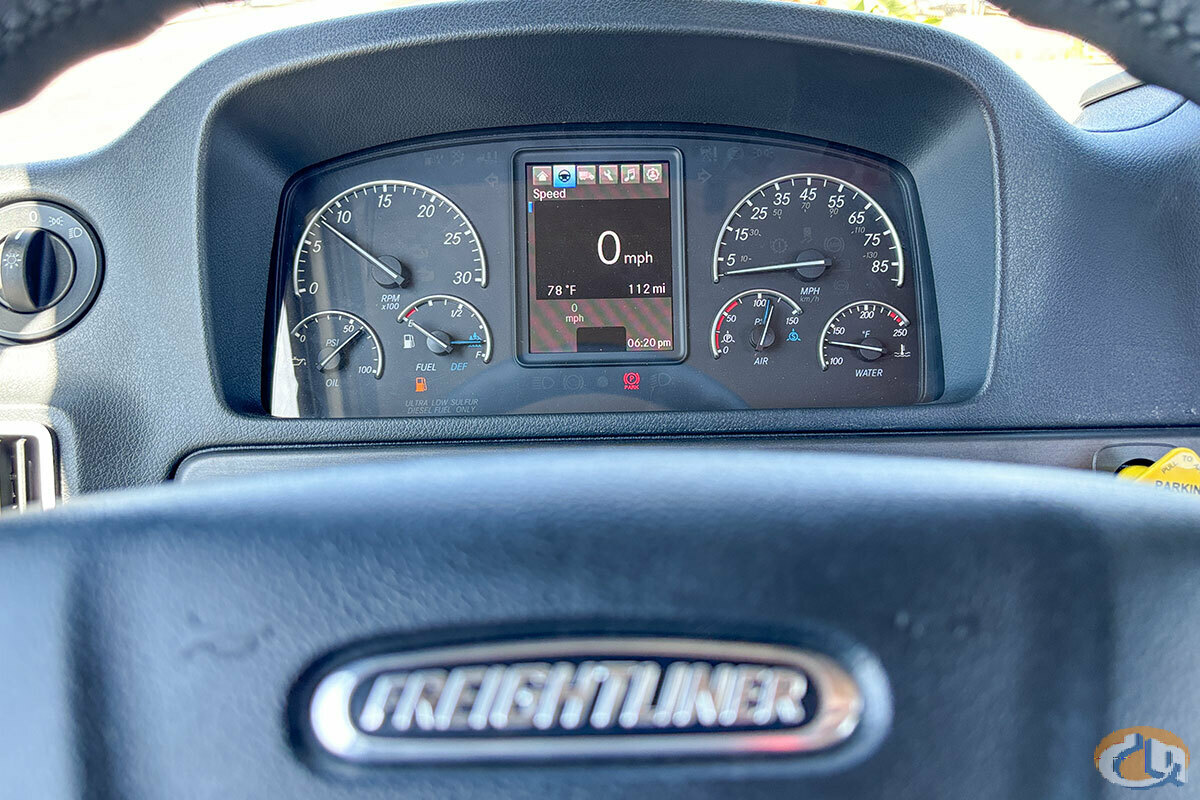

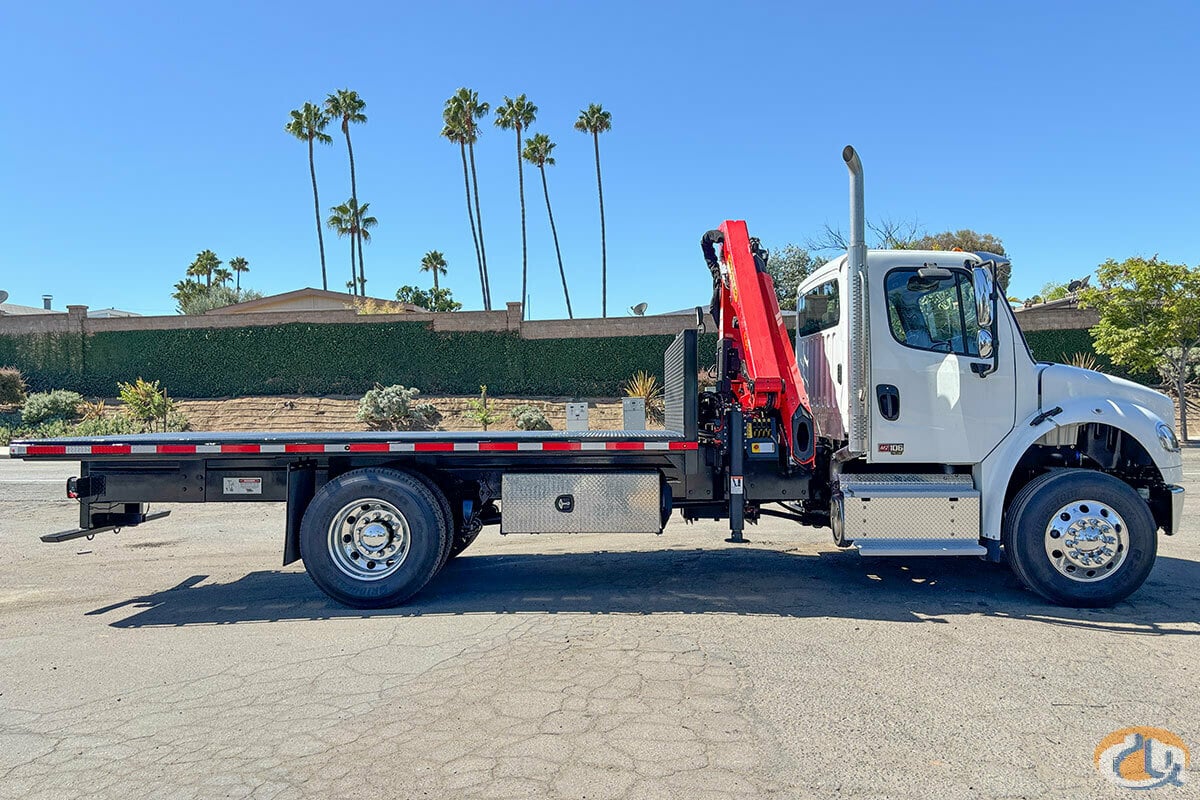

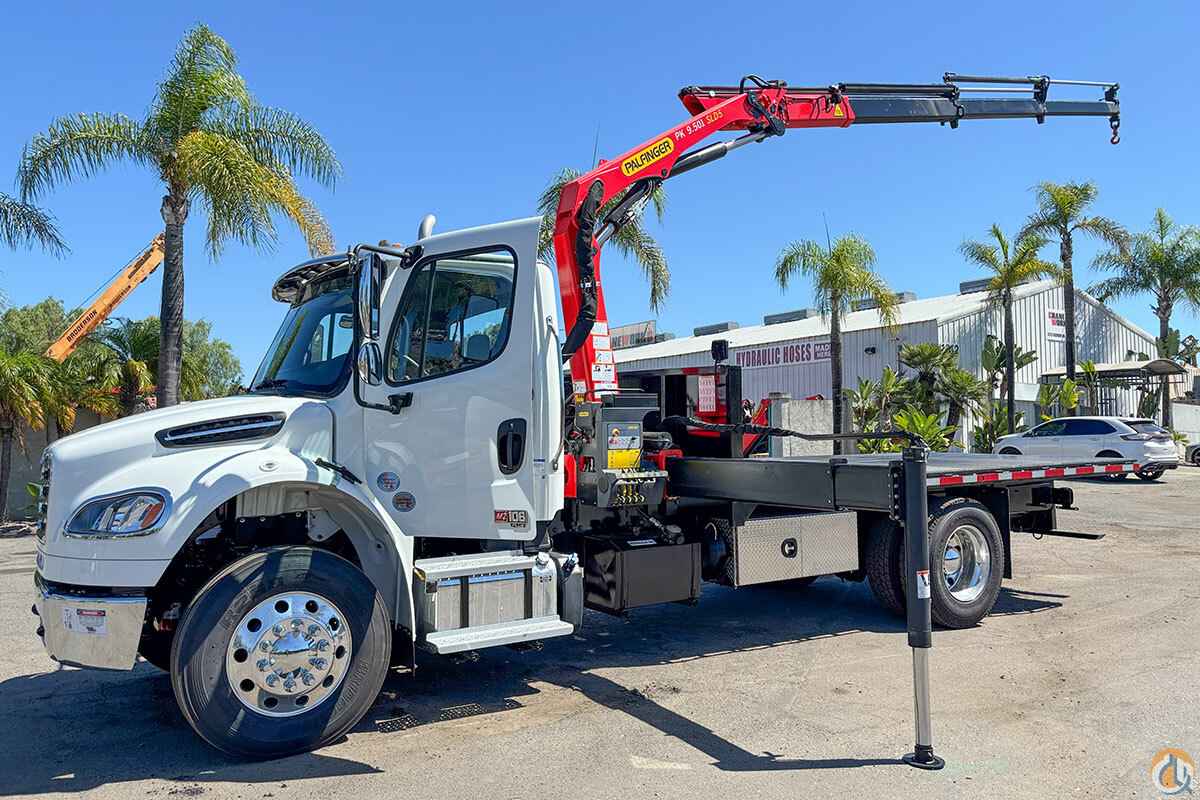

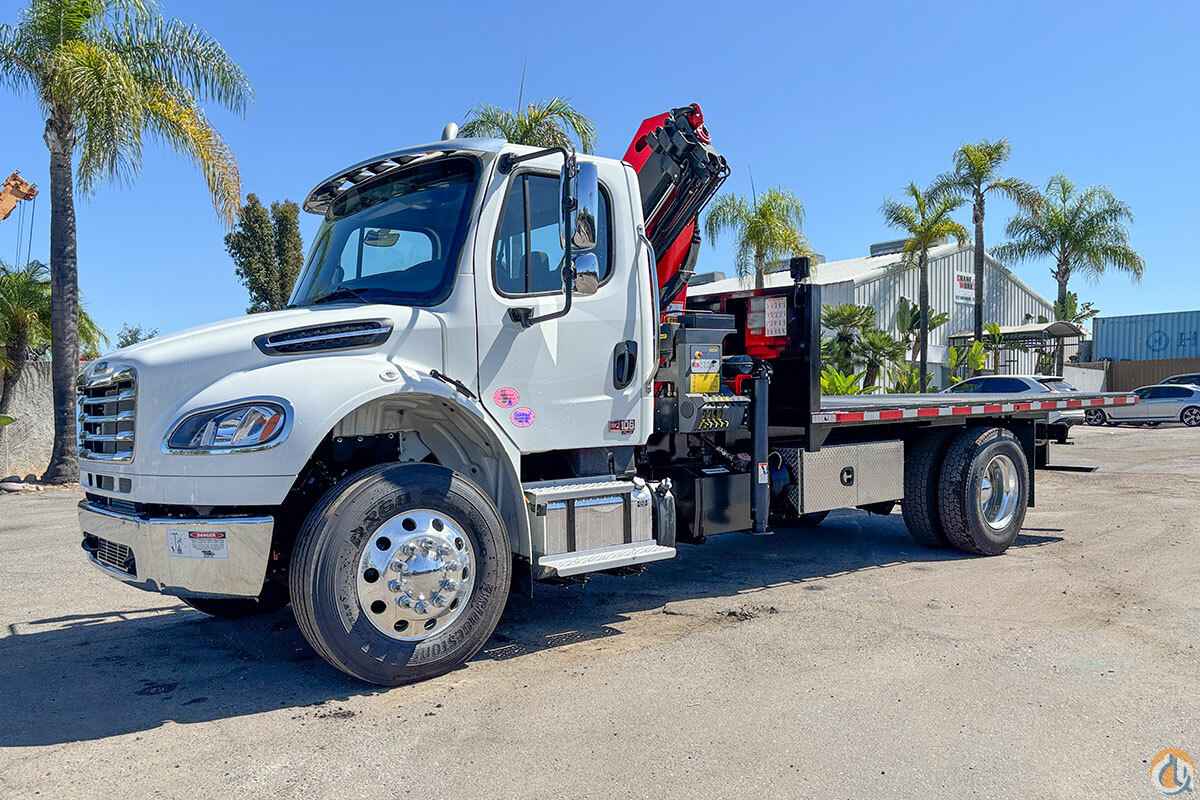

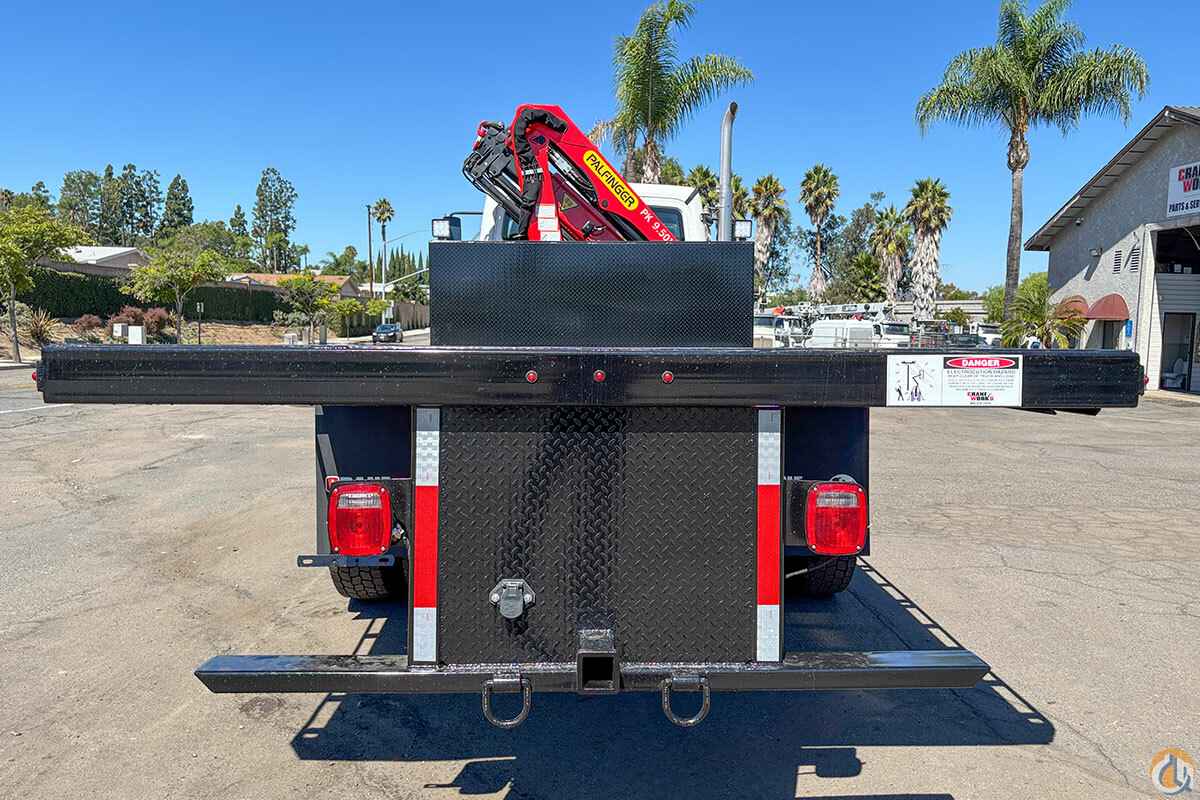

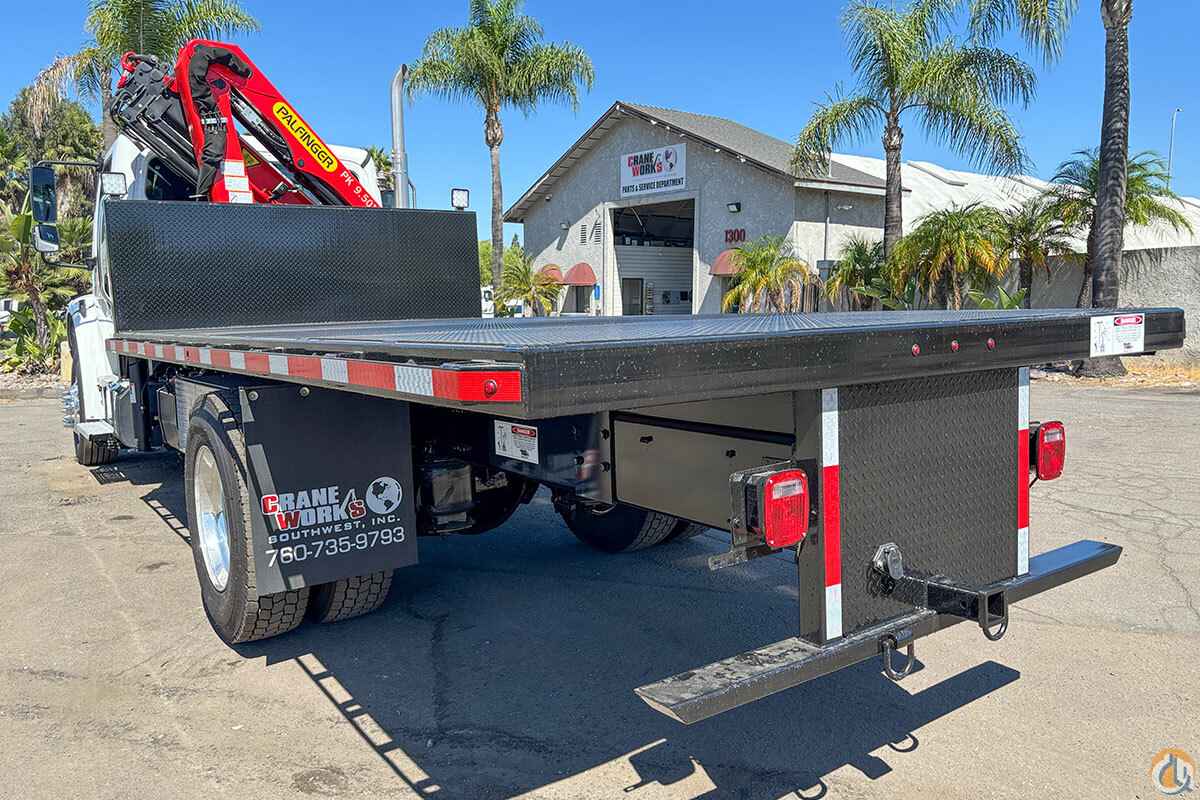

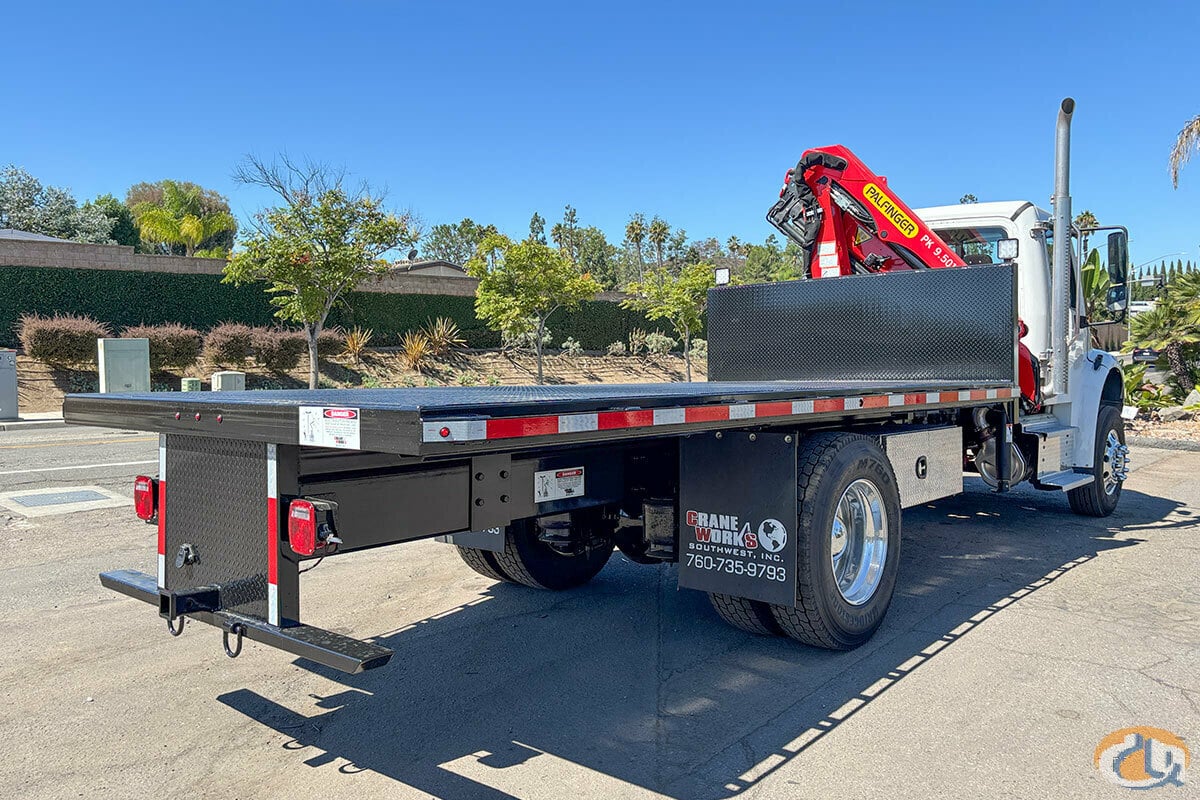

Features
INTELLIGENT LIGHTWEIGHT DESIGN OFFERS AN OPTIMIZED MOUNTING CONCEPT
Shorter load cycle times due to High Speed extension

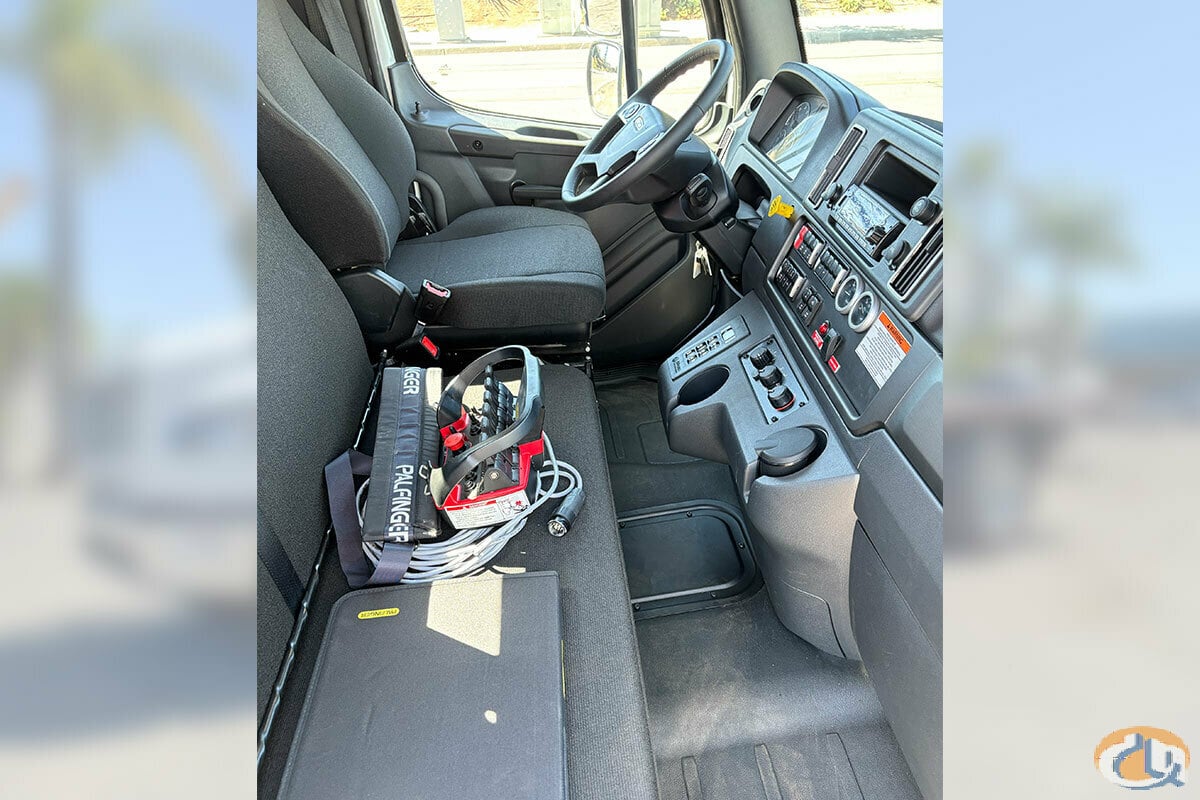

High operator friendliness thanks to radio remote control
Maximum utilisation of the working range due to HPSC
More lifting power due to E-HPLS
Specs
- Max. lifting moment: 65050.0 ft_lbs
- Max. lifting capacity: 12570 lb
- Max. hydraulic outreach: 38' 9''
- Max. manual outreach: 52' 6"
- Slewing angle: 400
- Slewing torque with 1 gear: 7230.0 ft_lbs
- Stabilizer spread (std): 16'
- Fitting space required (std): 2' 4''
- Width folded: 7' 7''
- Max. operating pressure: 5220 psi
- Pump capacity: 10.6 - 13.2 US gpm
- Dead weight (std): 2380 lbs
Included Options
• 4-Bolt COATED mounting hardware kit.
• Oil Tank : Oil tank, capacity 26.4 US gal.(100 l) -loose.
• Oil Cooler: Must be specified at time of order. To be fitted in return line.
• Slewing Angle Monitoring: Sensory preparation for monitoring and Paltronic comfort functions.
• 3 Section Hydraulic Boom Extension: 3 section hydraulic boom extension to 31' 10" (9.7m)
• Halogen Working Light -Knuckle Boom: 150 W work light with protective grating. On/off switch at primary control station. 1 "free function" on RRC is used.
• Transport Position Check -Boom stowed above platform: Limit switch to indicate boom in transport position. Wired to an electrical box for use with an optical or acoustic warning signal (not included).
• Transport Position Check -Outriggers and Stabilizers Retracted: Limit switches for outrigger beams and stabilizers. Wired to an electrical box for use with an optical or acoustic warning signal (not included). (not available on STZY stabilizers)
• R3X telescopic outriggers: Hydraulically extendable telescopic outriggers with a spread of 18' 4" (5.6m).
• HPSC High Performance Stability Control: Capacity limitation related to positioning of crane supports. Variable position of outrigger beams and stabilizers (ground contact or no ground contact) are recorded at crane set-up. Display of system settings at outrigger control valves. Lifting capacities adjusted according to conditions set within Paltronic by installer upon commissioning. Requires detailed information including scaled weight of the finished unit to be uploaded to PACWEB in order to prepare the baseline HPSC file. Only available for approved dealers. Does not include CE certificate. REQUIRES: R3X and SAM. Auxillary Crane Support not possible.
• PVC Shoe. One PVC stabilizer shoe. 15 3/4" diameter. Slides onto stabilizer plate, with rope handle. For use with KSZ00237A and KSZ0239A.
• PVC Shoe Storage Bracket. Holds one EZ2261-400 shoe, weld or bolt on.
• F1-41-R PARKER Voac Piston Pump. DIN version piston pump. Oil flow of 10.0 US gpm (38 L/min) at 1000 rpm pump speed. Max. pressure of 5,075 psi (350 bar). DOES NOT INCLUDE a suction fitting. DIN FLANGED PTO required. Mounting flange / shaft DIN 5462.
• 1.5" Hose Bib, 45 degree for PARKER Voac F1 & F2 pumps.
• Adaptor: 3/4" BSPP Male x 3/4" JIC Male
