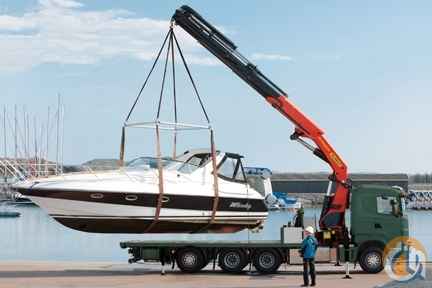

The Palfinger PK 78002 SH High Performance features a Dual Power System for high outreach as well as for heavy duty operation.

• Maximum reliability due to PAL 150

• More efficiency with fly jib due to DPS Plus

• Increased operating times due to low-maintenance extension system

• Practical and attractive due to Functional Design

• Continous slewing for increased efficiency and speed

Specs

Max. lifting moment: 540,290 ft.lbs

Max. lifting capacity: 55,120 lbs

Max. outreach (including boom, jib, and manual outreach): 99' 5"

Max. outreach (including boom and jib): 93' 6"

Slewing angle: Continuously variable

Slewing torque with 1 gear: 32,560 ft.lbs

Slewing torque with 2 gears: 50,640 ft.lbs

Stabilizer spread: 28' 3"

Fitting space required (std.): 5' 1" to 5' 7"

Width folded: 8' 4"

Max. operating pressure: 5,293 psi

Recommended pump capacity: 26.4 to 31.7 US gal./min

Dead weight (std.): 13,020 lbs

Ref no: PO4449, BM-2349
