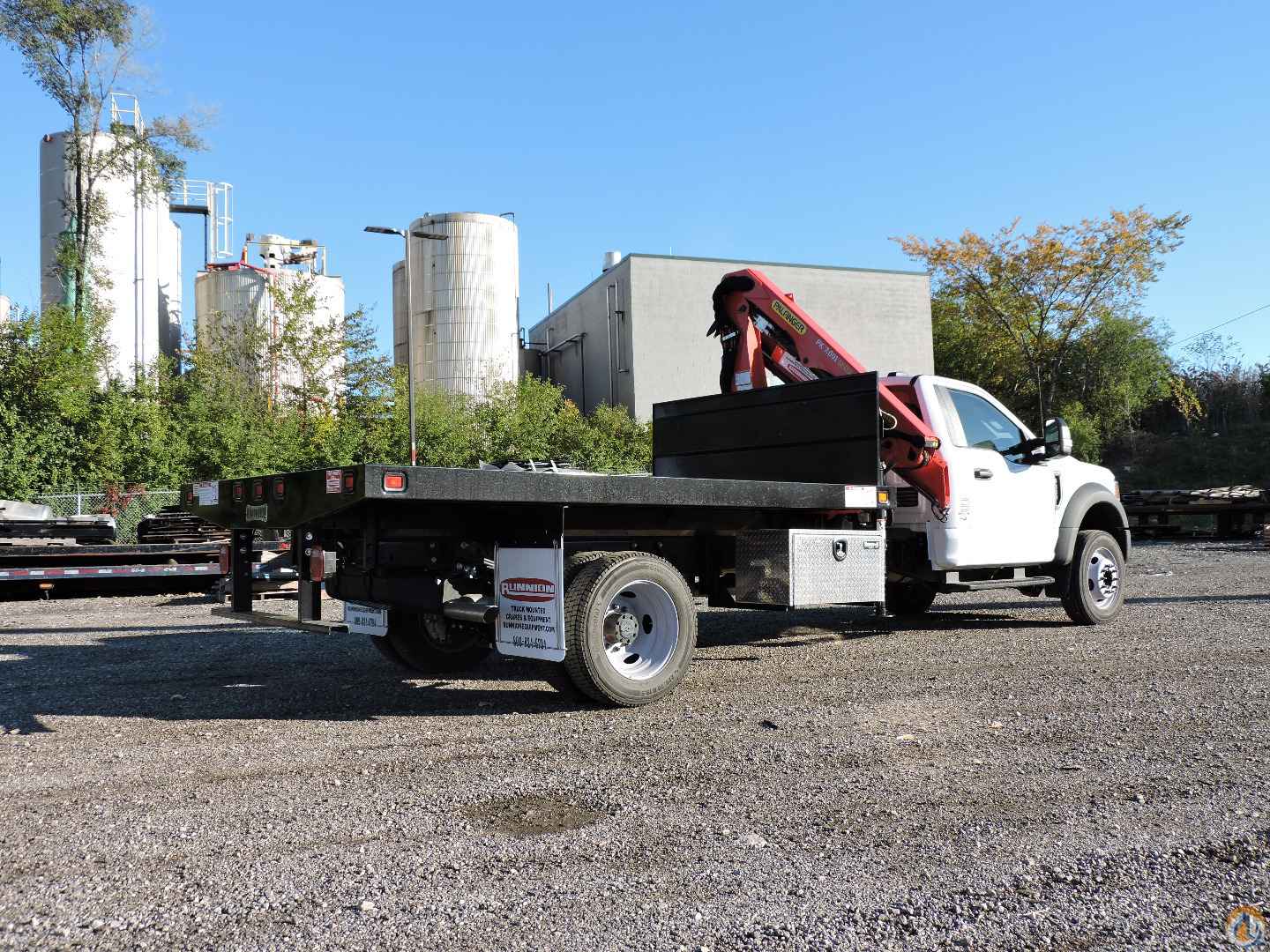

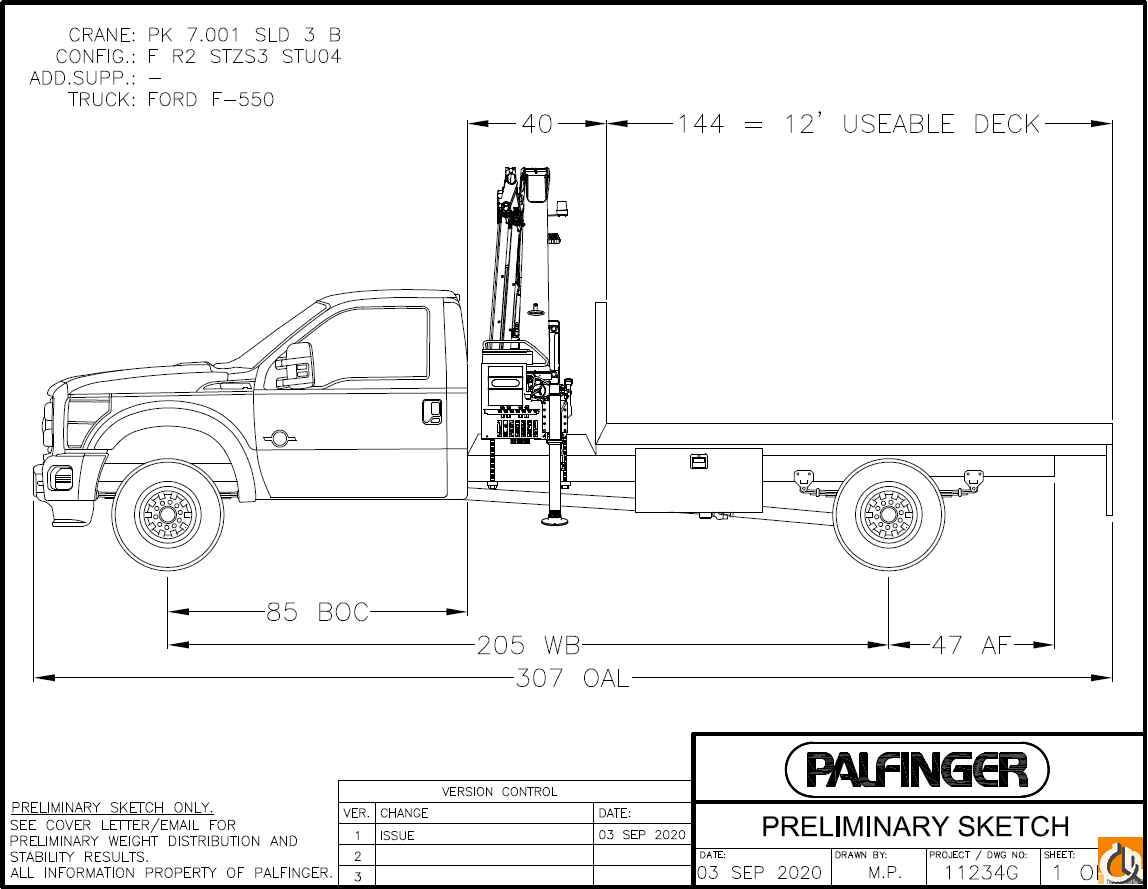

Palfinger PK 7.001 SLD3

• Mounted back of cab
• Maximum lifting moment 6.2mt (44,530 ft-lbs)

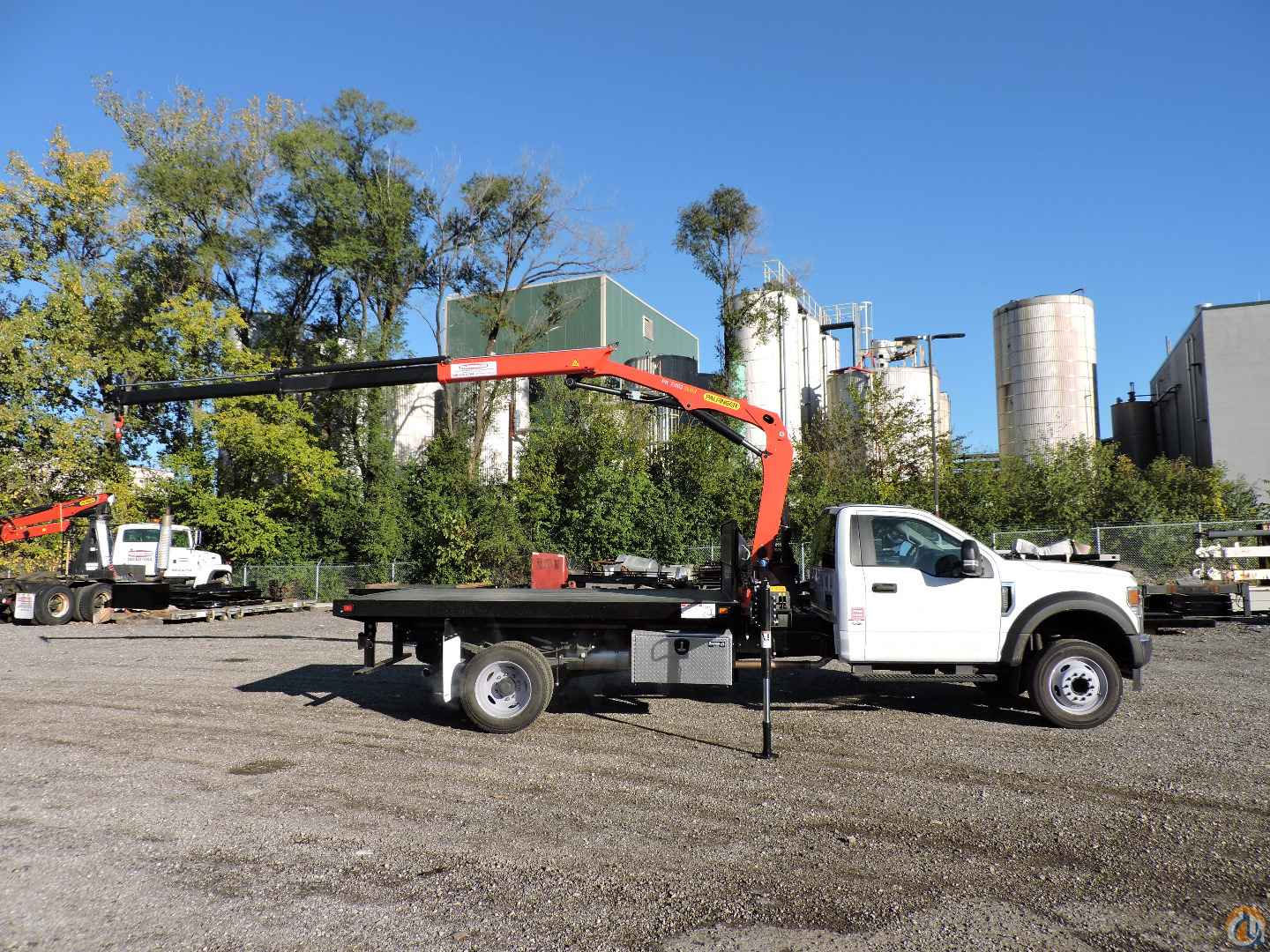

• 2 section hydraulic boom to 24’ 3”
• Maximum lifting capacities
  • 12’- 3,650#
  • 18’- 2,400#
  • 24’- 1,760#
• Rotation angle 400 degrees
• Single linkage at outer boom

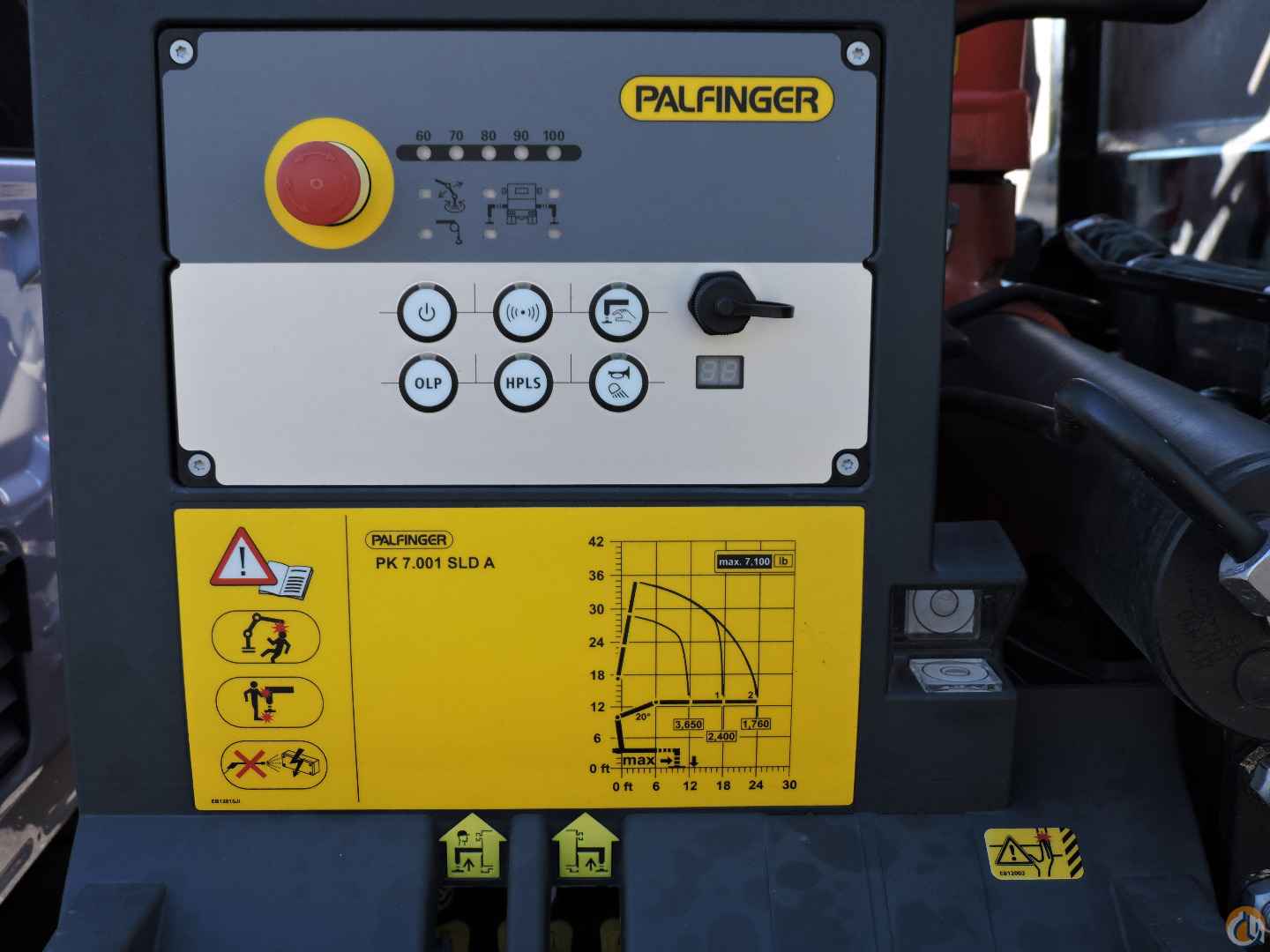

• Dual operator control station
• Paltronic overload protection system
• Oil tank – 13.2 gallons mounted on crane base
• Load holding values on main, outer and extension cylinders
• Return oil utilization - increases speed of extension cylinder and allows
  crane to work faster and more efficiently
• Manually extendable outriggers with a spread of 14’3”
• Two (2) PVC outrigger shoes with stow bracket
• KTL Paint Process – the cathodic dip painting - Shot blasted crane parts are covered
  in zinc phosphate in an immersion process and coated electro-statically
  two component top coating of paint provides superior surface protection
• Painted Traffic Red

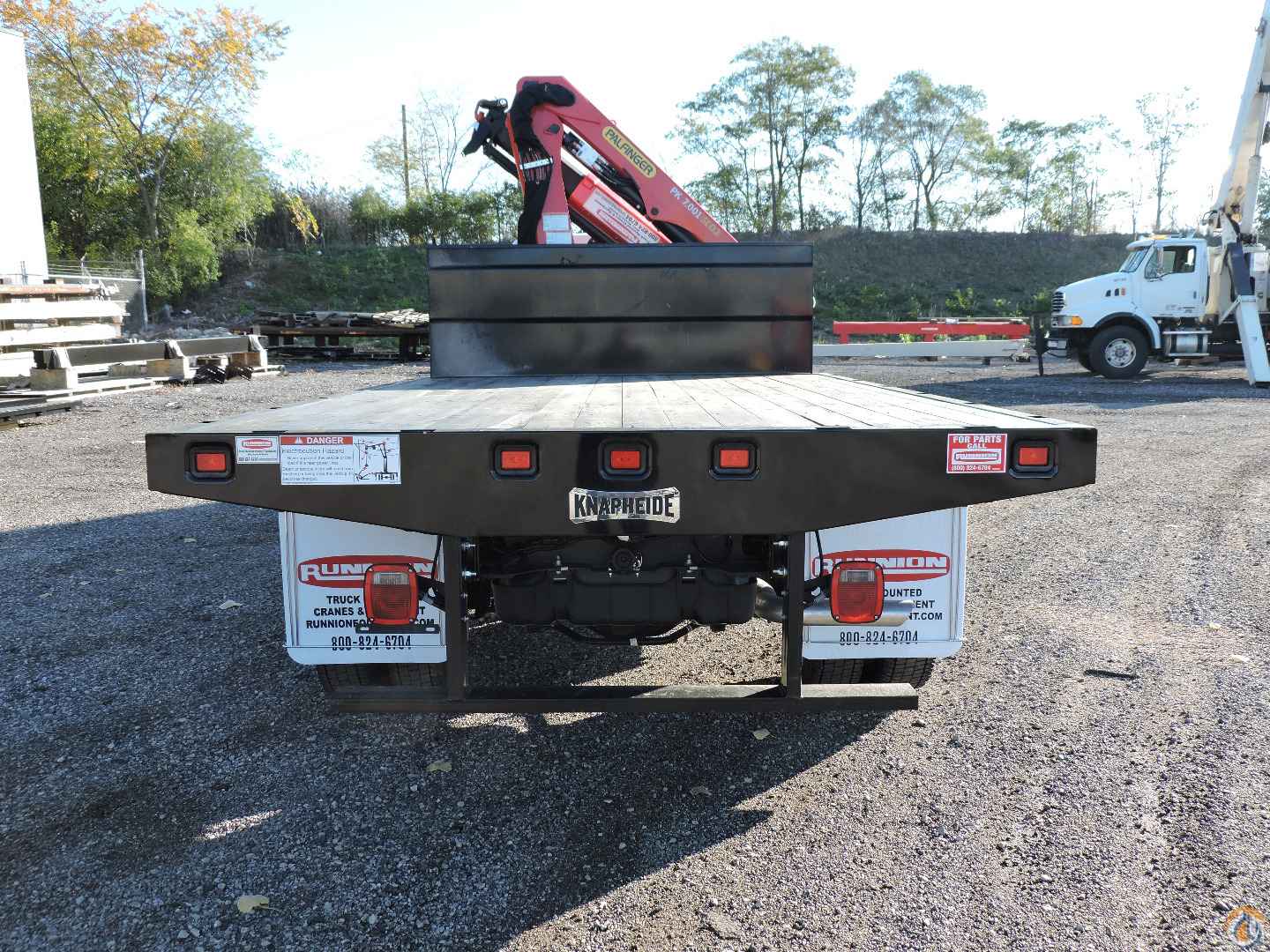

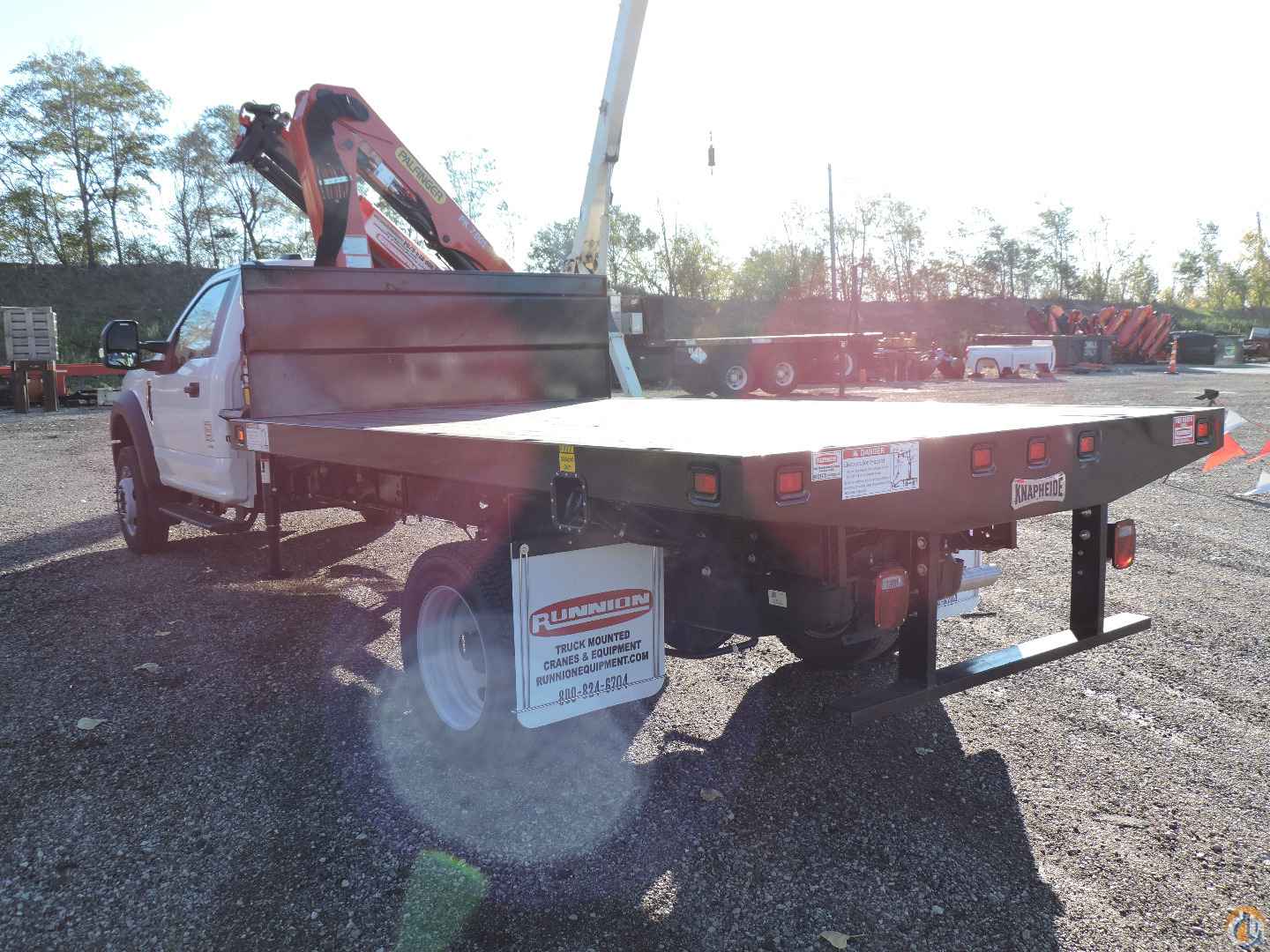

• 12’ Knapheide wood bed with underbody tie down rails

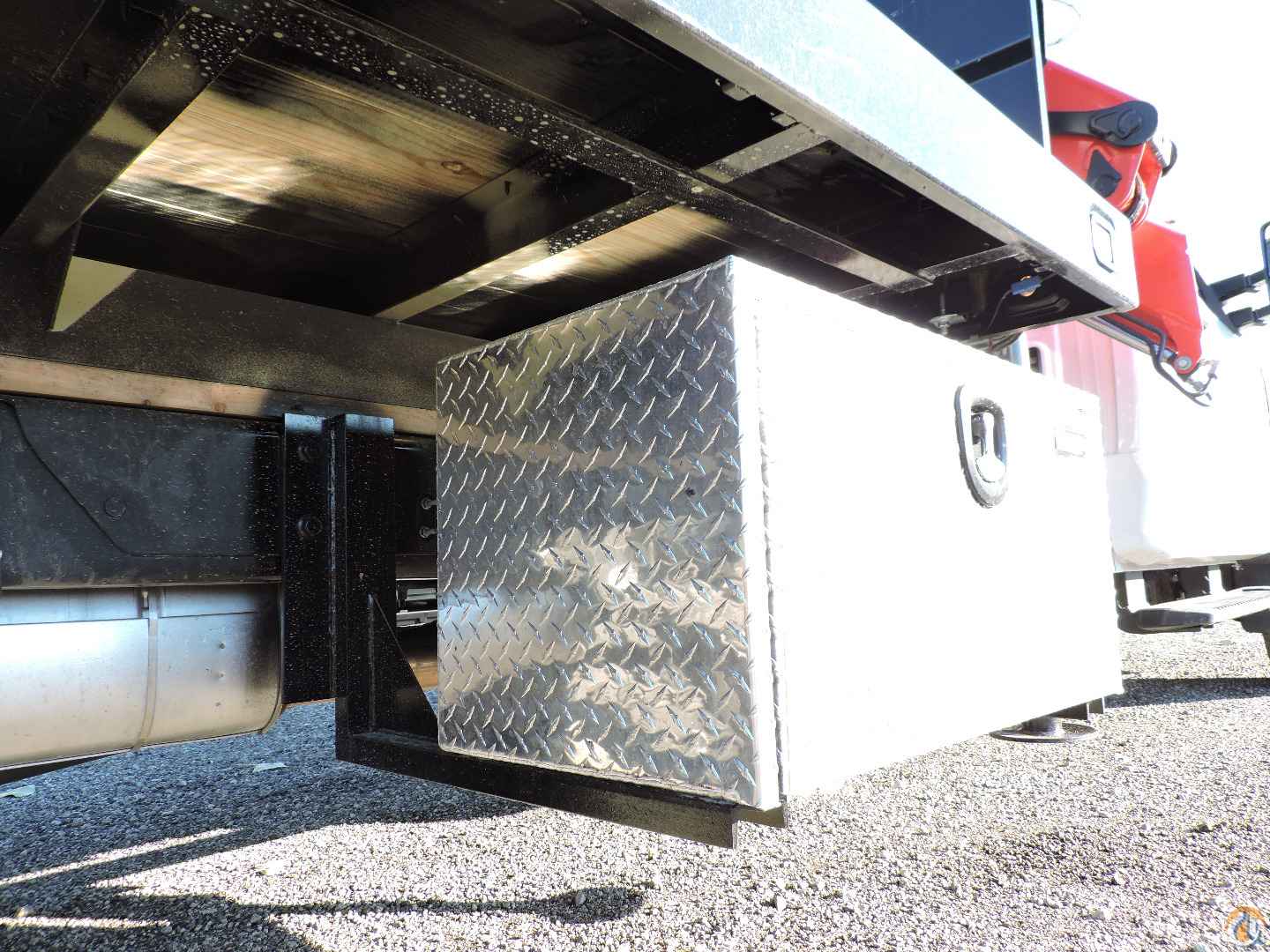

• 36” x 18” x 18” aluminum toolbox
• 40” drop in bulkhead

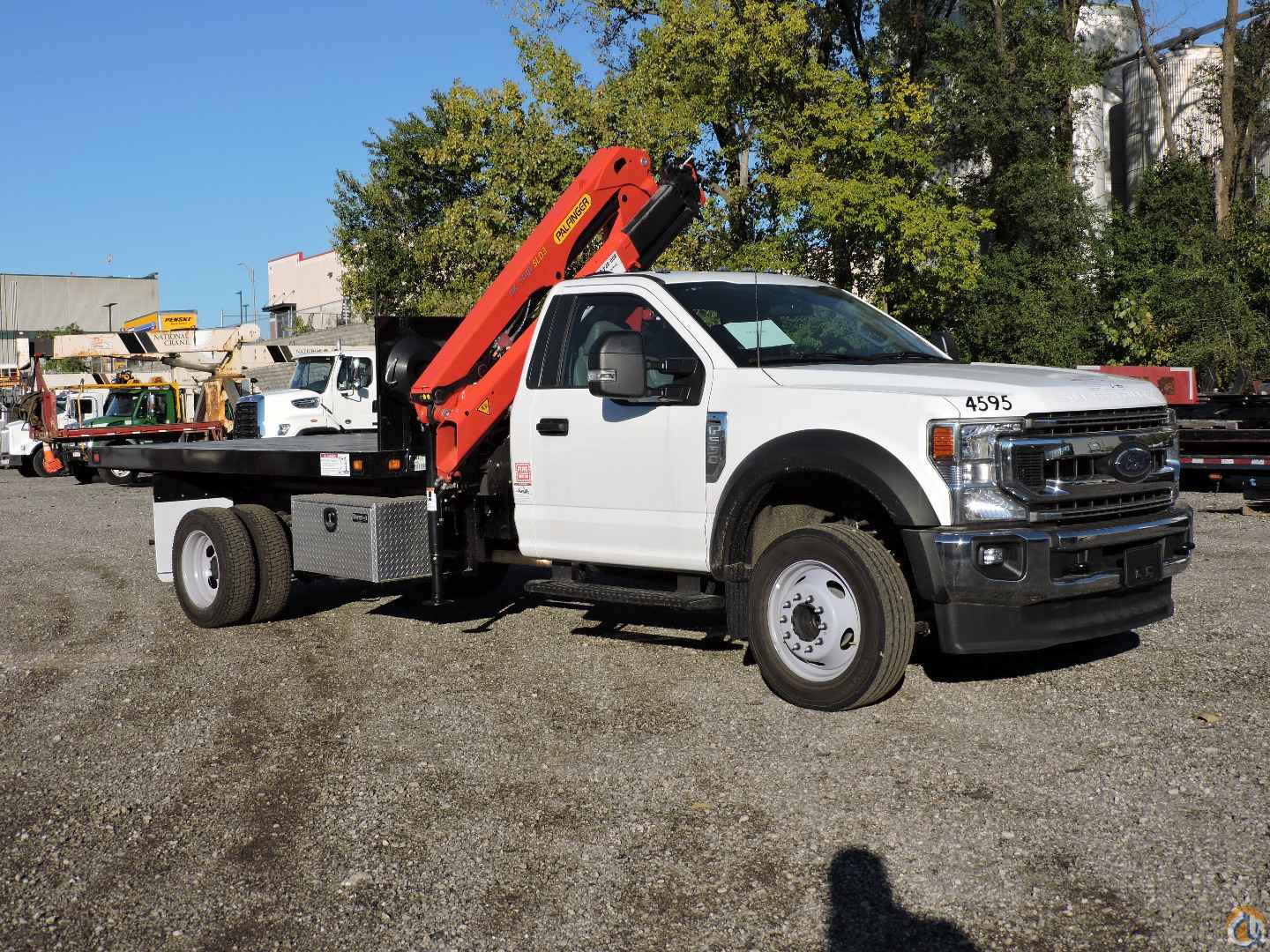

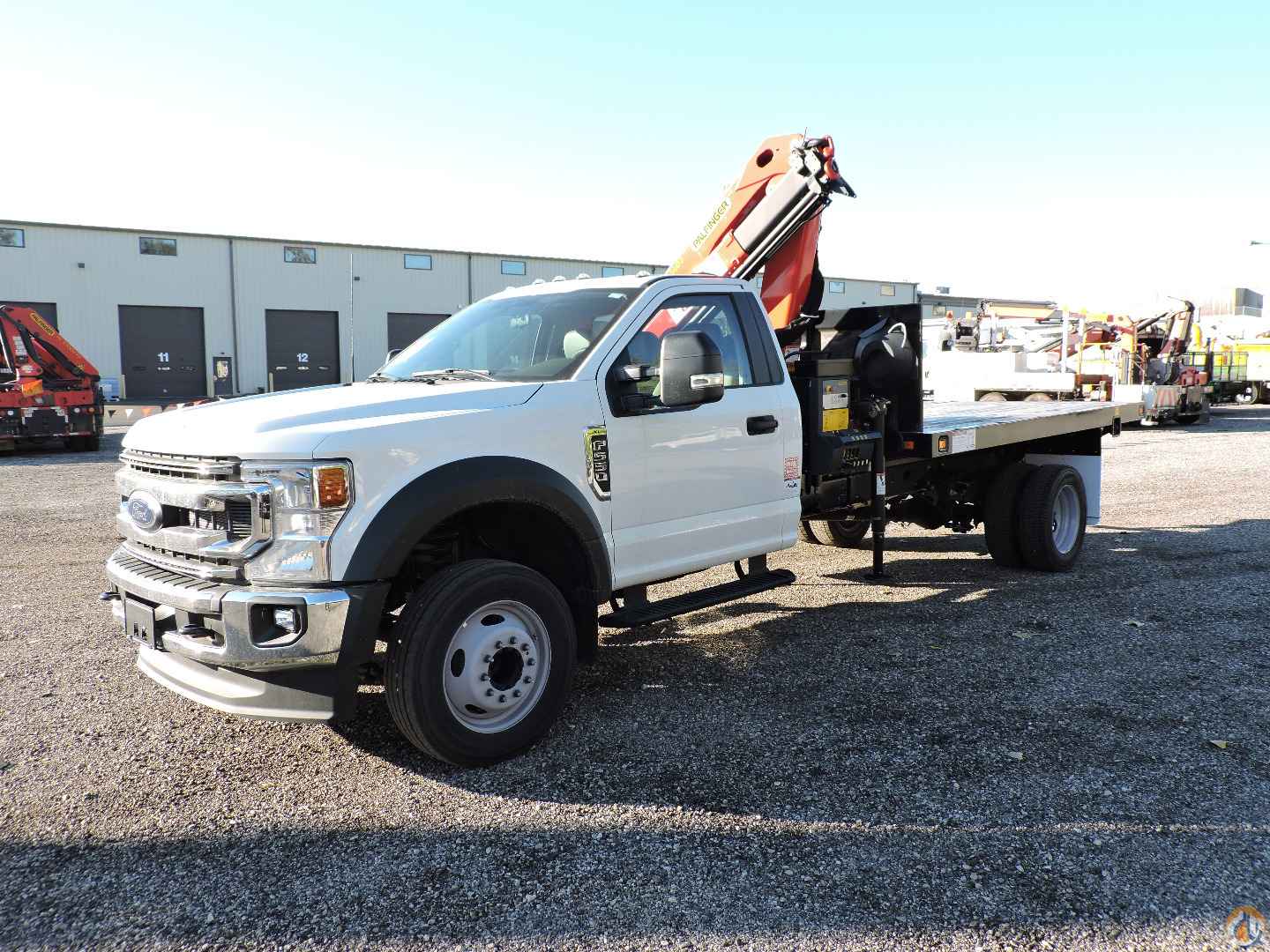

2021 Ford F550 XL 4x2

• 19,500# GVW
• 7.3L gas engine, 350 hp at 3900 rpm
• TorqueShift 10-speed automatic transmission
• 205” wheelbase
• Front and rear 19.5” steel wheels
• Tires – 225/70Rx19.5 – 4 traction tires on rear and 2 all
  season tires on front
• 4-wheel ABS brakes
• 40-gallon fuel tank
• Air conditioning
• Power steering
• Cruise control
• Platform running boards
• Chromed front bumper and bright grille
• AM/FM stereo radio with SYNC communication and entertainment
• Power windows and locks with keyless entry

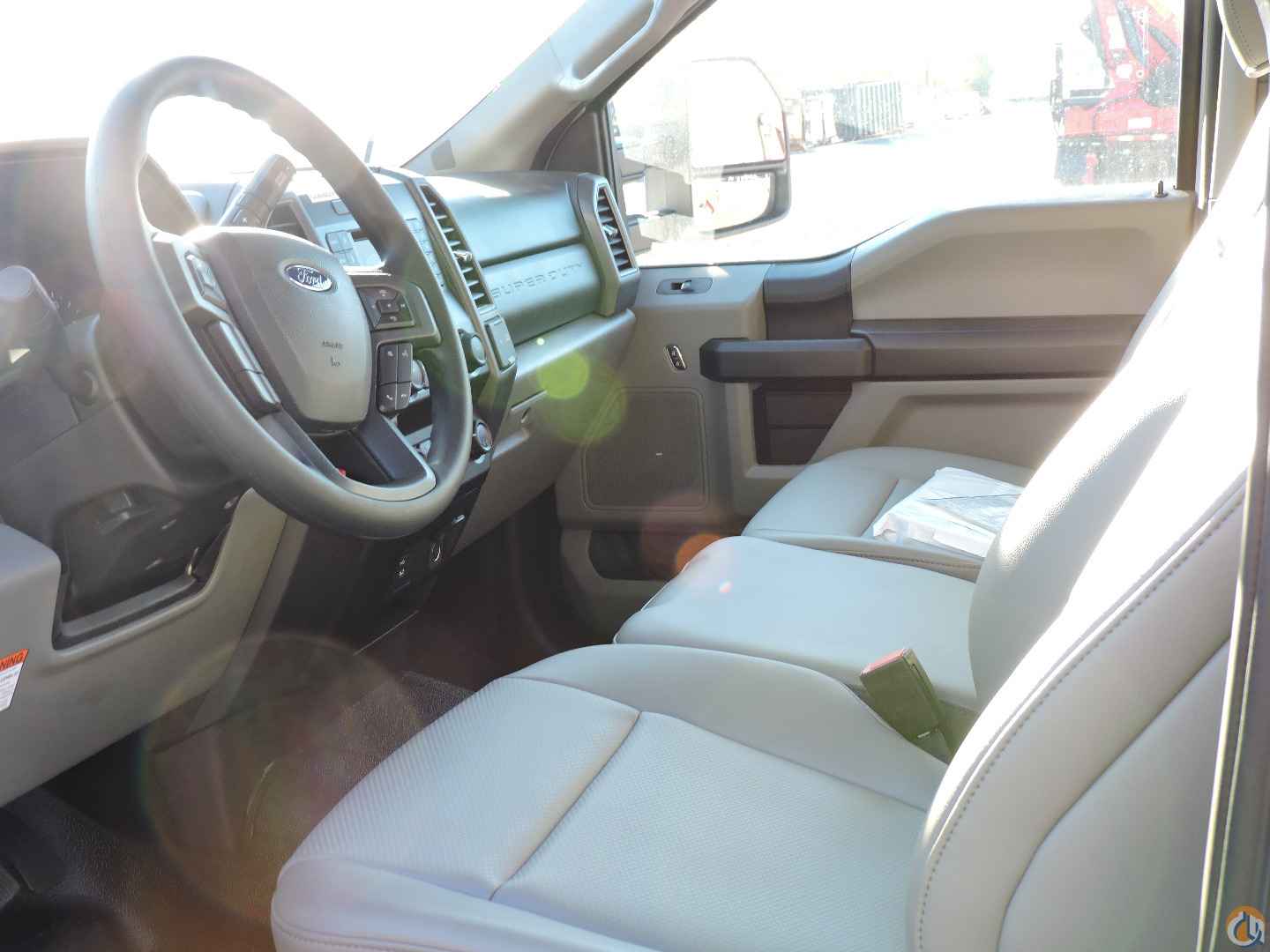

• 40/20/40 split bench seat- vinyl
• 4-way driver seat adjustment with manual lumbar support
