STANDARD FEATURES

44,550 ft./lbs. Rated lift capacity (base model)

“B” boom configuration – 3 stage hydraulic boom extension - Lifts 1,260# @ 30’6”

400 degree non-continuous rack & pinion rotation system with 4,785 ft./lbs torque

One manual operators control station (at crane base) + Scanreco Radio Remote

Parker Voac F1-25 Piston style Hydraulic Pump

Dual hydraulic outriggers – manual in/out, hydraulic up/down

26.4 gallon hydraulic oil reservoir with double filtration + oil cooler

Paltronic PAL50 overload protection system

High extension speed with return oil reutilization.

2 x Dica Poly outrigger pads with holders

Crane painted PALFINGER ORANGE

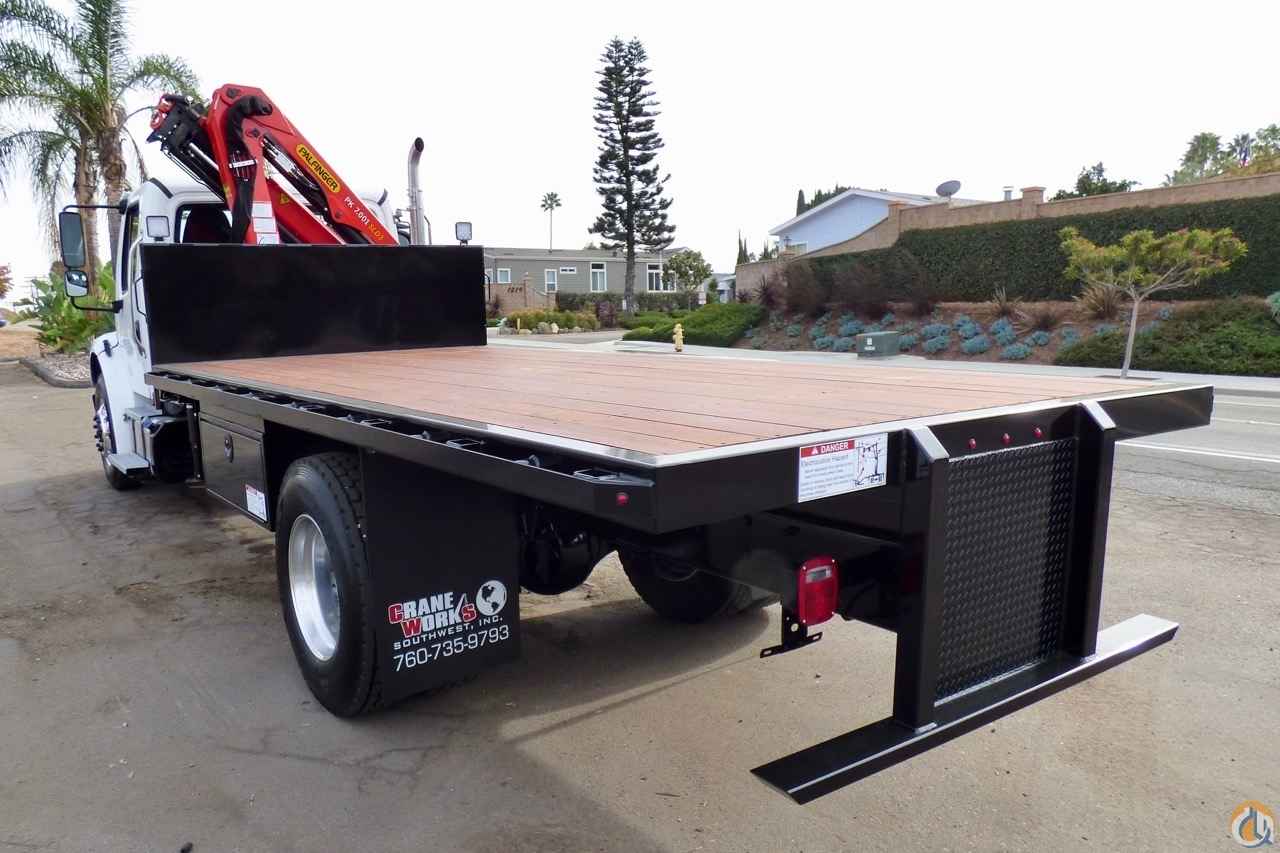

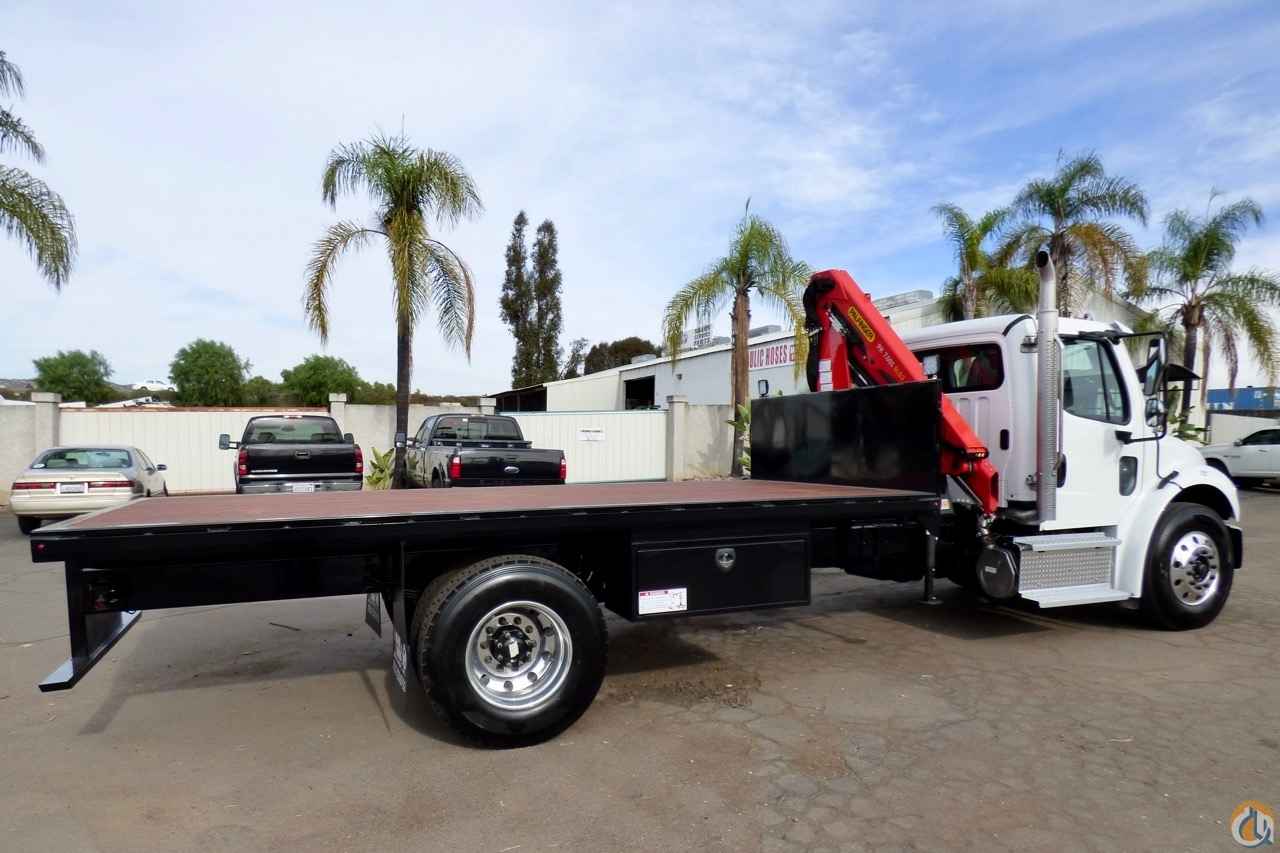

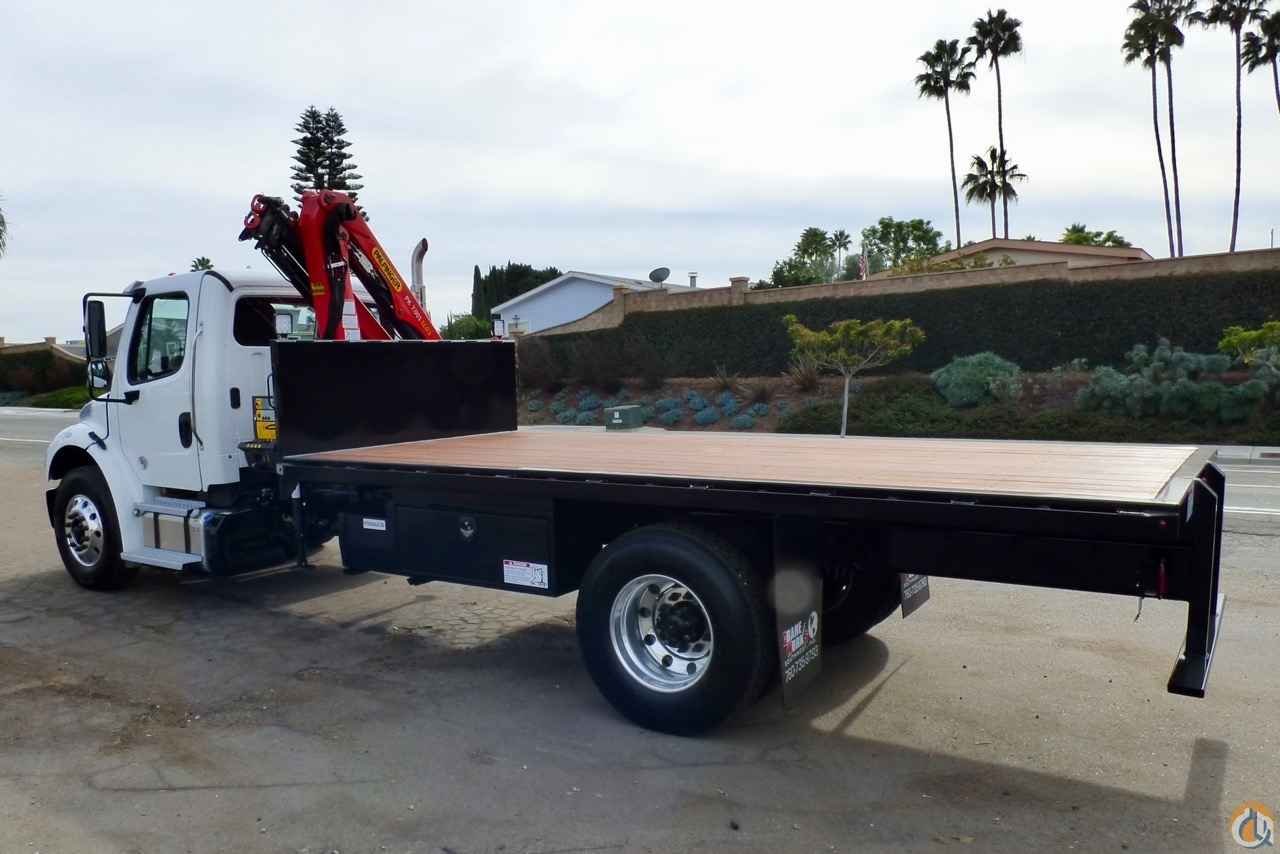

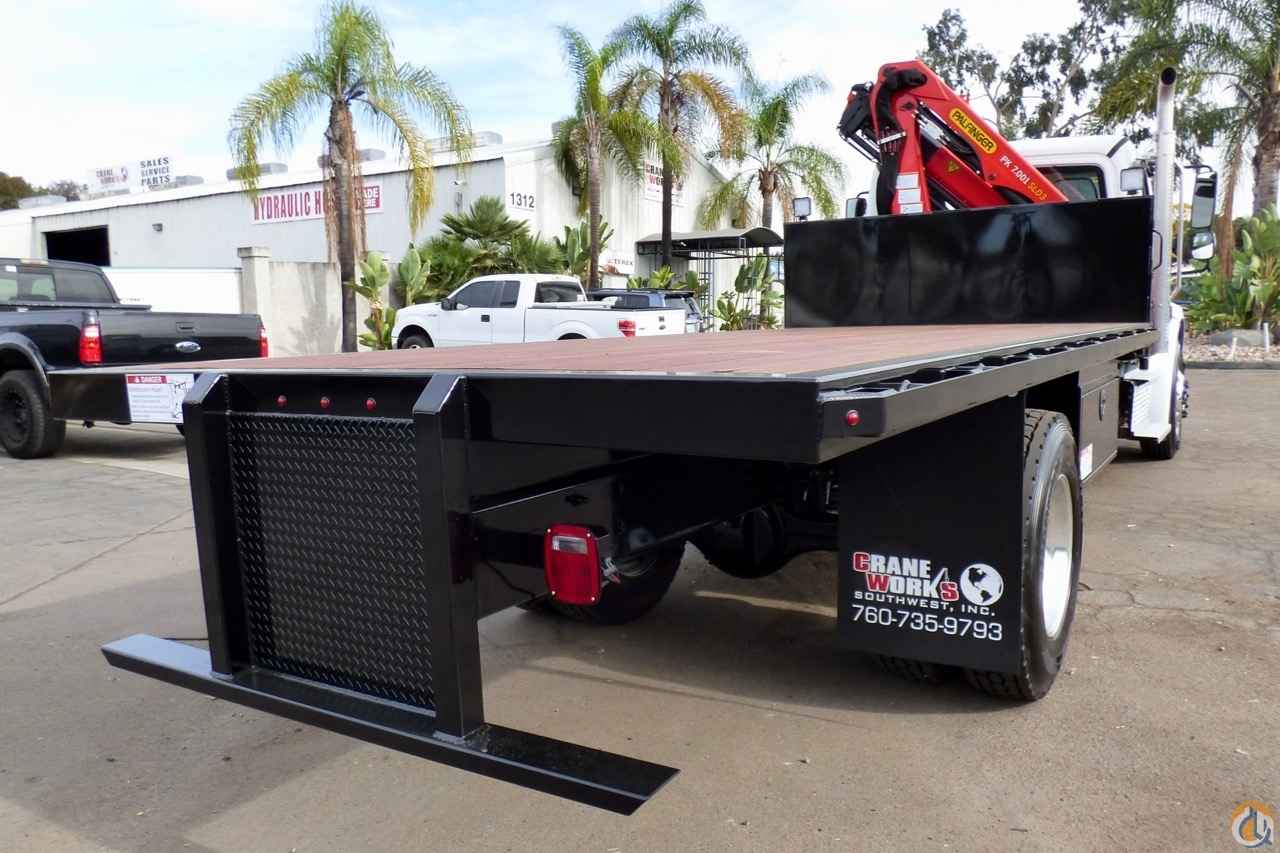

FLATBED BODY

102” wide x 16’6”

Hardwood Apitong decking

Full length torsion box subframe – 3 x 6 x .250 tube

Expanded side rails

7 gauge side & end rails

1 each - 36”x18”x18” underbody toolbox

2 each – retractable access ladders

Outrigger pad retainers

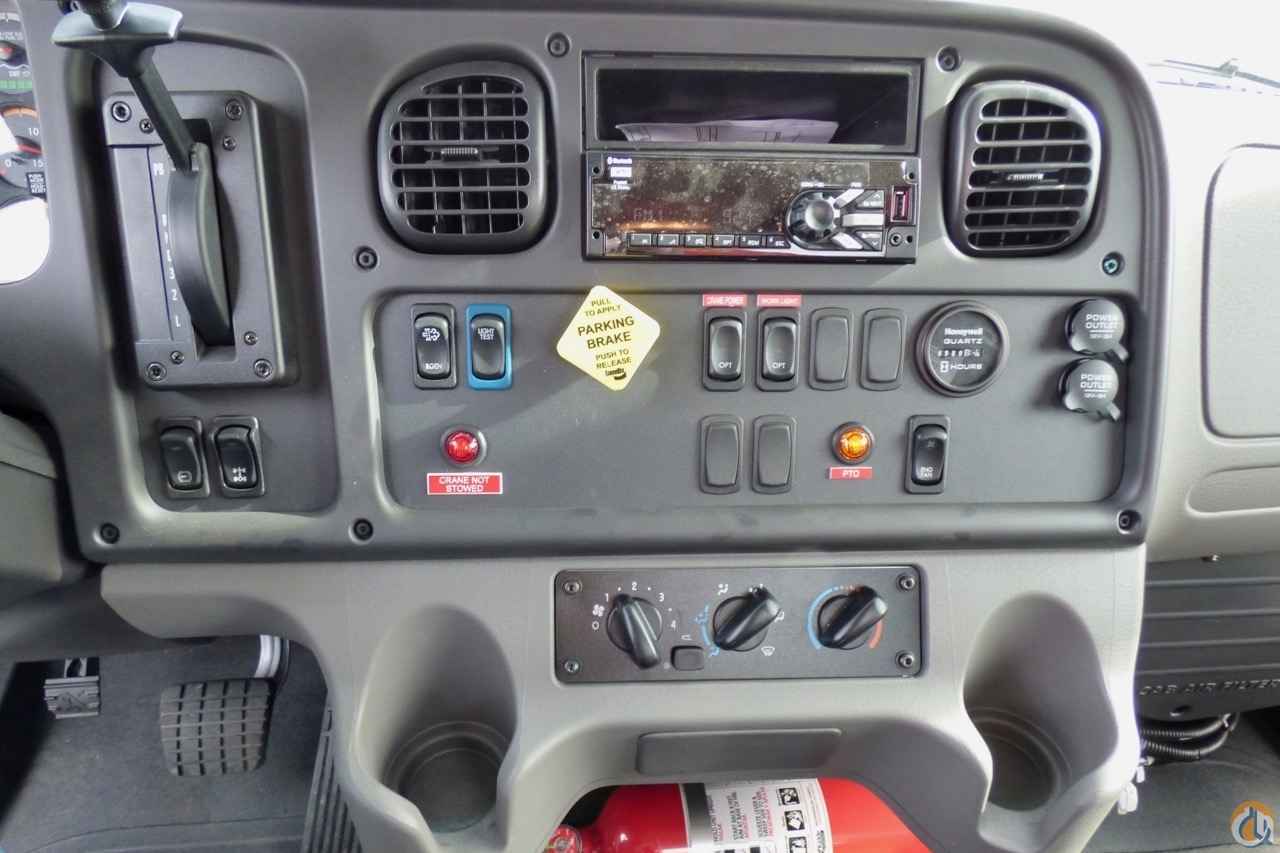

Boom up safety light on dash

Painted Black

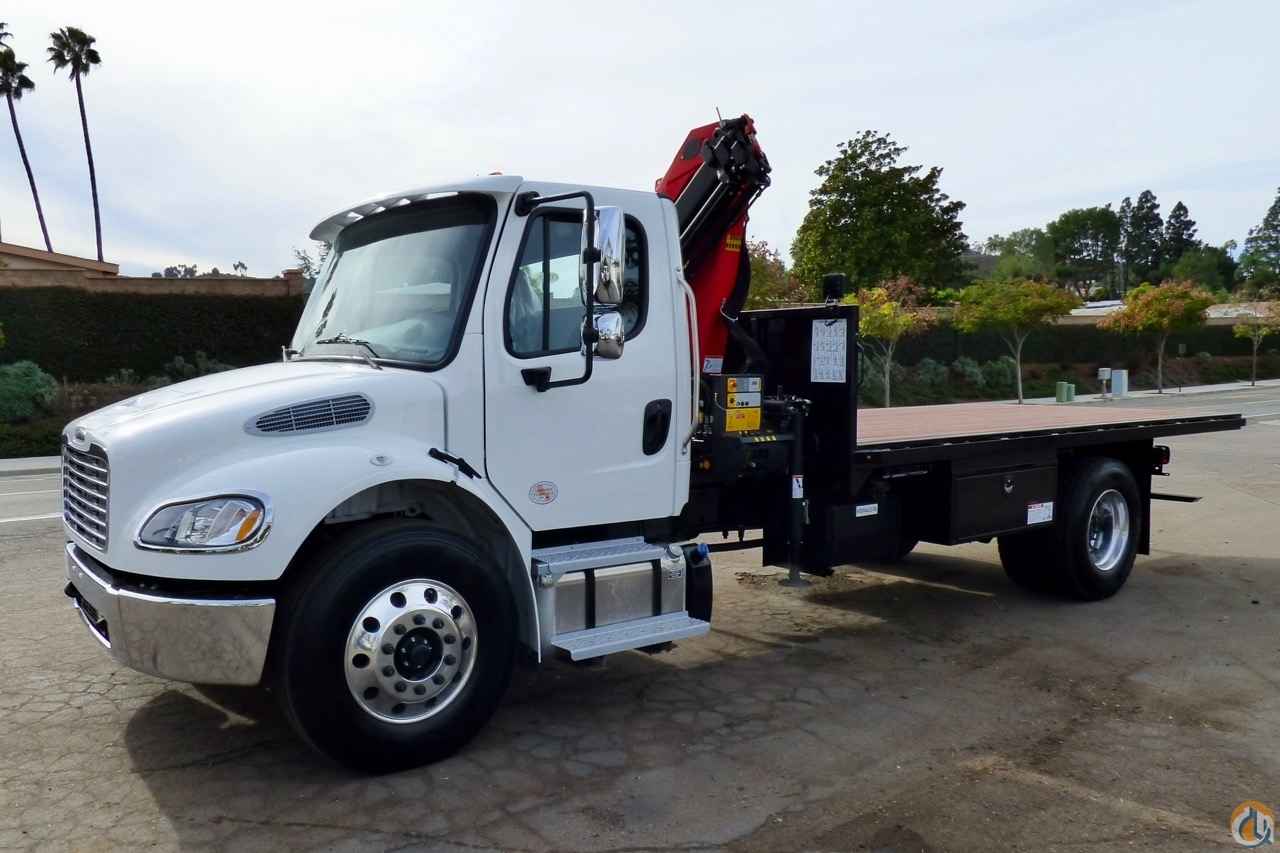

NEW - 2018 FREIGHTLINER M2-106 CHASSIS

Cummins B6.7 liter Diesel Engine (250 HP – 660 lb/ft torque

Allison 2500 RDS Automatic Transmission

13,000# front axle – 19,000# rear axle with spring suspension

26,0000# GVWR

Air Brakes

Single 50 gallon fuel tank – L/H side

Steel painted wheels

Air Conditioning

AM-FM-WB Radio with Bluetooth

Standard gauges

Vinyl interior

Cruise control

Complete specs on request
