Palfinger PK6501 Mounted Knuckle Boom Crane (Sold)

STANDARD FEATURES

Maximum lifting moment 5.9 mt (42,690 ft-lbs).

Boom length 17' 9" via 1-hydraulic extension.

Paltronic 50 Overload Protection System.

PowerLink at outer boom.

Rotation angle 400 degrees.

Outriggers manually extendable to 14' 3" (R2).

STZS3 stabilizers with LED marker lights and 10° tilting stabilizer plates.

Dual operator control stations with LED lighting.

Bubble level at both outrigger control stations.

Load holding valves on slewing, main, outer and extension boom cylinders.

Maintenance-free extension boom-system.

Return oil utilization.

Oil tank 13 US gal.(50 l) with return filter installed at crane base.

High pressure filter installed.

5.4 metric ton (11,900 lbs) capacity load hook standard.

Hour counter with service intervals

INCLUDED ITEMS

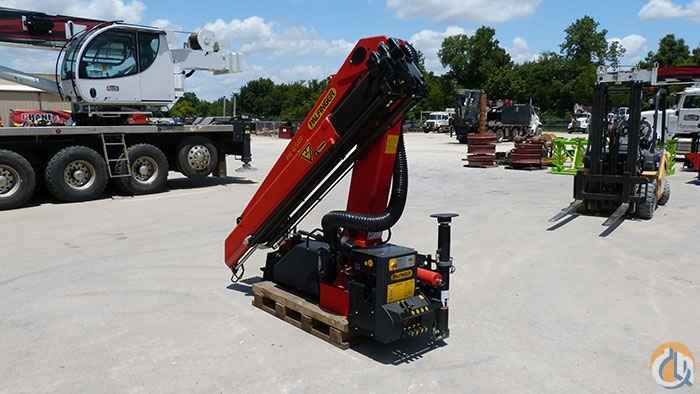

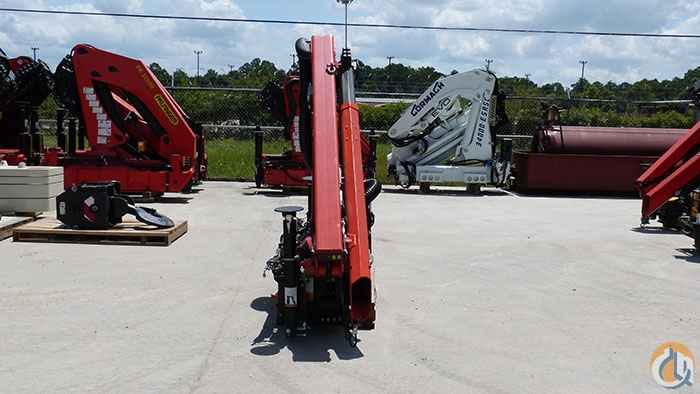

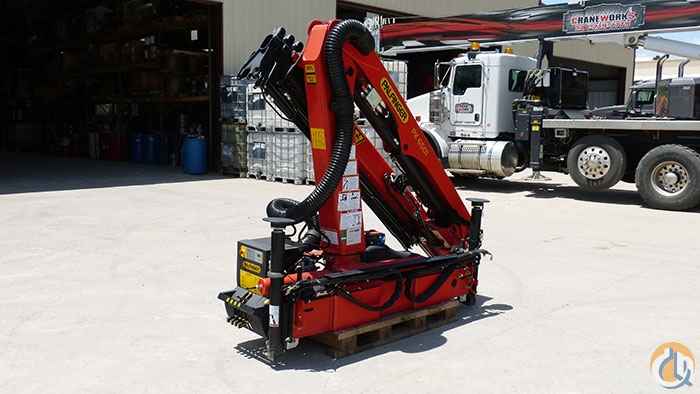

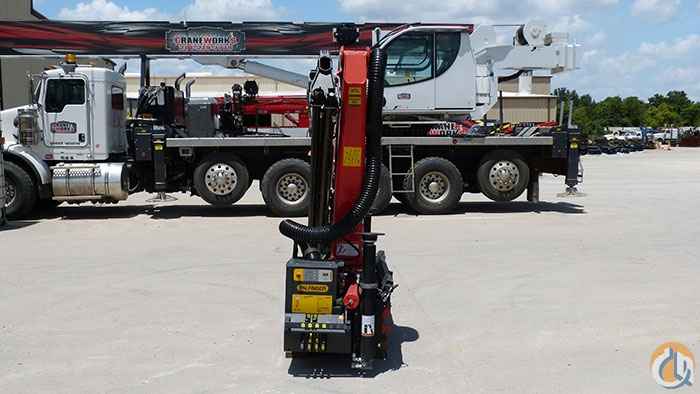

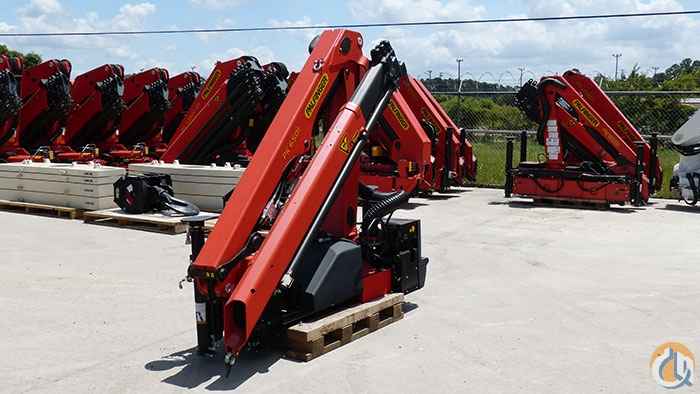

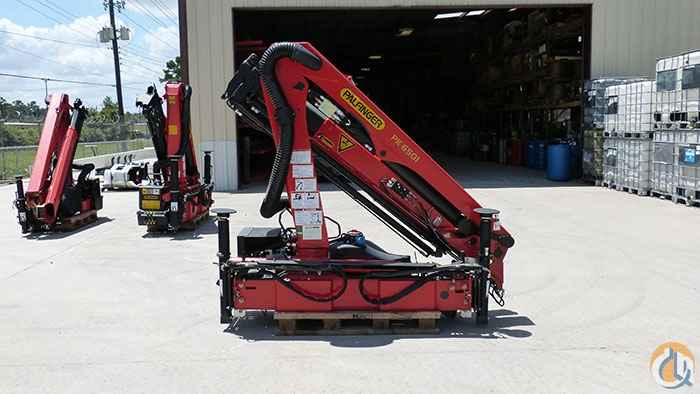

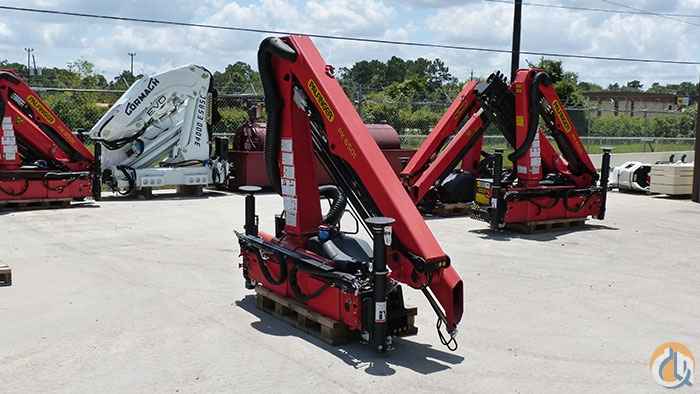

PALFINGER PK 6501 High Performance Hydraulic Loader

3 section hydraulic boom extension ( B-Boom ) from 17' 9" to 30' 6"

3-Bolt mounting hardware kit. In leiu of standard kit - Mounting parts (1x bolt M30x1.5x1000. 2x bolts

M24x1.5x1000; incl. 3x bushings)

Ref no: PO1380B
