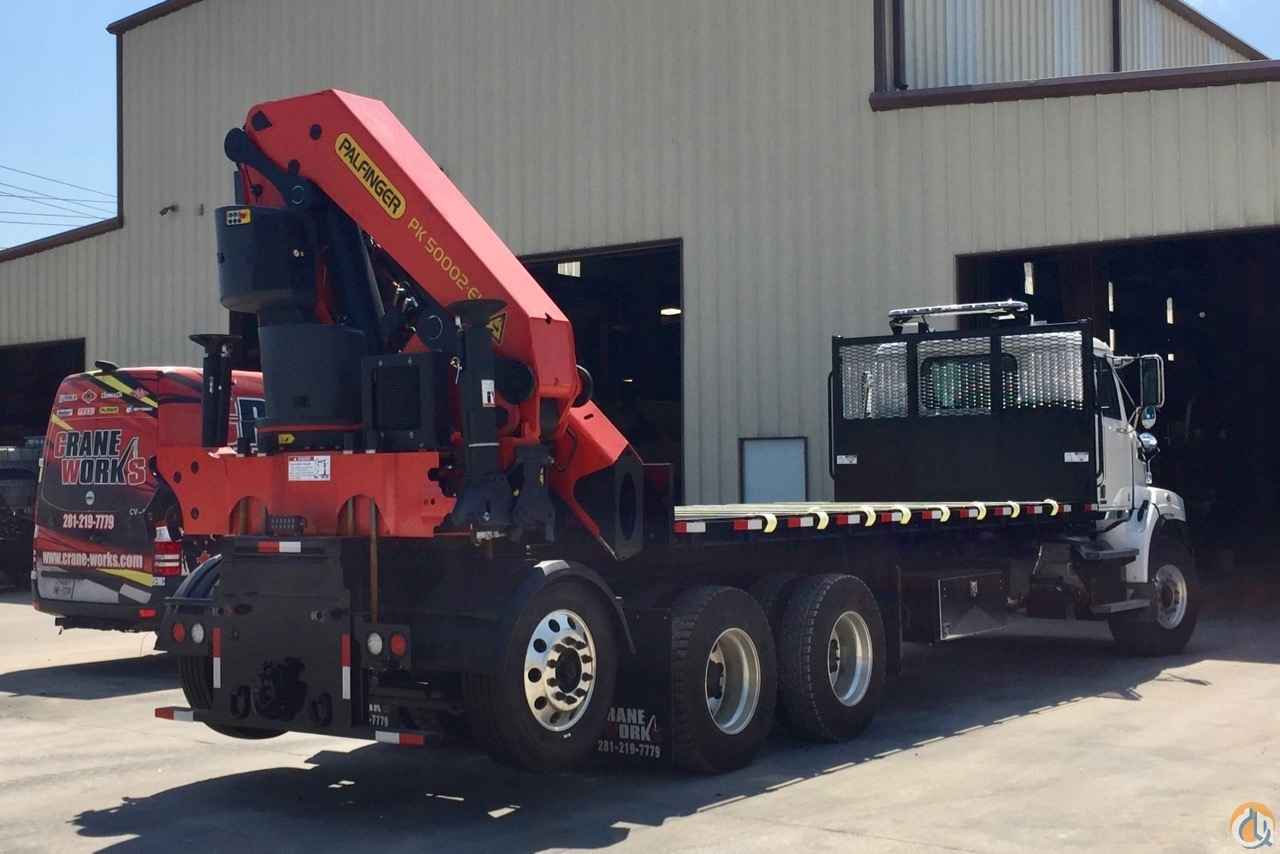

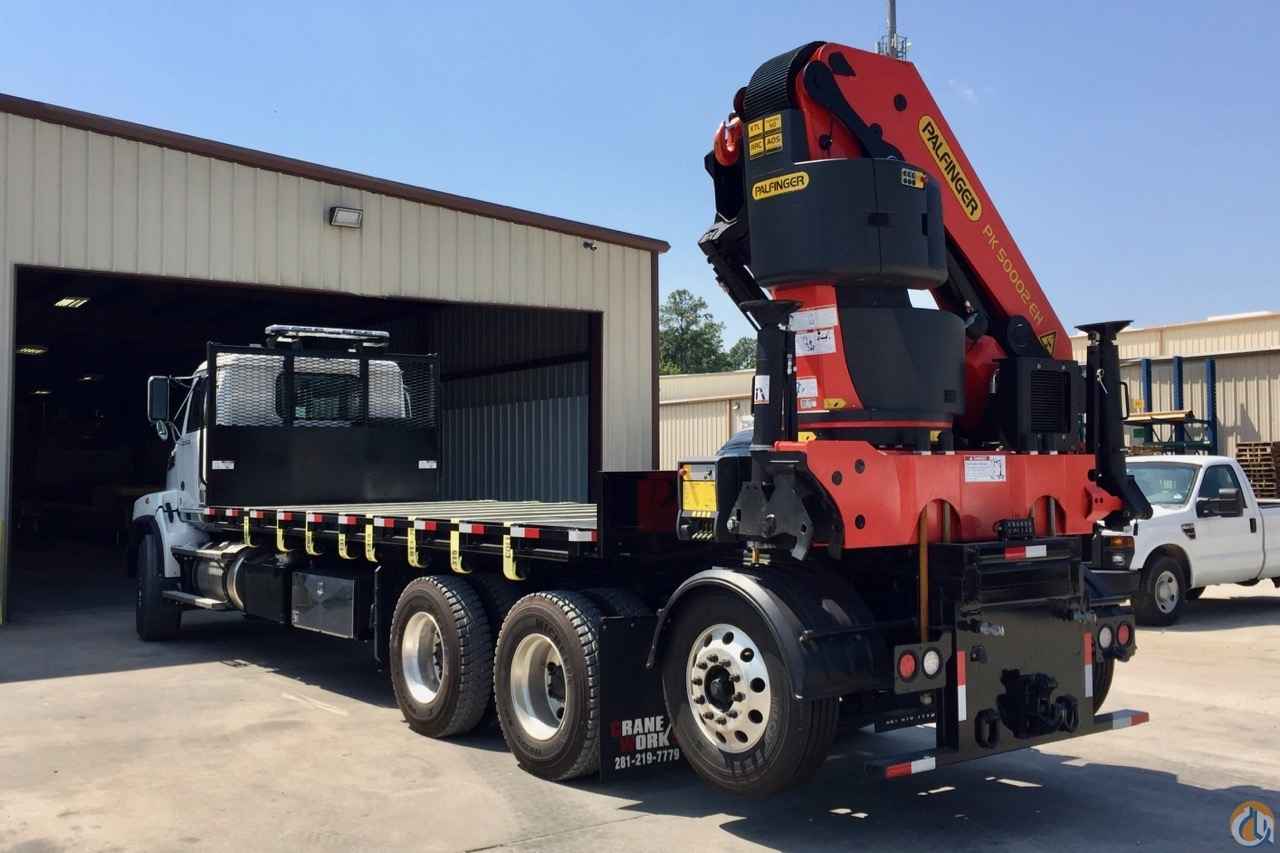

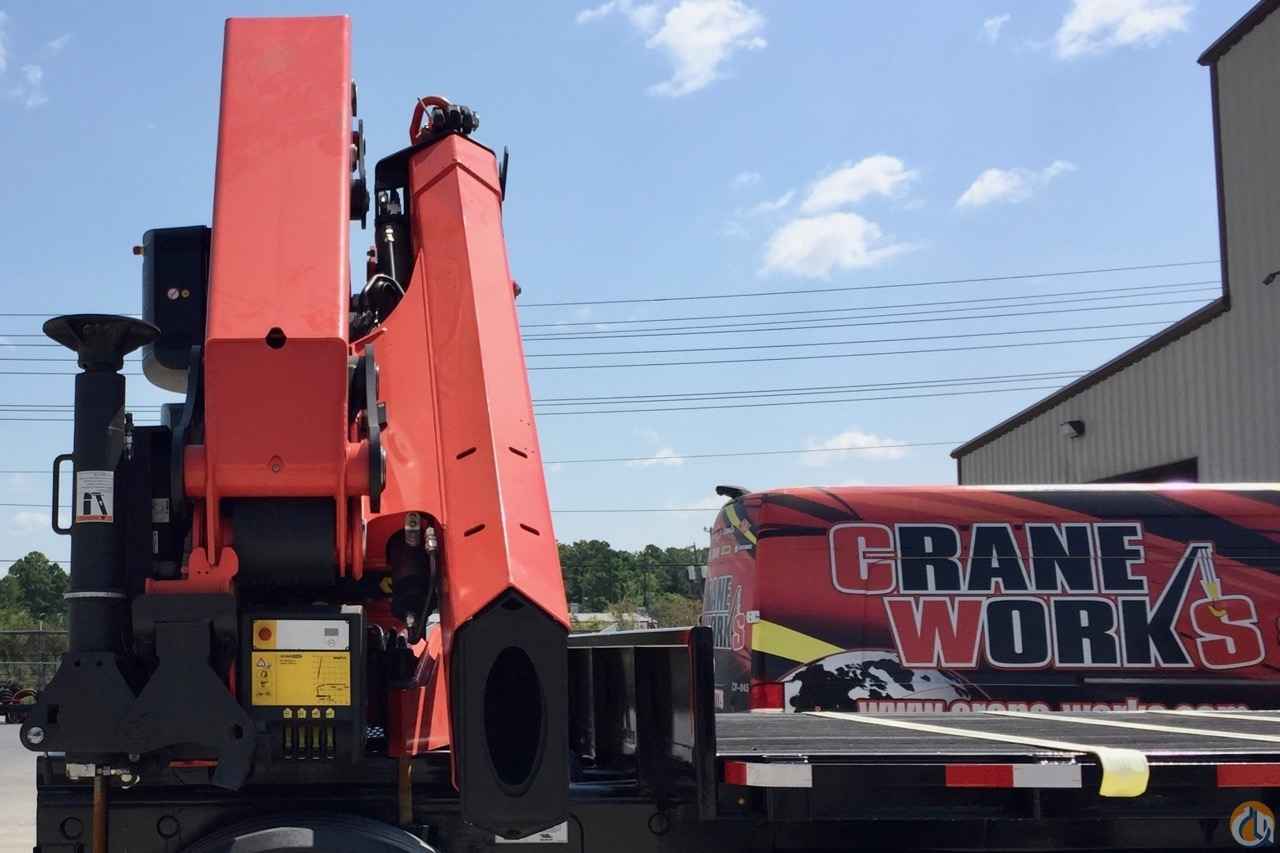

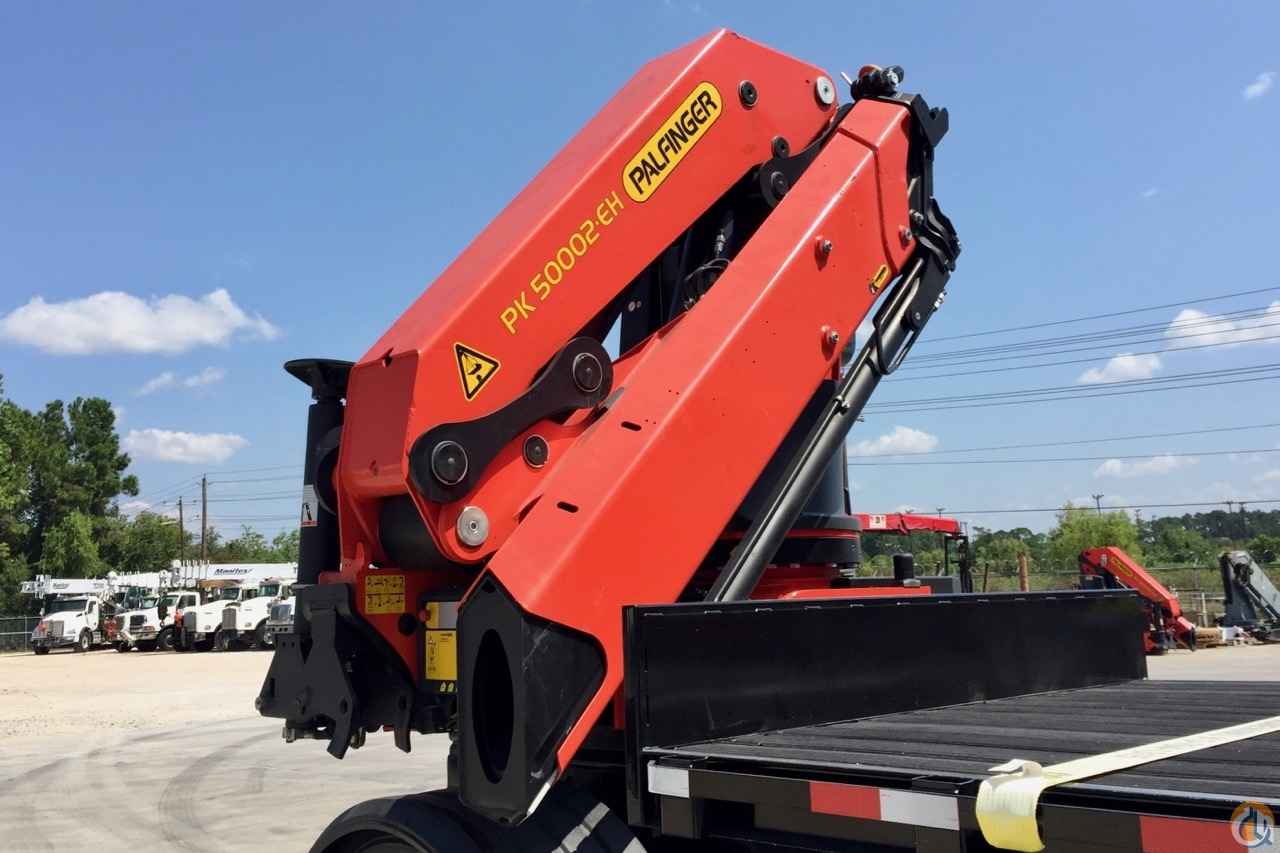

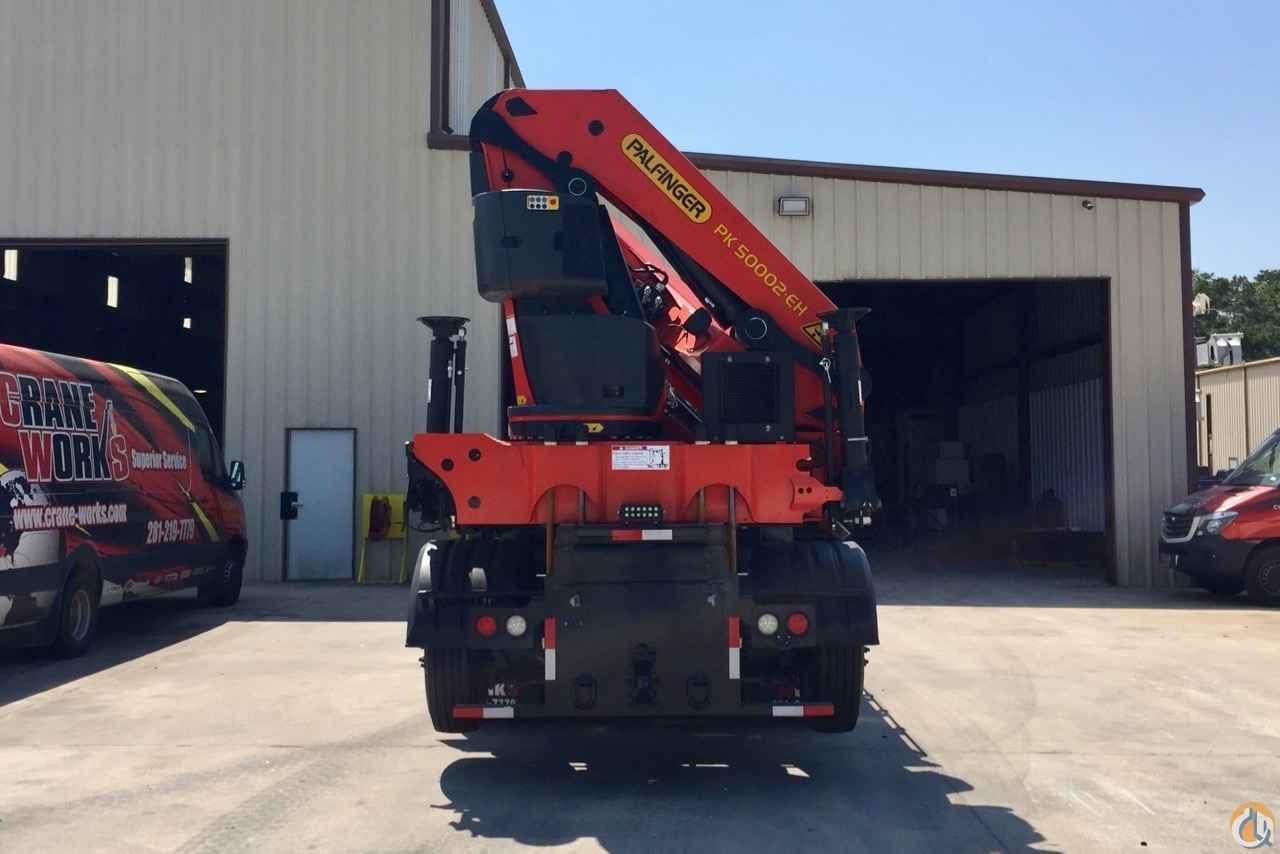

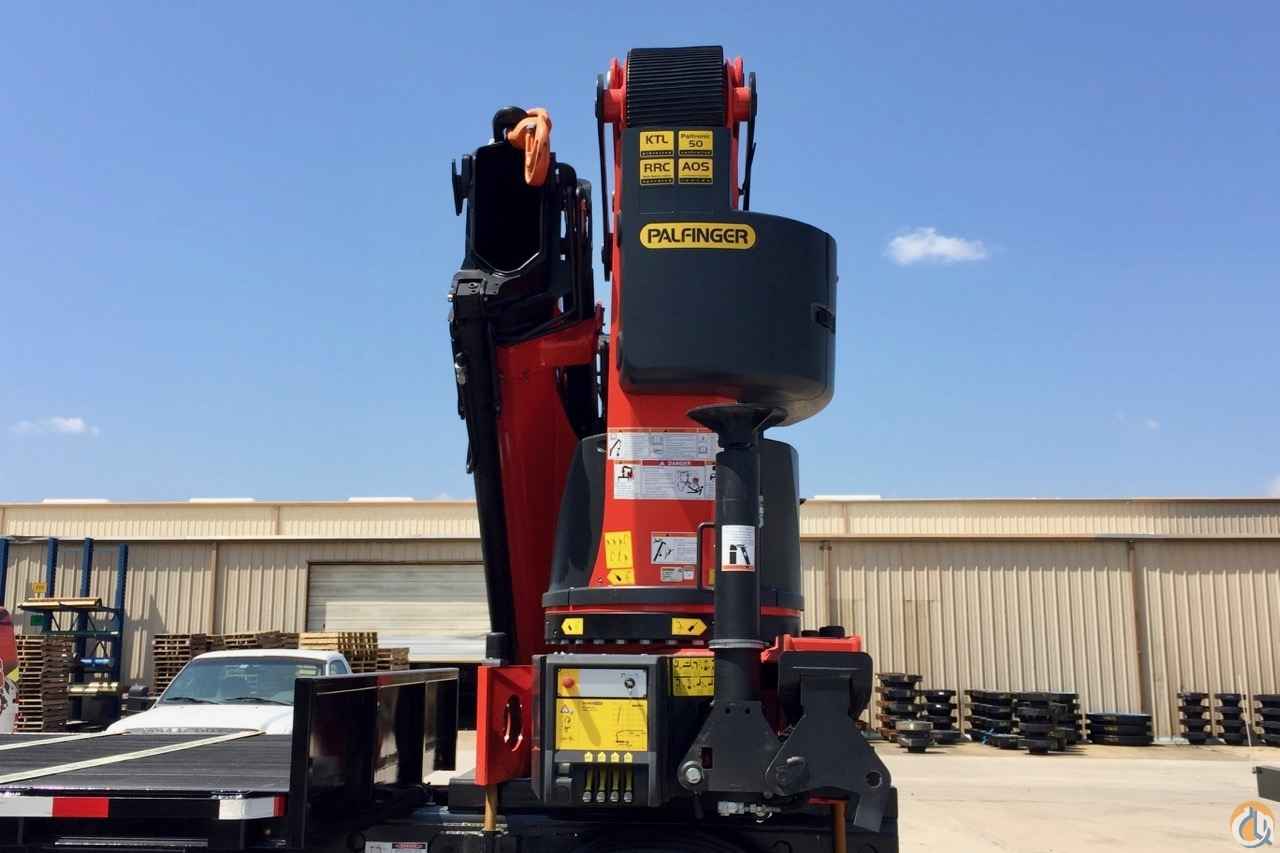

Type: Mounted Knuckle Boom Crane
Make: Palfinger

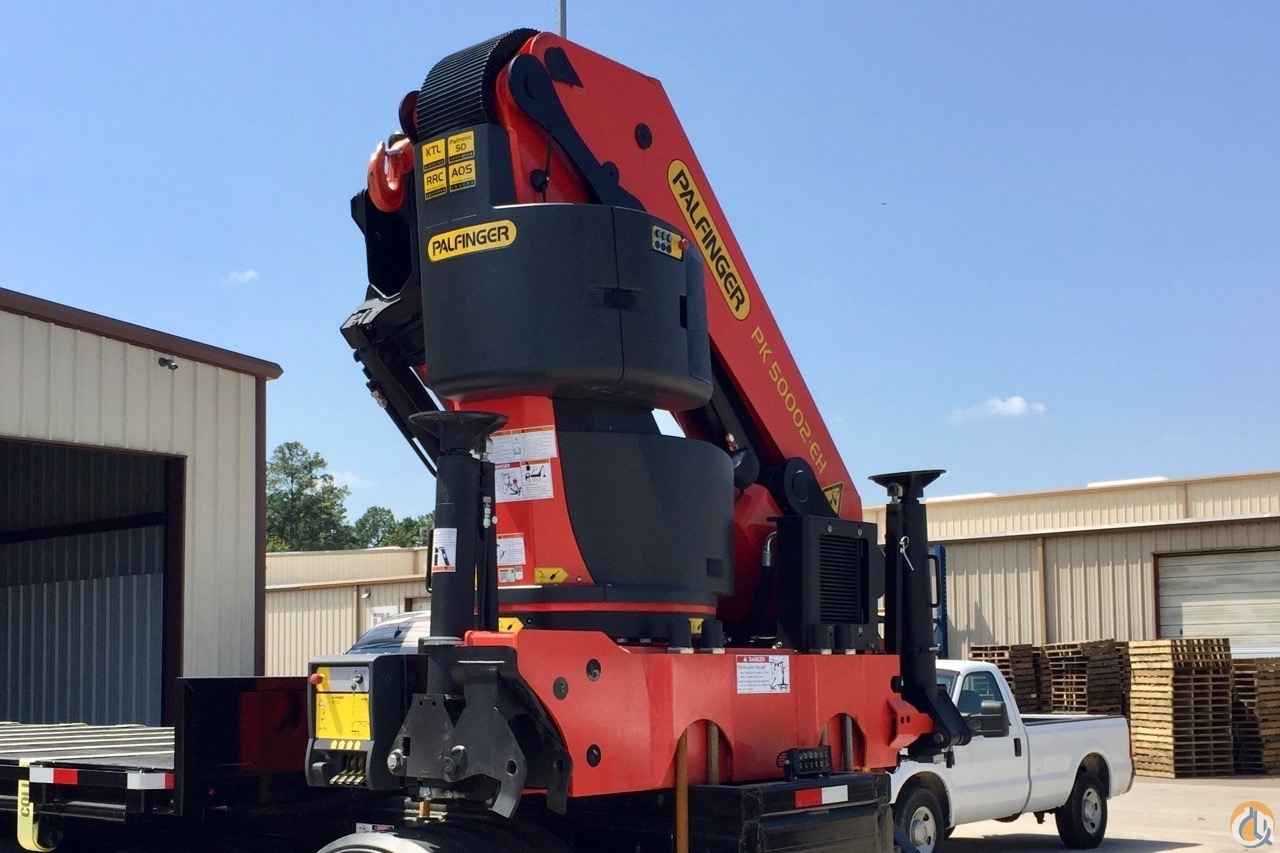

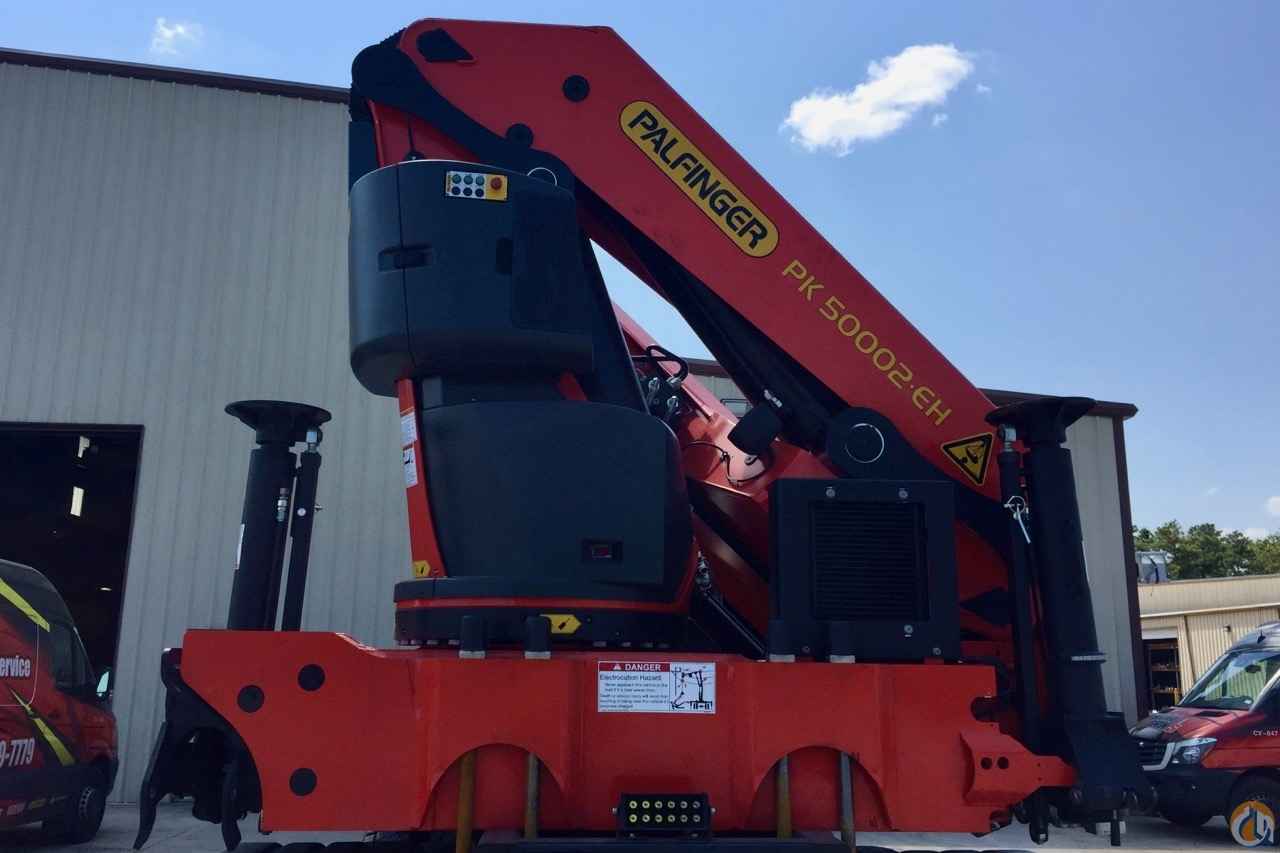

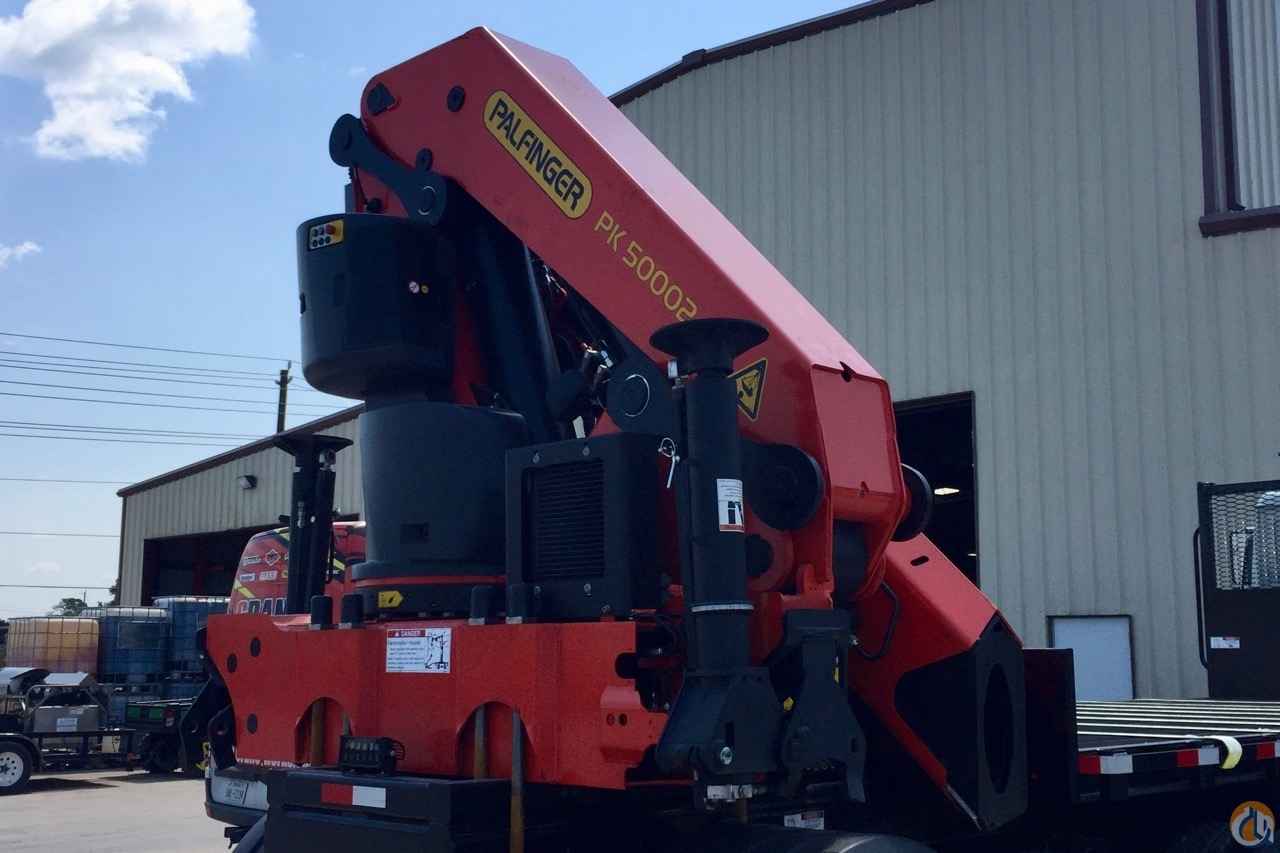

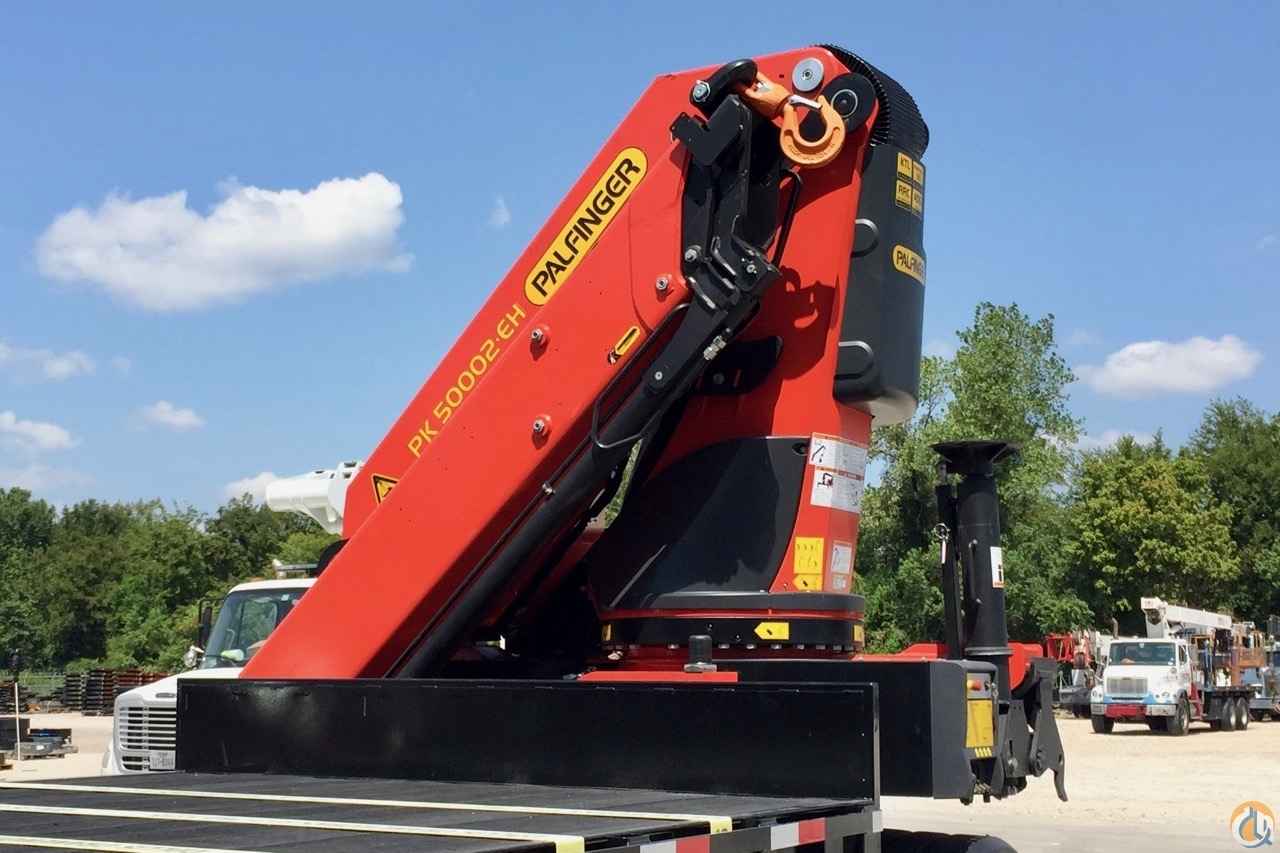

Model: PK 50002
Year: 2018
Capacity: 19.00 Tons
Condition: New
Serial #: 100395275
Unit #: NT-1086
Location: Houston, Texas
Boom: 68
Max. lifting moment 48.0 mt (347,320 ft-lbs)
Boom length 25' 3" via 2-hyd. ext. (A)
Power Link Plus 15°
Continuous rotation via 2 motors (2GETR)
Danfoss 4-section control valve on column, prepared for LS pump

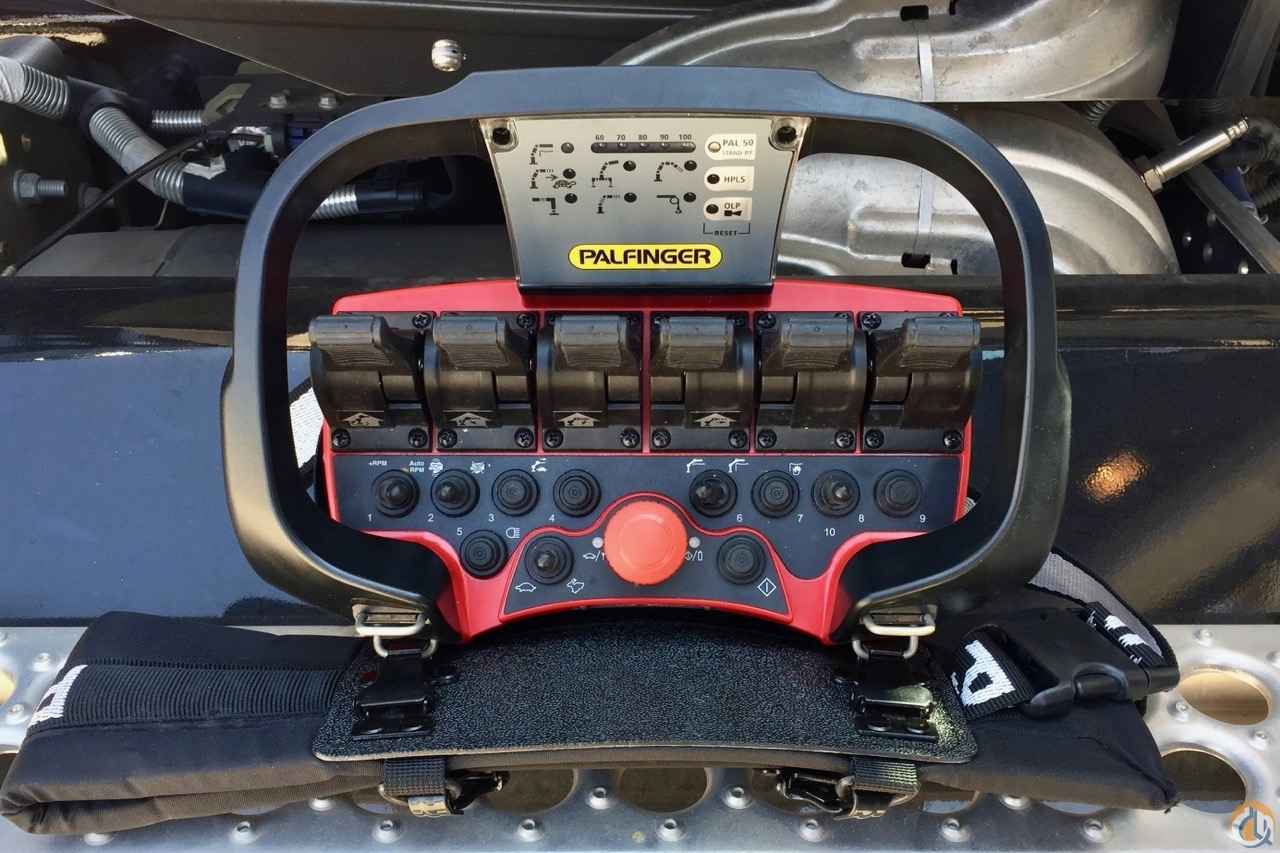

Radio remote control w/ display on handset, prepared for 6-functions
PAL50 overload protection system w/ emergency cutoff
High extension speed with return oil utilization
Provision for lifting capacity limitation dependent on rotation angle (SHB01)
Load holding valves on rotation gears, inner, outer and extension boom cylinders
Fixed hyd. stabilizers (STZS3) with LED marker lights and 10° tilting plates
Hyd. outrigger beams 25' 7" (R3X)
Electrical switch between crane & outrigger controls
Control for outriggers & stabilizers and auxiliary outriggers & stabilizers by two separate 4-function control valve
Box level at both outrigger control stations
Hour meter with service interval indication
High pressure filter
14 HP (10.5 kW) cooler installed
Loose 79 US gal. (300 l) oil tank w/ return filter
15 metric ton (33,069 lbs.) roller bearing load hook
Active Oscillation Suppression System (AOS) - PALFINGER AOS equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane.
Halogen Working Light - Knuckle Boom - 150 W work light with protective grating. On/off switch at primary control station. 1 "free function" on RRC is used.
Automatic Tiltable Stabilizer Cylinders STZY - Tiltable stabilizers that automatically swing up 180 deg. Retracted length 40.6"
KVA 7 VO 080HD REXROTH Load Sensing Piston Pump (variable displacement). CLOCKWISE ROTATION. DIN version HEAVY DUTY load sensing piston pump. Oil flow of 21.1 US gpm (80 L/min) at 1000 rpm. Max. pressure of 5,582.5 psi (385 bar). Maximum shaft speed of 2240 rpm. DIN FLANGED PTO required. Includes suction fitting. Requires crane with option code PU003, or prepared for LS pump (if equipped as standard). Shaft 8x32x35 (DIN ISO 14).
Fabricate and install full length, ladder style subframe
Fabricate and install shear plates, per spec.
Rear mount crane
Furnish and plumb hydraulic hoses
Hydraulic fluid
Furnish and install air shift PTO
CraneWorks Power Distribution box
Program RRC/Throttle
Load Test / OSHA
21’ long, 102” wide, 3/16” tread plate steel with 4” structural channel crossmembers on 12” centers, heavy duty angle bed rail
60” headboard with 31” expanded metal window and 29” steel tread plate
18” steel tread plate footboard
Furnish and install “rubberized decking” for floor overlay
Ecco strobe beacon, (2) Grote work lights recessed in headboard, (2) at rear and (1) each side, below rail
48” X 18” X 18” Heavy Duty CraneWorks aluminum toolboxes
Heavy duty pintle hitch assembly with D rings, gladhands, 7-way plug, and Pintle hitch.
Heavy duty ICC style rear bumper

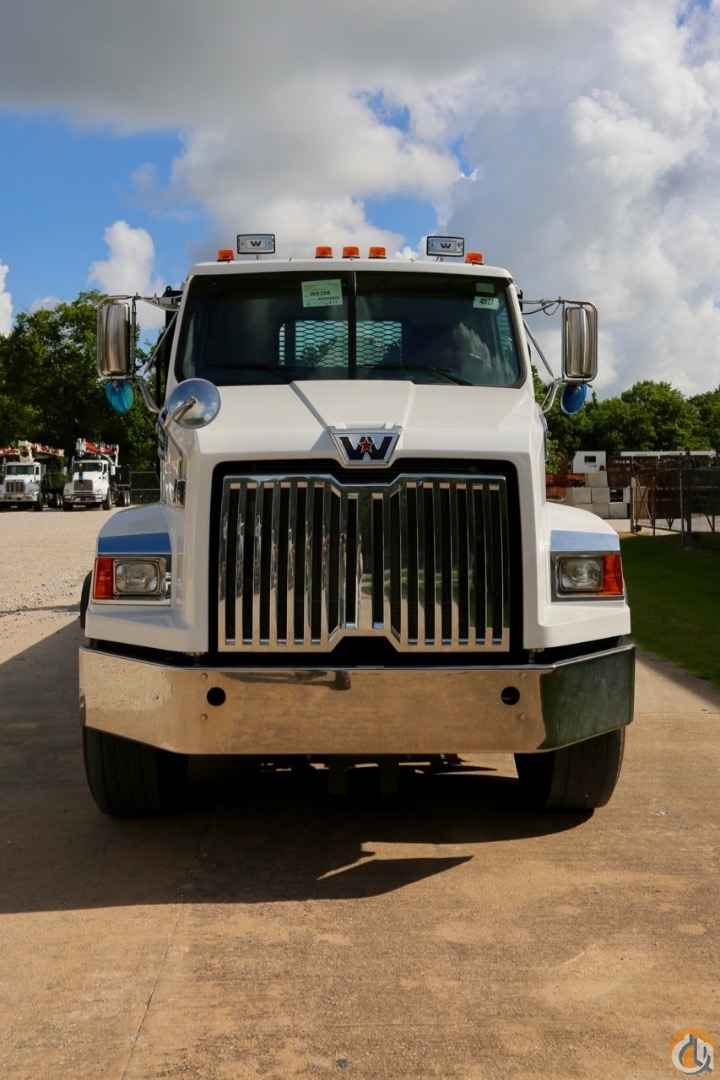

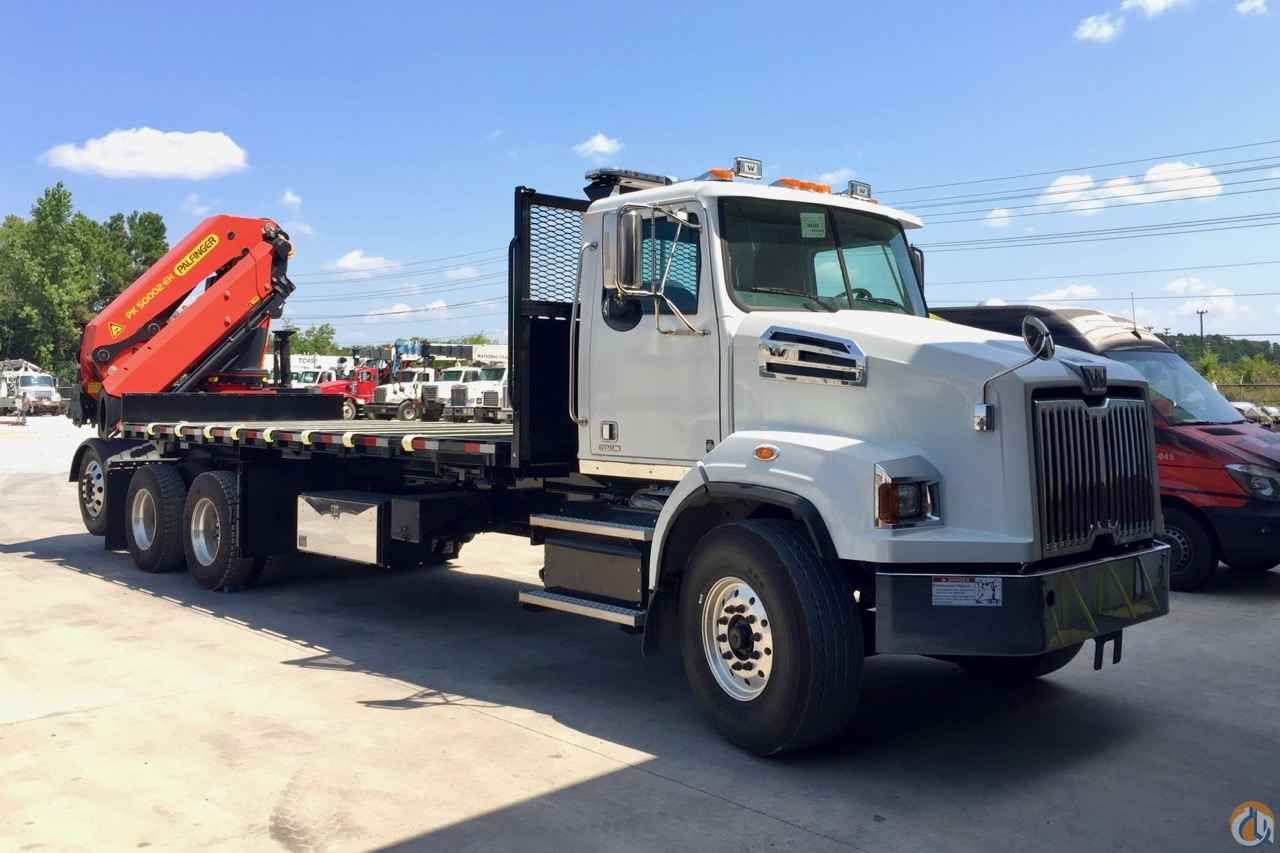

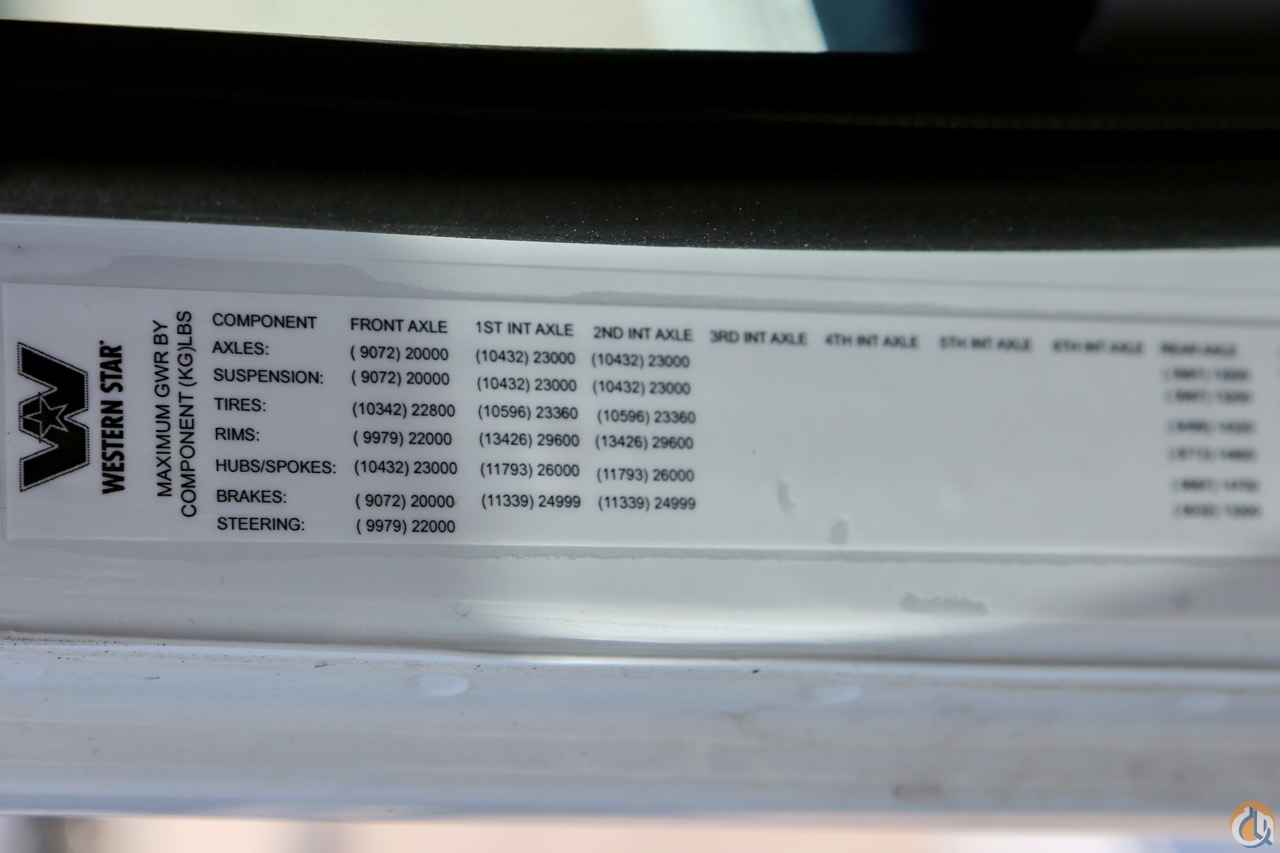

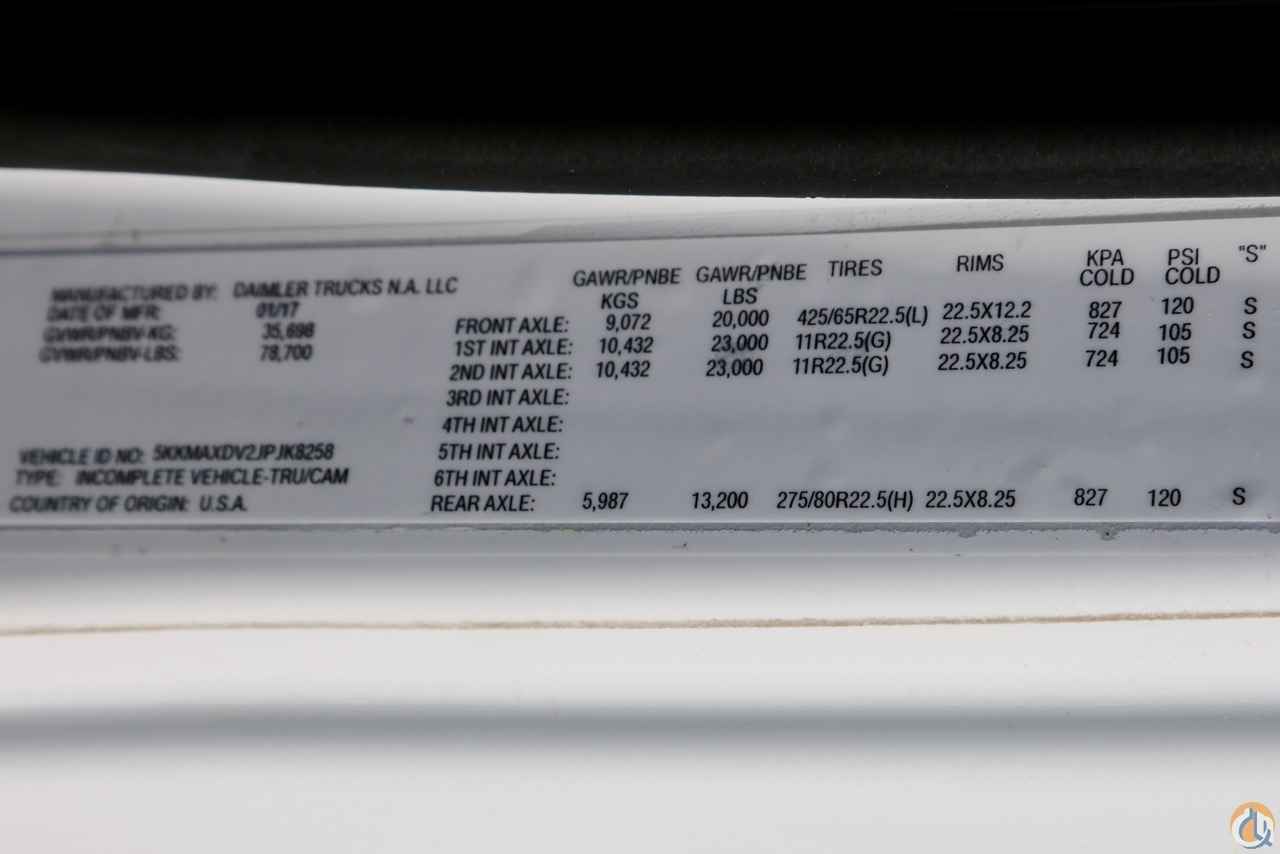

New 2018 Western Star 4700SB

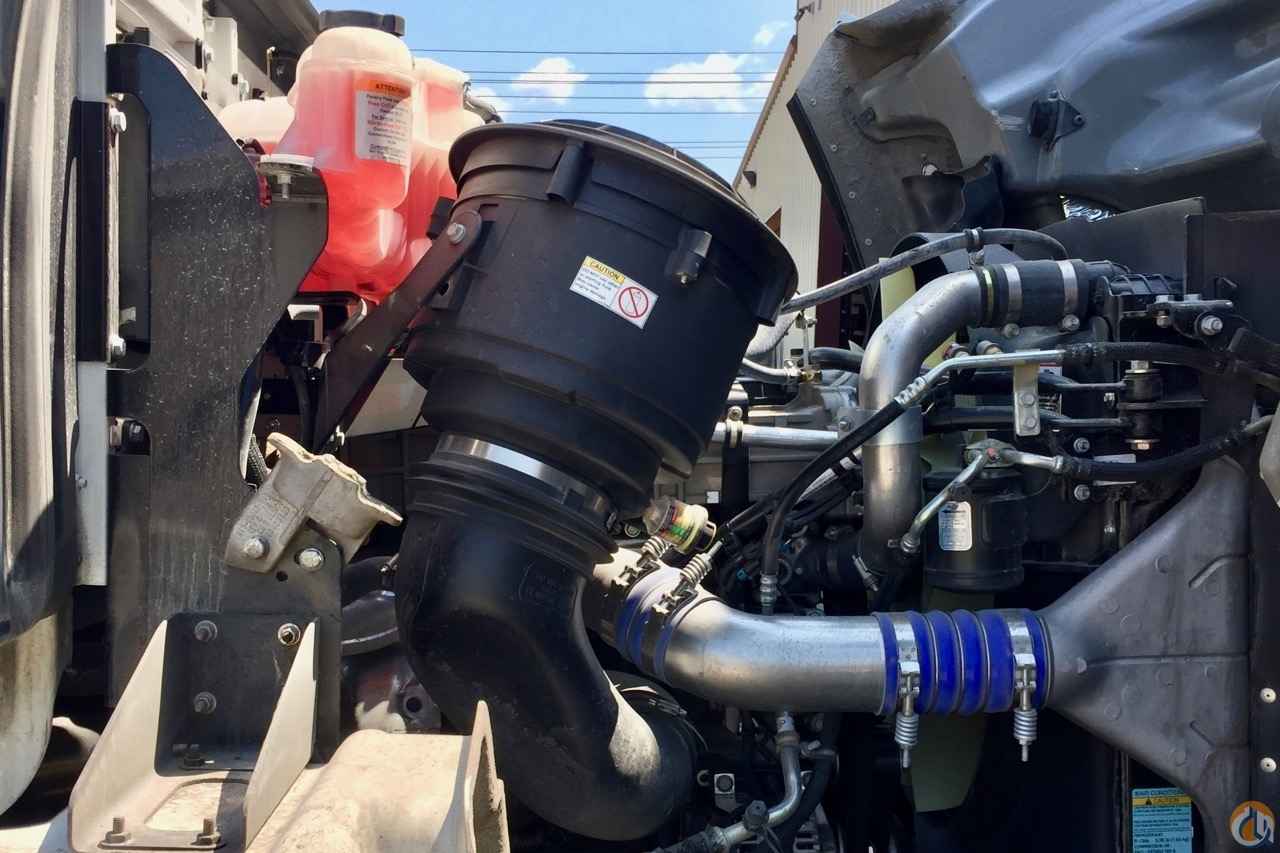

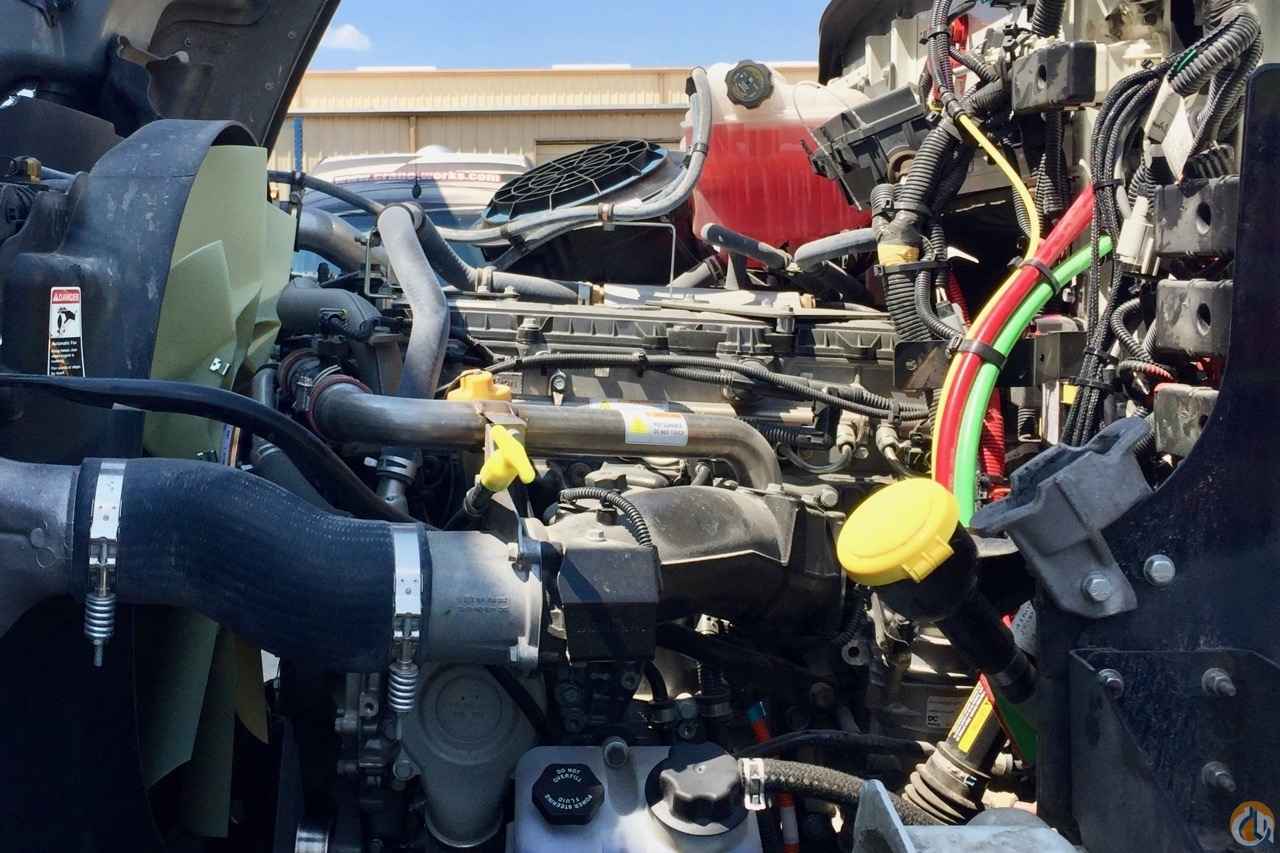

Detroit DD13 12.8L 450hp engine

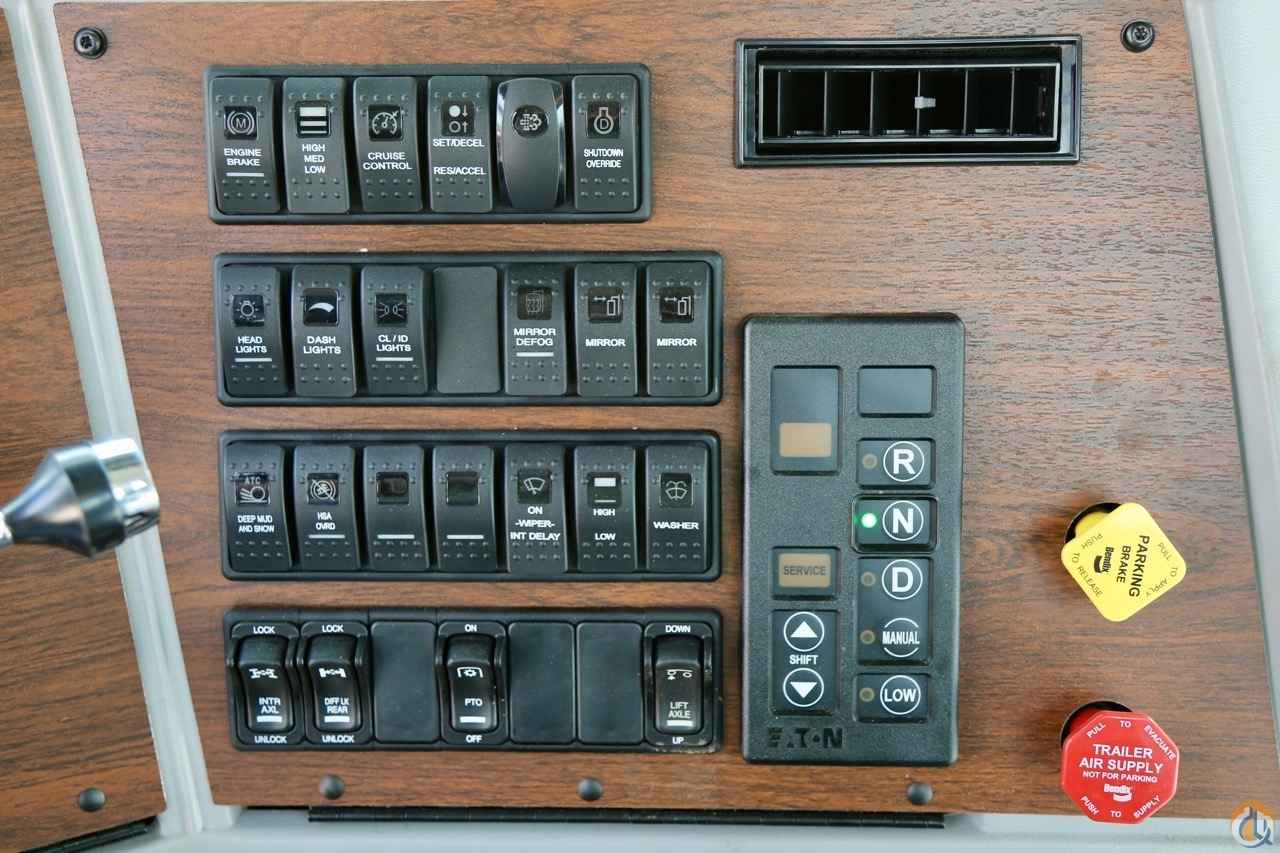

Eaton Fuller FO-16E318B Ultrashift automated manual 18 sp. transmission
Detroit DA-F Front axle 20k
Detroit RT46-160 46k rear axle

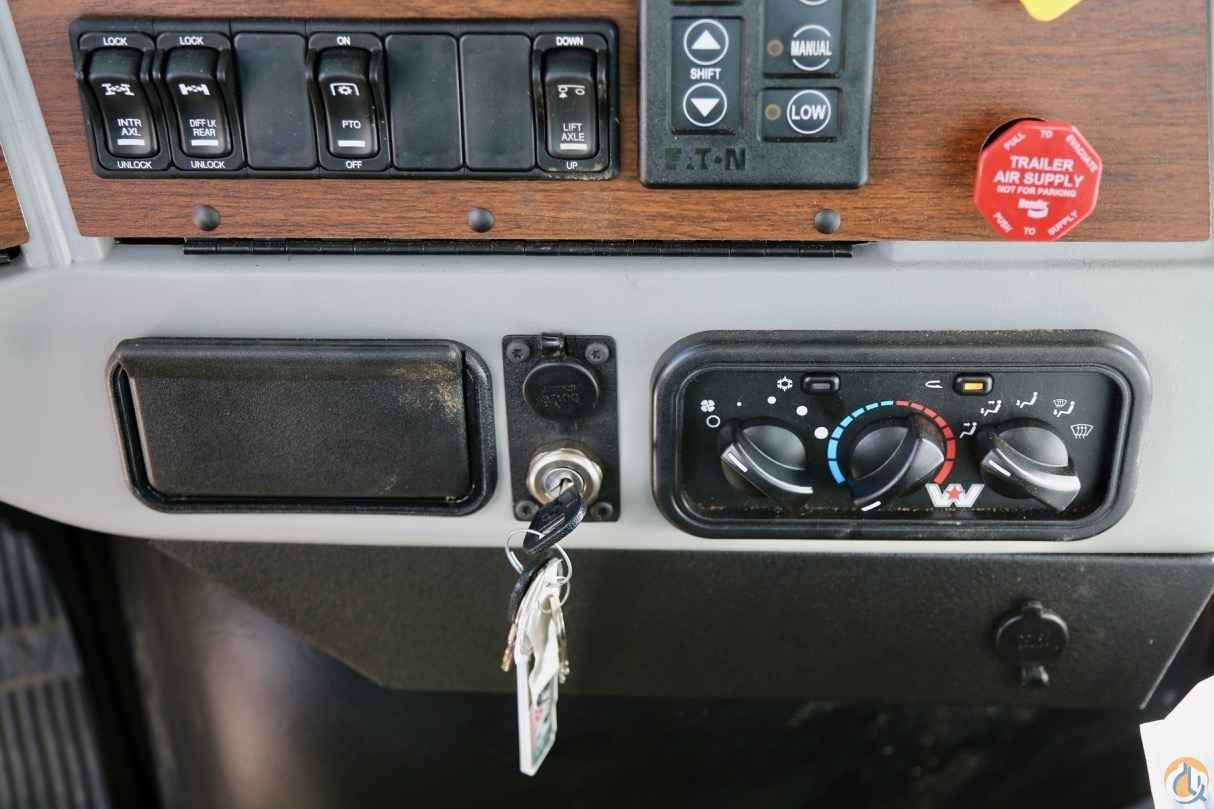

Driver controlled diff lock both axles
Tuftrac 46k spring suspension
Hendrickson SC13 Composilite 13,200lb. steerable tag axle
100 gal fuel tank
Michelin 425/65R22.5 front tires on alum wheels
Michelin 11R22.5 rear tires on alum wheels

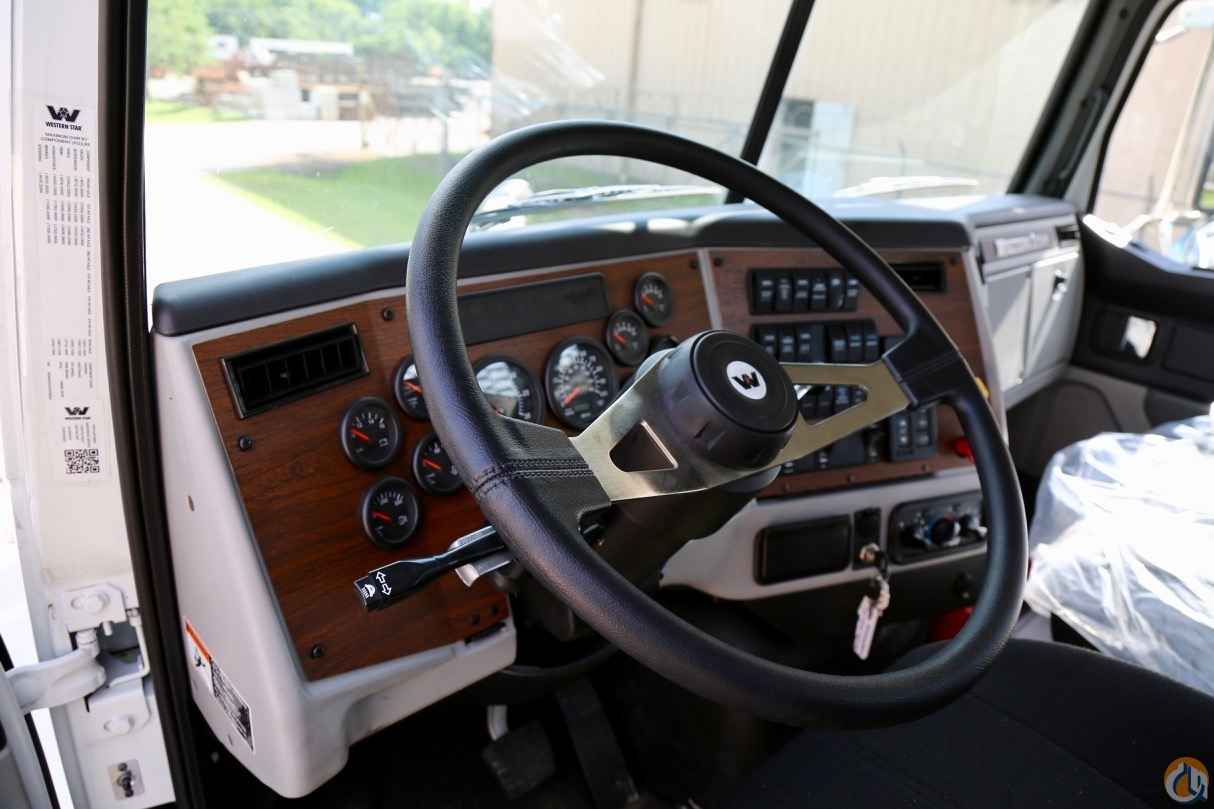

Smokey mountain gray vinyl premium interior
Driver seat high back air suspension
Passenger seat 2 man toolbox non-suspension
