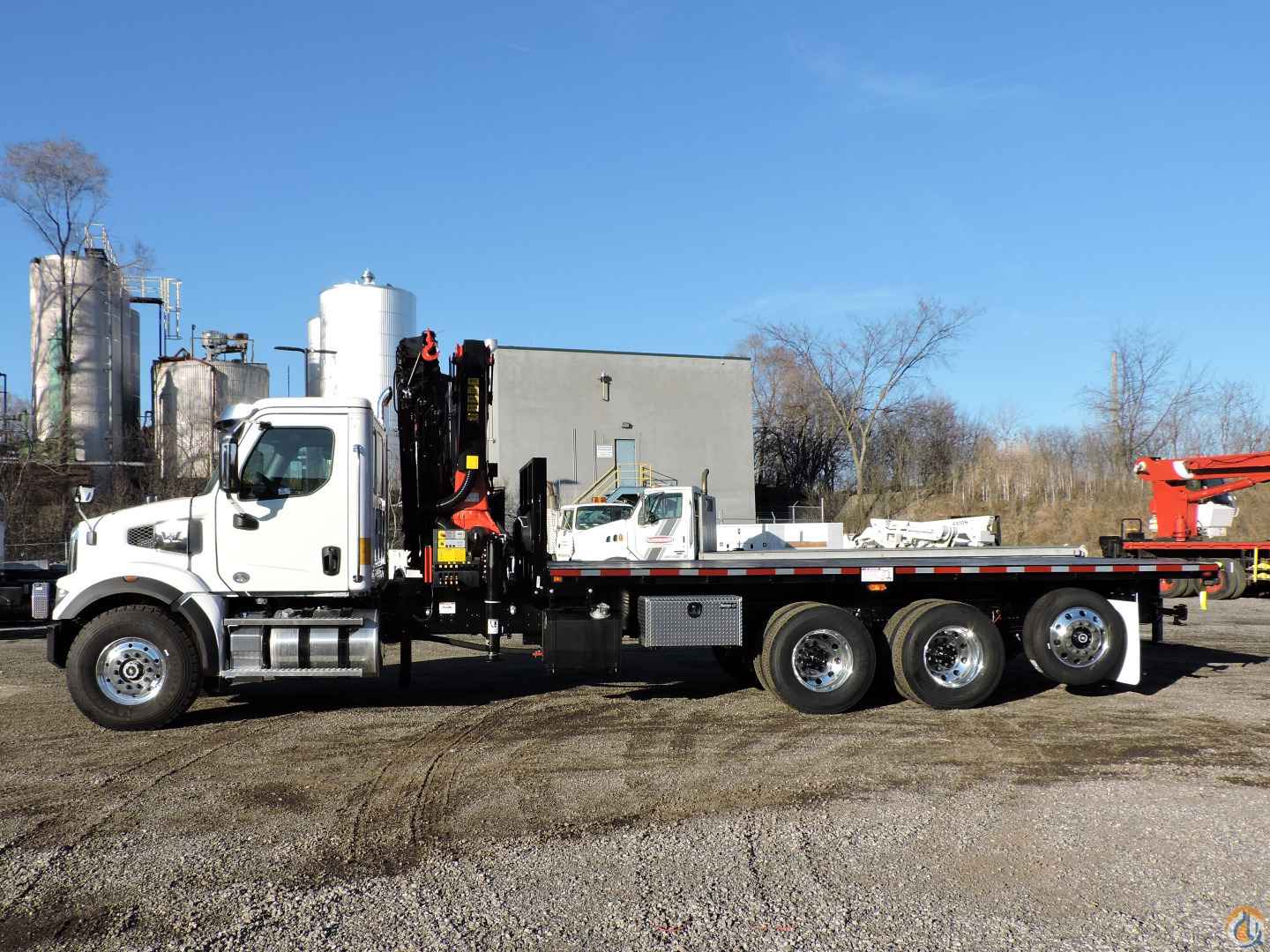

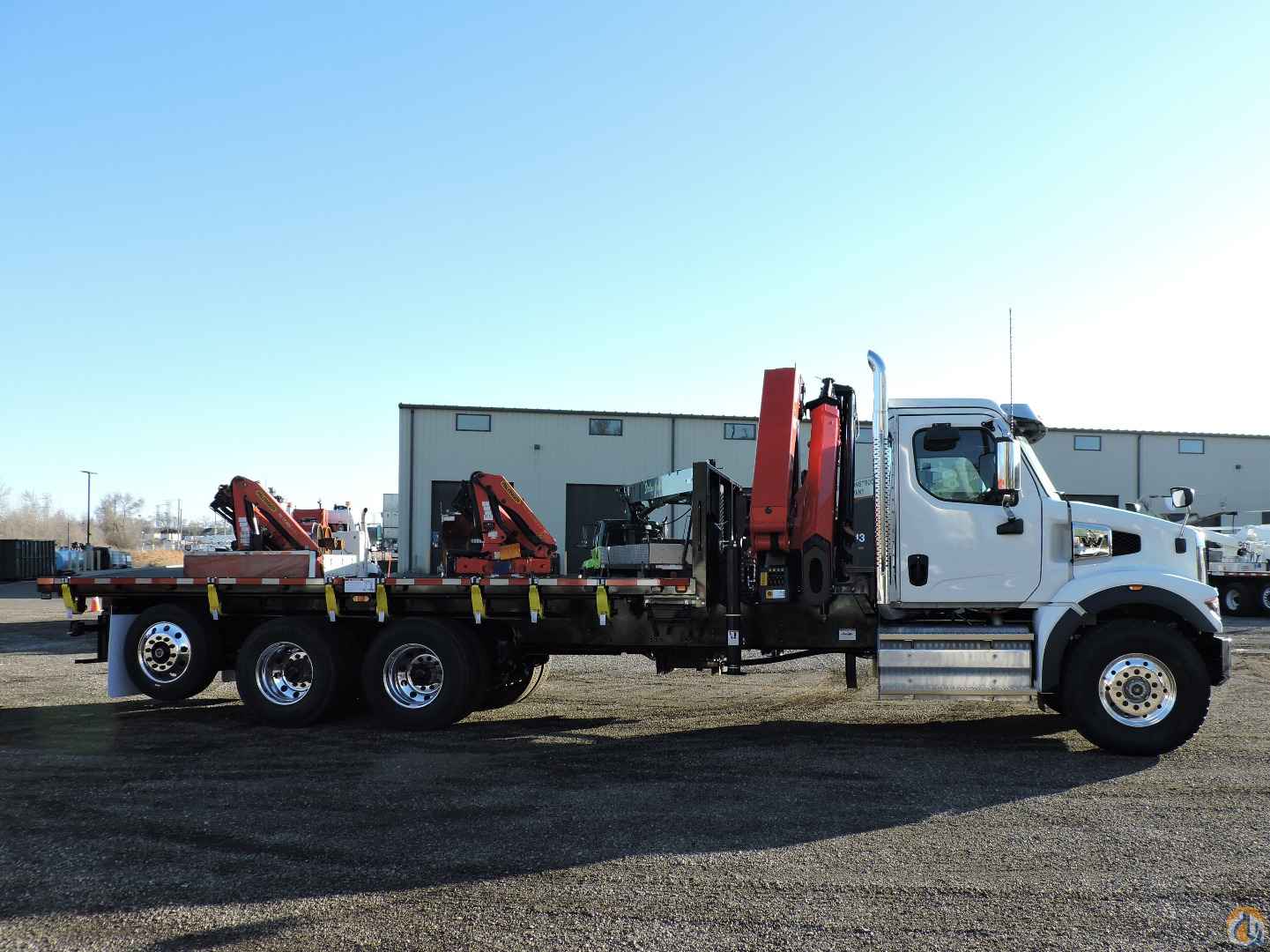

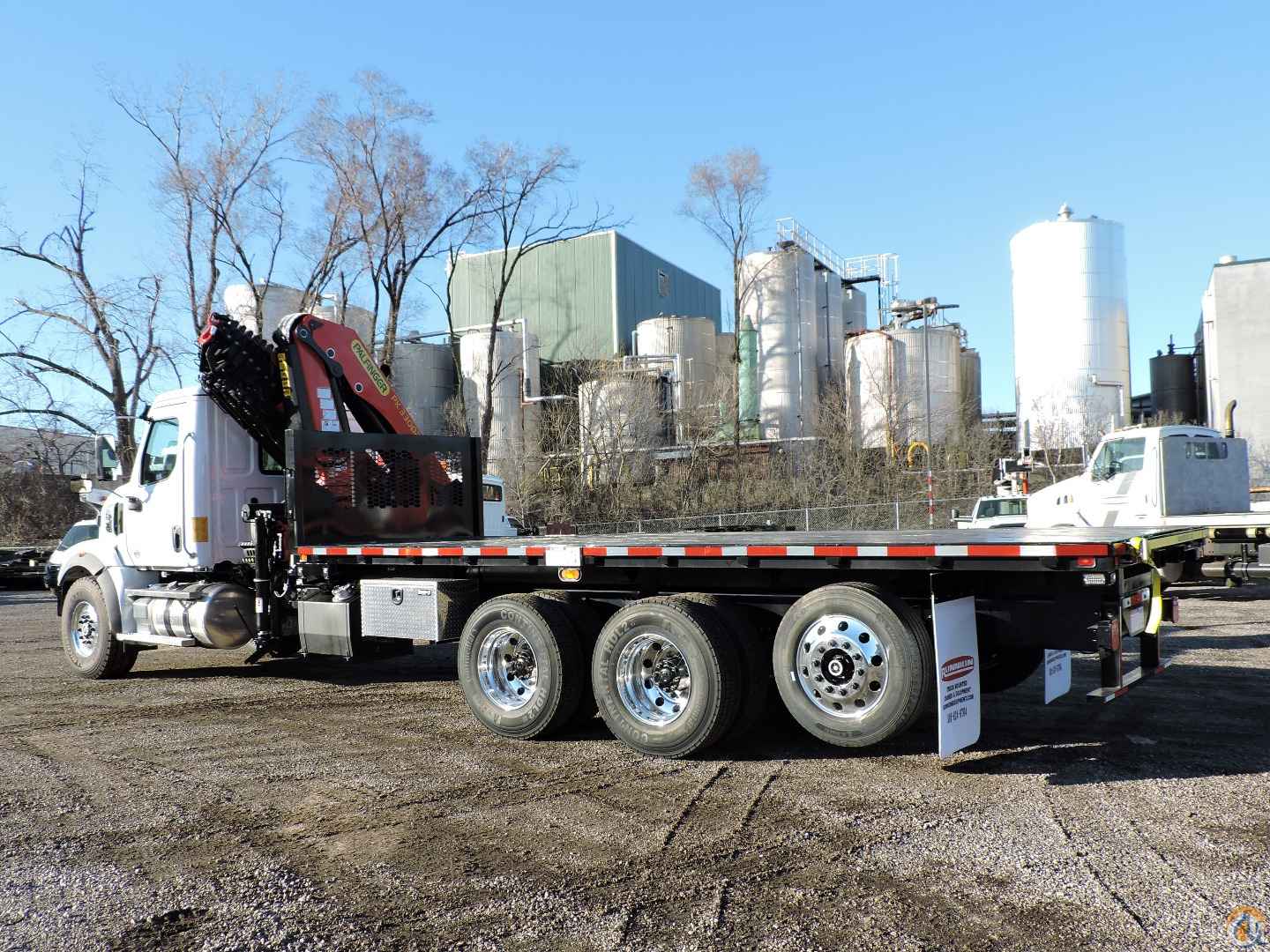

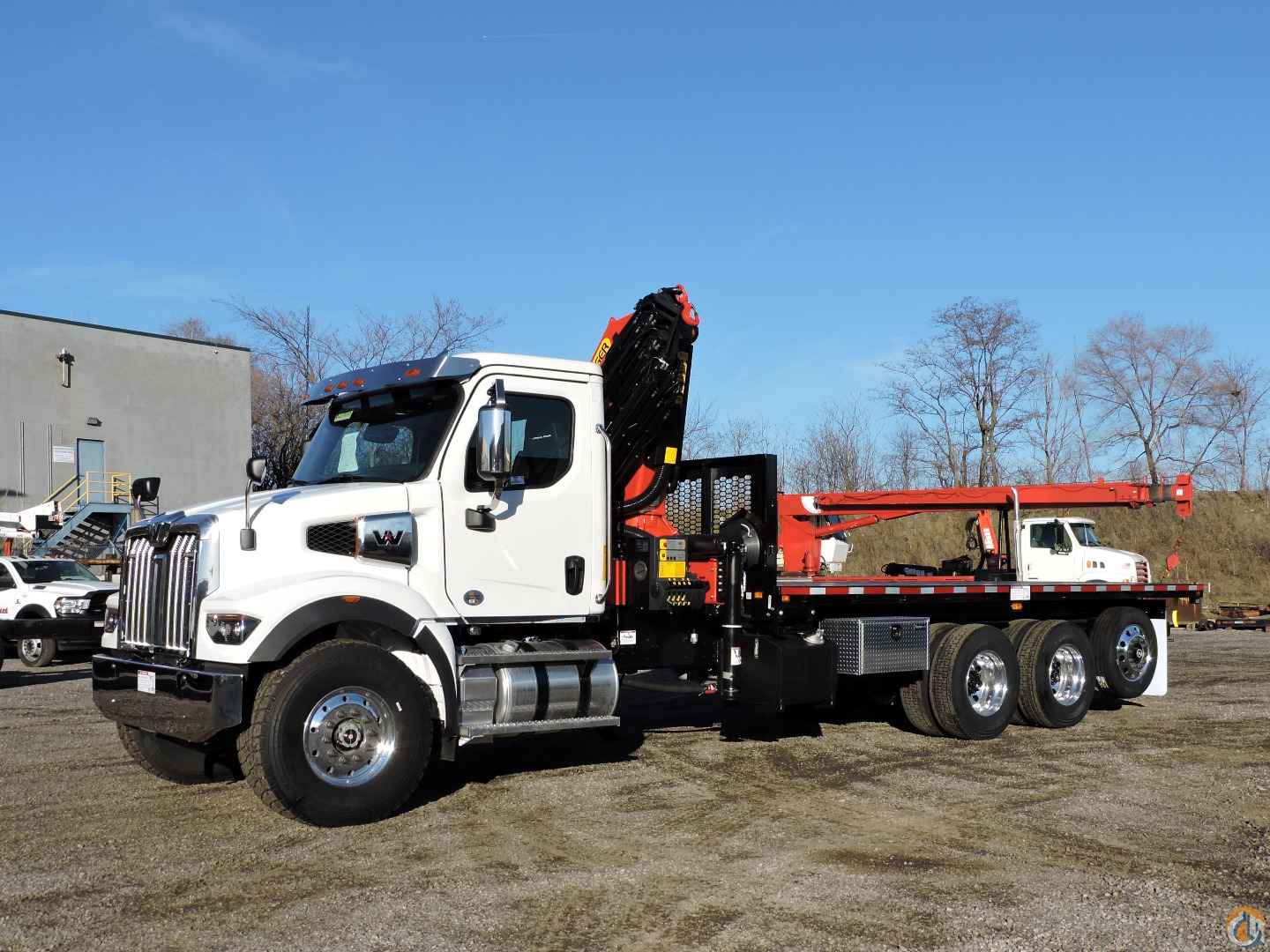

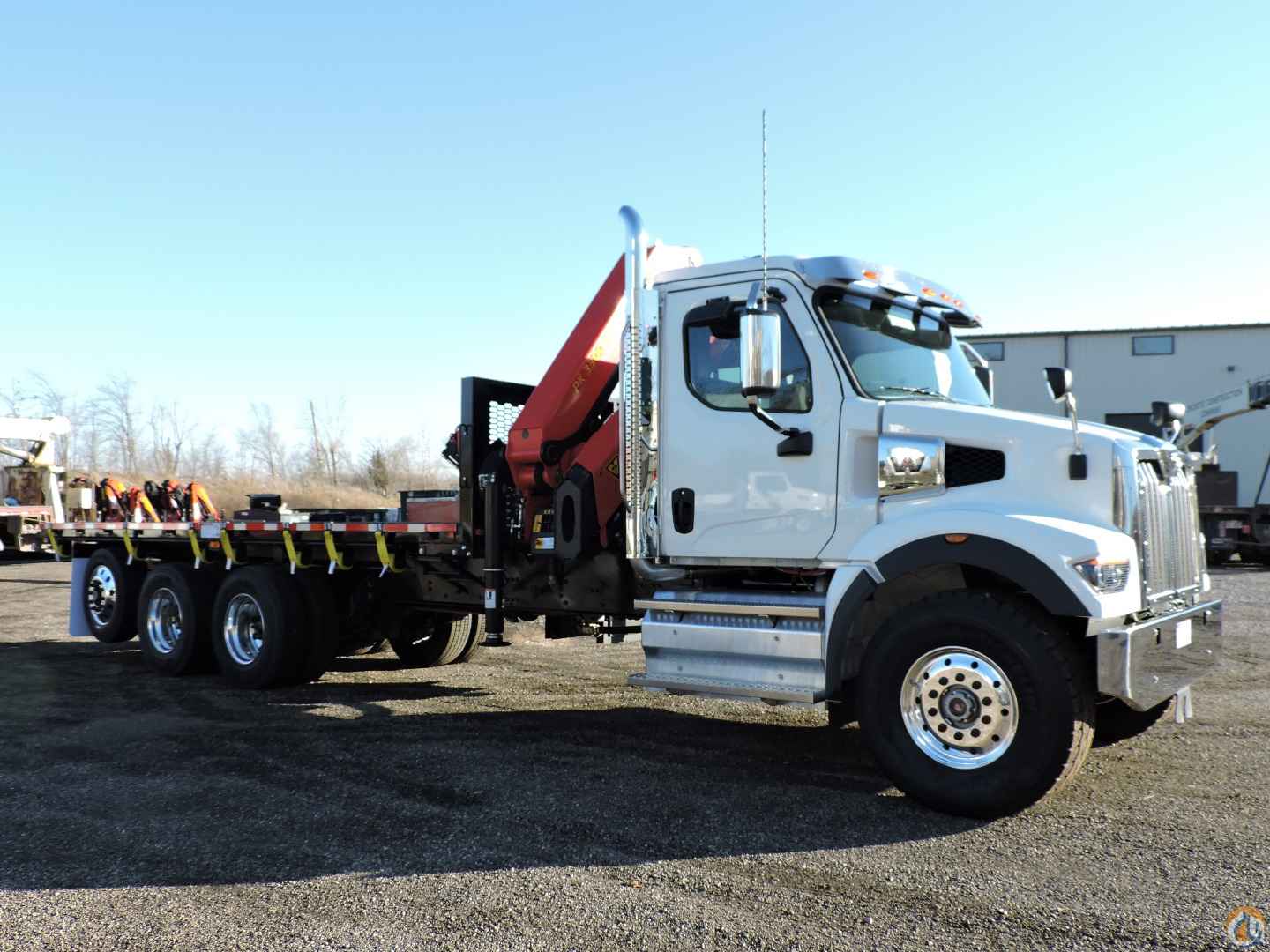

2024 Palfinger PK 33002 EH Mounted Knuckle Boom Crane (Sold)

Palfinger PK33002-EH equipped as follows:

- Mounted back of cab

- Maximum lifting moment 31.1mt (224,940 ft/lbs)

- Maximum lifting capacities

- 15’ 1” - 13,200#

- 21’ 4” - 8,600#

- 27’ 7” - 6,200#

- 34’ 5” - 4,550#

- 41’ 4” - 3,550#

- 48’ 3” - 2,900#

- 55’ 1” - 2,450#

- 62’ 4” - 2,150#

- 69’ 3” - 1,900#

- 8-section hydraulic boom extension from 26’7” to 69’11”. Includes high boom angle monitoring, 81’ total tip height

- Paltronic 50 overload protection system

- E-HPLS - Electronic High Performance Lifting System increases the crane capacity by slowing the crane functions down when approaching capacity

- Outer boom tilts 15 degrees above horizontal (Power Link Plus)

- Active Oscillation Suppression System – Palfinger AOS equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane

- Rotation angle 400 degrees

- 4-function Danfoss control valve

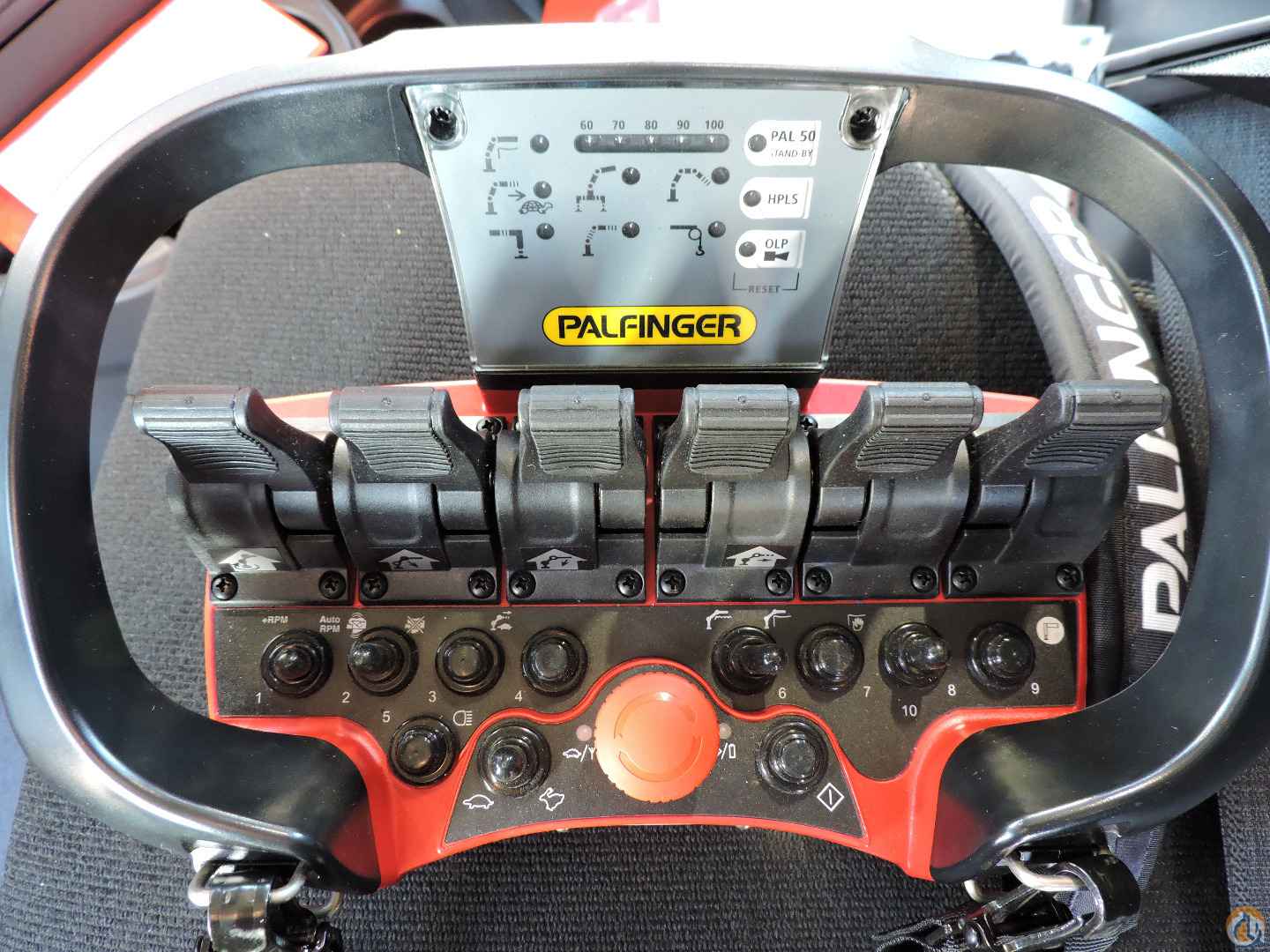

- Radio remote control with Paltronic 50 display on handset, 6 linear control levers on handset

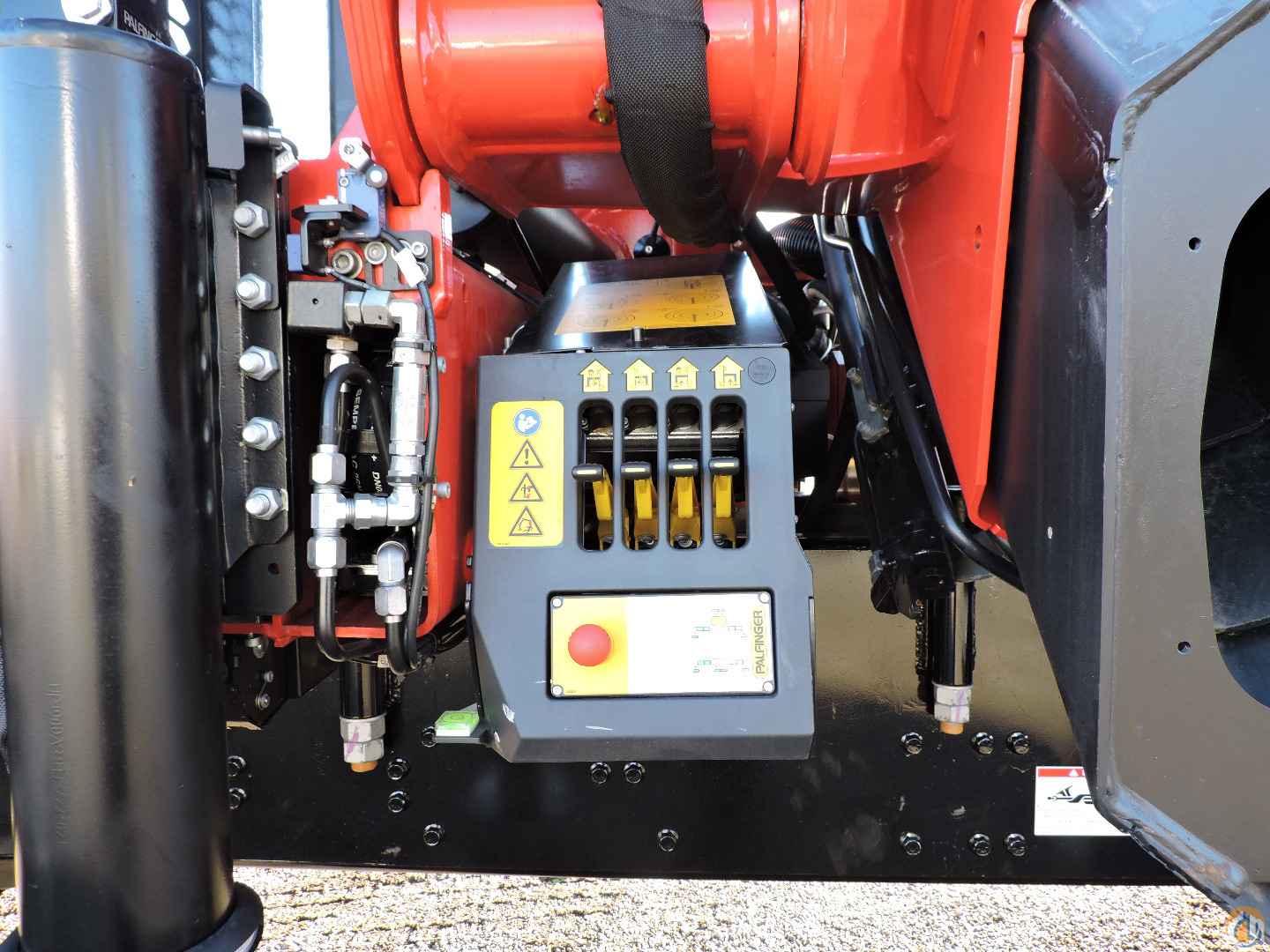

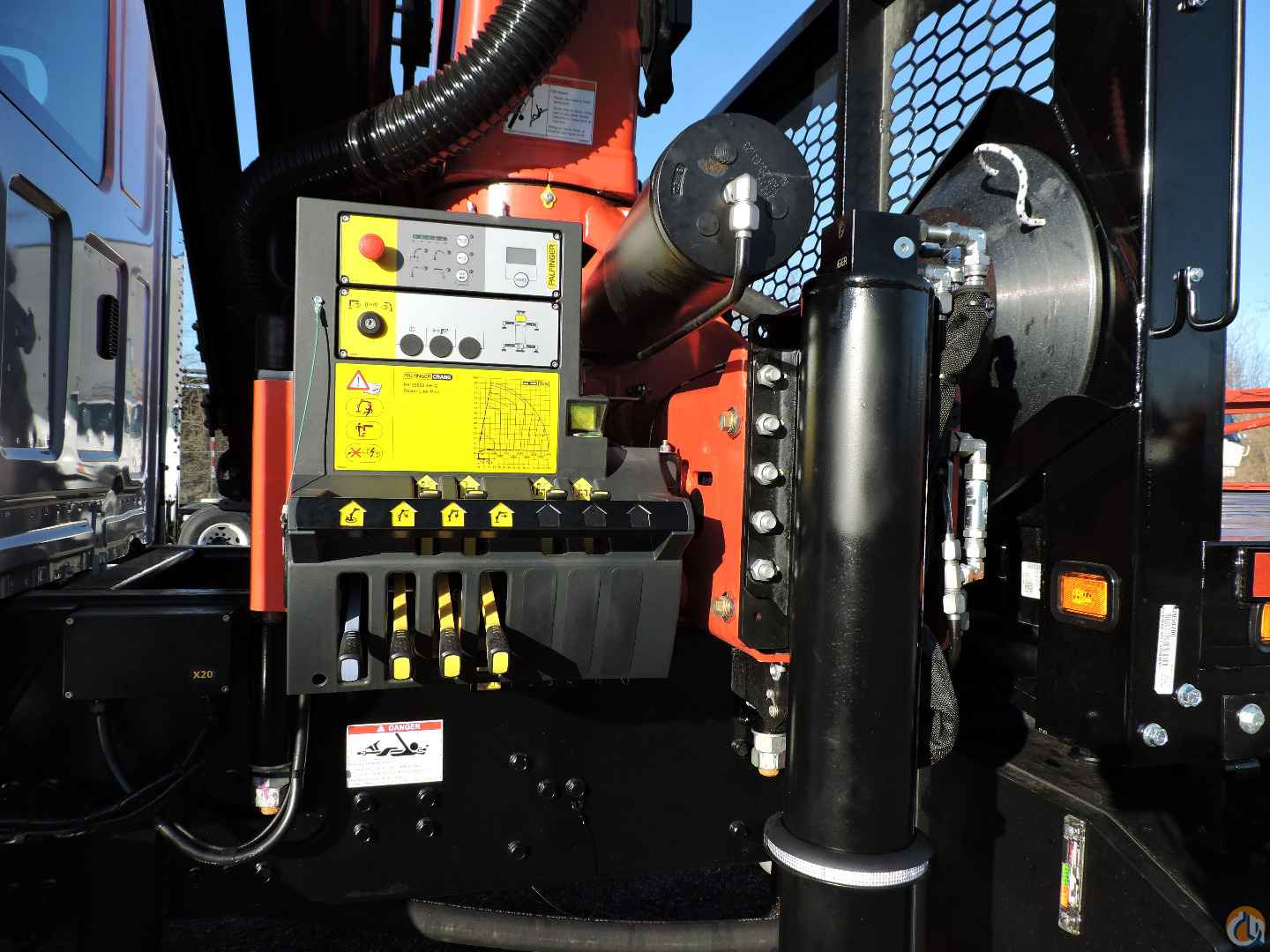

- Single ground control station with LED lighting

- Load holding valves on slewing, inner, outer and extension cylinder

- Maintenance free extension system with return oil utilization

- 53-gallon oil tank with return filter

- 11.4 hp oil cooler and high-pressure filter installed

- 17,640lb capacity roller bearing load hook

- Hour counter with service intervals

- R4X hydraulically extendable outriggers with a spread of 24’3”

- Two (2) composite stabilizer pads with storage brackets

- Transport switch with buzzer and light for outriggers and boom stow

- LED marker lights and 10 degree tilting stabilizer plates

- Bubble level at both outrigger control stations

- HPSC stability control-variable position of outrigger beams and lifting capacities adjusted accordingly

- 22’ Knapheide Heavy Hauler Jr. body with rub rails.

- Underbody slide winch track with (7) 4” straps

- Heavy duty bolt-on bulkhead

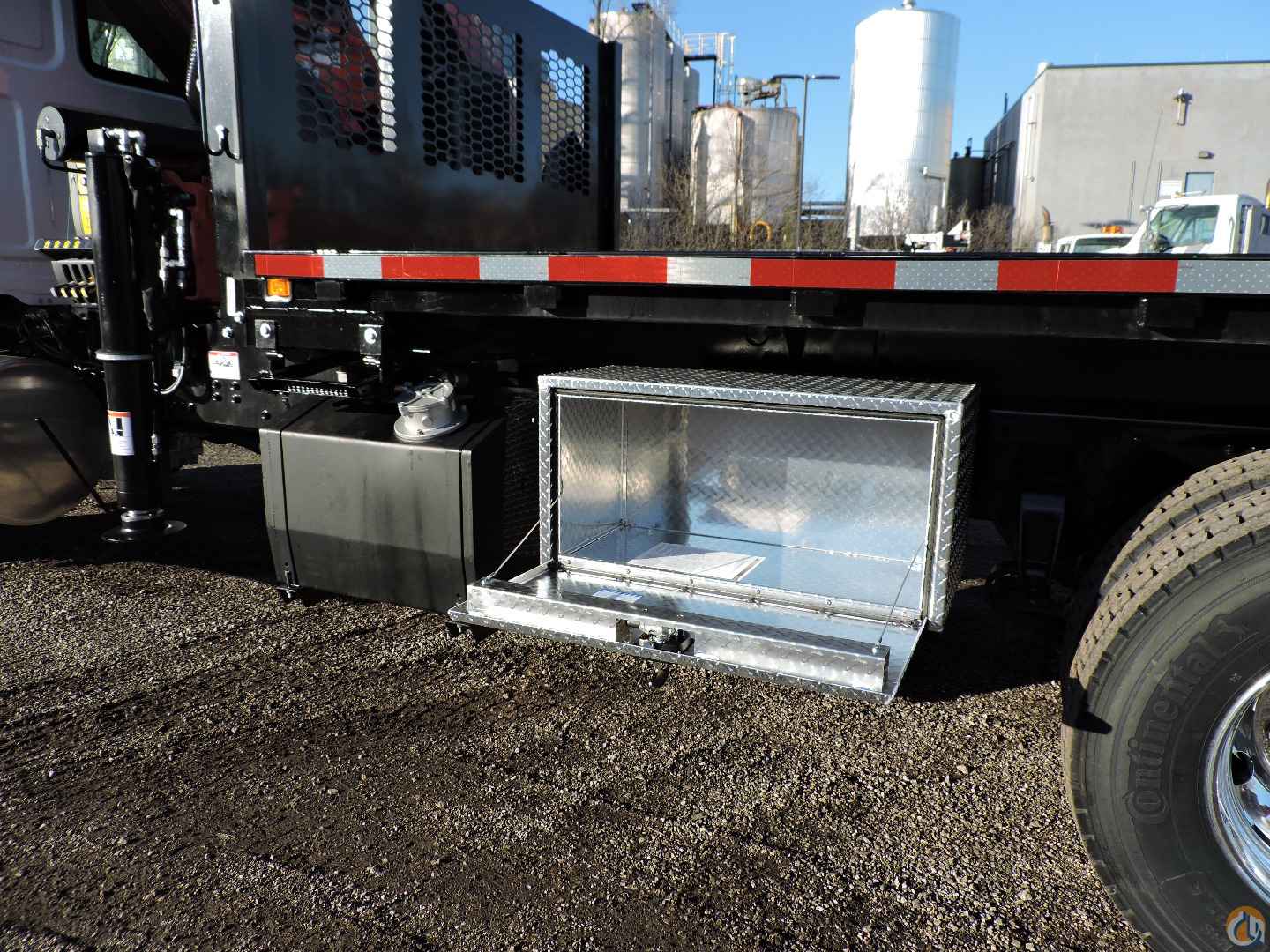

- One (1) 36”x18”x18” aluminum toolbox

- Four (4) corner LED strobe lights

- Cone holder

MOUNTED ON:

2024 Western Star 47X SFA equipped as follows:

- Cummins X12 455HP @ 1,900 RPM, 1,700 LB-FT @1,000 RPM

- Engine block heater

- Allison 4500 RDS automatic transmission

- 20,000lb set forward front axle with 23,000lb flat leaf front suspension

- 46,000lb rear axle with Airliner suspension

- 13,500lb steerable tag axle

- Differential lock tandem axles

- Winch brake on front axle

- 160-amp alternator

- Air dryer with heater

- Tires: FR –425/65R22.5 front tires

- Tires: RR –11R22.5 rear tires

- Tires: TR –275/70R22.5 tag tires

- Aluminum wheels with polished finish

- 80-gallon fuel tank – painted with painted bands

- Aluminum DEF tank cover

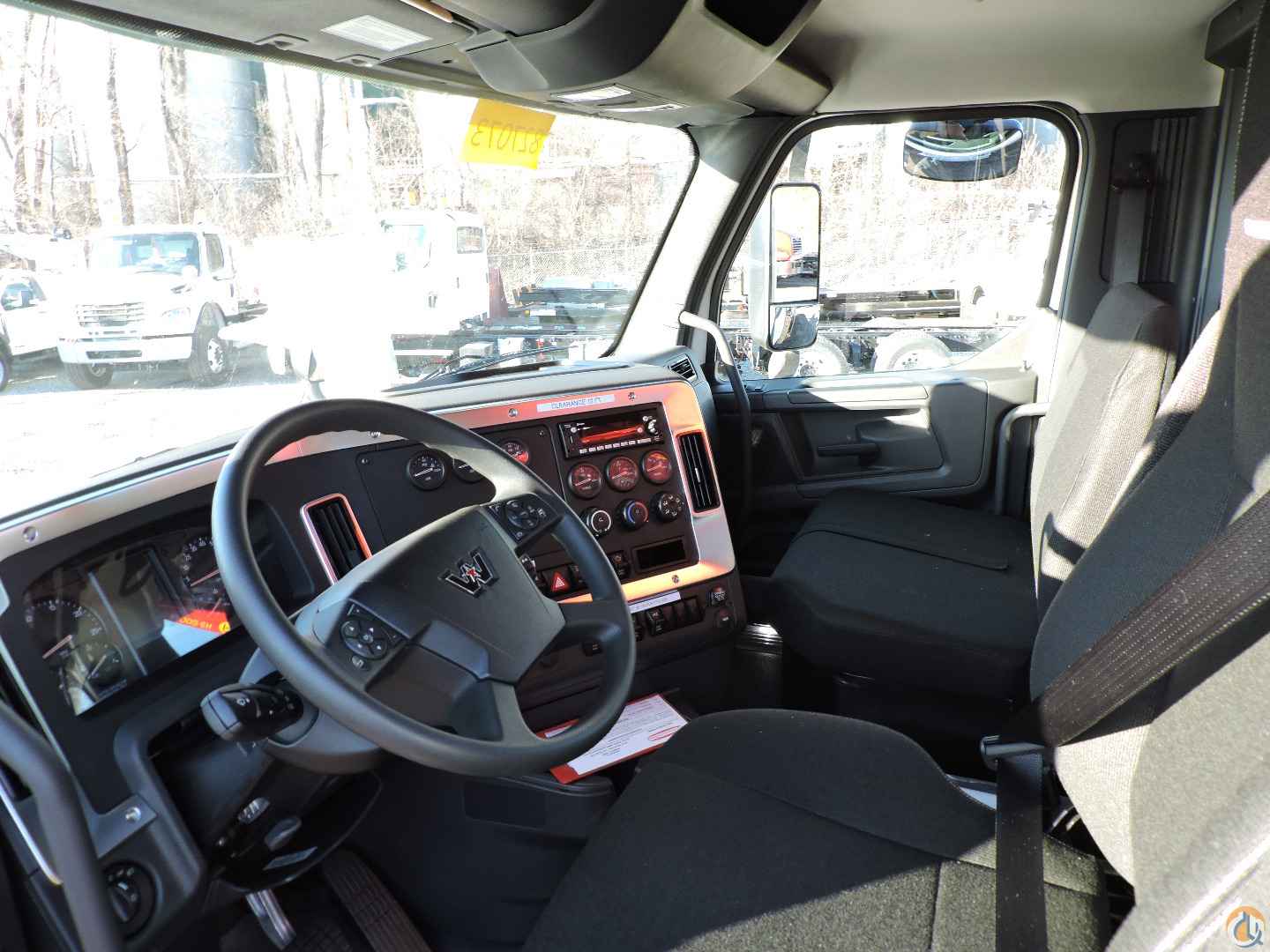

- Driver’s Seat – Air ride, high back, black Mordura

- Passenger Seat – Mid back, battery box, black Mordura

- Adjustable steering column - tilt/telescope

- Power door locks with keyless entry

- Power windows

- Air conditioner

- Bright steel bumper

- Exterior sun visor, stainless steel

- Air horn

- AM/FM/WB radio with Bluetooth, USB, and Aux inputs

- Heated mirrors

- Triangle reflector kit

- 5lb fire extinguisher

- Painted white
