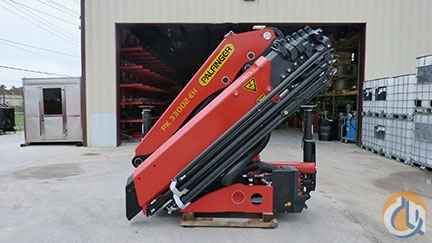

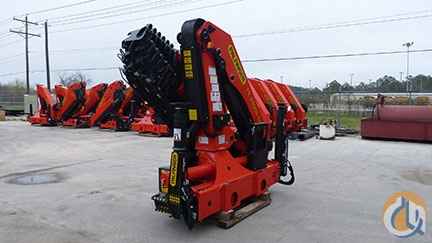

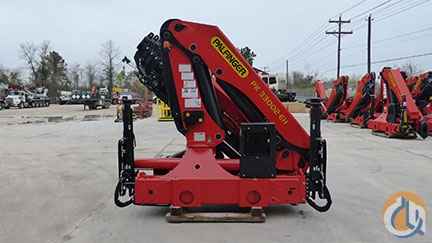

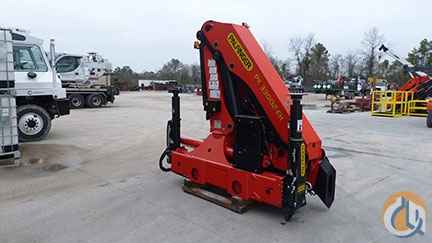

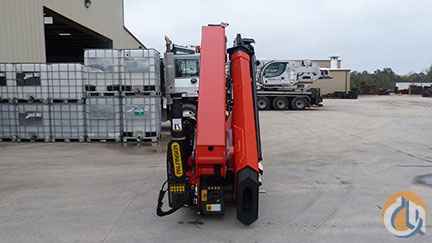

Type: Mounted Knuckle Boom Crane
Make: Palfinger
Model: PK 33002 EH F
Year: 2015
Capacity: 10.00 Tons
Condition: Excellent
Unit #: PO30290
Location: Houston, Texas
STANDARD FEATURES
Maximum lifting moment 31.1 mt (224,940 ft-lbs).
Paltronic 50 Overload Protection System.
Outer boom tilts 15° above horizontal (Power Link Plus).
Rotation angle 400°.
Outriggers hydraulically ext. 21' 8" (R3X)
Fixed hyd. stabilizers (STZS) with LED lighting.
4-function Danfoss control valve.
Radio remote control with Paltronic 50 display on handset, prepared for 6-functions.
Single ground control station with LED lighting.
No spare control valve sections.
Bubble level at both outrigger control stations.
Provision for lifting capacity limitation dependent on rotation angle (SHB01).
Load holding valves on slewing, inner, outer and extension boom cylinder.
Maintenance-free extension system with return oil utilization.
Oil tank 53 US gal.(200 l) with return filter, loose.
11.4 HP oil cooler and high pressure filter installed.
11 metric ton (24,250 lbs) capacity roller bearing load hook.
Hour counter with service intervals (12 V power required).
Mounting hardware kit (UZ 018).
INCLUDED OPTIONS
Active Oscillation Suppression System (AOS)
7-section hydraulic boom
180 degree hydraulic tilting stabilizers
F1-81-R parker voac piston pump
2” hose bib, 45 degrees
