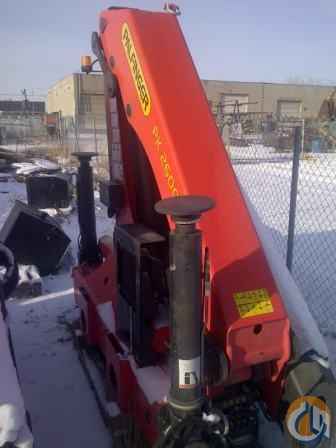

Capacity: 8.00
Condition: Excellent
Unit #: OPO30304
Location: Houston, Texas
Standard Features
| Maximum lifting moment 24.9 mt (179,950 ft-lbs). Paltronic 50 Overload Protection System. Outer boom tilts 15° above horizontal (Power Link Plus). Rotation angle 400°. Outriggers hydraulically extendable to 18' 6" (R2X) with fixed hydraulic stabilizers (STZS). LED marker lights and 10° tilting stabilizer plates. 4-function Danfoss control valve. BMS-2 radio remote control with Paltronic 50 display on handset, prepared for 6-functions. Single ground control station. No spare control valve sections. Bubble level at both outrigger control stations. Load holding valves on slewing, inner, outer and extension cylinder. Maintenance-free extension system with return oil utilization. Oil tank 53 US gal.(200 l) with return filter, loose. 11.4 HP oil cooler and high pressure filter installed. 8 metric ton (17,640 lbs) capacity roller bearing load hook. Hour counter with service intervals (12 V power required). Mounting hardware kit (UZ 018). |
|
Included Options
4-bolt coated mounting hardware kit in lieu of standard
AOS – Active Oscillation Suppression System
Cylinder Guard
6-section hydraulic boom extensions
Halogen working light – knuckle boom
R3X Outriggers
Hydraulic tilting stabilizers
