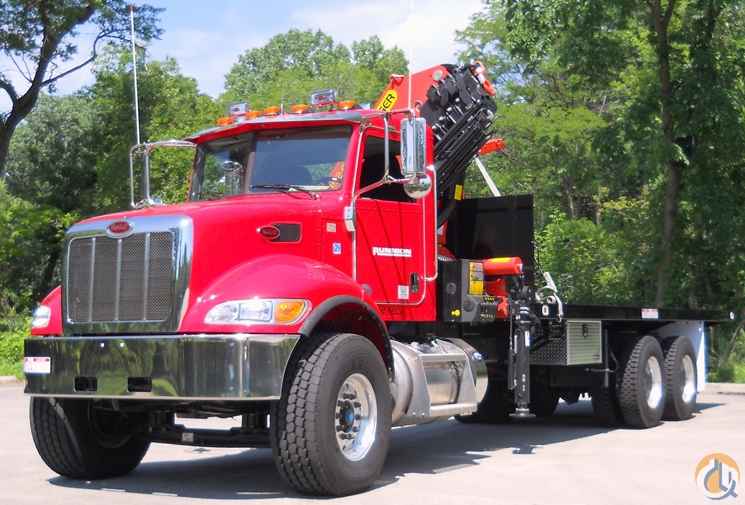

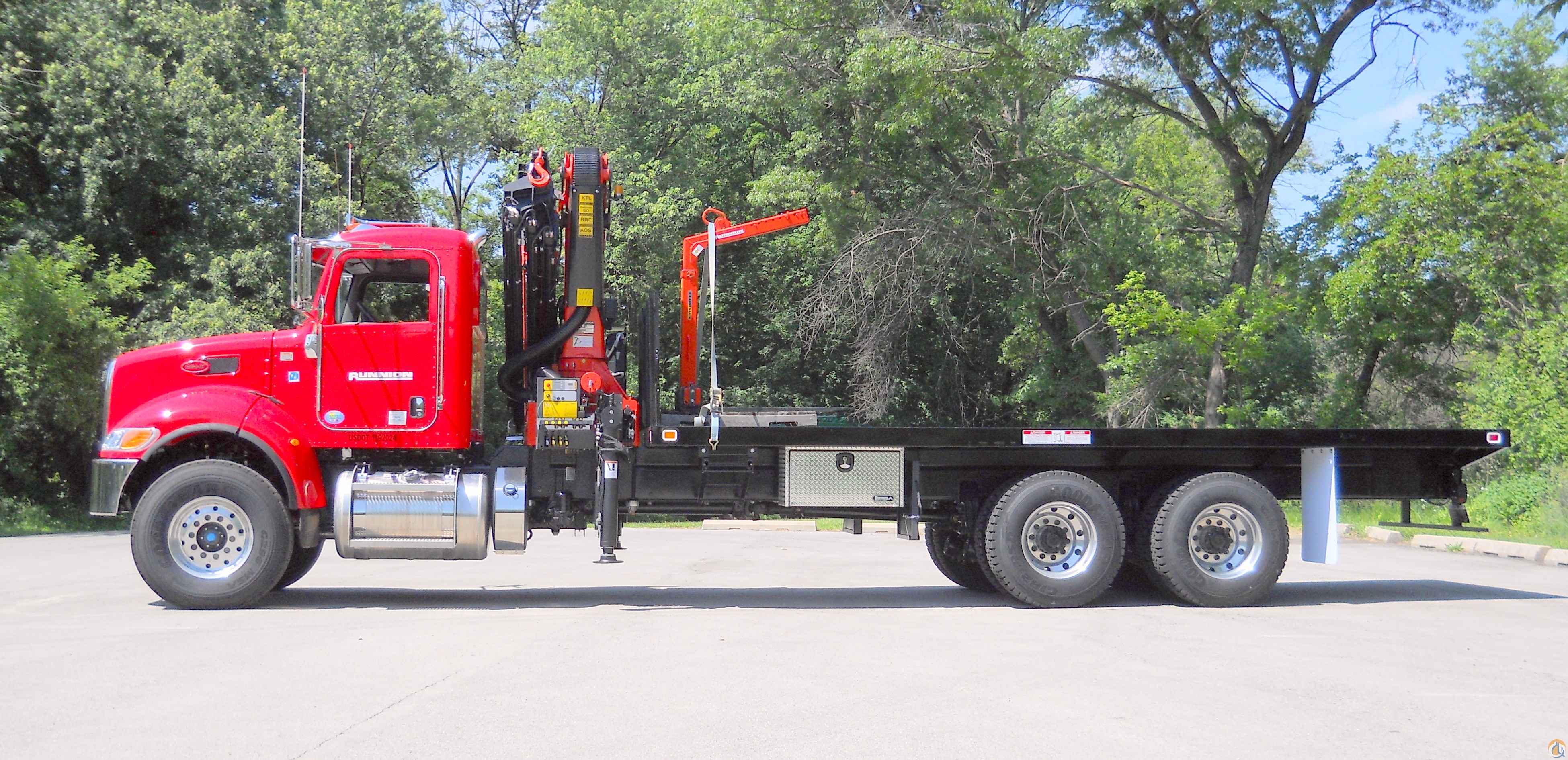

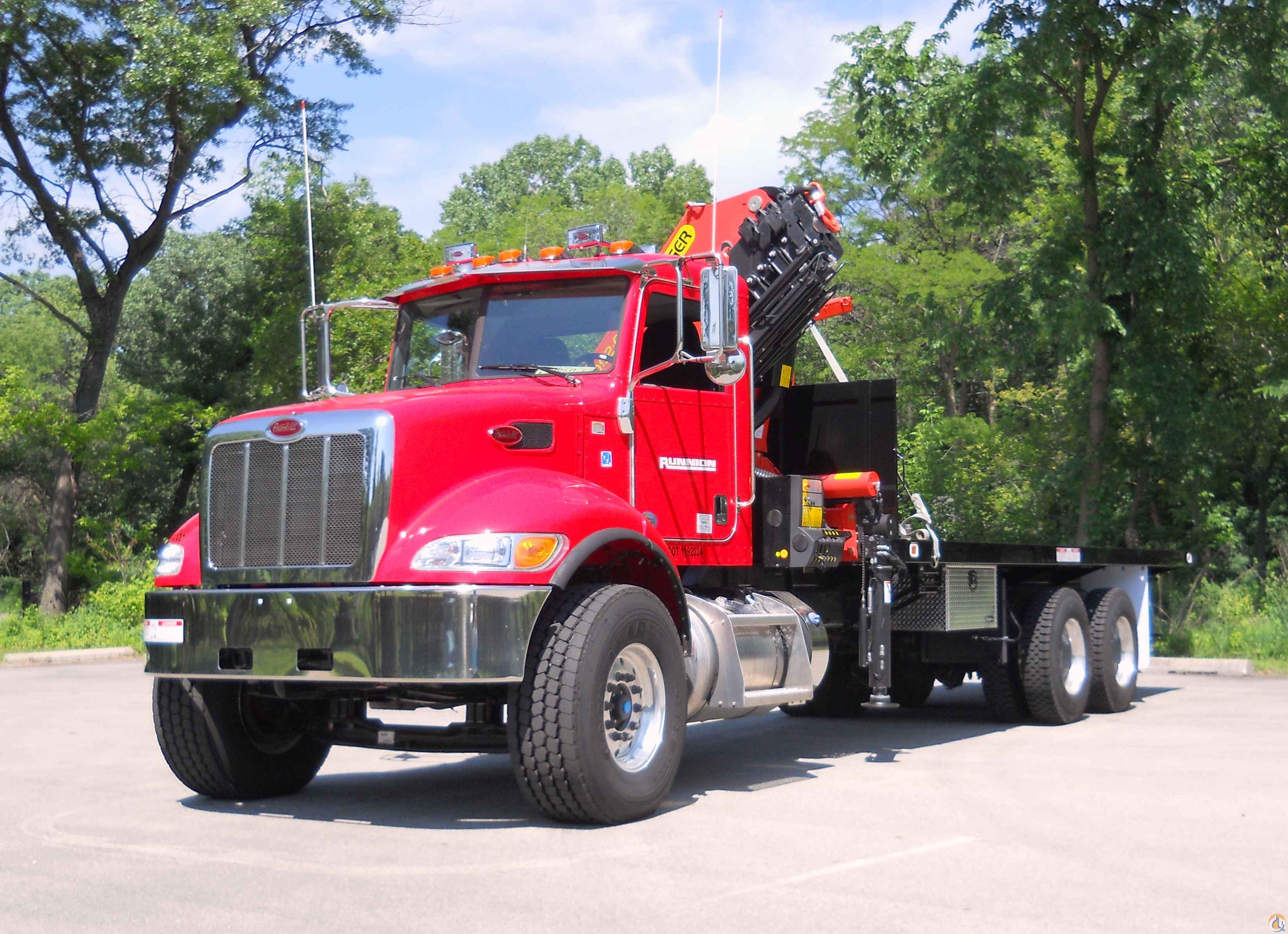

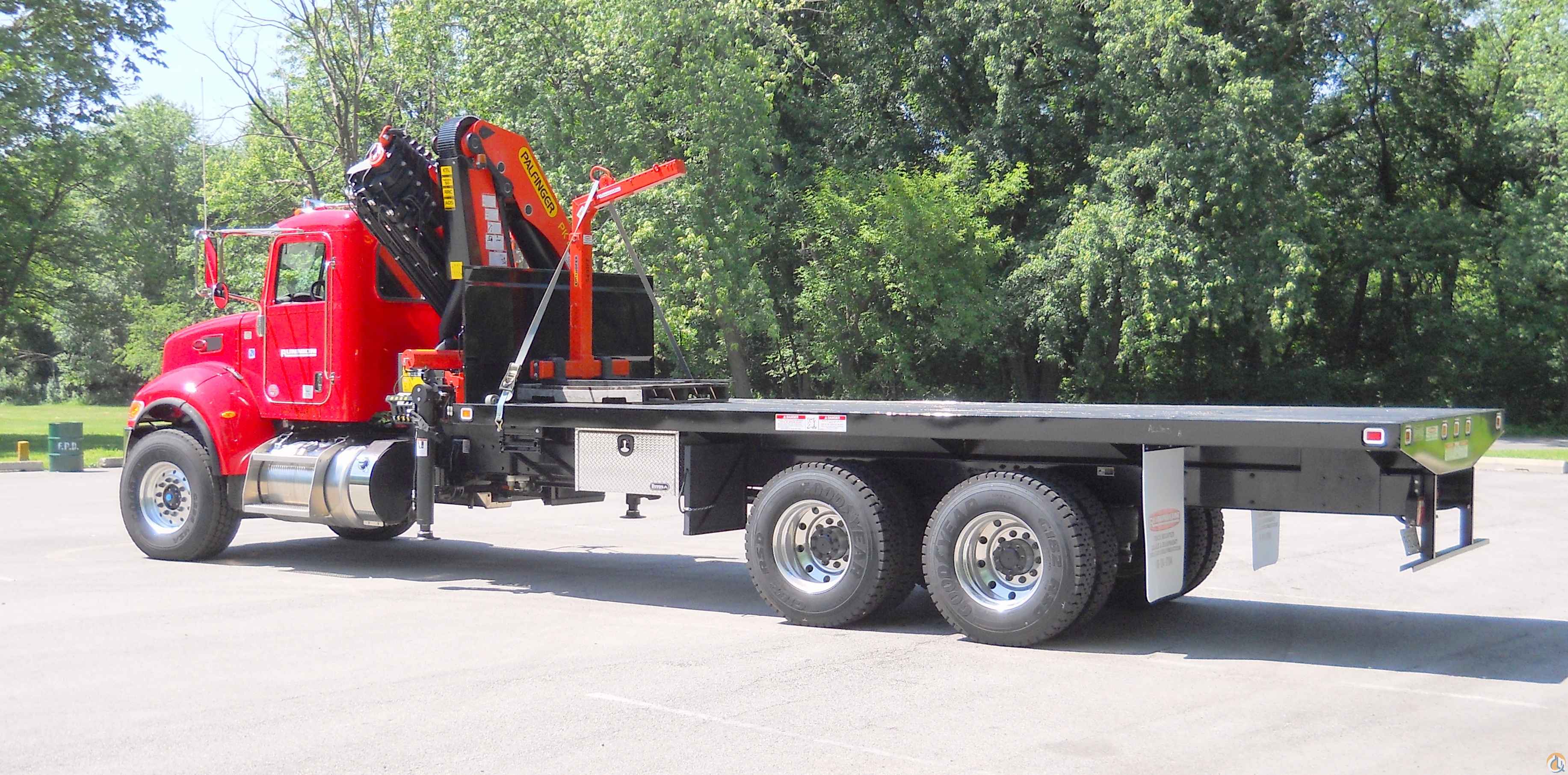

New Palfinger PK26002E, 2013 Peterbilt 348 Mounted Knuckle Boom Crane (Sold)

New Palfinger PK26002E equipped as follows:

- Mounted behind cab

- Maximum lifting moment 24.9 mt (179,950 ft/lbs)

- Paltronic 50 overload protection system

- Outer boom tilts 15 degrees above horizontal (Power Link Plus)

- Rotation angle 400 degrees

- LED marker lights and 10 degrees tilting stabilizer plates

- 4-function Danfoss control valve

- Dual ground control stations

- Bubble level at both outrigger control stations

- Load holding valves on slewing, inner, outer and extension

cylinder

- Maintenance free extension system with return oil utilization

- 53 US gallons oil tank with return filter, loose

- 11.4 hp oil cooler and high pressure filter installed

- 17,640# capacity roller bearing load hook

- Hour counter with service intervals (12 V power required)

- Active oscillation Suppression System – Palfinger AOS equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane

- 6-section hydraulic boom extension from 26’7” to 55’1”. Includes high boom angle monitoring, 64’ total tip height

- Scanreco radio remote control

- Scanreco P2 with Paltronic 50 display on handset, 6 linear control levers on handset

- The following functions are wired to the crane terminal box:

engine start/stop, rpm up/down, 1 free function

- R3X hydraulically extendable outriggers with a spread of 21’8”

and 180 degree hydraulic titlting

2013 Peterbilt 382 equipped as follows:

- Front axle 20,000#

- Rear axle 40,000#-

- Differential lock both axles-

- Peterbilt air trac 40,000#

- Dash mounted dump valve

- ISL9 380/2100 engine, 1300 @ 1400

- 130 amp alternator

- 3 Optima batteries, 2700 cca

- On/off fan clutch

- Engine protection shutdown

- Fuller RTO14908LL 10-speed transmission

- Air dryer with heater

- Trailer hand valve

- Front tires 425/65R22.5

- Rear tires 11R22.5

- Alcoa aluminum wheels

- 26” aluminum 90 gallon fuel tank

- Aluminum stainless steel bumper

- 2 tow pins

- Aluminum cab, 110” BBC

- Rubber fender lips

- Peterbilt ultraride driver seat

- Peterbilt ultraride passenger seat

- Drivers armrest – LH & RH

- Air ride driver

- Fabric driver

- Manifest pouch on rear cab wall

- Adjustable steering column, tilt/telescope

- Extended day cab rear window

- Combo fresh air heater/air conditioner

- Floor mounted cup holder

- Outside stainless steel mirrors 7” x 16” with heat element

- Two convex 8” mirrors

- Power door locks and windows

- Two air horns, rectangular 26”, chromed

- Concert class audio system with CD

- Windshield wipers with intermittent feature

- Unibilt cab air suspension

- 22’ wood bed

- 40” steel bulkhead

- Two 36” aluminum tool boxes

- Folding bed access ladder

- Rear under ride protection

- Two 24” x 24” composite outrigger pads with under body storage

bracket

- Air shift PTO
