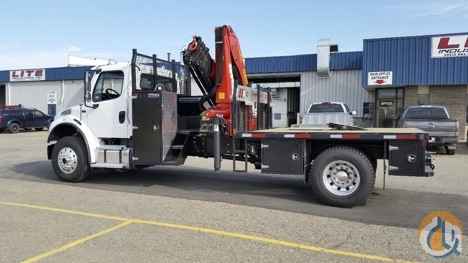

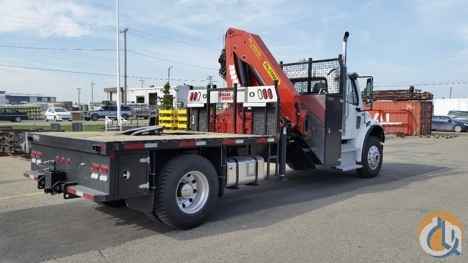

Palfinger PK23500D Articulating Loader Crane
23 tonne / meter maximum rated capacity crane
Five (5) hydraulic extensions to 47’7” hexagonal boom design with oil return utilization
Load Chart
12,676lbs @ 10ft 10,141lbs @ 14ft 7,187lbs @ 20ft 5,225lbs @ 26ft
3,968lbs @ 33ft 3,197lbs @ 40ft 2,668lbs @ 47ft

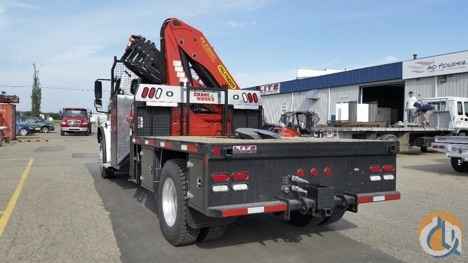

Lite Industries Oilfield Service Deck
Full length 5x3x3/8HSS steel tubing sub base with 3/8” plating for reinforcement
Front tool cabinets with drawers, hanging storage and shelving, center box access and storage
Headache rack with access steps, chain hangers / wells and DOT lighting set into an aluminum bezel, with two (2) LED high intensity working lights
Two (2) 24” square composite outrigger pads with holders
10’6”x 8’6” working deck area, steel perimeter with tiedown rub rails either side of deck and wood inlay decking
Holland intermediate flip over 5th wheel hitch assembly with trailer plug in(s)
Finished rear skirt with DOT lighting – LED’s, access step, 2 – vice receivers, 2” tow receiver and pintle hitch assembly, and two underside tool boxes
Underside toolbox with 1⁄2 section rollered drawers, weather sealed / lockable
Chassis 2016 Freightliner M2106
Cummins ISL 330 Hp @ 2000 RPM, 2200 gov RPM, 1000 lb/ft @ 1400 RPM
Allison 3500 RDS automatic transmission with PTO provision
14600 lbs fawr Taperleaf front suspension
23000 lbs rawr Airliner suspension
Ref no: PO28891
