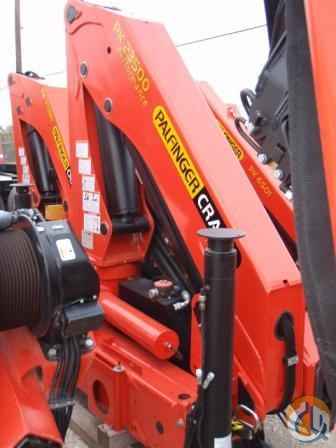

Palfinger PK 23500 D Articulating Crane Mounted Knuckle Boom Crane (Sold)

Maximum lifting moment 23.0 mt (166,630 ft-lbs).

Paltronic 50 Overload Protection System.

400° of rotation.

Controls on each side of the crane.

Includes 2 additional valve sections.

Note that with radio remote control no spare sections are included, no opposite side controls included. Load holding valves on inner, outer and extension boom cylinders.

Extension system with return oil utilization.

Hydraulic outriggers to 18' 6"(R2X) with separate stabilizer control valve.

Non-return valves fitted on stabilizer cylinders (STZS3).

Bubble level at both outrigger control stations.

Hour meter with indication of service intervals (12 volt power required).

High pressure filter, factory installed. 23 US gal. (90 l) oil tank with return filter integral in crane base.

8 metric ton (17,640 lbs) capacity roller bearing load hook.

Paltronic 50 overload protection system. Uses L.E.D.'s to indicate crane loading from 60% capacity in 10% steps. Additional acoustic warning is used for 90% and 100% capacity. Blocks individual functions that will increase load-moment 100% capacity. L.E.D. read-out indicates which crane function is overloaded (de-rated area if equipped with SHB, boom system, fly-jib, winch). Provides 2 digit L.E.D. display for diagnostic of crane functions.
