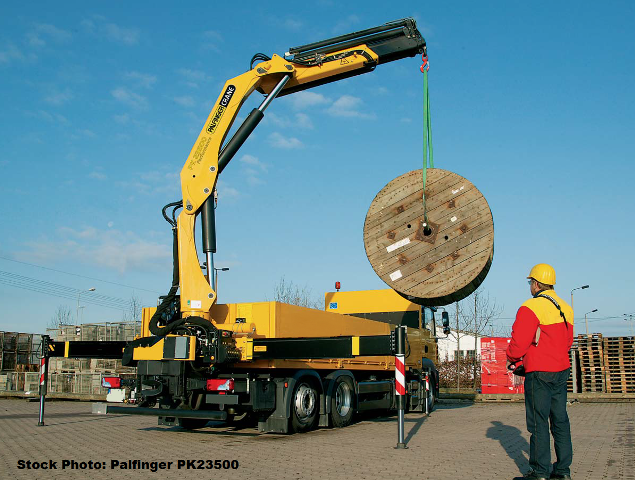

Palfinger PK 23500 Performance D Mounted Knuckle Boom Crane (Sold)

• Maximum lifting moment 23.0 mt (166,630 ft-lbs)
• Paltronic 50 Overload Protection System
• Boom length 26' 11" via 2- hydraulic extensions (A)
• 400 degrees of rotation
• Controls on each side of the crane
• Includes 2 additional valve sections
• Note that with radio remote control no spare sections are included, no opposite side controls included
• Load holding valves on inner, outer and extension boom cylinders
• Extension system with return oil utilization
• Hydraulic outriggers to 18' 6"(R2X) with separate stabilizer control valve
• Non-return valves fitted on stabilizer cylinders (STZS3)
• Bubble level at both outrigger control stations
• Hour meter with indication of service intervals (12 volt power required)
• High pressure filter, factory installed
• 23 US gal. (90 l) oil tank with return filter integral in crane base
• 8 metric ton (17,640 lbs) capacity roller bearing load hook

SOLD
