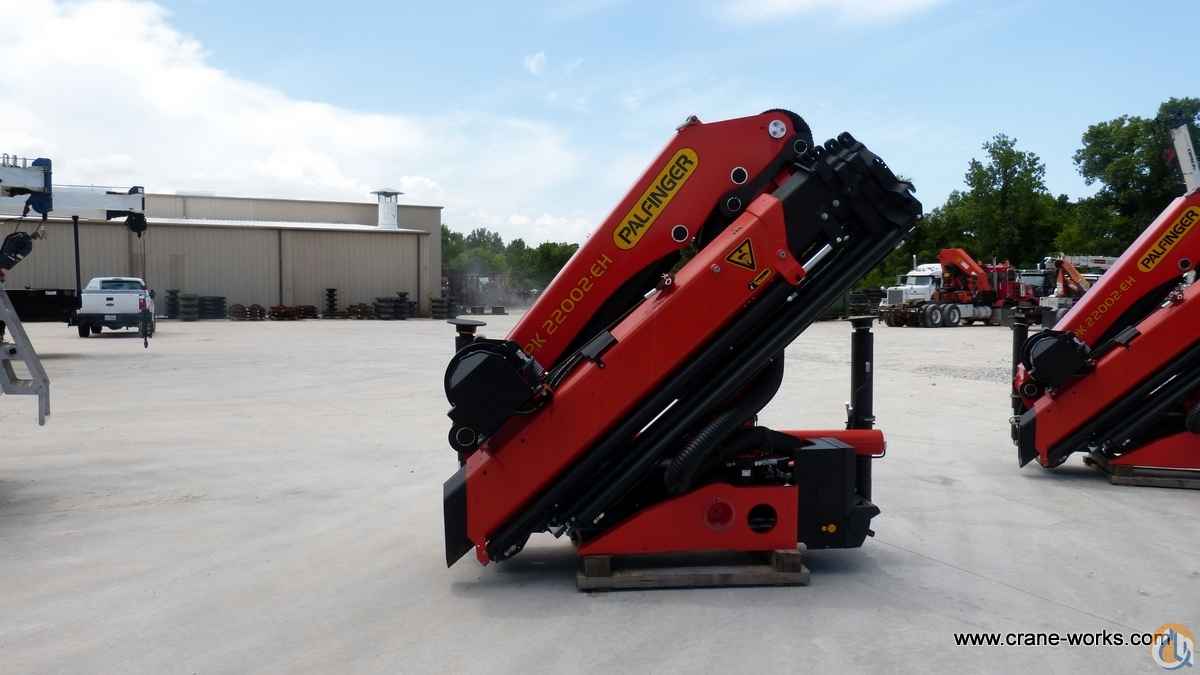

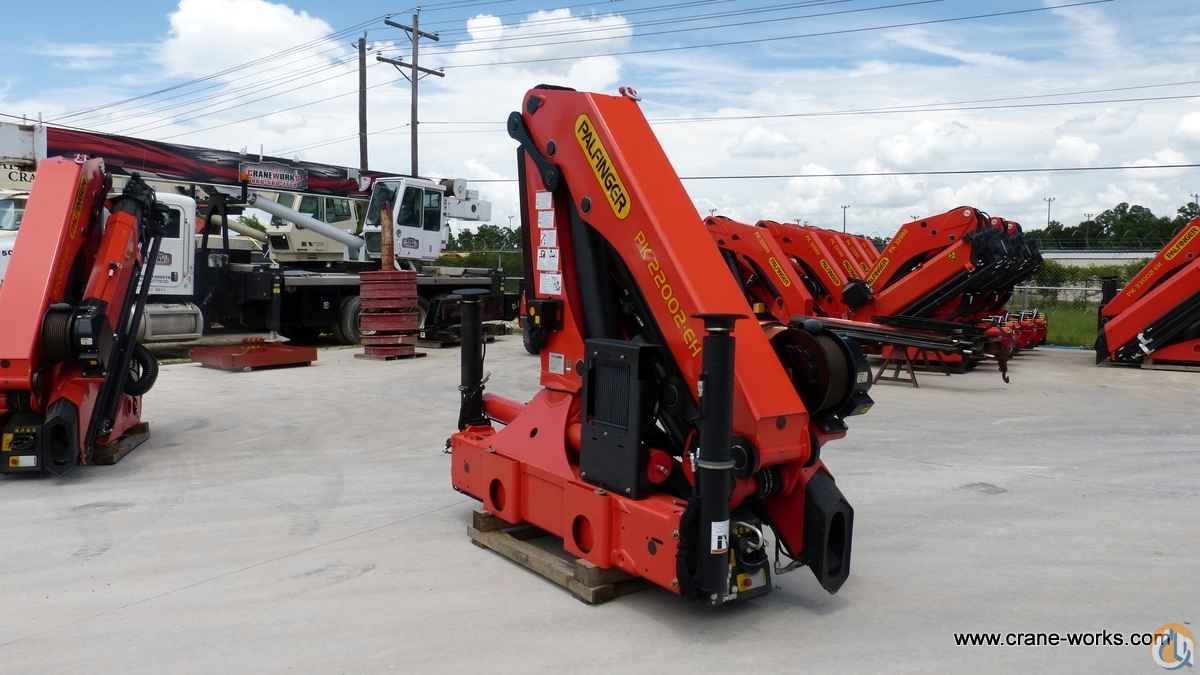

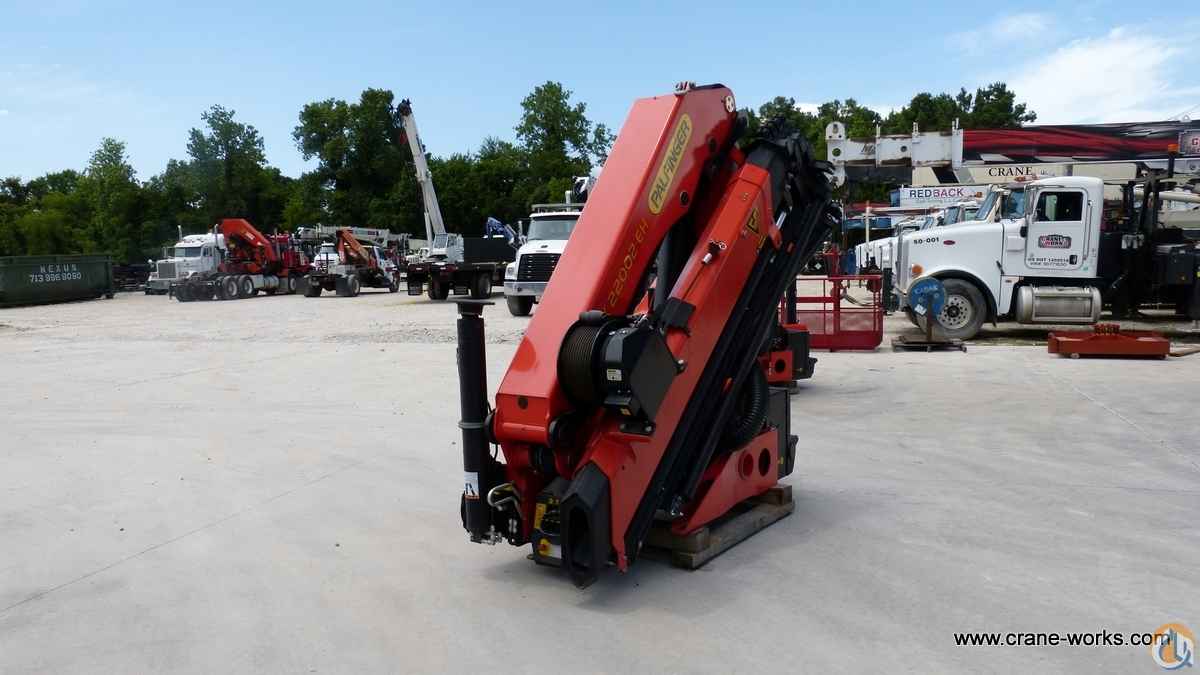

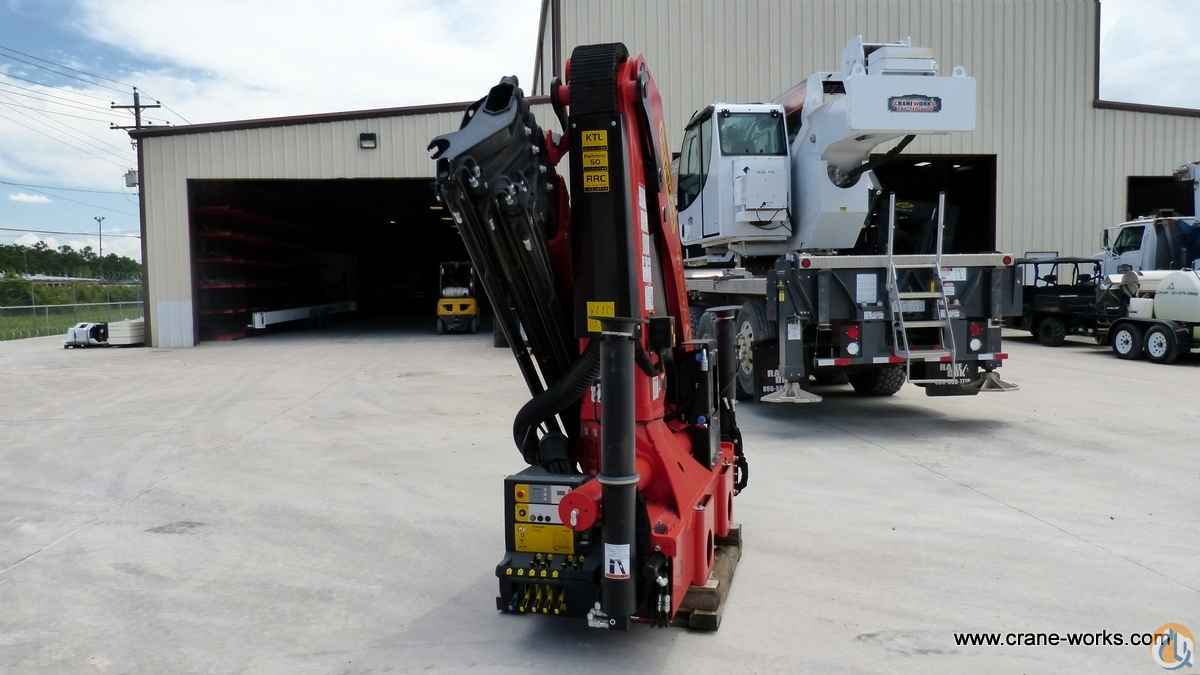

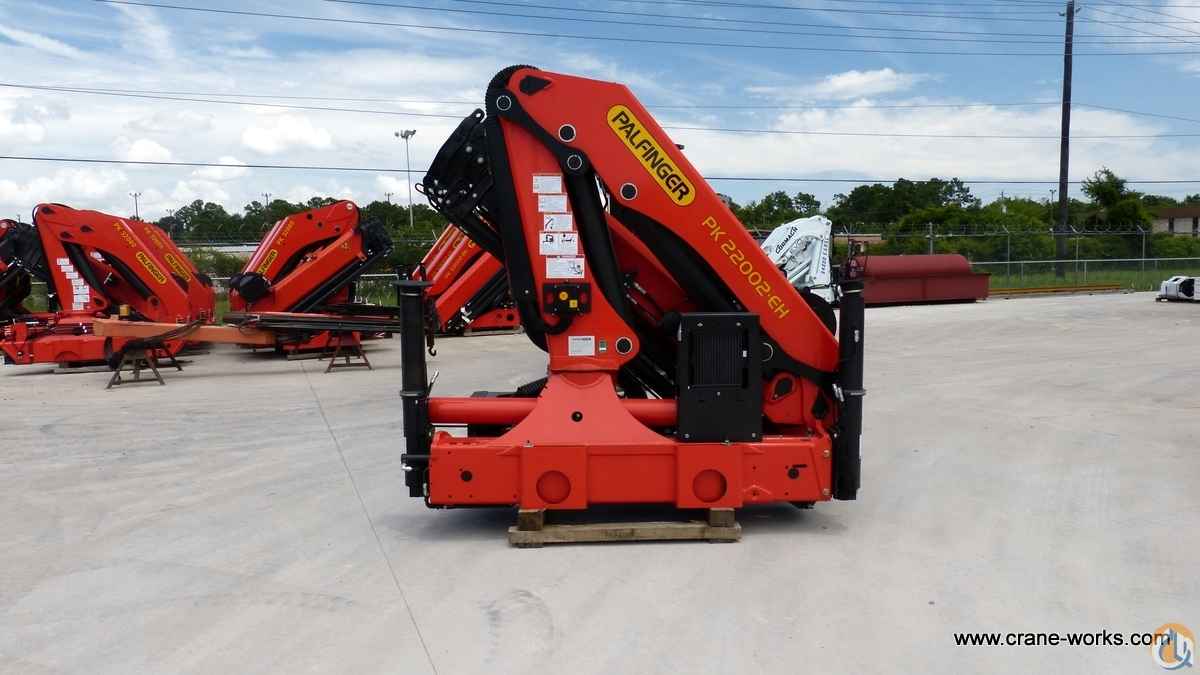

The Palfinger PK 22002-EH High Performance has compact dimensions and low dead weight that allow an optimized mounting concept.
• Maximum utilisation of the working range due to HPSC
• Increased operating times thanks to low-maintenance extension system
Specifications
Max. lifting moment: 137,424 ft-lbs
Max. lifting capacity: 13,440 lbs
Max. hydraulic outreach: 48' 11"
Max. manual outreach: 62' 8"
Max. outreach (with fly jib): 82' 8"
Slewing torque with 1 gear: 16,640 ft_lbs
Stabilizer spread (std): 16' 5"
Fitting space required (std): 2' 12"
Max. operating pressure: 5,075 psi
Dead weight (std.): 5,300.0 lbs
Width folded: 8' 3"
Height: 7' 8"
Length: 3' 4"
Pump capacity: 17.2 to 23.8 US gal./min

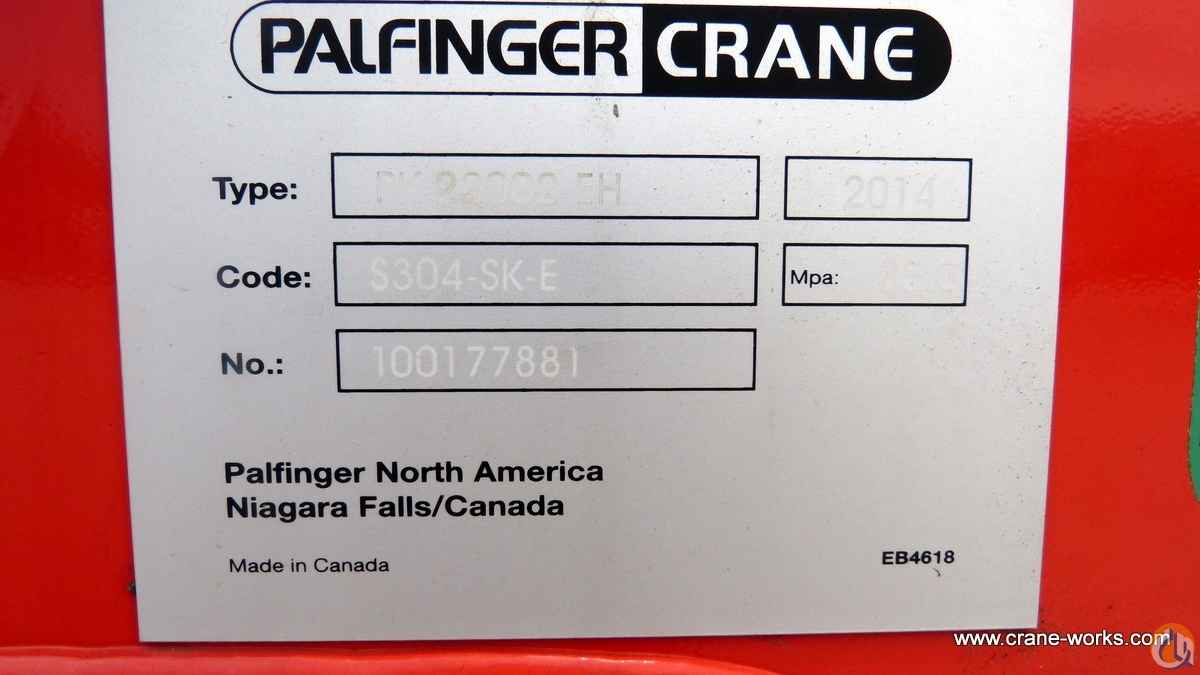

SAP Type: S304EH
Weight: 6,213 lbs
