Sold New 2014 Palfinger PK 22002-EH D knuckle boom (unmounted) Crane in San Marcos California

The Palfinger PK 22002-EH High Performance has compact dimensions and low dead weight that allow an optimized mounting concept.

• Maximum utilisation of the working range due to HPSC

• Increased operating times thanks to low-maintenance extension system

Specifications

Max. lifting moment: 137,424 ft-lbs

Max. lifting capacity: 13,440 lbs

Max. hydraulic outreach: 48' 11"

Max. manual outreach: 62' 8"

Max. outreach (with fly jib): 82' 8"

Slewing torque with 1 gear: 16,640 ft_lbs

Stabilizer spread (std): 16' 5"

Fitting space required (std): 2' 12"

Max. operating pressure: 5,075 psi

Dead weight (std.): 5,300.0 lbs

Width folded: 8' 3"

Height: 7' 8"

Length: 3' 4"

Pump capacity: 17.2 to 23.8 US gal./min

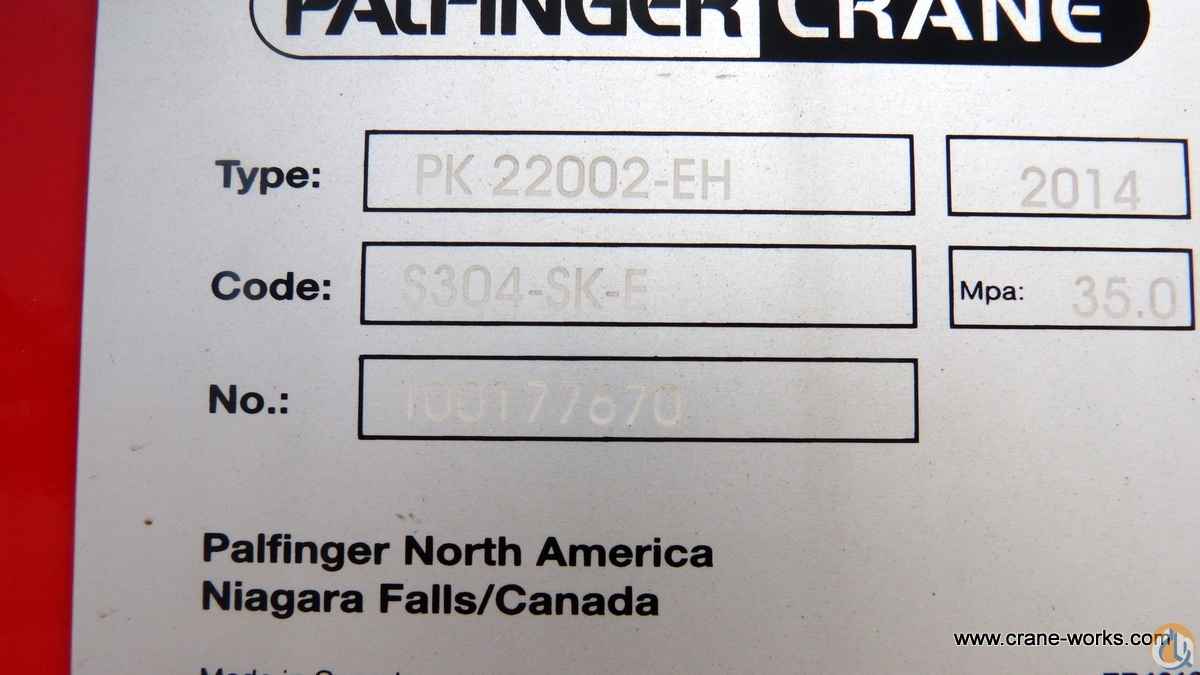

SAP Type: S304EH

Weight: 6,213 lbs
