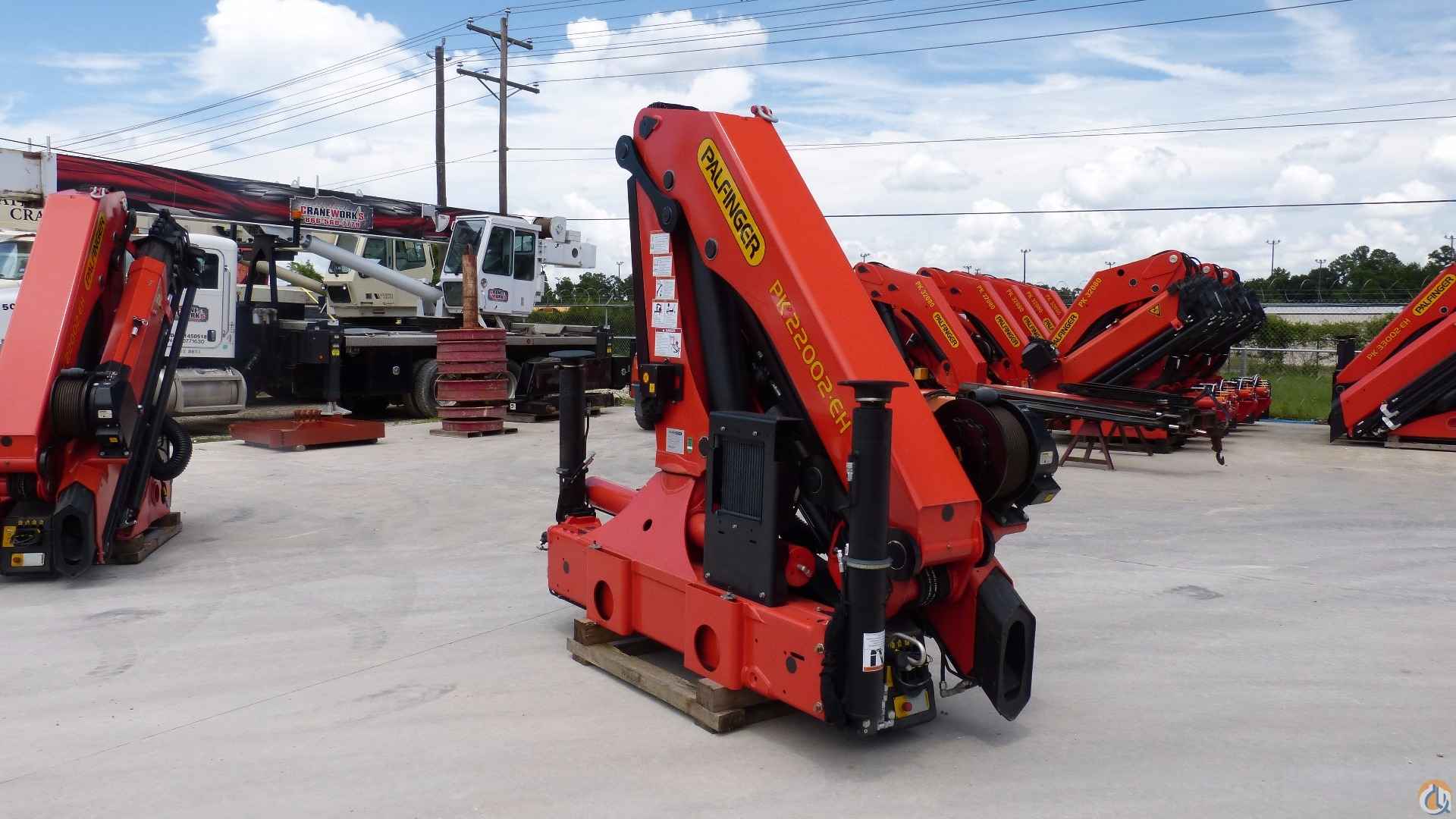

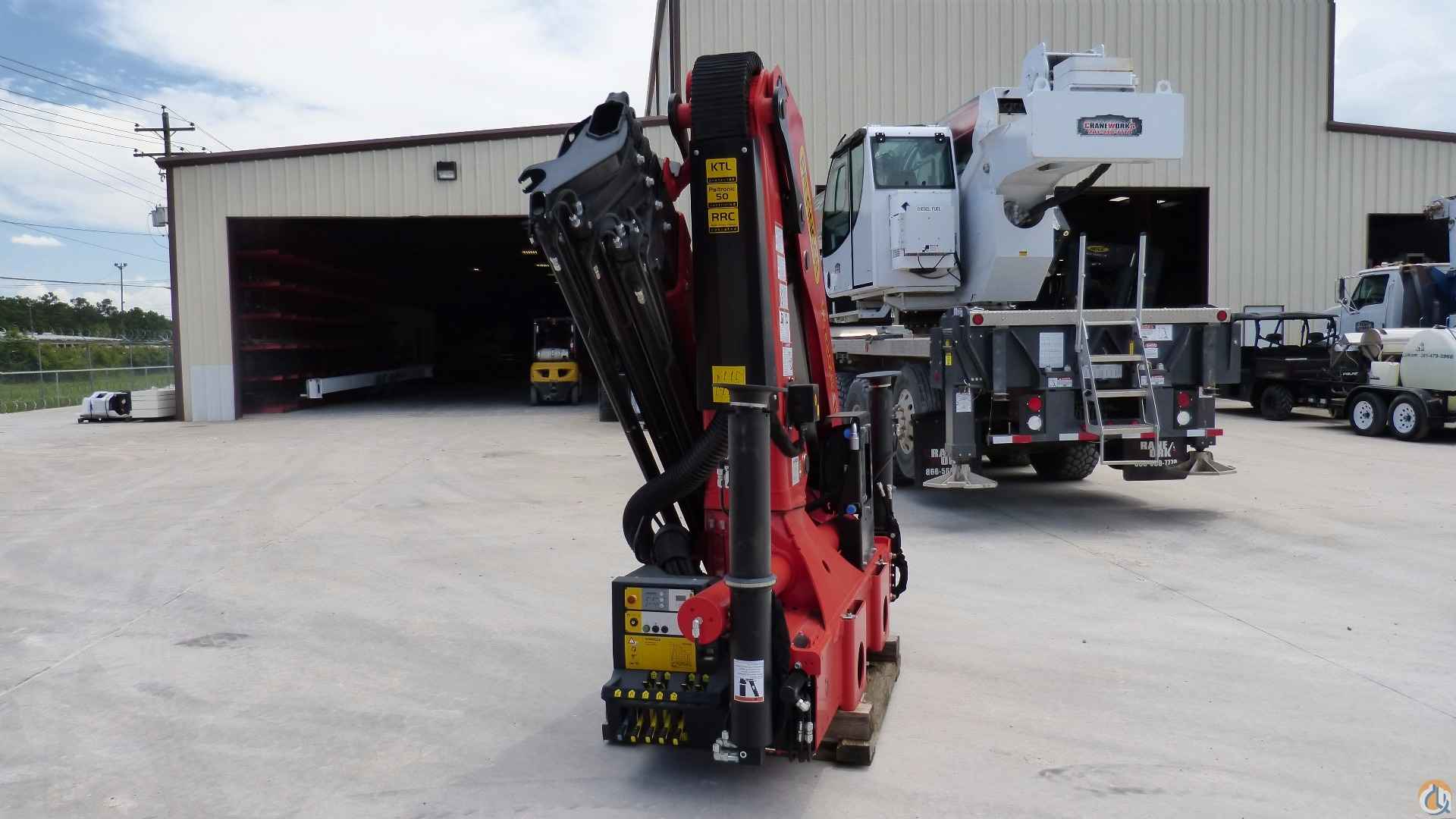

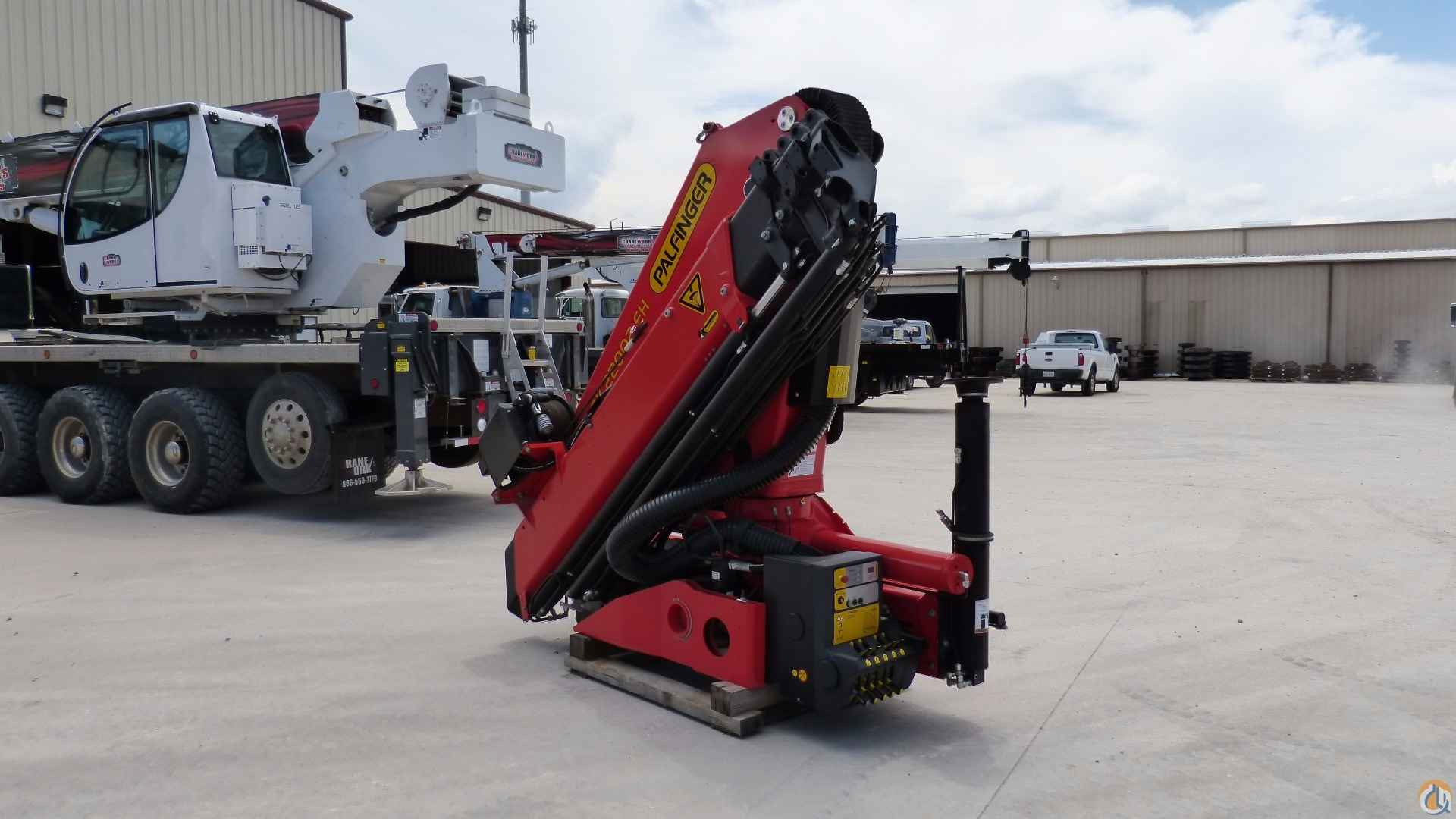

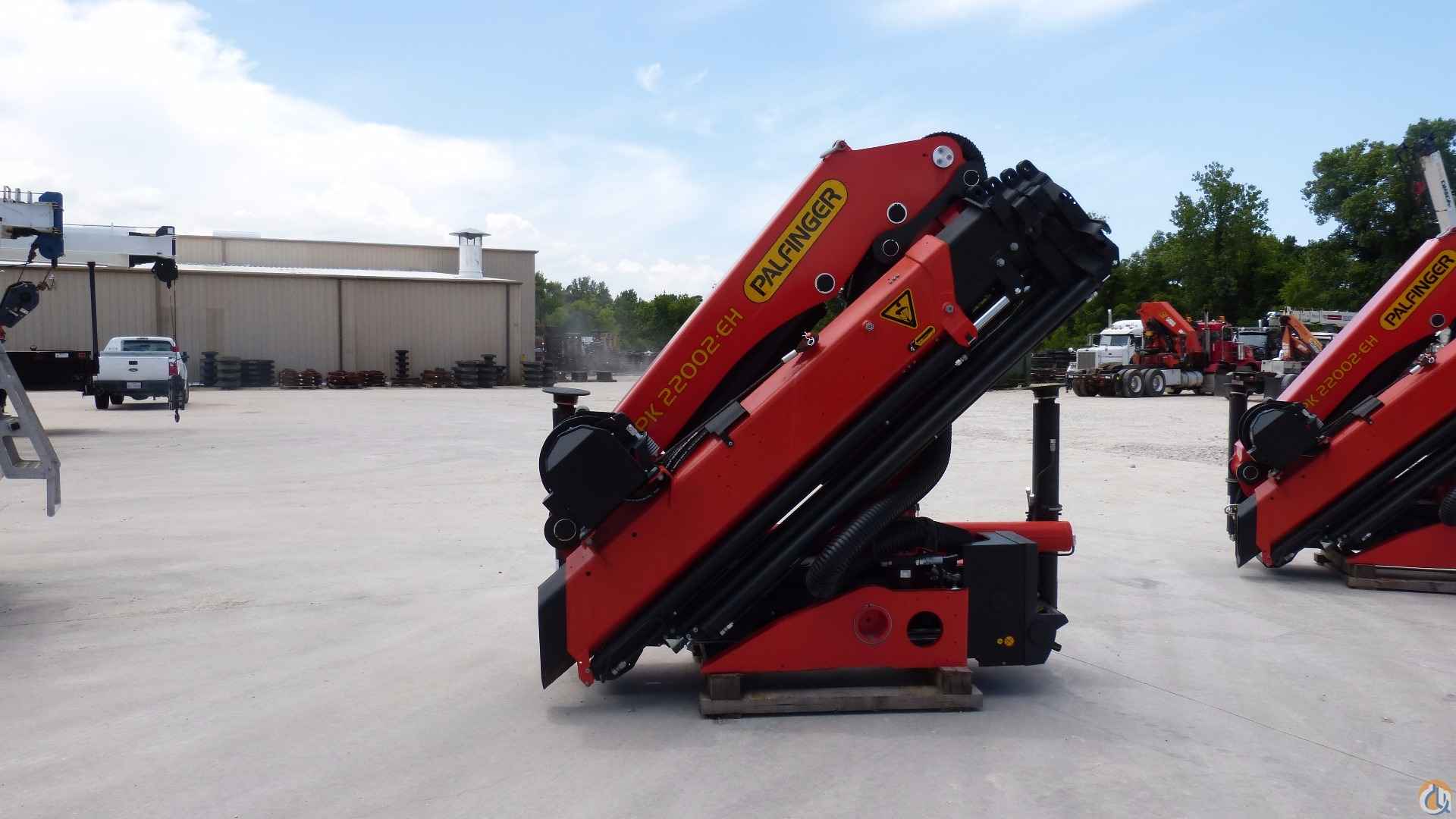

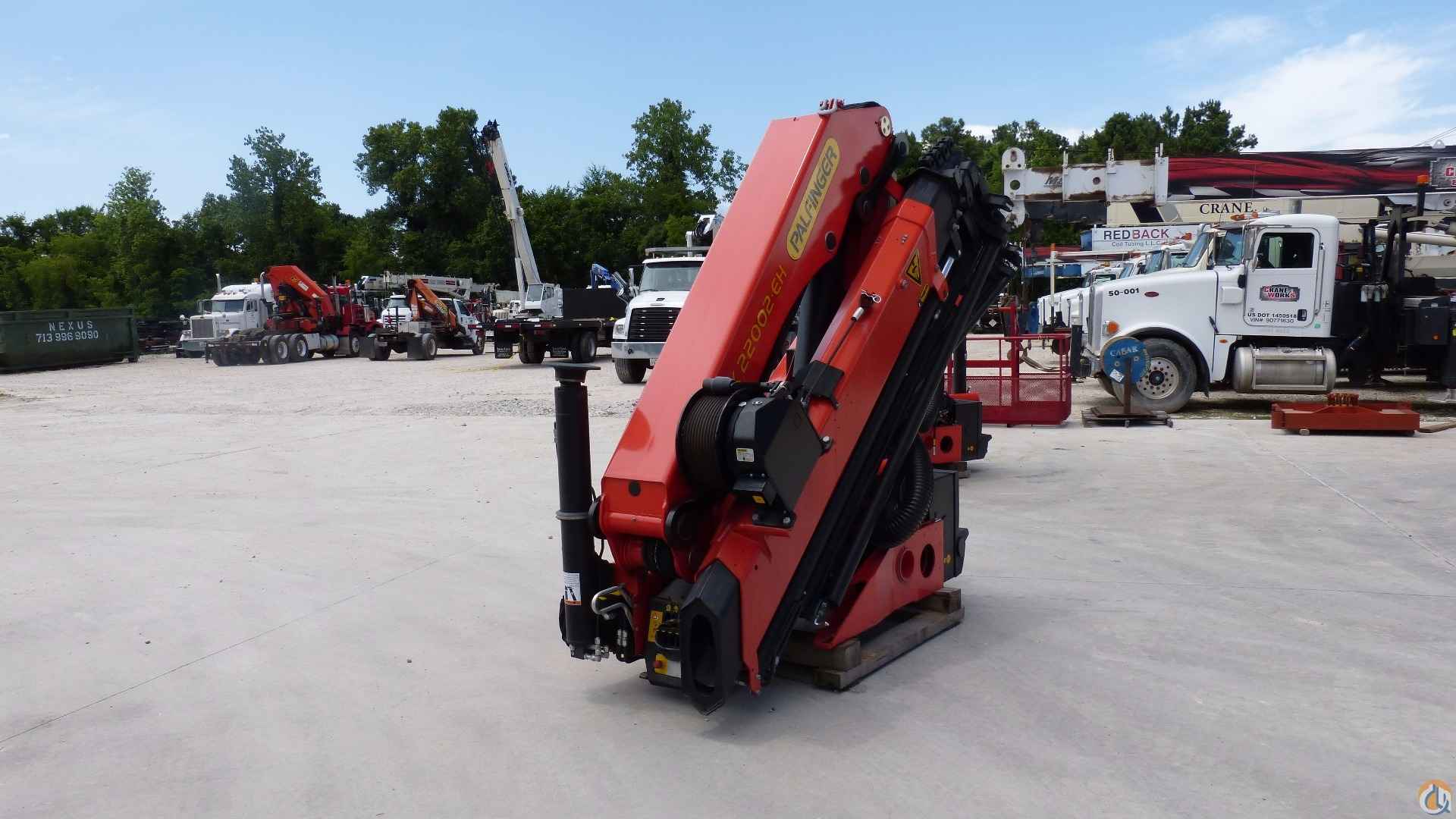

Type: Mounted Knuckle Boom Crane
Make: Palfinger
Model: PK 22002 EH High Performance E
Year: 2015
Condition: Excellent
Unit #: PO30118-R1
Location: Houston, Texas
STANDARD FEATURES
Maximum lifting moment 20.9 mt (151,190 ft-lbs)
Paltronic 50 Overload Protection System
Boom length 26' 11" via 2-hydraulic extensions (A)
Outer boom tilts 15° above horizontal (Power Link Plus)
Rotation angle 400°
Outriggers hydraulically ext. 18' 6" (R2X), fixed hyd. stabilizers (STZS)
4-function Danfoss control valve
BMS-2 radio remote control with Paltronic 50 display on handset, prepared for 6- functions
Single ground control station
No spare control valve sections
Bubble level at both outrigger control stations
Load holding valves on slewing, inner, outer and extension cylinder
Maintenance-free extension system with return oil utilization
Oil tank 53 US gal.(200 l) with return filter, loose
11.4 HP oil cooler and high pressure filter installed
8 metric ton (17,640 lbs) capacity roller bearing load hook
Hour counter with service intervals (12 V power required)
