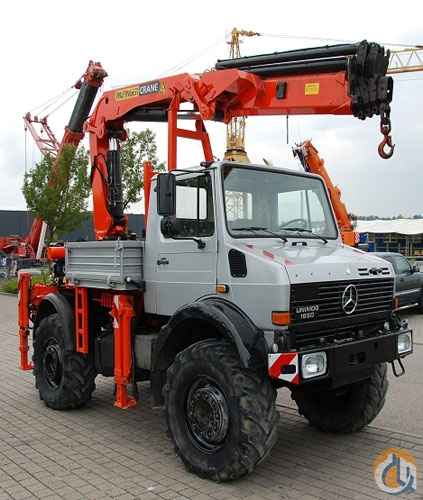

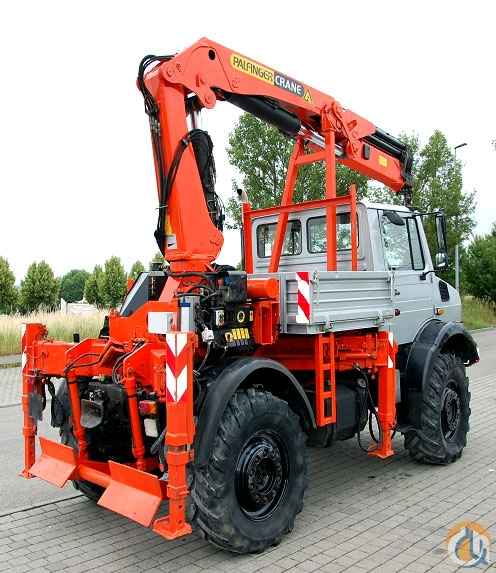

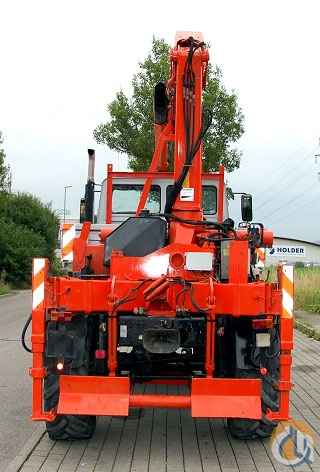

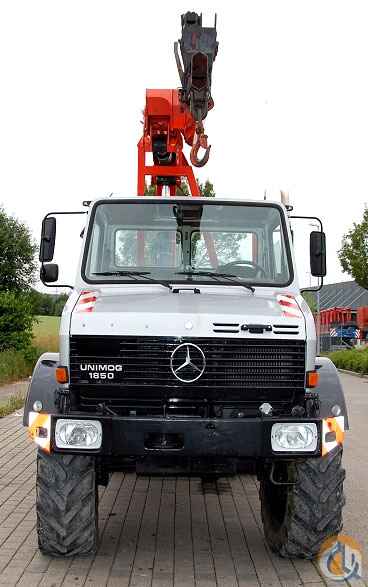

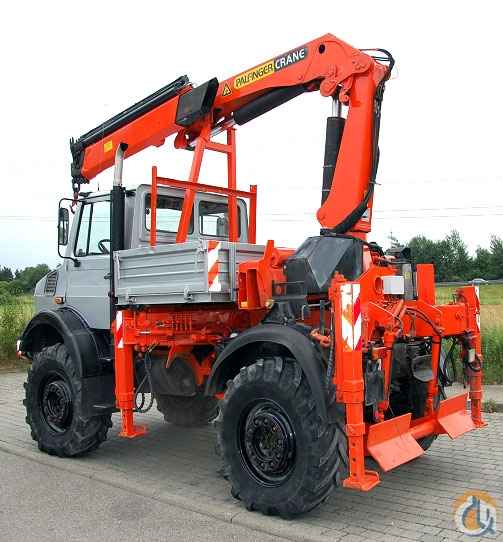

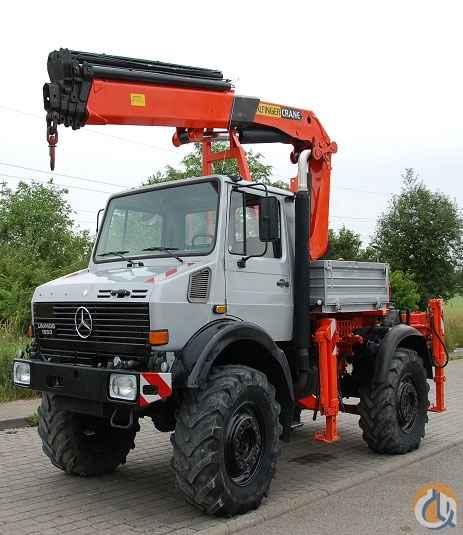

1993 Palfinger PK 20000 B Mounted Knuckle Boom Crane (Sold)

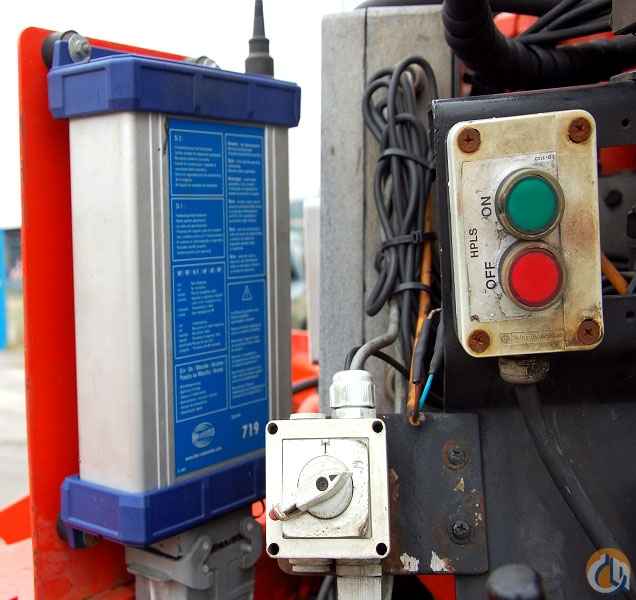

<p><span style="Arial&quot;,&quot;sans-serif&quot;;Times New Roman&quot;;" lang="EN-US">Carrier:&nbsp;</span><span style="Arial&quot;,&quot;sans-serif&quot;;Times New Roman&quot;;" lang="EN-US">MERCEDES-BENZ&nbsp;U 1850 (U 437/31),&nbsp;VIN WDB 437 114 1W 175 870,&nbsp;YOM: 1993, first registration March 1993, mileage 130.000 kilometers, engine hours&nbsp;10.500 h, engine output 132 kW (179 HP), transmission Mercedes-Benz / 16 gears (i2x8 incl. work group), tires 455/70 R24 XM 154G Michelin, dimensions: length 5.600 mm&nbsp; &ndash;&nbsp; width 2.500 m&nbsp; &ndash;&nbsp; height 4.000 mm, weights: laden weight 12.880 kg&nbsp; -&nbsp; empty load 10.880 kg, trailing load: 29.400 kg max., hydraulics x2.</span><span style="Arial&quot;,&quot;sans-serif&quot;;Times New Roman&quot;;" lang="EN-US">&nbsp;</span></p> <p><strong> </strong></p> <p class="MsoNormal" style="margin-bottom: 18.0pt; line-height: 15.0pt;"><span style="Arial&quot;,&quot;sans-serif&quot;;Times New Roman&quot;;" lang="EN-US">Superstructure:&nbsp;</span><span style="Arial&quot;,&quot;sans-serif&quot;;Times New Roman&quot;;" lang="EN-US">Knuckleboom crane PALFINGER PK 20000 B with remote control HBC (new in 2009)&nbsp;and battery charger. (crane can be completely folded over the rear axle but due to the axle loads it is necessary to fit the boom on the rack behind the cabin (while you drive on public roads), cylinders are fitted with load retaining holding valve which prevents boom &amp; extension cylinders from dropping,&nbsp;YOM 1993,&nbsp;S/N 9350.724, no. of extensions: 3 pc. hydraulic (radius 10,1 m) plus&nbsp;4 pc. manual (radius 19,1 m), lift. capacities: 4,1 m/4,37 t&nbsp; -&nbsp; 6,0 m/2,82 t&nbsp; -&nbsp; 8,0 m/1,04 t&nbsp; -&nbsp; 10,1 m/1,56 t&nbsp; -&nbsp; 12,2 m/1,07 t&nbsp; -&nbsp; 14,3 m/0,9 t&nbsp; -&nbsp; 16,7 m/0,85 t - &nbsp;19,1 m/0,69 t, no. of outriggers: 4 / hydraulically adjustable each with manual extensions,&nbsp;WERNER cable winch with sprag (hydraulically adjustable),&nbsp;YOM 1993,&nbsp;S/N 52.7.76, type S70.2HW oo 14,3,&nbsp;tension load 7.000 kg, no. of gears 2,&nbsp;loading platform (steel) with tailboards (length 1.300 mm inside).</span></p> <p><strong> </strong></p> <p class="MsoNormal"><span style="Arial&quot;,&quot;sans-serif&quot;;" lang="EN-US">Very good technical and optical condition. The whole UNIMOG has been completely overhauled and well maintained in 2009 -carrier and cabin are rost free (have been sandblasted and painted).</span></p> <p><strong>Price EUR 50.000,- free delivered any North sea port.</strong></p>
