STANDARD FEATURES

Maximum lifting moment 18.3 mt (132,710 ft-lbs).

Paltronic 50 Overload Protection System.

Boom length 26' 11" via 2-hydraulic extensions (A).

400 degrees of rotation with controls on 2 sides of the crane.

Includes 2 additional valve sections.

Load holding valves on inner, outer and extension boom cylinders.

Extension system with return oil utilization.

Manual outrigger beams to 15' 9" (R1) with individual stabilizer control valve.

Non-return valves fitted on stabilizer cylinders (STZS3).

Bubble level at both outrigger control stations.

Hour meter with indication of service intervals (12 V power required).

High pressure filter, installed. 23 US gal. (90 l) oil tank with return filter integral in crane base.

8 metric ton (17,640 lbs) capacity roller bearing load hook.

INCLUDED ITEMS

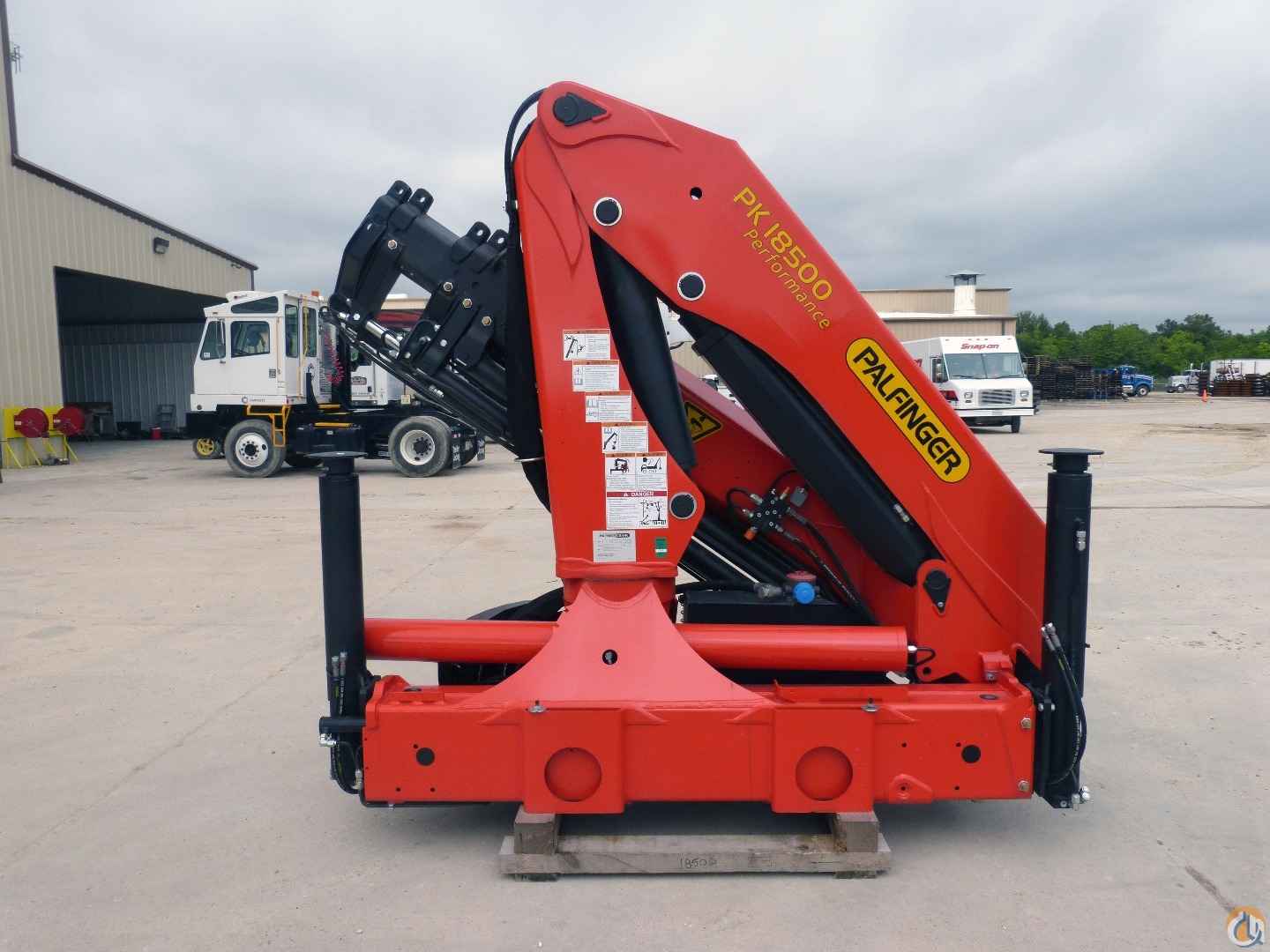

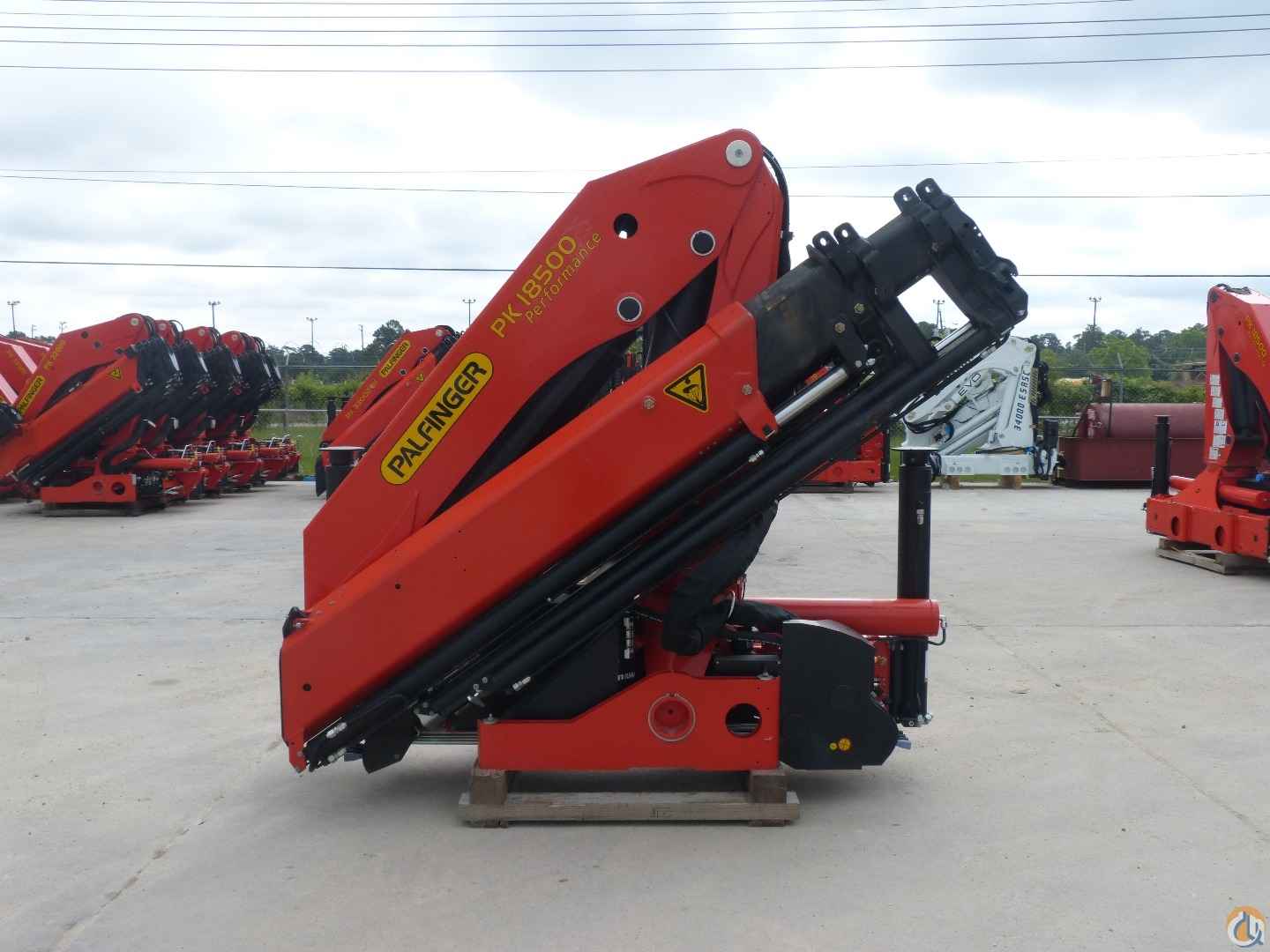

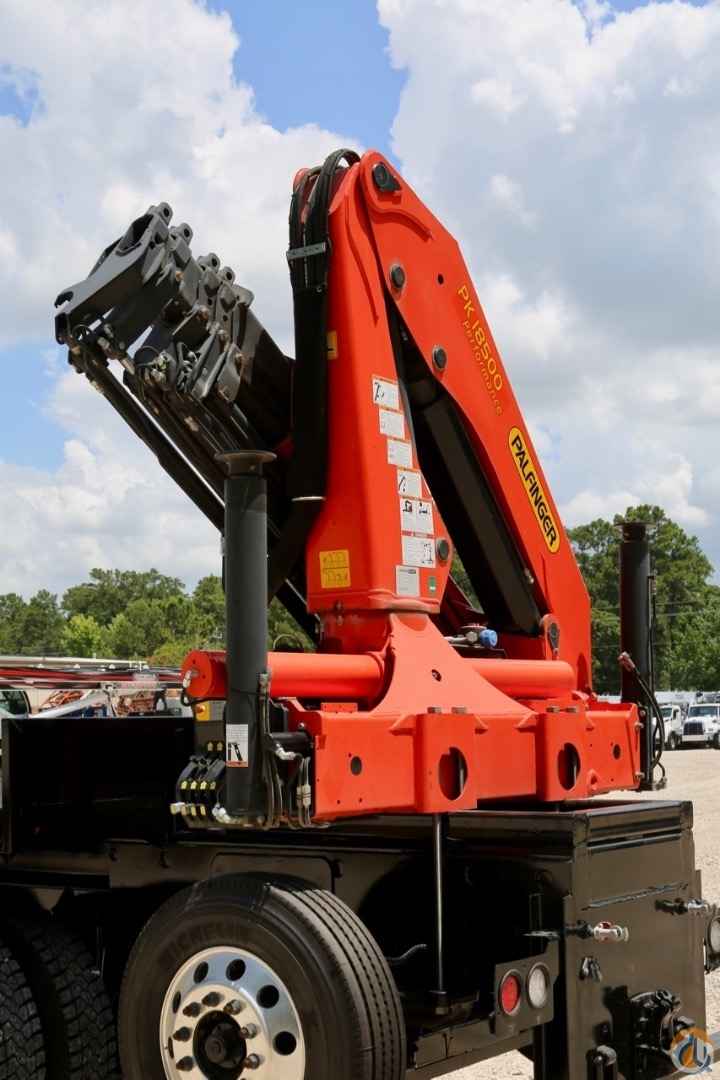

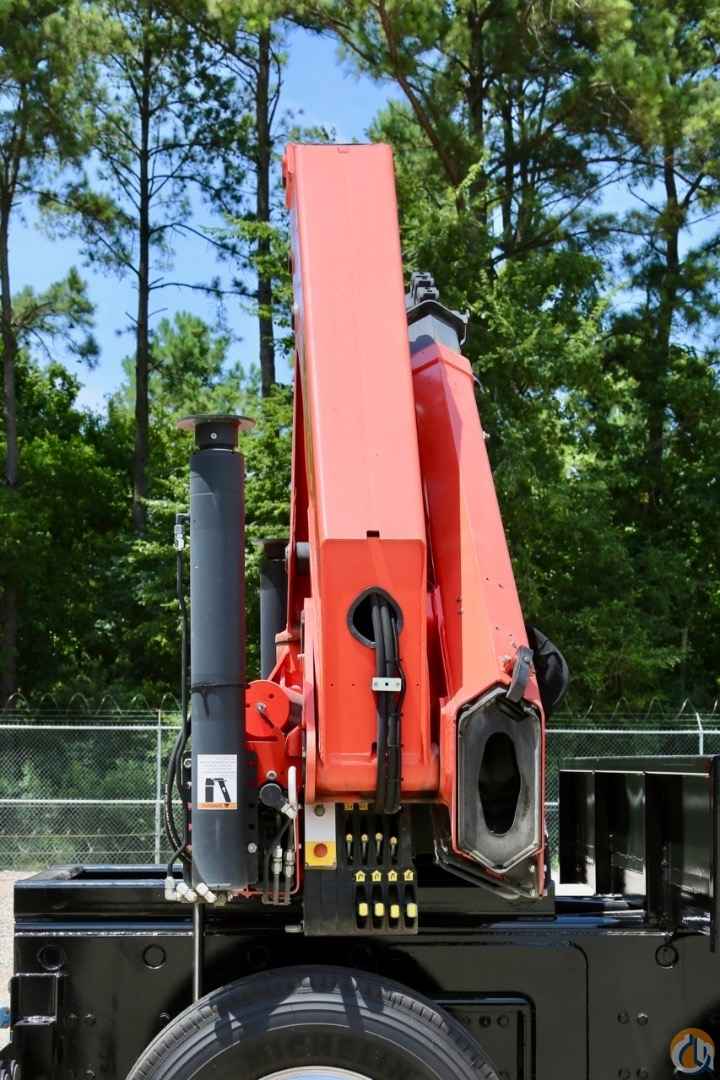

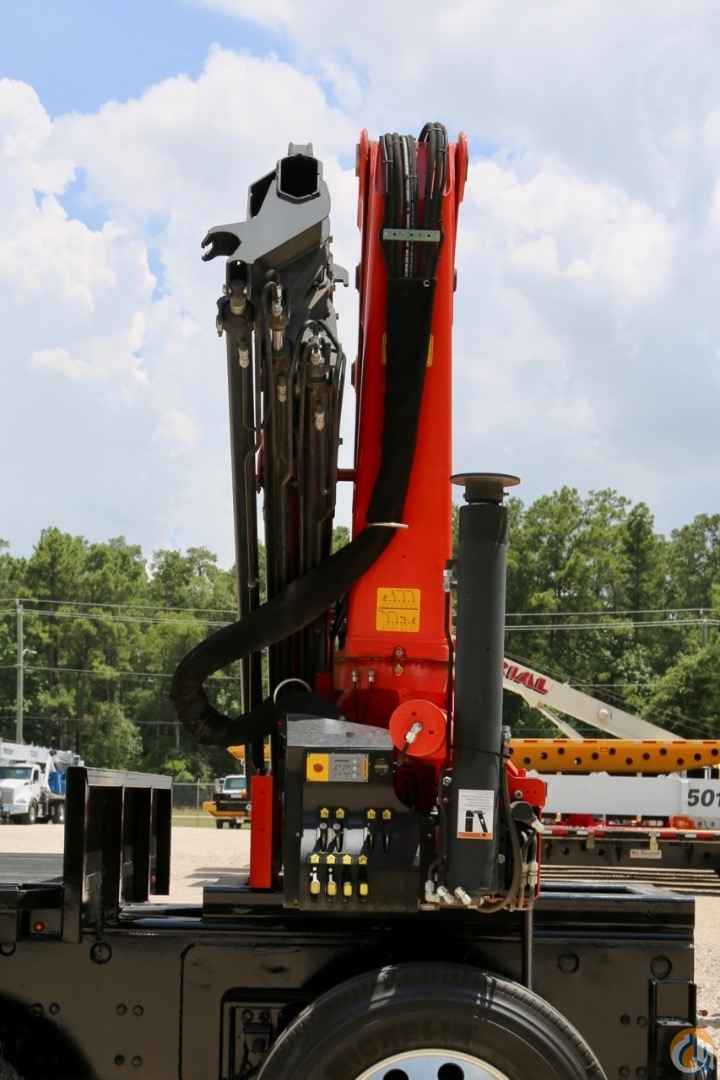

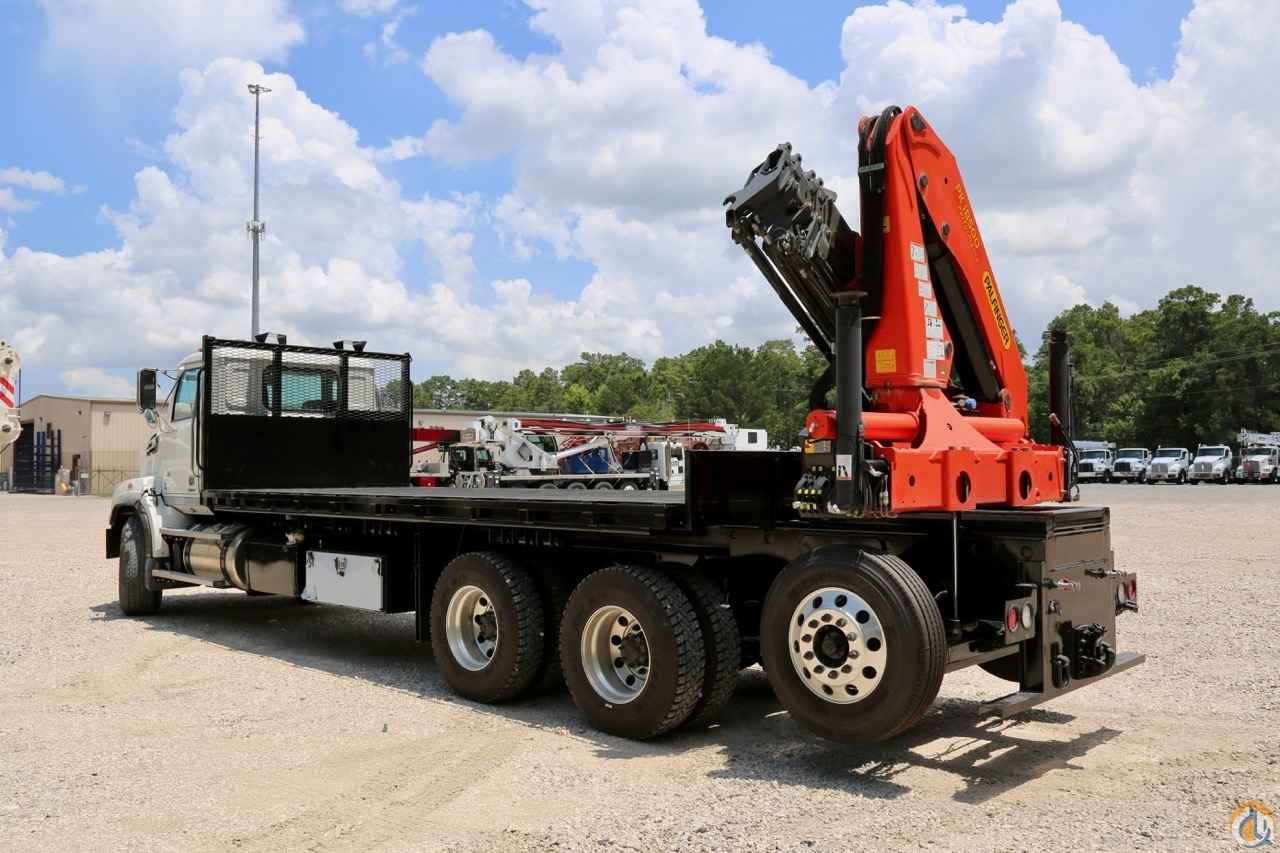

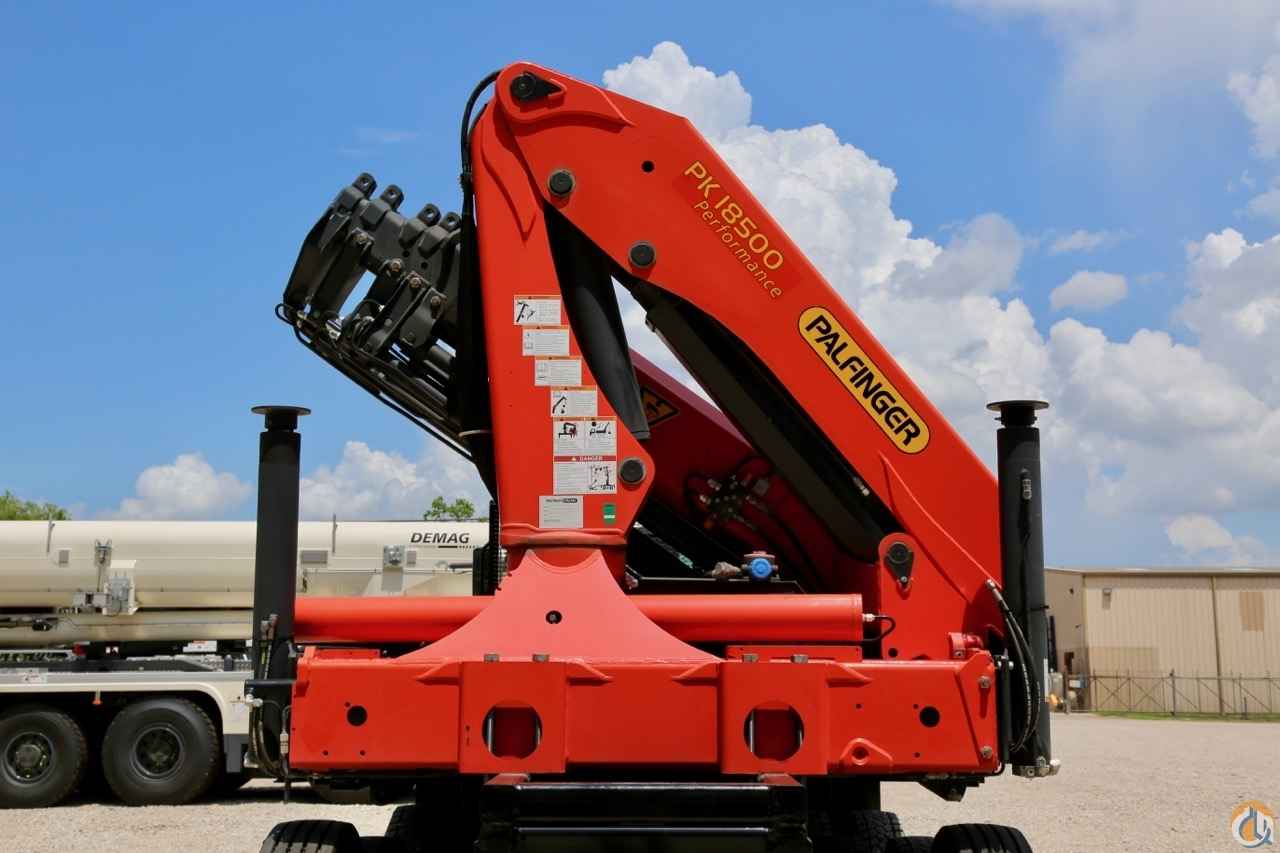

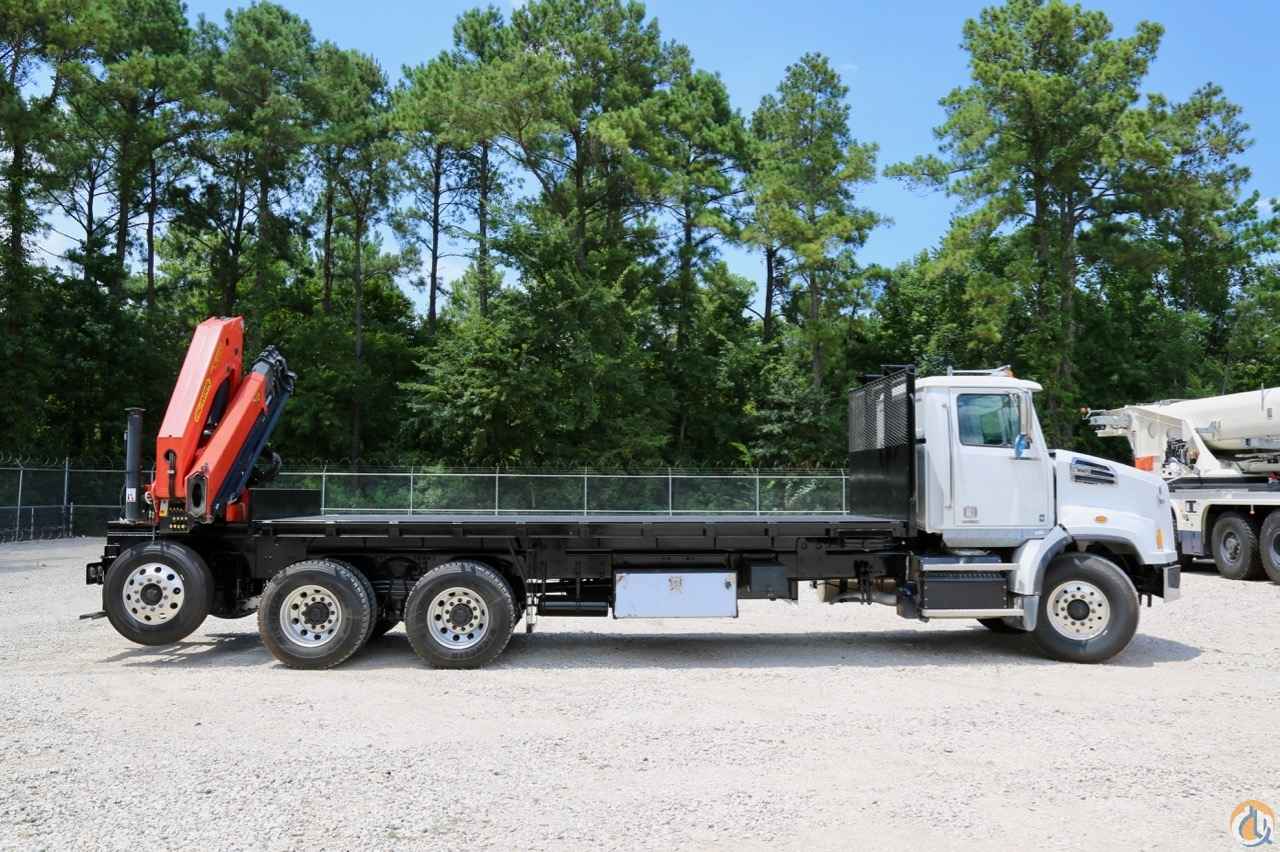

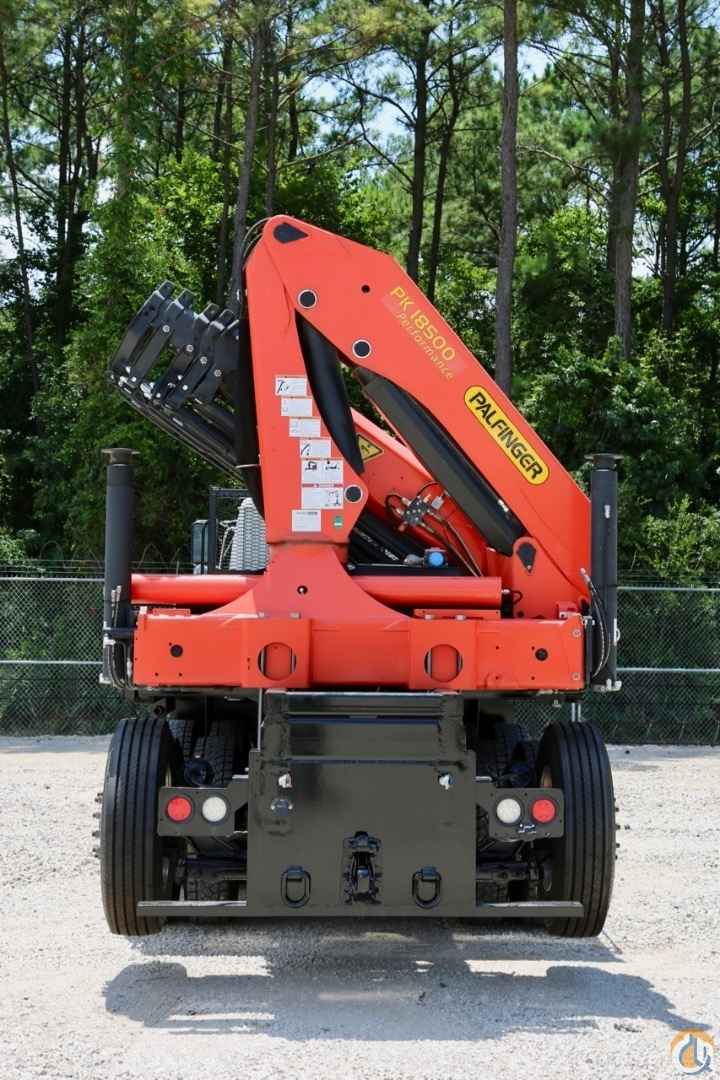

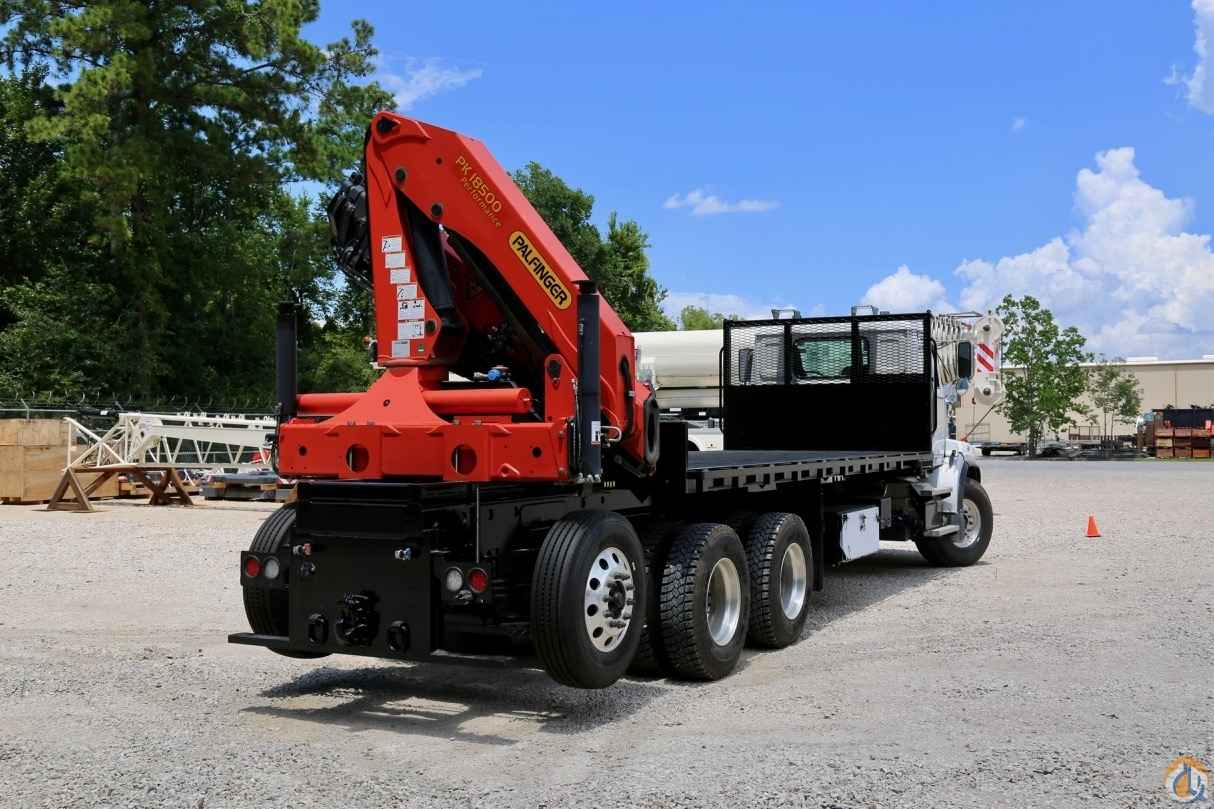

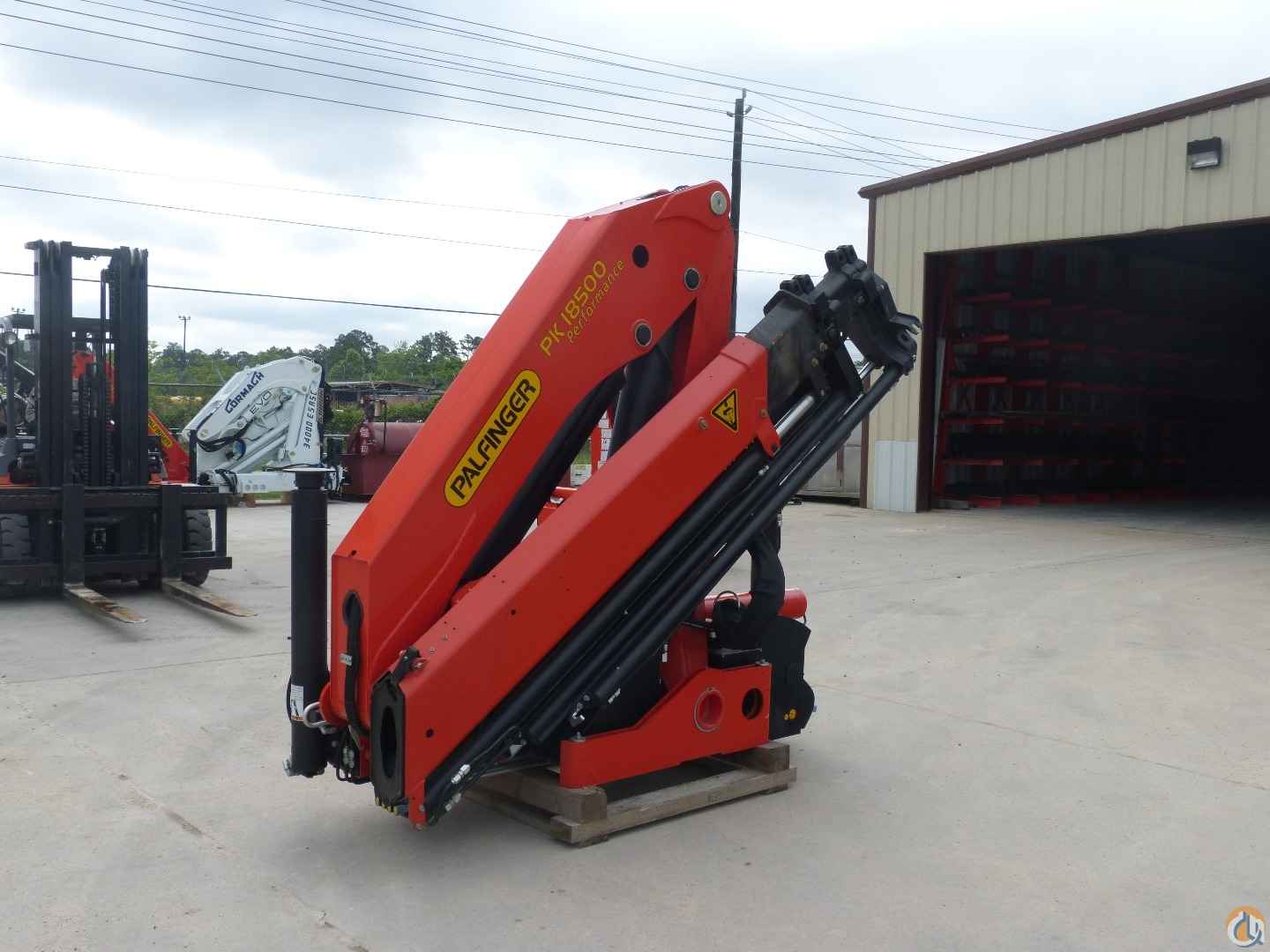

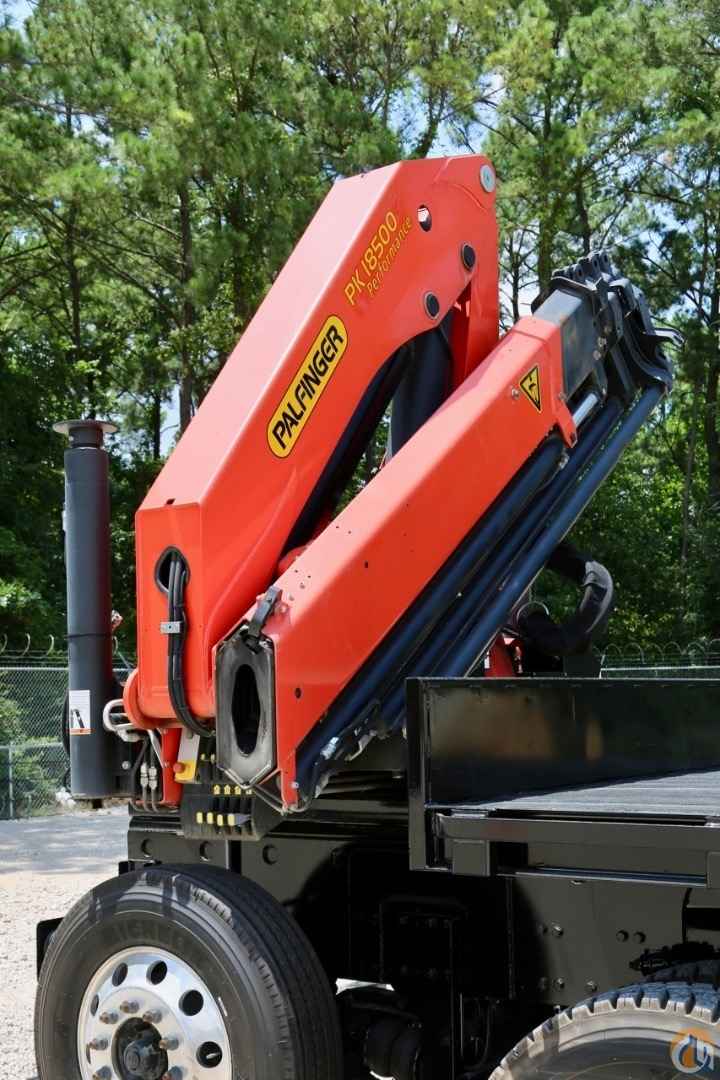

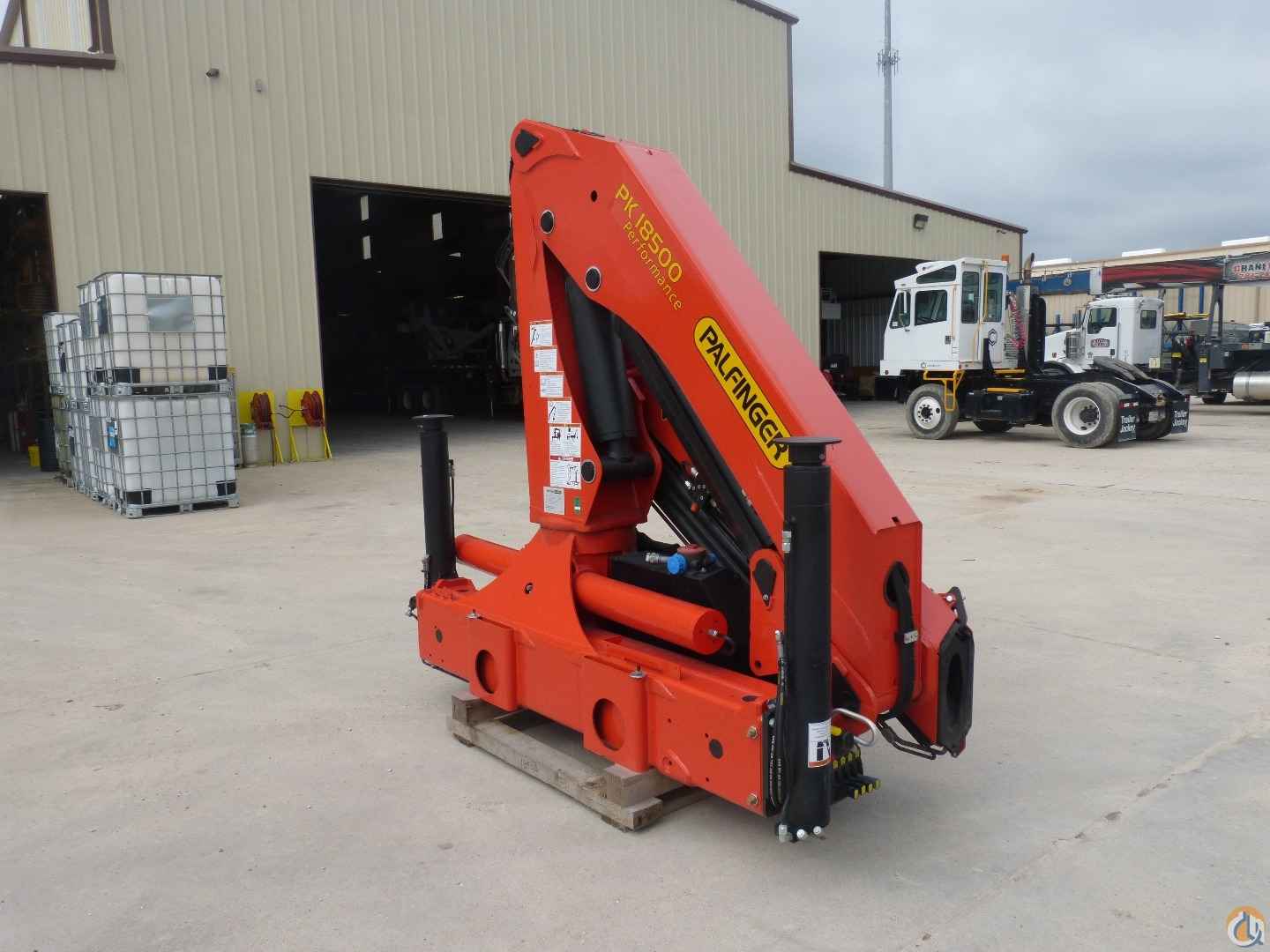

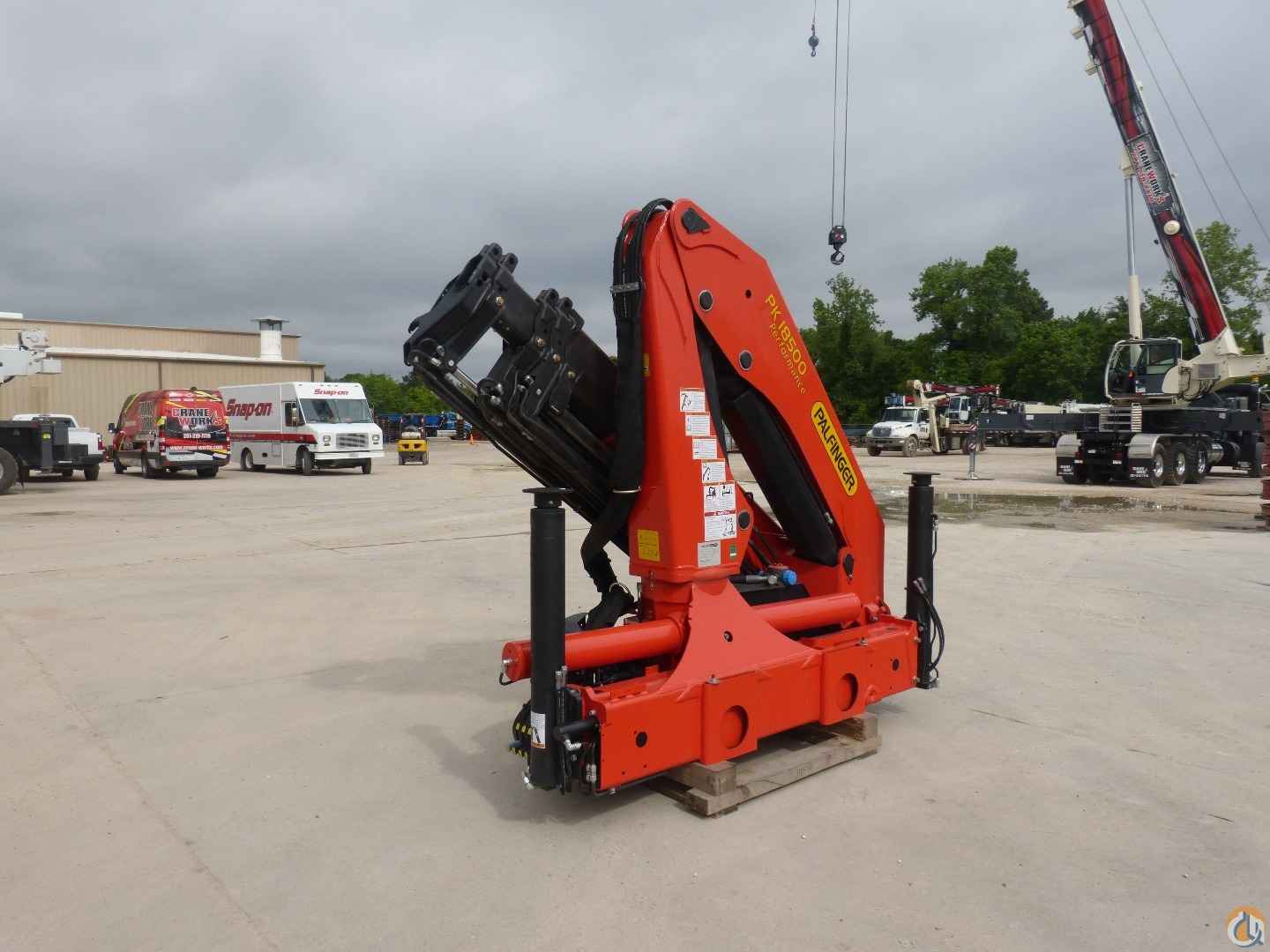

PALFINGER PK 18500 Performance Hydraulic Loader

D-Boom:  5-section hydraulic boom extension from 26' 11" to 47' 11"

Cylinder Guard: Protective guard for Outer Boom Cylinder

Outriggers with hydraulic extension R3X - Telescopic outriggers with hydraulic extension to both sides- width 21' 8"

F1-61-R PARKER Voac Piston Pump.  SAE version piston pump.  CLOCKWISE ROTATION. Oil flow of 16.1 US gpm (61 L/min) at 1000 rpm pump speed.  Max. pressure 5,075 psi (350 bar). DOES NOT INCLUDE a suction fitting.  Mounting flange / shaft SAE J744, "B".   (Rotation change possible.  Instructions included)

2" Hose Bib, 45 degrees for PARKER Voac F1 & F2 pumps.

Ref no: PO31235
