Year: 2014
Capacity: 6.00
Condition: Excellent
Unit #: OPO28896
Location: Houston, Texas
Boom: 40

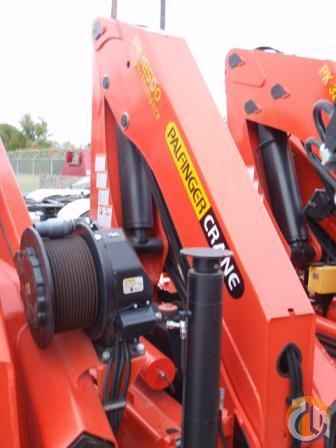

New Palfinger 18500D Articulating Crane
Standard Features
| Maximum lifting moment 18.3 mt (132,710 ft-lbs). Paltronic 50 Overload Protection System. Boom length 26' 11" via 2-hydraulic extensions (A). 400 degrees of rotation with controls on 2 sides of the crane. Includes 2 additional valve sections. Radio remote control no spare sections are included, no opposite side controls included. Load holding valves on inner, outer and extension boom cylinders. Extension system with return oil utilization. Manual outrigger beams to 15' 9" (R1) with individual stabilizer control valve. Non-return valves fitted on stabilizer cylinders (STZS3). Bubble level at both outrigger control stations. Hour meter with indication of service intervals (12 V power required). High pressure filter, installed. 23 US gal. (90 l) oil tank with return filter integral in crane base. 8 metric ton (17,640 lbs) capacity roller bearing load hook. Mounting hardware kit (UZ 265). |
|
Included Options
KZS01 Cylinder guard
5 – Section hydraulic boom
Telescopic outriggers with hydraulic extension to both sides – width 21’8”
2” 45 degree suction fitting
Voac Piston Pump 16.1 GPM
