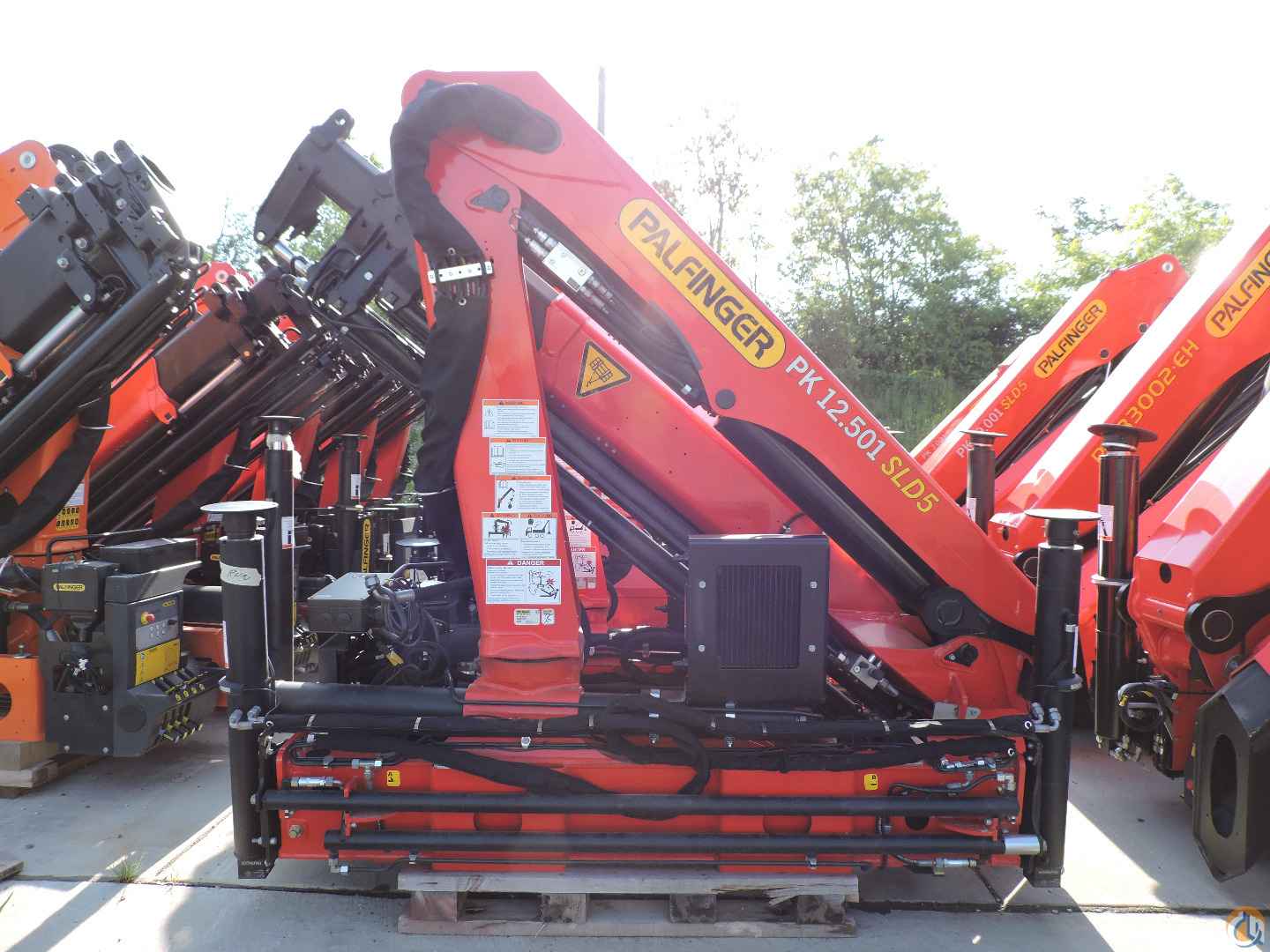

Palfinger PK 12.501 SLD 5 equipped as follows:
- Unmounted
- Maximum lifting moment 11.4 mt (82,160 ft/lb)
- 4-section hydraulic boom extension to 39’6”
- Maximum lifting capacities:
- 13’ – 5,800 lb
- 19’ – 3,750 lb
- 26’ – 2,700 lb
- 32’ – 2,100 lb
- 39’ – 1,700 lb
- R3X telescopic outriggers hydraulically extendable to 18’4”
- PVC stabilizer shoes 15 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed.
- Paltronic overload protection system
- HPLS - System increases the crane capactiy by slowing the crane functions down when approaching capacity
- Single linkage at outer boom with 15° Power Link Plus
- Rotation angle 400°

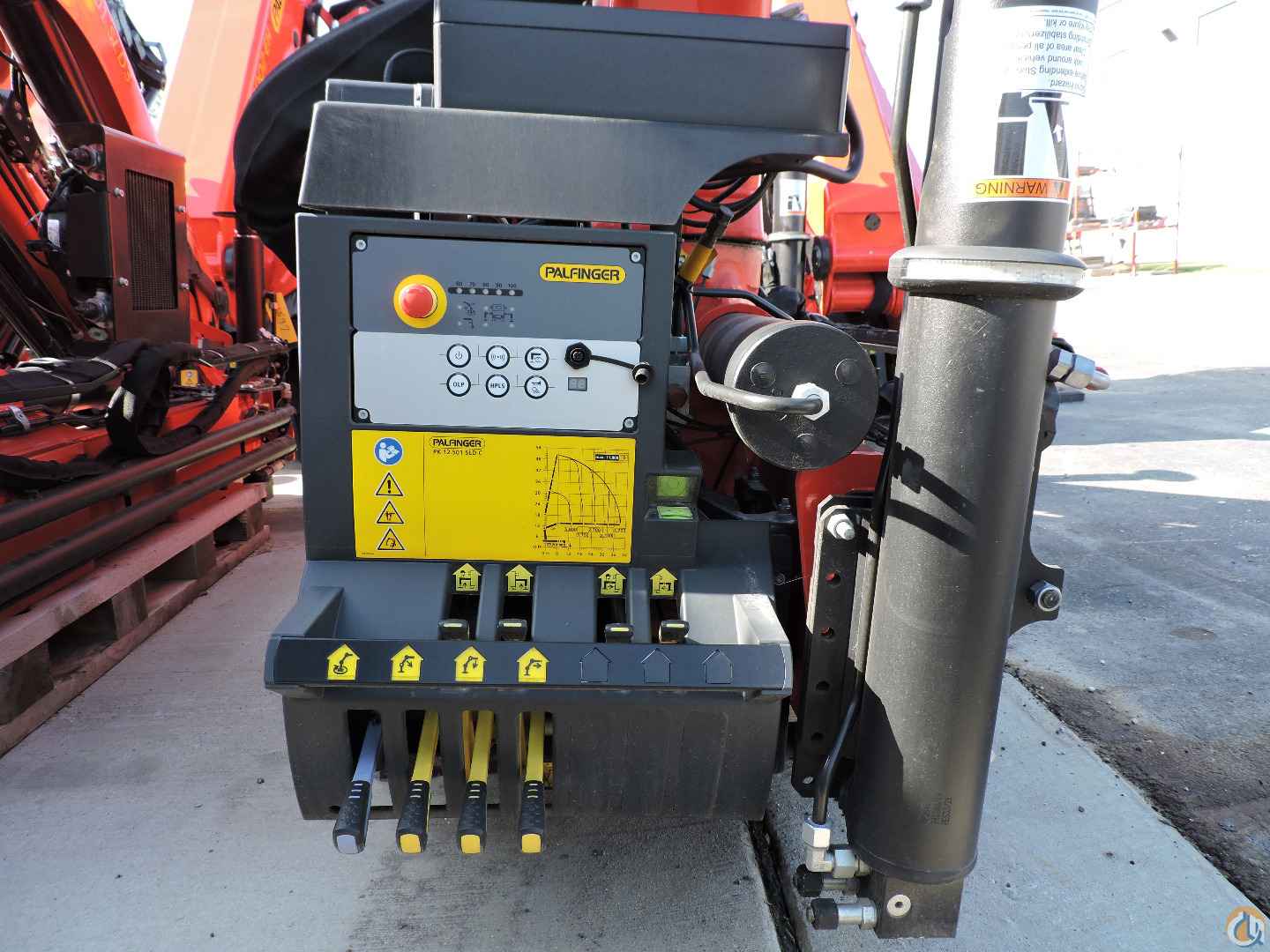

- Single ground control station
- Radio remote control with Paltronic display on handeset
- Bubble level at both outrigger control stations
- Load holding valves on main, outer and extension cylinders
- Return oil utilization
- 26.4-gallon oil tank – includes filter, breather, and level gauge
- 11.5 HP Oil cooler
- 11,900 lb roller bearing load hook
