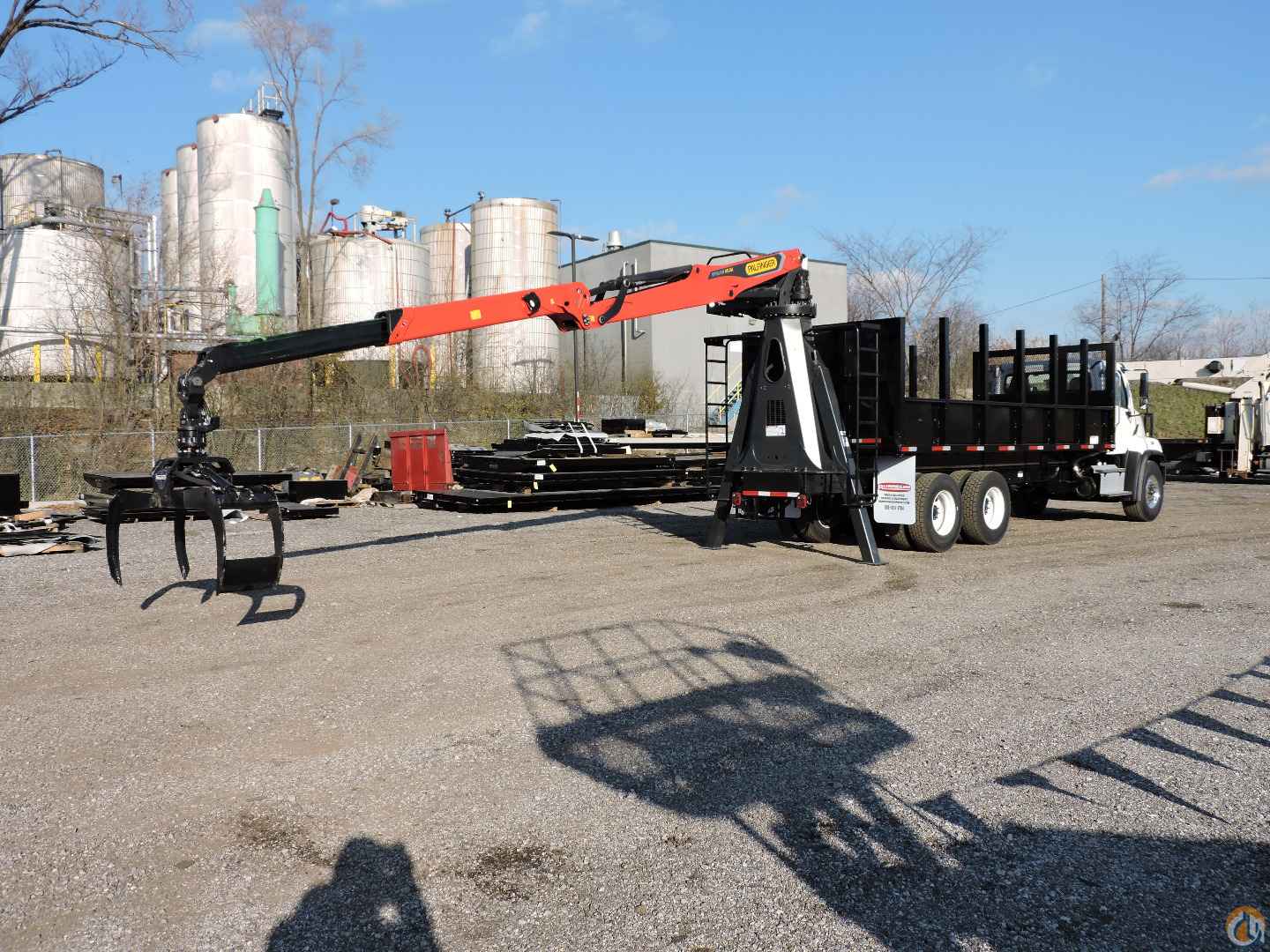

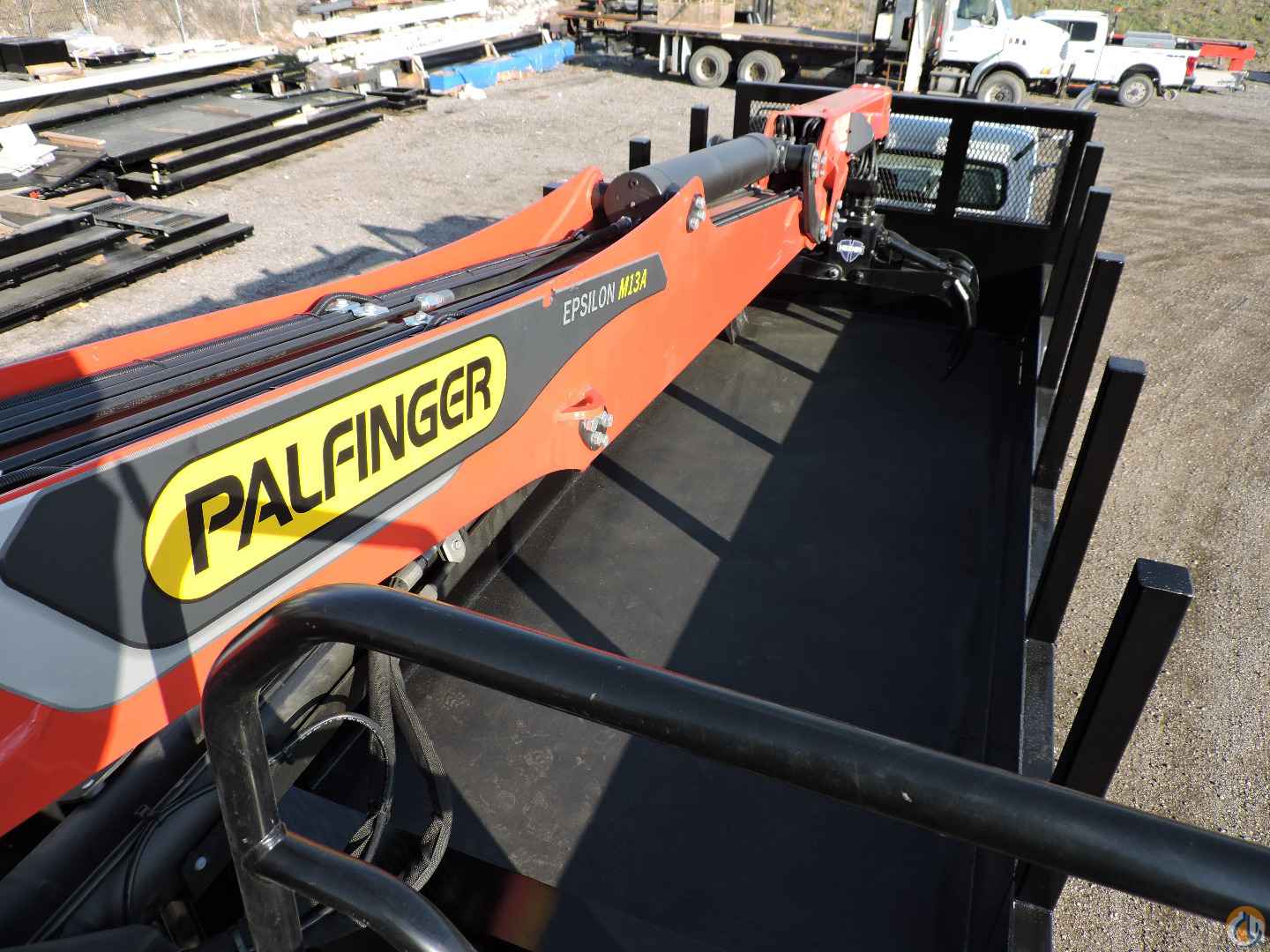

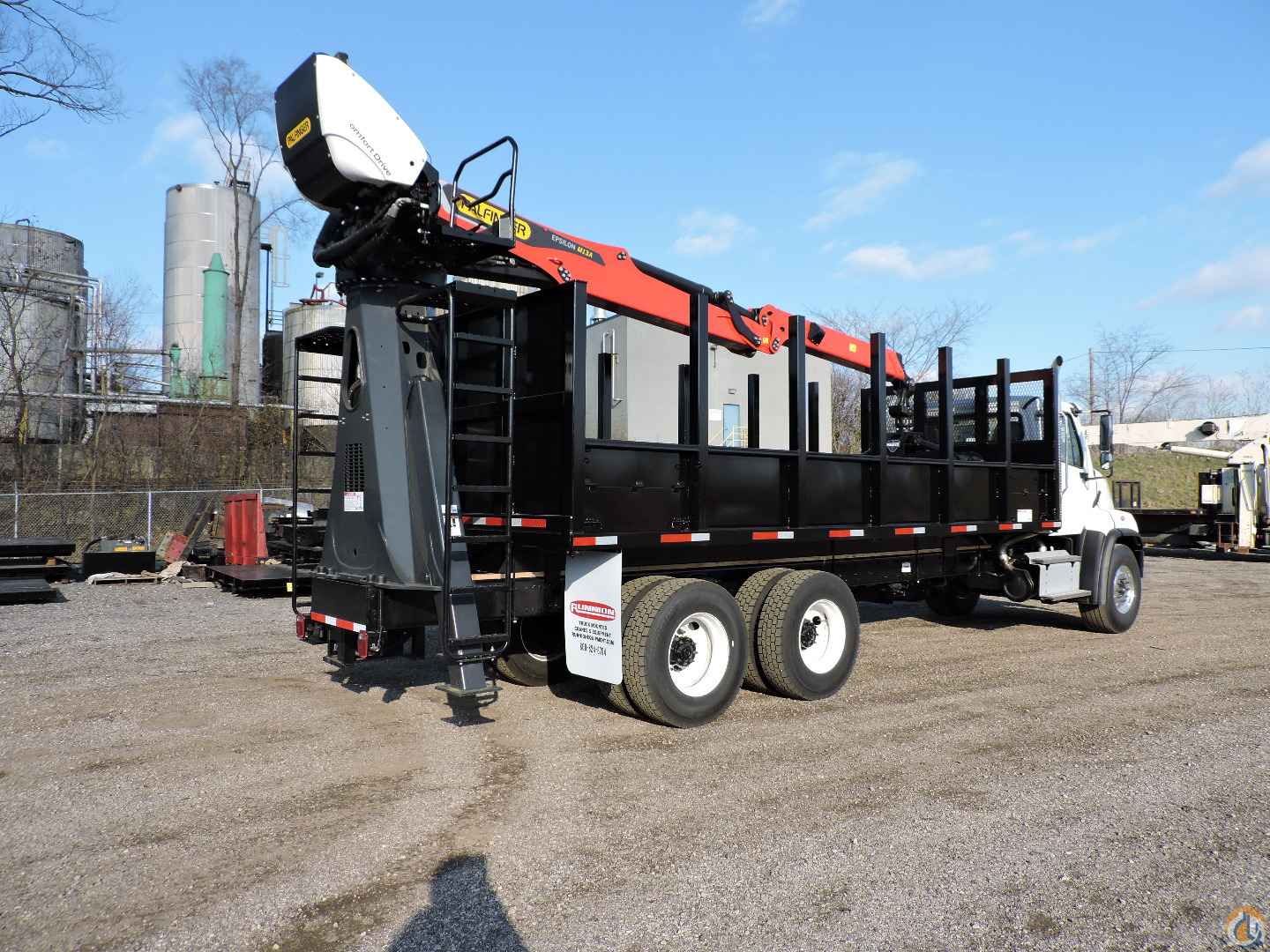

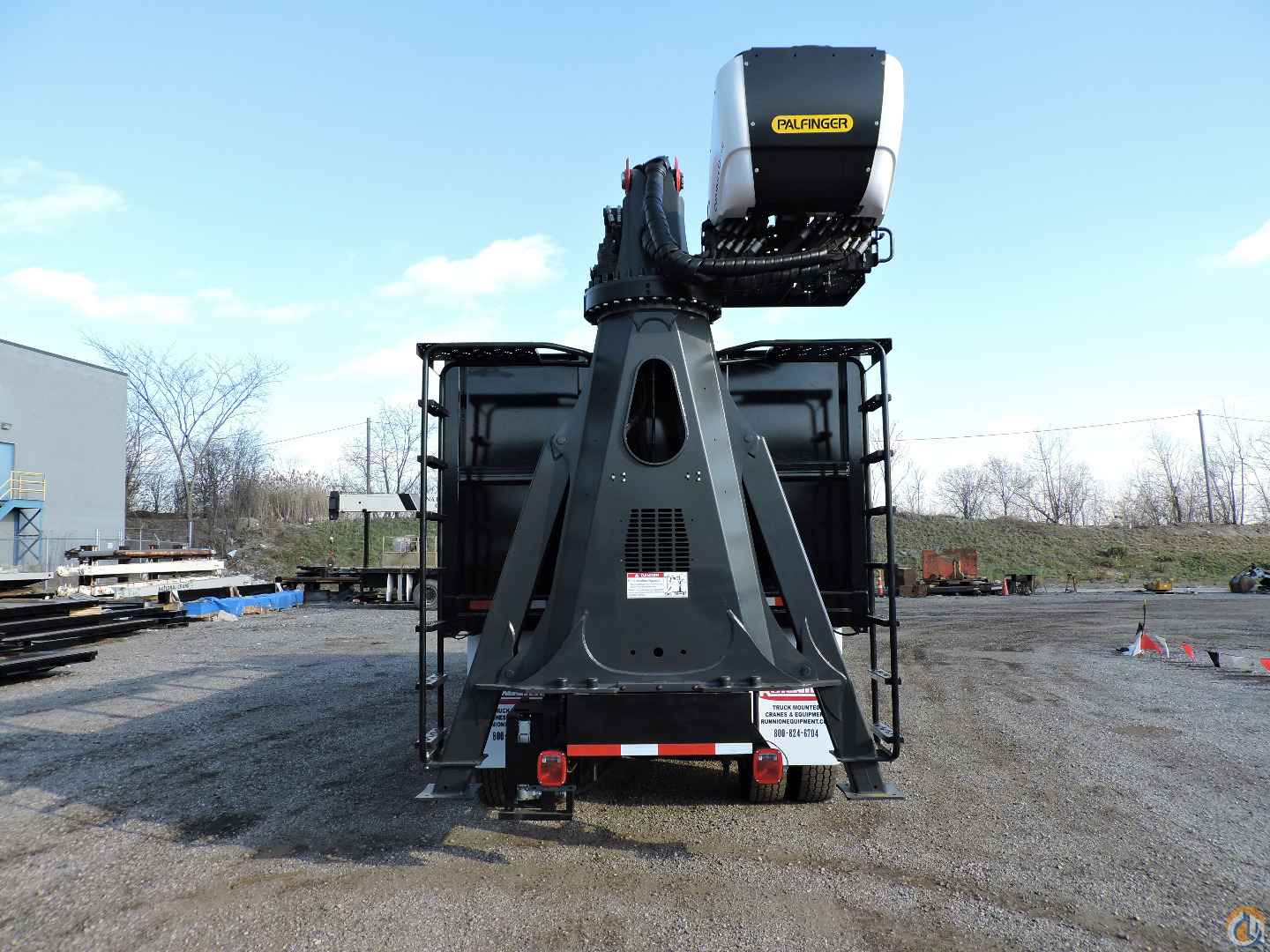

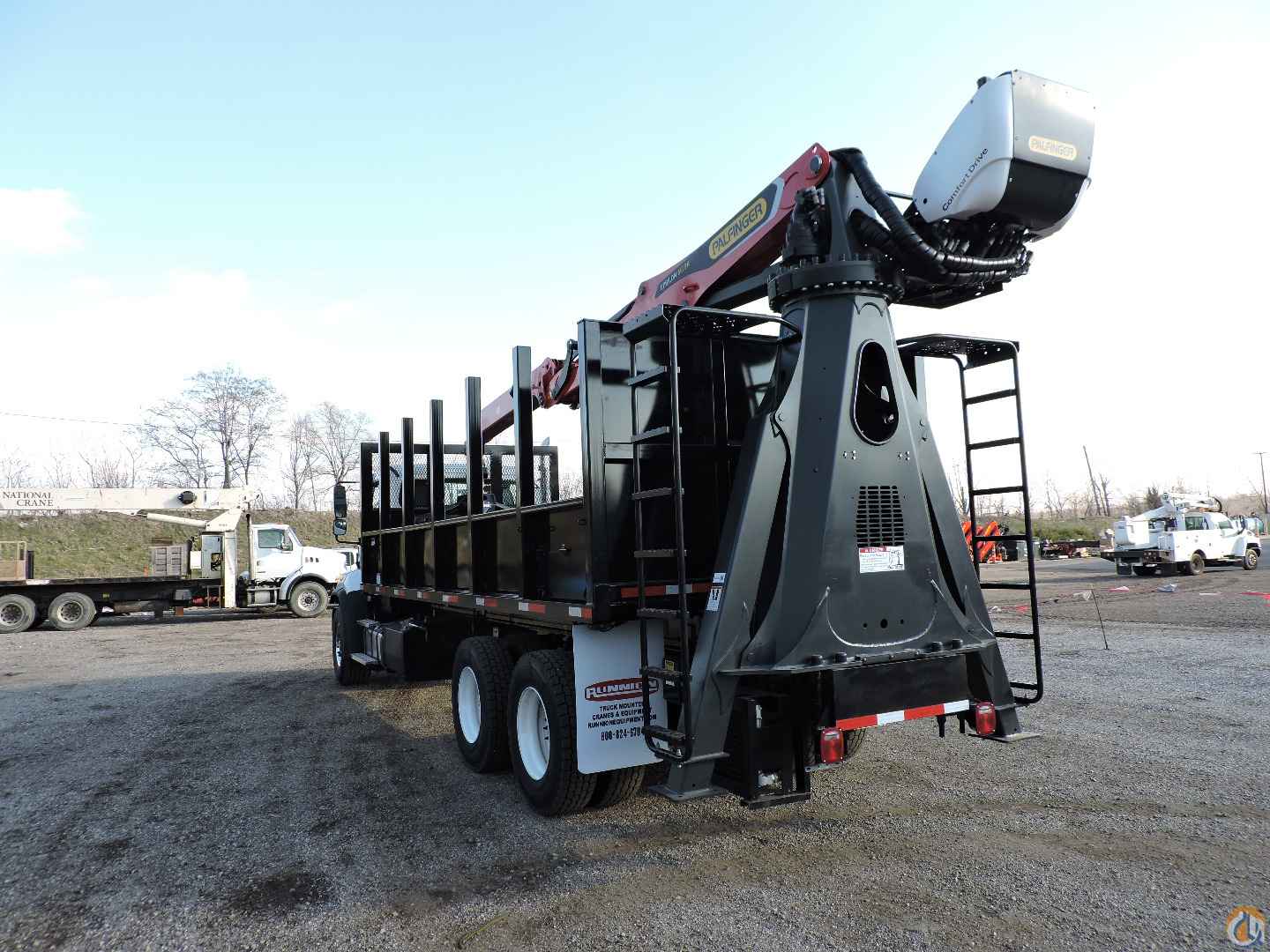

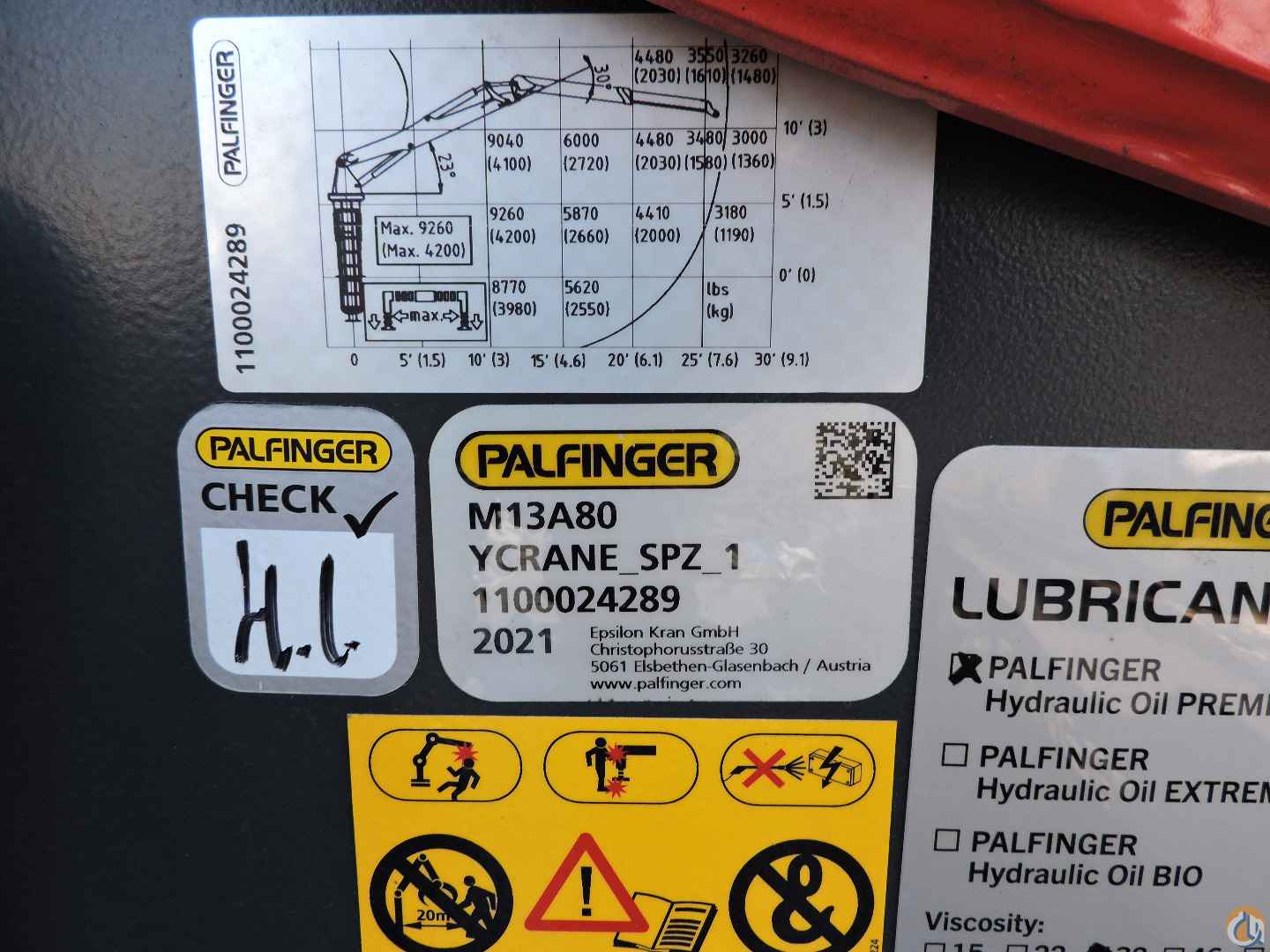

New Palfinger A-Line Loader M13A80
- Rear mounted
- 26’5” single telescope
- Heated seat – seat back and bottom
- Telescope controlled electrically on right joystick, slewing via swing pedal
- Independently controlled telescopic stabilizers
- Oil cooler mounted between ladder and frame
- Continuous ring and pinion rotation
- Main boom cylinder protection
- Above mounted outer boom cylinder increases power and protects cylinder
- Linkage system between main and outer boom
- EPSCOPE – patented telescope system with inside hose routing
- KTL primed and powder coated – painted red
- 4x work lights, 2 on operator’s station and two on outer boom
- Epsilon rotator RB10F –360 degreecontinuous rotation

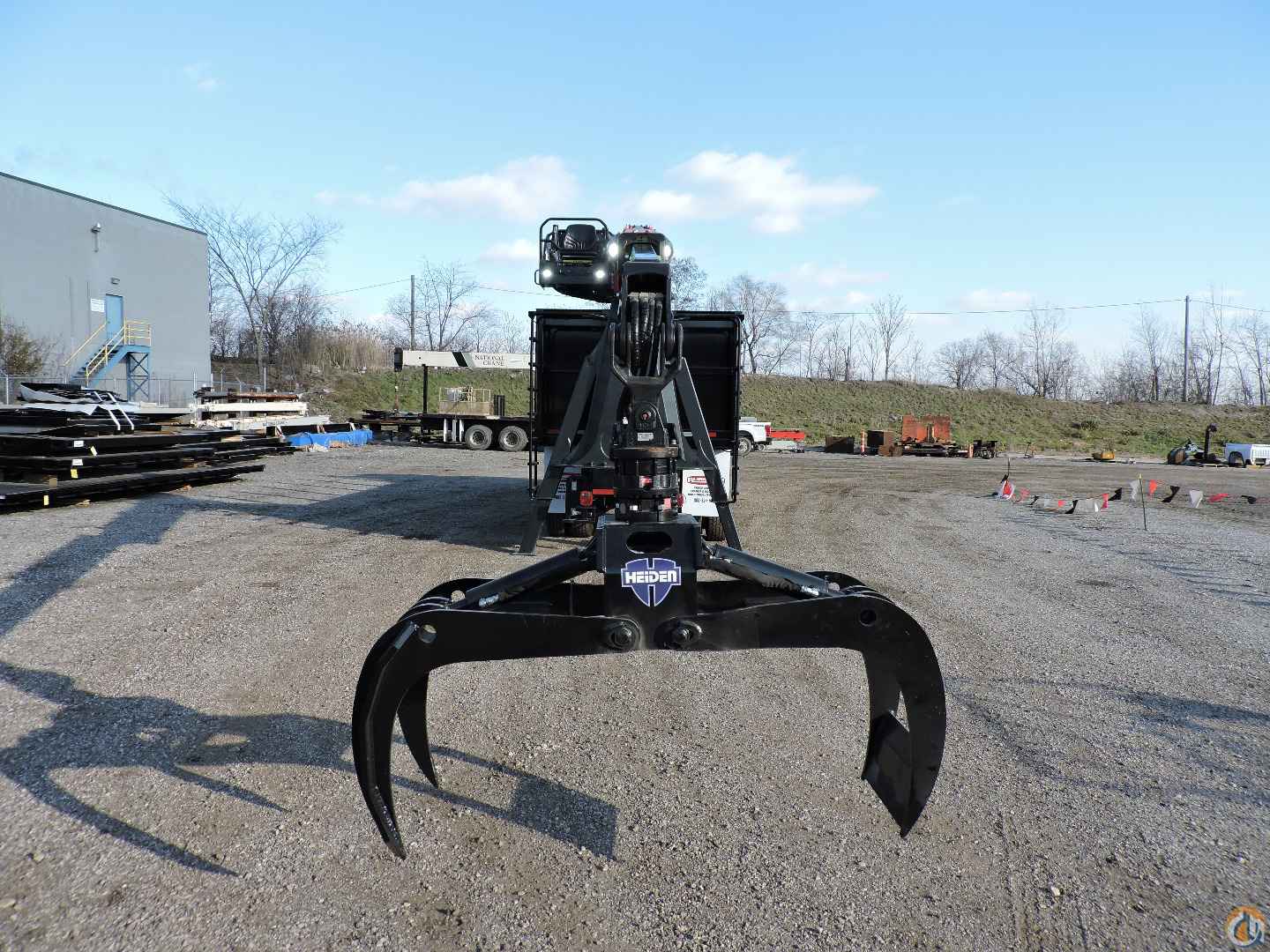

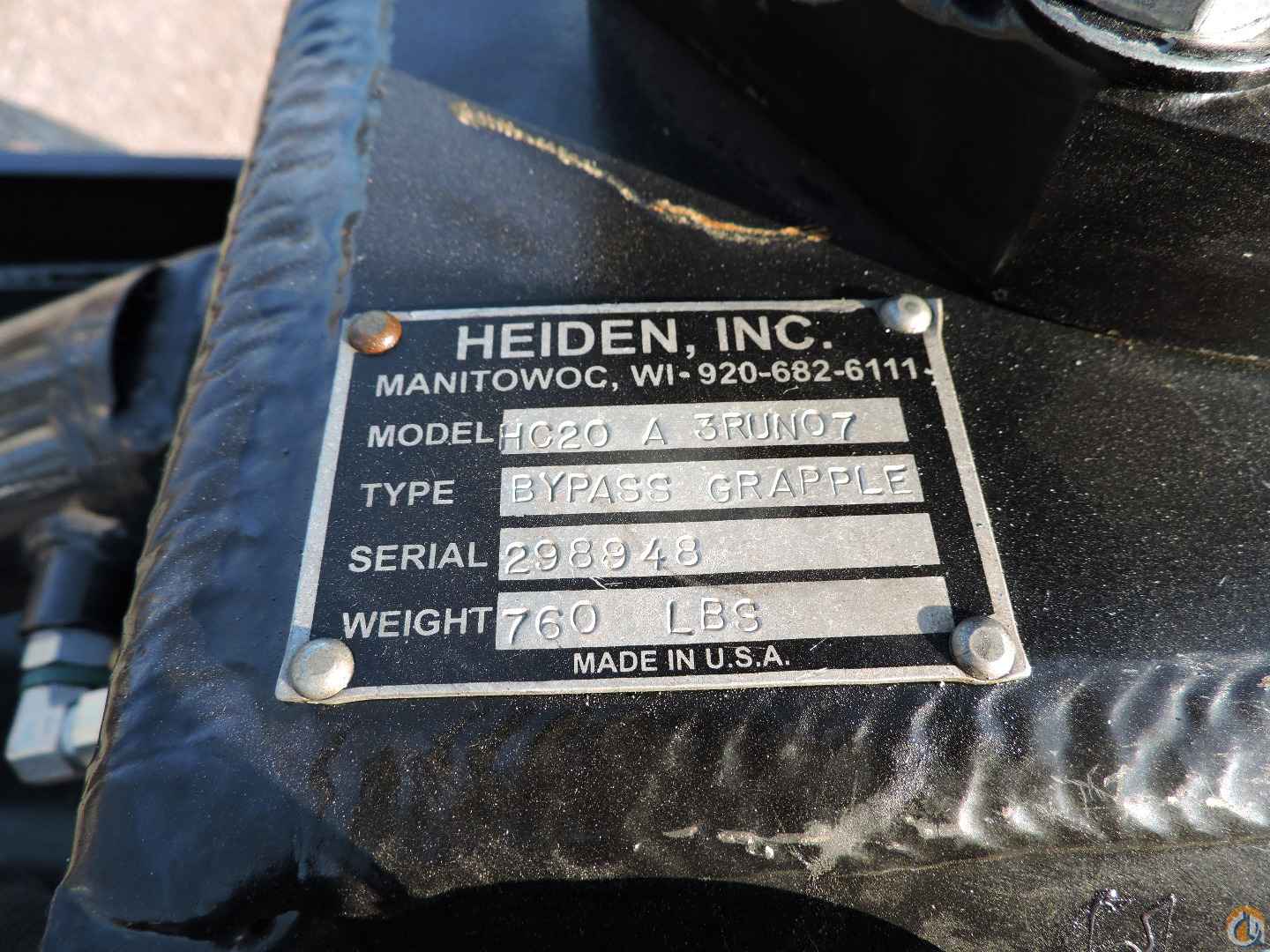

- Heiden HC20N-A-3 grapple
22’ Heavy Duty Log Body (not pictured)
- 101” wide
- 66” tall 4”x4”x3/16” vertical posts
- Walls – steel panels
- 66” bulkhead made of 3/16” plate – top half made of expanded metal
- Four (4) cut outs at the floor with drop down doors to sweep out box
- 36” x 18” x 18” steel toolbox

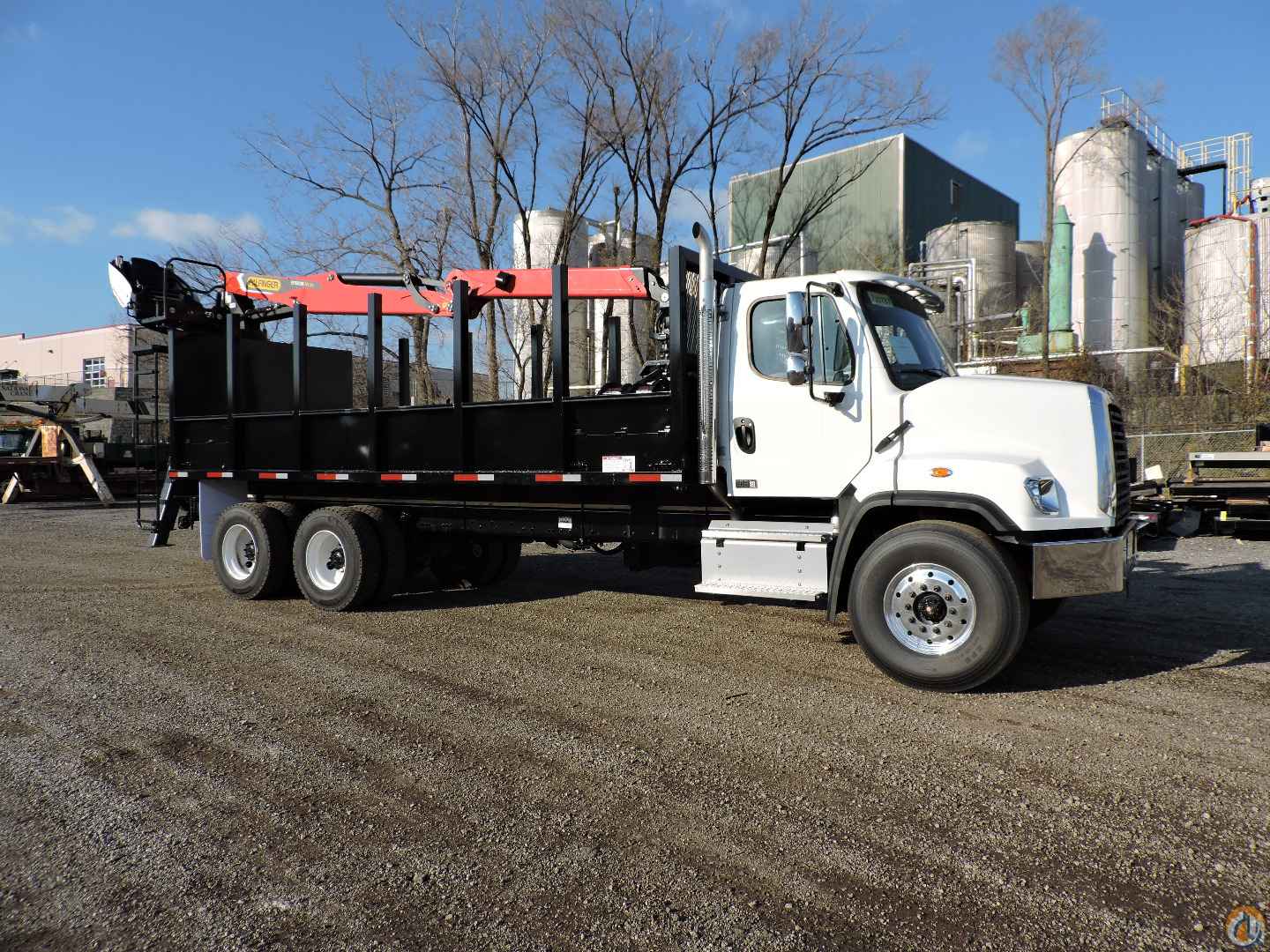

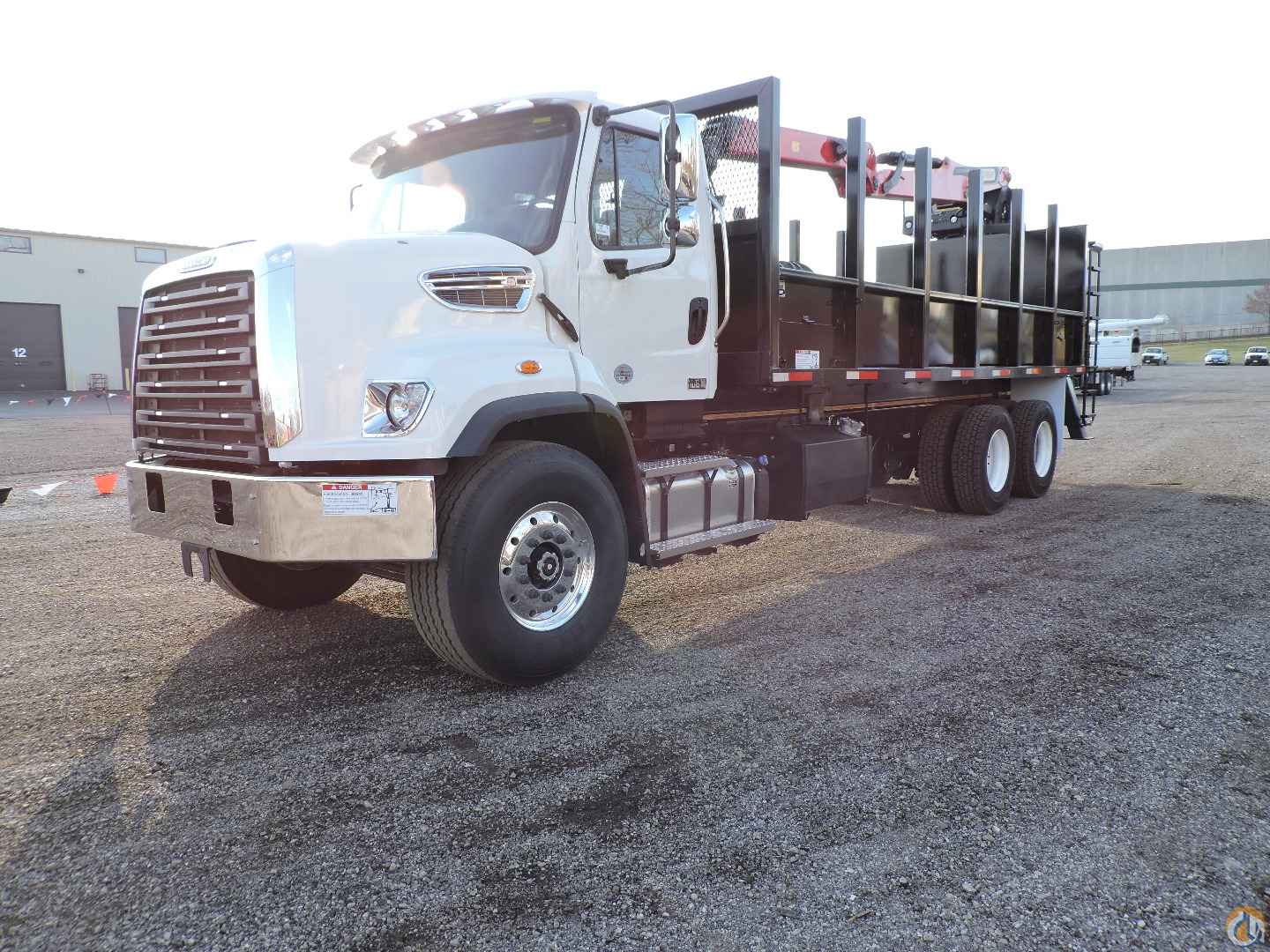

2022 Freightliner 108SD
- 60,000# GVW
- 260” wheelbase
- Cummins L9 – 350 hp at 2000 rpm, 1000 lb/ft at 1400 rpm
- Cummins exhaust brake
- Allison 3000 RDS automatic transmission
- Front axle – 20,000# with 20,000# Taperleaf suspension with shock absorbers
- Rear axle – 40,000# with 46,000# spring
- Aluminum front wheels, steel rear
- Interaxle lock for tandem drive axles
- 70 gallon aluminum fuel tank
- 1000 watt engine block heater
- Power locks and windows
- Driver’s Seat – high back air suspension with dual armrests, Cordura cloth
- Passenger’s seat – two person, mid back, non-suspension
- AM/FM/WB radio with Bluetooth and microphone, USB and aux inputs
- Cab air suspension
