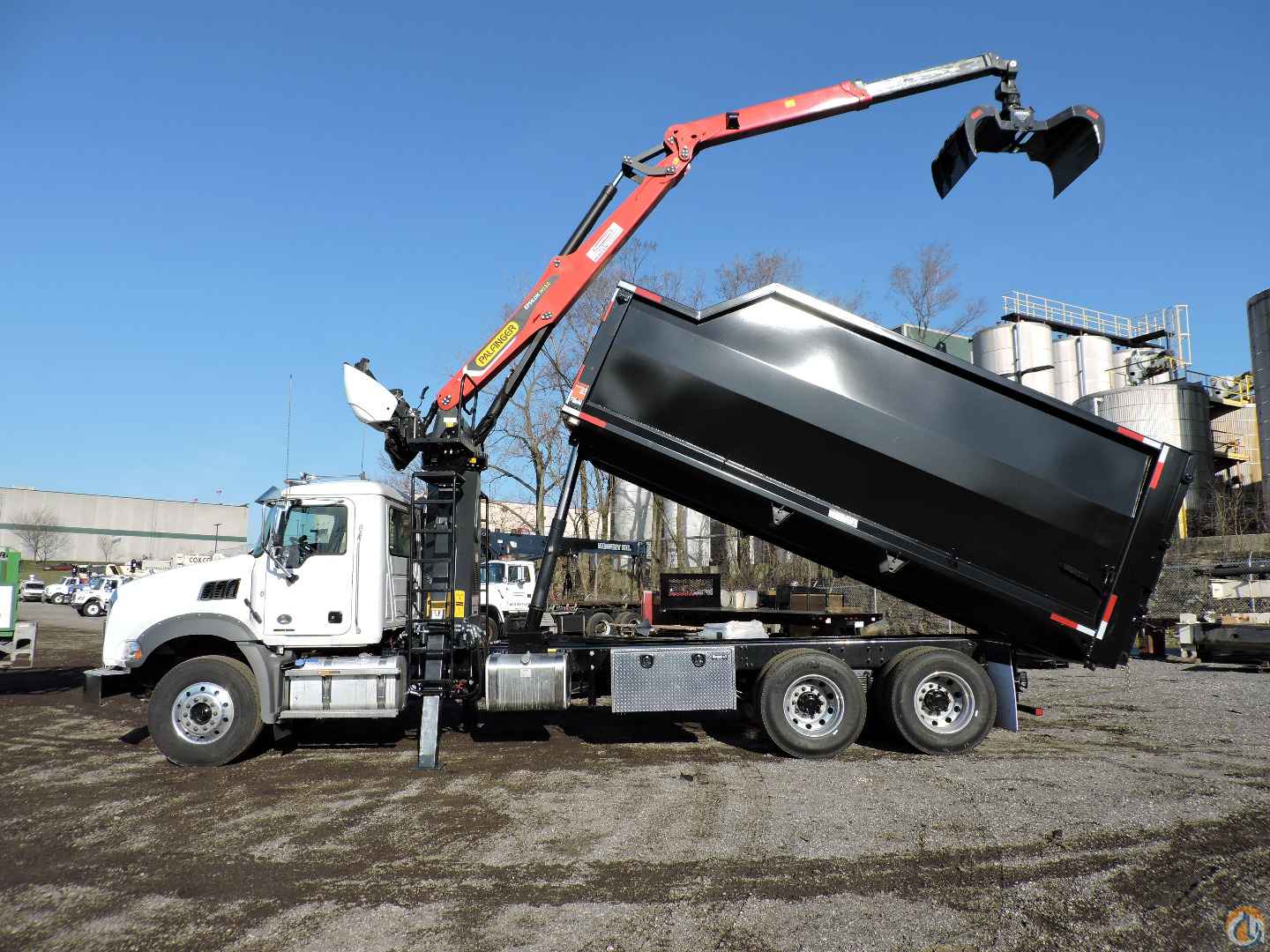

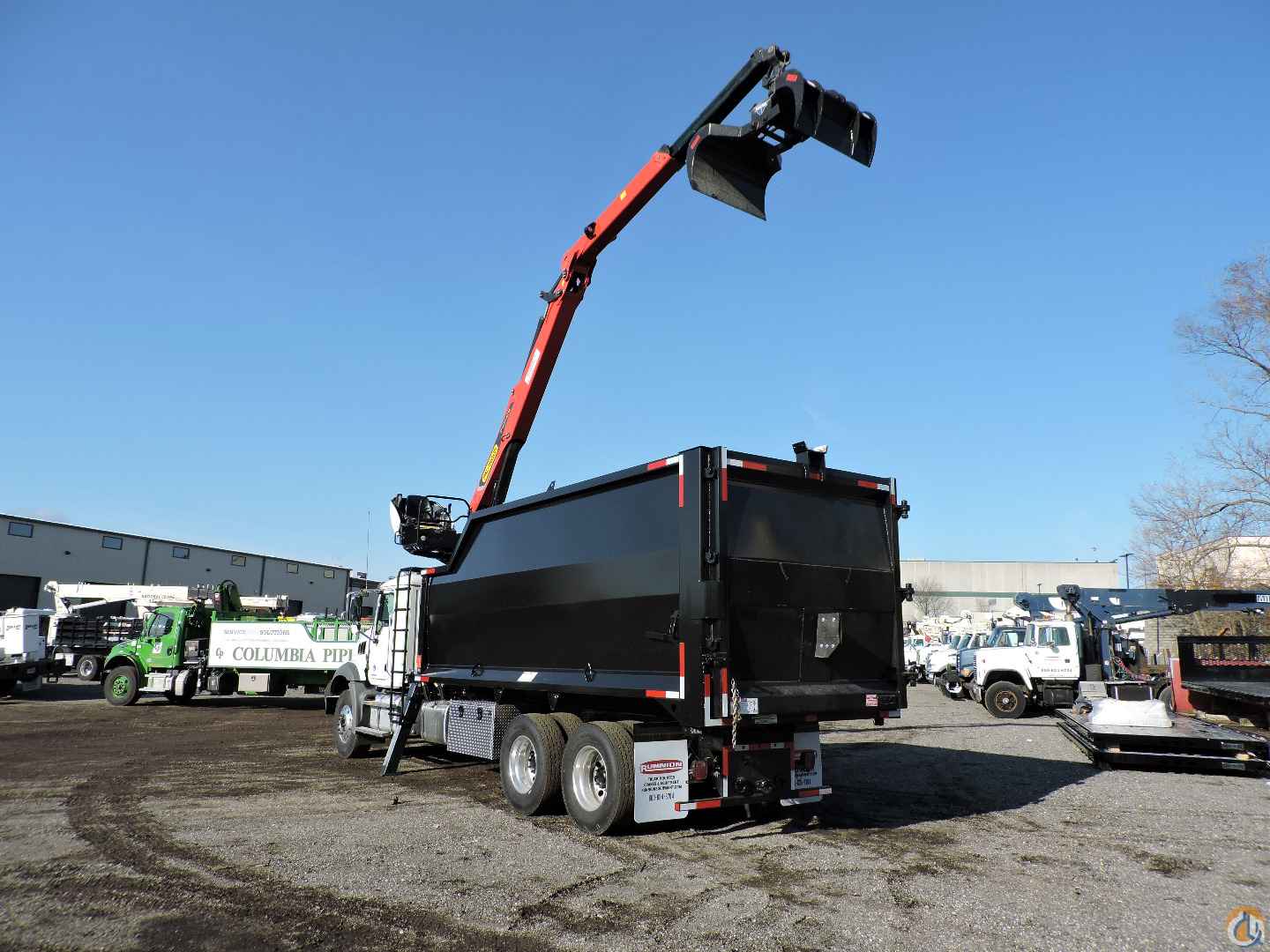

New Palfinger A-Line Loader M13A80
- Net lifting moment: 92,200 ft-lbs
- Net slewing torque: 14,010 ft-lbs
- 26’5” single telescope
- Right side mounted operator’s station with two joysticks
- Heated seat – seat back and bottom
- Seat adjustable in distance forward/back
- Telescope controlled electrically on right joystick, slewing via swing pedal
- Control value mounted on operator’s station
- Independently controlled out and down stabilizers
- Stabilization fully hydraulic controlled from top seat
- Double circuit control value
- Operating pressure: 3,410 psi
- Oil cooler
- 79-gallon steel hydraulic oil tank
- Continuous ring and pinion rotation
- Dual ladders
- Truck mount column
- Main boom cylinder protection
- Above mounted outer boom cylinder increases power and protects cylinder
- Linkage system between main and outer boom
- Throttle check valves on main, outer, and extension cylinders
- EPSCOPE – patented telescope system with inside hose routing
- KTL primed and powder coated – painted red
- 4x LED work lights, 2 on operator’s station and 2 on outer boom
- Epsilon rotator RB10F – 360° continuous rotation
- Heiden 20TG – 4/42 grapple

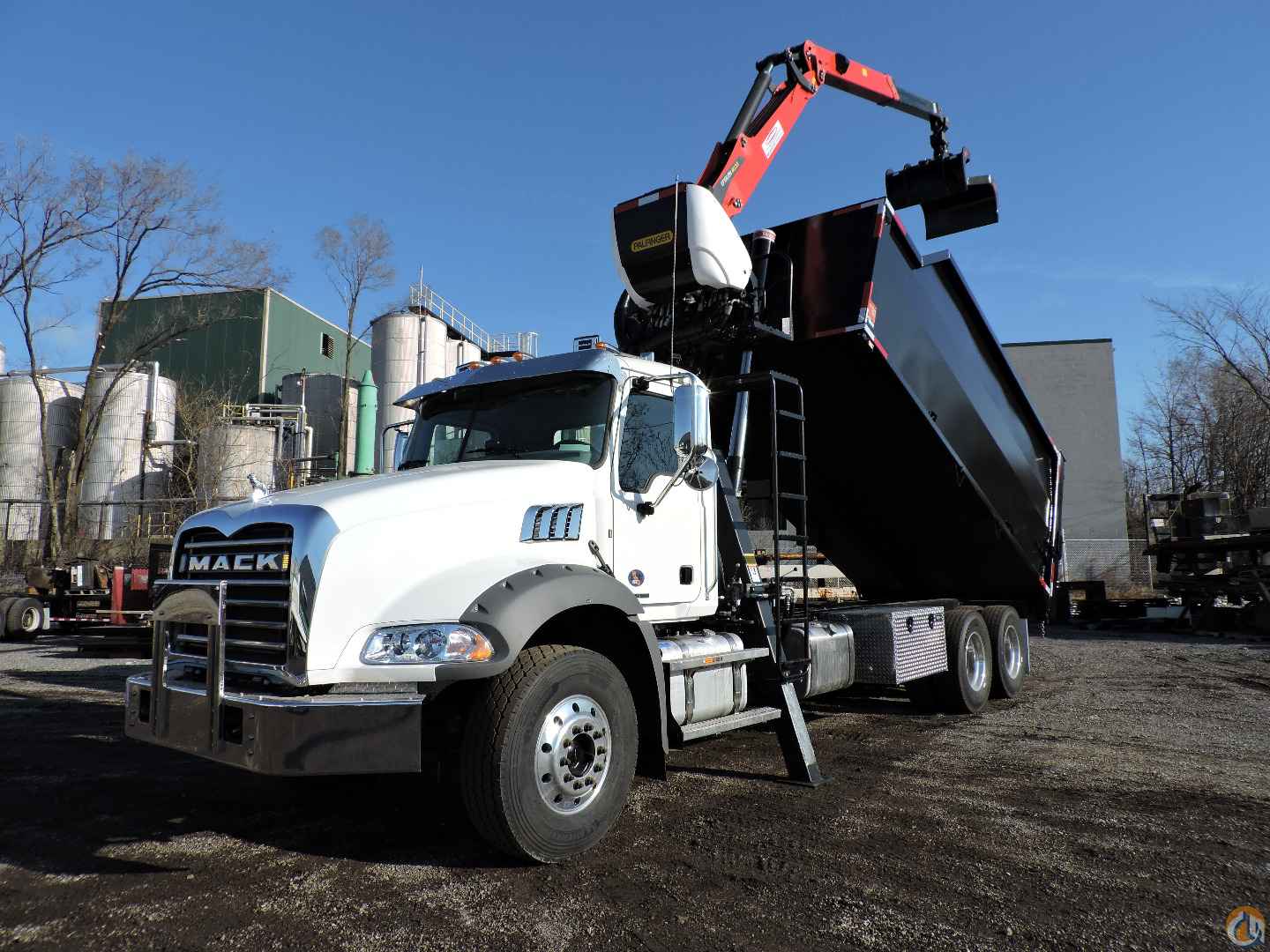

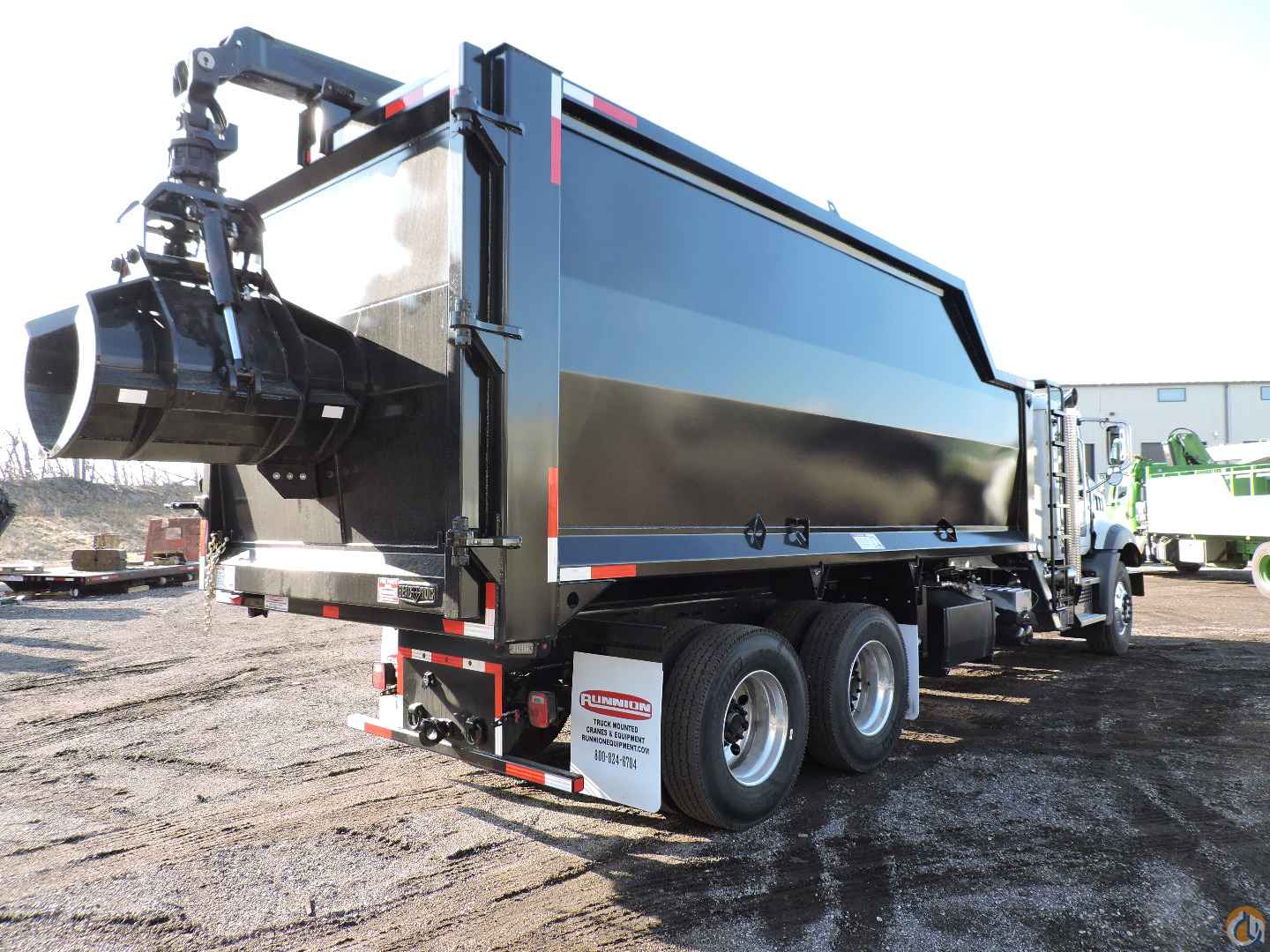

Beau-Roc 20’ MPHD Dump Body
- HARDOX steel construction
- Body to have 4’ of 60” sides and 16’ of 84”
- Single rear swing tailgate
- Front mounted lift cylinder
- Manual body control valve mounted on driver side frame rail with in
cab switched electric diverter to divert hydraulic function between

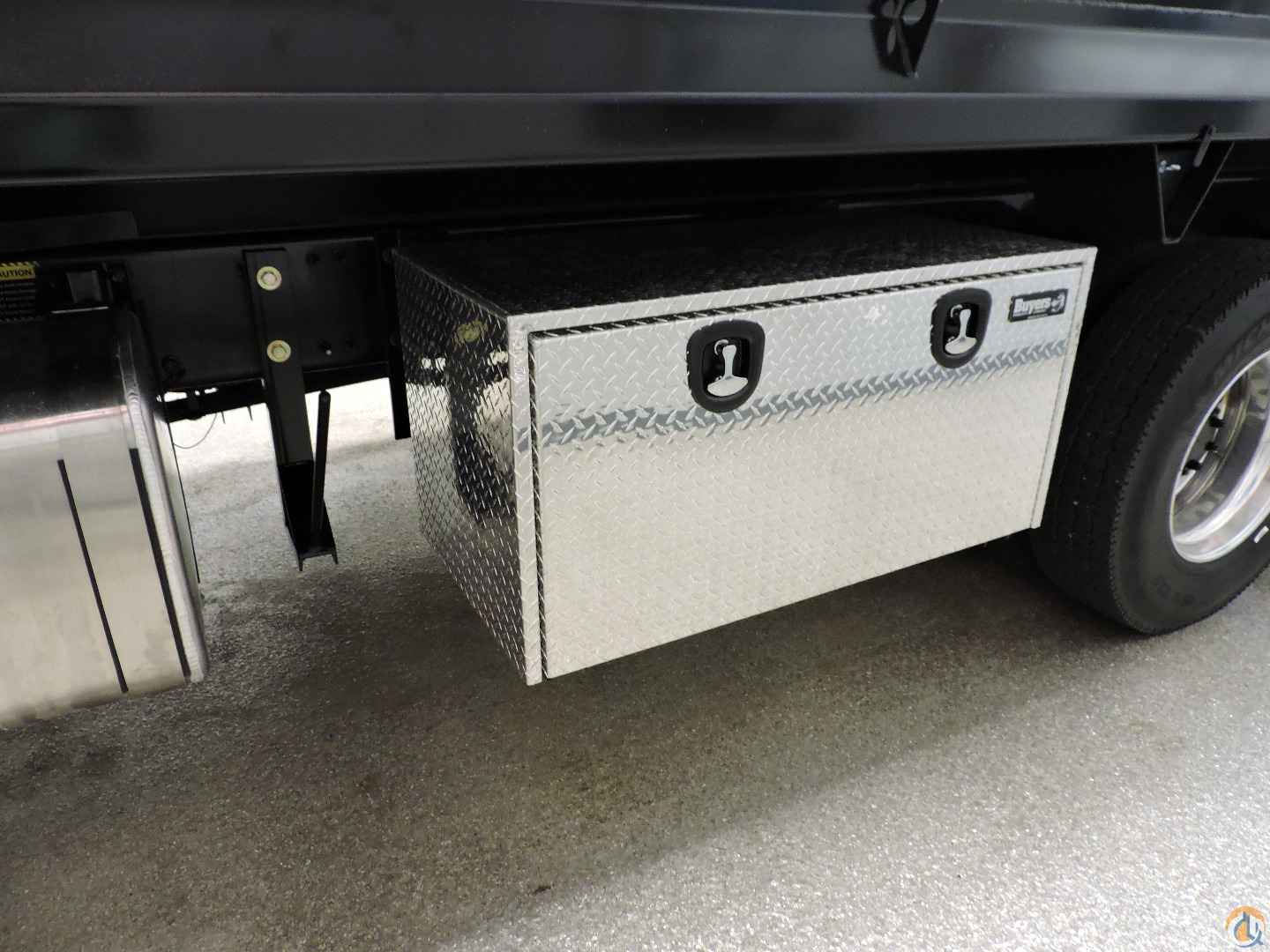

loader and body - One (1) 48” x 24” x 24” aluminum tool box
- Tire chock holders with four (4) rubber wheel chocks
- Cone holder

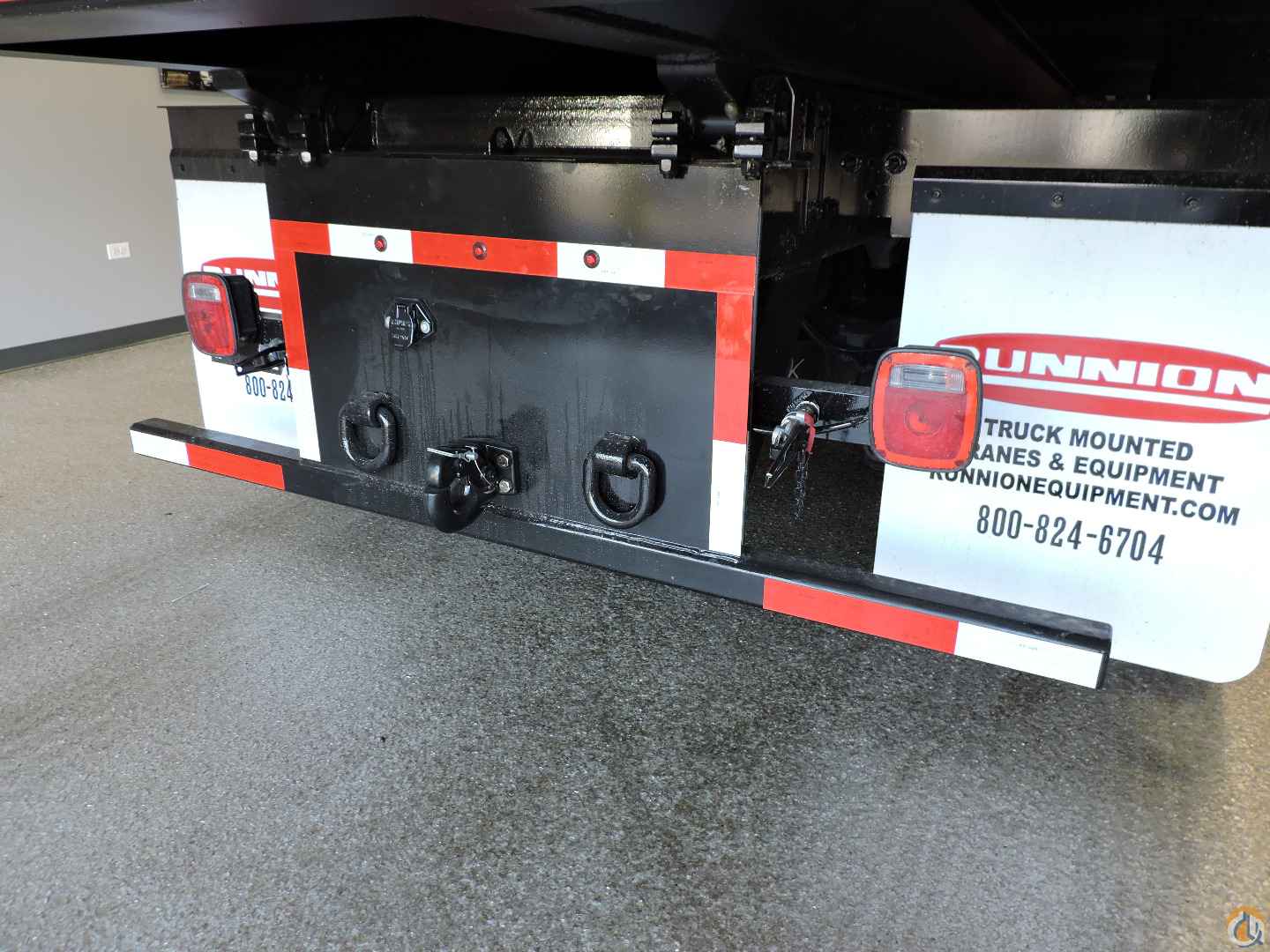

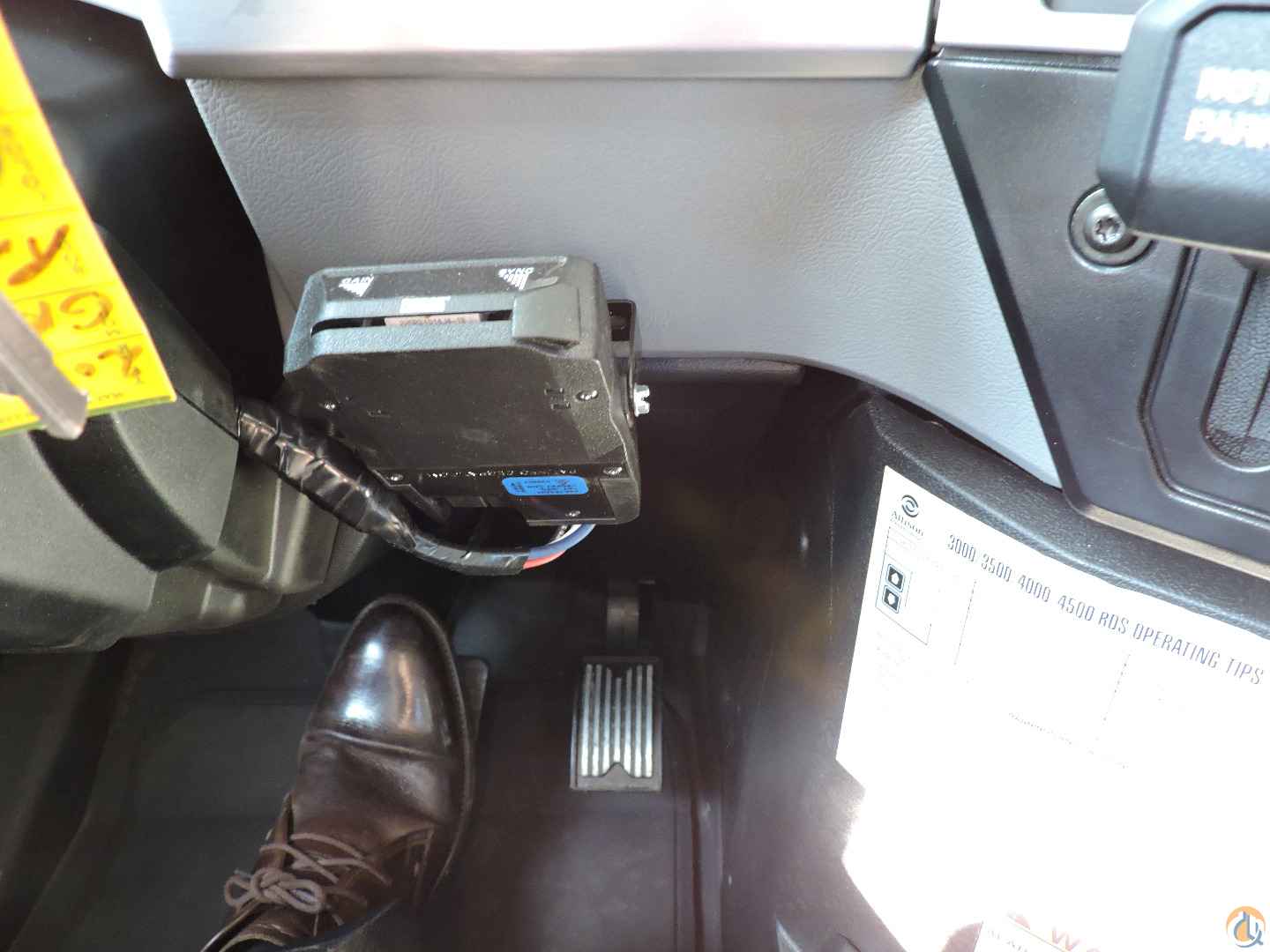

- Frame extension with 15 T pintle hitch, includes electric brake controller
- Add frame to accommodate body

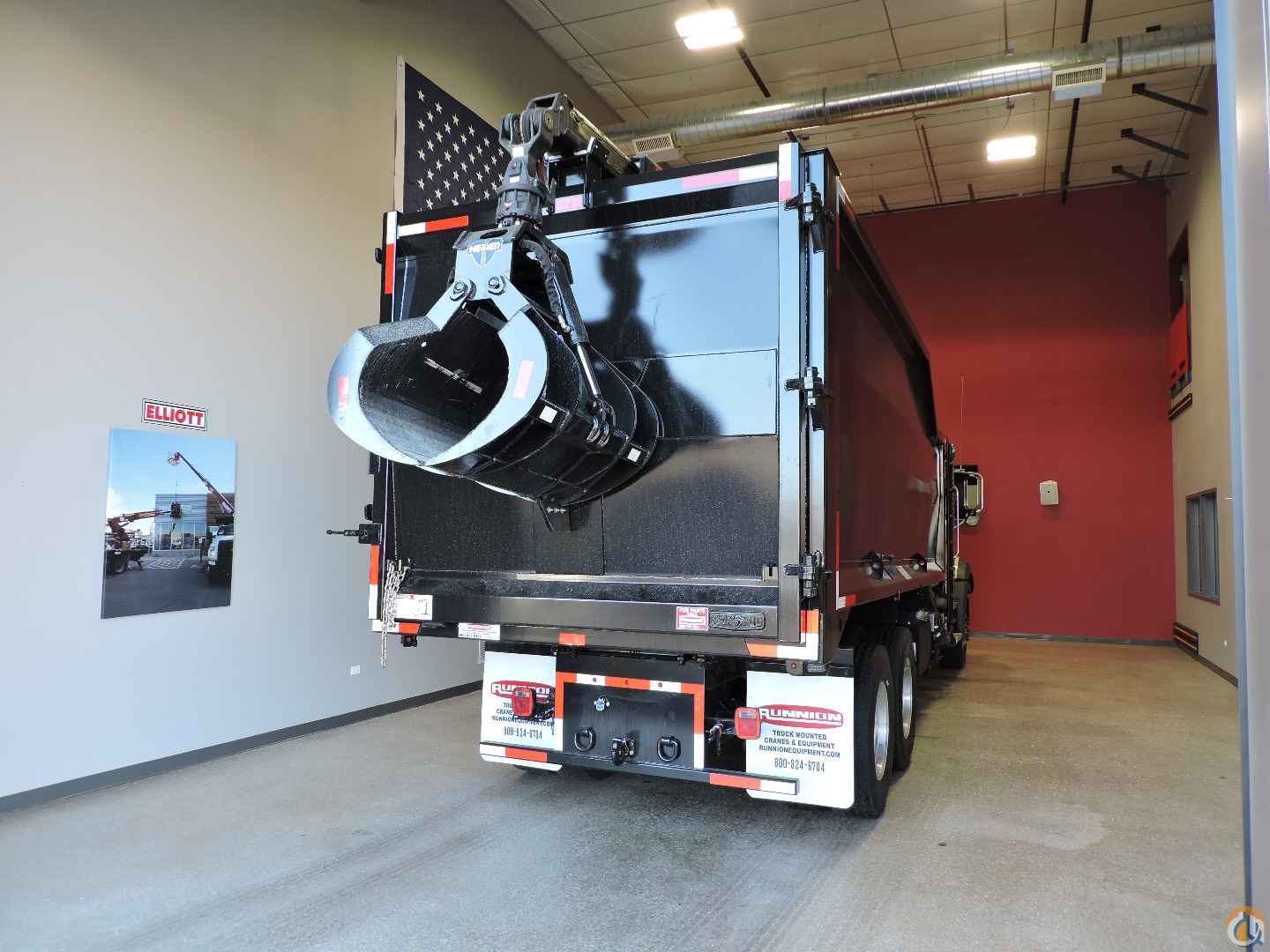

- Grapple stow – install steel boom stow bracket on top of rear door with
grapple connection stow points on back of door so grapple can be stowed
on back of rear door

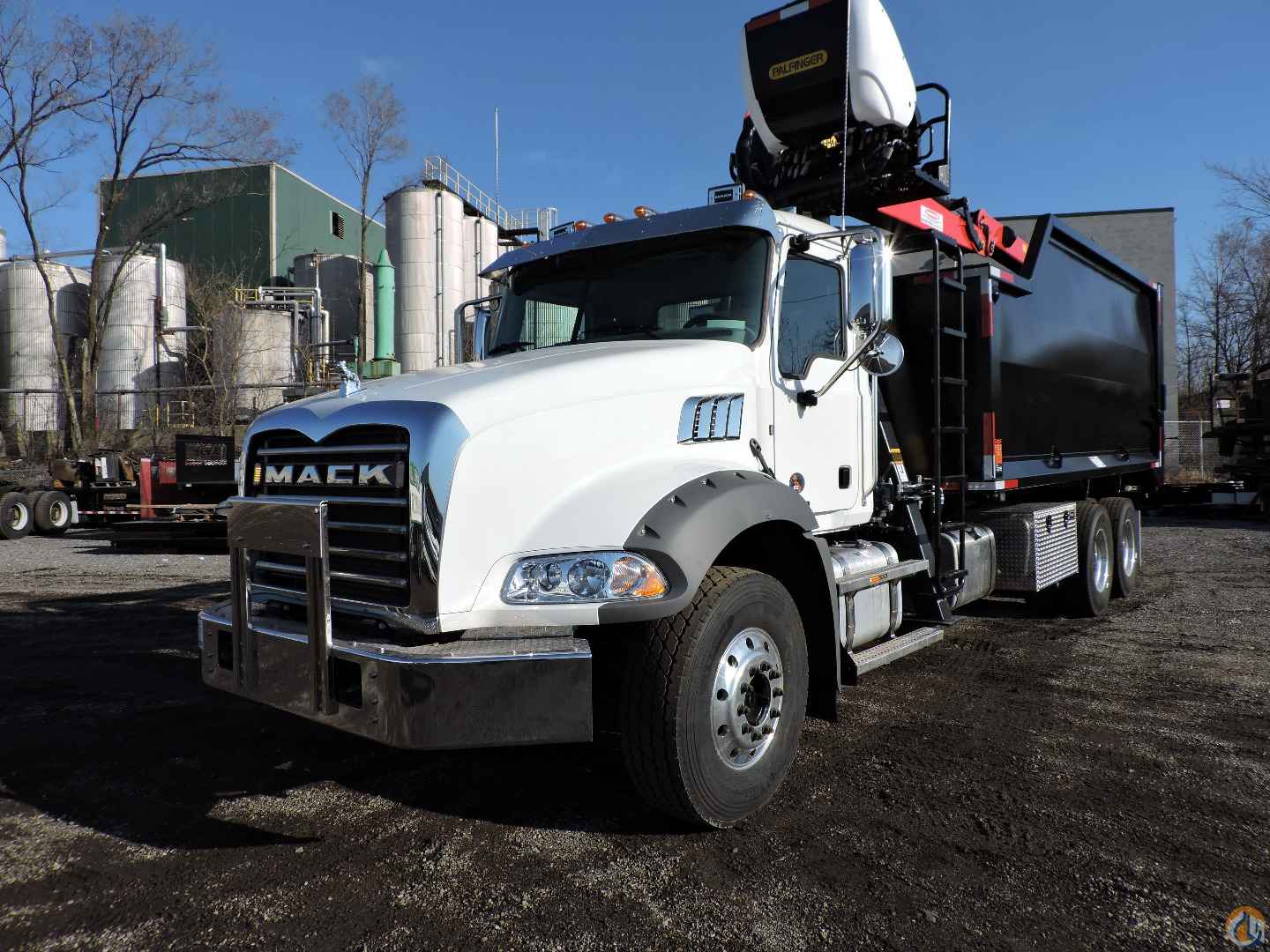

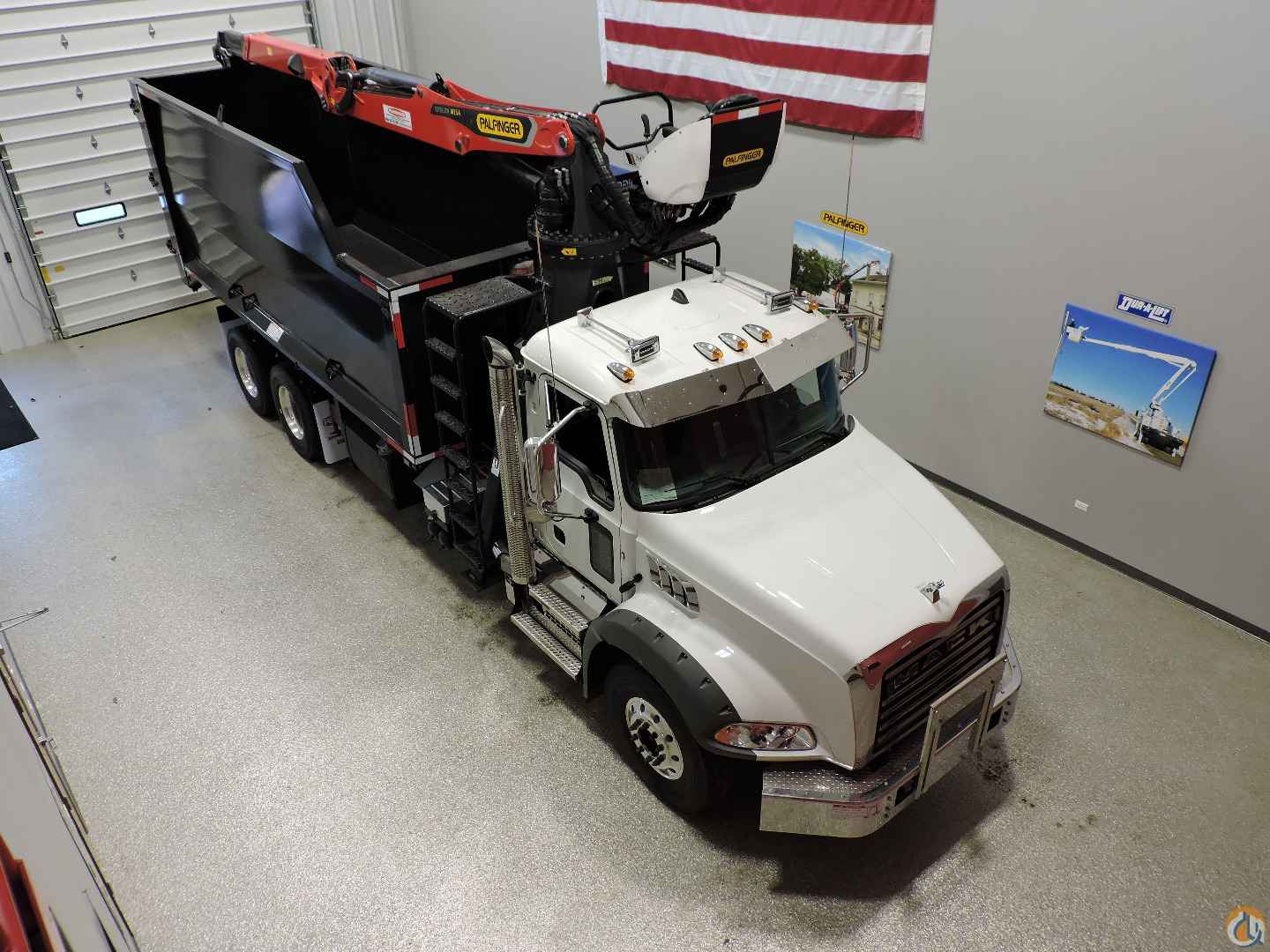

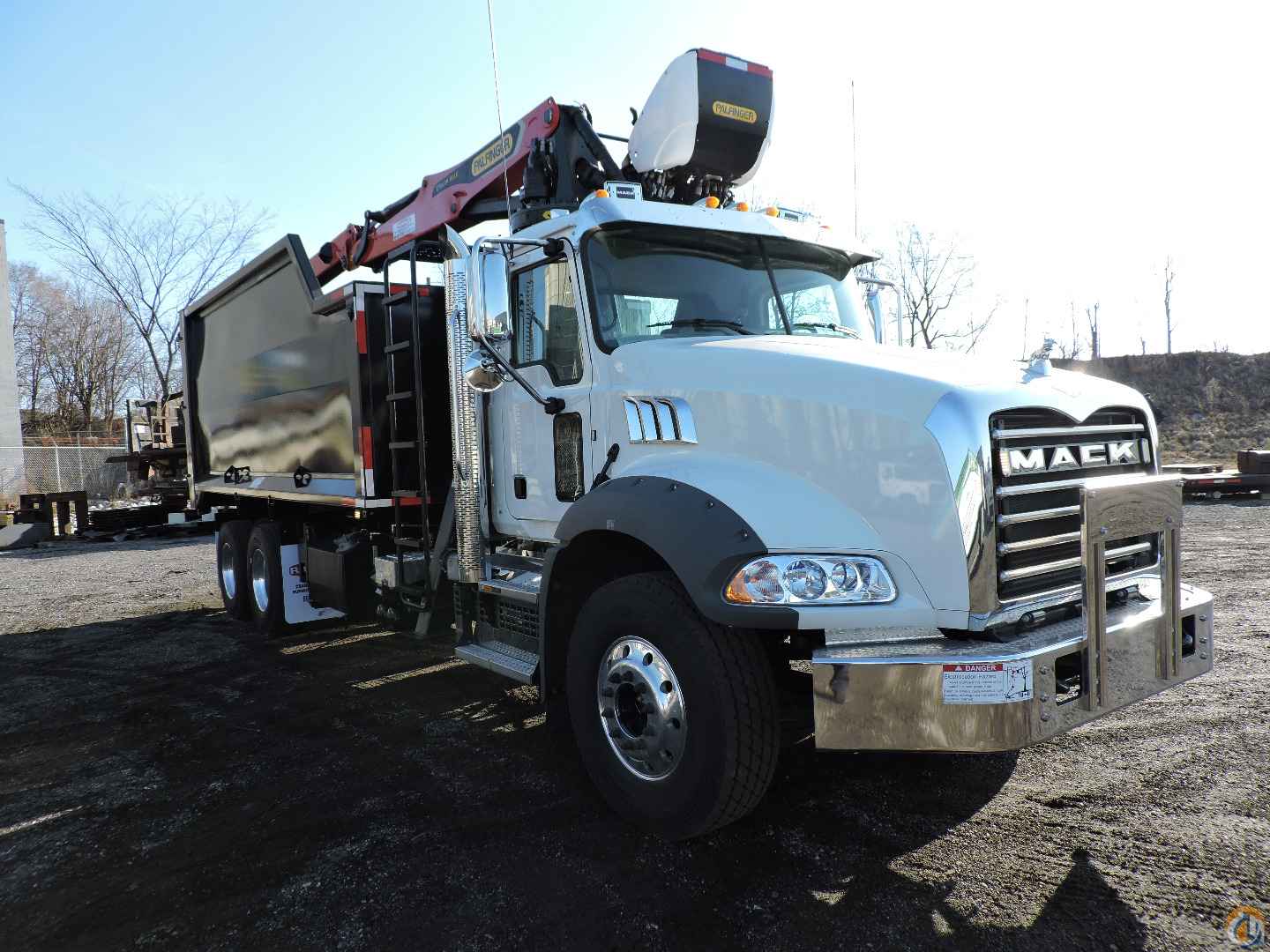

2020 Mack Granite 64BR
- 80,000# GCW
- Mack MP7-395C – 395 hp @ 1,450-1700 rpm (peak) 1,950 rpm (gov)
1560 lb-ft - 120V engine block heater
- Allison 4500 RDS 6-speed automatic rugged duty transmission
- Front axle – 20,000# with taperleaf spring suspension
- Rear tandem axle – 46,000# with multileaf Camelback suspension
- 4.19 axle ratio
- Front tires – 315/80R22.5
- Front wheels – 22.5x9.00 Alcoa aluminum
- Swept back front bumper – steel with bright finish

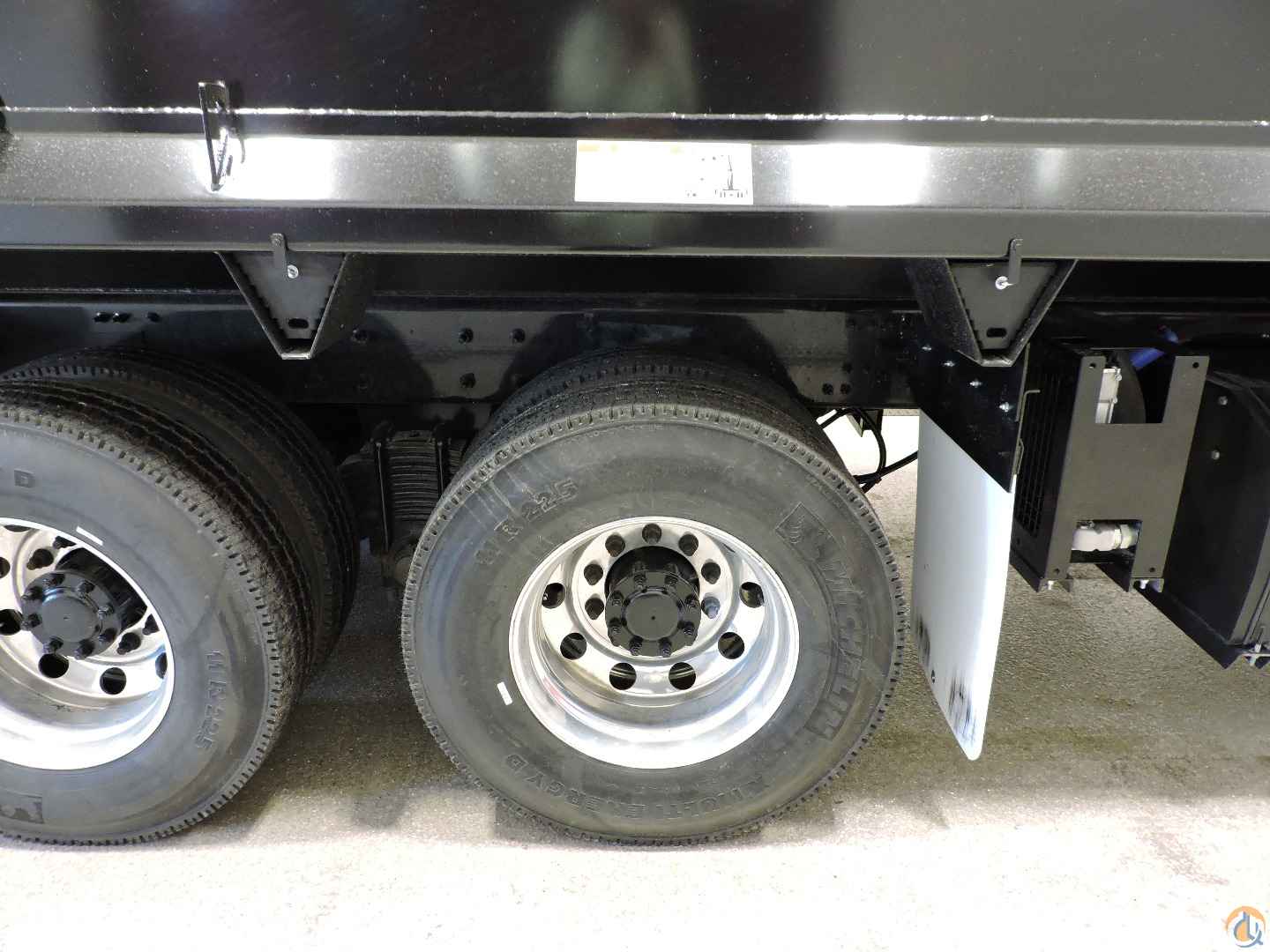

- Rear tires – 11R22.5
- Rear wheels – 22.5x8.25 Alcoa aluminum
- Delco 12V 135A alternator
- Bendix heated air dryer
- Trailer package
- 7-way socket connected to end of frame
- 90-gallon aluminum fuel tank
- 54-gallon aluminum fuel tank

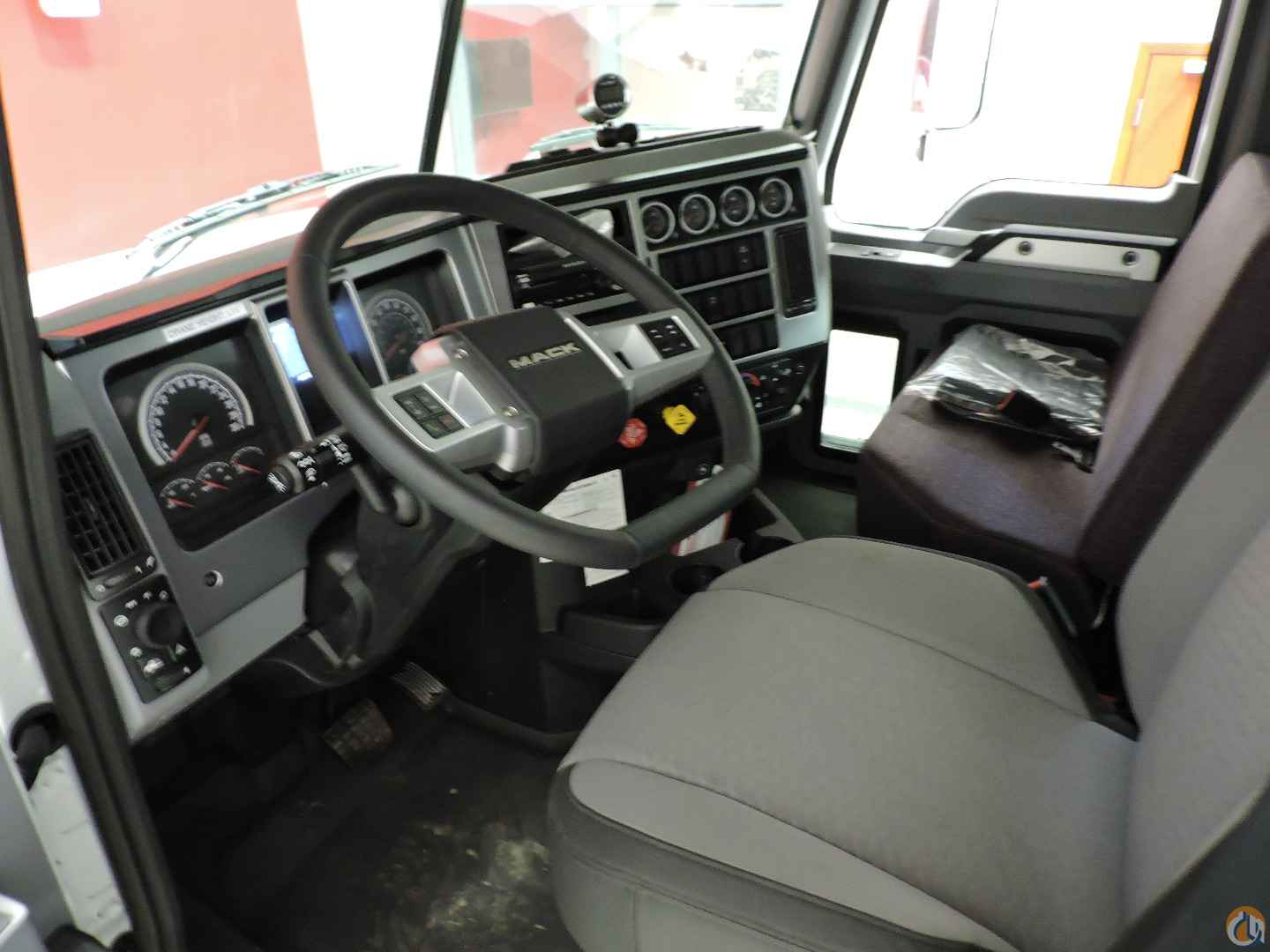

- Driver seat – Air ride, high back with air lumbar support – vinyl/cloth mix
- Passenger seat – fixed, high back with storage box – vinyl/cloth mix
- Exterior stainless-steel sunvisor
- Motorized, heated, chrome shell mirrors with bright finish
- 8” heated convex mirrors
- Power windows and doors
- Backup alarm
- Painted glacier white

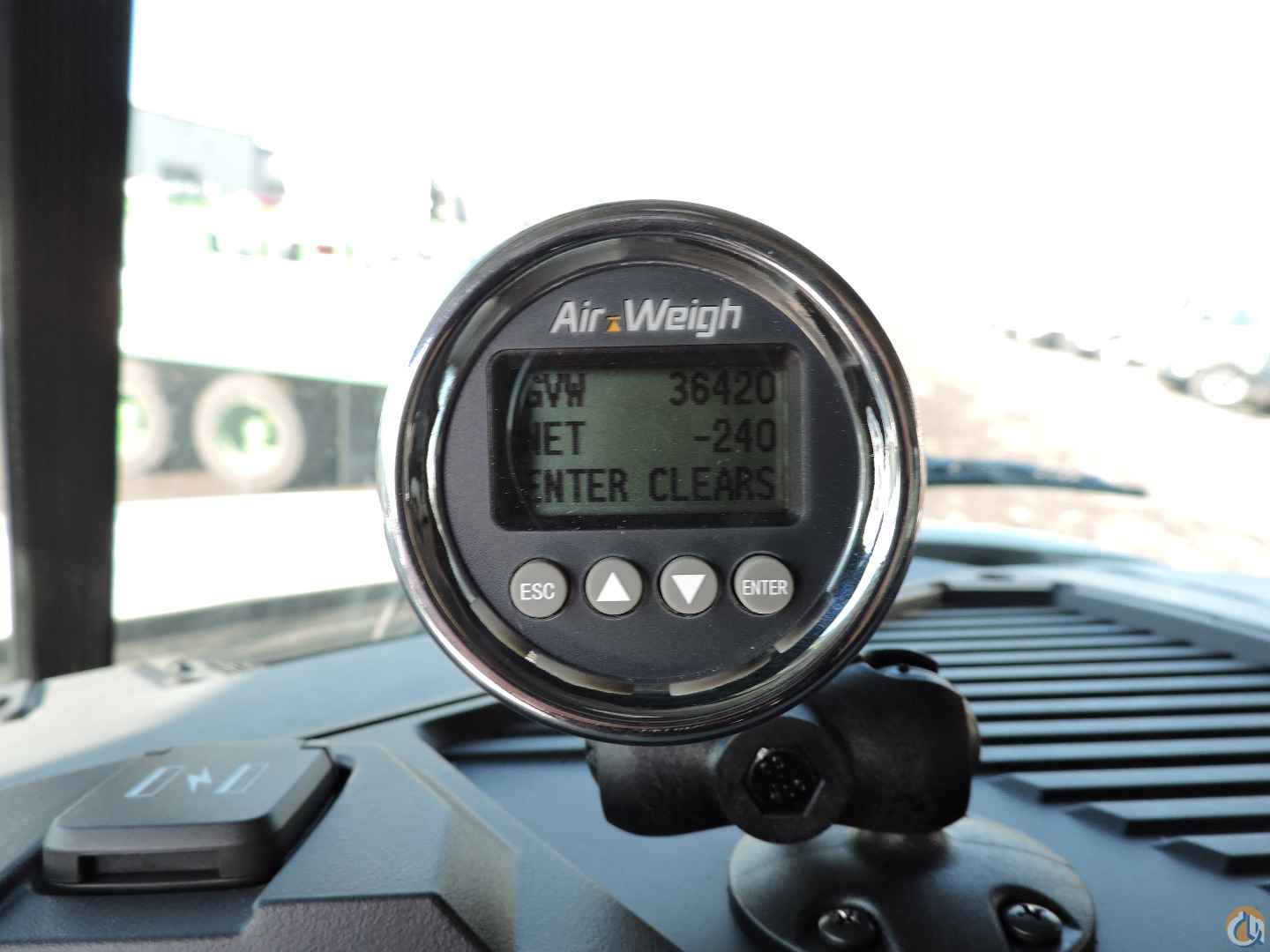

- Air Weigh scale
