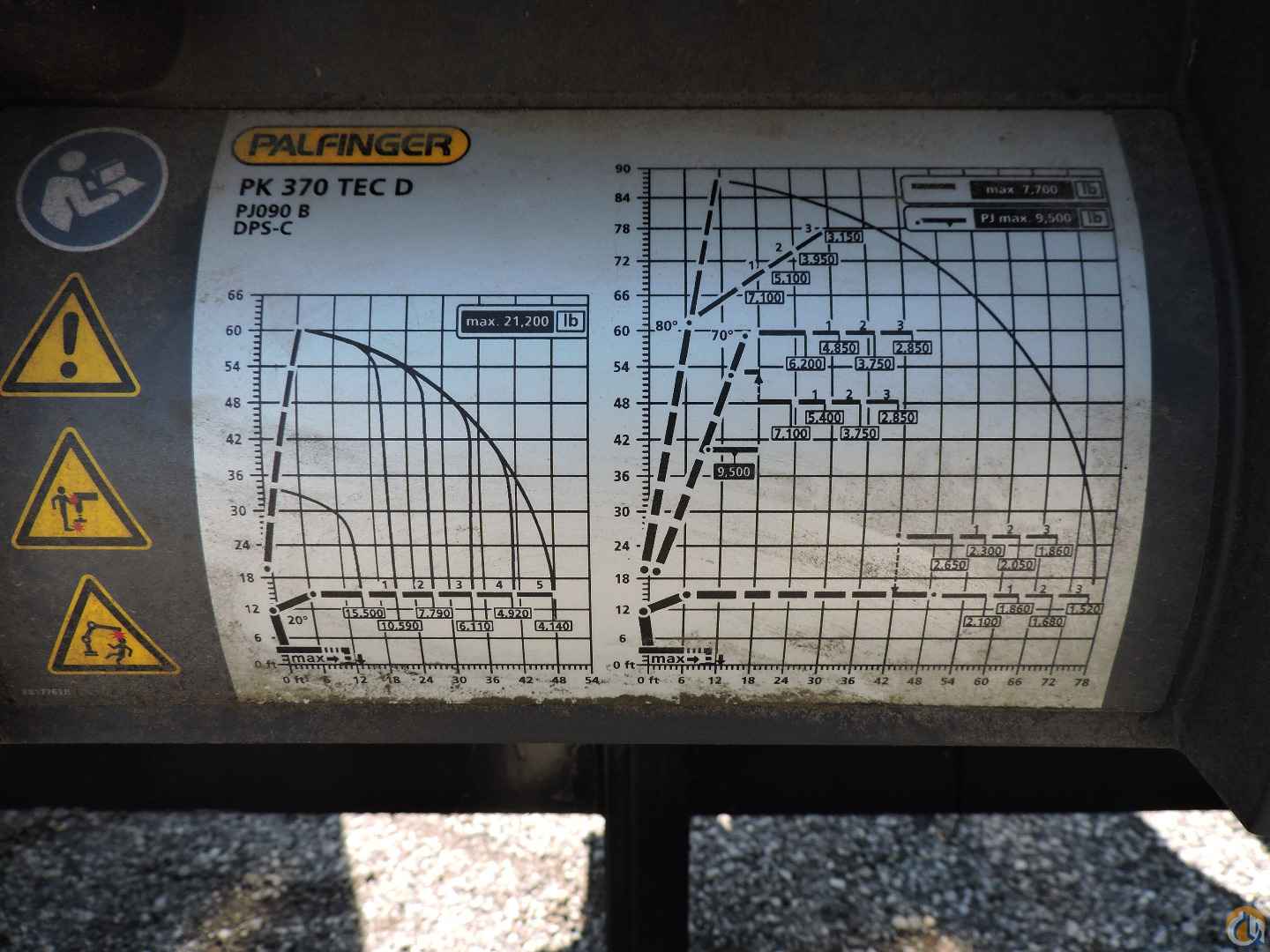

Palfinger PK370 TEC equipped as follows:

- Maximum lifting moment 35.0 mt (253,180 ft/lb)

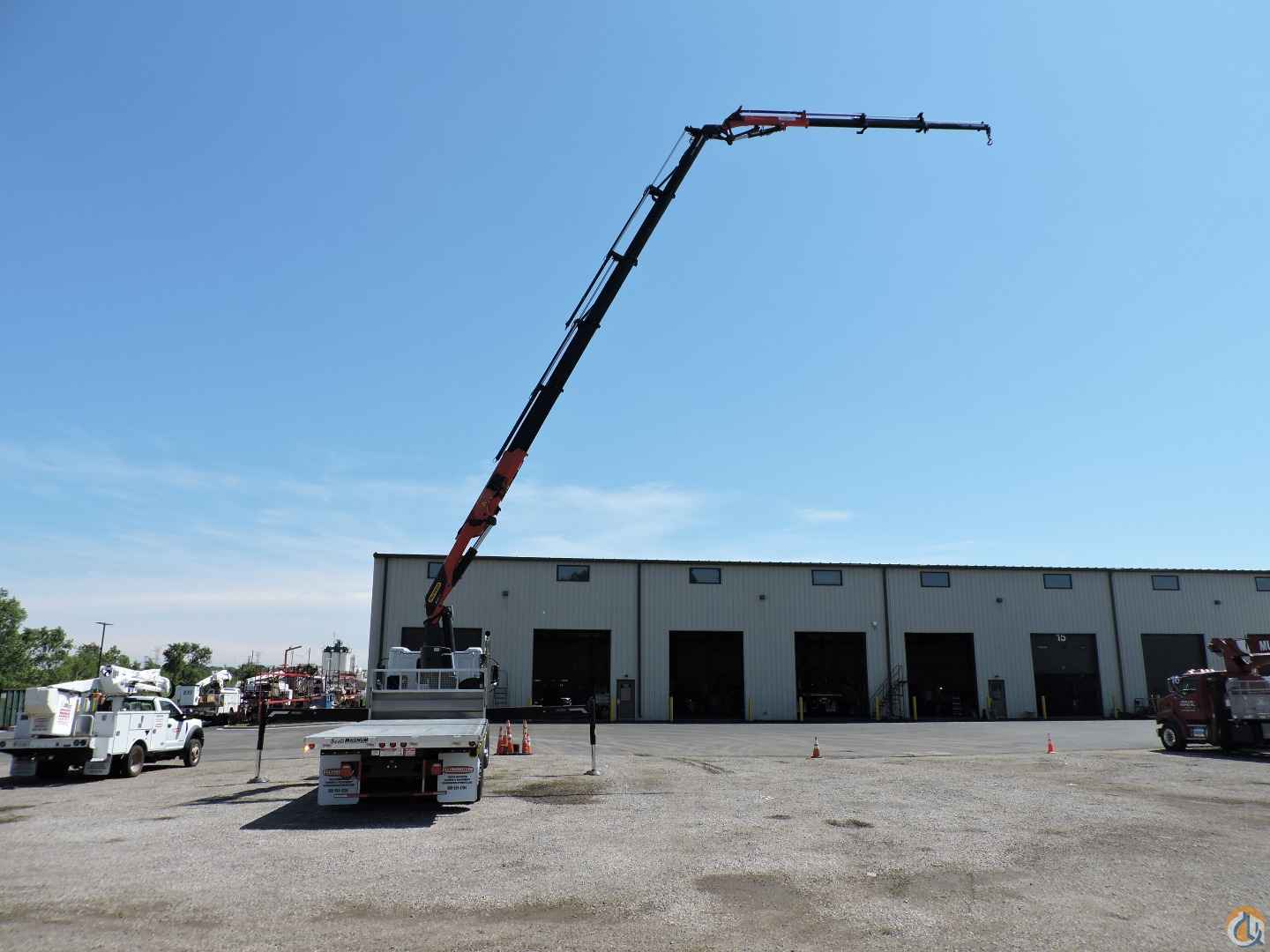

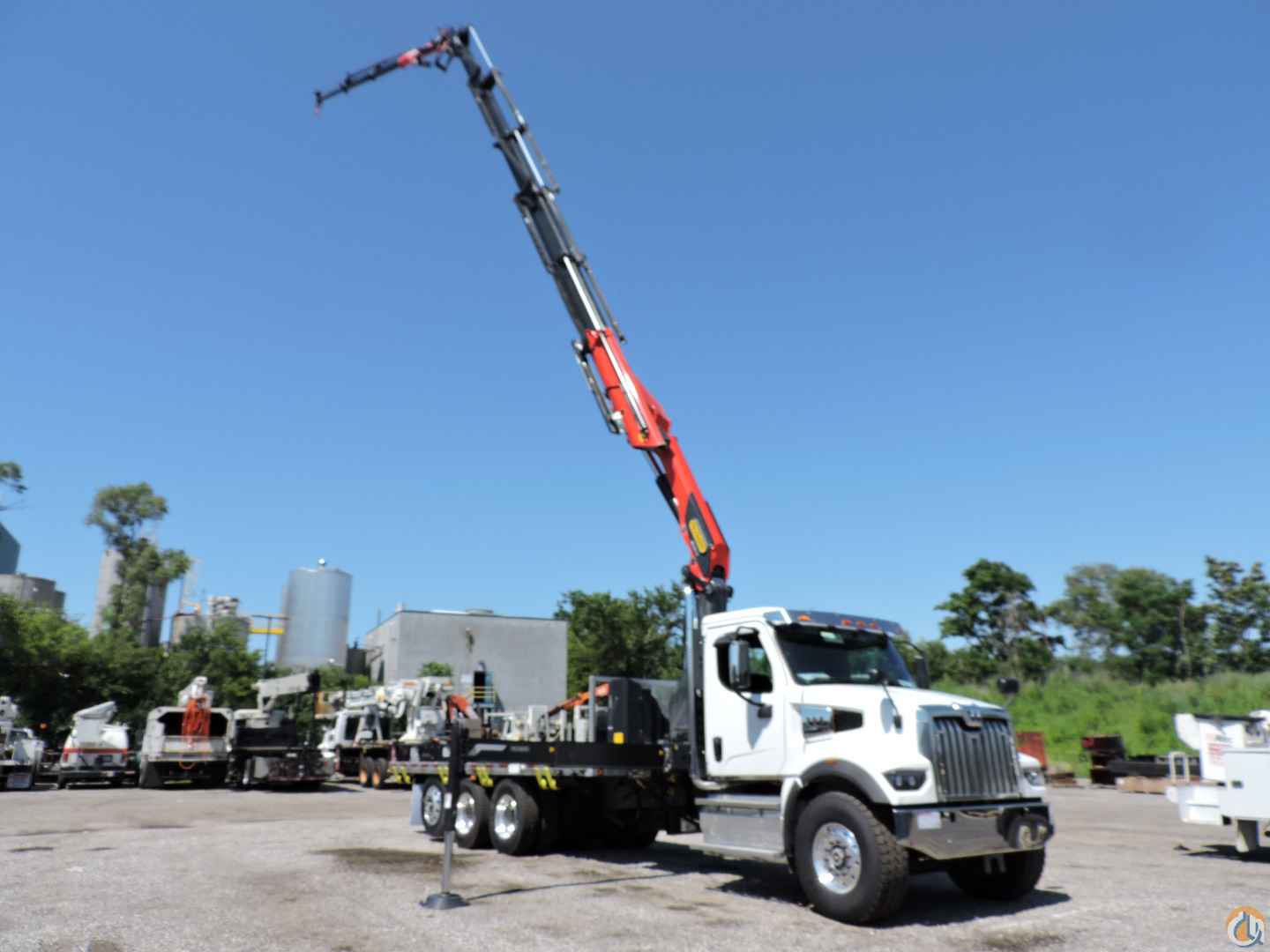

- 5-section hydraulic boom extension to 48’3”

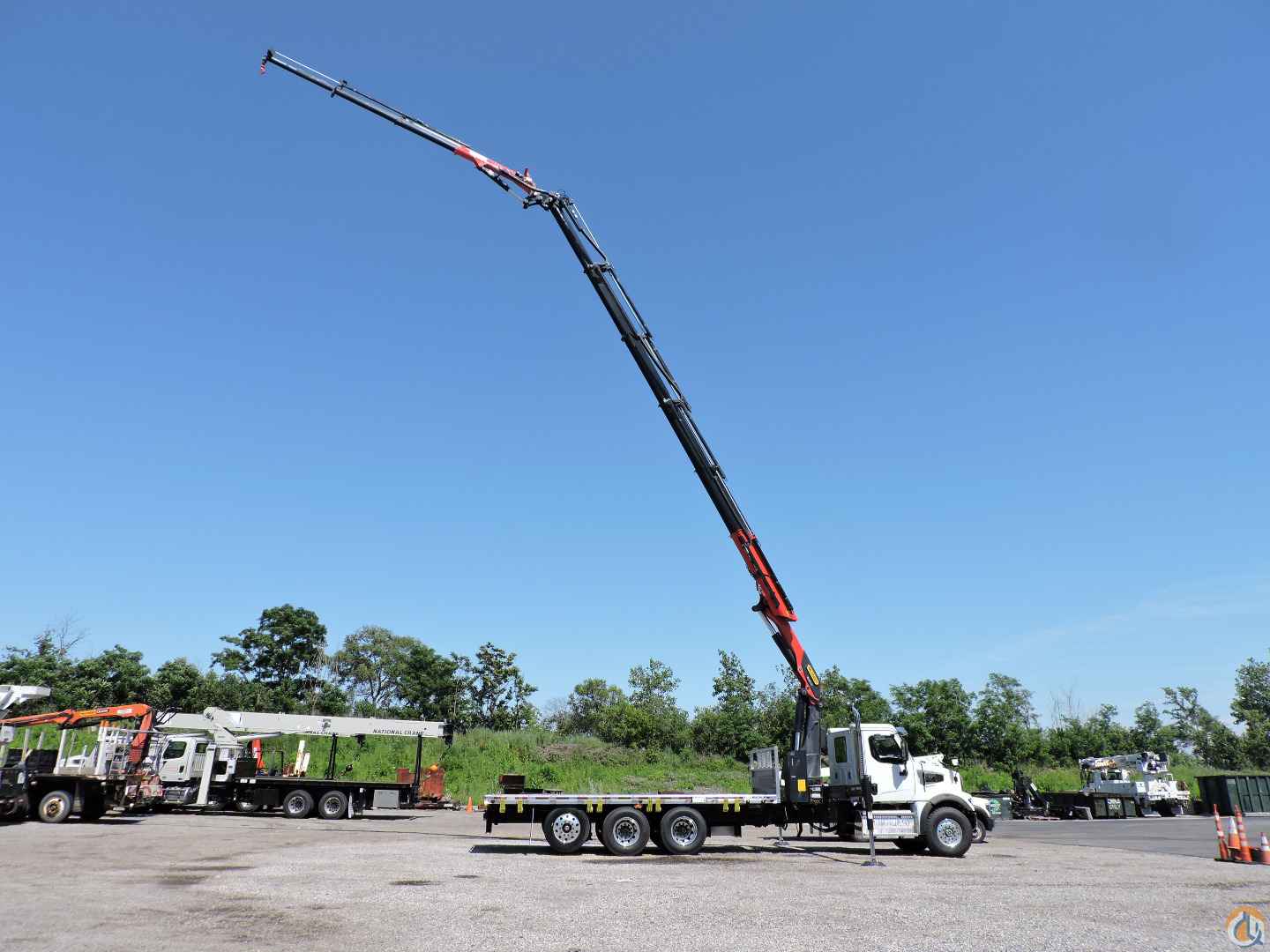

- PJ090B articulated fly-jib with 3 hydraulic extensions to 76’0”

- Crane and fly-jib boom extension monitoring – length measuring sensor on the cranes extension system to detect the position of the boom system.

- R4XH telescopic outriggers hydraulically extendable to 24’3”

- Two (2) PVC stabilizer shoes 19 3/4” diameter. Slides onto stabilizer plate, with rope handle and storage bracket, installed.

- Paltronic 180 overload protection system

- Acoustic and Optical Overload Warning

- Double linkage with 15 degree Power Link Plus

- Continuous rotation

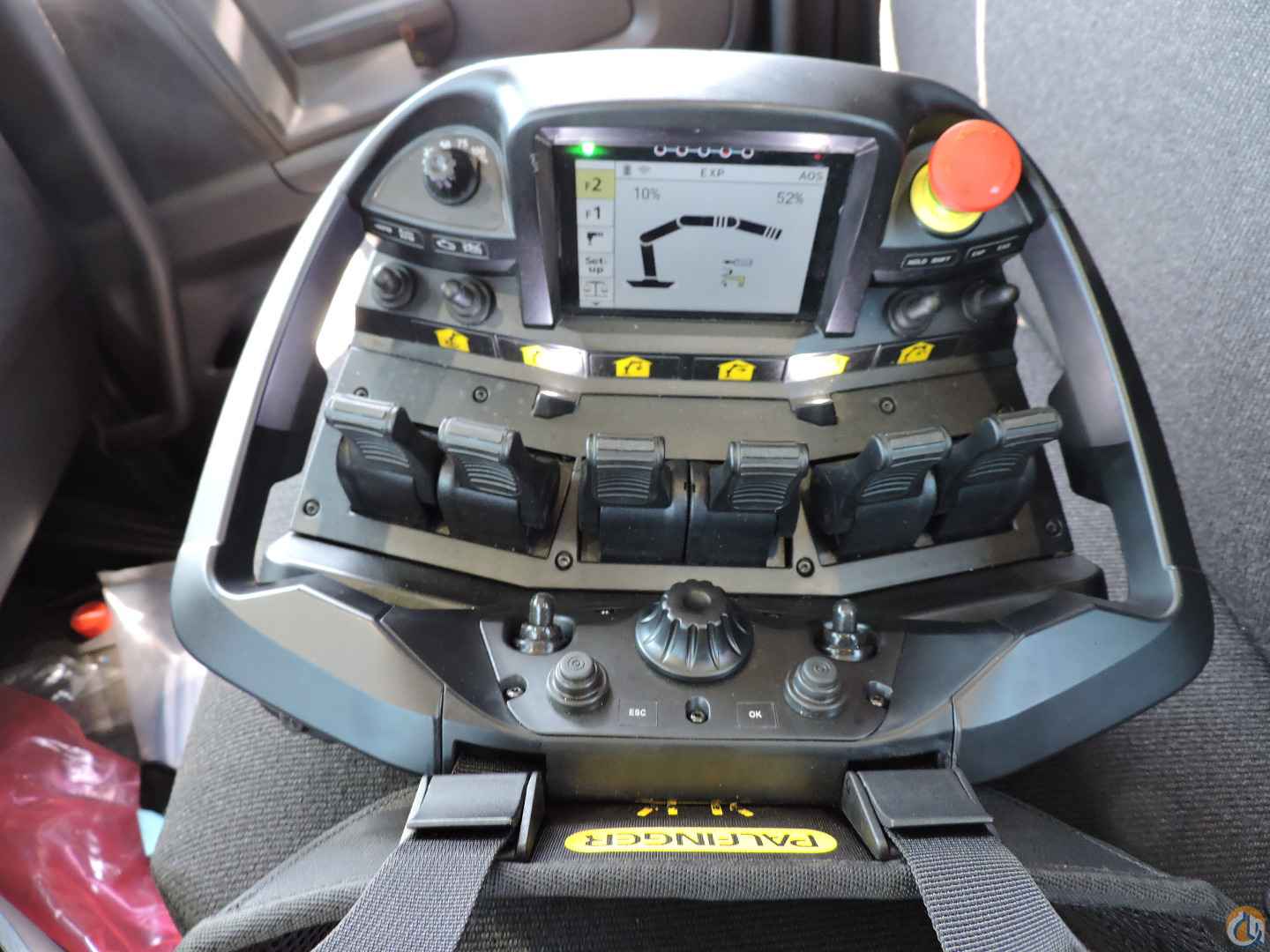

- PALcom P7 radio remote control with 4.1" TFT color display. Linear lever control, LED function lighting, Intelligent charging station, Waist Belt (BELT01), Rollover and acceleration sensor. Transmitter, receiver, 10 m (32'9") remote control cable back-up, battery charger, 2 batteries. Additional functions: Acceleration +/- and engine start/stop, 1 panel for 3 spare functions

- P-Fold Assistance System – Assists the operator in unfolding and folding the crane

- Load Weight Display – displays the weight of the load directly from the crane display

- Boom Extension Monitoring - Length Measuring sensor on the crane and Fly-jib extension systems to detect the position of the boom system.

- Active Oscillation Suppression System – equalizes vertical oscillations caused by crane operation and sudden load changes to reduce shock loading of crane

- Bubble level at both outrigger control stations

- Load holding valves on rotation, inner, outer, and extension cylinders

- Return oil utilization

- Load sense pump

- 47.6-gallon oil tank – mounted on crane base

- 14 HP Oil cooler

- 17,640# roller bearing load hook

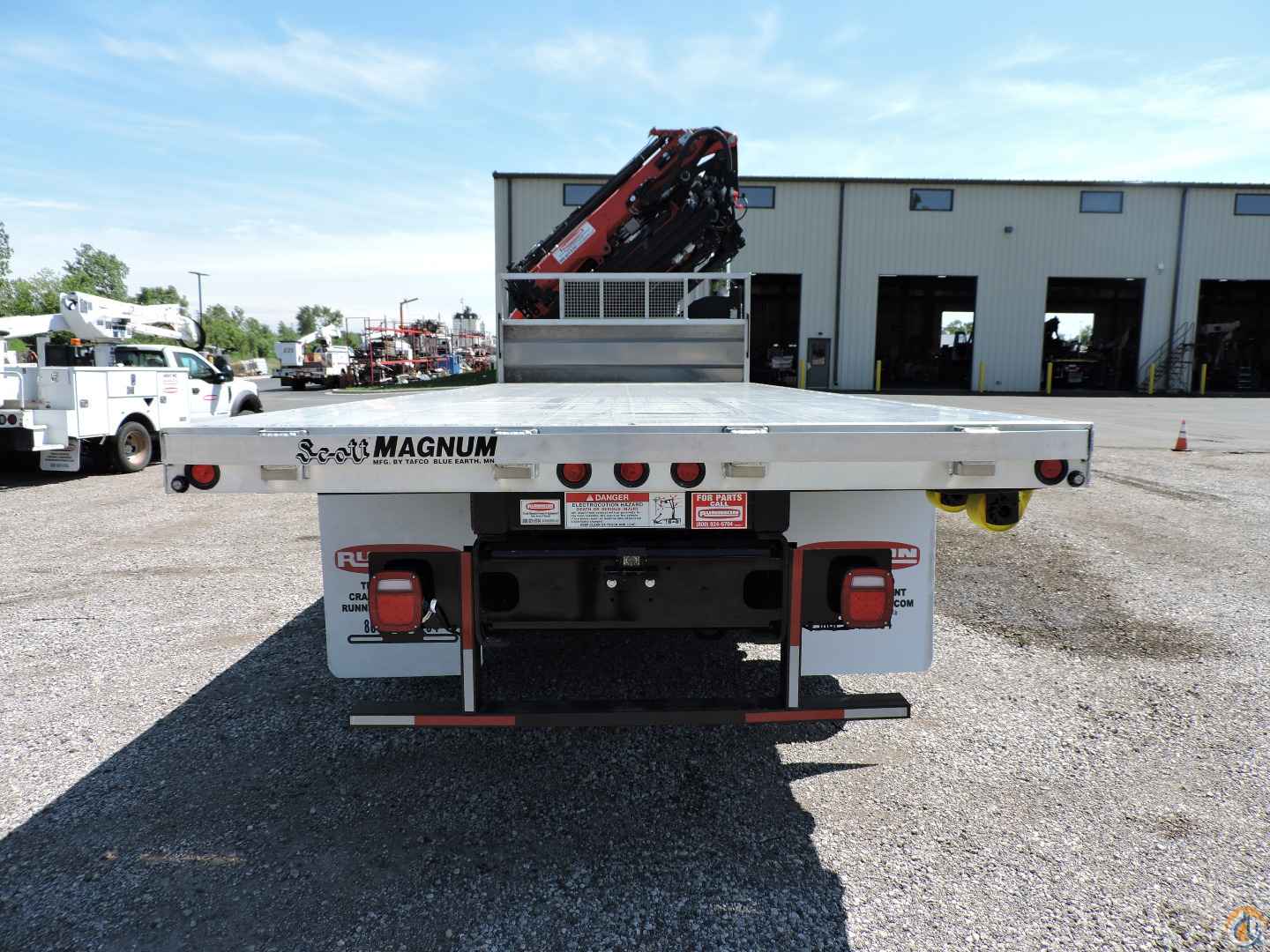

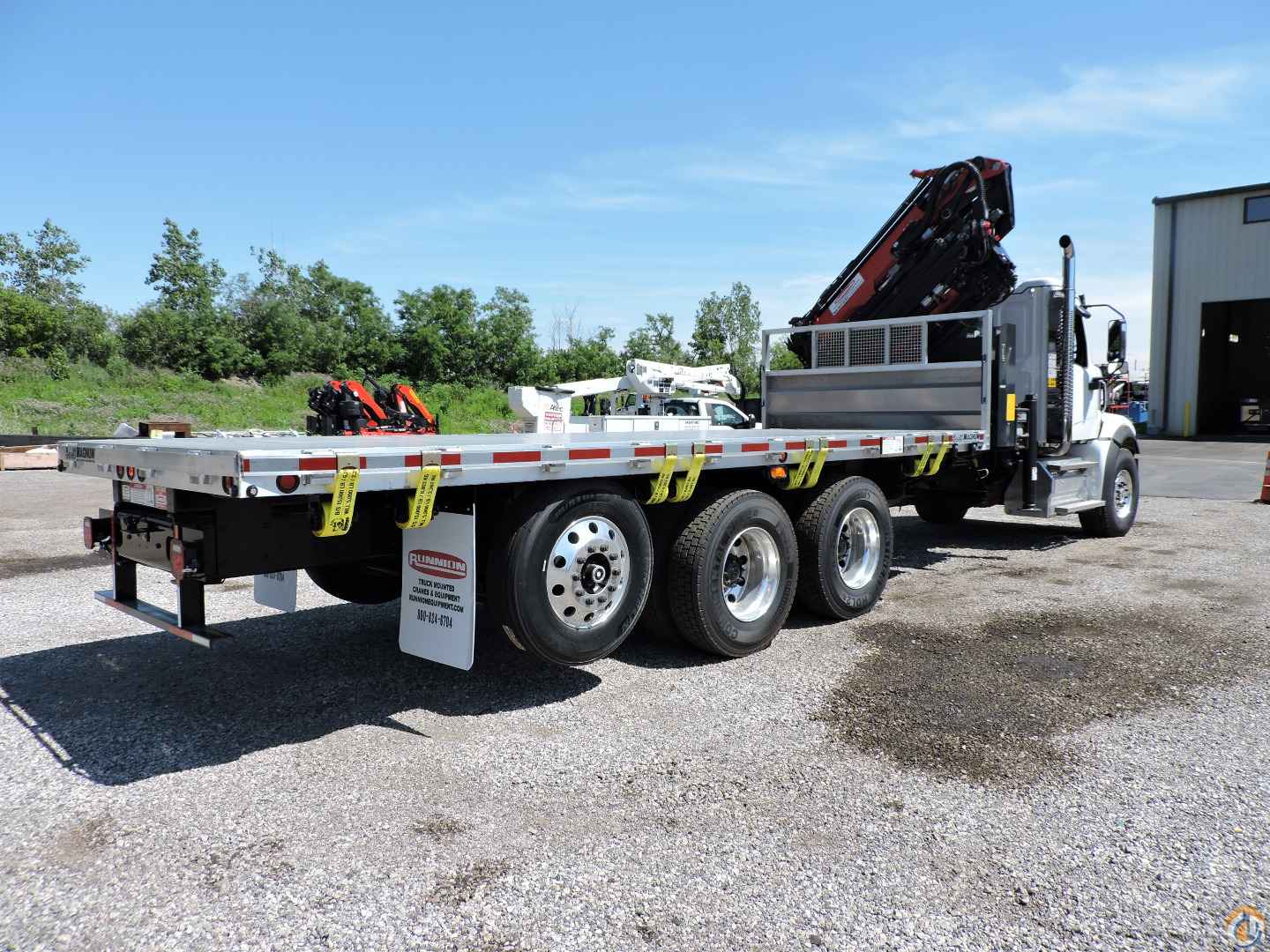

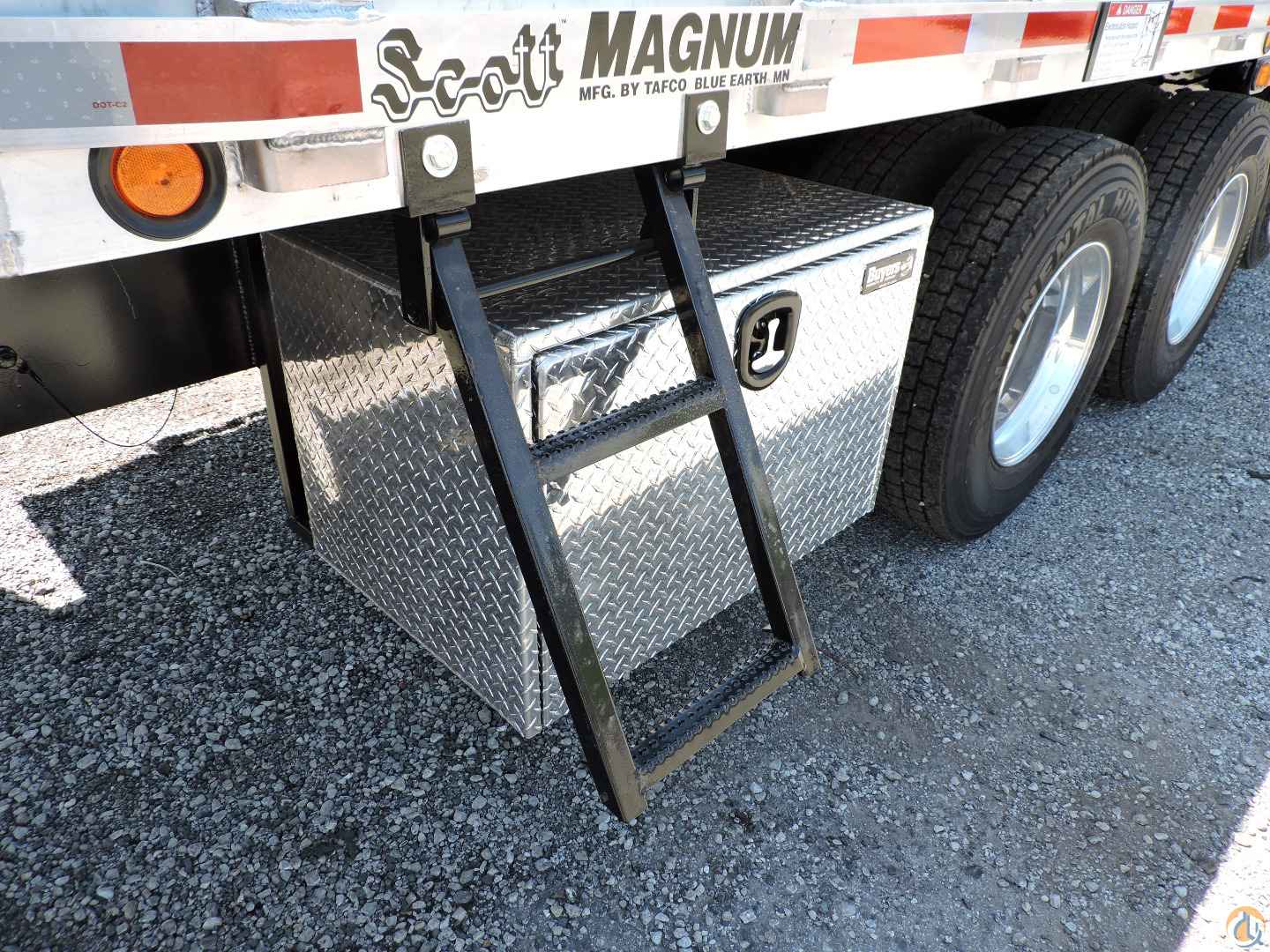

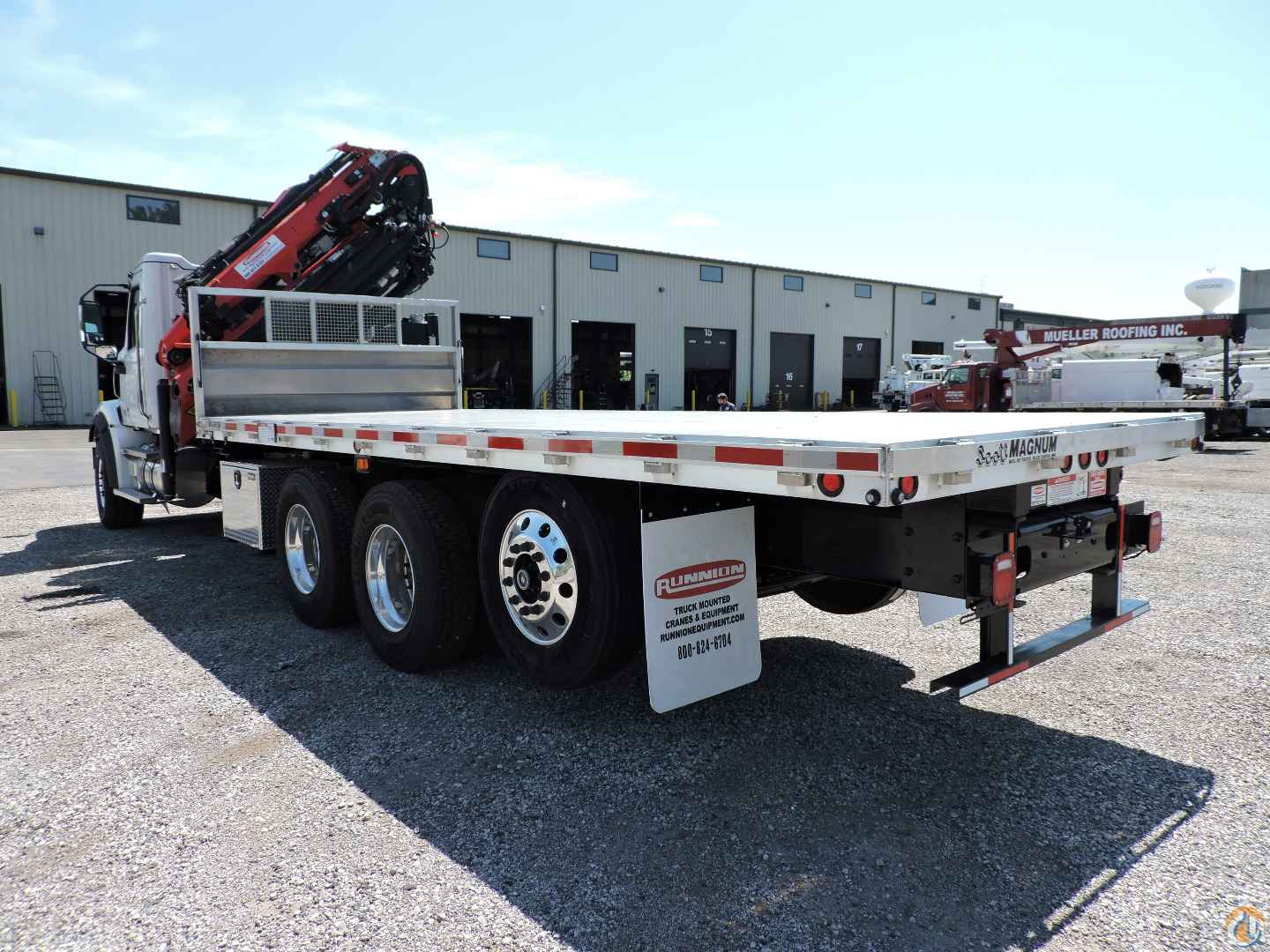

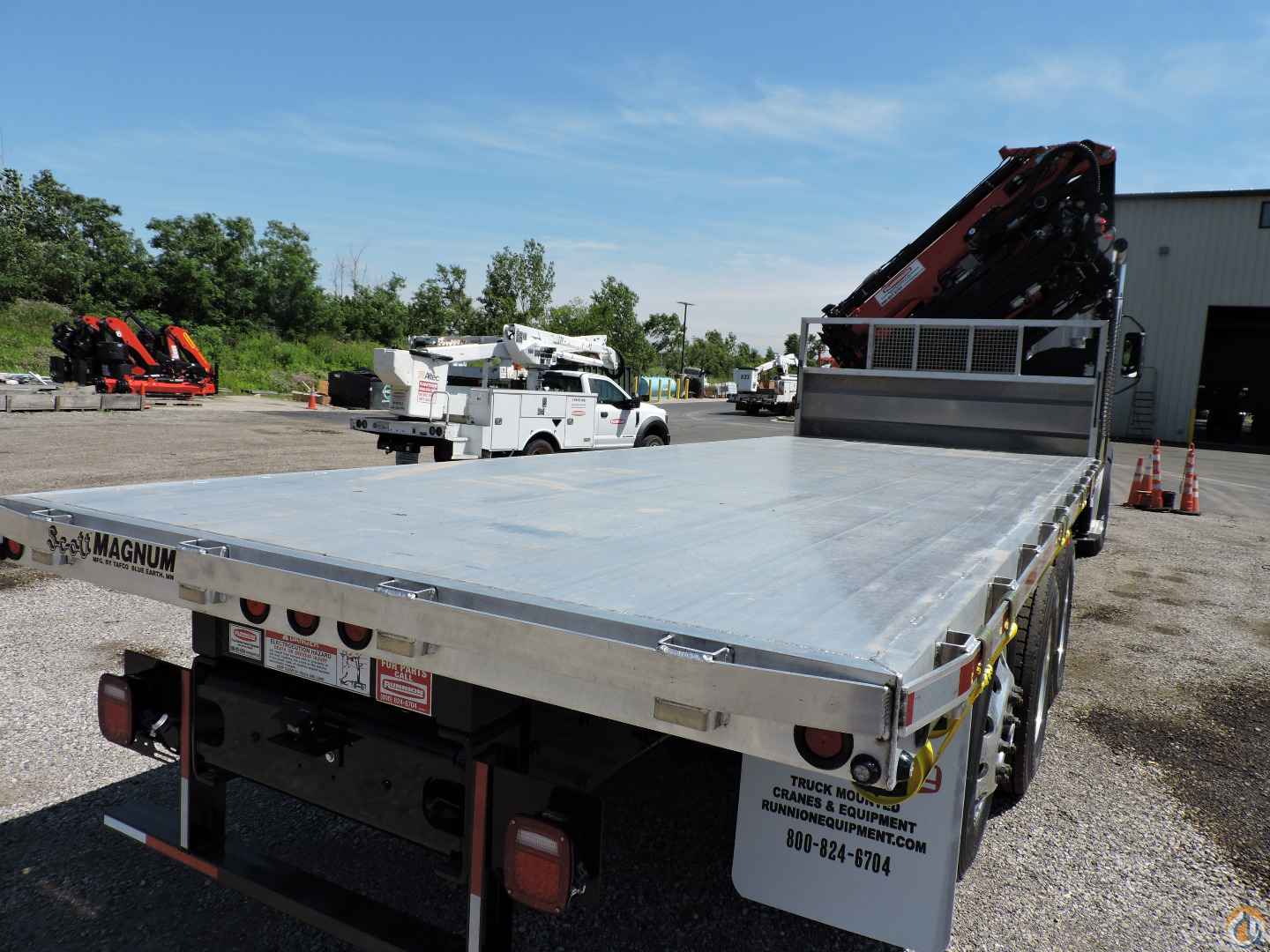

- 22’ x 102” aluminum flatbed with underside sliding winch track with seven 4” straps and hooks

- 42” bulkhead

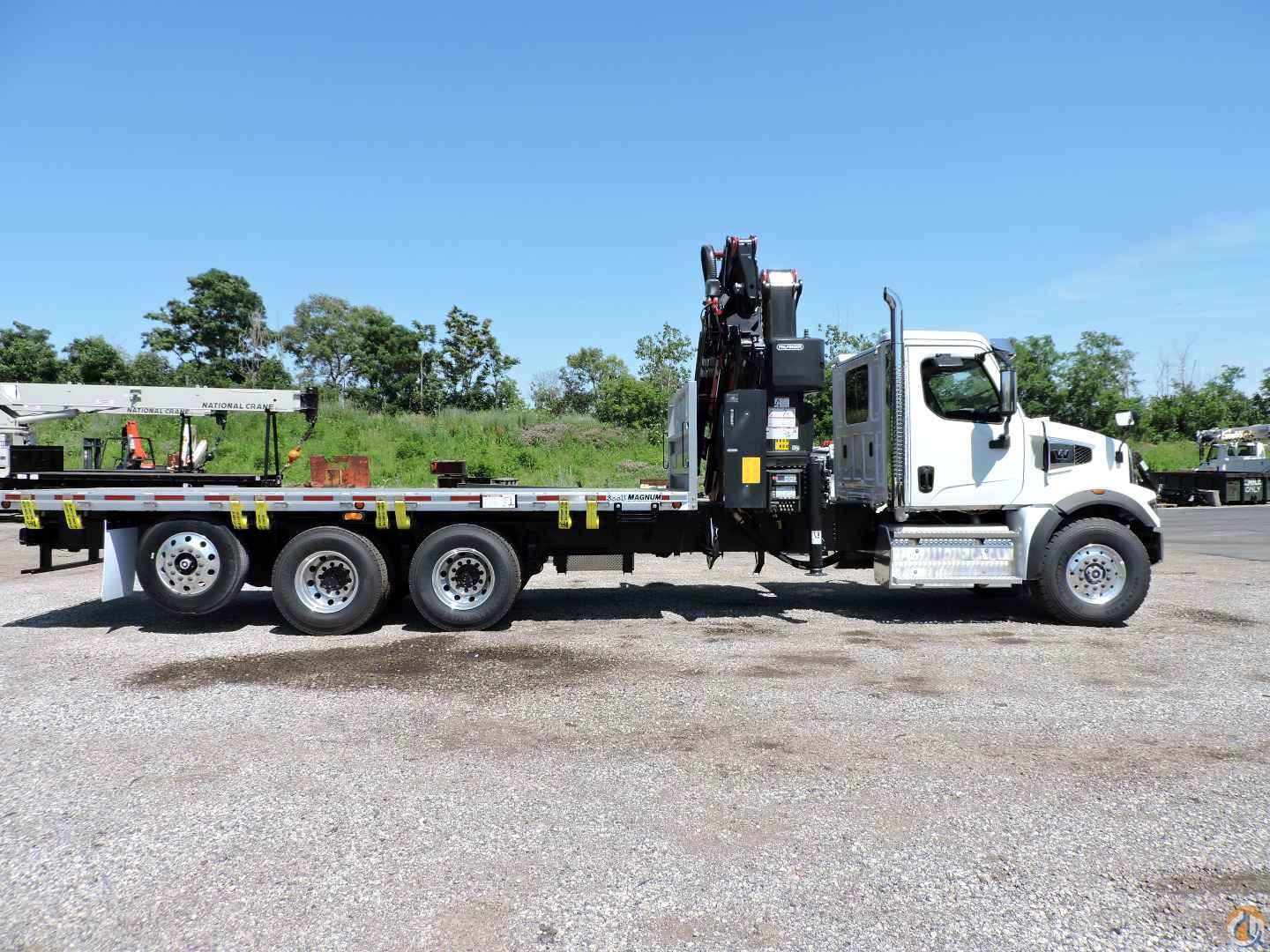

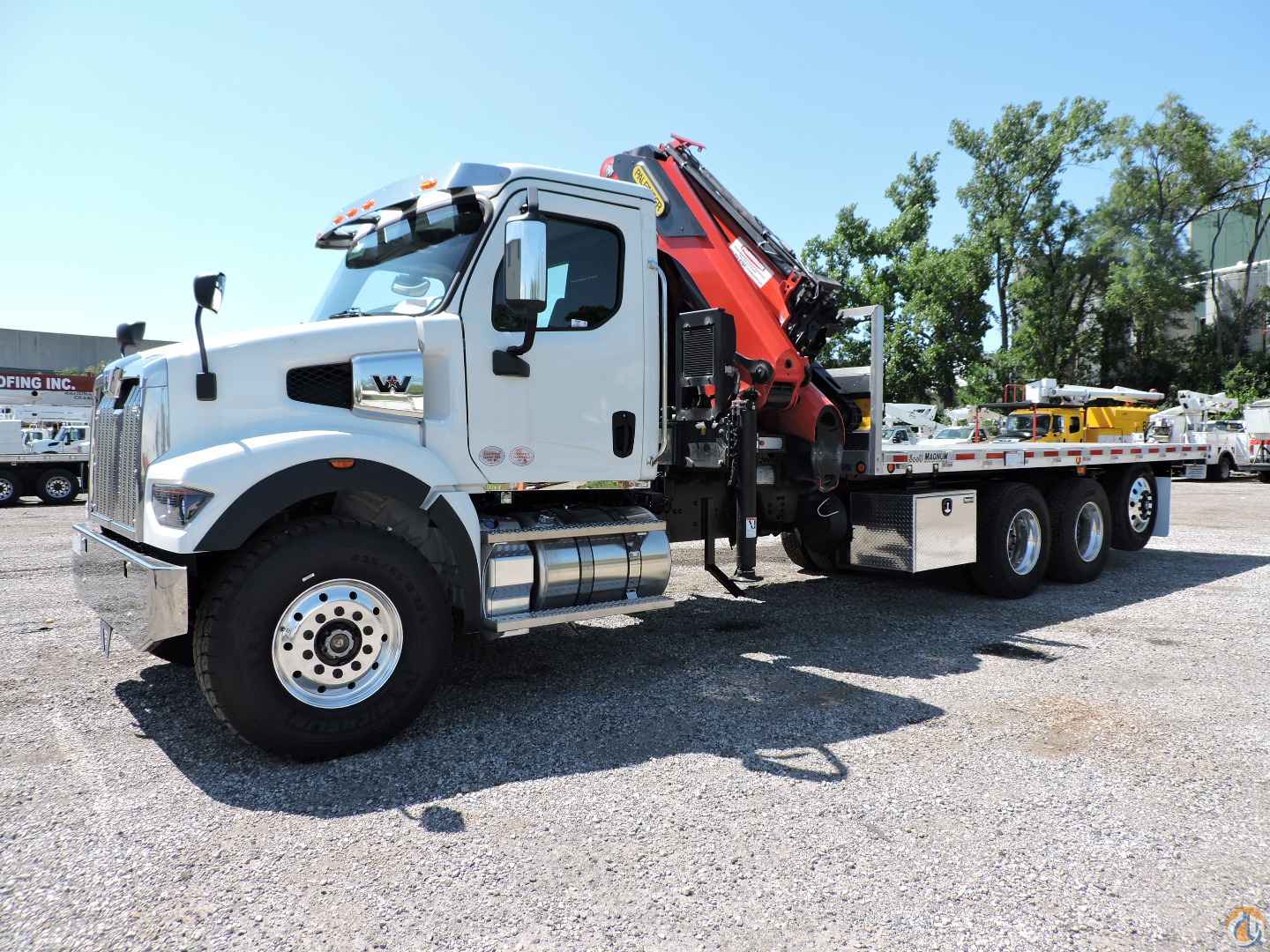

Mounted Back of Cab on:

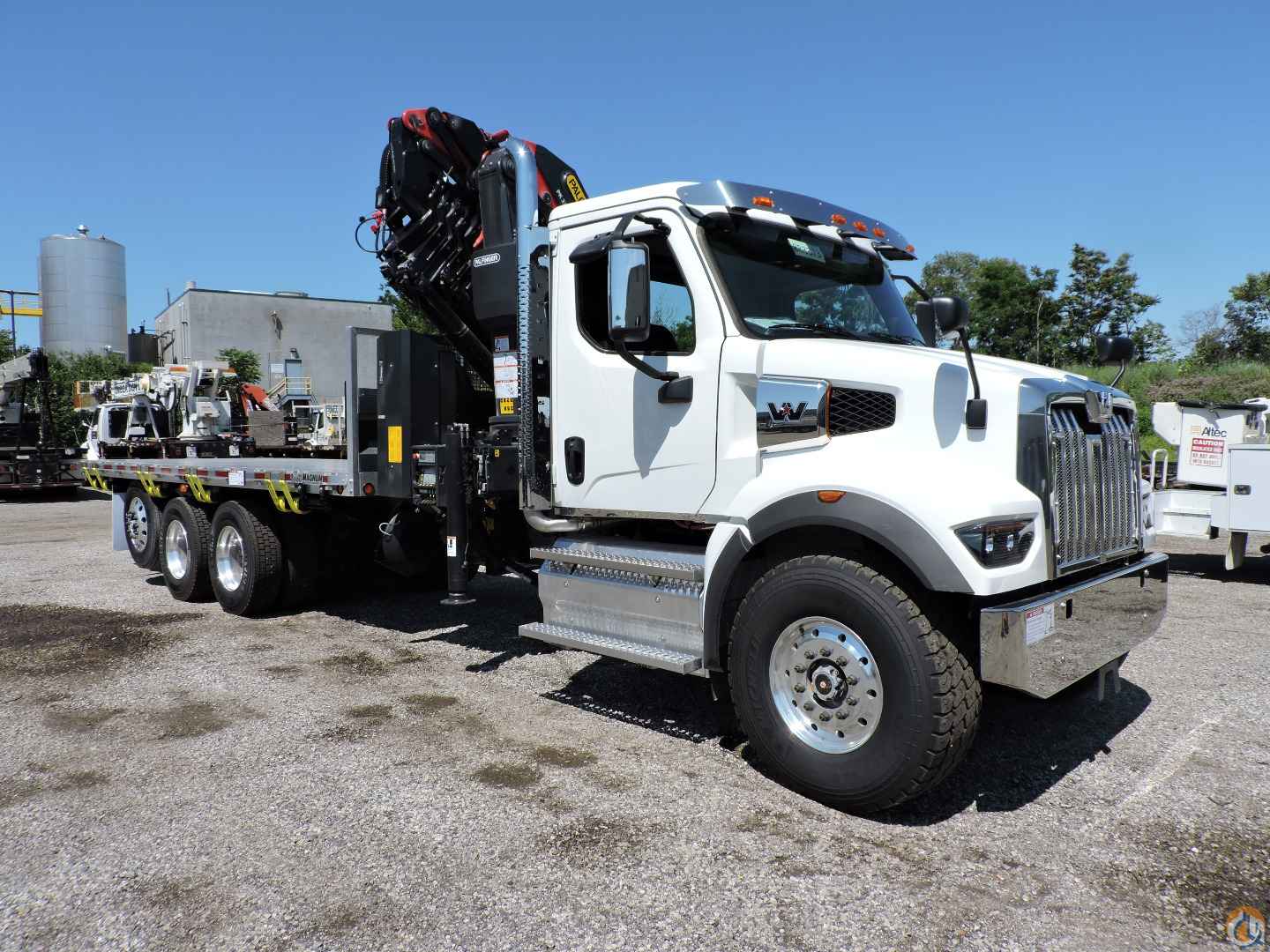

2025 Western Star 47X equipped as follows:

- Cummins X12 455V hp @ 1,900 rpm, 1,700 lb-ft @1,000 rpm

- Engine block heater

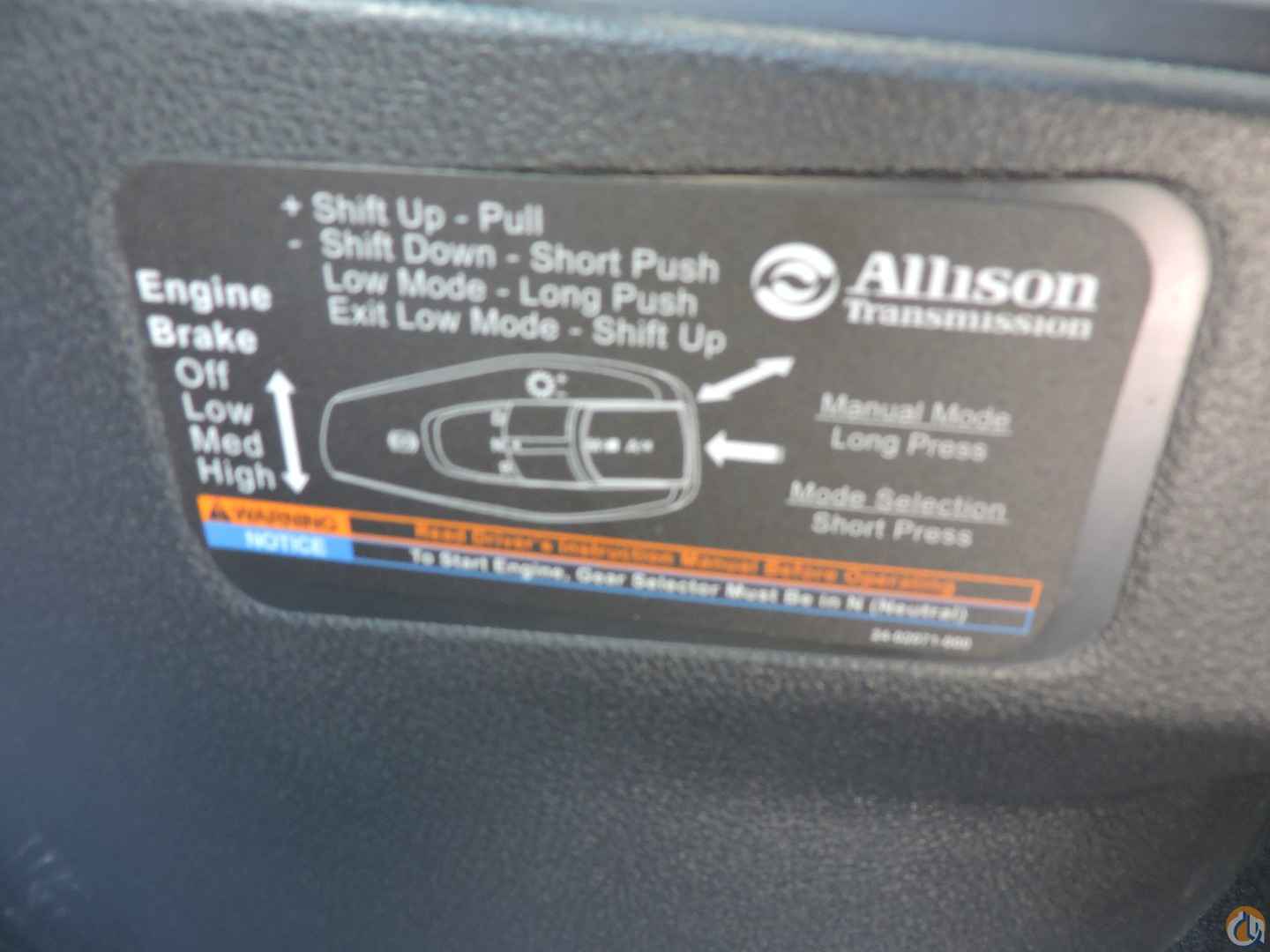

- Allison 4500 RDS automatic transmission

- 20,000lb set forward front axle with 23,000lb flat leaf front suspension

- 46,000lb rear axle with Airliner suspension

- 13,500lb steerable tag axle

- Differential lock tandem axles

- Winch brake on front axle

- Air dryer with heater

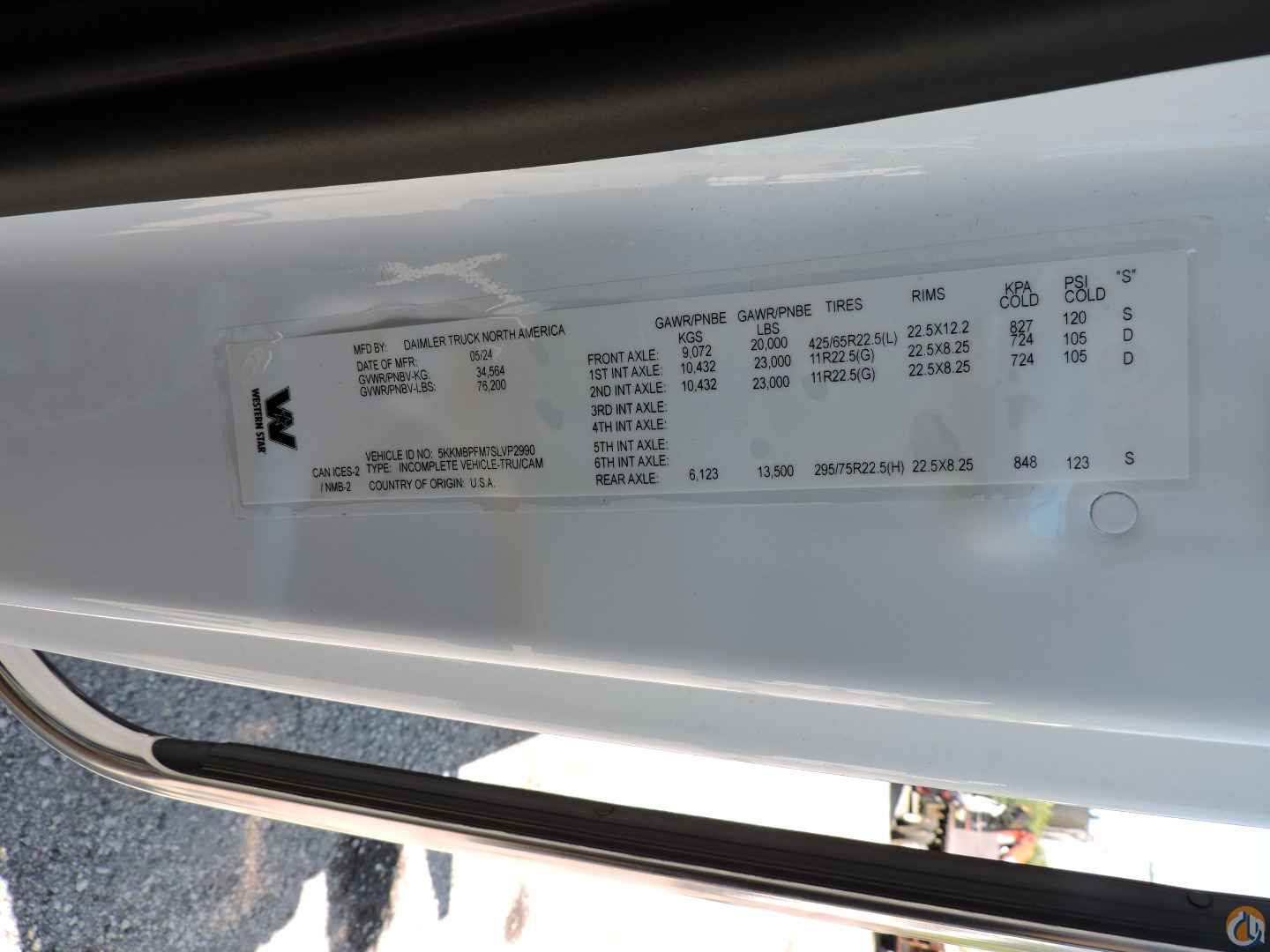

- Tires: FR –425/65R22.5 front tires

- Tires: RR –11R22.5 rear tires

- Tires: TR –275/80R22.5 tag tires

- Aluminum wheels with polished outer finish

- 80-gallon fuel tank

- Unpolished aluminum DEF tank cover

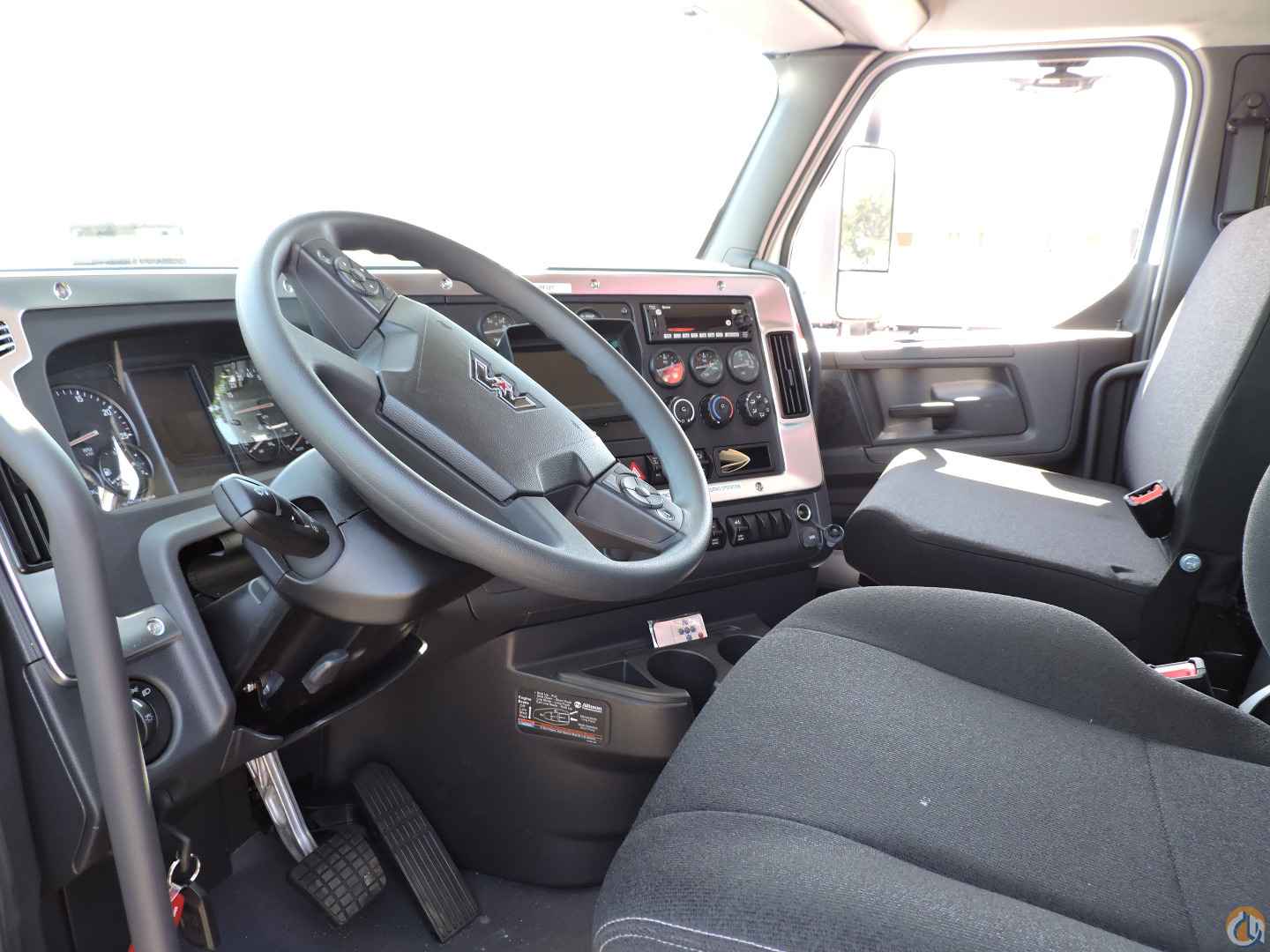

- Driver’s Seats – Air ride, high back, black Mordura

- Passenger Seat – Mid back, battery box, black Mordura

- Adjustable steering column - tilt/telescope

- Power door locks with keyless entry

- Air conditioner

- Bright steel bumper

- Exterior sun visor, stainless steel

- Air horn

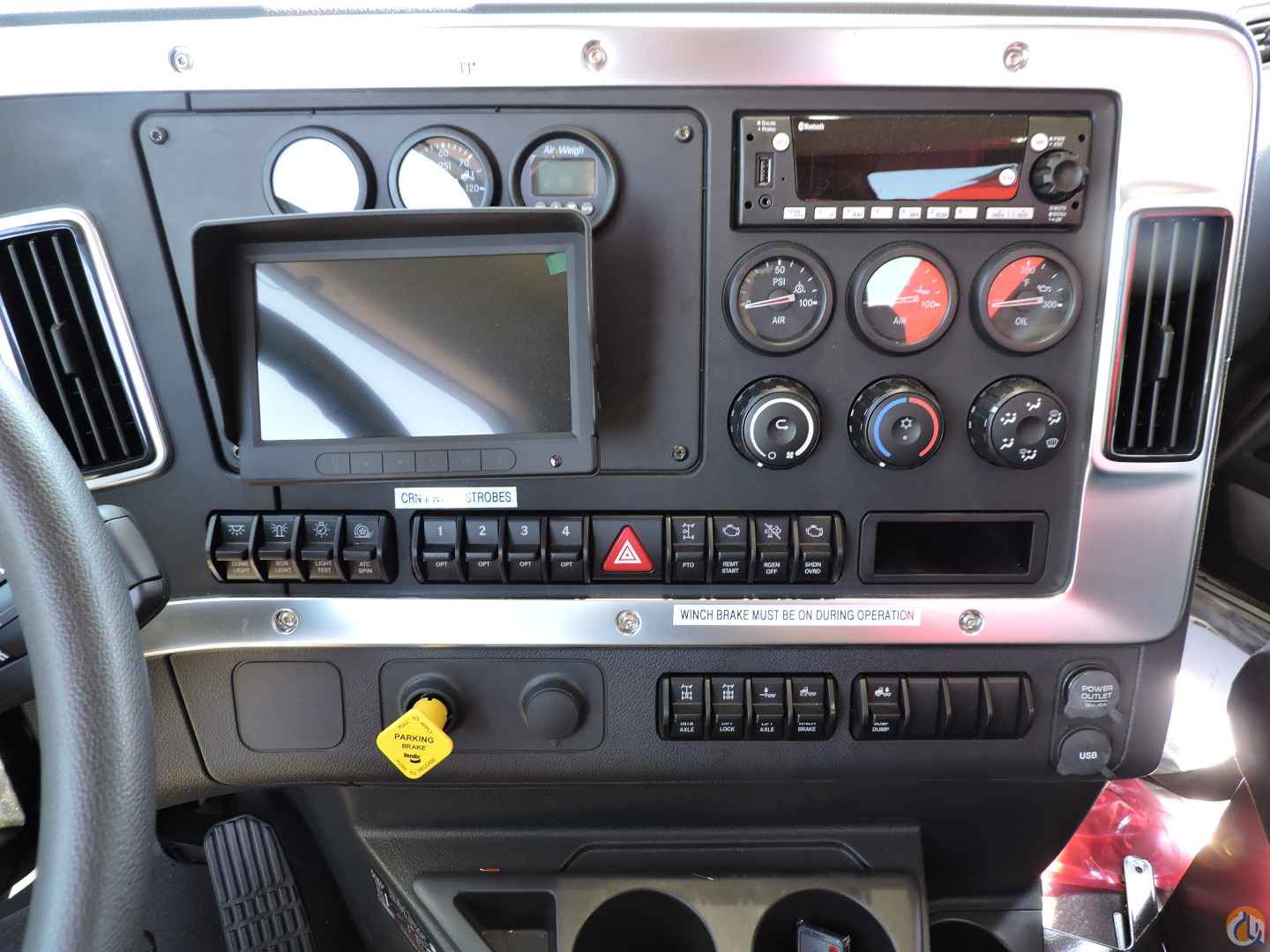

- AM/FM/WB radio with Bluetooth, USB, and Aux inputs

- Heated mirrors

- Triangle reflector kit

- 5lb fire extinguisher

- AirWeigh Truck Scale for tandem axles

- Painted white
