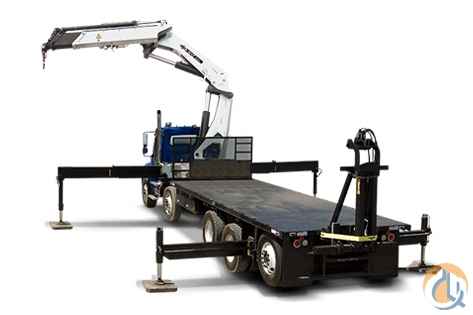

IMT® 50/345 articulating cranes feature hexagonal booms for greater strength and stability while providing a maximum horizontal boom reach of 70 ft (21.4 m) and a max lifting capacity of 22,840 lb (10,360 kg). That’s a lot of lifting power for articulating cranes that require minimal mounting space and offer the versatility to maneuver around difficult job sites.

Standard features

Application-specific product offering

Superior lift-to-weight ratio

Long-reach capabilities

Hexagonal booms for superior reach and maximum control

Options

Various stabilizer configurations

Double link arm system

Boom mounted winch

Floodlight on outer boom

Boom tip functions for hydraulic attachments

Oil cooler

Electronic Vehicle Stability (EVS) System

Specs

Crane Rating: 345,015 ft-lb

Crane Weight: 11,190 lb

Max Lift Capacity: 22,840 lb

Max. Horizontal Reach: 70' 3"

Ref no: PO41933, BM-2473
