Features

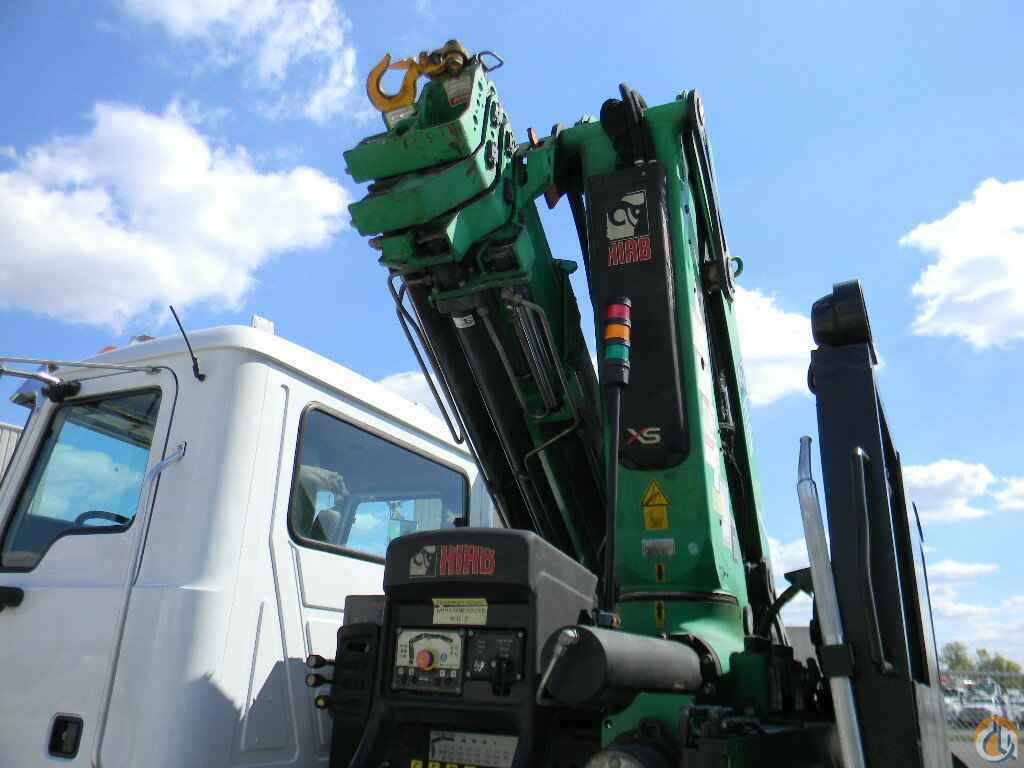

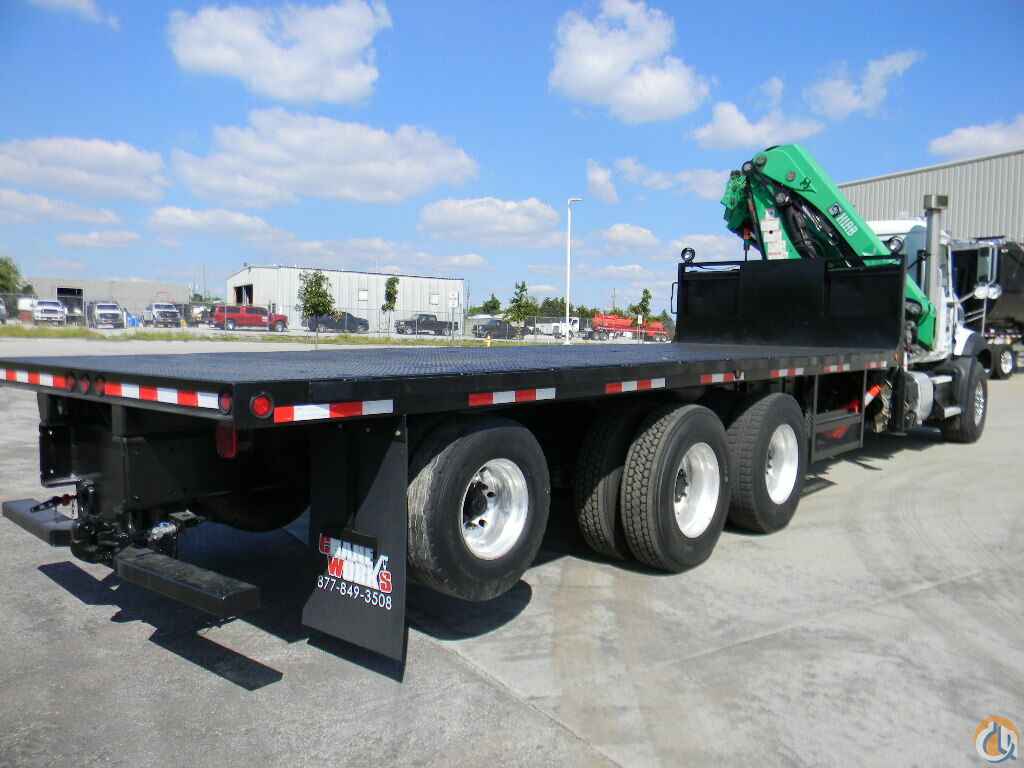

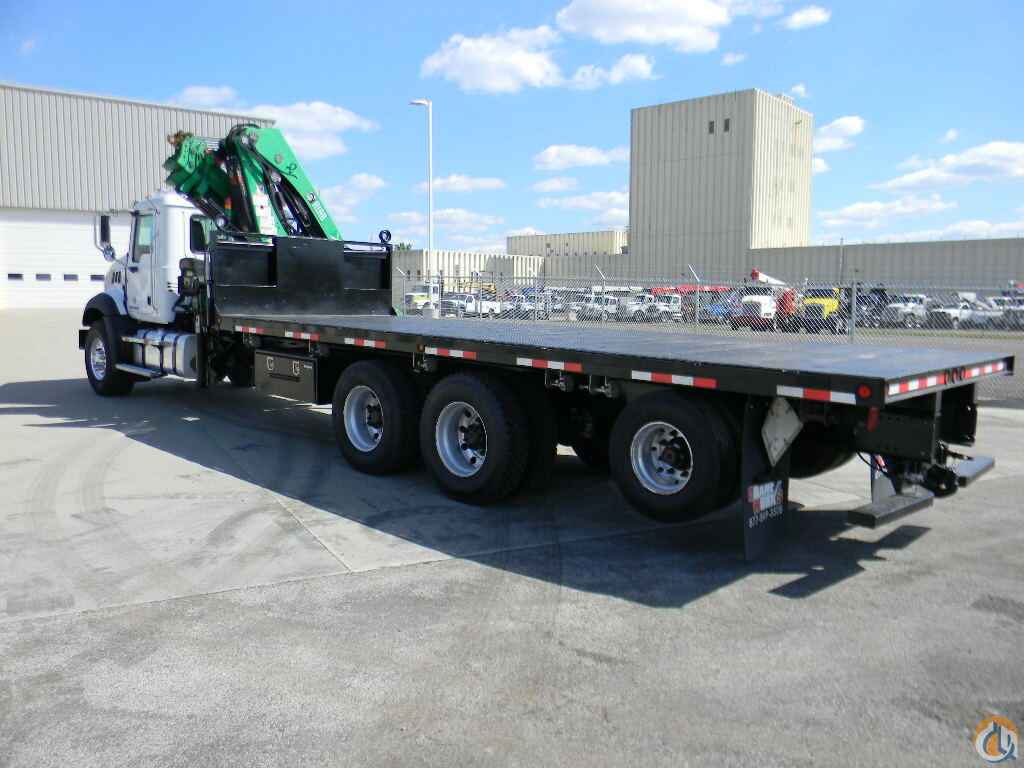

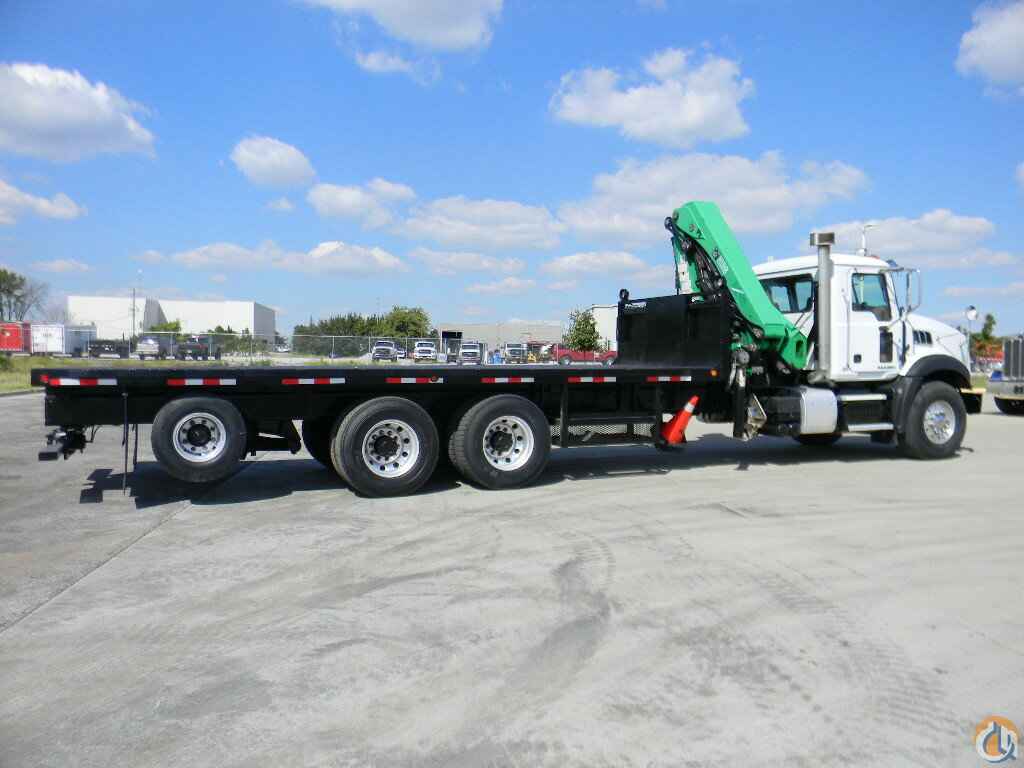

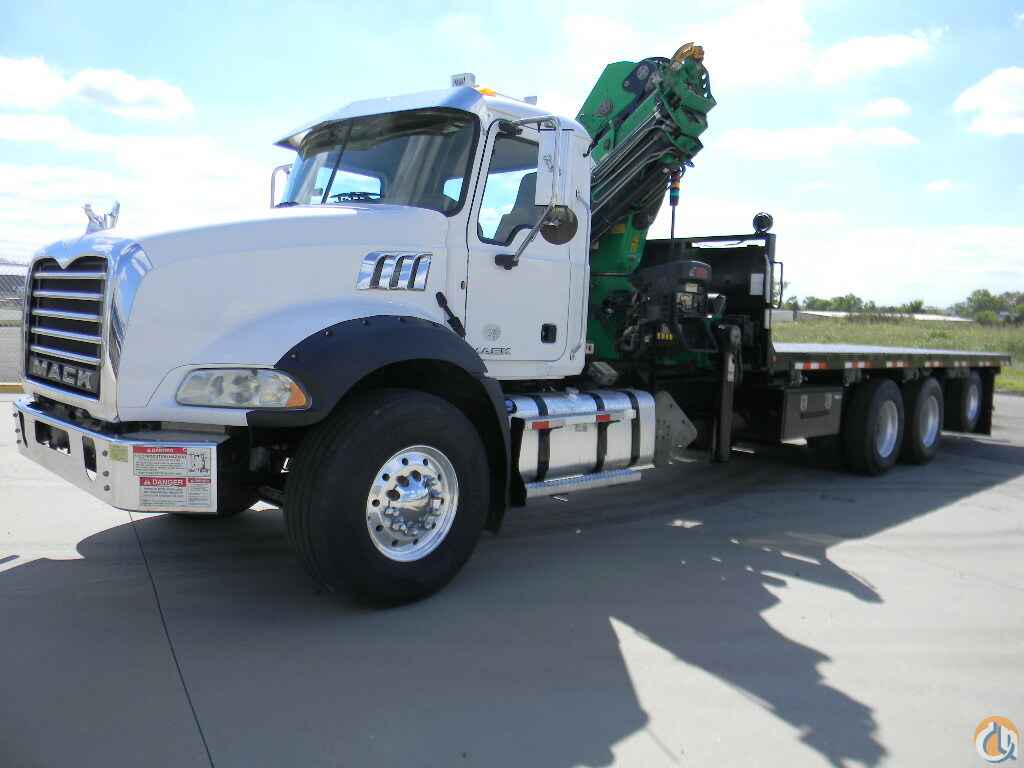

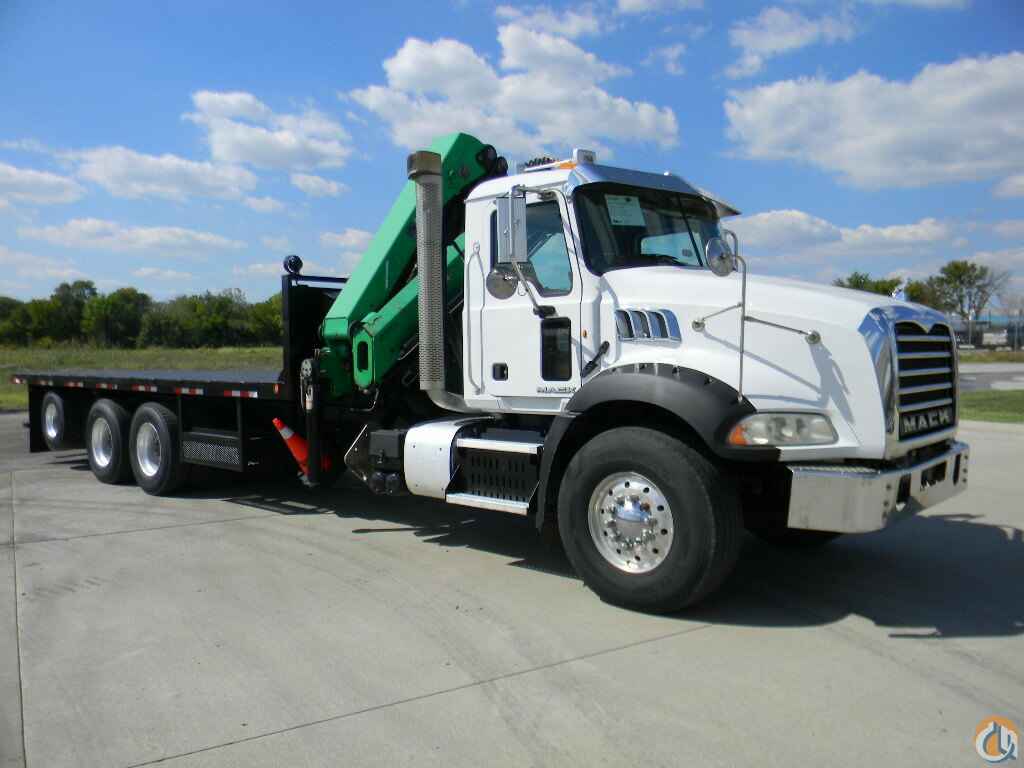

Hiab 288 EP-4 HiPro knuckle boom
- Lifting capacity: kNm 242; tm 24.7
- Lifting capacity (ADC): kNm 259; tm 26.4

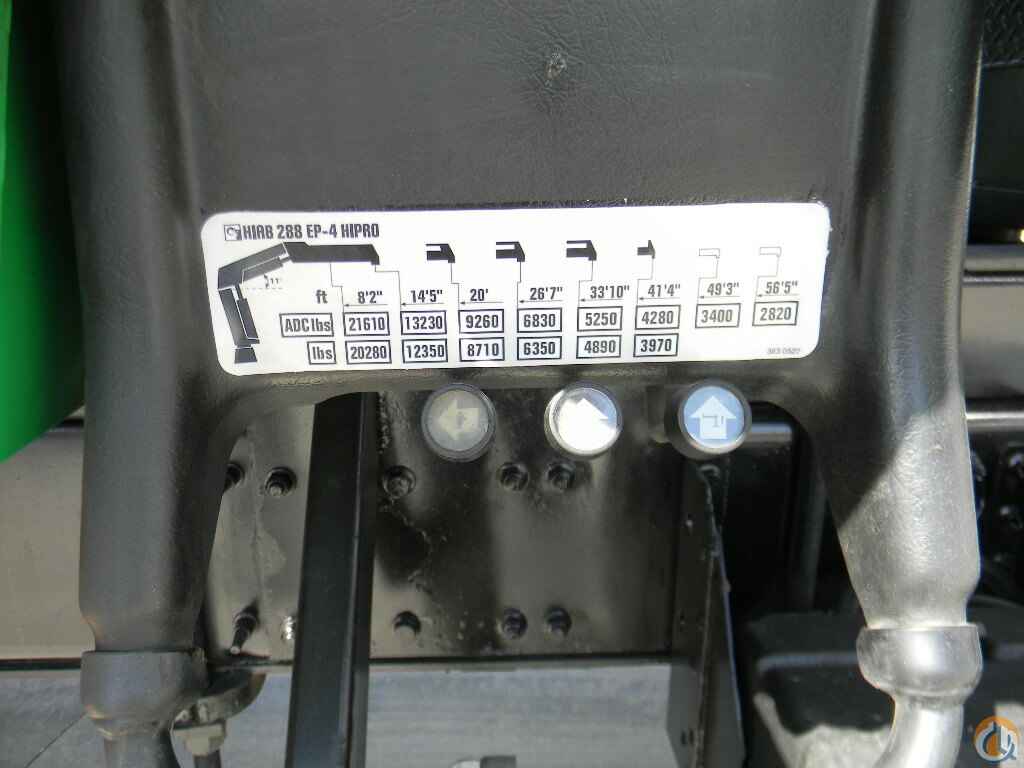

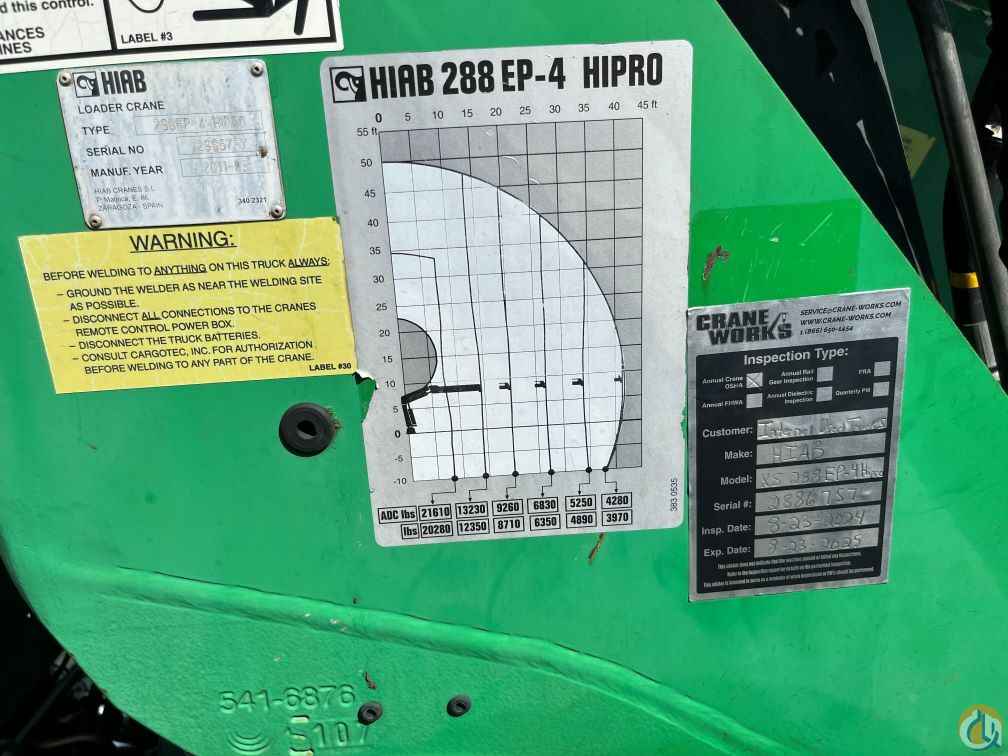

- Outreach - lifting capacity, standard:
- 2.6 - 9,800
- 4.4 - 6,000
- 6.1 - 4,200
- 8.1 - 3,100
- 10.3 - 2,380
- 12.6 - 1,940
- Outreach - lifting capacity, manual extensions:
- 15.0 - 1,540
- 17.2 - 1,280
- Hydraulic outreach, standard: m 12.7
- Hydraulic boom extension: m 8.3
- Outreach, manual extensions: m 17.3
- Lifting height above installation level, hydr/man: m 15.3 / 19.8
- Rec. oil flow: l/min 90 - 120
- Working pressure: Mpa 34.0
- Oil in tank: l 0-200
- Tank capacity: l 0-235
- Slewing angle: ° 190 - 420
- Max slope viable at full capacity: °5
- Slewing torque, gross: kNm 34.0
- Slewing speed 80: °/s 15
- Slewing speed: °/s 15
- Lifting speed at standard hydraulic outreach: m/s 1.6
- Height in folded position: mm 2,335
- Width in folded position: mm 2,495
- Install space required. Rotation area not included: mm 1,242
- Install space required with hose and pipe kit: mm 1,242
Weight
- Crane in standard version without support legs: kg 3,070
- Top seat: kg 0
- Frame attachments: kg 40-60
- Support leg equipment: kg 381 - 487
