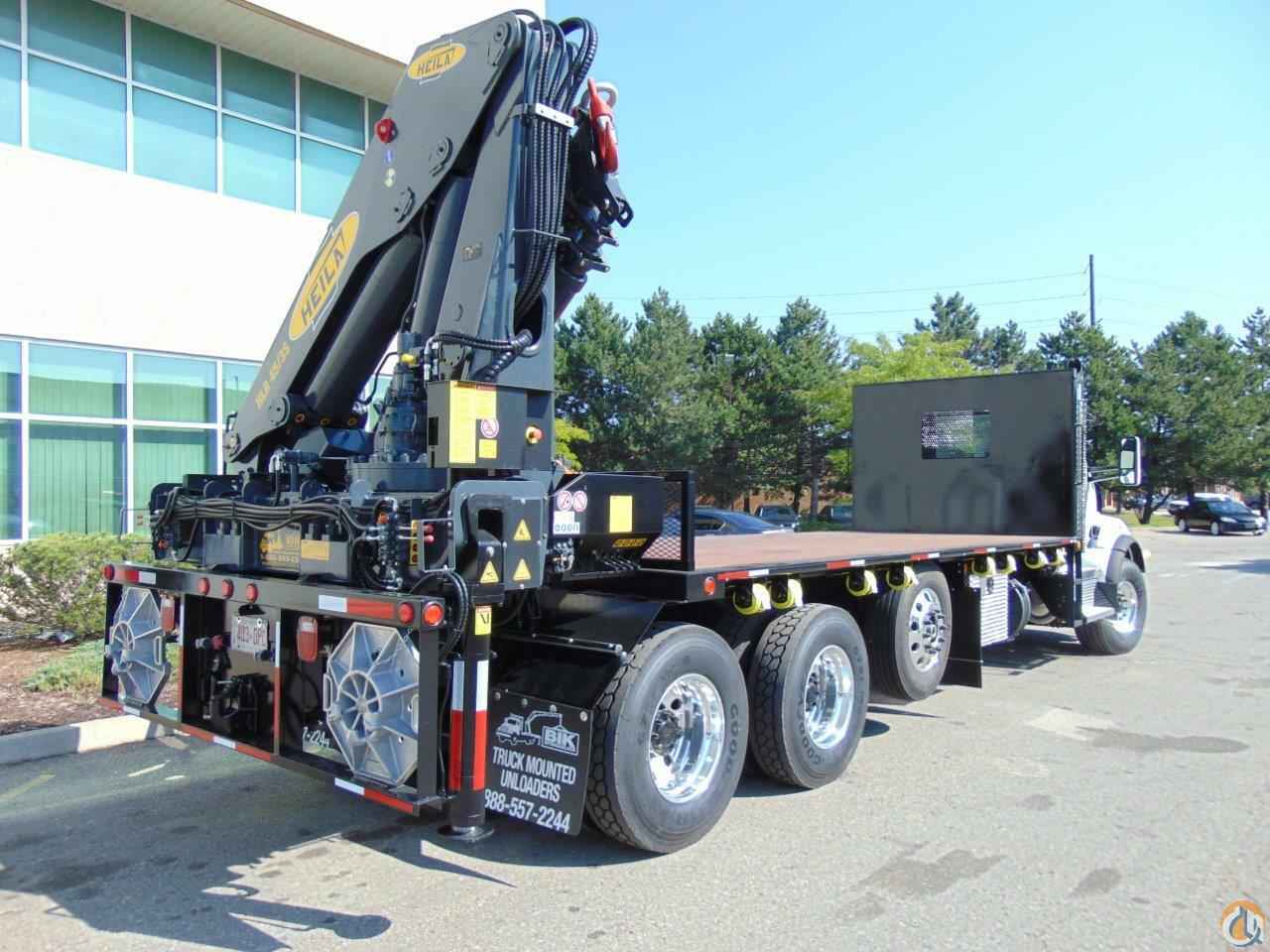

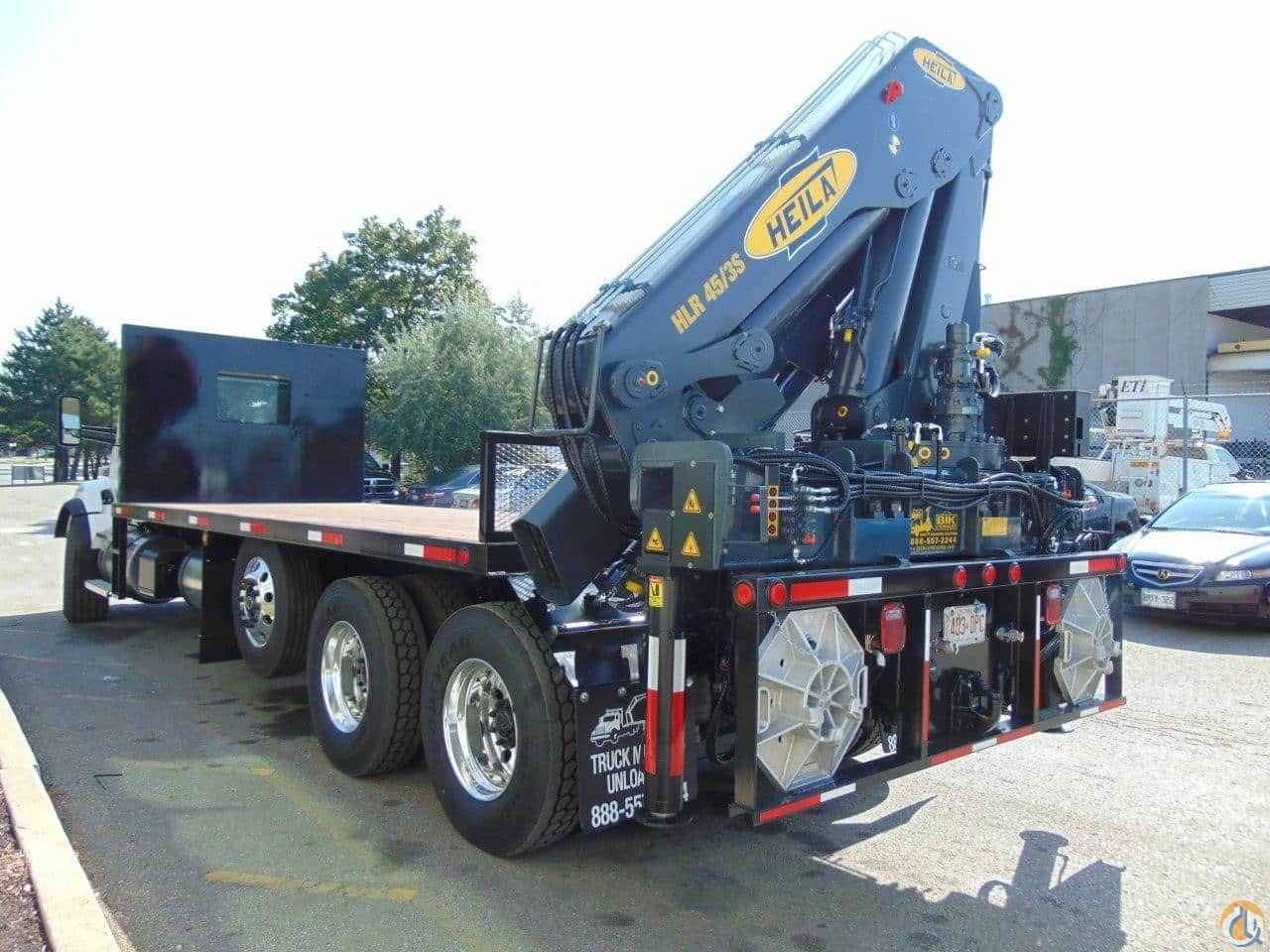

NEW - HEILA HLR 45.000-3S KNUCKLE BOOM:
- With Hydraulic Out & Down Stabilizers, 3 Hydraulic Extensions to 36’ of Side Reach
- Boom Capacities: 34,000 lb @ 10’, 18,500 lb @ 17’, 12,450 lb @ 23’, 10,000 lb @ 30’, 8,000 lb @ 36’
- Installed END OF FRAME on Shear-Plated Sub-Frame, Prepped, Primed and Painted
- New Air Operated PTO, Hydraulic Pump, Supply and Return Lines
- Hydraulic Tank Mounted Under Deck w/Shut-off Valve
- 12 V Connections to Radio Remote Control
- DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station w/Fully Proportional Operator Control
- SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
- Radio Remote Includes: 5 Micro Mode Speed-Reducing Settings , emergency stop, 2-batteries with in-cab charger, 50’ back-up cord
- Hydraulic Overload Load LImiting Device- Greatly increases life span of crane and provides added safety
- PLANETARY PEDESTAL ROTATION – Superior Control & Turning Torque to 10 deg angle – Best in its class, reduced maintenance
- 450 degrees rotation, Hydraulic OUT and DOWN 2-sided, independently controlled stabilizers beneath pedestal
- Ground Level main Danfoss valve bank , easy access for manual controls at ground level
NEW 21′ STEEL FLAT DECK:
- Hardwood 1 3/8″ Bed Floor Surface
- 5 Sliding Tie-Down Winch straps with Chain Hooks or Flat Ends
- 5′ high Headboard
- 36″ Aluminum Tool Box
- Winch Bar & Winchbar Holder
- 2 Aluminum Stabilizer Pads w/Holders

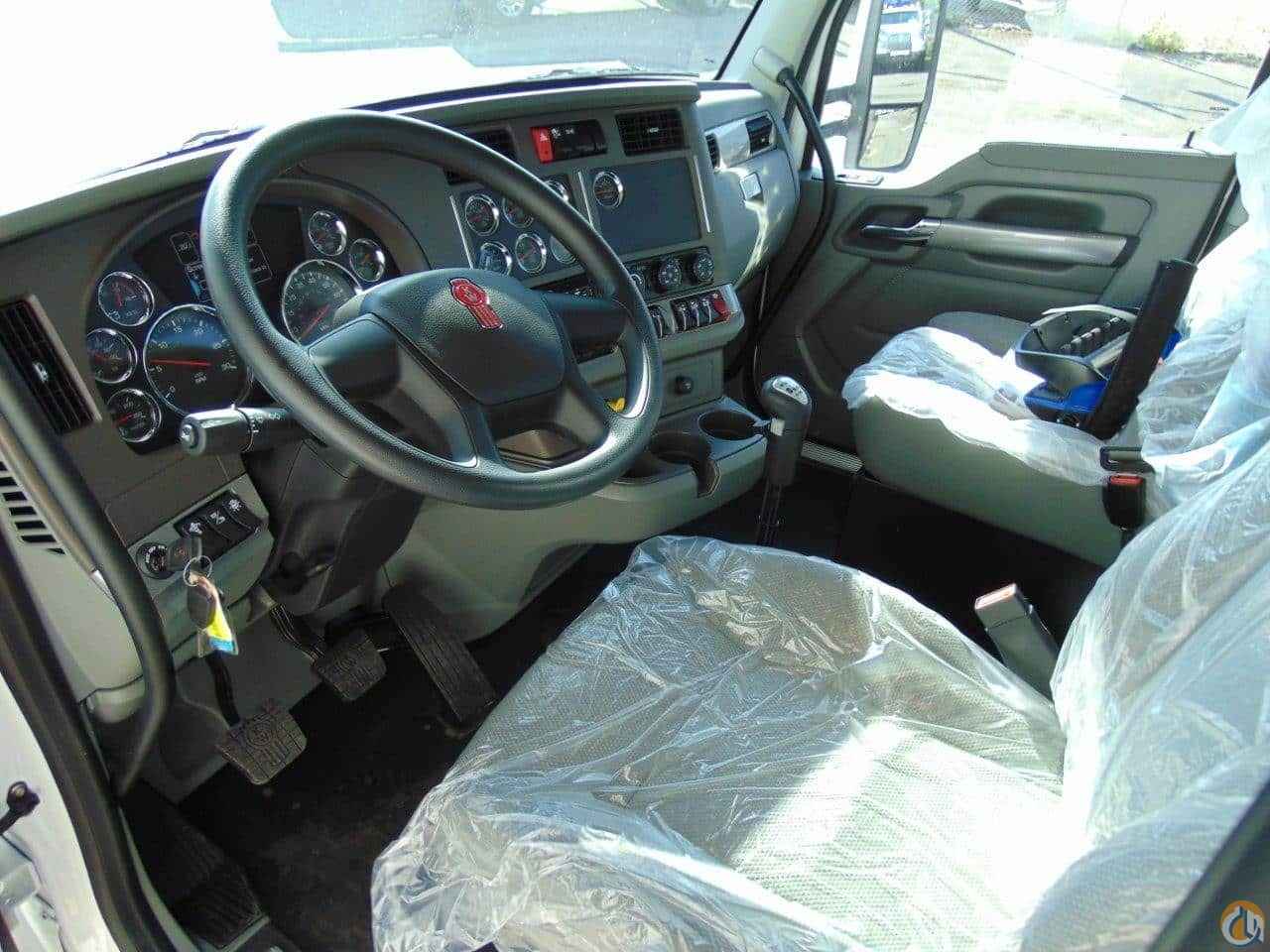

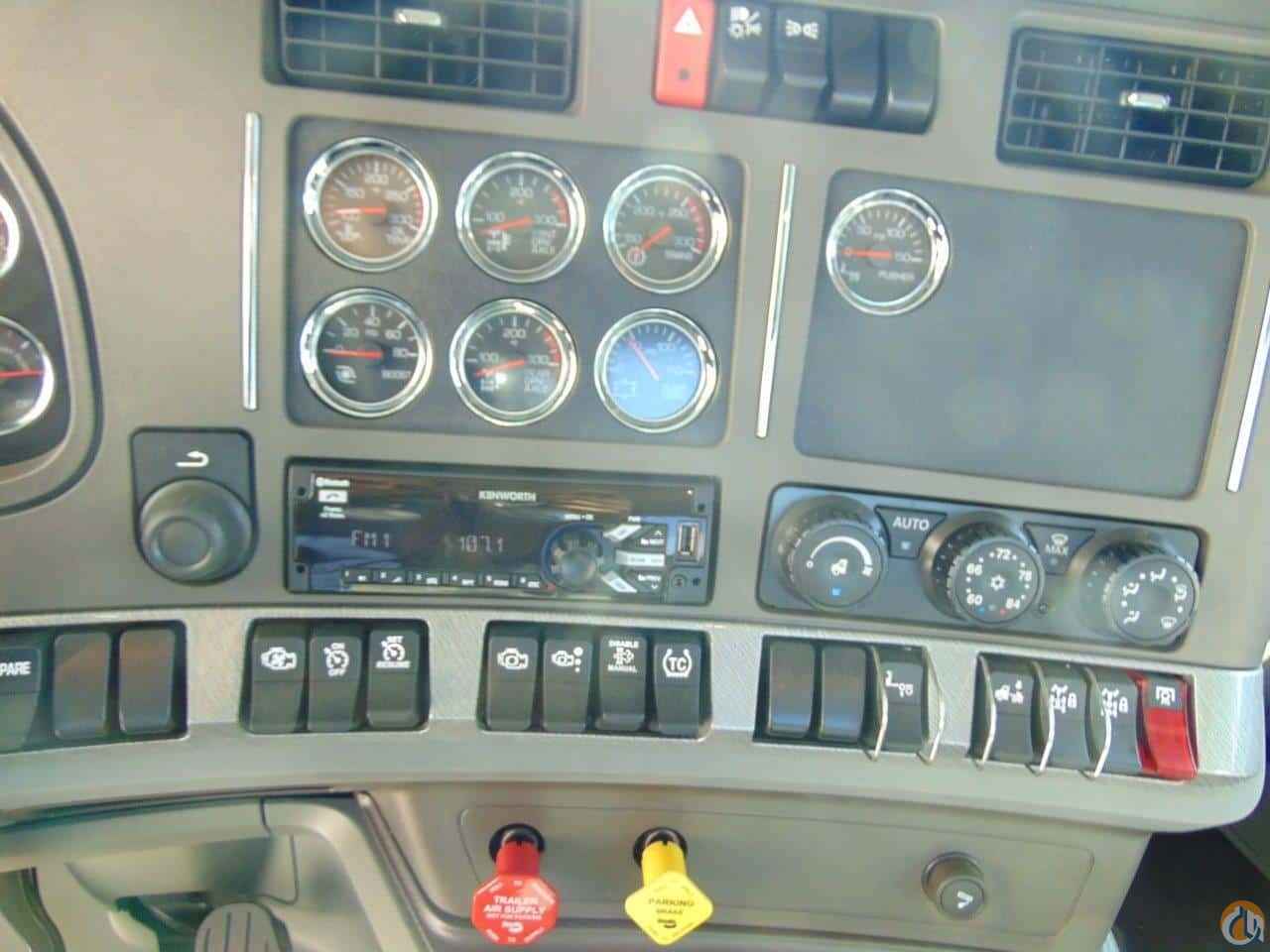

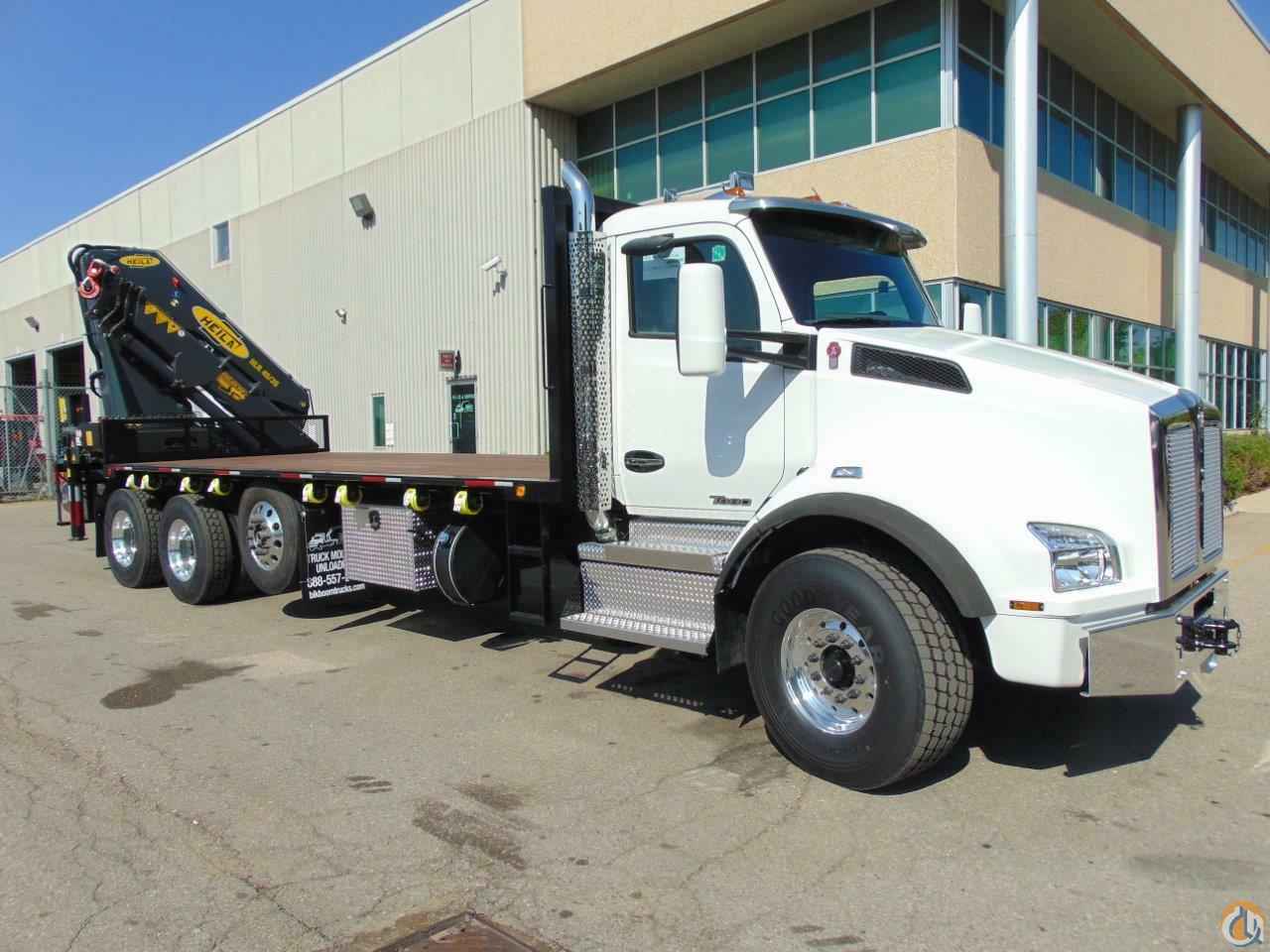

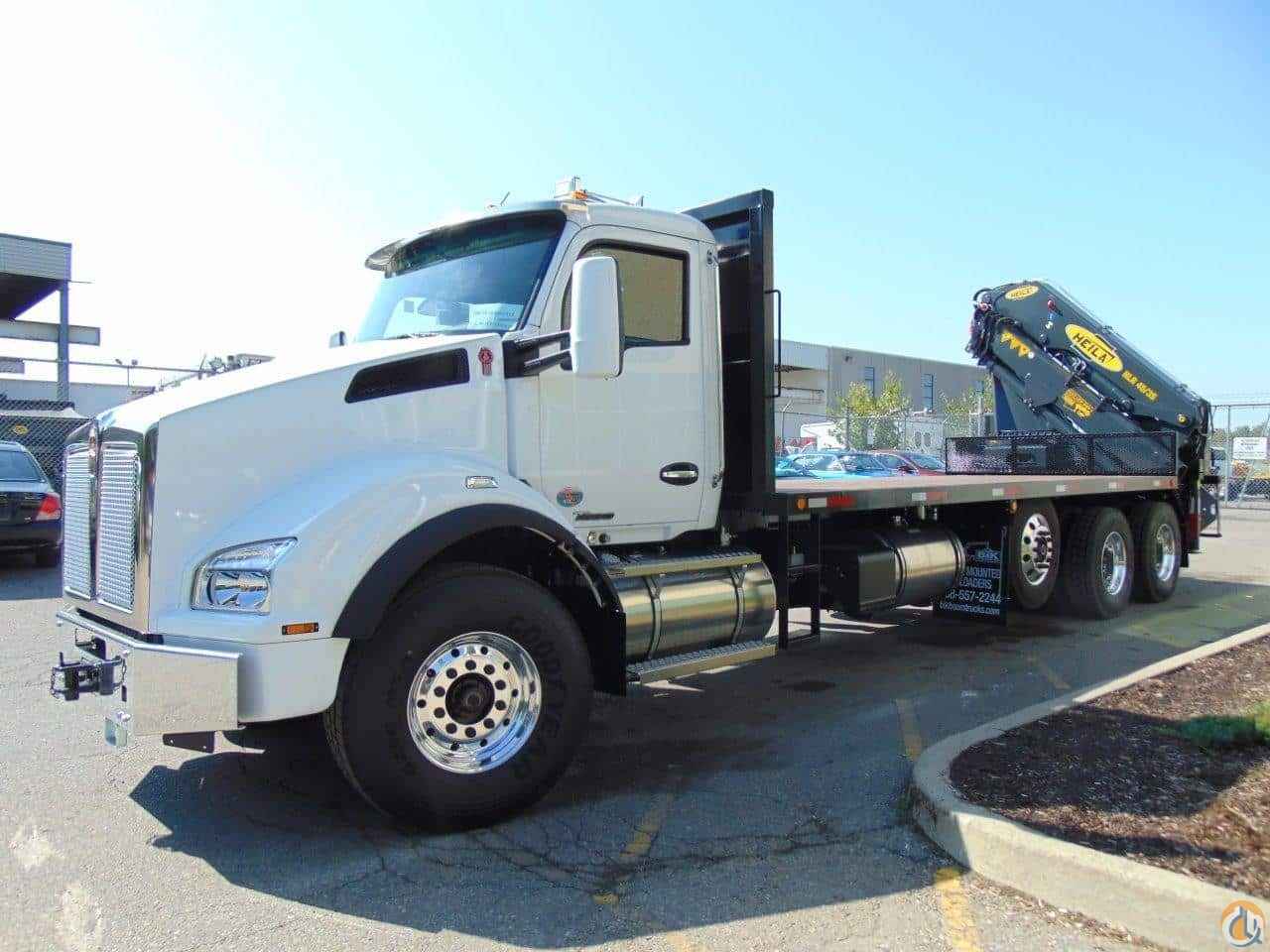

NEW 2022 WESTERN STAR 4700 TANDEM-AXLE TRUCK:
- Detroit Diesel DD13 470 HP Engine
- 18 Spd. Transmission
- 20,000 lbs Tandem Steer Front Axle on 425/65/R22.5 Tires
- 46,000 lbs Rear Axle on 11R22.5
- Tuftrac Suspension
- 66,000 lbs GVWR
Included Options:
- AM/FM/CD Stereo
- A/C
- Dual 80 Gallon Fuel Tanks
- Power Windows
- Power Locks
- Aluminum Front & Rear Rims
