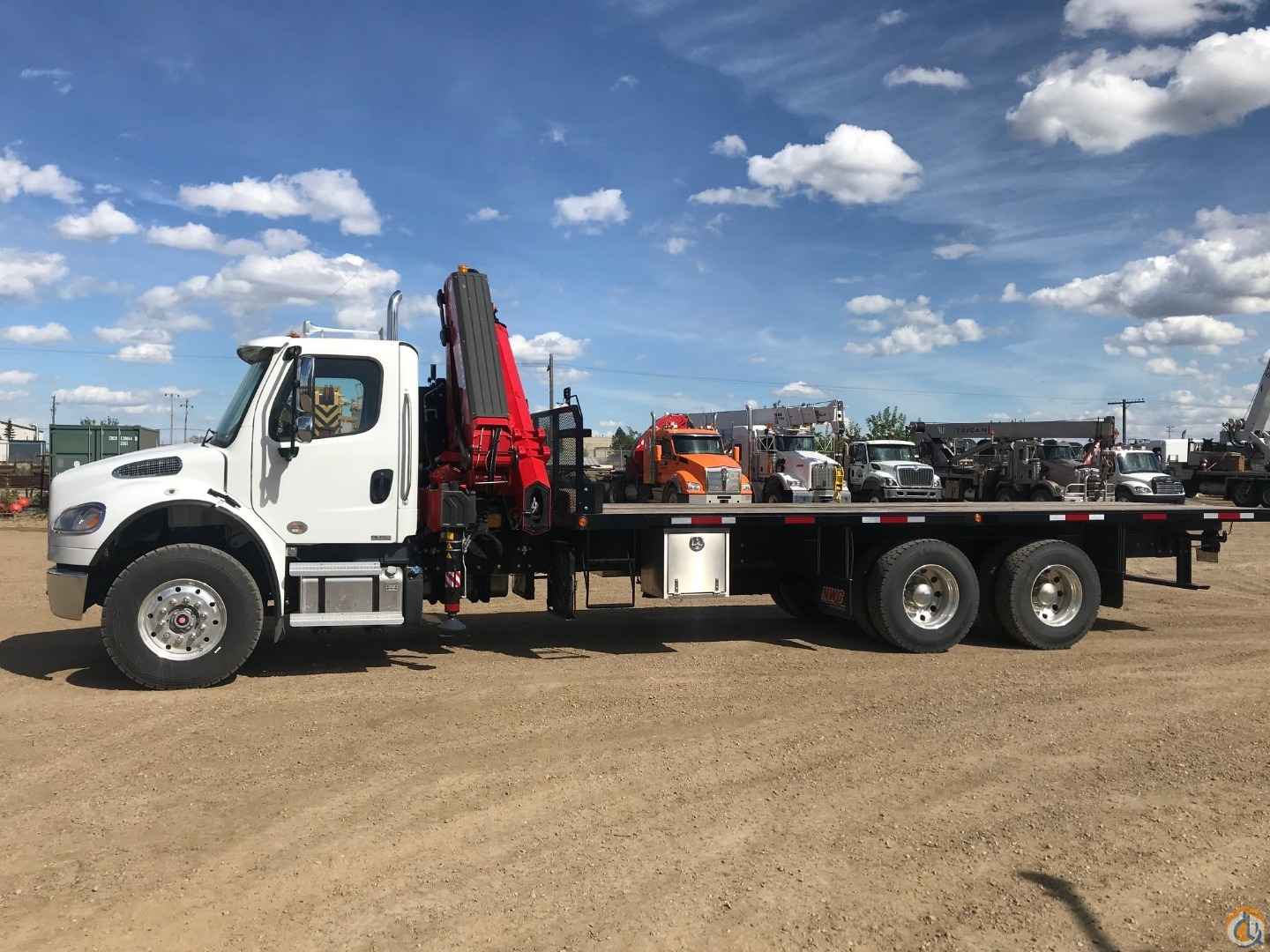

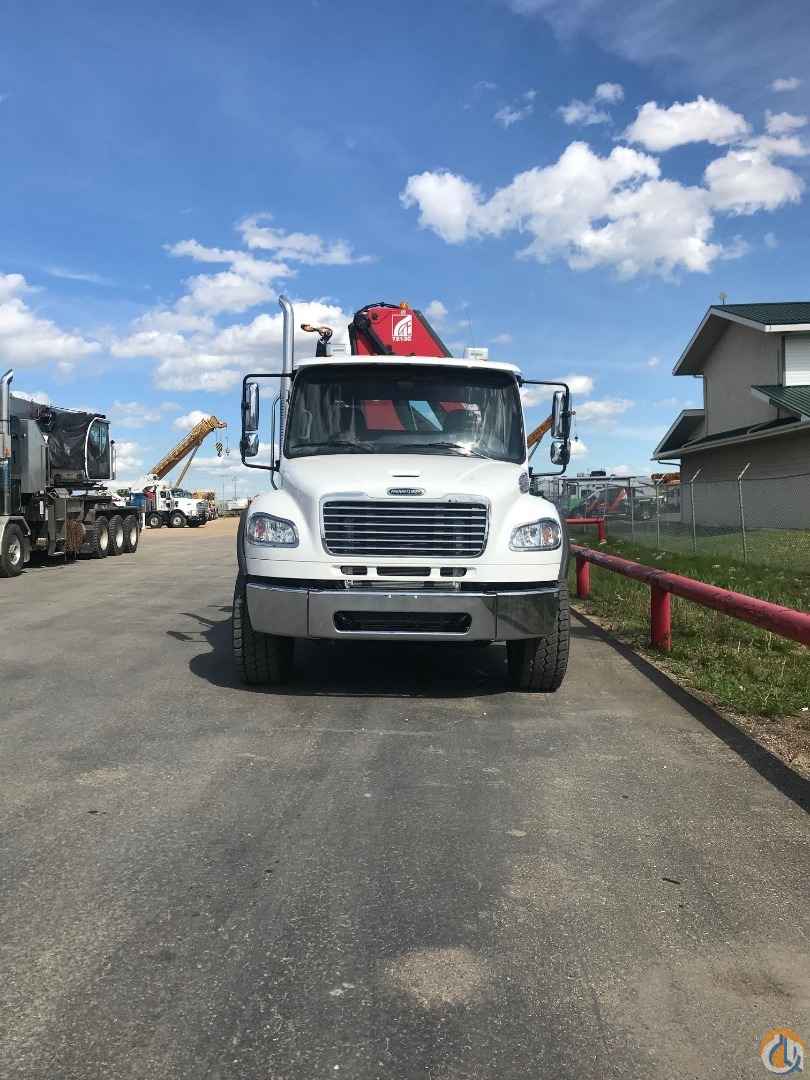

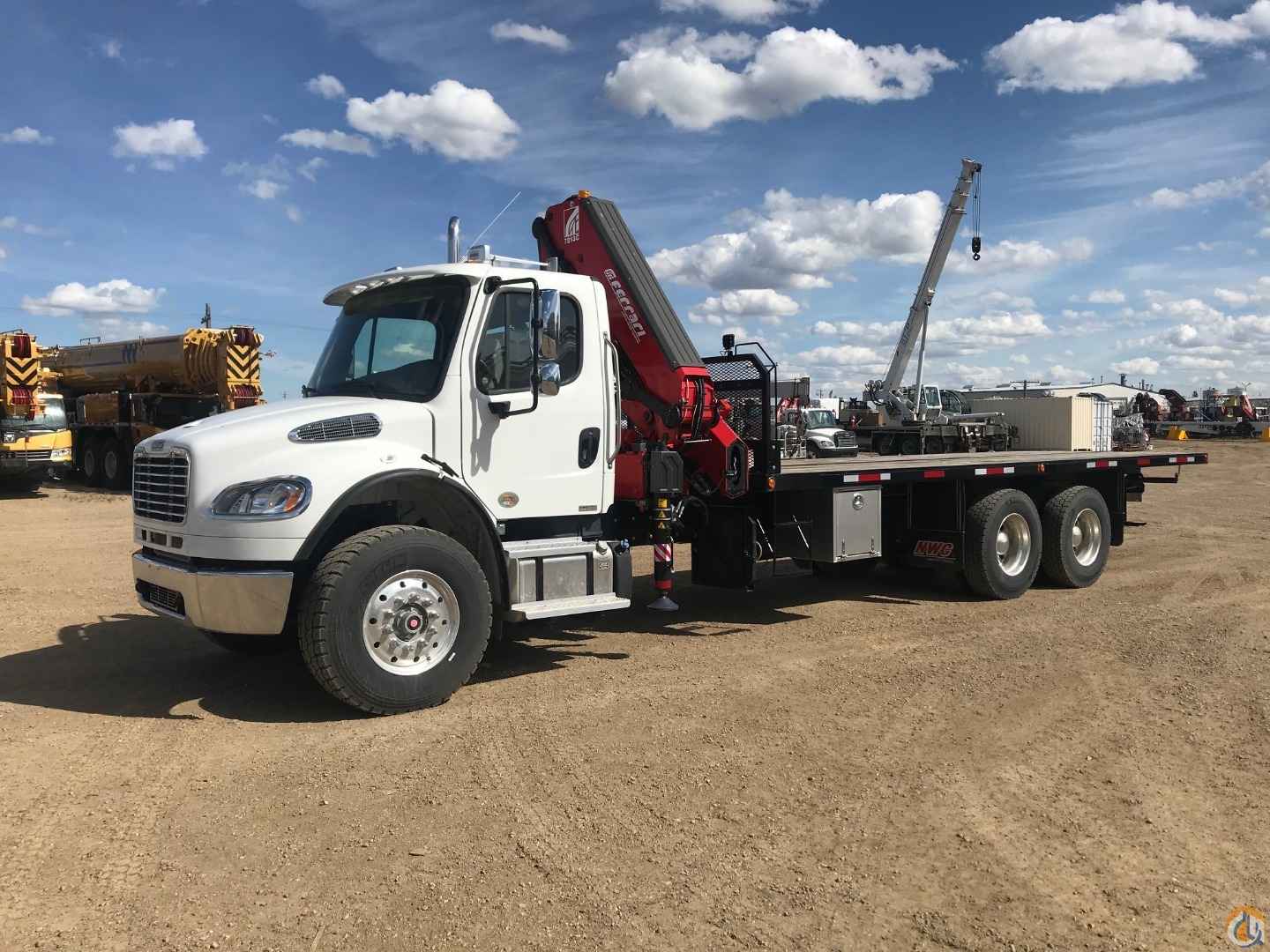

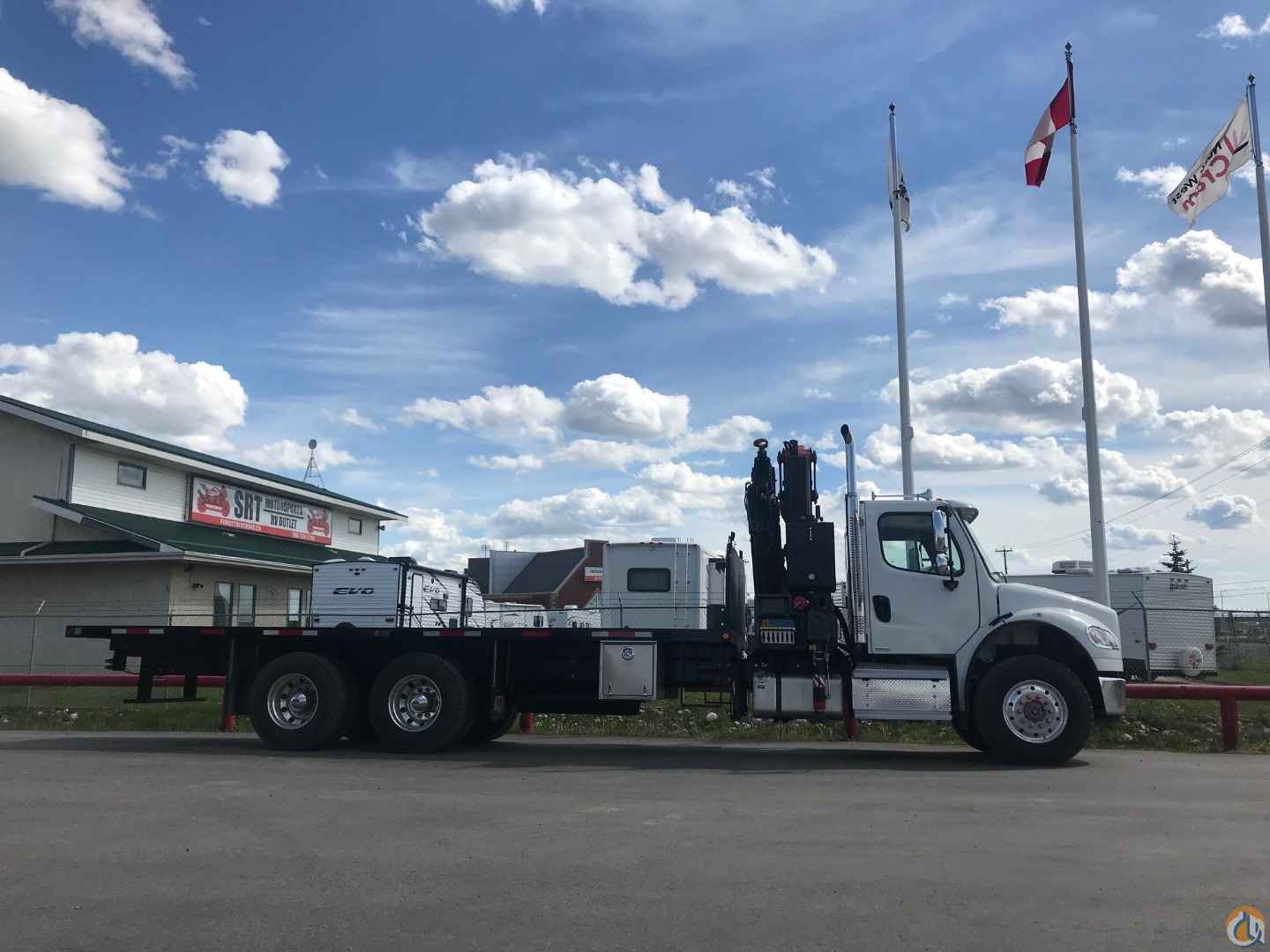

2022 Ferrari 7213CRA5 Mounted Knuckle Boom Crane (Sold)

In-Progress Feb 2022 delivery

Ferrari 7213CR.A5 NOCE crane complete w/ the following:

· Maximum lifting capacity of 8,690 lbs. at 14’8”

· Maximum lifting capacity of 5,600 lbs. at 21’1”

· Maximum lifting capacity of 4,020 lbs. at 27’7”

· Maximum lifting capacity of 3,060 lbs. at 34’4”

· Maximum lifting capacity of 2,470 lbs. at 41’2”

· Maximum lifting capacity of 2,080 lbs. at 48’2” (end of Hyd. Extensions)

· Approx. 6,380 lbs. dry weight

· Slewing Angle: 415 Degrees

· (5) Hydraulic Extensions (Max Reach 48’2”)

· Extra-Wide Hydraulic Out & Down Stabilizers (Max Width 18.04’)

· Oil Tank Capacity 130 L

· Rotating Hook, Capacity: 8,0 t

· Hetronic Factory Installed Radio Remote Controls

· Control Valve DANFOSS PVG32

· High Pressure Oil Filter

· Manual Controls on One Side of Crane

· Hydraulic Load Limiting Device (NO CE)

· Centralized Greasing System

· Ergonomic Ground Control Station

· Magic Touch – folding / unfolding assistance.

· Red Power, Link on Column = Constant Lifting Capacities (on all main boom positions)

· Link on Second Boom = Negative Boom Angle (giving access to low ceiling space areas)

· Load Holding Valves (on all hydraulic cylinders)

· Unit painted Ferrari Red.

· Unit Completely Installed Including Hydraulic Oil & Testing

· Engineers NDT Certification Included

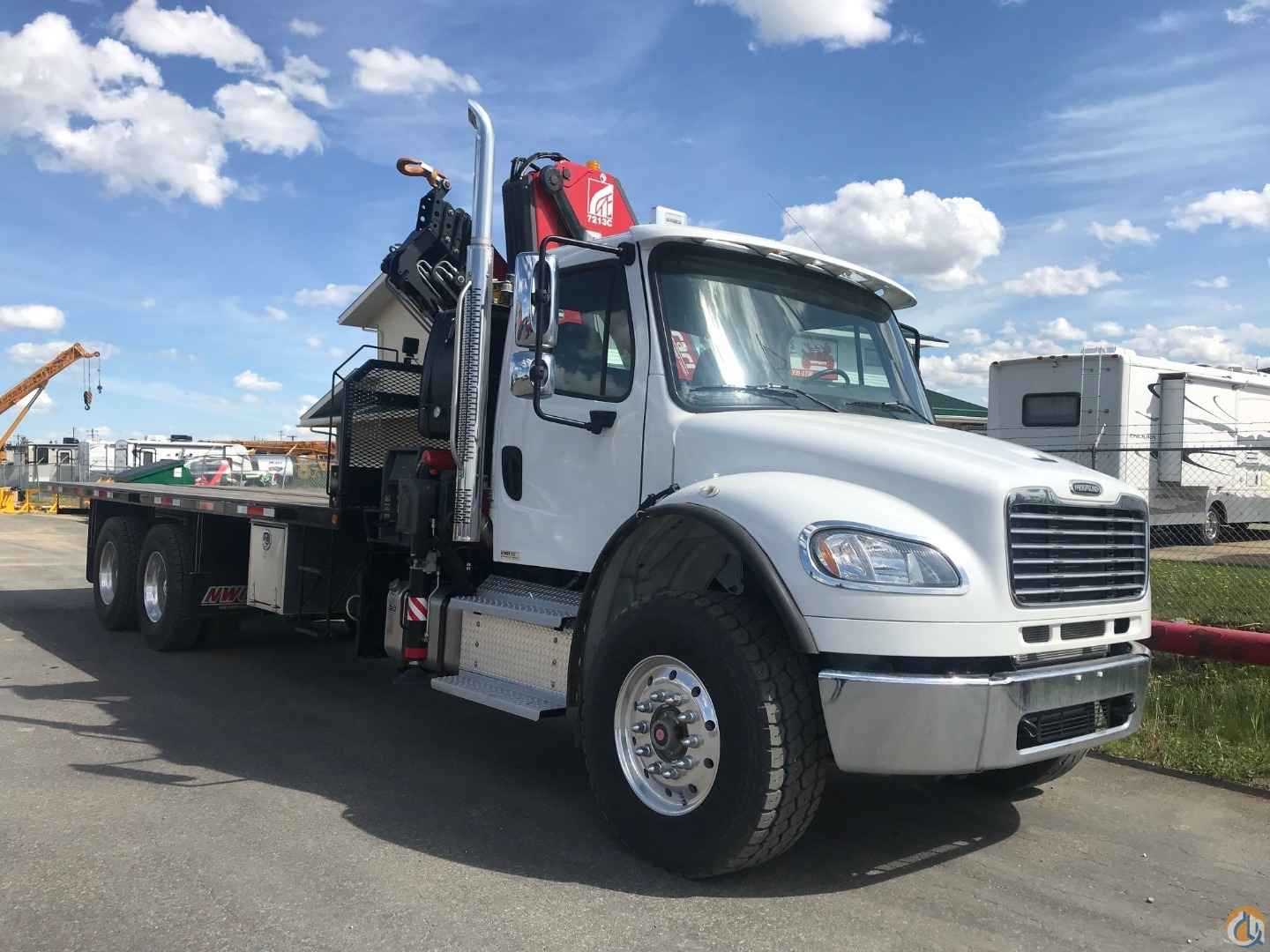

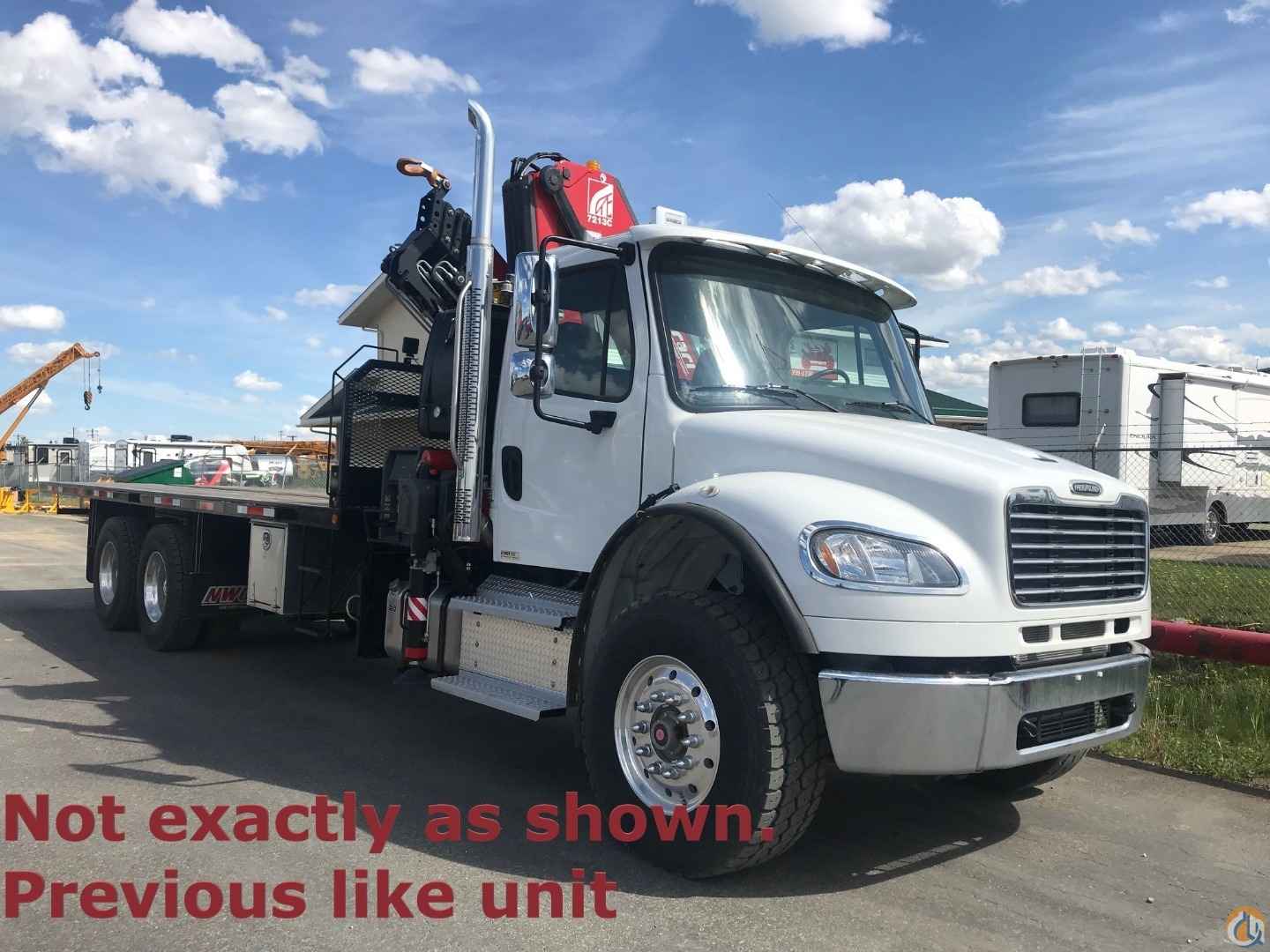

2022 Freightliner M2 106 chassis complete w/ the following:

· Engine Cummins L9 330HP @2200 1000lb/ft@1200rpm

· Jacobs C-Brake w/ on/off Switch

· 160 Amp Alternator

· Allison 3500 RDS-P 6-Speed Automatic Transmission

· Power Steering TAS-85

· RH Step SCR/DPF w/ B-Pillar Cab Mount Vertical Tailpipe

· Detroit DA-F18.0-5 18,000lb Capacity Front Axle

· Taper Leaf Springs, Shocks 18,000 lb.

· Meritor 40-14XP 40,000lb. Capacity Rear Axles (55” spacing)

· Diff Lock Drive Axles

· Airliner Tan-Drive, 46,000 lb.

· 5.29 Rear Axle Ratio

· Air Brake Package

· ^7/16x3-^9/16”x11^1/8 Steel Rails w/^1/4” Insert

· Michelin XZY-3 385/65R22.5 18 Ply Front Tires

· Alcoa 22.5” by 12.25” Aluminum Front Wheels

· Michelin X 11R22.5 16 Ply Rear Tires

· Alcoa 22.5” by 8.25” Aluminum Rear Wheels

· Two Aluminum 50 Gal Fuel Tanks

· 3-Piece 14” Chromed Steel Front Bumper w/ Tow Hooks

· 106” BBC Flat Roof Aluminum Conventional Cab

· Grey Interior

· Driver Seat - High Back, Air Ride, Vinyl with Cloth Insert

· Passenger Seat(s) – 2 Man Toolbox, Mid Back, Non-Suspension Seat

· 1-Piece tinted Windshield

· Dual West Coast Bright Finish Heated Mirrors w/ 8” Convex Mirrors Mounted Underneath

· Power Door Locks & Power Window Lifts

· Combo Fresh Air Heater/Air Conditioner

· Stereo w/ AM/FM/WB w/ SiriusXM, Bluetooth, IPOD Interface, USB & AUX INPUTS

· Dual Amber Strobe Lights w/ Stainless Steel Brackets

· Exterior Color White

· Truck Safety

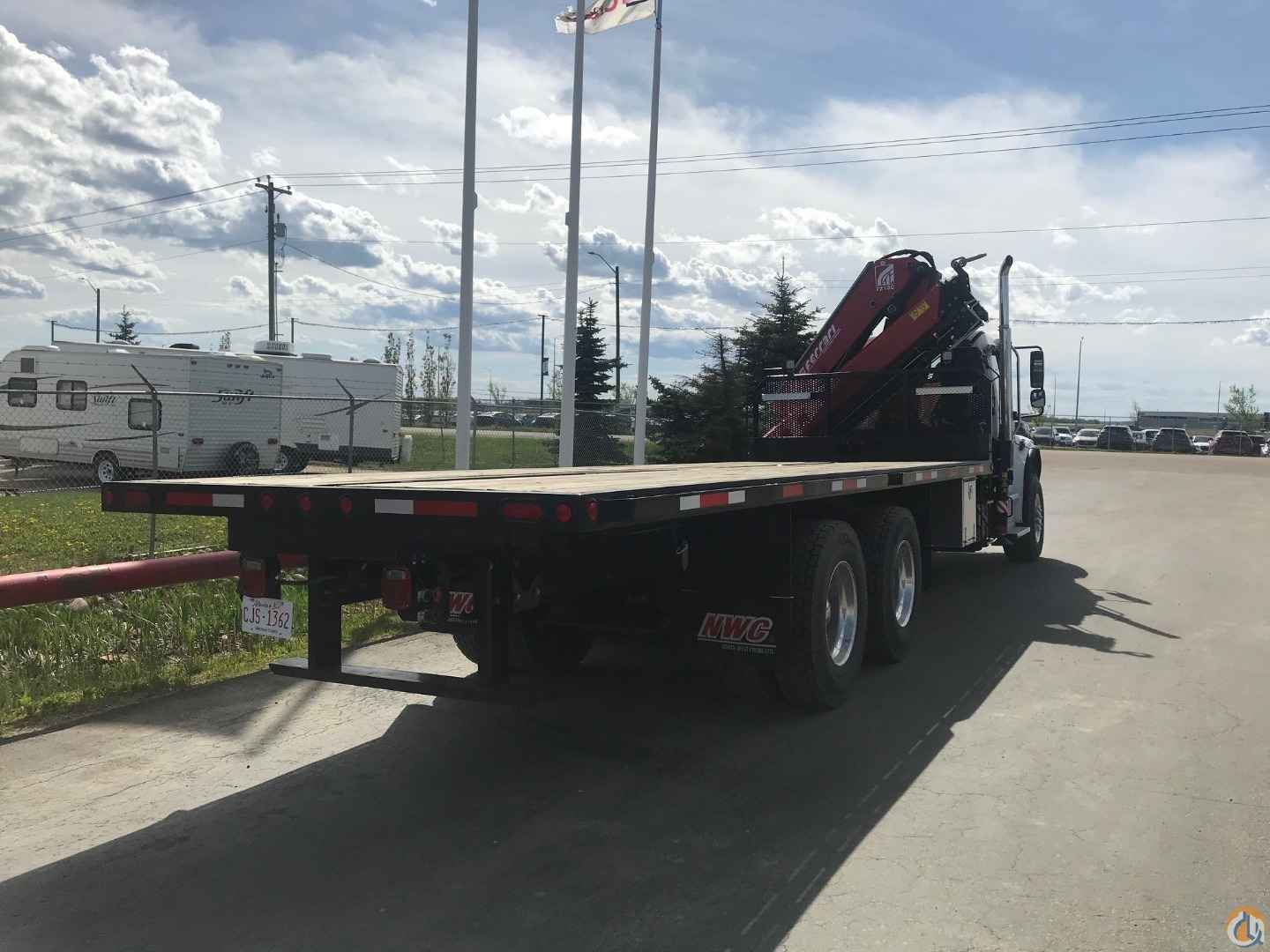

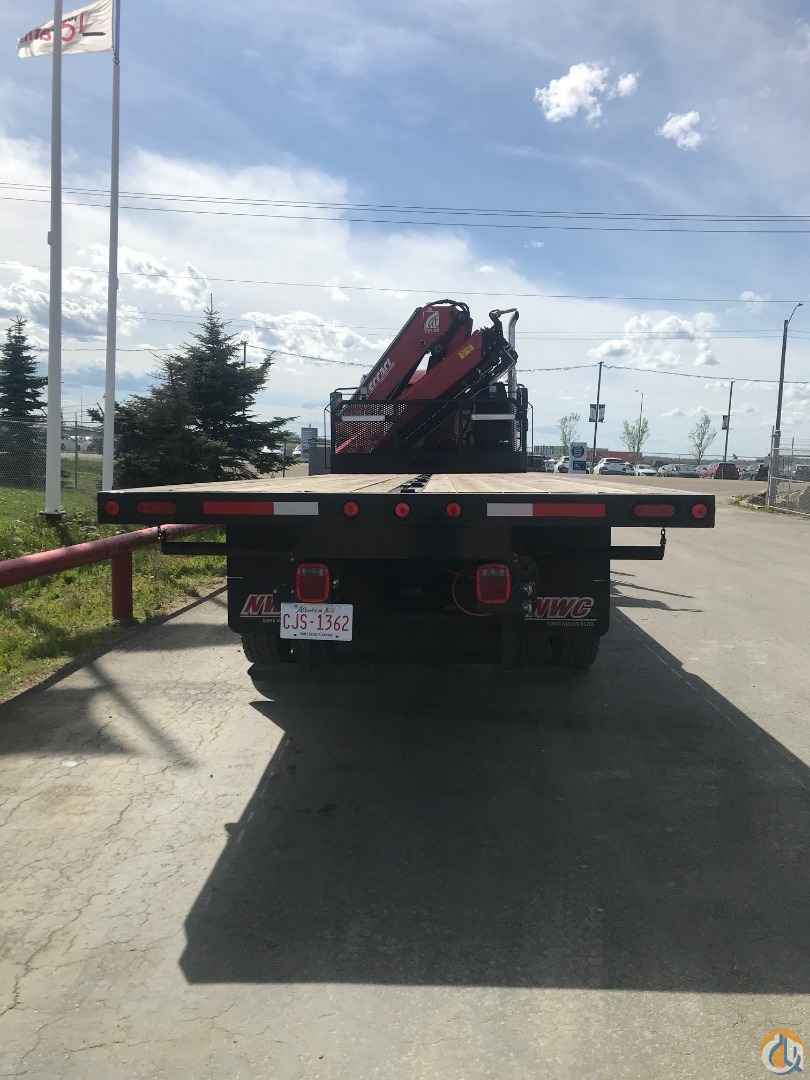

NWCE Custom 25’ long deck complete w/ the following:

· Deck dimensions approx. 25’ long x 8’ wide

· Perimeter of deck to be 3”x 5” angle iron (sitting on 6” channel iron long sills)

· Cross sills to be made of 3” formed steel, 16” on center

· Top of deck to be 2x8” smooth fir wooden planks screwed to the cross sills. Treat wood top with waterproofing.

· Headache rack to be made with 2”x2” steel tubing and perforated steel mesh approx. 36” high x 96” wide c/w chain hangers, broom/shovel holders, chain tray (8” deep x 10” high), grab handles & (2) LED work lights.

· Two aluminum 24”x24”x24” cabinet(s) under deck, one per side.

· Access ladders on deck with flow forge grating added to steps for better foot grip.

· Chain hangers to hold 1 set of tire chains (tire chains not included).

· Outrigger pad holders complete with a set of 24”x24x1.5” composite pads.

· 5, D-Ring Tie-Downs running down center of the deck

· Mud flaps front and rear of tires with anti-sail brackets.

· Full length 3”x3/8” rub rails down both sides complete with stake pockets.

· All steel rigging sandblasted, primed, and finish painted black.

· All clearance lighting to be LED to CMVSS specs.

· DOT Tape.
