Sold 2020 Ferrari 7213CRA4 Knuckle Boom Deck Truck Crane in Alberta Canada

Sold 2020 Ferrari 7213CRA4 Knuckle Boom Deck Truck Crane in Alberta Canada | Crane Network

Type: Mounted Knuckle Boom Crane

Make: Ferrari

Model: 7213CRA4

Year: 2020

Capacity: 13.00 Tons

Condition: New

Hours: 10

Serial #: 106929

Unit #: 187

Location: Alberta, Canada

Notes

NEW 13 Ton Ferrari Knuckle Boom w/ 25ft Deck

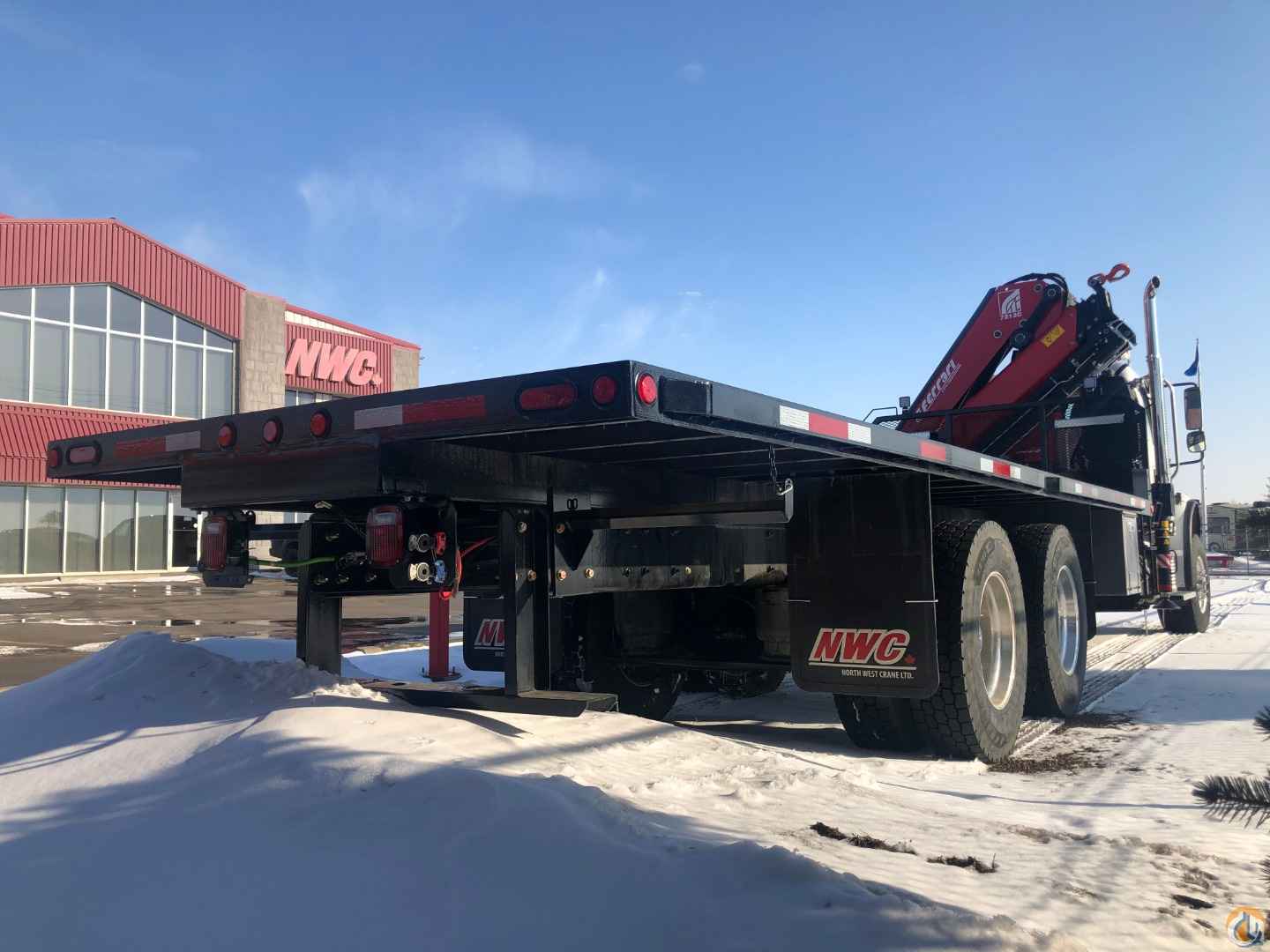

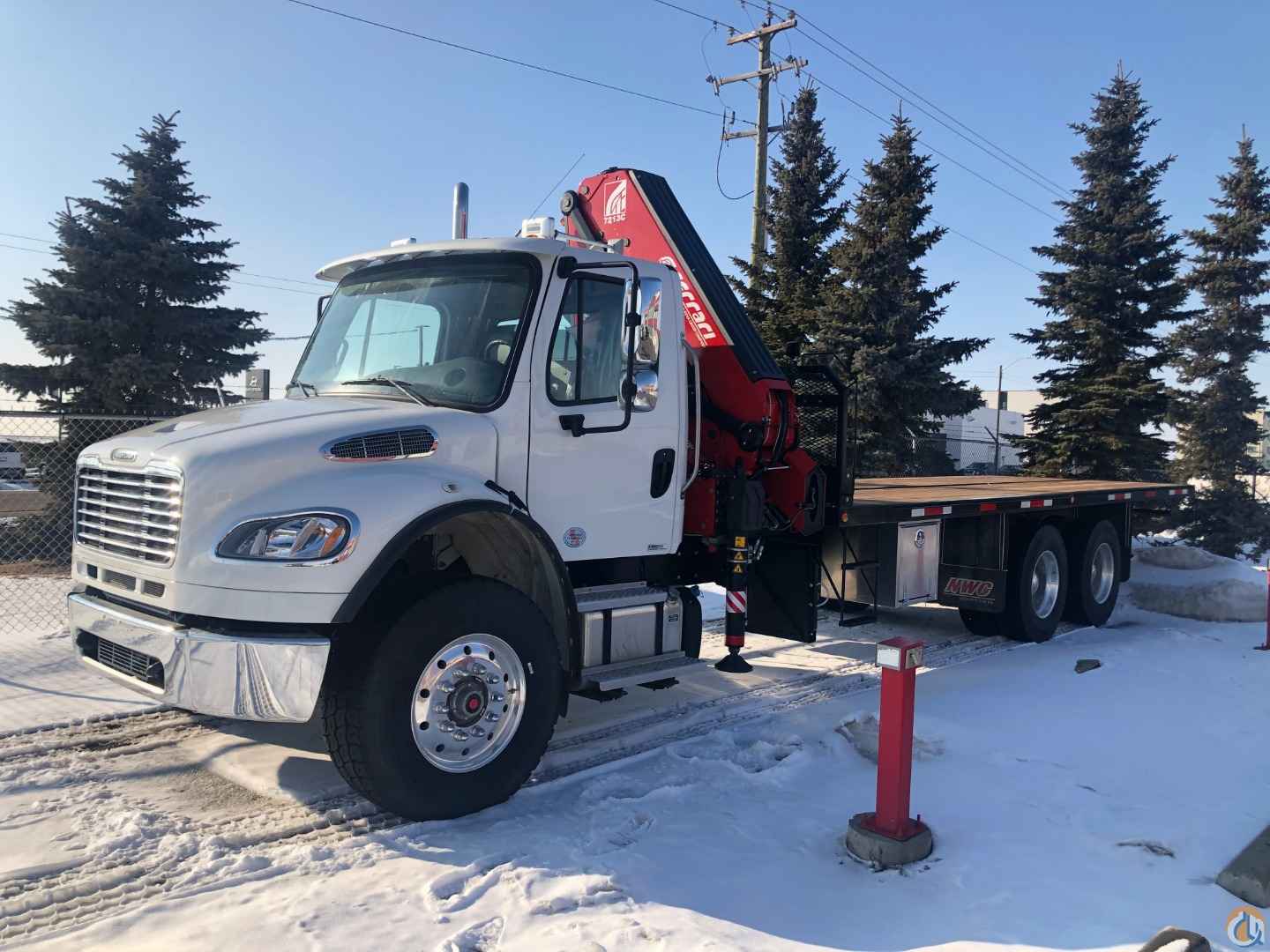

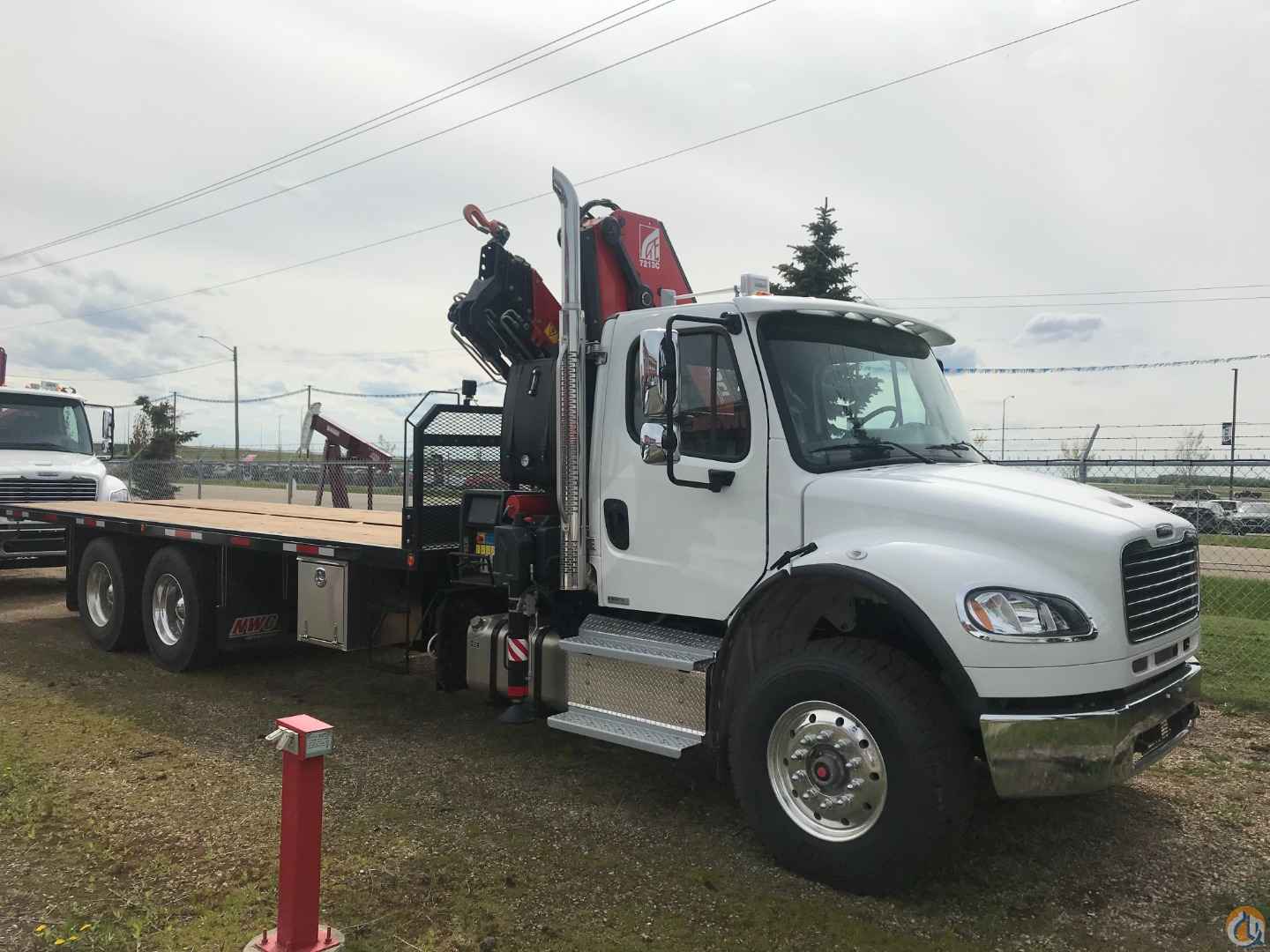

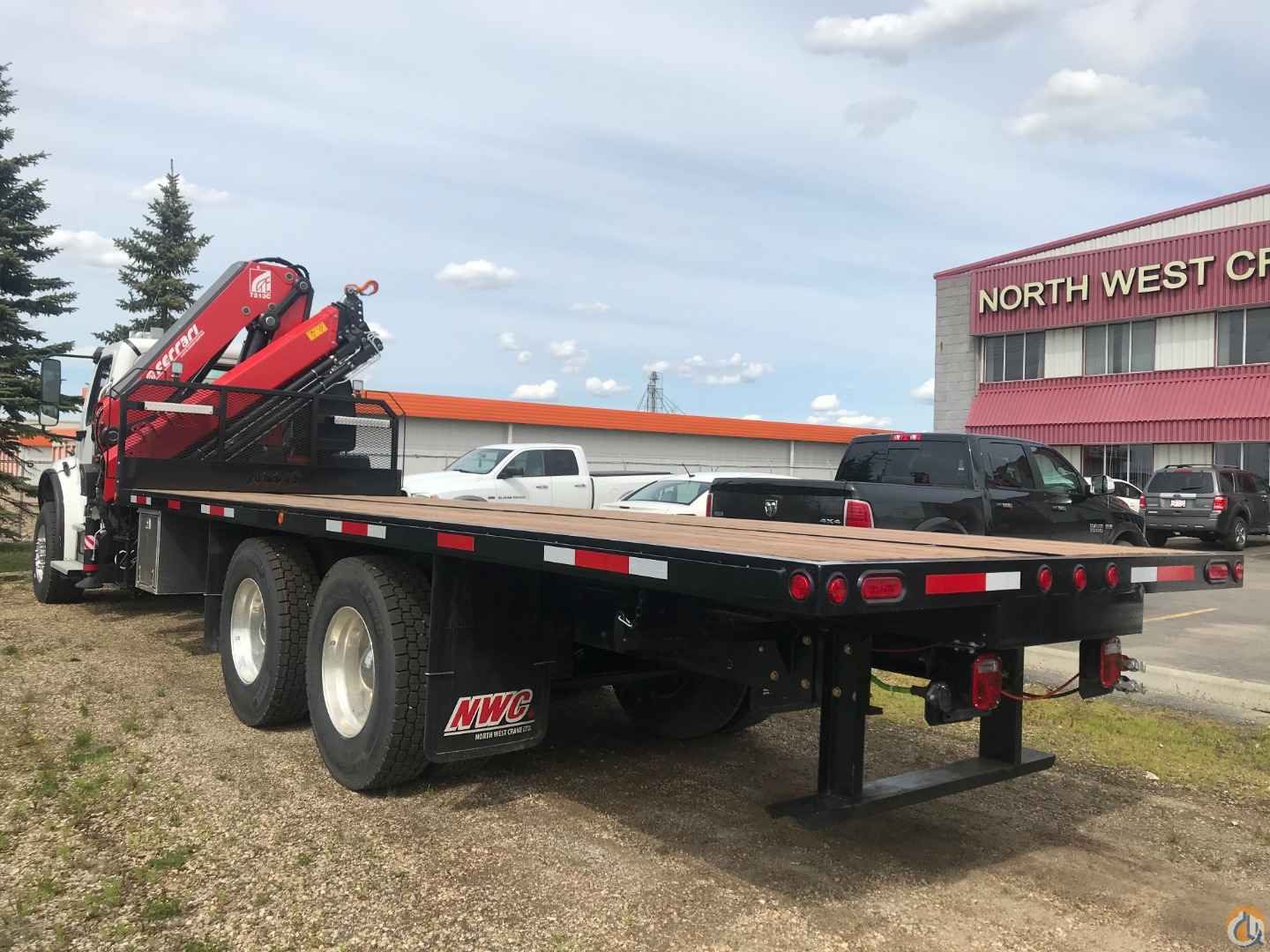

Unit 187, 2020 Ferrari 7213CR.A4 crane on a 2020 Freightliner M2 chassis complete with a custom 25ft deck package. The 7213CR.A4 crane comes with radio remote controls (which can be operated anywhere within 300’ of the unit), hydraulically extendable stabilizers, 4-hyrdaulic extensions and the Magic Touch technology. This allows the operator to stow & un-stow the boom regardless of the position with a press of one button. This keeps the chassis, rig-up & crane from being damages with improper use. The tandem Freightliner M2 is nicely equipped with a 330hp engine and 6spd Allison Automatic. The 25 foot deck and rigging is functional and robust, equipped with headache rack, rub rails, tool box and LED lights.

Ferrari 7213CR.A4 NOCE crane

· Maximum lifting capacity of 10,417 lbs. at 14.37’

· Maximum lifting capacity of 6,845 lbs. at 20.83’

· Maximum lifting capacity of 5,027 lbs. at 27.3’

· Maximum lifting capacity of 3,913 lbs. at 34.09’

· Maximum lifting capacity of 3,230 lbs. at 40.88 (end of Hyd. Extensions)

· Approx. 6,349 lbs. dry weight

· 415 degree rotation (non-continuous)

· (4) Hydraulic Extensions (Max Reach 40.88’)

· Hydraulic Out & Down Stabilizers (Max Width 18.04’)

· Oil Tank Capacity 130 L

· Slewing Hook, 8 Ton

· Control Valve DANFOSS PVG32

· Multifunction Hetronic Radio Remote Controls

· Red Power, Link on Column = Constant Lifting Capacities (on all main boom positions)

· Link on Second Boom = Negative Boom Angle (giving access to low ceiling space areas)

· Magic Touch (auto fold and unfold)

· Hydraulic Load Limiting Device (NO CE)

· Centralized Greasing System

· Ergonomic Ground Control Station (one side) Easy to Use & Safe.

· Load Holding Valves (on all hydraulic cylinders)

· Unit painted Ferrari Red.

· Mounting Kit

2020 Freightliner M2 Truck

· Engine Detroit DD8 330HP @2200 1000lb/ft@1400rpm

· 160 Amp Alternator

· Allison 3000 RDS-P 6-Speed Automatic Transmission

· Power Steering TAS-85

· RH Single Exhaust Stack to SCR/DPF B-Pillar cab mount

· Meritor 18,000lb Capacity Front Axle

· Taper Leaf Springs, Shocks 18,000 lb.

· Meritor 40-14XP 40,000lb. Capacity Rear Axles

· Diff Lock Drive Axles

· Airliner Tan-Drive, 46,000 lb.

· 6:14 Rear Axle Ratio

· ^7/16x3-^9/16”x11^1/8 Steel Rails w/^1/4” Insert

· Michelin XZY-3 385/65R22.5 18 Ply Front Tires

· Alcoa 22.5” by 12.25” Aluminum Front Wheels

· Michelin X 11R22.5 16 Ply Rear Tires

· Alcoa 22.5” by 8.25” Aluminum Rear Wheels

· Two Aluminum 50 Gal Fuel Tanks

· Grey Interior

· High Back Air Ride Seats Vinyl with Cloth Insert

· 1-Piece tinted Windshield

· Stainless Steel Mirrors 7X16 w/ Heat Element

· Power Door Locks & Power Window Lifts

· Combo Fresh Air Heater/Air Conditioner

· AM/FM, WB, USD, MP3 & Bluetooth Stereo

· Exterior Color White

Custom 25’ long deck

· Deck dimensions approx. 25’ long x 8’ wide

· Perimeter of deck to be 3”x 5” angle iron (sitting on 6” channel iron long sills)

· Cross sills to be made of 3” formed steel, 16” on center

· Top of deck to be 2x8” smooth fir wooden planks screwed to the cross sills. Treat wood top with waterproofing.

· Headache rack to be made with 2”x2” steel tubing, perforated steel mesh (LH & RH Side) & polished aluminum insert in the middle mounted front of deck. Approx. 36” high x 96” wide c/w chain hangers, chain tray (8” deep x 10” high), grab handles & (2) LED work lights.

· Supply & install (2) aluminum 24”x24”x24” cabinet(s) under deck, one per side.

· 1 per side, 16” wide cold rolled access ladders on deck with flow forge grating added to steps for better foot grip.

· 1 per side, post style chain hangers to hold 1 set of tire chains (tire chains not included).

· 1 per side outrigger pad holders complete with a set of 24”x24x1.5” composite pads.

· 5 D-Ring Tie-Downs running down center of the deck

· Mud flaps front and rear of tires with anti-sail brackets.

· Full length 3”x3/8” rub rails down both sides complete with stake pockets.

· All steel rigging sandblasted, primed, and finish painted black.

· All clearance lighting to be LED to CMVSS specs.

· DOT Tape

If you have any questions, please feel comfortable to reach out. We look forward to getting this unit ready for you.
