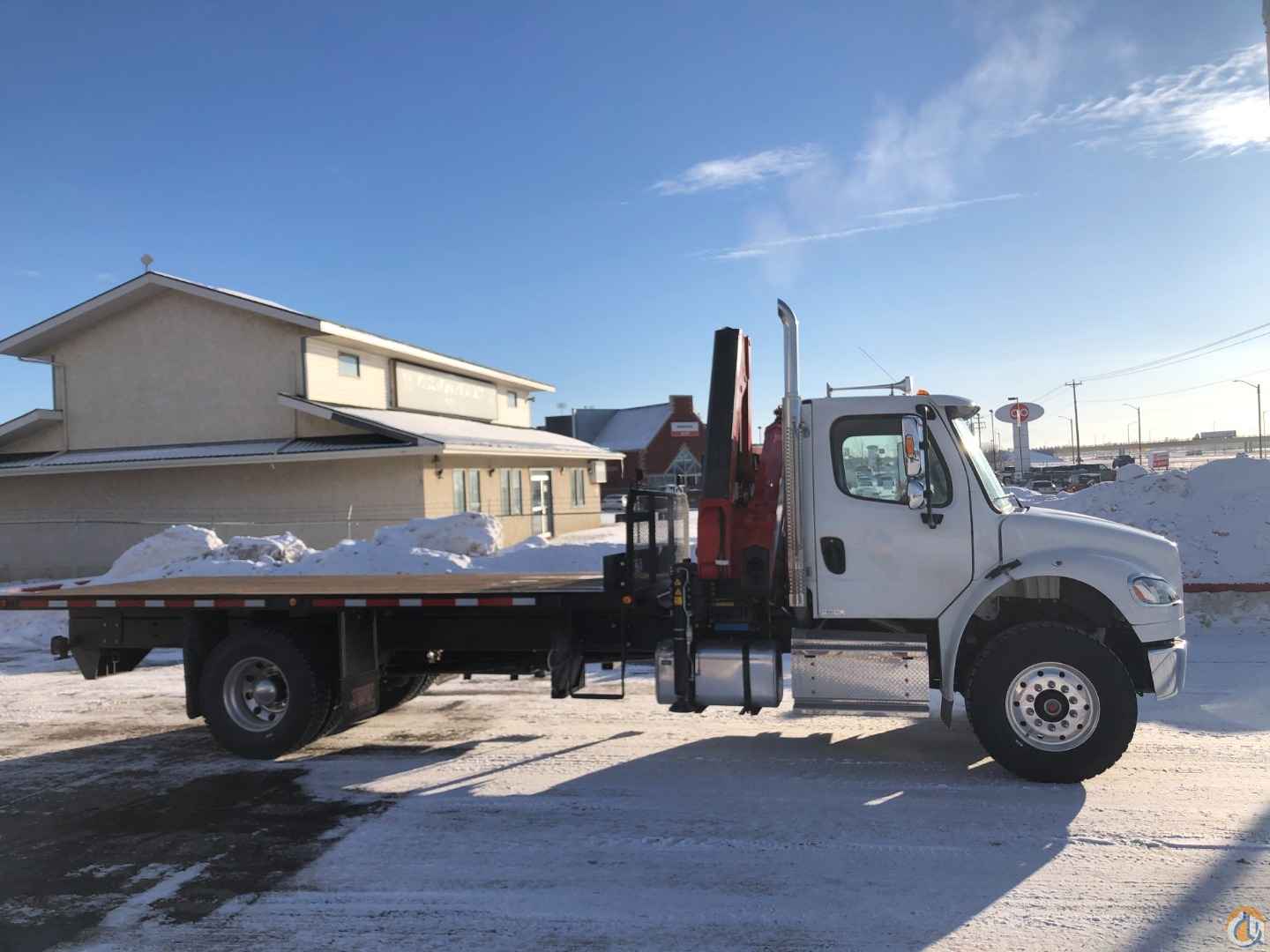

2022 Ferrari 7153CRA4 Mounted Knuckle Boom Crane (Sold)

In-Progress - Expected completion late Oct. 2021

Ferrari 7153CR.A4 NOCE crane complete w/ the following:

· Maximum lifting capacity of 6,100 lbs. at 15‘7”

· Maximum lifting capacity of 4,050 lbs. at 22’

· Maximum lifting capacity of 2,980 lbs. at 28’5”

· Maximum lifting capacity of 2,310 lbs. at 35’1”

· Maximum lifting capacity of 1,920 lbs. at 41’10” (end of Hyd. Extensions)

· Approx. 4,500 lbs. dry weight

· Slewing Angle: 425 Degrees (Best in Class!)

· (4) Hydraulic Extensions (Max Reach 41’10”)

· Extra-Wide Hydraulic Out & Down Stabilizers (Max Width 17.72’)

· Oil Tank Capacity 130 L

· Rotating Hook, Capacity: 8,0 t

· Hetronic Factory Installed Radio Remote Controls

· Control Valve DANFOSS PVG32

· High Pressure Oil Filter

· Manual Controls on One Side of Crane

· Hydraulic Load Limiting Device (NO CE)

· Centralized Greasing System

· Ergonomic Ground Control Station

· Magic Touch – folding / unfolding assistance.

· Red Power, Link on Column = Constant Lifting Capacities (on all main boom positions)

· Link on Second Boom = Negative Boom Angle (giving access to low ceiling space areas)

· Load Holding Valves (on all hydraulic cylinders)

· Unit painted Ferrari Red.

· 4-Bolt Mounting Kit

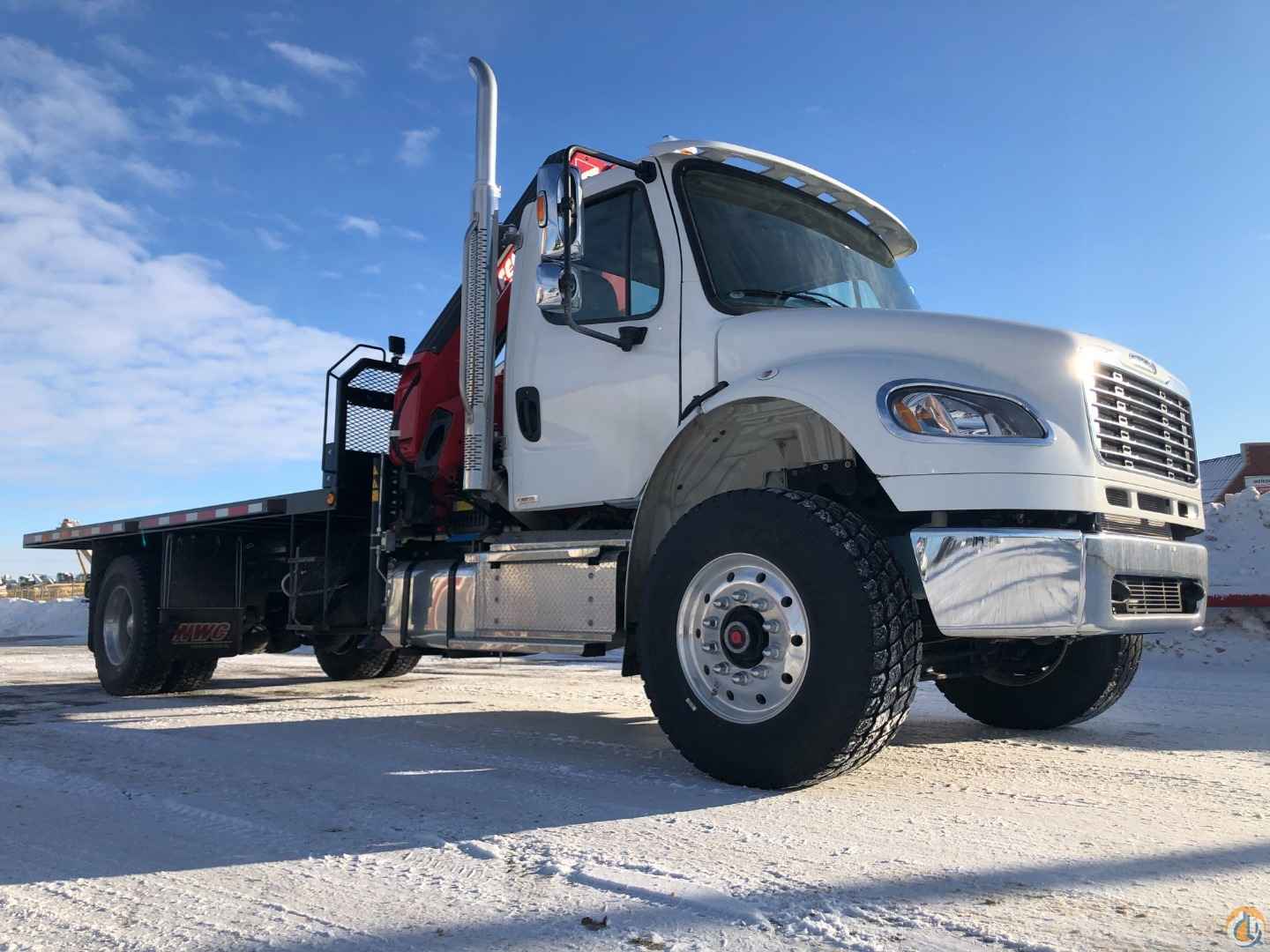

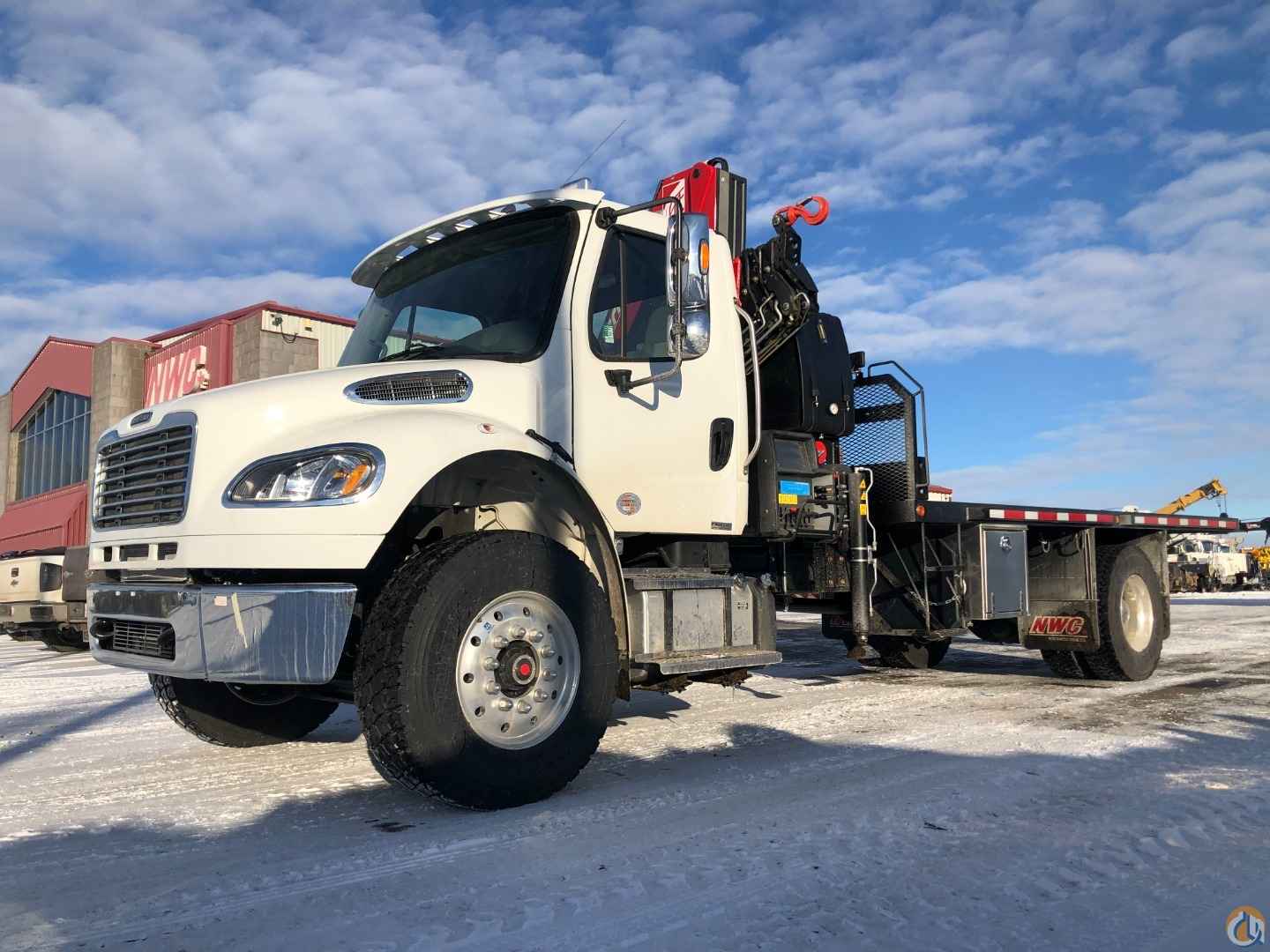

2022 Freightliner M2 106 chassis complete w/ the following:

· Engine Cummins L9 330HP @2200 1000lb/ft@1200rpm

· Jacobs C-Brake w/ on/off Switch

· 160 Amp Alternator

· Allison 3500 RDS-P 6-Speed Automatic Transmission

· Power Steering TAS-85

· RH Step SCR/DPF w/ B-Pillar Cab Mount Vertical Tailpipe

· Detroit DA-F-16.0-5 16,000lb Capacity Front Axle

· Taper Leaf Springs, Shocks 16,000 lb.

· Meritor RS-23-160 23,000lb. Capacity Rear Axle

· Diff Lock Drive Axle

· Airliner 23,000 lb. Rear Suspension

· 5.38 Rear Axle Ratio

· Air Brake Package

· 7/16x3 - 9/16”x 11 1/8 Steel Rails

· Air Connections to EOF w/ Glad Hands & Tailer Plug

· Michelin XZY-3 385/65R22.5 18 Ply Front Tires

· Alcoa 22.5”x12.25” Aluminum Front Wheels

· Michelin XDS2 11R22.5 16 Ply Rear Tires

· Alcoa 22.5”x/8.25” Aluminum Rear Wheels

· Two Aluminum 50 Gal Fuel Tanks

· 3-Piece 14” Chromed Steel Front Bumper w/ Tow Hooks

· 106” BBC Flat Roof Aluminum Conventional Cab

· Grey Interior

· Driver Seat - High Back, Air Ride, Vinyl with Cloth Insert

· Passenger Seat(s) – 2 Man Toolbox, Mid Back, Non-Suspension Seat

· 1-Piece tinted Windshield

· Dual West Coast Bright Finish Heated Mirrors w/ 8” Convex Mirrors Mounted Underneath

· Power Door Locks & Power Window Lifts

· Heater/Defroster & Air Conditioner

· Stereo w/ AM/FM/WB w/ SiriusXM, Bluetooth, IPOD Interface, USB & AUX INPUTS

· Dual Amber Strobe Lights w/ Stainless Steel Brackets

· Exterior Color White

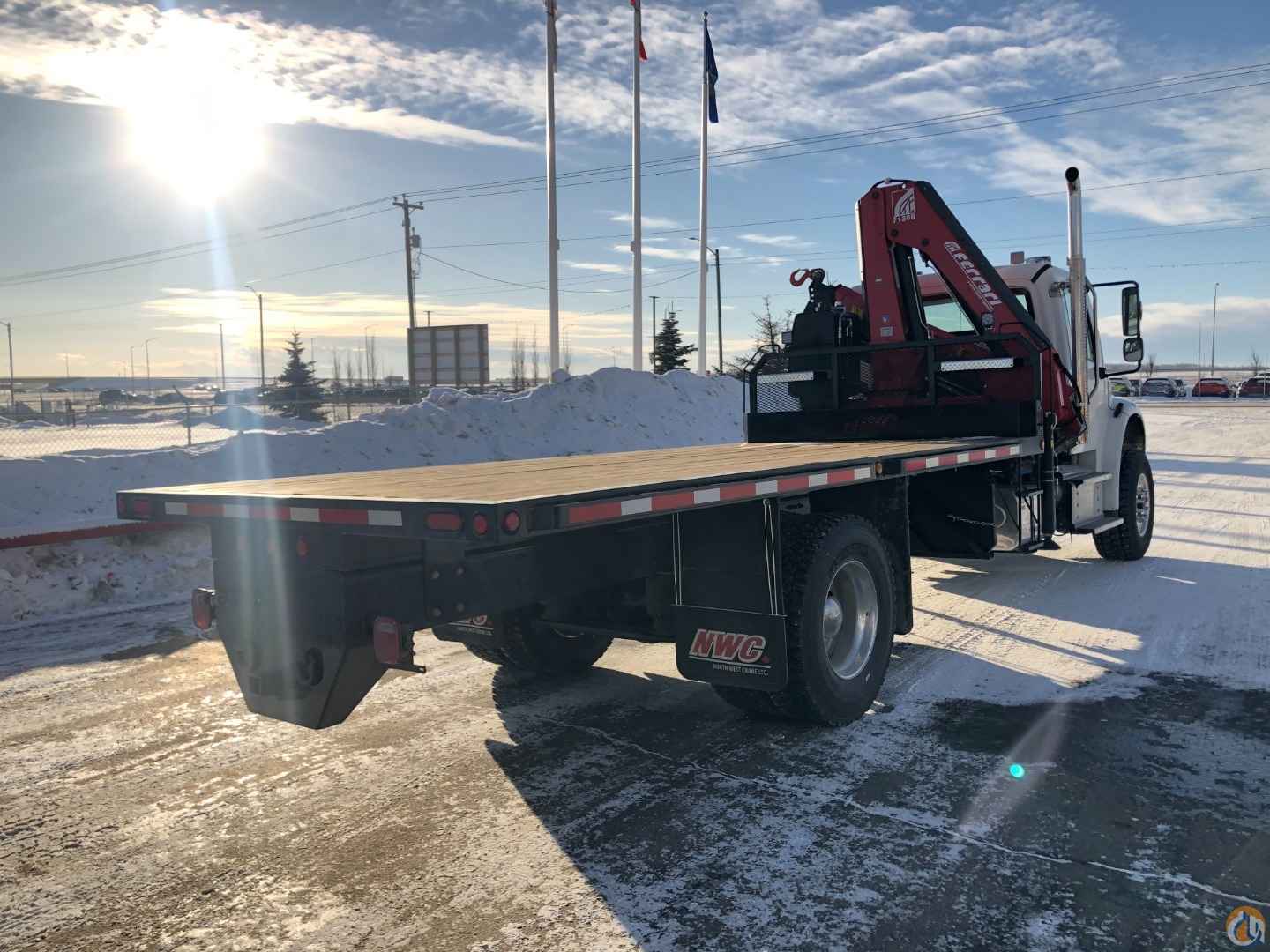

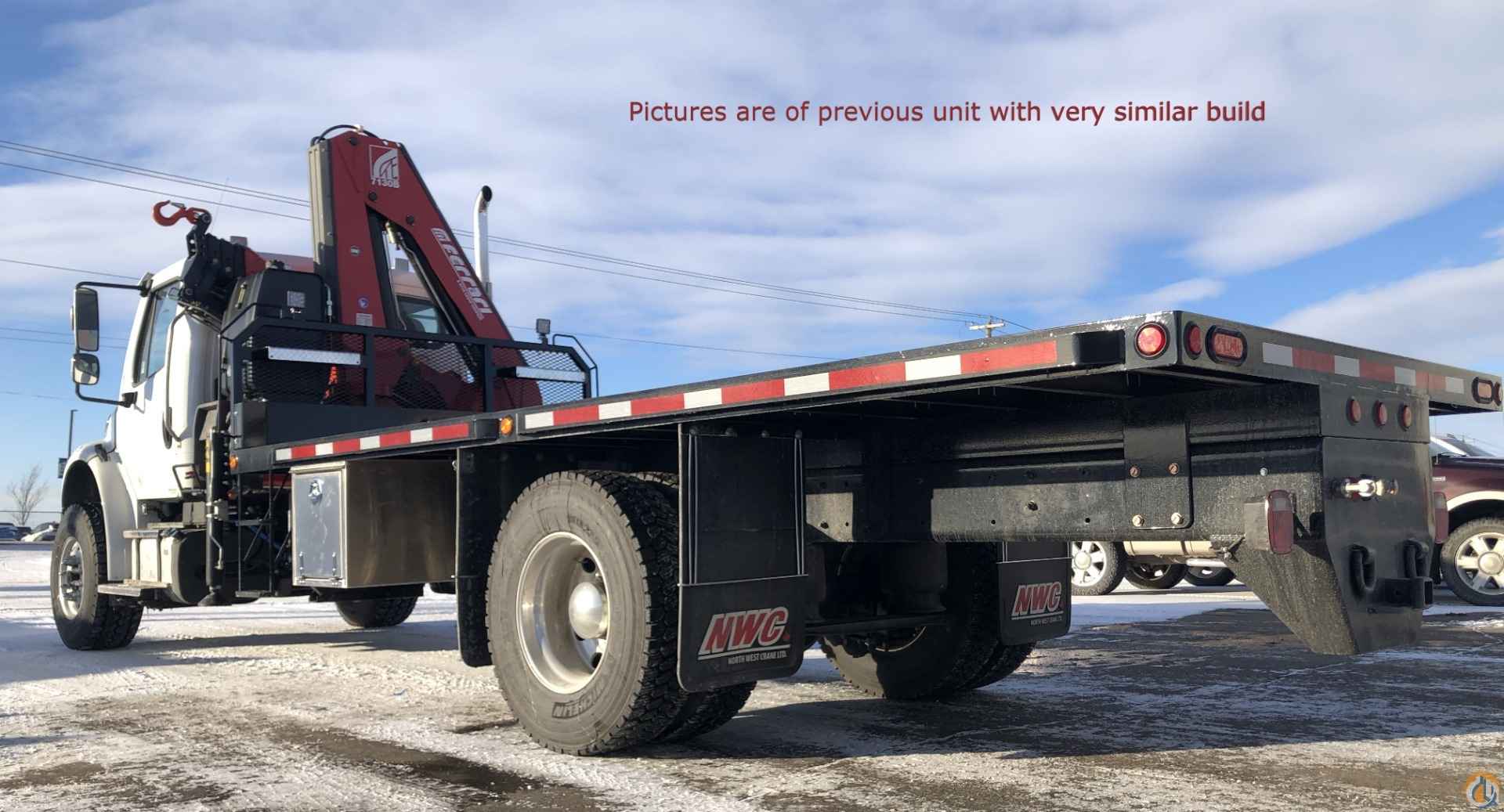

NWCE Custom 20’ long deck complete w/ the following:

· Deck dimensions approx. 20’ long x 8’ wide

· Perimeter of deck to be 3”x 5” angle iron

· Cross sills made of 3” C channel, 16” on center

· Top of decking to be 2x8” treated wood planks screwed to cross sills.

· Front headache rack made with steel tubing, Approx. 30” high x 96” wide c/w chain hangers, broom/shovel holders, chain tray, grab handles with (2) LED work lights.

· Full length stake pockets & rub rails.

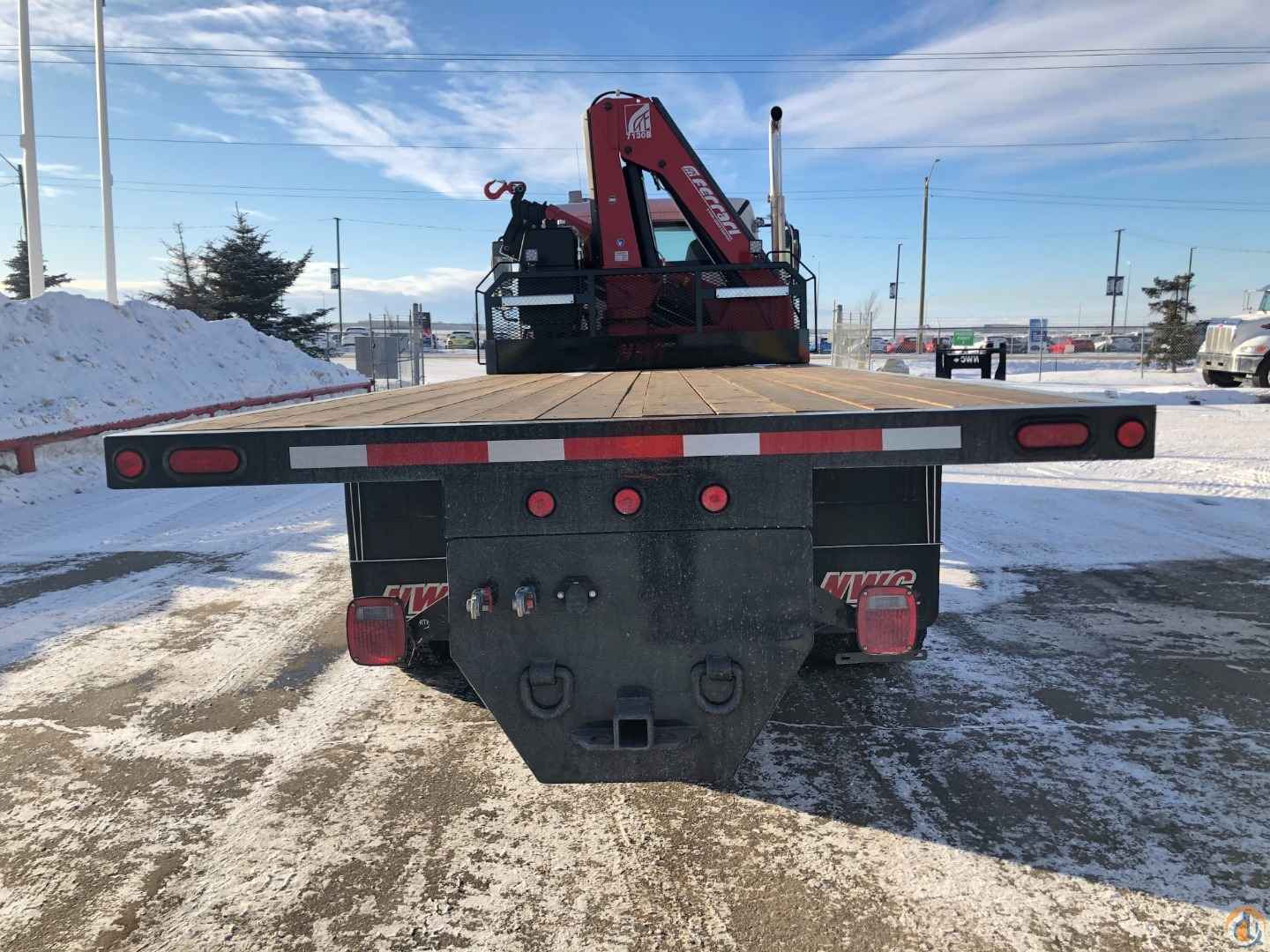

· Rear apron w/ (2) D-rings, 3”(2.5” opening) receiver hitch plus air glad hands & electrical outlet.

· Two Aluminum 24”x24”x24” cabinet mounted on driver’s side, under the deck

· Cold rolled access ladders at the front of the deck, 1 per side

· Post style chain hangers (Tire chains not included)

· Outrigger pad holders complete w/ a set of composite pads, mounted 1 per side.

· Mud flaps front and rear of tires with anti-sail brackets

· All steel rigging is sandblasted, primed, and finish with Enamel paint black

· All LED Lighting and conspicuity tape meeting Canadian Motor Vehicle Safety Standards

· National Safety Mark Decal
