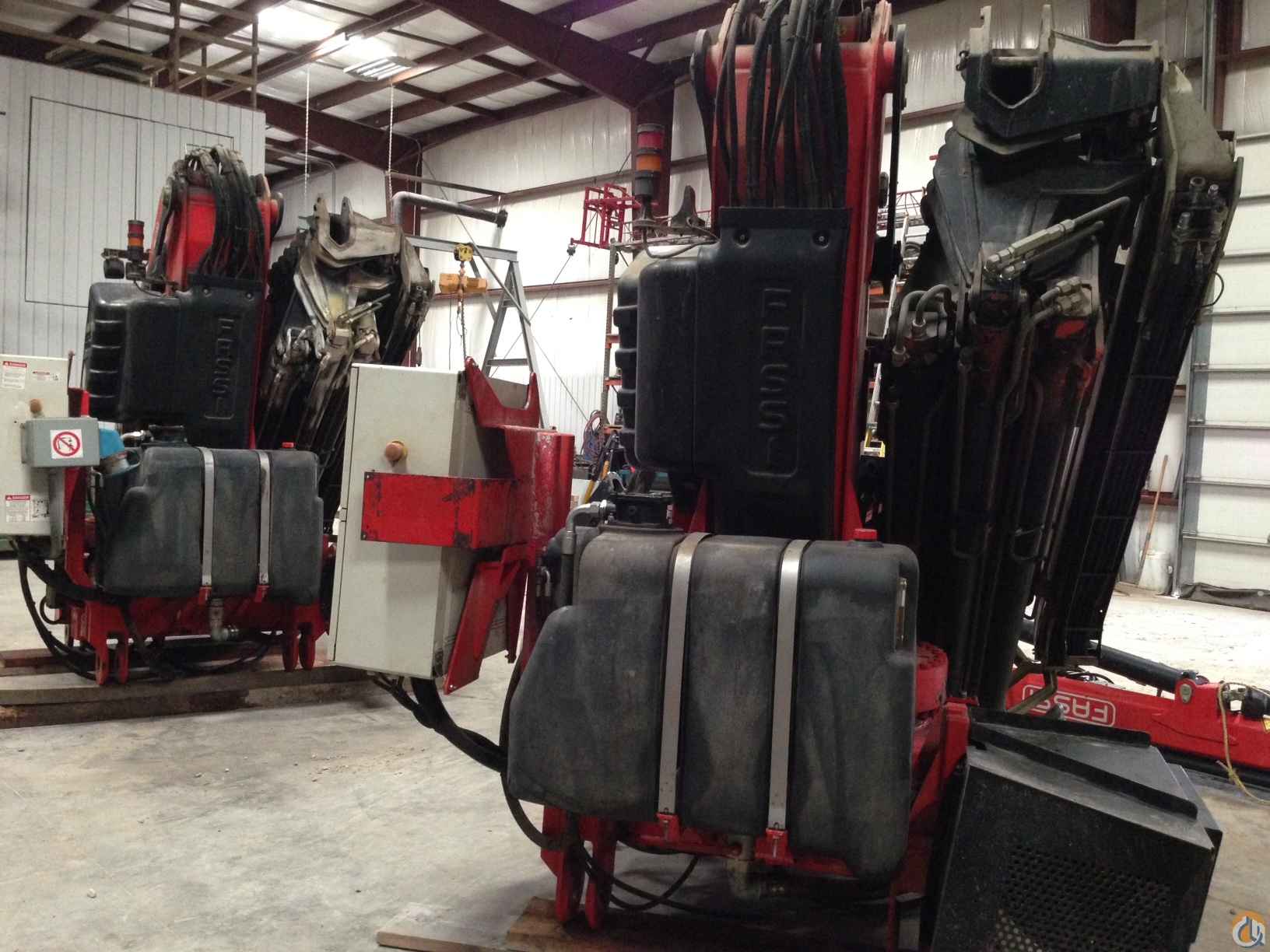

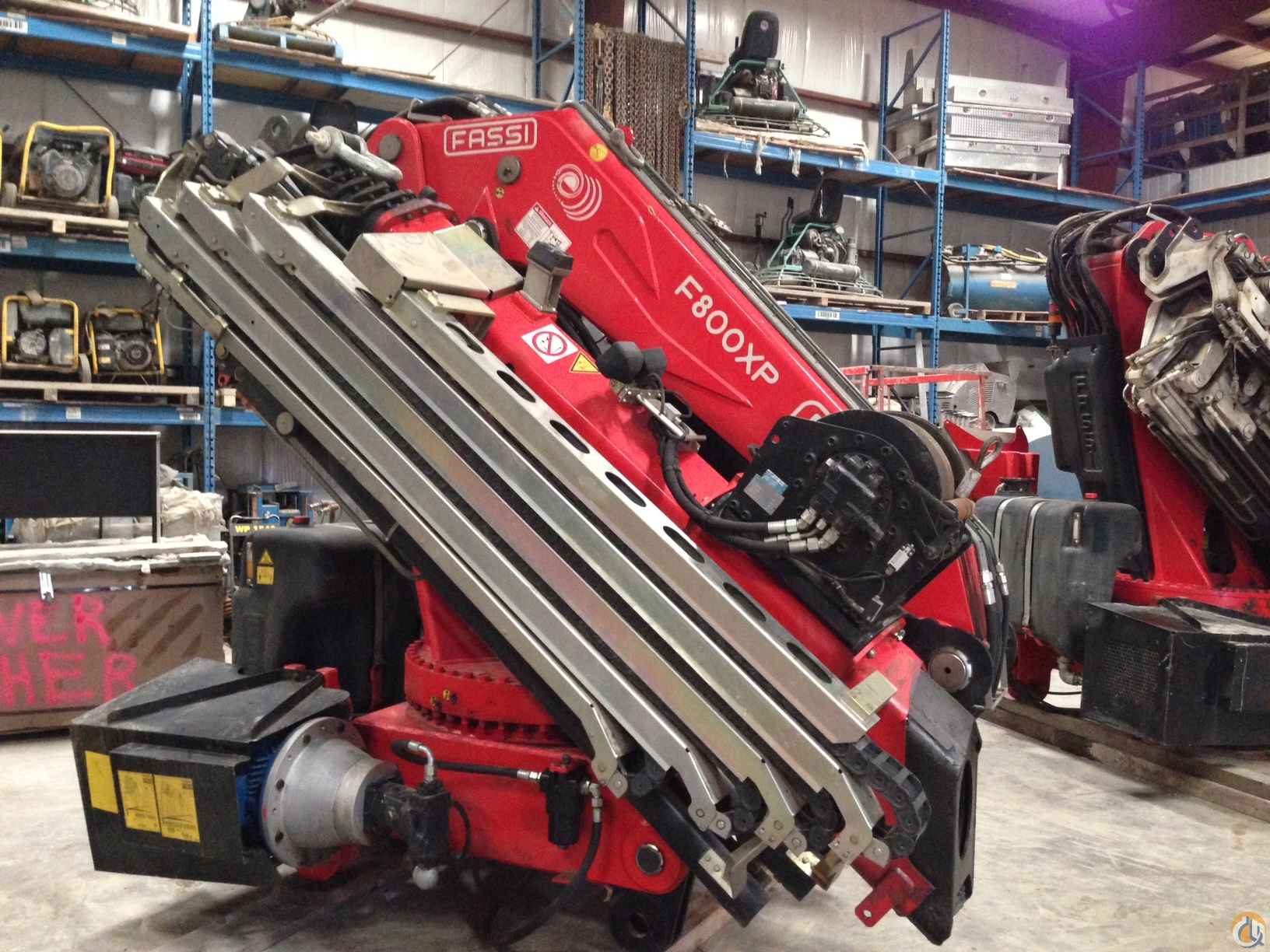

Fassi F800 BXP28 Mounted Knuckle Boom Crane (Sold)

Good working order
Standard Crane, Column Mounted Distributor/Top Seat Controls Four (4) Functions.

Lifting Links on inner and outer boom.

Hydraulic Prolink System.

360’ Continuous Rotation via Dual Hydraulic Rotation Motors.

Danfoss D900 Distributor complete with pressure filter.
Radio Remote, electronic load limiting device (FX).
with (1) Control Station for Crane with Danfoss,

Alpha Numeric Display and Red/Yellow Light

IMC e ADC System, Oi Recycling Value "XF"– extra Fast Extension System.

Nylon, Rust Free, Hydraulic Oil Tank Mounted on Crane, Oil Cooler

Manual Base Greasing Distributor System, Swivel Hook.

Hydraulic Jib with Electronic Load Moment Limiting Device "FX" for Jib Supplementary Distributor Functions (2)

XP device F800B, GV (graphic display)

Radio Remote predisposition for USA and Canada frequency.

Two remote control functions activated, including hose trays and cat-tray protection, to the crane boom tip for jib activation.

Rotating electric distributor with 16 rings, compulsory for activation of work lights

Special pedestal base to match up to Schwing pedestals.

Type "V30"- Hydraulic Winch

Remote control winch function for crane with distributor on the column.

Winch stroke and “CE” version for “V30”

–Oil Cooler type 120/12 (12volt)

Xenon working lights on inner, secondary and on hydraulic extension.

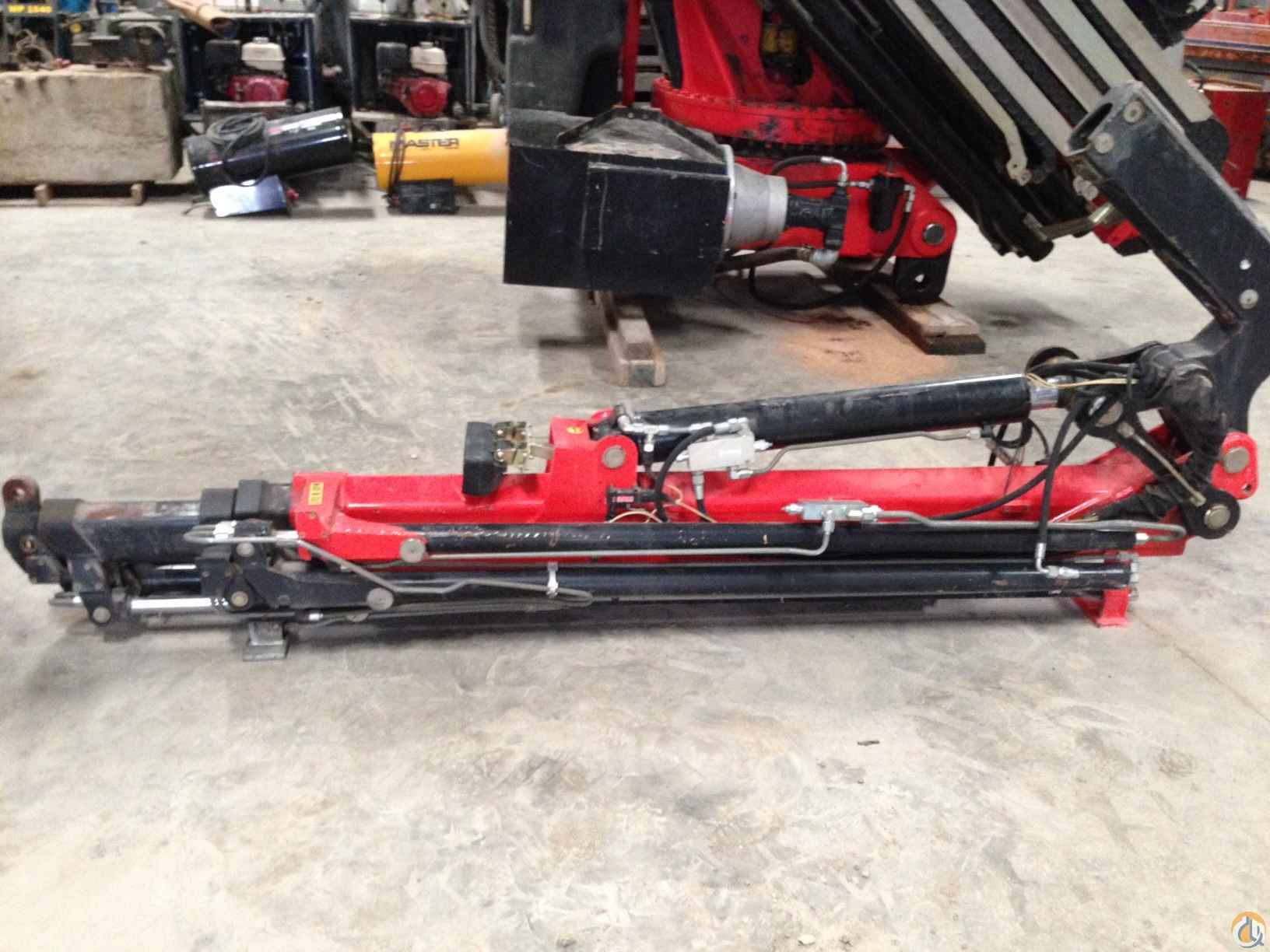

Hydraulic Jib

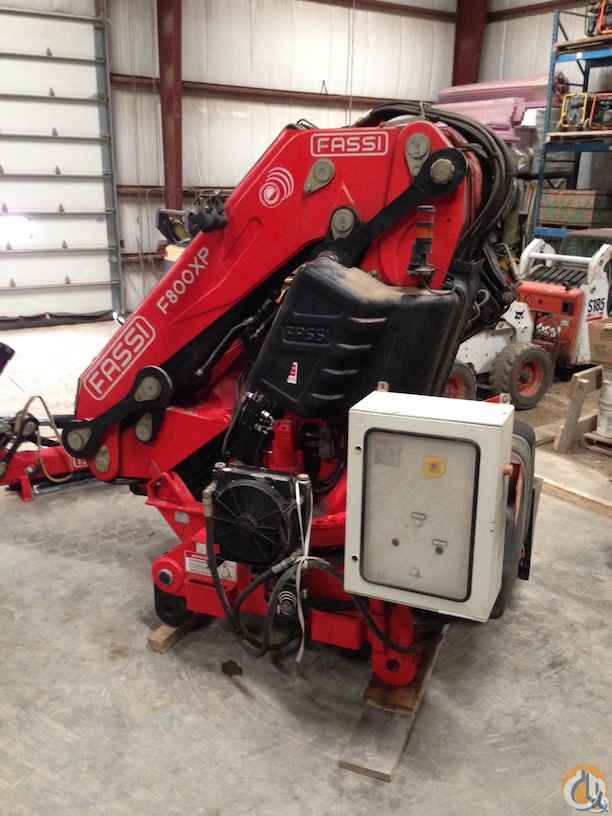

Crane Electric Power Pack

NOTE: FASSI CRANE ELECTRICAL REQUIREMENTS MODEL F800 BXP, ELEC MOTOR SIZE: 60HP, TOTAL AMP REQ’D @ 460VAC 60HZ 3PH: 77AMPS.

TERMS & CONDITIONS:

• Where is as is.

• Any local or state taxes are additional to the sale prices

• Brokerage fees by purchaser

• F.O.B. Location of Unit – Windsor, Ontario; Canada.
• Payment terms: 25% deposit w/ purchase order; remaining balance prior to shipment.
• Unit to be loaded by Seller onto trucks provided by purchaser.
• Equipment availability – ready for pickup.

Call: Paolo Collavino (519-966-0506 Ext# 101)

Renzo Collavino (313-427-8007 Ext# 431)
