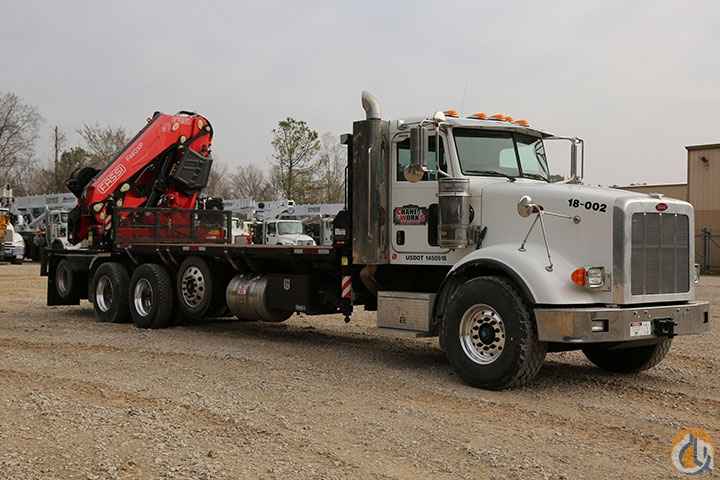

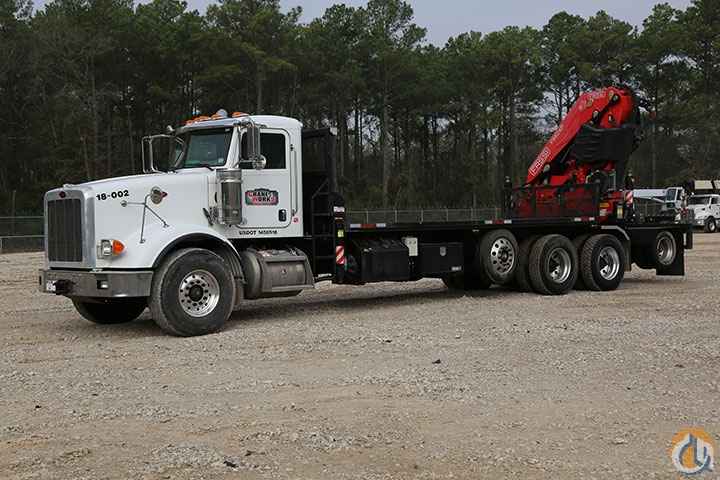

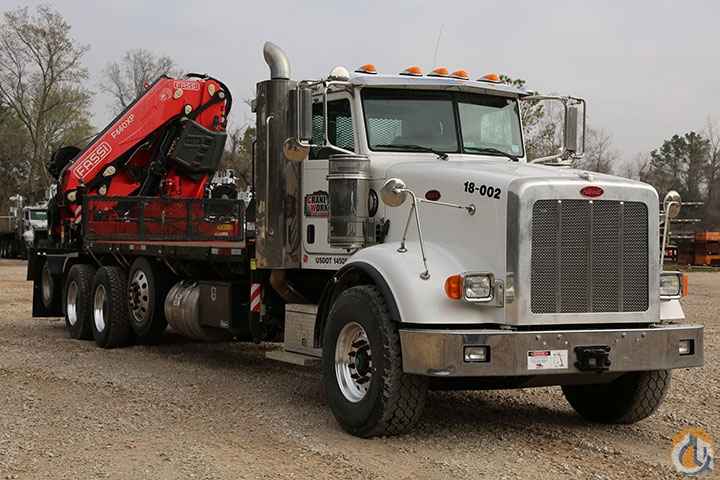

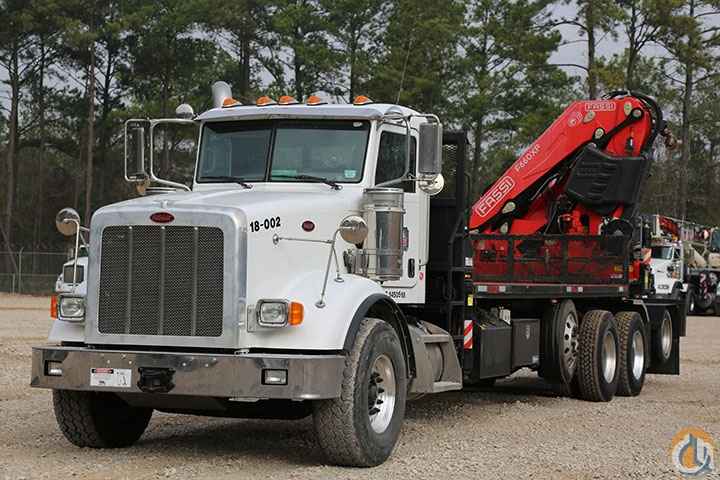

F660AXP.24 Mounted Knuckle Boom Crane (Sold)

STANDARD FEATURES

Standard Crane with Column Mounted Distributor

360° Continuous Rotation via One (1) Hydraulic Motor

Danfoss D900 Electrohydraulic Proportional Multifunctional Distributor (4-Function) Complete with

Pressure Filter

Hydraulically Extendable Outriggers Controllable via Manual Distributor from Ground

Lifting Links on Inner and Outer Boom

Hydraulic Prolink System (Progressive Link up to 15° above the horizontal position)

Radio Remote Controls for Crane (via Fassi RCH or RCS Radio with Display)

Flow Sharing Function

“XF” (eXtra Fast) Extension System

Oil Recycling Valve (electric type w/Full Lift Function)

Electronic Load Limiting Device (“FX 800 Evolution") with One (1) Control Station for Crane with

Danfoss Distributor, Includes Graphic Display

IMC e ADC System (Integrated Machine Control and Automatic Dynamic Control) Manual Base

Greasing Distributor System

Nylon, Rust Free, Hydraulic Oil Tank Mounted on Crane

Swivel Hook

Standard Paint Color – Fassi Red – RAL Code 3020

INCLUDED OPTIONS

Fassi RCH Radio Remote Transmitter w/6 Lever Controls - 5 Activated

XP Device - F600A/F660AXP

Hydraulically Extendable Supplementary Outriggers - "H" STYLE

Adjustable Height - Above Chassis Installation

Spread: 16' 5" - Weight: 1,279 lbs

w/ N.2 Long Outrigger Rams - Swivel Plate - Rod Extension: 20"

Hydraulically Tiltable Outriggers via Chain

(Positioning of outriggers at 180°)

Type "V30" Winch Complete - for Crane w/Column Mtd Distributor

Triple Fall Pulley (only for crane)

Monocast Outrigger Plates - Clamp-On Pads for Steel Swivel Feet- 4 each

For Supplementary Outriggers

Diameter: 15.75"; Weight (each): 19.85 lbs

TRUCK

2010 Peterbilt 367 Truck

Cummins ISX600 600 HP Engine

Eaton Fuller 18 Speed Transmission

Double Diff Lock

Double Frame

Wheel Base: 323”

Front Suspension: 20K Lbs

Rear Suspension: 46K Lbs

Aluminum Wheels

19’ Flat Bed

20,000# Air Drop non-steerable tag axle

13,200# Air Drop steerable pusher axle
