LIFTING CLASS
Highest moment 50 tm / 490 kNm
MAX OUTREACH
up to 28,55 m with jib
OVERALL DIMENSIONS
From: w. 2,48 m, l. 1,45 m, h. 2,50 m
ELECTRONIC/HYDRAULIC EQUIPMENT
FX500 control unit
D850 digital distributor bank
RCH/RCS radio remote control unit
ADC automatic dynamic control
Flow sharing
CHARACTERISTICS
Dynamic version (.2): with linkage
XP device
Prolink system with double linkage
Continuous rotation on a slew ring
Description

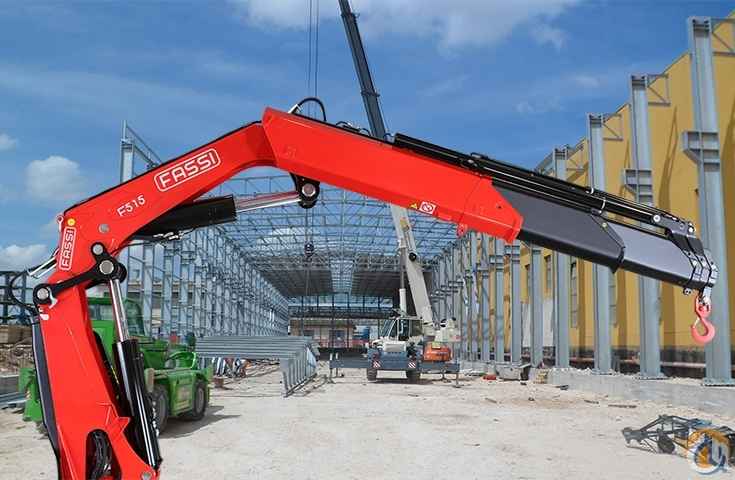

Fassi has revolutionised the traditional idea of heavy-weight knuckle boom crane, to be installed on 3 or 4-axle trucks. These cranes stand out for their ability to combine exceptional lifting performance with a machine body that reduces structural dimensions to a minimum and aims at limiting tare weight. This is possible thanks to the use of special materials, first among which are the extremely high elasticity steels which, while they ensure formidable levels of resistance, also make it possible to optimise weight. This is why Fassi is able to offer a crane "without compromise". Naturally, particular care is given to reliability, although this has to be reconciled with dynamics, which are an integral part of the very concept of hydraulic cranes.
