Features

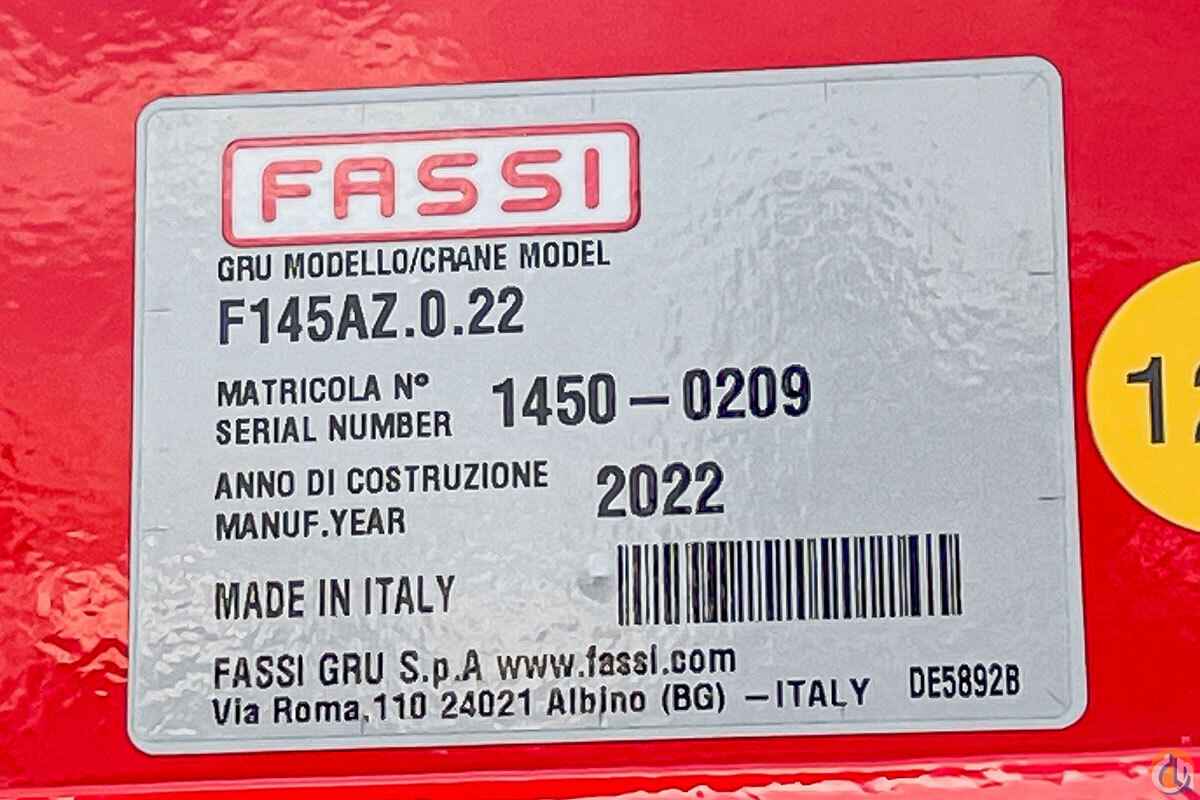

F145AZ Fassi knuckle boom crane
Available grapple attachment
LIFTING CAPACITY:
up to 14 tm
MAX OUTREACH:
up to 8,25 m
OVERALL DIMENSIONS:
from: w. 2,50 m, l. 0,75 m, h. 2,65 m
ELECTRONIC/HYDRAULIC EQUIPMENT:
Control unit FX500
Hydrocontrol HC/D4 segmented distributor bank
CHARACTERISTICS:
Active version (.0): without linkage
Rotation 415° with rack and pinion
Included Options
- Hydraulically extra extendable outriggers
- Hydraulic extra extendibility of lateral outrigger supports for a total spread of 15' 9".
- Oil cooler
- Oil/air cooling system composed by an oil cooler type 60/12 completed with thermostatic valve and cooling fan installed on the cranes with pump capacity up to 16 gals/min and 12V. vehicle battery.
- Long fixing rods
- Long fixing bolts for crane fixation to the vehicle chassis, in place of standard ones.
- Switch for work light
- Switch for work light on/off placed near the distributor bank
- N. 2 work lights
- N. 2 LED work lights mounted on inner boom.
- Orange LED marker lights for crane outrigger
- Orange LED marker lights to be installed on the crane outrigger rams to highlight the overall dimensions during the crane utilization.
Description

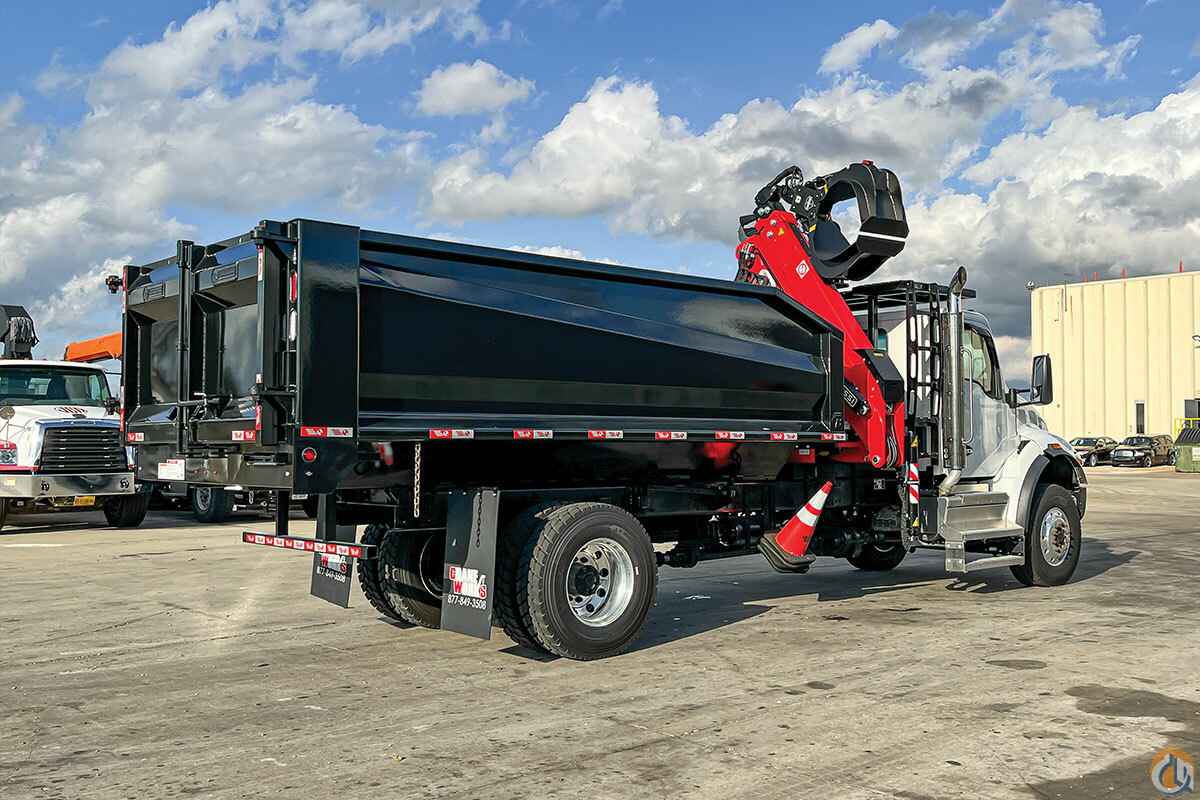

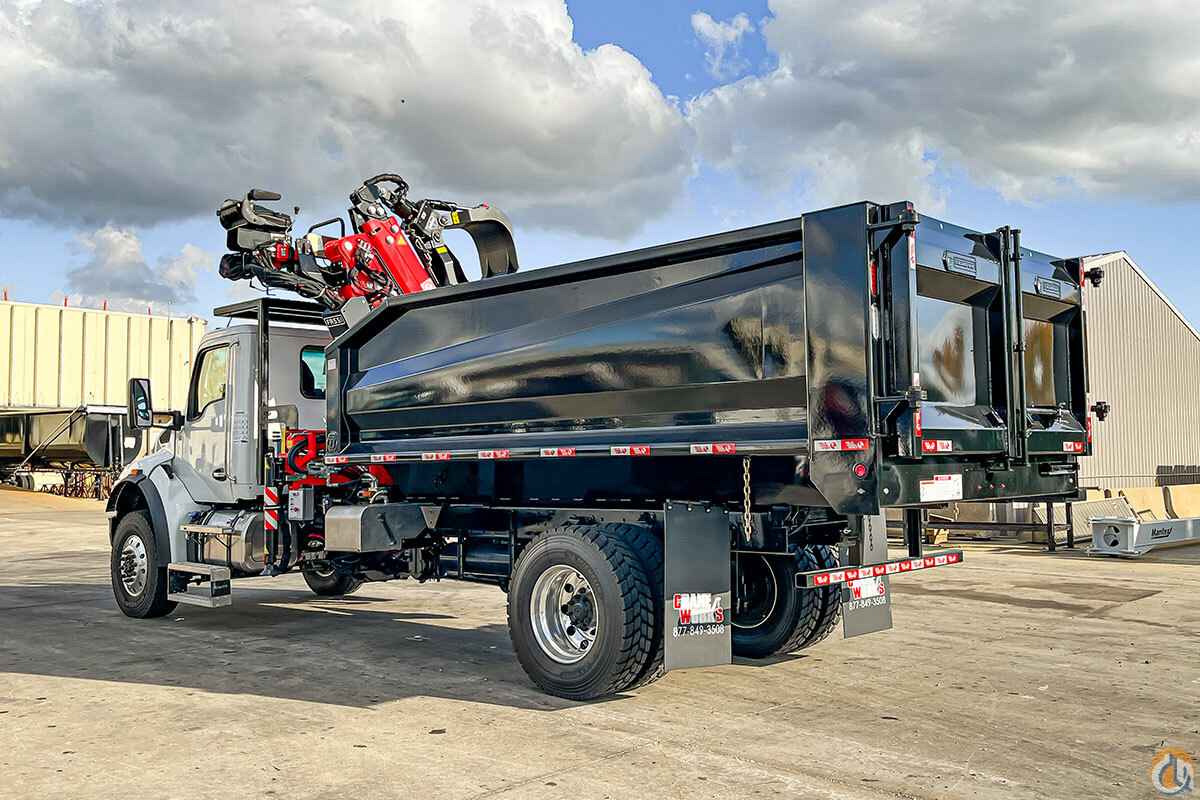

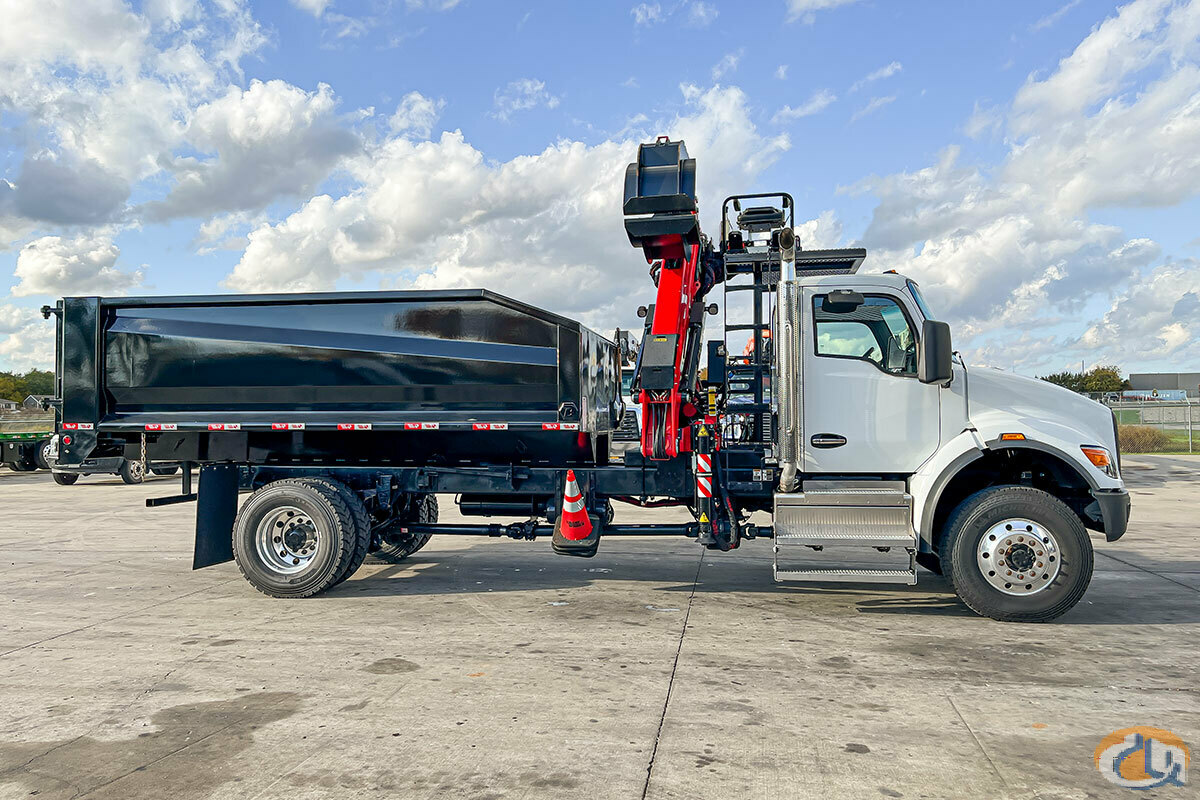

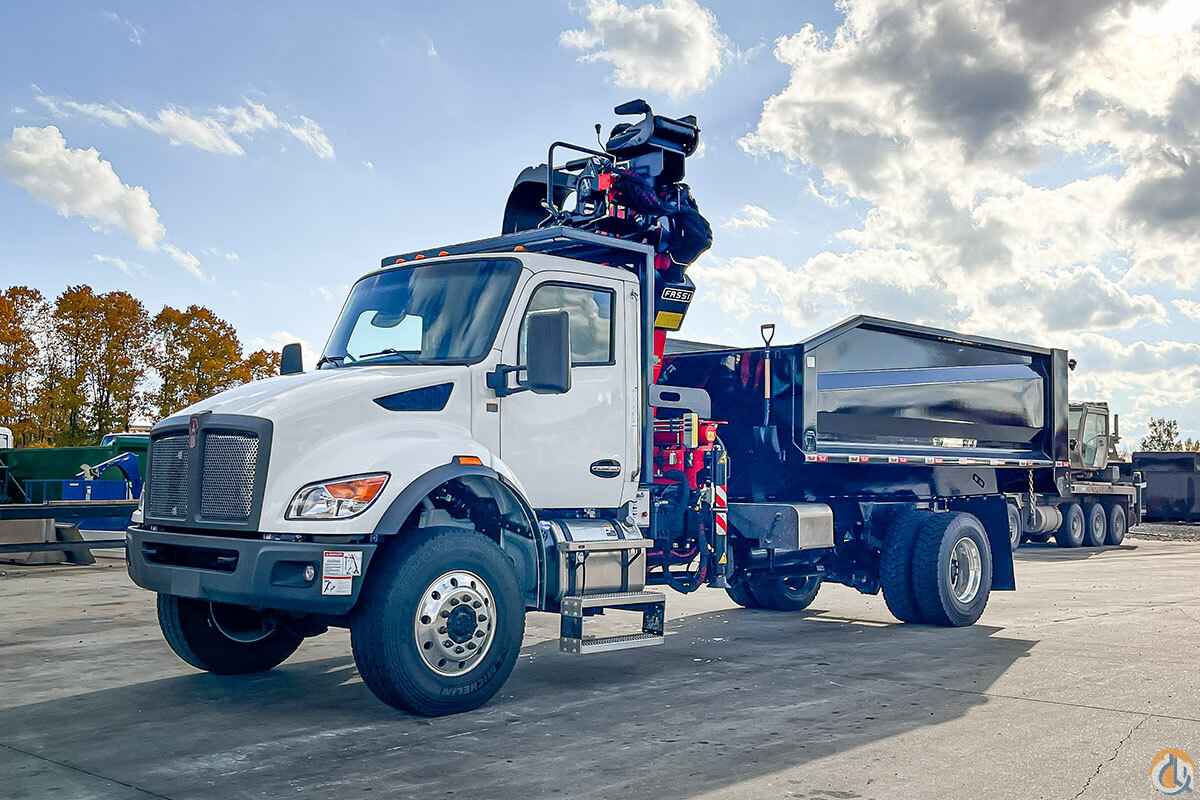

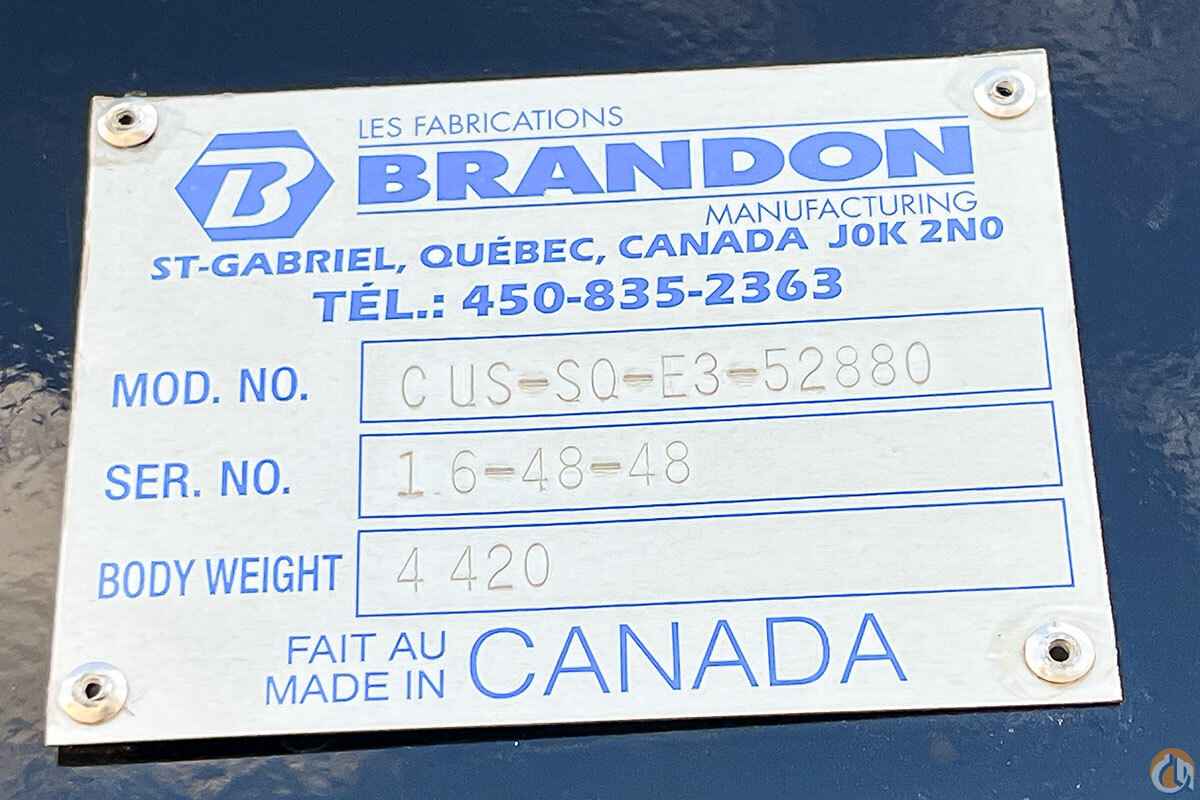

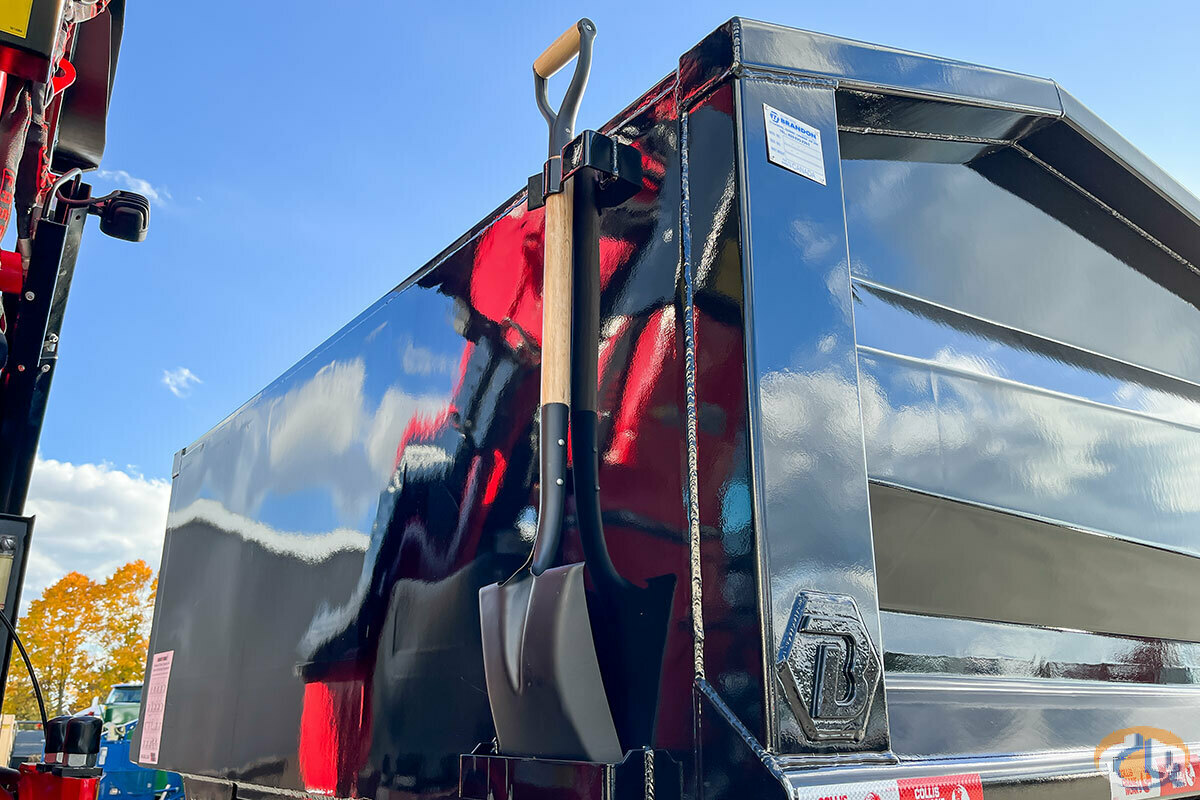

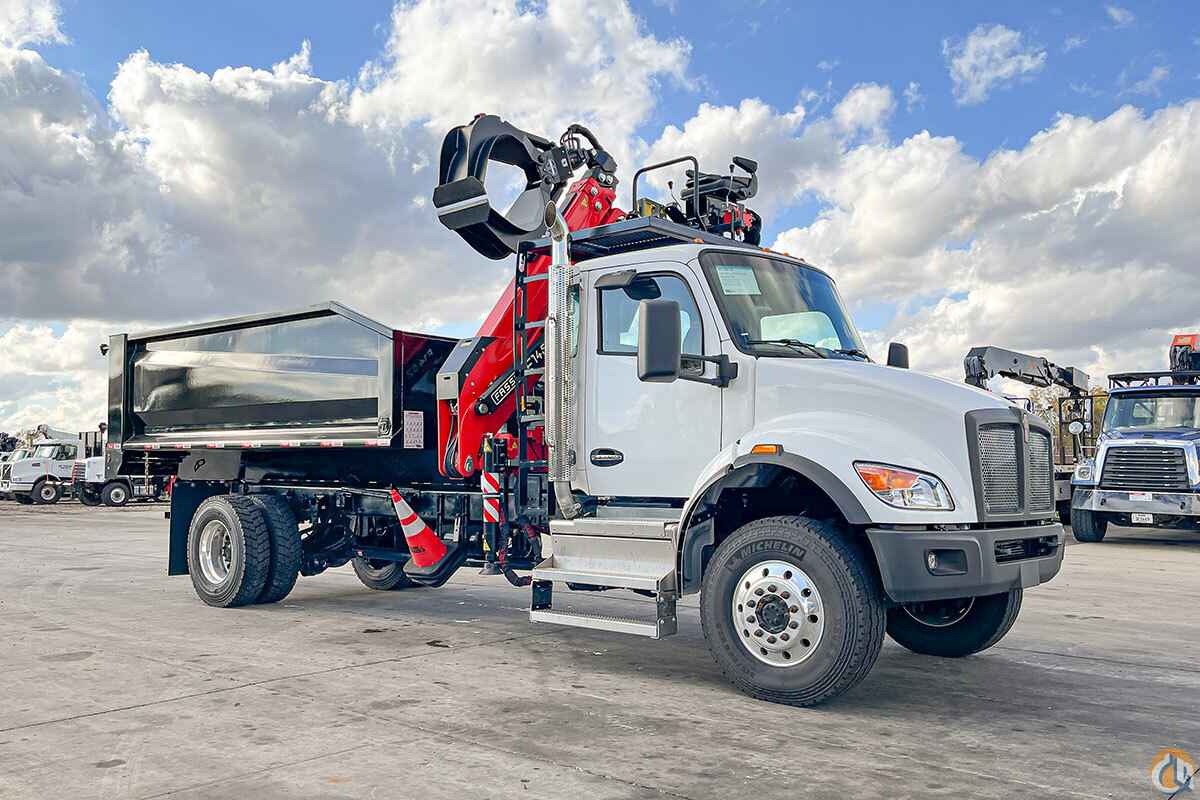

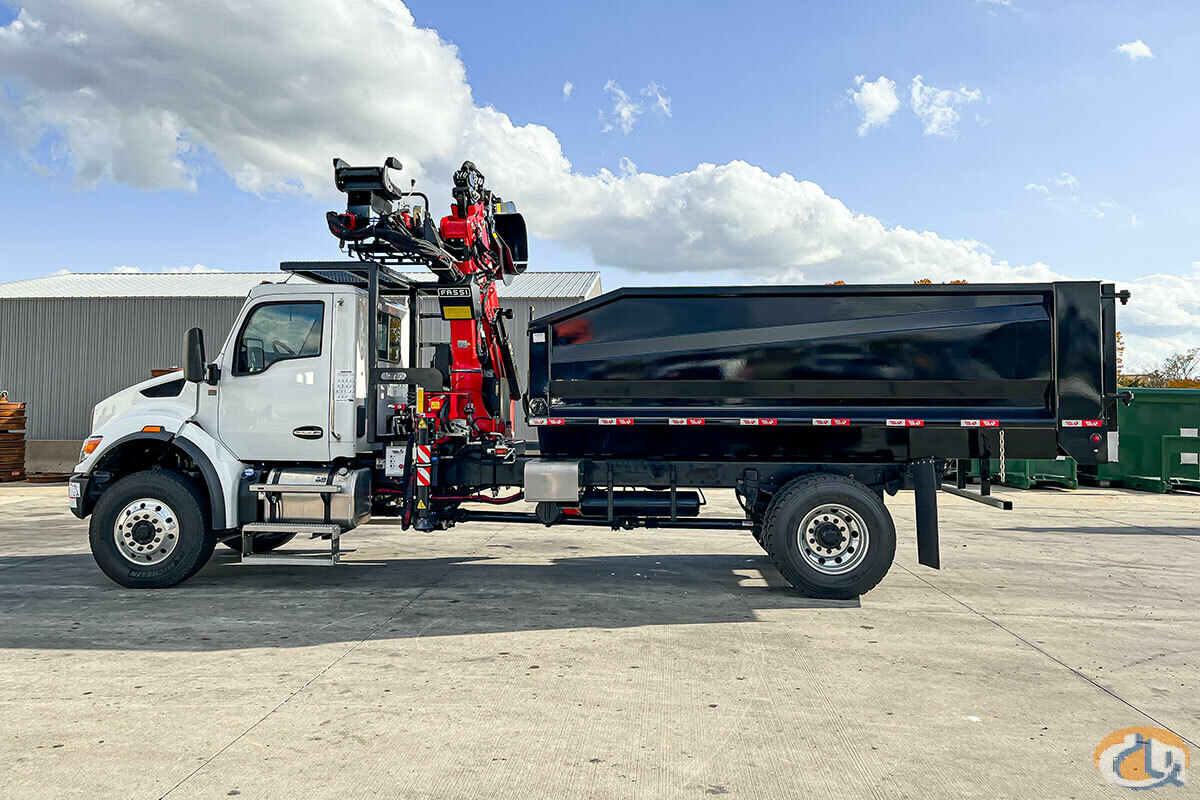

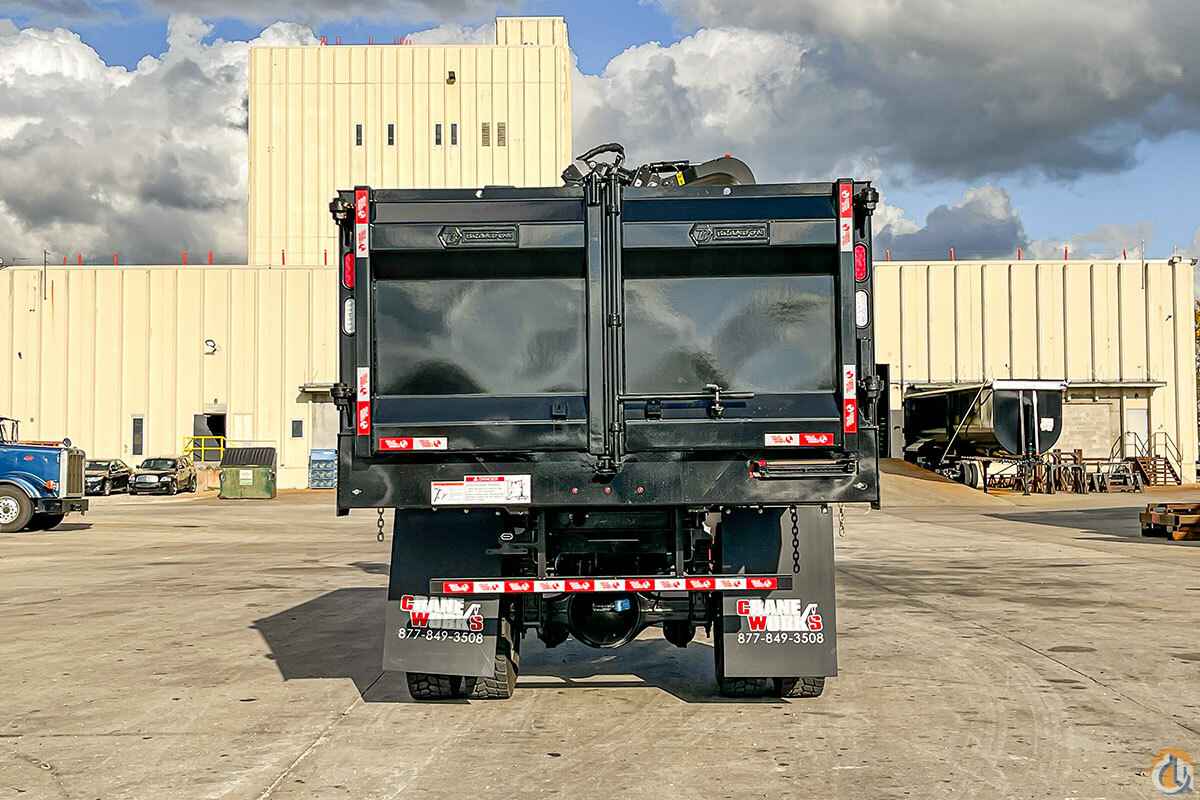

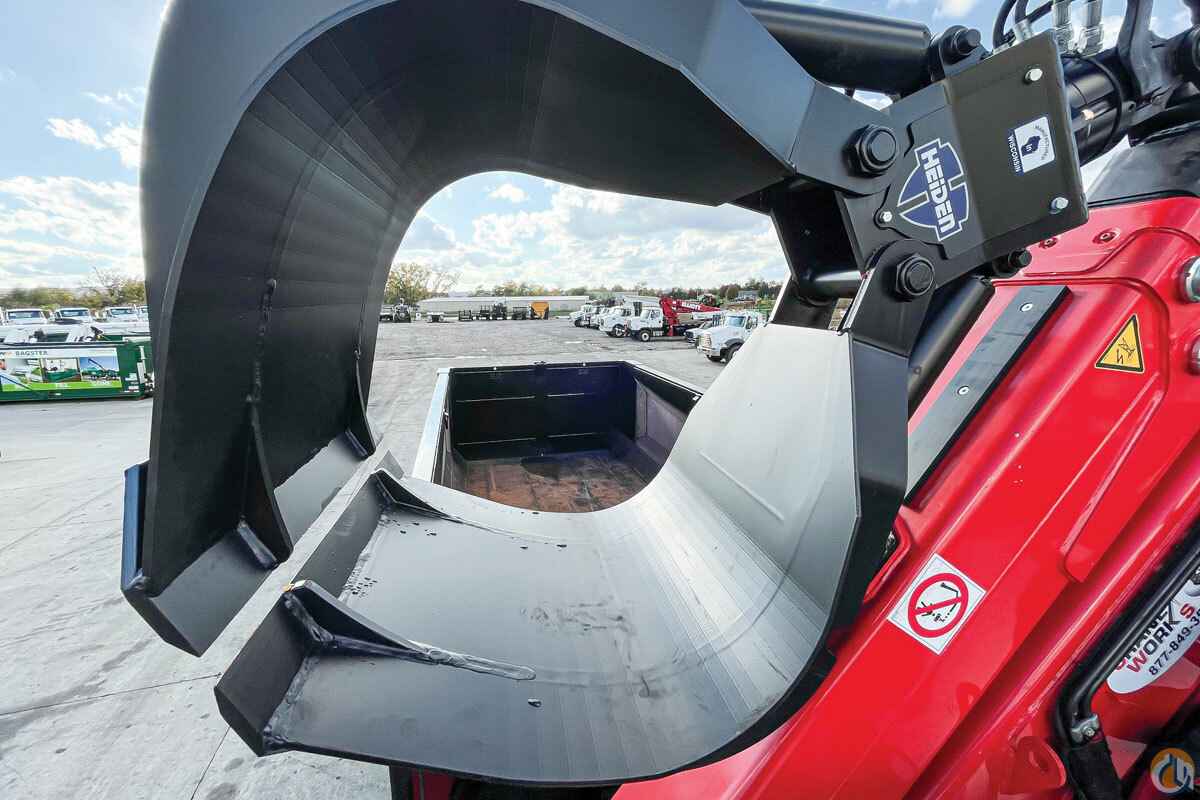

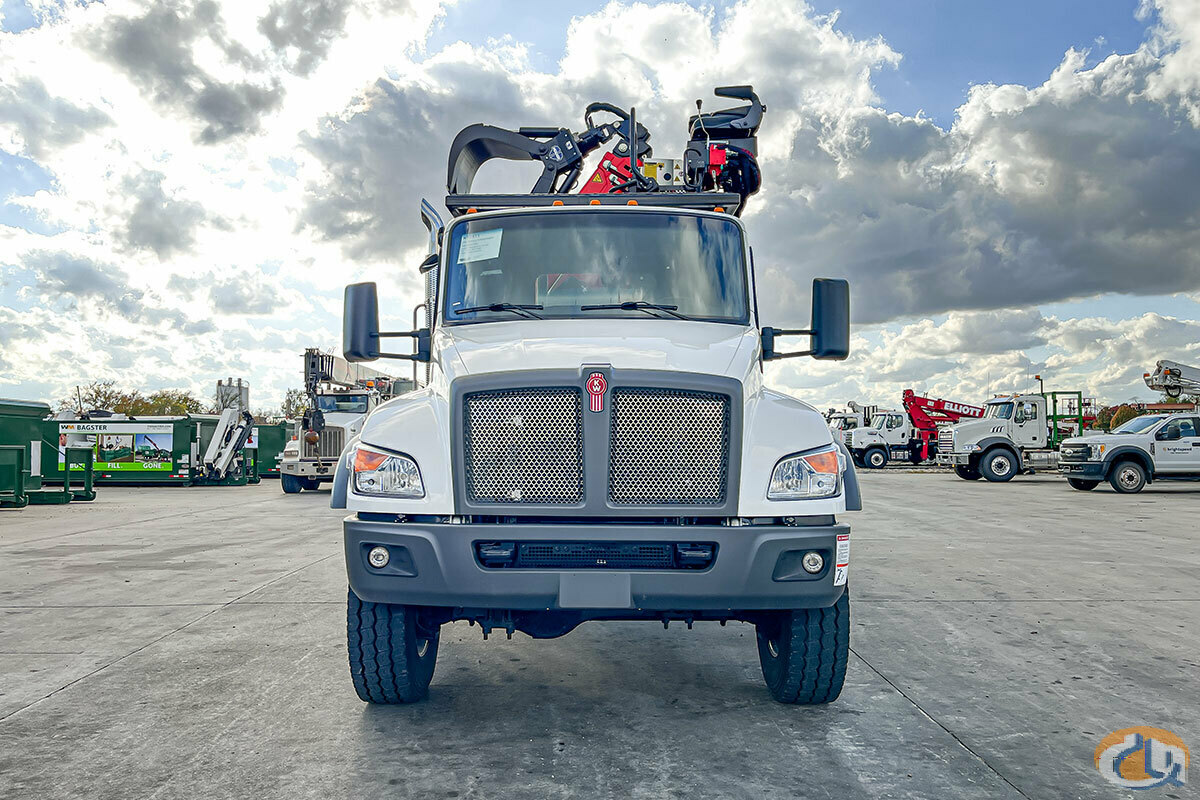

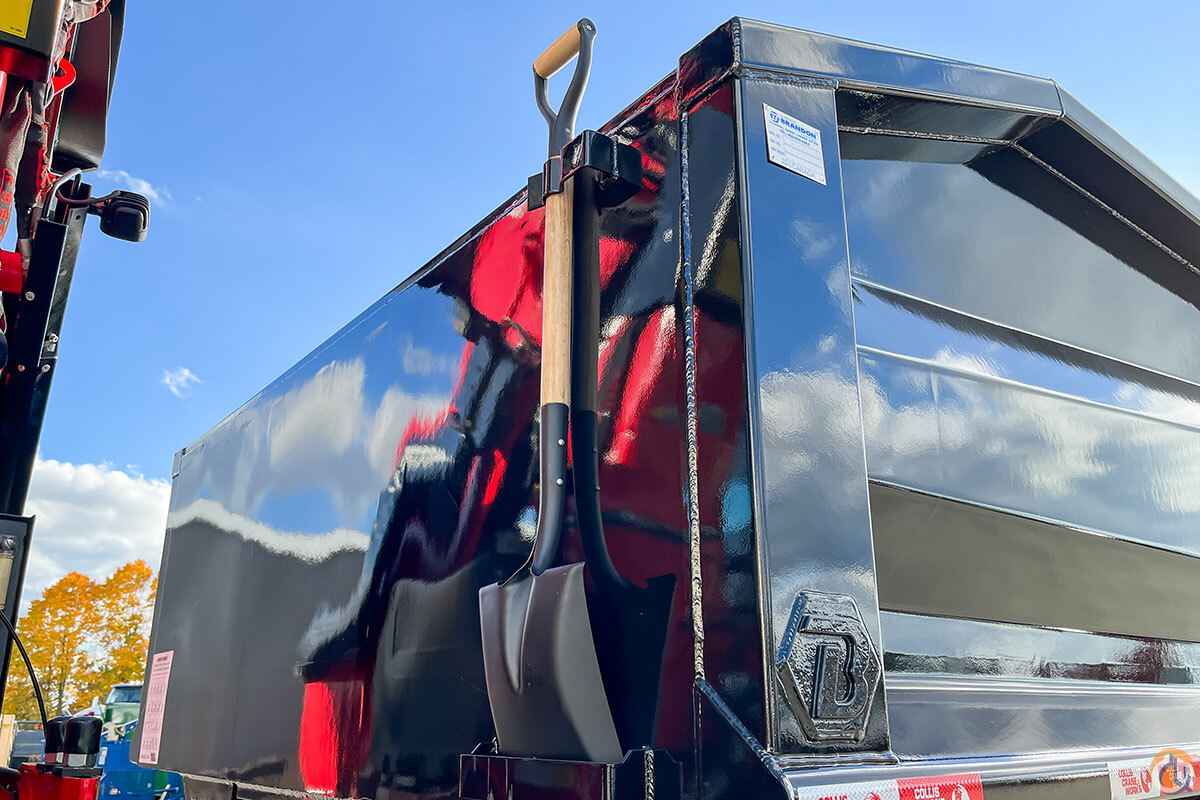

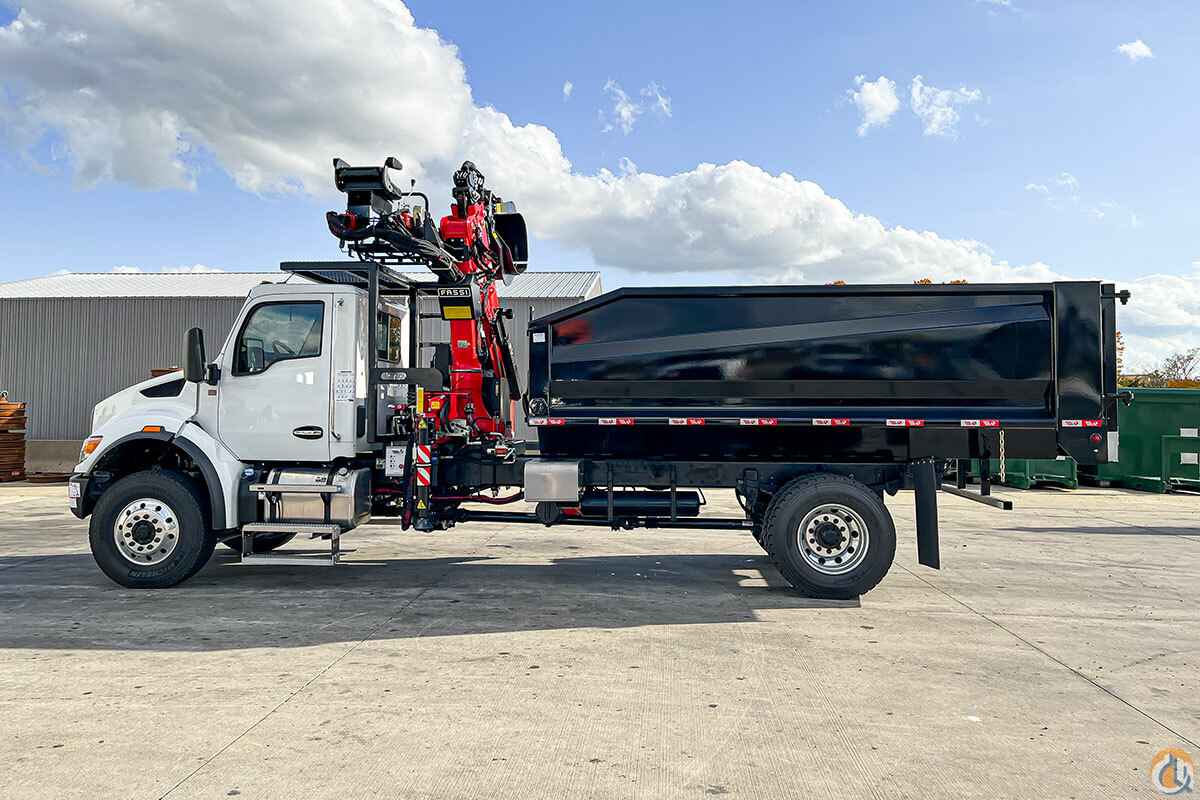

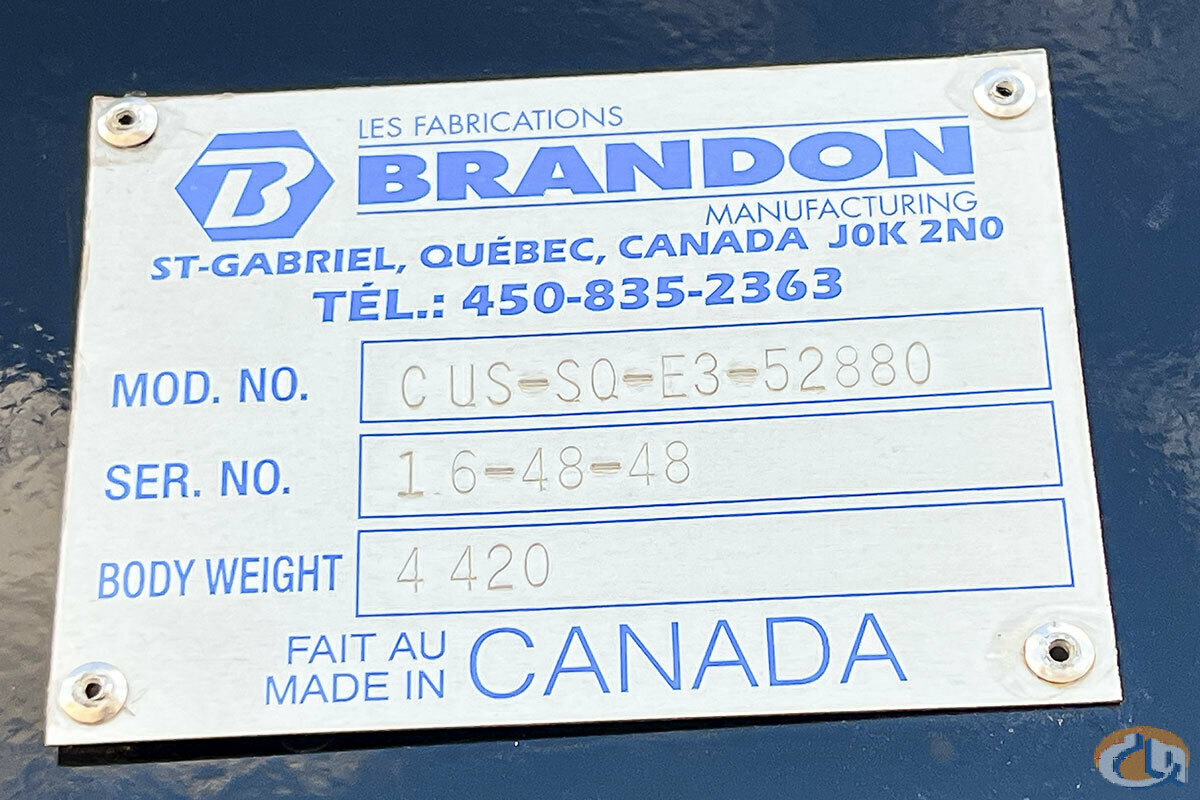

This brand new Fassi F145AZ.0.22 crane truck features a 4WD Kenworth chassis, a Brandon dump body, and a Heiden grapple that's perfect for storm/trash cleanup and tree applications.
