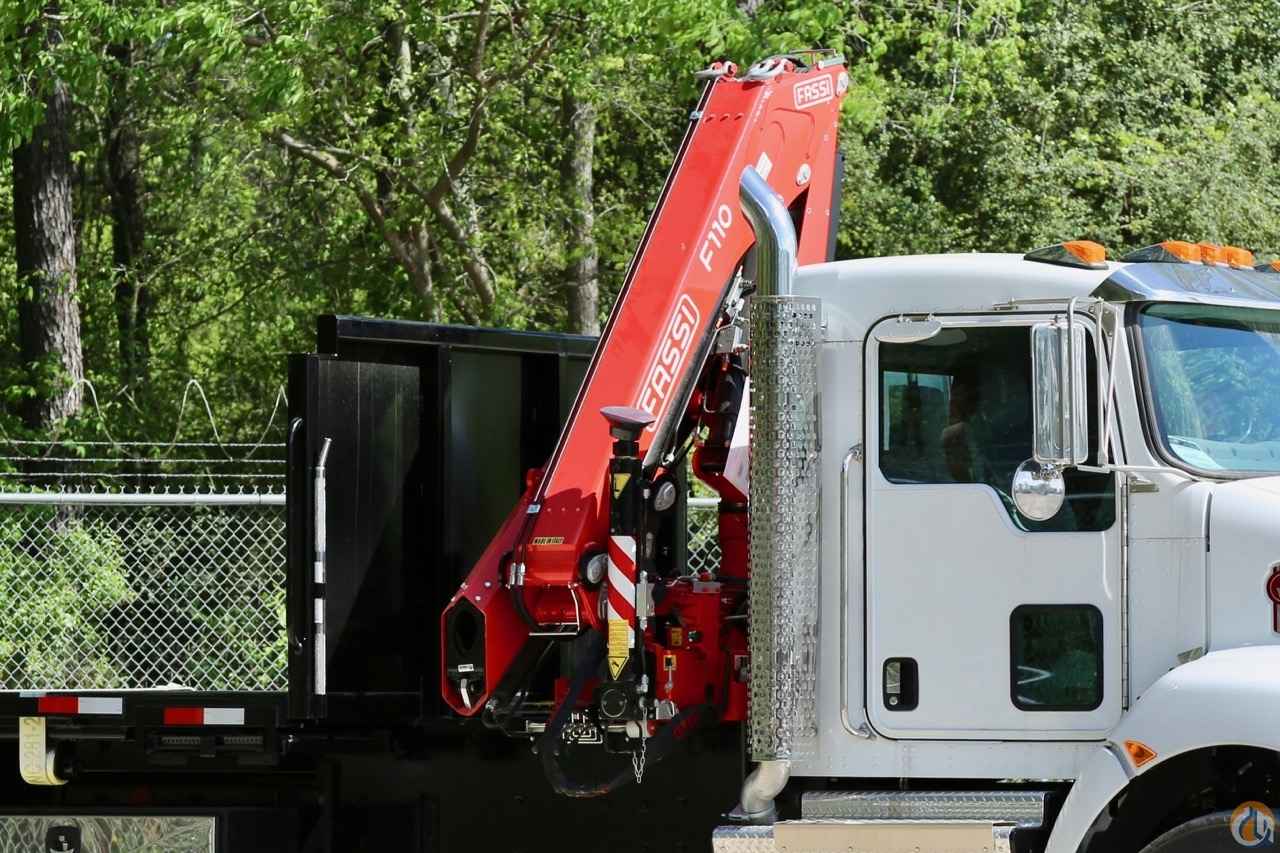

STANDARD FEATURES
Lifting moment: 66,490 lbs.ft
Standard hydraulic reach: 32' 2"
Max hydraulic horizontal outreach in loading configuration: 32' Load at the max horizontal outreach: Manually extendable outriggers with max spread of 12' 10", tiltable at 33° and 180°
Outrigger rams have jointed plate in Monocast material
Cast iron column support and casted steel lower column section for ideal stress distribution and greater resistance
The absence of welds between base and column support provides the crane with characteristics of exceptional resistance to fatigue
Rack and pinion rotation system with self-centering cast iron wear pad to ensure the correct and constant coupling between the pinion and the rack, avoiding the wear and tear of the teeth
Rotation angle: 410°
Rotation torque: 13,058 lbs.ft
Linkage on outer boom articulation. Hydrocontrol HCD4 parallel segmented distributor bank, four segments, positioned on the base and complete with dual ground controls
MPES system (Multi Power Extension System) that guarantees an exceptional extension/retraction speed of the extension booms, built up by a set of equally powerful independent rams, linked in series connection and activate by a single control
Special independent fixing system of the extension rams to guarantee high vertical lifting performances
Extension booms guide shoes with "forced" assembly to reduce vertical and lateral clearance, ensuring greater durability
Special guide shoes material with high sliding degree and low greasing request
24 gal plastic tank, particularly resistant to shocks and the corrosive action of any external element 11,905 lbs boom tip swivel hook
INCLUDED ITEMS
FX200 Electronic Lifting moment limiting device for Hydrocontrol or Walvoil Distributor with control panel for 1 control station which includes: Electronic lifting moment limiting device; Button for acoustic warning (to be wired to the truck horn); Visual Alarm which indicates reaching 90% and 100% of the nominal load
Distributor bank controls and radio remote control handle sequence opposite to Fassi standard that, from right to left, is composed by: rotation inner ram, outer ram, extension ram, 1st supplementary function, 2nd supplementary function
Cross over double control for 4 functions
Long fixing bolts for crane fixation to the vehicle chassis, in place of standard ones
