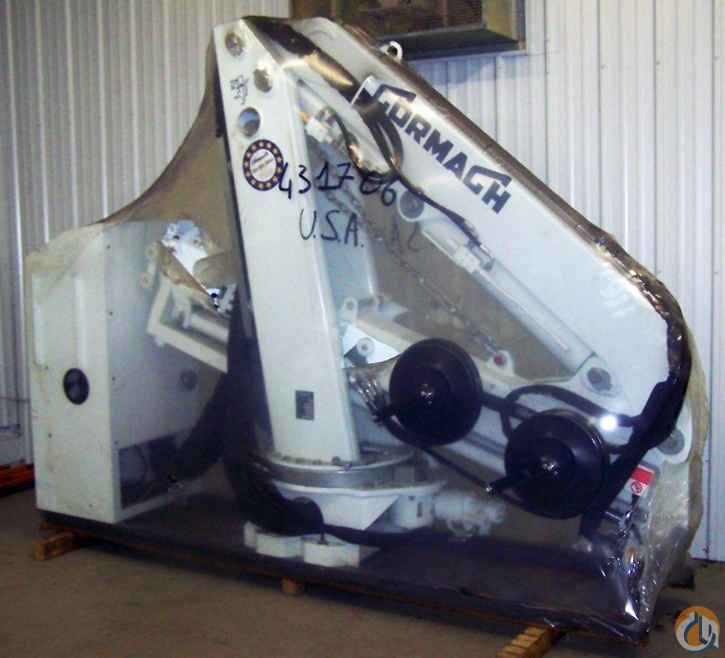

BRAND NEW STILL IN ORIGINAL WRAP - NEVER USED - PLEASE SEE PHOTO. CAN BE PURCHASED WITH OPTIONAL ELECRTIC POWER HYDRUALIC UNIT.
Below are the manufacturer's specifcations. Confirm with the seller the infomation is correct.
| Static moment at the turret pin | 64400 (lbs/ft)
8730 (daN/m) |
| Hyd. boom length | 25'' (in)
7630 (mm) |
| Length | 2'1'' 1'' (in)
650 35 (mm) |
| Width | 7'6'' (in)
2300 (mm) |
| Height | 6'7'' (in)
2000 (mm) |
| Weight (without oil and fitting) | 2566 (lbs)
1164 (kg) |
| Lifting capacity | 6170 (lbs)
2800 (kg) |
| Boom length with manual extensions | 44'12'' (in)
13710 (mm) |
| Slew torque | 6050 (lbs/ft)
820 (daN/m) |
| Slewing speed | 360 - 29 (° - sec) |
| Outriggers extension | 3'11'' (in)
1200 1100 (mm) |
| Outriggers width | 14'9'' (in)
4500 (mm) |
| Pump delivery | 4,75 (us gal/min)
18 (lit/min) |
| Pressure | 3990 (Psi)
275 (bar) |
| Oil tank capacity | 13,2 (us gal)
50 (lit) |
