Sold New Cormach 50000 WB95 wallboard crane (unmounted) Crane in Olathe Kansas

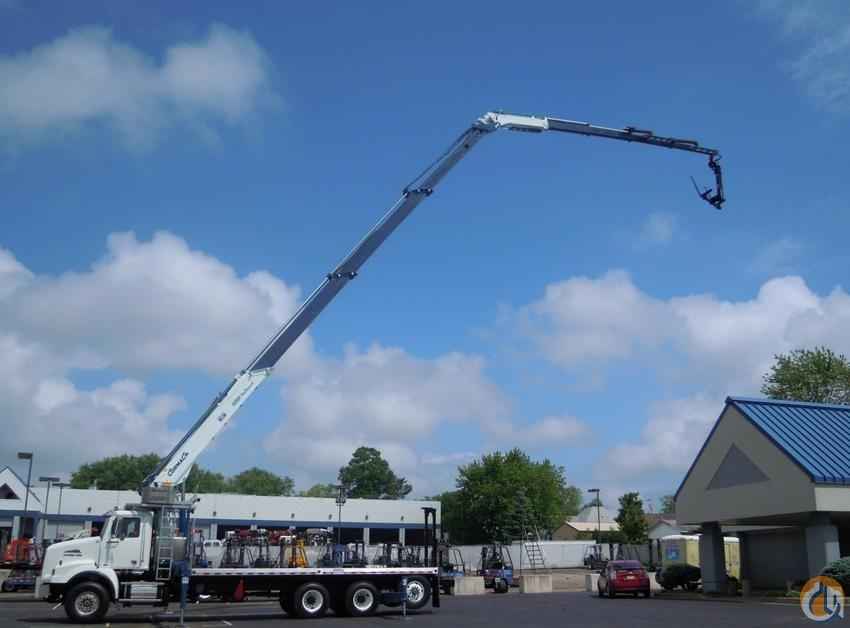

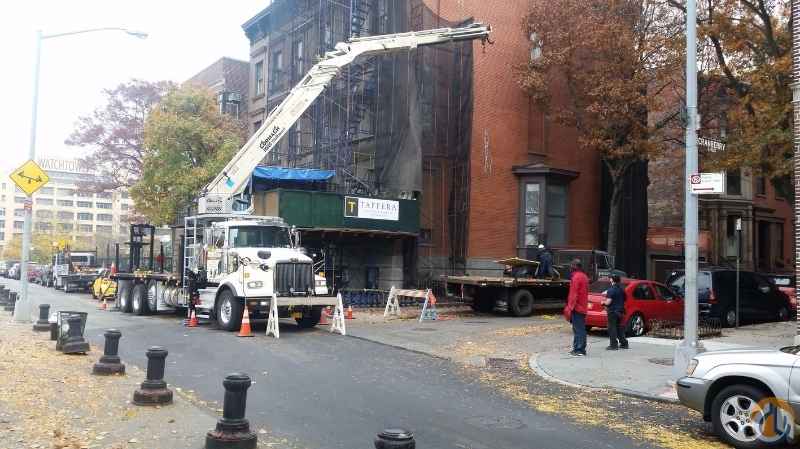

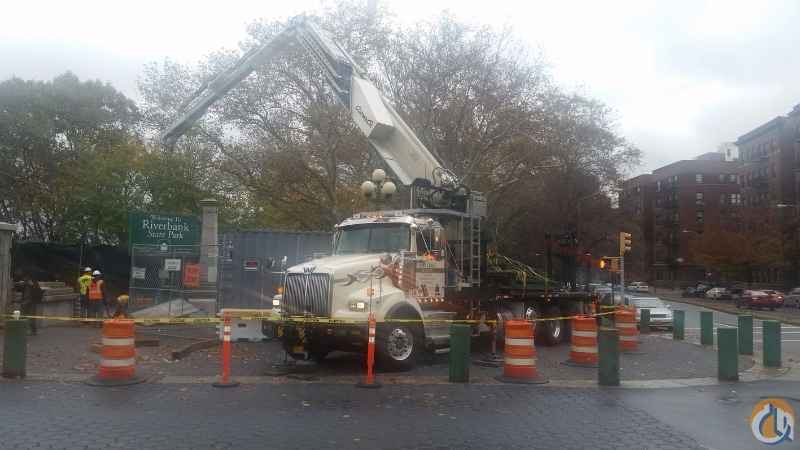

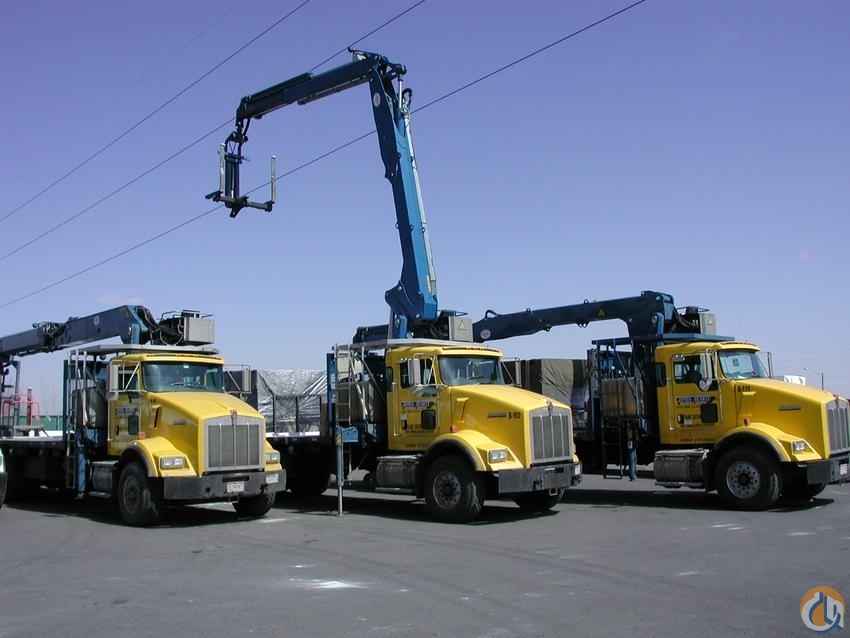

Sister units shown

Technical specifications

Static moment at the turret pin: 63000 (daN/m), 464663 (lbs/ft)

Hyd. boom length: 29000 (mm), 95' 2" (in)

Weight (without oil and fitting): 6410 (kg), 14130 (lbs)

Lifting capacity: 2780 (kg), 6130 (lbs)

Slew torque: 4000 (daN/m), 28938 (lbs/ft)

Slewing speed: 360- 58 (° – sec), 360- 58 (° – sec)

Outriggers extension: 2626 + 2626 (mm), 8' 7" + 8' 7" (in)

Outriggers width: 7620 (mm), 25' 0" (in)

Pump delivery: 100 (lit/min), 26 (gal/min)

Pressure: 320 (bar), 4640 (Psi)

Oil tank capacity: 250 (lit), 66 (us gal)
