Features

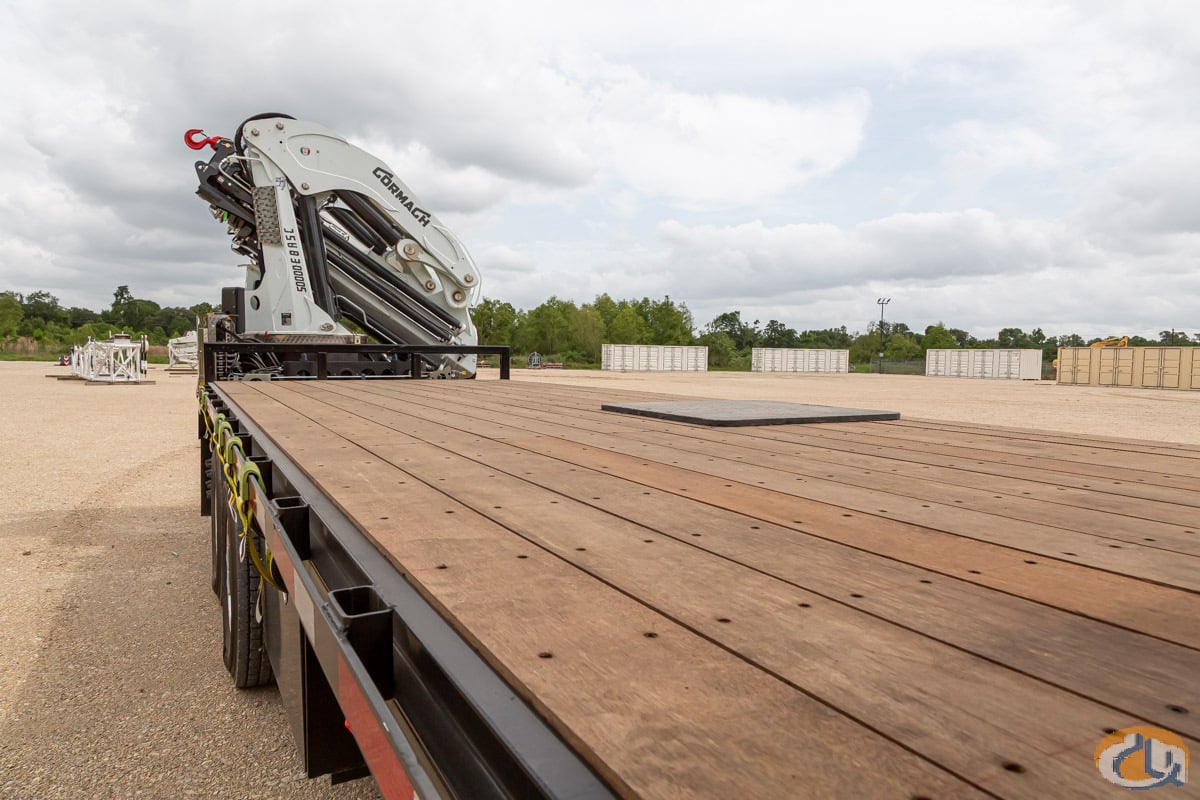

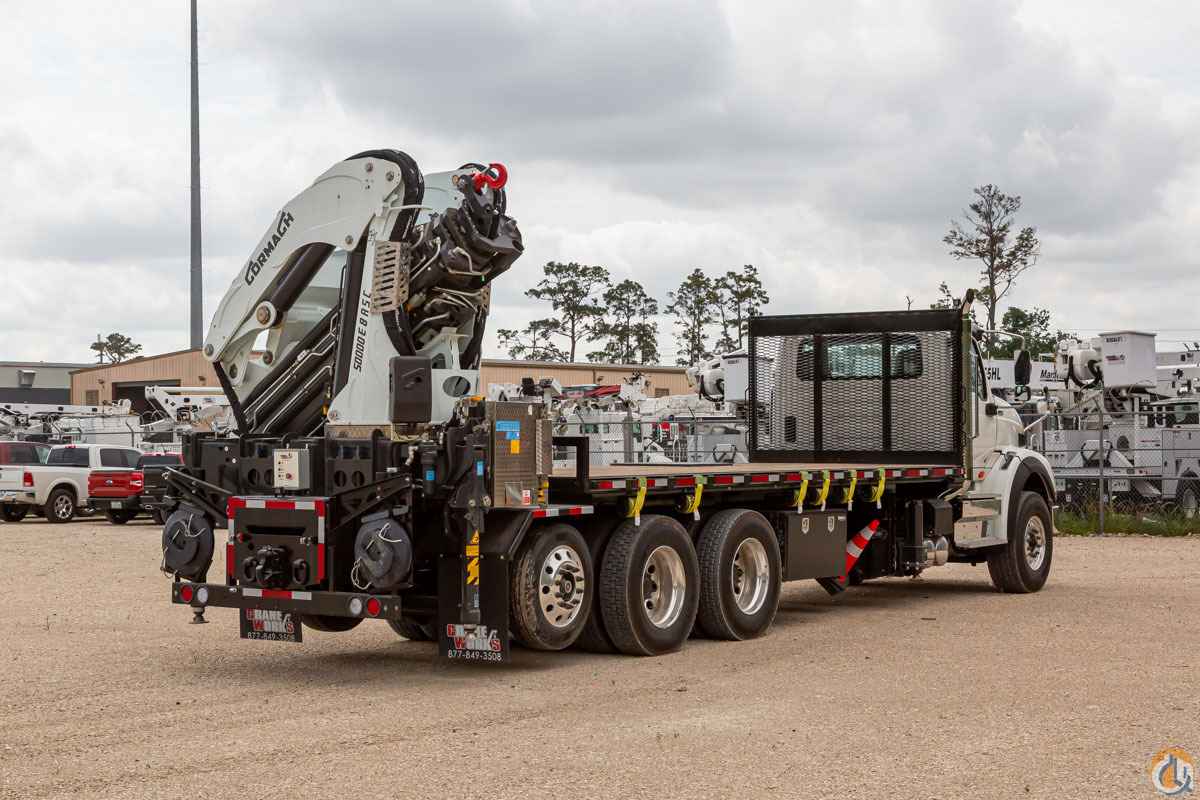

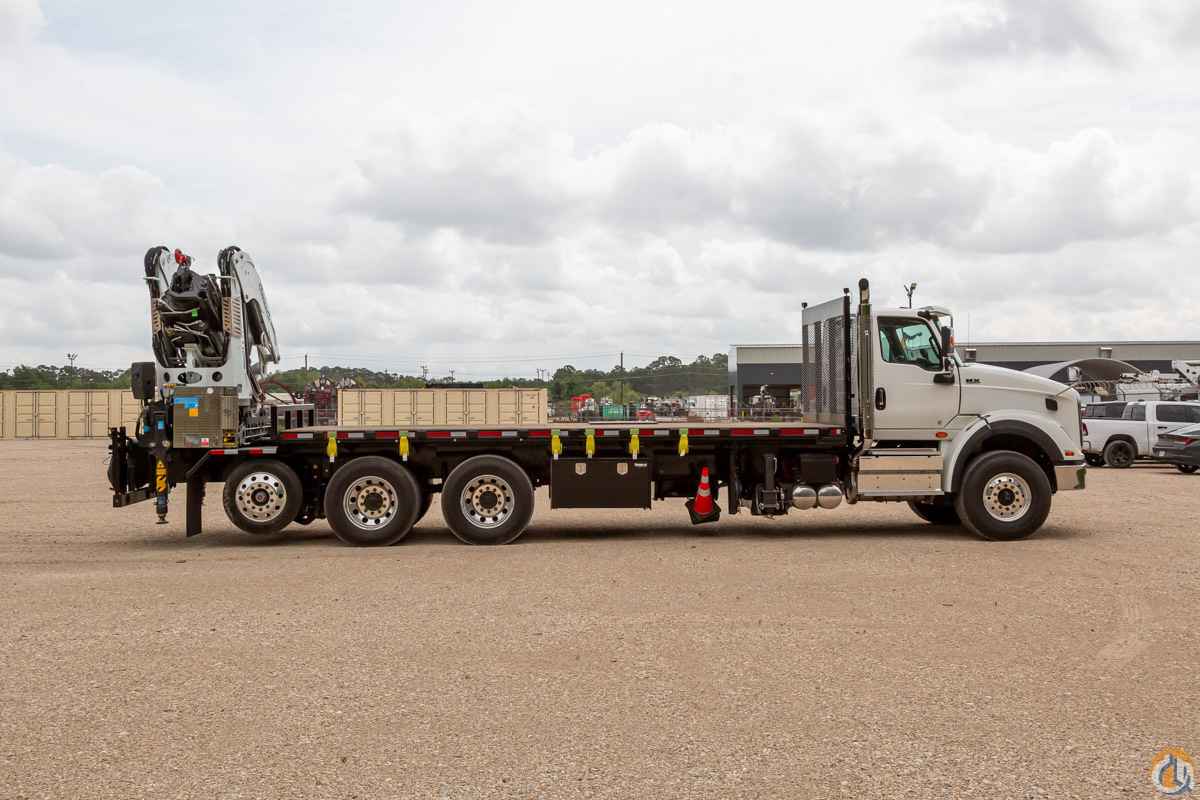

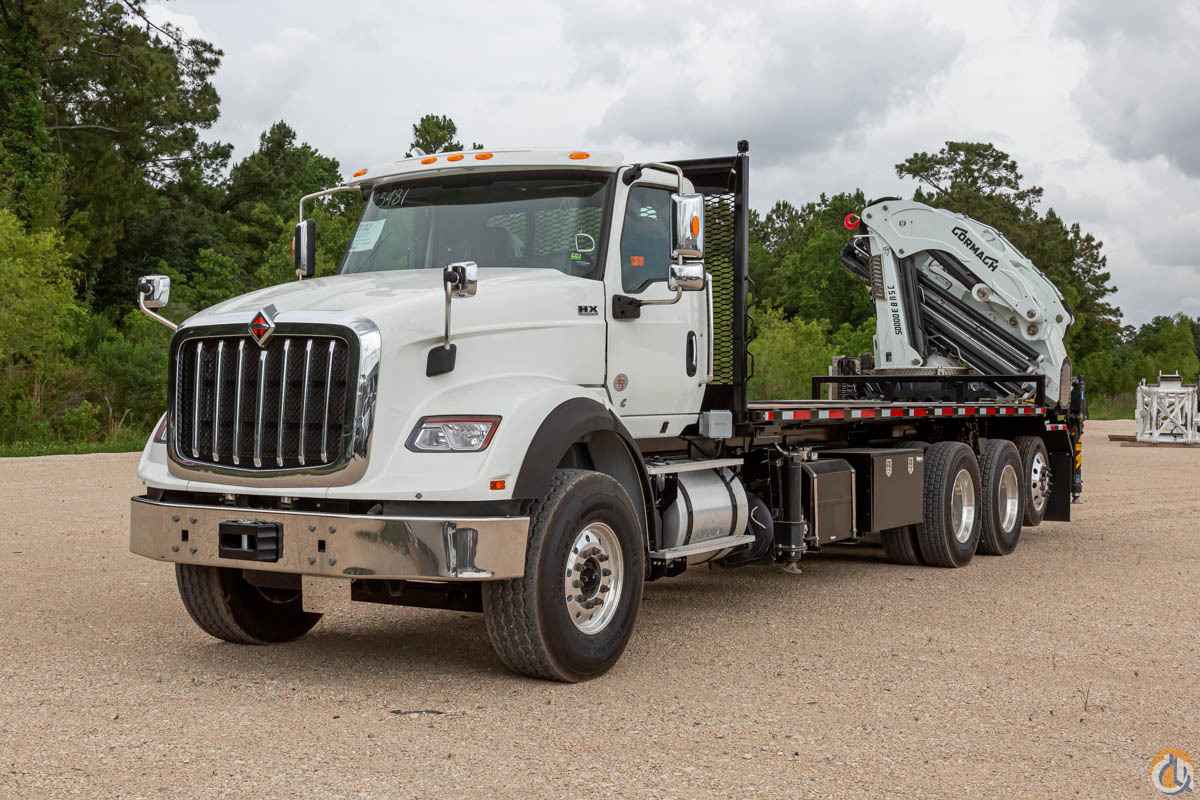

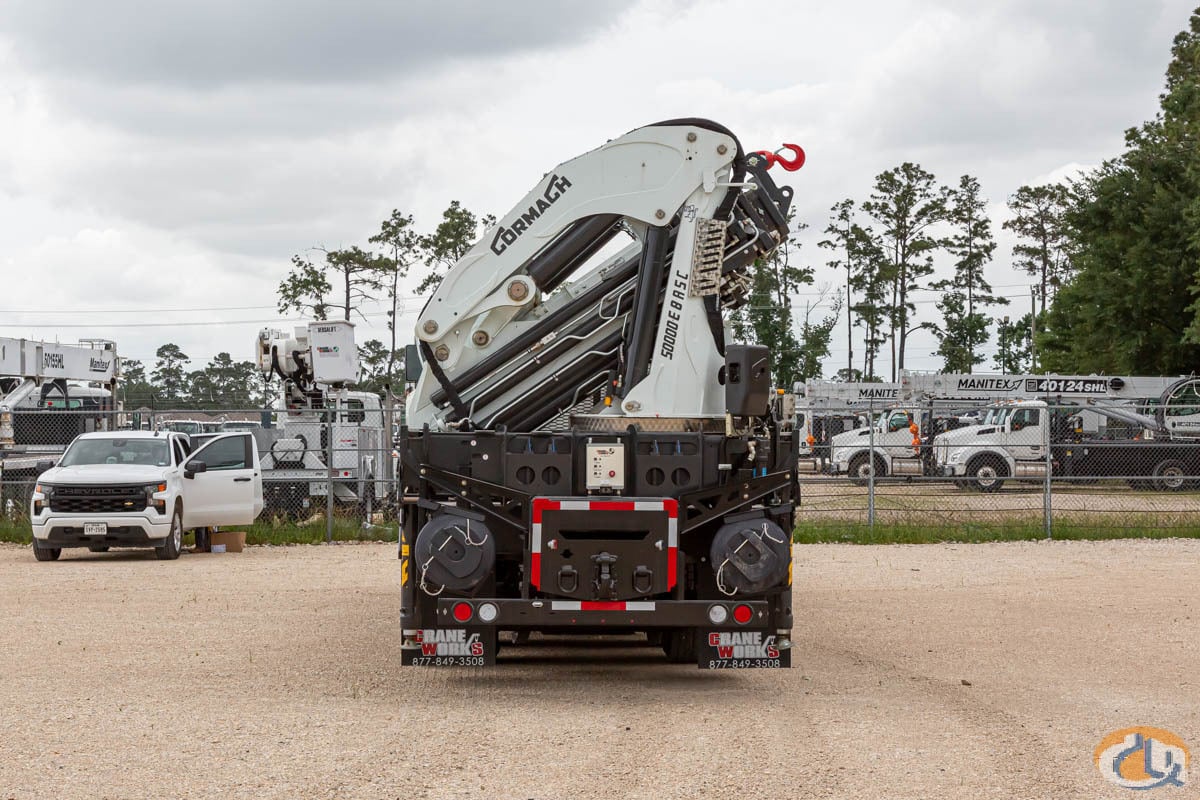

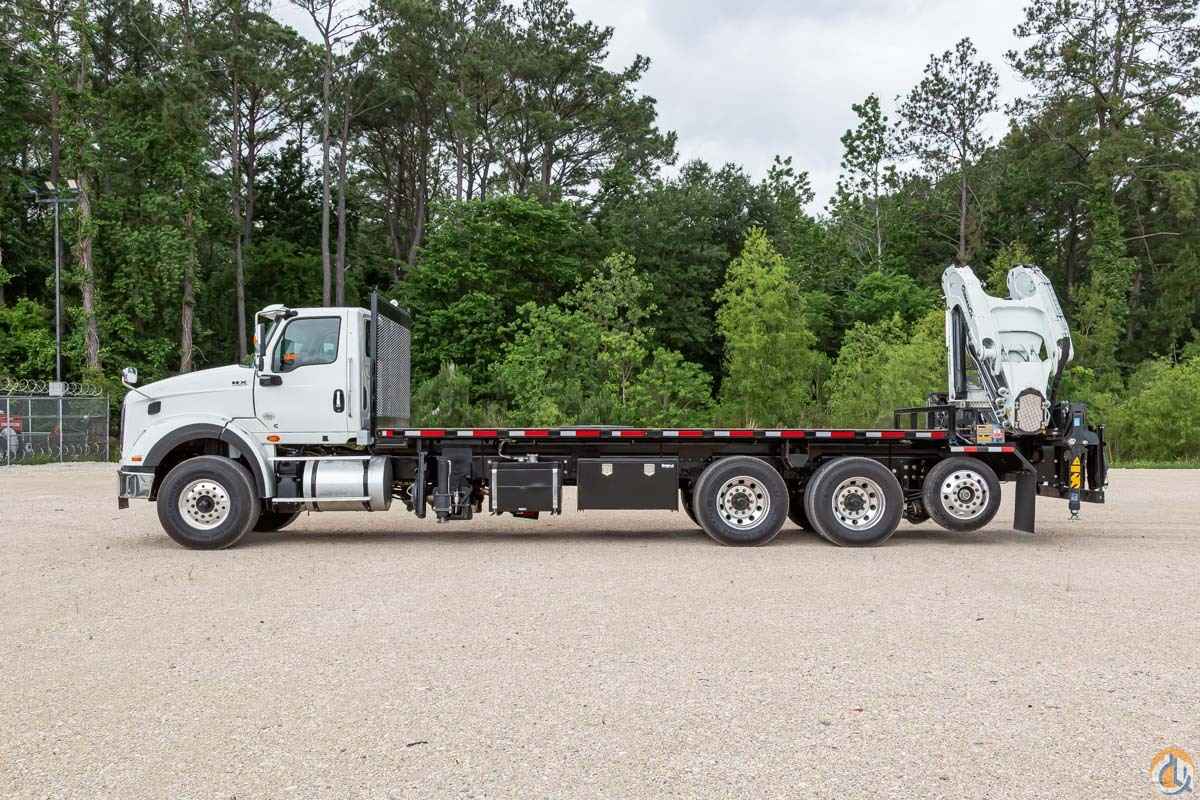

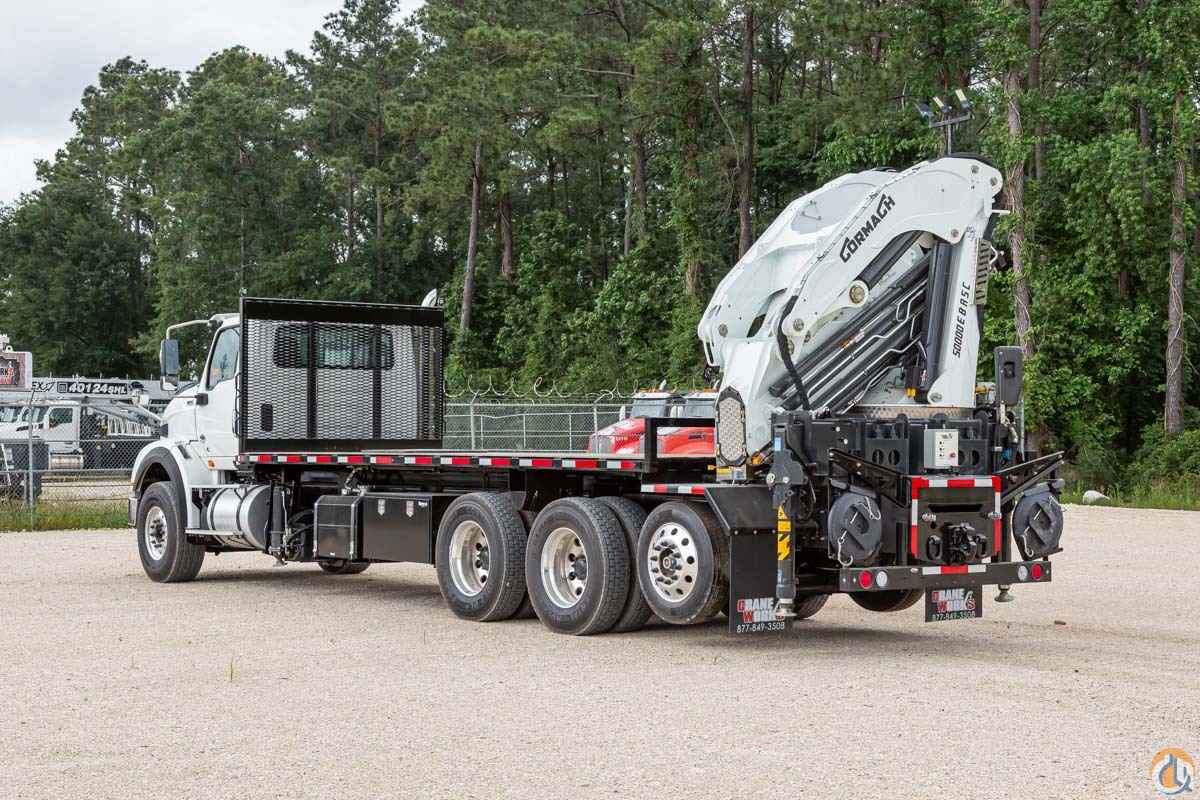

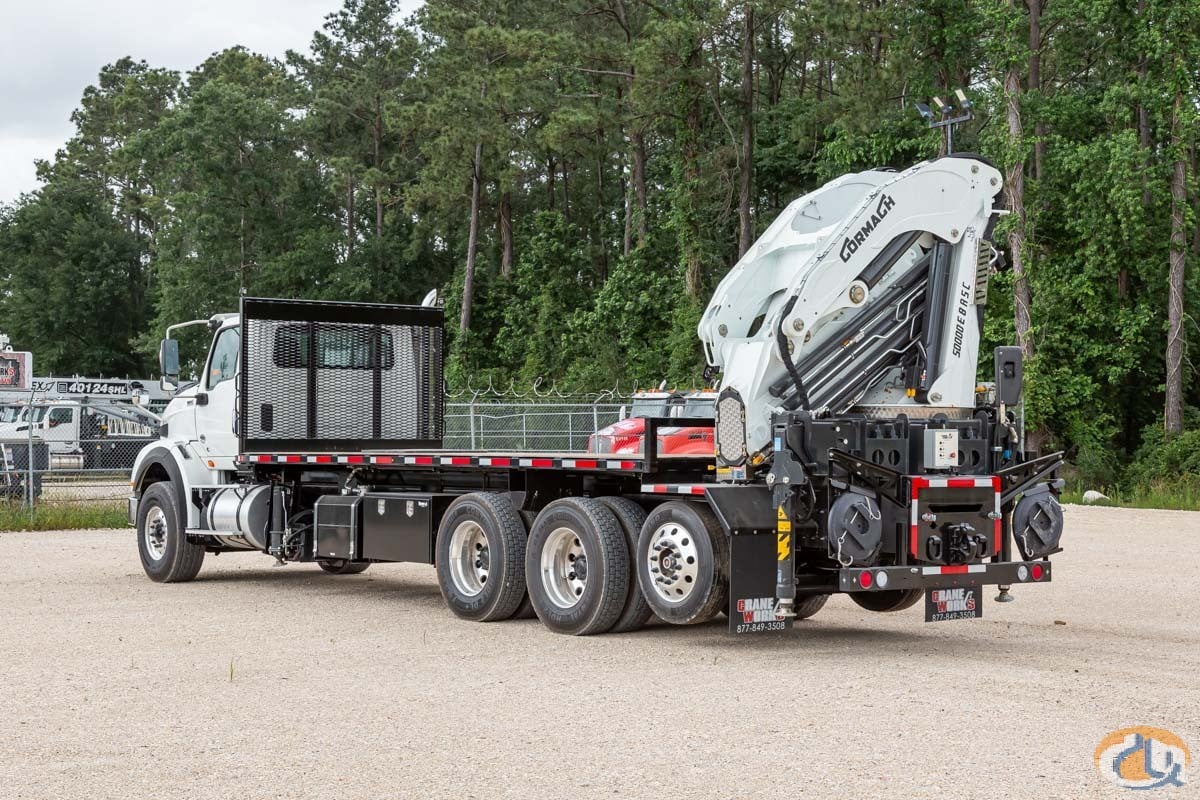

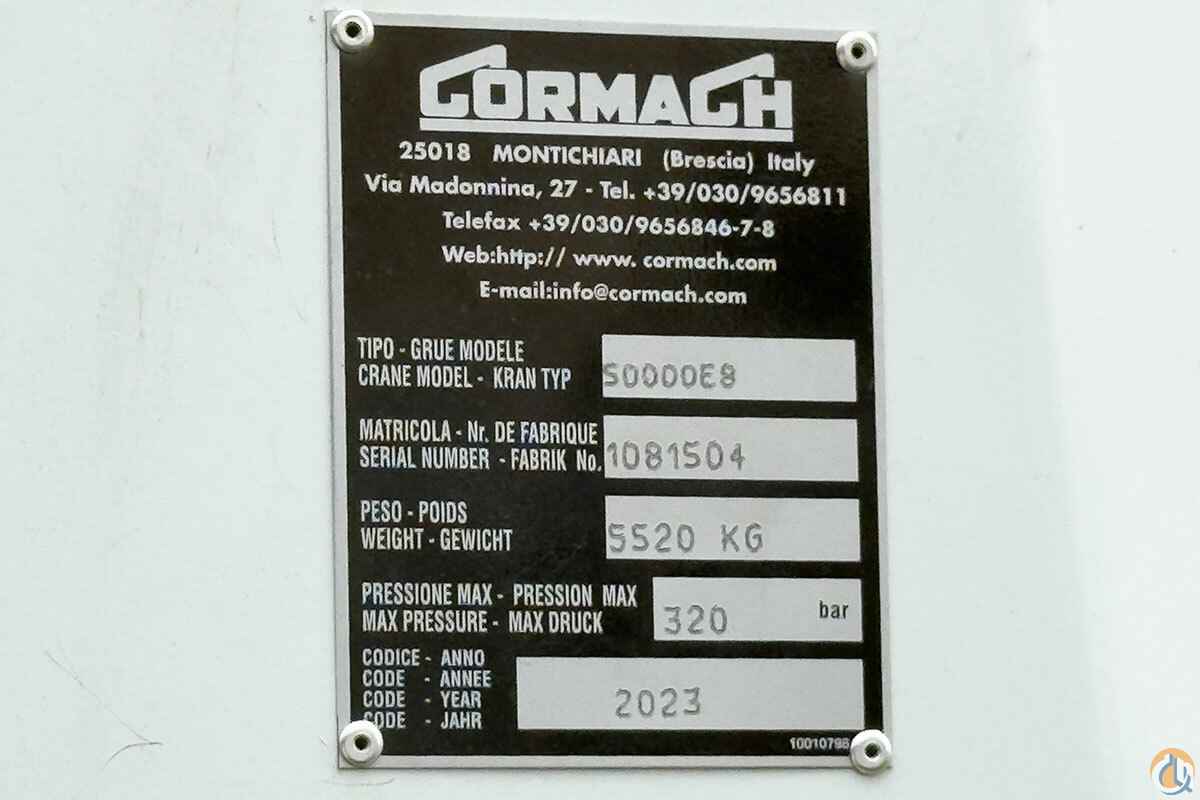

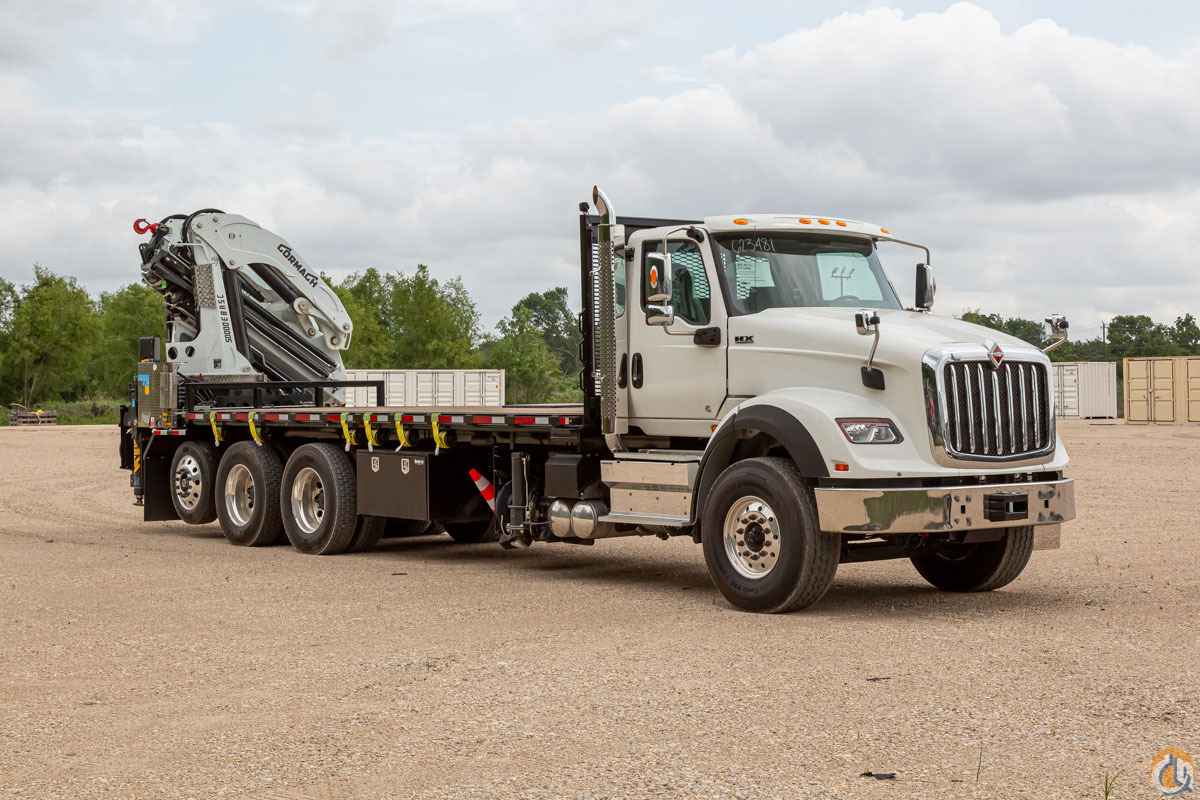

Cormach 50000 E8 ASC Plus
TECHNICAL CHARACTERISTICS
- Static moment at tower pin: 48700 daN/m; 352315 lbs/ft
- Hydraulic reach: 18570 mm; 60'11"
- Length: 1419 mm; 4'8"
- Width: 2547 mm; 8'4"
- Height: 2400 mm; 7'10"
- Weight (without oil and assembly): 5520 kg; 12170 lbs
- Capacity: 9120 kg; 20106 lbs
- Slewing torque: 4500 daN/m; 32554 lbs/ft
- Stabiliser protrusion: 3150 + 2750 mm; 10'4" + 9'
- Stabiliser width; 8270 mm; 27'2"
- Pump capacity: 80 l/min; 21 US gal/min
- Pressure: 320 bar; 4550 psi
- Tank capacity: 200 l; 52 US gal
